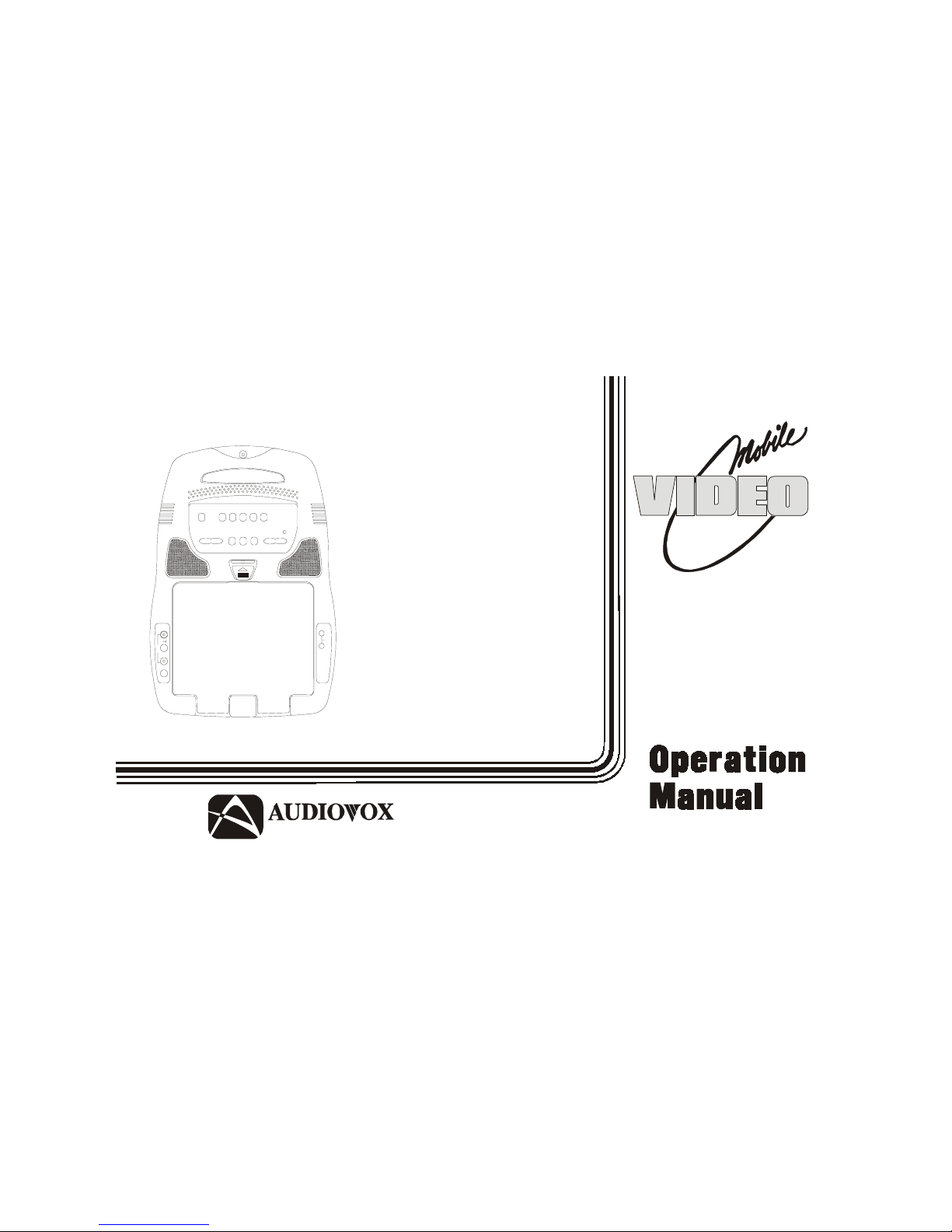

Audiovox PROVD8 User manual

VOD705
ELECTRONICS CORP.
®
Released 06-14-02.
128-6392
PROVD8
8” LCD OVERHEAD
TV/MONITOR WITH
DVD PLAYER
POWER EJECT REW PLAY F.F STO P
CHANNEL
AUTO
PROGRAM SOURCE
SELECT PICTURE
SELECT VOLUME
ON OFF AUTO
IR
INPUTAUDIO
LR
VIDEO
HEADPHONES

Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or
screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly
or indirectly, to the driver while operating the vehicle. In the interest of safety, the PROVD8 should never be installed
where it will be visible, directly or indirectly, by the operator of the motor vehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe
the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome
lights, if left on, can drain the vehicle’s battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Television Reception
This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television
reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal
strength.Televisionviewinginastationaryvehiclewillresultinanimprovement,butmaystillbemarginalduetosignal
strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by
weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color
loss.

Congratulations on your purchase of the Audiovox
PROVD8 Overhead TV/Monitor with DVD Player. The
PROVD8hasbeendesignedto giveyouand yourfamily
many years of video entertainment in the mobile
environment. Please read the directions that follow to
familiarize yourself with the product and to ensure that
you obtain the best results from your equipment.
Please NOTE: Installation options vary, see the
individualowner’smanuals for eachcomponentinyour
system to obtain a full understanding of each
component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommendedthatthevehicle is not in motion, andthat
you do not allow children to unfasten seat-belts to
change video media or make any adjustments to the
system. System adjustments can be accomplished
using the remote control unit, while seat-belts remain
fastened. Enjoy your Audiovox entertainment system
but remember-safety of all passengers remains the
number one priority.
Features
· 8 Inch (4:3) TFT (Thin Film Transistor) Active
Matrix LCD (Liquid Crystal Display) Monitor
· Built-in DVD Player
· Built-in TV Tuner
· AVIInput
· AUX (Game/Camcorder) Input
· OSD (On Screen Display) for Control of Picture
Quality and Functions
· Three Frequency FM Modulator (remote
control) with OSD for Frequency Display
· Infrared Transmitter for IR Wireless
Headphones
· Headphone / Speaker Amplifier
· Headphone Jacks (DVD/TV/Monitor)
· Forward and Side Remote Sensor
· Dome Lights with Switch
· Backlit Controls for Low Light Operation
· Full Function Remote Control

Controls and Indicators Diagram
POWER EJECT REW PLAY F.F STOP
CHANNEL
AUTO
PROGRAM SOURCE
SELECT PICTURE
SELECT VOLUME
ON OFF AUTO
,5
INPUT
AUDIO
LR
HEADPHONES
VIDEO

!
" #
#
$%
&
'

"
!


'
&
%
$
# "
!


Figure 1
-1-

-2-
Main Function Descriptions
1. DVD Disc Insertion Slot
2. Infrared Transmitter and Sensor
Use to transmit audio to wireless headphones. Also
allows the remote control to operate the PROVD8
and to control other accessories in the system
3. PLAY (u) Button
This button is used to enter the play mode.
4. FWD(uu)
Allows the user to search in a forward direction
at 2,4, and 8 times the normal speed.
5. STOP ( ) Button
6. PICTURE SELECT Button
Eachtimethisbuttonispressed,theonscreenpicture
adjustment display cycles through “adjustment bars”
for BRIGHTNESS, CONTRAST, COLOR and TINT.
Once the desired adjustment bar is displayed, use
theVOLUMEUP/DOWNbuttonstoadjustthesetting.
Thedisplaywillautomaticallyturnoffifnoadjustments
are made within 6 seconds, or if any other button is
depressed.
7. VOLUME DOWN (-) Button
Use this button to decrease the volume level of the
headphone jacks. It is also used to make picture
adjustments in picture select mode.
8. VOLUME UP (+) Button
Use this button to raise the volume level of the
headphone jacks. It is also used to make picture
adjustments in picture select mode.
NOTE: These buttons will not affect the volume of
wireless headphones or the wired RF modulator.
When using these devices the volume must be
adjusted with the wireless headphone volume
controlorwithyourradio’svolumecontrol(see page
10, Wireless Headphones, or page 11, Wired FM
Modulator).
9. Three Position Dome Light Switch
·Auto – Automatically switches on the dome
lights in conjunction with the vehicle’s interior
illumination.
·Off – The dome lights will not turn on in this
position.
·On – Turns on the dome lights.
10. Screen Release
Movesindirectionofthearrowtoreleasethedrop
down screen.
11. Rev (tt)
Allowstheuser to search inabackwardsdirection.
12. Eject ( ) Button
Ejects Disc.

13. Power Button
(Bright red when system is on, dim when off).
14. Source Select
(DVD,TV,AV1,AUX).
15. TVAuto-program
AllowstheusertoscanandprogramactiveTVstations
into memory.
16. Channel Up (p) Button
Usethis buttontoincreasethechannel numbertothe
desired channel.
17. Channel Up (q) Button
Use this button to decrease the channel number to
the desired channel.
18. Dome Lights
provideadditionalinteriorillumination.
19. Drop Down LCD Panel.
20. Auxiliary AudioInput(Right).
21. Auxiliary AudioInput(Left).
22. AuxiliaryVideo Input.
23. Side Remote Sensor Eye
AllowstheremotecontroltooperatethePROVD8and
control the other accessories.
24. Headphone Jacks
Allows the use of wired headphones with a 1/8” plug
for listening to video program audio.
25. PROVD8 Ventilation Opening
NOTE:Audiovox recommends theuse ofthe Audiovox
HP275Headphoneswhen usingwiredheadphones.
-3-

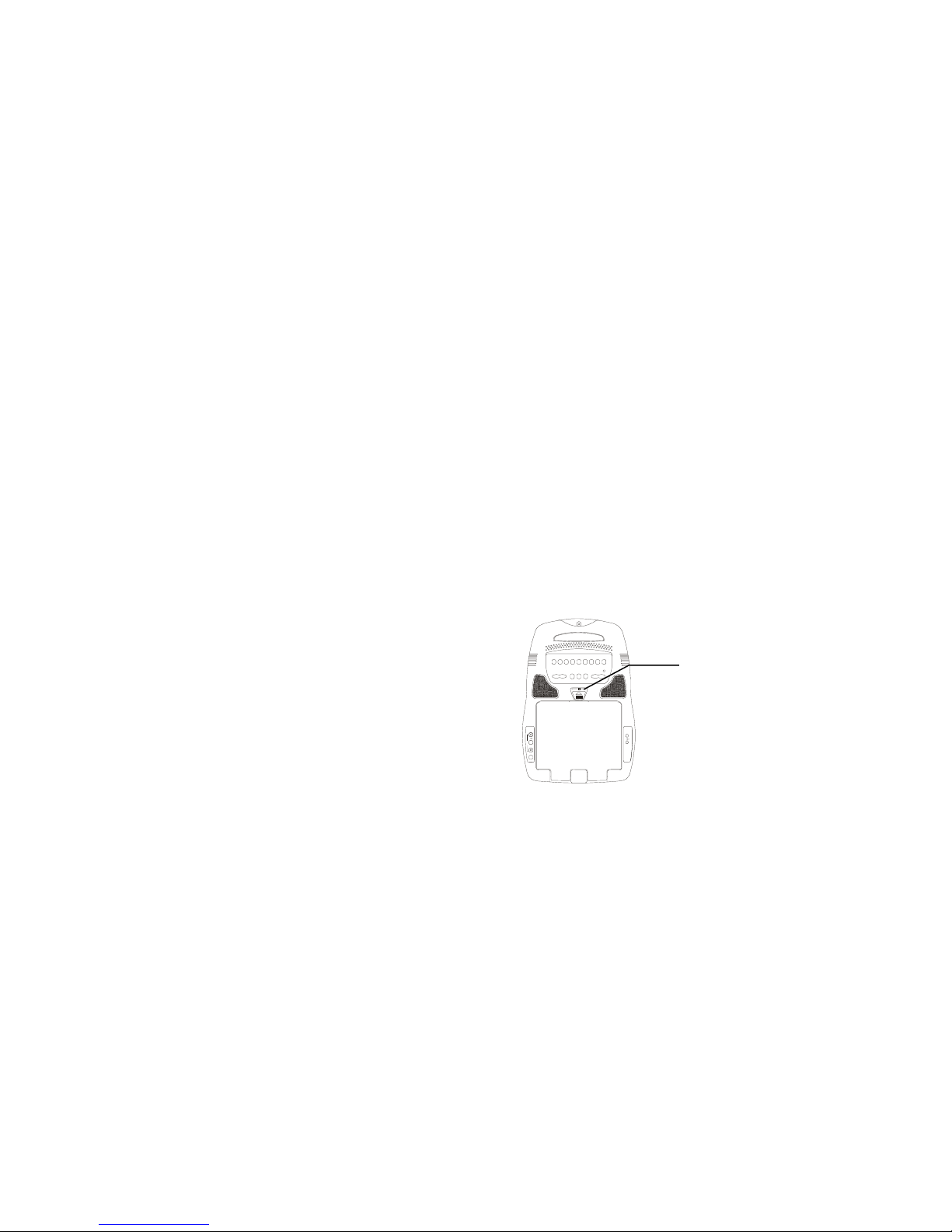

REMOTE CONTROL OPERATION
BATTERY INSTALLATION
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turn the Remote Control face down. Using a
fingernail, lift the battery cover off.
2) Install two “AAA” batteries as shown. Make
sure that proper polarity (+ or -) is observed.
3) Align the cover tabs with the remote control
and press down until the cover clicks.
The remote control will operate the PROVD8 and
Audiovox VCP’s. It is not a universal remote control
and will not control equipment from other
manufacturers.
-4-
POWER
ON/OFF SELECT
EJECT
SOURCE
AUTO
ERASE/
MENU
RETURN
A-B
REPEAT
SETUP
PIX
Enter
FM TRANSMITTER
MEMORY
SKIP/
SEARCH
WRITE VOL
MUTE CH
CH
%
&
'


!
"
#
$
%
&
'
!
!
!
!!
!"
$
#
"
!



'
&
%
$
#
"
!


4. SKIP / SEARCH
This button selects between SKIP and SEARCH
modes. In “SKIP mode” the TV tuner will tune and
stoponchannels that areprogrammedintomemory
when the CHANNEL UP/DOWN buttons are used.
When the SKIP mode is disabled, the TV will stop
on all active channels.
5. ERASE / WRITE
While tuned to a channel, pressing this button will
storeor erase thechannelfrom memory. The stored
channel numbers are displayed in “GREEN” on the
LCD display screen, and the non-stored channel
numbers are in “RED”.
6. Channel Up (p) Button
Usethisbuttonto increasethe channelnumbertothe
desired channel and to scroll upward in menu
options.
7. MUTE Button
Pressthis button tomutethe audiowhileusingwired
headphones.
Pressing the button again restores sound to the
previously set level.
8. ENTER Button
Used to select or switch a highlighted selection.
*Function control is available on the unit and the remote control.
DVD Remote Function Descriptions
1. DVD POWER ON/OFF Button*
Press this button to turn the PROVD8 on. The
DVD or selected video source will be displayed
on screen and the picture will appear in a few
seconds. Press the button again to turn the
PROVD8 off.
2. SOURCE Button
Video equipment connected to the AUDIO/
VIDEOinputscanbeselectedand displayed on
the LCD display screen by pressing this button.
Each time the button is pressed, the Audio /
Video source will change in the following
sequence: DVD, TV, AV1 and AUX.
3. AUTO MEMORY
When the AUTO MEMORY button is pressed,
allchannelsaresearched and channels that are
detected with signals of sufficient levels are
automatically stored. Please refer to page 3 for
more information on TV reception.
-5-

9. LEFT (t) Button
Allows the user to shift left in the menu options.
10. MENU Button
Allows the user to access the main menu.
11. RETURN Button
Allows the user to exit the set up menu.
12. TV Mode Select
Switches certain function keys on the remote control
for TV functions.

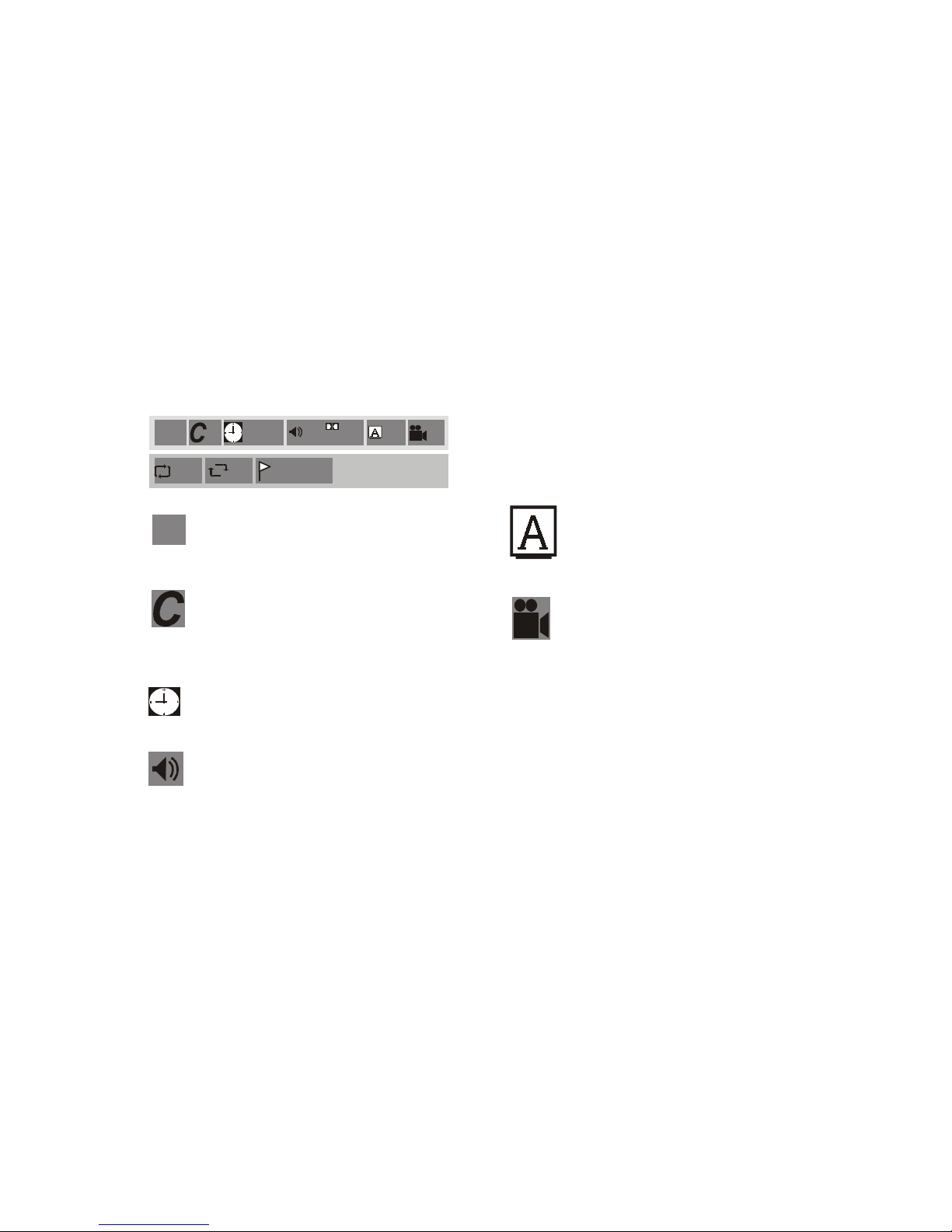

13. DISPLAY
Display Menu, This includes Title,Chapter,Time,
Audio,Subtitle,Angle, Repeat, and Bookmark.
14. PAUSE Button (II)
DVD disc play will be paused. During Disc
Playback, momentarily press the PLAY Button to
Pause the Disc from the unit.
15. PREVIOUS (ltt)
Selects the previous chapter or track on a disc.
16. NEXT (uul)
Selects the next chapter or track on a disc.
17. EJECT(▲▲
▲▲
▲) Button *
The disc will be ejected disc from disc mechanism.
18. FM Transmitter Frequency Select Button
(Selects 88.3MHz,88.7MHz,89.1MHz).
19. FM Transmitter On/Off Button.
UsedtoturntheFMModulatoronandoff.
20. NUMBERS Buttons
Allowstheusertoenterthenumbers0to9forselection
of CD tracks, password and chapters.
21. VOLUME DOWN (-) Button
Use this button to decrease the volume level of the
headphone jacks. It is also used to make picture
adjustments in picture select mode.
22. VOLUME UP (+) Button
Use this button to raise the volume level of the
headphone jacks. It is also used to make picture
adjustments in picture select mode.
NOTE: These buttons will not affect the volume of
wirelessheadphonesorawiredRFmodulator. When
using these devices the volume must be adjusted
with thewirelessheadphone volume control or with
your radio’s volume control (see page 10, Wireless
Headphones,orpage 11, Wired FMModulator).
-6-
*Function control is available on the unit and the remote control.

23. PICTURE SELECT Button
Each time this button is pressed, the on screen
picture adjustment display cycles through
“adjustmentbars” forBRIGHTNESS,CONTRAST,
COLOR and TINT. Once the desired adjustment
bar is displayed, use the VOLUME UP/DOWN
buttons to adjust the setting. The display will
automatically turn off if no adjustments are made
within 6 seconds, or if any other button is
depressed.
24. RIGHT ( ) Button
Allows the user to shift to the right in the menu
options.

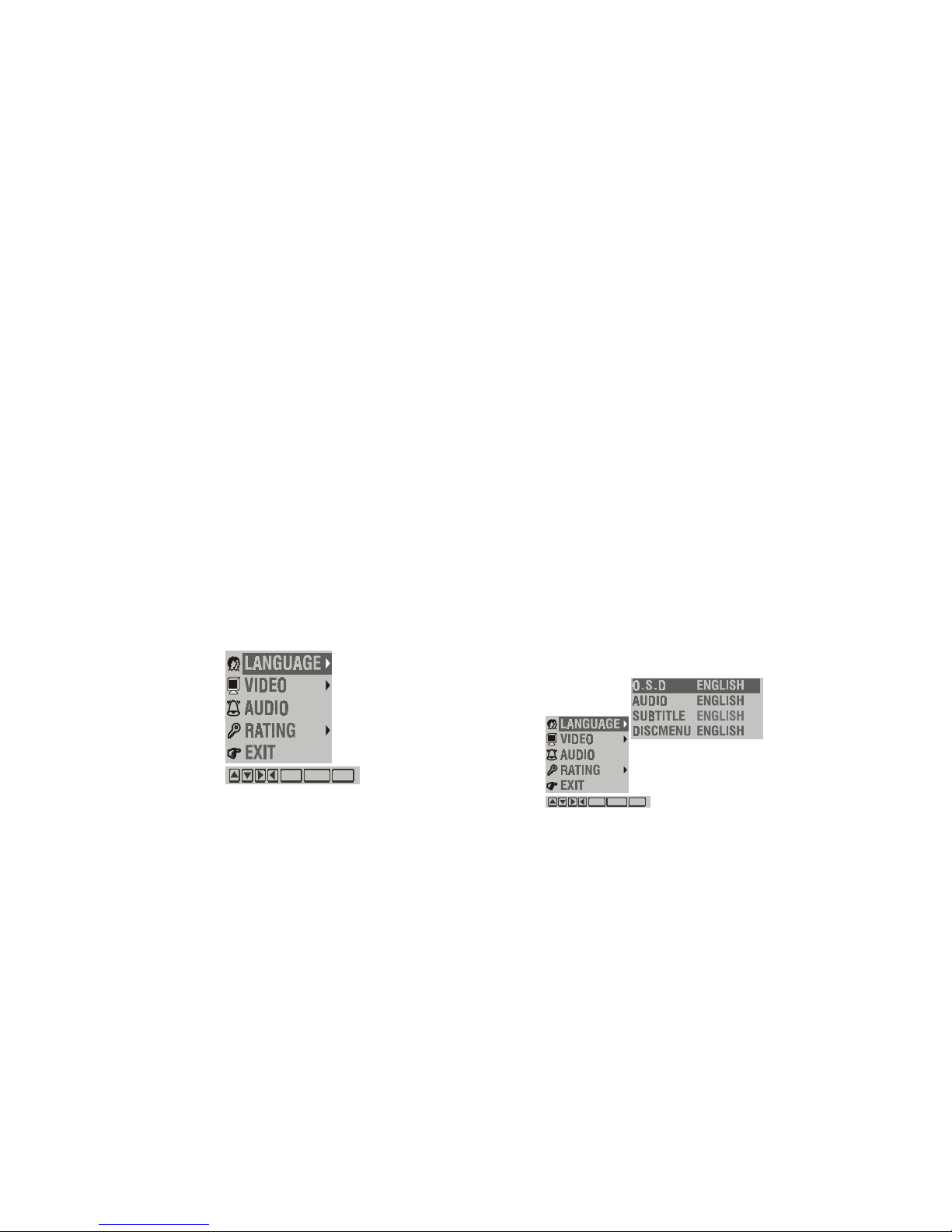

25. SETUP Button
Allows the user to select the DVD options
(Language, Video, Audio, Rating, Exit) Press
SETUP to activate this function. When finished
press SETUP to exit the Setup Menu.
26. CHANNEL DOWN (▼▼
▼▼
▼) Button
Allows the user to scroll downward in the menu
options.
27. REPEAT Button
Allows the user to repeat various portions of a
DVD, CD or MP3 and displays the repeat menu
(Chapter, Title, Disc, Off).
28. A-B REPEAT Button
Allows the user to repeat play of a DVD, CD or MP3
from point A to point B.
29. VCP Mode Select Button
Switches certain function keys on the remote control
for VCP functions.
30. DVD Mode Select Button
Switches certain function keys on the remote control
for DVD functions.
31. STOP (n) Button
DVD disc play will be stopped.
32. PLAY Button ( u)Button*
Press this button to activate the play mode while
a disc is loaded into the disc compartment.
33. Scan Forward (uu) Button
Allows the user to search in a forward direction at
2,4, and 8 times the normal speed.
34. Scan Backward (tt) Button
Allows the user to search in a backward direction
at 2, 4, and 8 times the normal speed.
*Function control is available on the unit and the remote control.
-7-
