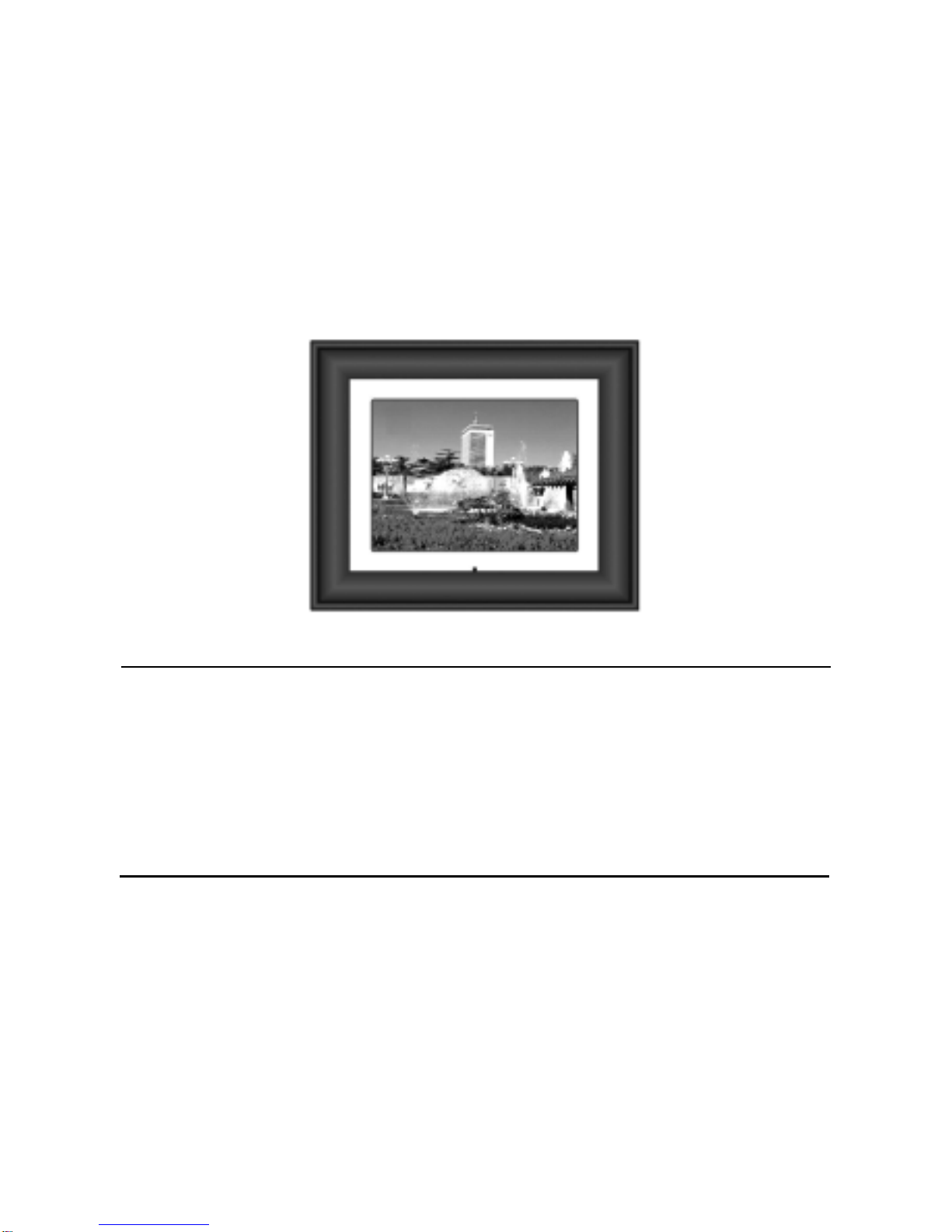

Audiovox DPF808 - Digital Photo Frame User manual

Digital Multimedia Player
OWNER’S MANUAL
DPF808

2
A. Introduction
ThankyouforselectingtheDigitalMultimediaPlayer.Themainfea-
turesincludean8"Screen(4:3AspectRatio)LiquidCrystalDisplay
(LCD)monitor,4in1cardreader,CFcardreaderandUSBport.The
unitappliesthelatest state oftheart electronics andis designed for
usewithSD/MMC/MS/XDmemorycards,CFmemorycardandUSB
memorydevices.Theunitisconstructedtoprovideyearsofreliable,
trouble-freeservice.Pleaseread theentireinstruction manual sup-
pliedwiththisproductpriortooperation.Thedocumentationwillas-
sistyouin obtaining thebestequipment performance. All manuals
shouldbestored for later use.
B. Cautions and Warnings
1. Placement
Topreventfireorelectricshock,donotexposetheDPF808torain
ormoisture.To preventitfromfallingdonotplacetheDPF808on
anunstablecart,stand,tripod,bracketortable.Keeptheunitaway
from strong magnets, heat sources, direct sunlight, and exces-
sivedust.
2. Installation
EnsurethattheDPF808is used inaccordancewith the instruc-
tions.
3. Object and Liquid
Donotpushobjectsofanykindintotheunitthroughopenings;do
not spill or spray liquid of any kind on or in the system (this may
resultinafire or electricshock). Donot place anythingheavyon
theunit.Toensureproper ventilationandproperoperation,never
cover or block the slots and openings with a cloth or other
material.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock. Contact qualified service personnel if your system is in
need of repair.
5. Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthe power
source.Donotuseliquidcleanersoraerosolcleaners.Useacloth
lightlydampenedwithwaterfor cleaning the exterior of the system
only.

3
C. Contents
1. 1 x DPF808 Digital Picture Frame
2. 1 x Remote Control w/Battery (CR2025)
3. 1 x AC to DCAdapter
4. 1 x InstructionManual
5. 3 x Snap-on Frames (Black, White and Wood Grain)
D. Positioning Your Frame
Adjustablestand
Rotate the stand to position the frame vertically or horizontally.
Keep the frame away from strong magnets, heat sources, direct sun-
light, or excessive dust.
Stand
* This connector is used to transfer picture files from a computer
to the DPF808. This cable is not supplied but is available at most
electronic retail outlets.
E. Unit View Left and Right Side
MiniUSBSlot*
USB Slot
SD/MS/MMC/XDSlot
DC 9V Jack
CF Slot
Eyeholes for wall mounting

4
Top Side
1) POWER LED: Lights red when power is on.
2) POWER: Press to turn the frame on or off.
3) PLAY/PAUSE/MODE: Press to confirm a selection, pause a
slide show, or change Modes (Slide Show, Pause, Thumbnail)
4) MENU: Press to return to the main menu or to enter the card
selection screen when the main menu is displayed.
5) UP/COPY/DELETE: Press to move cursor up or to copy/delete a
photo.
6) DOWN/ROTATE: Press to move cursor down or to rotate a photo
in Pause mode.
7) LEFT Arrow /PREV.: Press to move cursor left or to view the
previousphoto.
8) RIGHTArrow/NEXT: Press to move cursor right or to view the
nextphoto.
POWER PREV. NEXT
ROTATE
MENU UP
COPY /DELETE
DOWN
PLAY/PAUSE
MODE
12 3456 78

5

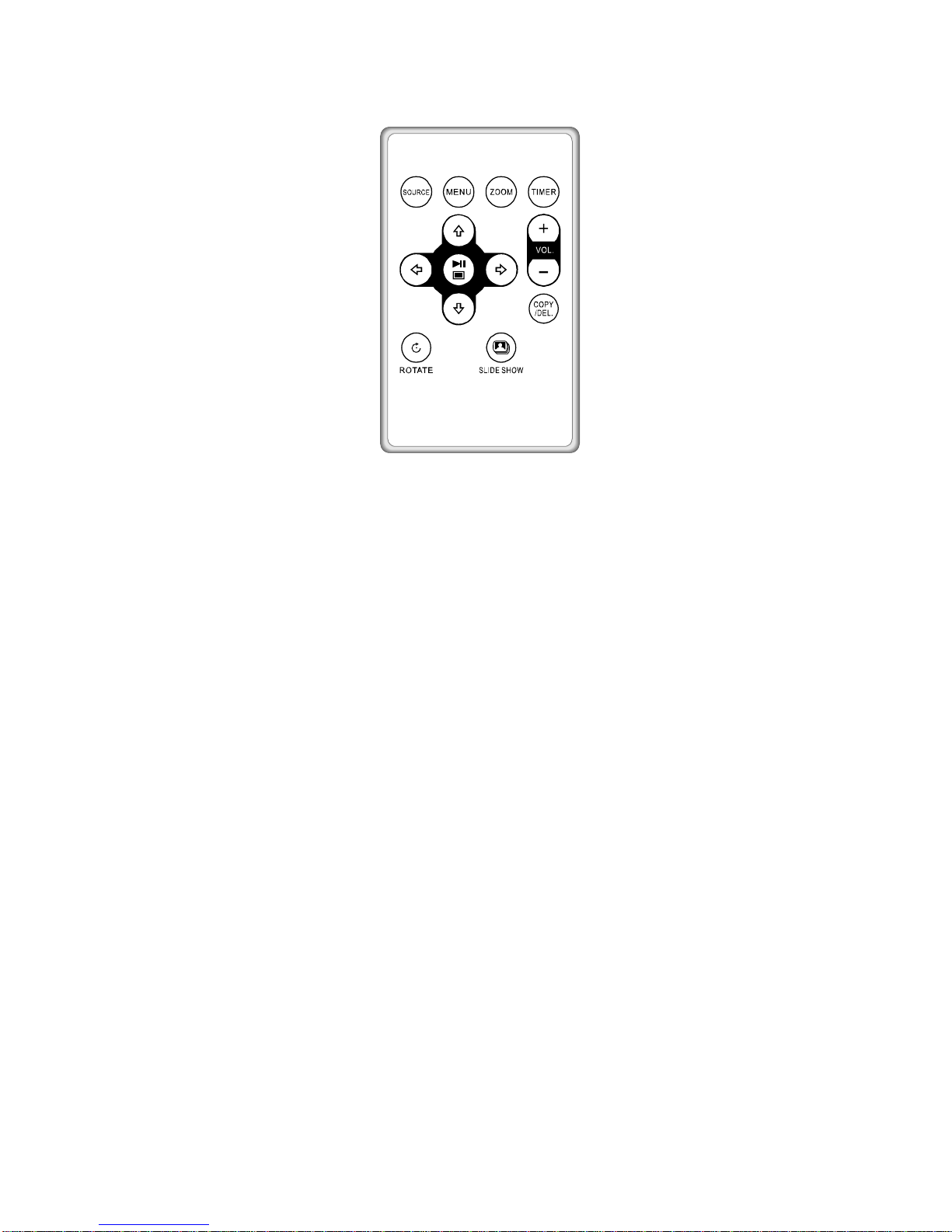

F. Remote Control Controls and Indicators
Press to select SD/MS/MMC/XD/CF or USB
memory device.
Press to return to the Previous menu.
When a photo is displayed in the pause
mode, pressing ZOOM will enlarge the photo
display size by 1x, 2x, or 3x, respectively.
Press to enter the Clock mode and Calendar
mode.
Press to move cursor left or to access the
previousphoto.
Press to move cursor up.
Press to confirm a selection, pause a slide
show, or change modes (Slide show,
Pause, Thumbnail)
Press to move cursor down.
Press to move cursor to the right or to
access the next photo.
Press to increase (+) or decrease (-) the
volume.
Press to copy a photo into frame memory or
delete a photo from the frame.
Press to rotate the photo in Pause Mode.
Press to enter Slide Show Mode.
SOURCE
MENU
ZOOM
TIMER
LEFT/PREV
UP
PLAY/PAUSE/MODE
DOWN
RIGHT/NEXT
VOLUME+/-
COPY/DEL.
ROTATE
SLIDE SHOW

6

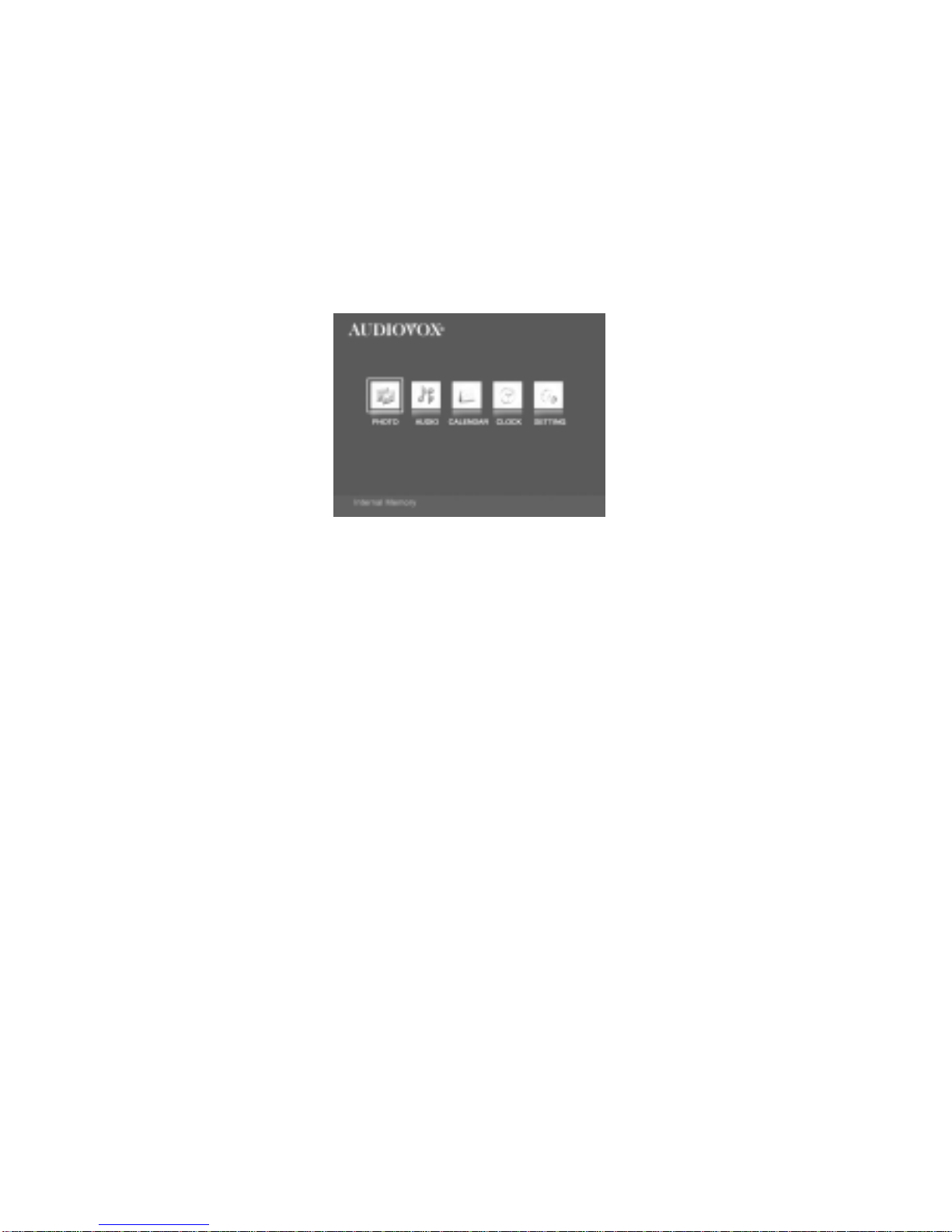

G. Selecting Cards and Viewing Photos
1. Press the POWER button at the top of the frame. The frame turns
on (power LED lights red).
2. Insert a card into the card slots or insert a USB memory device
into the USB slot. The card and/or USB icon(s) appear momen-
tarily. Press the PREV or NEXT button to select the card you
want. Press PLAY/ PAUSE/MODE button to enter the Main
Menu.
Note: You can’t select a card that has not been inserted in the frame.
3. Use the RIGHT or LEFT button to highlight the PHOTO icon.
4. Press PLAY/PAUSE/MODE once to enter Slide Show mode.
5. Press PLAY/PAUSE/MODE again to enter Pause mode. The
frame displays a single image. You can use the PREV. and
NEXT button to view the PREV/NEXT photo on the selected
media.
6. Press PLAY/PAUSE/MODE the third time to view photos as
thumbnails. The thumbnail images appear in a table. Use the
PREV, NEXT, UP and DOWN buttons to navigate through the
thumbnails.
Note: You can rotate photos clockwise by pressing the ROTATE
button when the photo is displayed on the screen in Pause
mode.

7
H.Copying and Deleting Photos
Copying Photos to Your Frame
Please refer to step “G” first. If you want to copy the photo, select
the photo in Pause mode, then press the UP/COPY/DELETE
button. The Copy/Delete pop-up screen appears for about 5 sec-
onds. During this time use the Left or Right button to highlight the
COPY icon, then press PLAY/PAUSE/MODE button.Apop-up
screen appears indicating “Copy..... Please Wait!” as the photo is
copied, after which “Copy Success!” appears. The frame can only
copy photos from cards into internal memory. The internal memory
is128M.
Note: You can rotate photos clockwise by pressing the ROTATE
button on the remote control or the Down button on the frame in the
Pause mode. Rotated photos are copied in the rotated position.
Deleting Photos
Please refer to step “G” first. If you want to delete the photo, select
the photo in Pause mode, then press the UP/COPY/DELETE
button. The Copy/Delete pop-up screen appears for about 5 sec-
onds. During this time use the Left or Right button to highlight the
DELETE option, then press the PLAY/PAUSE/MODE button.Apop-
up screen appears indicating “Delete? Yes/No”. Highlight the Yes
option using the Left or Right button and press the PLAY/PAUSE/
MODE button. “Delete Success!” appears and the photo is de-
leted.
Note: The delete function can also delete photos from a memory
card or a USB memory device and internal memory.

8

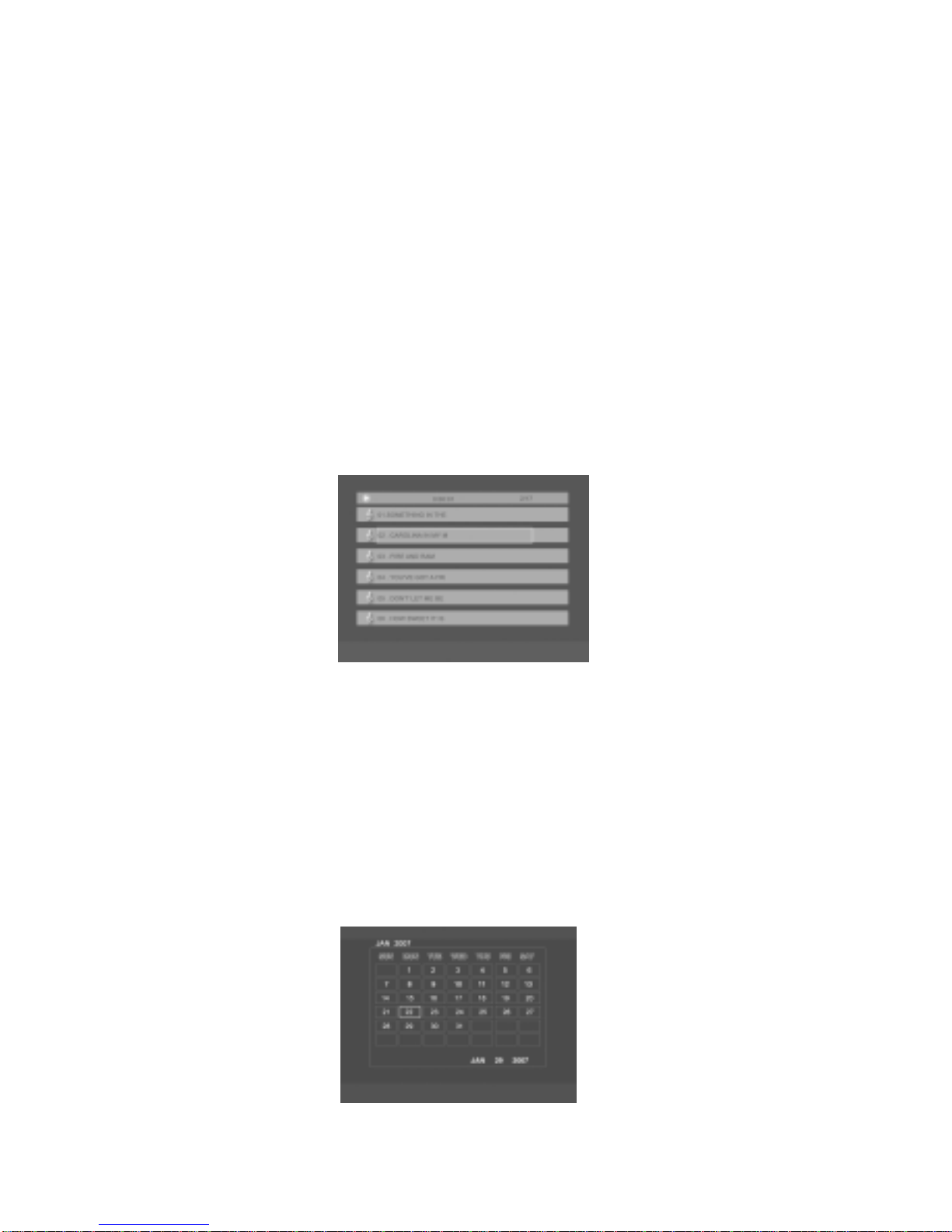

I.Audio Function
1) With the Main Menu icons displayed, use the LEFT or RIGHT
button to highlight theAUDIO icon. Then press PLAY/PAUSE/
MODE to display the audio screen shown below. The song
currently playing appears in a highlighted box and the artist and
song title scrolls right-to-left.Ared play icon appears to the left of
the treble clef icon, while a green play icon appears at the top left
of the display.
2) Press the PLAY/PAUSE/MODE button to pause the play mode;
the green play icon changes to the pause icon.
3) Press the UP/DOWN/LEFT/NEXT button to select a song and
press PLAY/PAUSE/MODE to confirm your selection.
4) Press MENU button to exit it.
J. Calendar Function
With the main menu icons displayed, use the LEFT/RIGHT button to
highlighttheCALENDAR iconand pressthe PLAY/PAUSE/MODEbut-
ton. Use the LEFT and RIGHT buttons to view the days; use the UP
and DOWN buttons to view the months and year. The current date
appears at the bottom right of the display. Press MENU button to exit
the calendar mode.
Note:
Press the VOl +/- button on the Remote control to adjust the Volume .

9

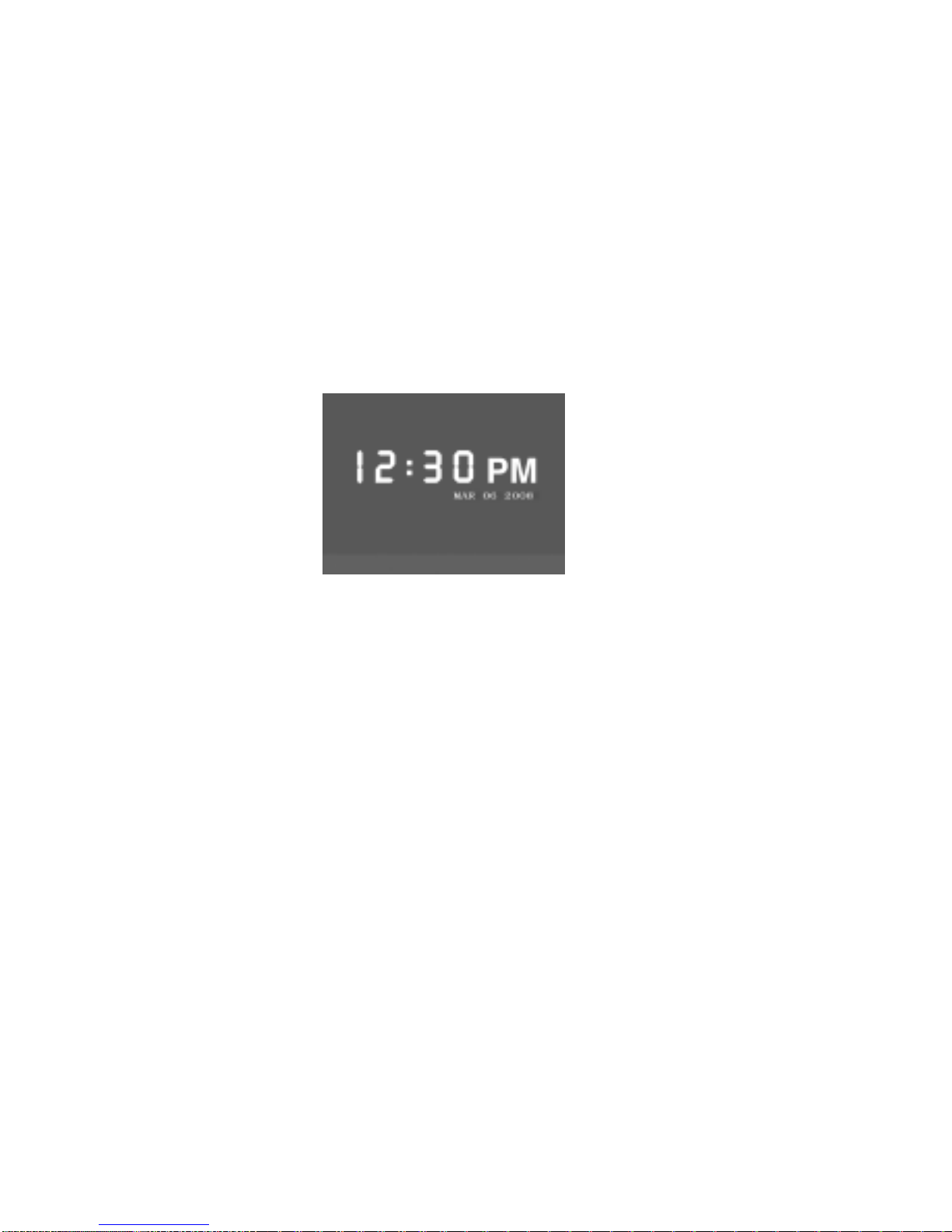

K. Clock Function
With the Main Menu icons displayed, use the LEFT/RIGHT button
to highlight the CLOCK icon and press the PLAY/PAUSE/MODE
button. To make changes to the hour, minute, PM/AM or date, press
the PLAY/PAUSE/MODE button to place the unit in change mode.
The hour digit will be flashing; press the UP or DOWN button to
change the hour or continue pressing the LEFT or RIGHT button to
highlight the desired item which you want to make changes to.After
all changes have been made, press the PLAY/PAUSE/MODE button
to confirm the change. Press MENU button to exit the clock mode.
L. Interfacing the DPF808 to Your Computer
Pictures can be transferred to the DPF808 using your personal
computer. To connect to a PC (Personal Computer) you will need a
USB cable that has a mini USB connector on one end and a large
USB connector on the other end. This cable is not supplied with the
DPF808. Most digital cameras come equipped with this type of
cable already. If you do not have this cable it can be purchased at
most electronics store. (Note: The DPF808 may not work with all
versions of Microsoft Windows)
1. With the DPF808 turned off, plug the small end of the USB cable
into the small connector on the DPF808. Plug the large USB
connector into your PC.
2. Turn on the DPF808.

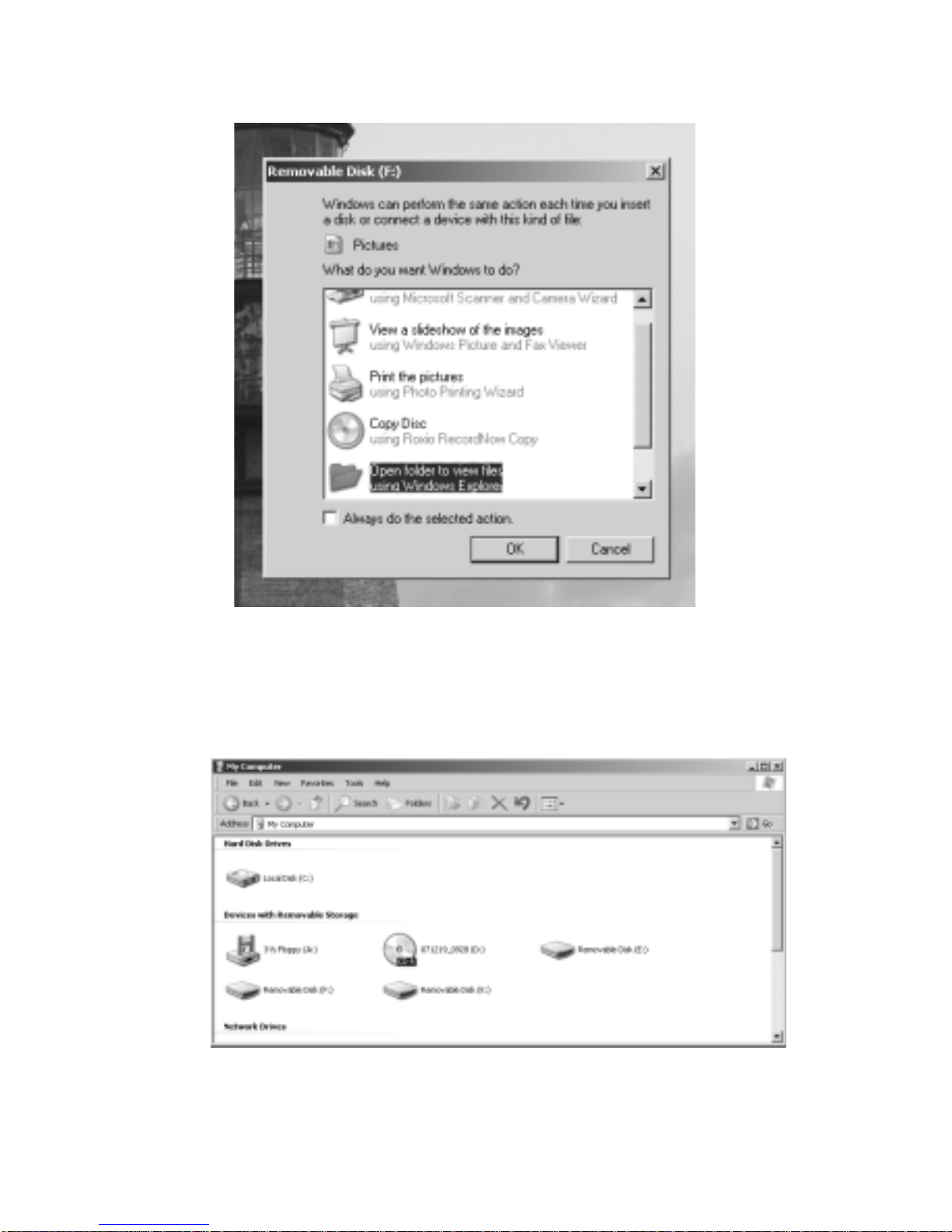

3. The computer will recognize the DPF808 as a drive on your
computer and the following dialog box will appear on your com-
puter screen. If the expected screen does not appear after a
minute, then select the “My Computer” icon on your desktop.

10

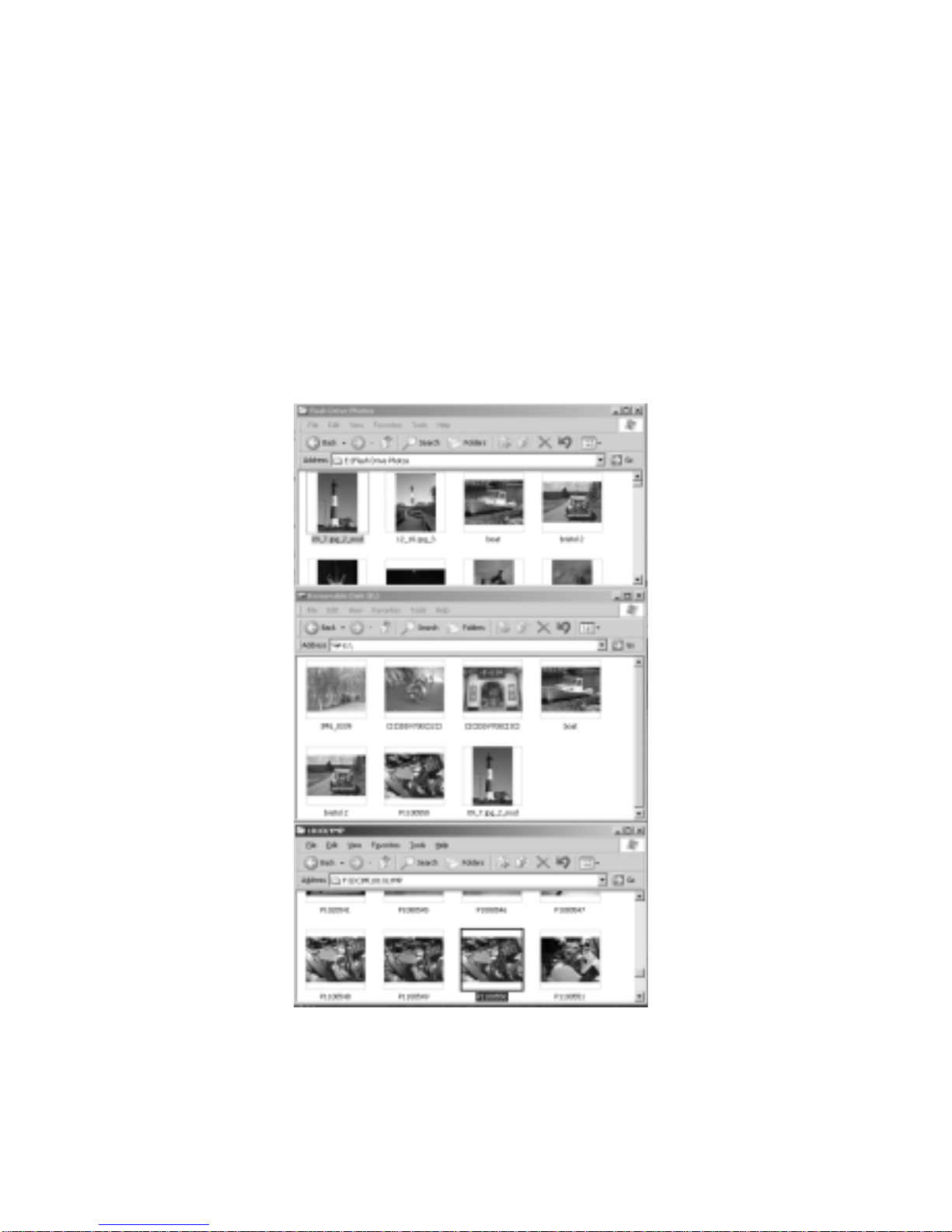

4. Click the OK button. Awindow similar to the one below will
appear on your computer screen.
