August DA100D User manual

August International Ltd
United Kingdom
Tel:[phone]
www.augustint.com
DA100D
10.1" HD DIGITAL / ANALOGUE TV & MULTIMEDIA PLAYER
EN
FR
DE
IT
ES
TV TDT HD / ANALOGICA 10.1" & LETTORE MULTIMEDIALE
TV TNT HD / ANALOGUE 10.1” & LECTEUR MULTIMEDIA
TNT HD 10.1" DIGITAL / ANALOG TV & MEDIA PLAYER
TV 10.1" HD TDT / ANALÓGICA Y LECTOR MULTIMEDIA

English
User Manual
Thank you for buying our August TV. Please take time to read these
instructions carefully. It is designed to familiarise you with the product's
many features and to ensure that you get the very best from your
purchase.
Safety
To ensure your safety and the safety of others, please ensure you read the
Safety Instructions before you use this product.
Disposal
Please ensure the product and its accessories are disposed of in
compliance with the WEEE (Waste Electrical and Electronic Equipment)
Directive and other regulations. Please check with your local authority for
disposal regulations.
Declaration of Conformity
The Declaration of Conformity can be found on our website at
http://augustint.com/en/declaration/
Customer Service
If you need help, please contact our Customer Service:
Telephone: [phone]
Email: [email protected]

1. Safety Instructions
Maintenance
Please unplug all connection wires before cleaning this machine.
Storage and Use
Alcohol
-1-
English
-2-
Do not expose
this device to
extreme
temperatures.
Operating
temperature
range: 0°C to
50°C Storage
temperature:
-10°C to 60°C.
Keep this TV
set away from
water or damp
environments.
Never expose
this TV set to
moisture, dust,
oil or smoke.
Never drop or
expose this
device to
impact.
Always secure
this device
during
transport.
Never strike
this TV set or
scratch with
sharp objects.
Please wipe the
display screen
and buttons
with a soft
cloth. Only
clean the
screen with
professional
LCDTV screen
cleanser.
Do not use any
detergents,
alcohol,
benzene or
chemical
product when
cleaning this
device
Precautions
1. Use only the supplied power adaptor, failure to do so can damage the device and
may cause personal injury.
2. When the device is not in use, turn off the AC adaptor or remove the car
power adaptor from the 12V socket.
Warning
Do not watch this TV whilst driving.
Special Notice
There may be a few highlights or dark spots visible on the LCD screen. This
is a very common property of active matrix display technology and does not
indicate a defect or fault.
Never try to repair or modify this device yourself, this will invalidate the
warranty, and may cause further damage to the device and could cause
personal injury. In the case of any fault, please turn off the device
immediately and contact August International customer services or your
retailer to arrange a professional repair.
2.Main Features
Portable HD Freeview TV
USB PVR TV Recorder with Timeshift
Multimedia Video and Music Player
Supports DVB-T/T2 TV Boxes
7 Day EPG and Subtitles
Battery Compartment
USB and Micro SD Card Reader
Mini HDMI Input

English
Quick Start Guide
DA100D
1. Connect an antenna to the DA100D.
2. Plug the DA100D into a mains power socket using the supplied power adaptor.
3. Switch the DA100D on using the remote control.
4. Use the arrow buttons to select language.
5. Press <Enter> to confirm.
6. Use the arrow buttons to select country.
7. Press <Enter> to begin auto search.
Note: If you want to exit auto search, press <EXIT>, then Use < > or < > to
select YES or NO.
Please note that the signal strength in some areas may not be sufficient to
support TV reception using a portable aerial. The distance from the closest
transmitter and other factors such as surrounding buildings, the walls of your
house, weather and electro-magnetic interference caused by power and
telecommunication infrastructure may affect signal strength. Changing location
may improve signal reception but a rooftop aerial designed for digital TV should
be used to achieve the best possible reception.
-3-
3. Box Contents
AV Cable
Telescopic Antenna
Stand
User Manual
Digital TV Antenna
Remote Control
DA100D TV
HDMI Cable
DA100D
MODE
REC AUDIO FAV TV/R
CH+VOL+
CH-VOL -
MENU EXIT
push
3
2.pull
4
1.push
push
2
push
hole
1
3.1 Interchangeable Plugs
UK EU
Insertion Release
10.1" HD DIGITAL / ANALOGUE TV & MULTIMEDIA PLAYER
DA100D
EN
FR
DE
IT
ES
TV TDT HD / ANALOGICA 10.1" & LETTORE MULTIMEDIALE
TV TNT HD / ANALOGIQUE 10.1'' & LECTEUR MEDIA
TNT HD 10.1" DIGITAL / ANALOG TV & MEDIA PLAYER
TV 10.1" HD TDT / ANALÓGICA Y LECTOR MULTIMEDIA
AC/DC Adaptor

4.3 Key Function
1. Power / Play / Pause
2. Main Menu
3. Left / Rewind
4. Right / Forward
5. Enter / Confirm
6. Channel Down / Down / Previous Track or Chapter
7. Channel Up / Up / Next Track or Chapter
8. Volume Down
9. Volume Up
10. Press to cycle through modes. Press <ENTER> to confirm
4. Part Names and Functions

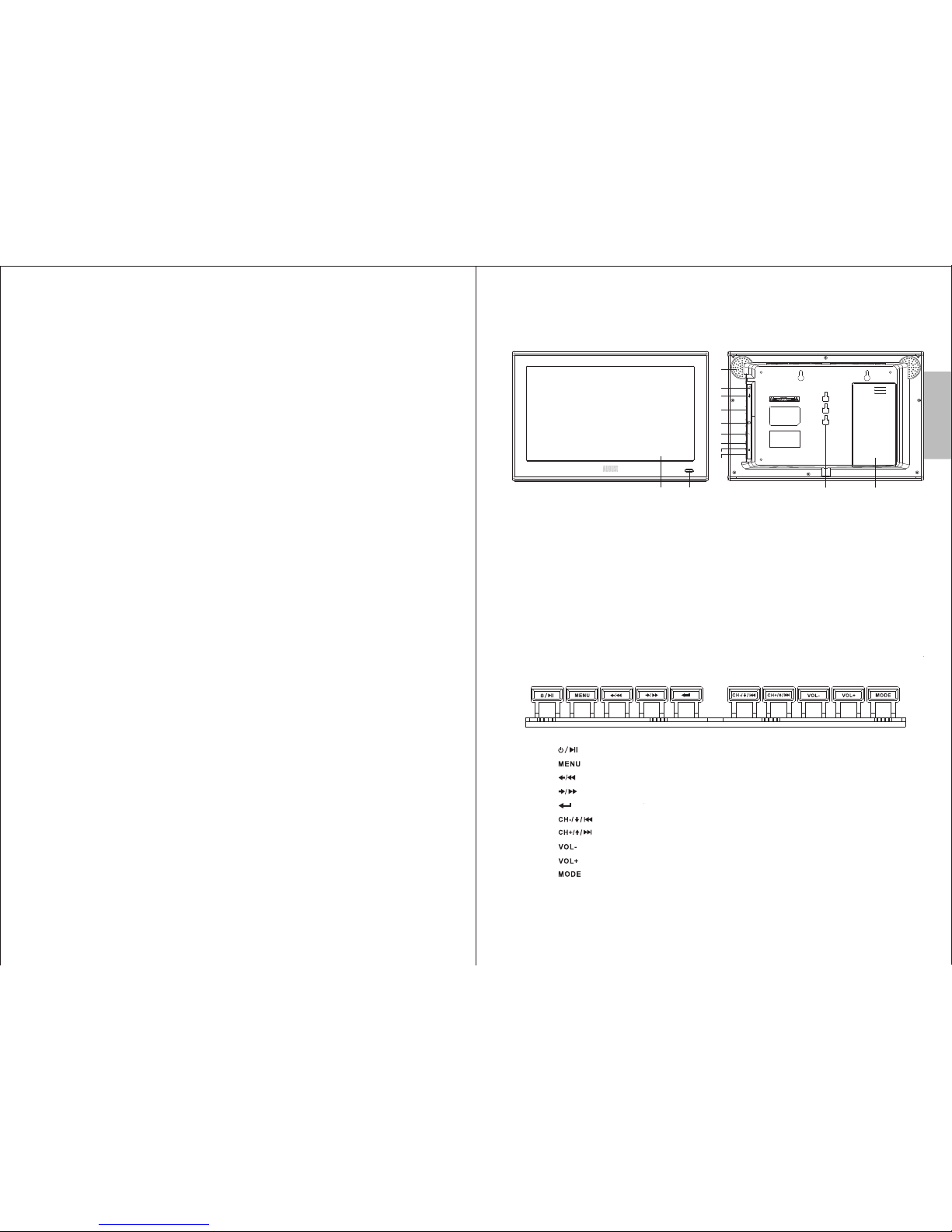

4.1 Front
1. LCD display
2. IR receiver window
1 2
1. Speakers
2. Antenna In
3. USB Port
4. HDMI In
5. Micro SD Card Slot
6. Aux Out
*NOTE:
The standby power indicator lights red when the device is in standby mode and connected to an
external power source. When the device is switched on, the light will be green.
7. AV In
8. Power Indicator
9. DC IN 12V
10. Stand Slot
11. Battery Compartment
1. Safety Instructions
2. Main Features
3. Contents
4. Part Names and Functions
5. Connection and Setup
6. Startup
7. Digital TV
8. Analogue TV
9. Media Player
10. Display Settings
11. Audio Settings
12. Time Settings
13. System Settings
14. Battery Compartment
15. Specifications
16. Troubleshooting
17. Warranty
1
2
3
4
8
10
10
14
15
15
15
15
16
17
18
19
20
4.2 Back
-4-
Contents
English
HDMI AV IN DC IN 12V
2
3
4
5
6
7
9
1
10 11
8

-5- -6-

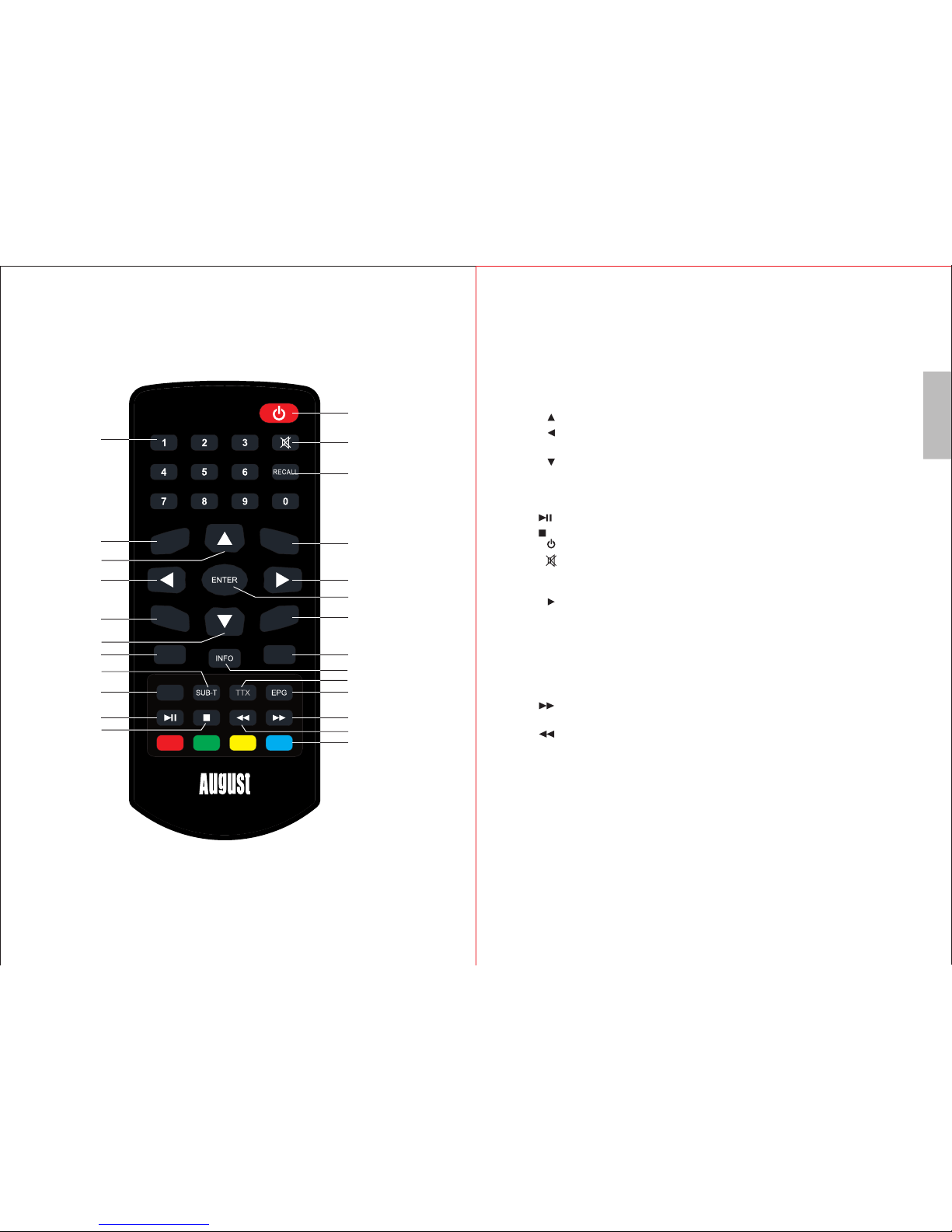

4.4 Remote Control
4.4.1 Remote Button Functions
10~9 Numbers
2VOL+ Volume Up
3 Up
4 Left
5VOL- Volume Down
6 Down
7MENU Main Menu
8SUB-T Subtitle
9MODE Select mode
10 or REC Play or Pause / Start or Stop recording
11 or AUDIO Stop / Select audio channel or audio language
12 Power ON / OFF
13 Mute and unmute the sound
14 RECALL Return to the previous channel
15 CH+ Channel Up
16 Right
17 ENTER Confirm Settings
18 CH- Channel Down
19 EXIT Exit all settings
20 INFO Freeview Channel information or Mode information
21 TTX Freeview Interactive Teletext or Start and Stop MHEG-5
22 EPG 7 Day Electronic Program Guide
23 or TV/R Forward in media player mode /
Change between TV and Radio mode
24 or FAV Rewind in media player mode / Favorite channel list or set
favorite channels
25 Colour Buttons Red, Green, Yellow, Blue Buttons
DA100D
MODE
REC AUDIO FAV TV/R
CH+
VOL+
CH-
VOL-
MENU EXIT
1
2
4
5
7
9
10
11
12
13
14
15
16
18
19
22
23
25
3
6
820
21
24
17
English

5. Connection and Setup
5.1 Connecting the power adaptor
1. Connect the power adaptor to the DC IN 12V socket.
2. Plug the power adaptor into the mains power socket.
5.2 Connecting headphones
Connect your headphones to the headphone socket.
*Note:
When headphones are connected to the device, no sound will be played through
the speakers.
Headphone and Earphone Safety
1. Listening through headphones or earphones at high volume for prolonged
periods can cause damage to your hearing.
2. Please be considerate to others and use closed back headphones or listen at
low volume whilst in public.
3. If you are experiencing tinnitus, stop using headphones or listen only at a very
low volume.
4. Even at a low volume, prolonged use of headphones or earphones can cause
damage to your hearing.
English
-8-
-7-

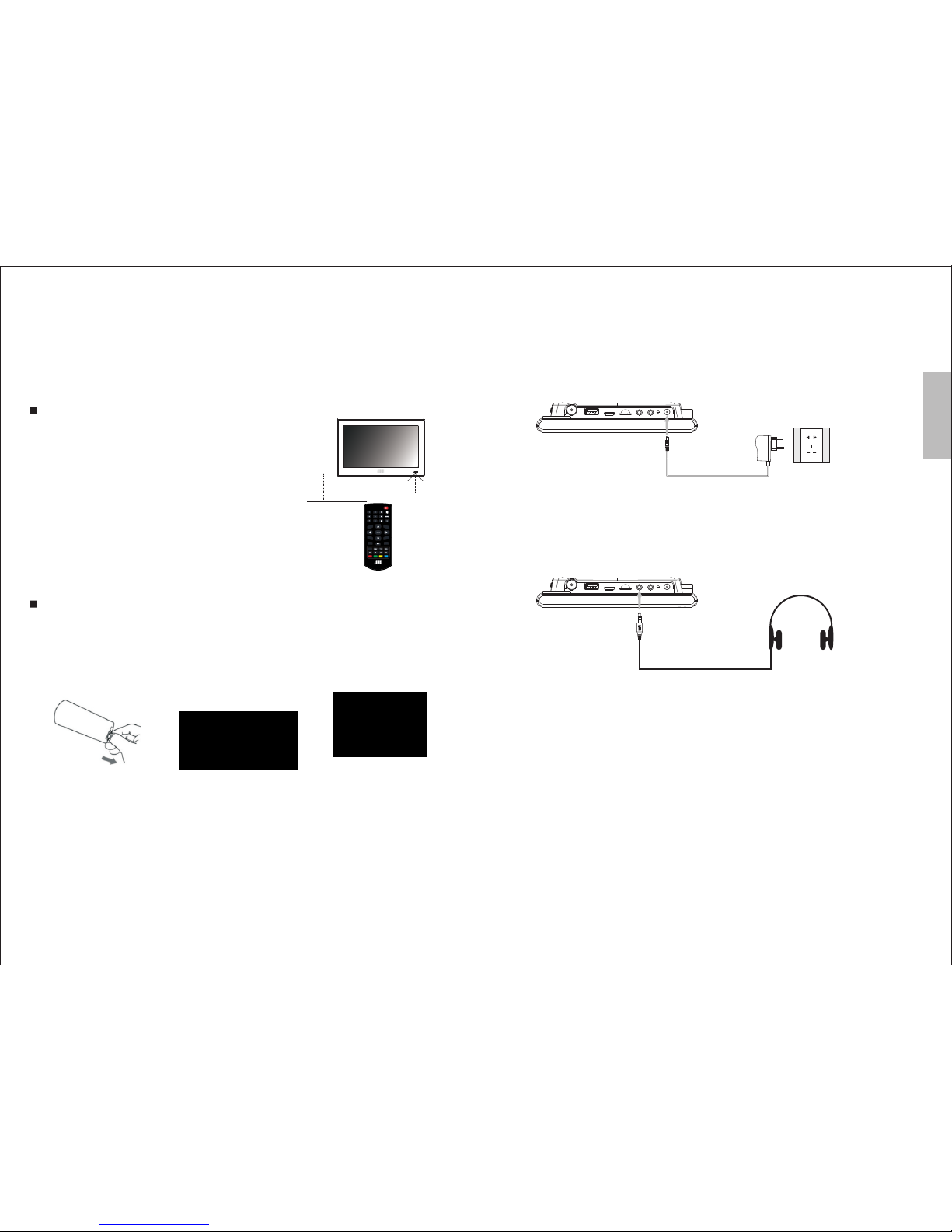

4.4.2 Use of the Remote Control
Please remove the PVC packaging before using the remote control for the first time.
1. Do not expose the remote control to direct sunlight or very strong / bright light.
2. Do not drop or step on the remote control or subject it to shocks.
3. Keep the remote control away from extreme heat and humid environments.
4. Keep the remote control away from water.
Pull out the battery holder
and remove the old battery.
Replace the battery holder.
+
Insert the new battery into the battery
holder with the + side facing upwards.
Operating range
1. The IR range of the remote control is 5 meters.
2. The IR sensor on the remote control should be
aimed directly at the sensor on the front of the
device. It may not be possible to operate the device
if there are obstacles between it and the remote
control.
3. The receiving angle is ±30°.
Replacing the battery
If the remote control does not function or if the operating range becomes reduced,
replace the old battery with a new one.
Lithium battery(CR2025)
30°
<5m 30°
DA100D
MODE
REC AUDIO FAV TV/R
CH+VOL+
CH-VOL-
MENU EXIT
To headphone

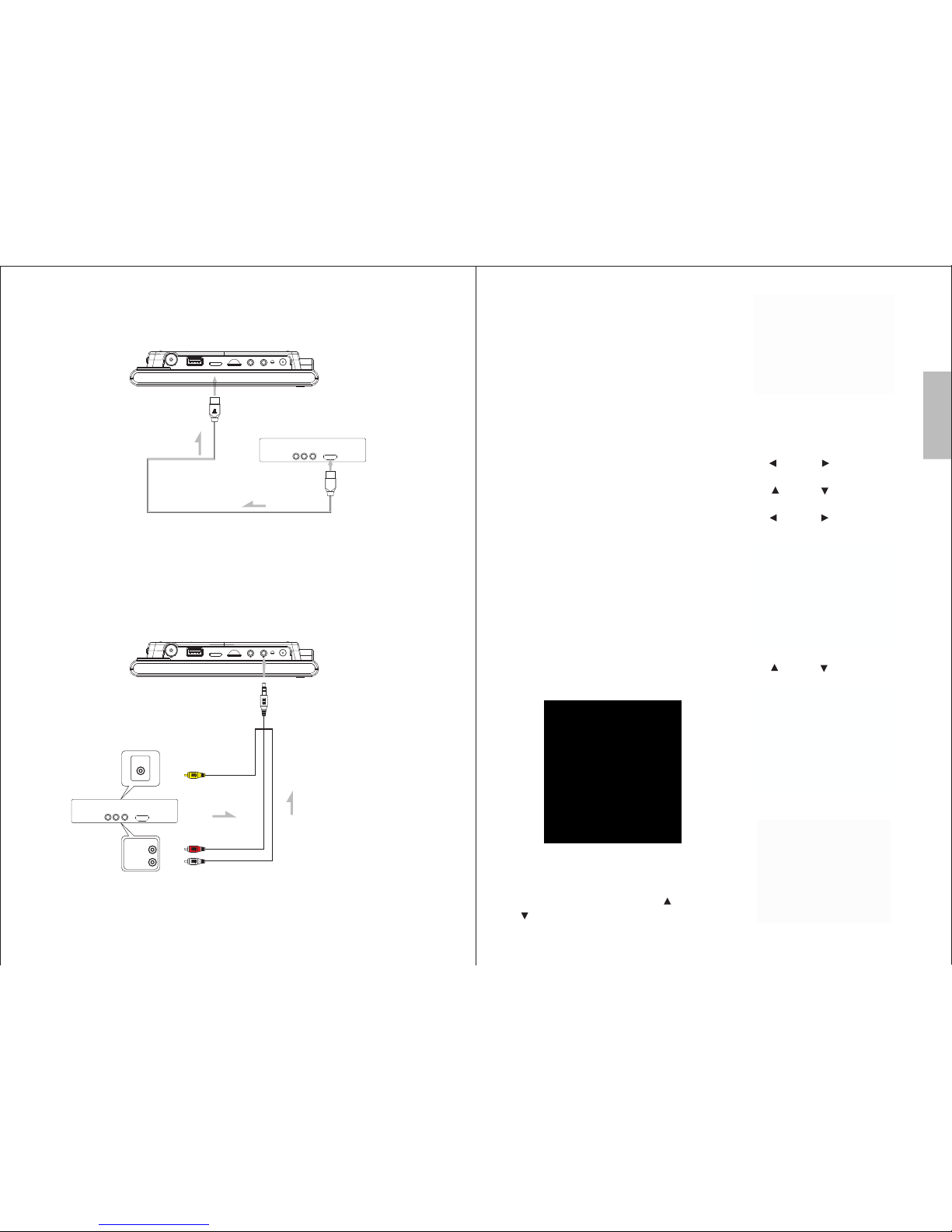

5.3 Connecting to a Source Device via HDMI
Switch off the DA100D and source device before connecting or disconnecting
any cables.
5.4 Connecting to a Source Device via AV
Switch off the DA100D and source device before connecting or disconnecting
any cables.
Signal flow
Yellow
Connect to the Video
Output of the AV device
Connect to the Audio
Output of the AV device
HDMI cable
(Included)
Signal flow
6. Start up
6.1 Switching the device off or on
6.1.1 Switching on
Connect the device to the mains and
wait 5 seconds. Then either press and
hold the power button on the device for
1.5 seconds, or press the power button
on the remote control to switch the
device on.
6.1.2 Switch Power Off
Either press and hold the power button
on the device for 1.5 seconds, or press
the power button on the remote control
to switch the device off.
6.2 Mode settings
Press <MODE> repeatedly to select
between the following modes:
DTV: Freeview TV, press <ENTER> to
change
ATV: Analogue TV, press <ENTER> to
change
HDMI: HDMI input, press <ENTER> to
change
AV: AV input, press <ENTER> to
change
Media Player: Media Player Mode,
press <ENTER> to Switch to it.
7. Digital TV
1. Connect an aerial to Antenna In.
2. Press <MODE>, then use < > or
< > to select DTV.
3. Press <ENTER>.
7.1 DTV Auto Search:
1. Press <MENU> to enter the main
menu.
2. Use < > and < > to select
‘Channel’.
3. Use < > and < > to highlight the
‘Country’.
4. Use < > and < > to change the
country.
5. Use < > and < > to highlight ‘Auto
Search’.
6. Press <ENTER> to confirm.
White
Red
Black
(Included)
AV cable
OUT
OUT
-10-
-9-
AV System
AV System
Signal flow
Signal flow
English

7.4 LCN (Logical Channel Number)
To switch LCN on or off:
1. Press <MENU> to enter the main
menu.
2. Use < > and < > to select
‘Channel’.
3. Use < > and < > to highlight the
‘LCN’.
4. Press <ENTER> to switch the LCN
on or off.
7.5 Channel Information
Press <INFO> to view channel
information:
Press <INFO> again to show signal
Strength and Quality:
7.6 Recall
Press <RECALL> to go back to the last
watched channel.
7.7 Subtitles
Press <SUB-T> to set Subtitle for
subtitle settings.
1.Use< > or < > to select a
language or switch off subtitles.
2.Press <ENTER> to confirm.
Primary and Secondary Subtitle
Languages.
1.Press <MENU> to enter the main
menu.
2.Use < > and < > to select
‘System’.
3.Use < > and < > to select ‘Subtitle
Language’, press <ENTER> to enter.
4.Use < > and < > to change
between your Primary and Secondary
Subtitle language, use < > or < > to
select one language, then press
<MENU> to return.
Note: If you want to exit auto search,
press <EXIT>, then Use < >or < >
to select YES or NO.
7.2 DTV Manual Search
1. Press <MENU> to enter the main
menu.
2. Use < > and < > to select
‘Channel’.
3. Use < > and < > to highlight the
‘DTV Manual Search’.
4. Press <ENTER> to enter manual
search settings.
5. Use < > and < > to select
channel and frequency.
6. Press <ENTER> to confirm.
Note: The signal bar shows the signal
quality. After a manual search, the
DA100D plays new channels
automatically.
7.3 DTV Channel Manager
Channel Manager allows the user to
delete, move, favorite and skip
channels.
1. Press <MENU> to enter the main
menu.
2. Use < > and < > to select
‘Channel’.
3. Use < > and < > to highlight
‘Channel Manager’.
4. Press <ENTER> to enter channel
edit and use < > and < > to highlight
to channel
5. Press ‘RED’ to delete a channel.
6. Press ‘YELLOW’ and use < > and
< > to move a channel, press
<ENTER> to confirm.
7. Press ‘BLUE’ to skip a channel.
8. Press < or FAV> to add or remove
a channel to or from your favorite list.
Press <MENU> to exit Channel
Manager.
-12-
-11-
English

-14-
-13-
2. Use <◀> and < ▶> to select
‘Channel’.
3. Use <▲ > and < ▼ > to highlight the
‘Country’.
4. Use <◀ > and <▶> to change the
country.
5. Use <▲> and <▼> to highlight ‘Auto
Search’.
6. Press <ENTER> to confirm.
8.2 ATV Manual Search
1. Press <MENU> to enter the main
menu.
2. Use <◀> and <▶> to select
‘Channel’.
3. Use <▲> and <▼> to highlight the
‘ATV Manual Search’.
4. Press <ENTER> to enter manual
search settings.
5. Use <▲> and <▼> to select options.
6. Use <◀> and <▶> to change or
start search.
7.8 Teletext
Press <TTX> to access teletext or red
button content, if available.
7.9 AUDIO Language
1. Press <MENU> to enter the main
menu.
2. Use < > and < > to select
‘System’.
3. Use < > and < > to select ‘Audio
Language’, press <ENTER> to enter.
4. Use < > and < > to select the
Primary or Secondary audio language.
5. Use the arrow buttons to select a
language then press <MENU> to return.
7.10 EPG (Electronic Program Guide)
Press <EPG> to access the EPG.
7.11 TV and Radio Modes
Press < or TV/R> to switch between
TV and Radio modes.
7.12 Record and Time Shift
Connect a USB storage device with
sufficient free space for the intended
recording.
Live Recording
1. Press < or REC> to start recording.
2. Press < > to stop recording.
Time Shift
1. Press < or REC> to start recording.
2. Press < or REC> to show the
onscreen options.
3. Select < > and press <ENTER> to
enable Timeshift.
4. Select < or > and press
<ENTER> to pause or resume.
5. Select < > and press <ENTER> to
rewind.
6. Select < > and press <ENTER> to
fast forward.
7. Select < > and press <ENTER> to
stop Timeshift.
8. Press < > to stop recording.
Note: Micro SD card cannot be used for
recording.
The antenna socket provides an output
of 5V, allowing you to power an
amplified antenna. Do not plug the
amplified antenna into a mains power
socket as this will overpower the
amplifier and generate interference.
While the TV is switched on, the USB
port provides an output of 5V, allowing
you to charge another device.
7.13 Schedule Recording
1. Press <EPG> to access the EPG.
2. Use <◀> and <▶> to select the
channel you wish to record.
3. Use <▲> and <▼> to select the
desired program.
4. Press <RED> to enter the recording
settings.
5. Press ‘OK’ to schedule the recording
using the default time settings.
Note: To enter the date and time
manually, change the mode from ‘Auto’
to ‘Once’, ‘Everyday’ or ‘Weekly’ then
input the start time and the finish time.
7.14 Reminder
1. Press <EPG> to access the EPG.
2. Use <◀> and <▶> to select the
desired channel.
3. Use <▲> and <▼> to select the
program you wish to be reminded
about.
4. Press <Blue> to enter the reminder
settings.
5. Press OK to schedule the reminder
using the default time settings.
Note: To set the reminder manually, use
<▲> and <▼> to select the setting and
use <◀> and <▶> to change the time.
8. Analogue TV
1. Connect an aerial to Antenna In.
2. Press <MODE>, then use <▲> or
<▼ > to select ATV.
3. Press <ENTER>.
8.1 ATV Auto Search
1. Press <MENU> to enter the main
menu.
English
