AUX L Series User manual

1
Technical Manual
(DC Inverter Free Match R32)

2
2019.07

3
CONTENTS
CONTENTS ...................................................................................................................3
Part1 General Information..................................................................................7
1. Nomenclature ....................................................................................................................7
2. Unit appearance.................................................................................................................8
3. Combination Table ...........................................................................................................14
4. Accessories Included........................................................................................................19
Part2 Features ...................................................................................................... 20
1. Outdoor Units ..................................................................................................................20
2. Wall Mounted ..................................................................................................................24
3. Four-way Cassette ............................................................................................................25
4. Ceiling Floor .....................................................................................................................26
5. Duct ..................................................................................................................................28
6.WIFI Control ......................................................................................................................29
Part3 Piping System............................................................................................ 30
1. 14K, 18K ...........................................................................................................................30
2. 21K, 27K ...........................................................................................................................32
3. 36K ...................................................................................................................................33
4. 42K ...................................................................................................................................35

4
Part4 Specification.............................................................................................. 36
1. Wall Mounted ..................................................................................................................36
2. Cassette............................................................................................................................47
3. Ceiling Floor .....................................................................................................................52
4. Duct ..................................................................................................................................56
5. Outdoor Unit ....................................................................................................................58
Part5 Dimension.................................................................................................. 68
1. Wall Mounted ..................................................................................................................68
2. Cassette............................................................................................................................69
3. Ceiling Floor .....................................................................................................................71
4. Duct ..................................................................................................................................72
5. Outdoor Unit ....................................................................................................................74
Part6 Electrical Principle Diagram................................................................ 77
1. Wall Mounted ..................................................................................................................77
2. Cassette............................................................................................................................81
3. Ceiling Floor .....................................................................................................................82
4. Duct ..................................................................................................................................83
5. Outdoor Unit ....................................................................................................................84
Part7 Capacity Amendment ............................................................................. 86
1. Operation range ...............................................................................................................86

5
2. Capacity amendment of different ambient temperature................................................86
3. Long piping length............................................................................................................88
4. Capacity amendment of different piping length..............................................................89
5. Equivalent Pipe length conversion...................................................................................90
Part8 Static pressure curve.............................................................................. 92
1. 07K、09K Duct..............................................................................................................92
2. 12K Duct........................................................................................................................93
3. 18K Duct........................................................................................................................94
Part9 Controller ................................................................................................... 95
1. Controller .........................................................................................................................95
2. Parameters Setting.........................................................................................................127
3. Room Card Function.......................................................................................................134
4. Wifi Module ...................................................................................................................136
Part10 Explosive View .....................................................................................139
1. Wall Mounted ................................................................................................................139
2. Cassette..........................................................................................................................158
3. Ceiling Floor ...................................................................................................................161
4. Duct ................................................................................................................................163
5. Outdoor Unit ..................................................................................................................168
Part11 Installation............................................................................................179

6
1. Preparation.....................................................................................................................179
2. Precaution ......................................................................................................................180
3. Wall Mounted ................................................................................................................181
4. Cassette..........................................................................................................................183
5. Ceiling Floor ...................................................................................................................190
6. Duct ................................................................................................................................193
7. Outdoor Unit ..................................................................................................................197
8. Connection piping installation .......................................................................................198
9. Emptying or vacuum ......................................................................................................201
10. Insulation......................................................................................................................203
11. Additional refrigerant charge.......................................................................................205
12. Electrical connection....................................................................................................206
Part12 PCB Instruction....................................................................................210
1. Outdoor Unit PCB...........................................................................................................210
2. Indoor Unit PCB..............................................................................................................214
Part13 Trouble Shooting.................................................................................217
1. Failure code display........................................................................................................217
2. Failure analysis ...............................................................................................................219

7
Part1 General Information

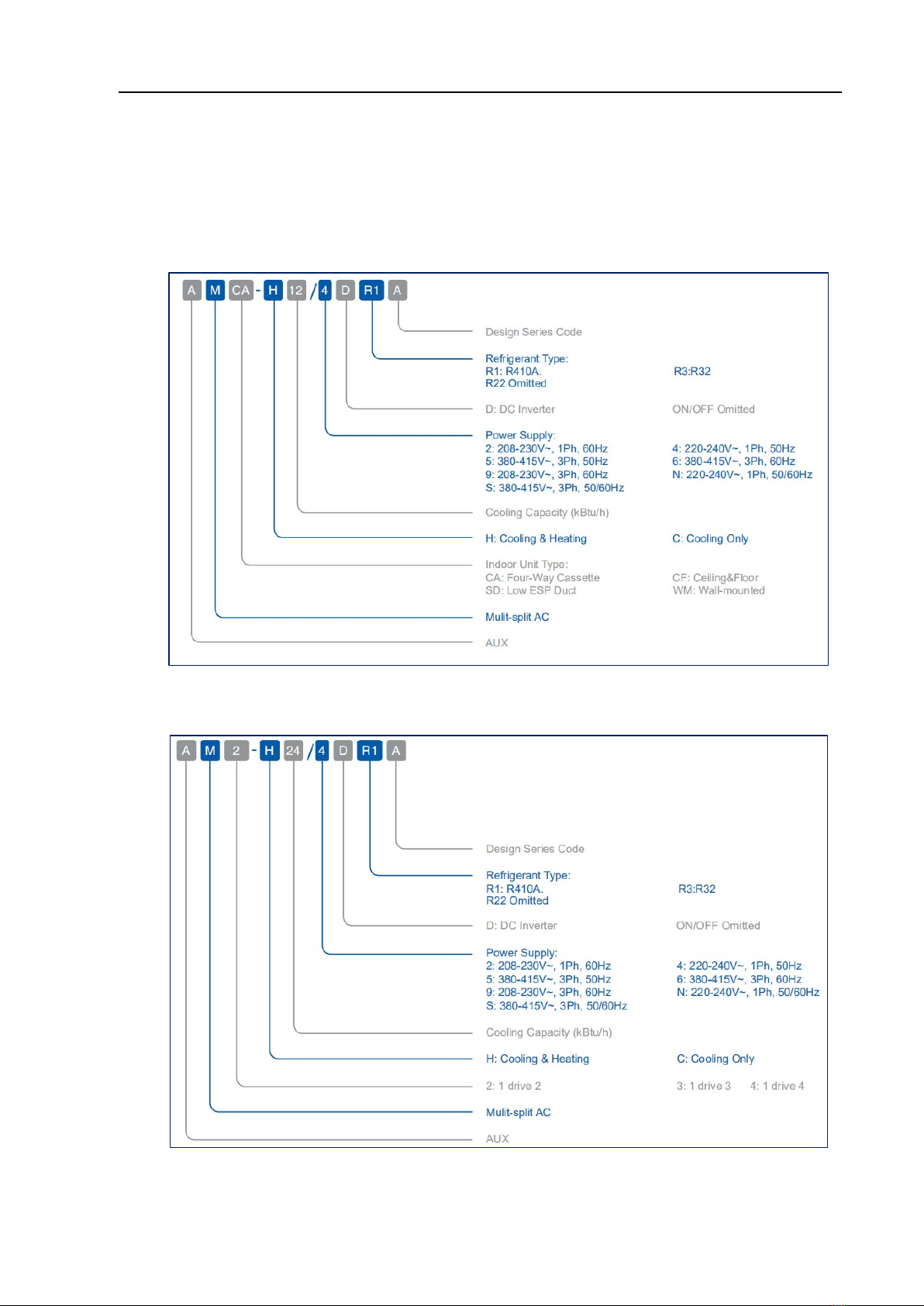

1. Nomenclature
Indoor Unit
Outdoor Unit

8
2. Unit appearance
2.1 Wall - Mounted
/
Capacity Range / Mode
L
Series
07 K Btu/h
AMWM-H07/4R3(L*)
09 K Btu/h
AMWM-H09/4R3(L*)
12 K Btu/h
AMWM-H12/4R3(L*)
18 K Btu/h AMWM-H18/4R3(L*)
F
Series
07 K Btu/h
AMWM-H07/4R3(F*)
09 K Btu/h
AMWM-H09/4R3(F*)
12 K Btu/h
AMWM-H12/4R3(F*)
18 K Btu/h AMWM-H18/4R3(F*)
24K Btu/h AMWM-H24/4R3(F*)
J
Series
07 K Btu/h
AMWM-H07/4R3(J*)
09 K Btu/h
AMWM-H09/4R3(J*)
12 K Btu/h
AMWM-H12/4R3(J*)
18 K Btu/h AMWM-H18/4R3(J*)

9
24K Btu/h AMWM-H24/4R3(J*)

10

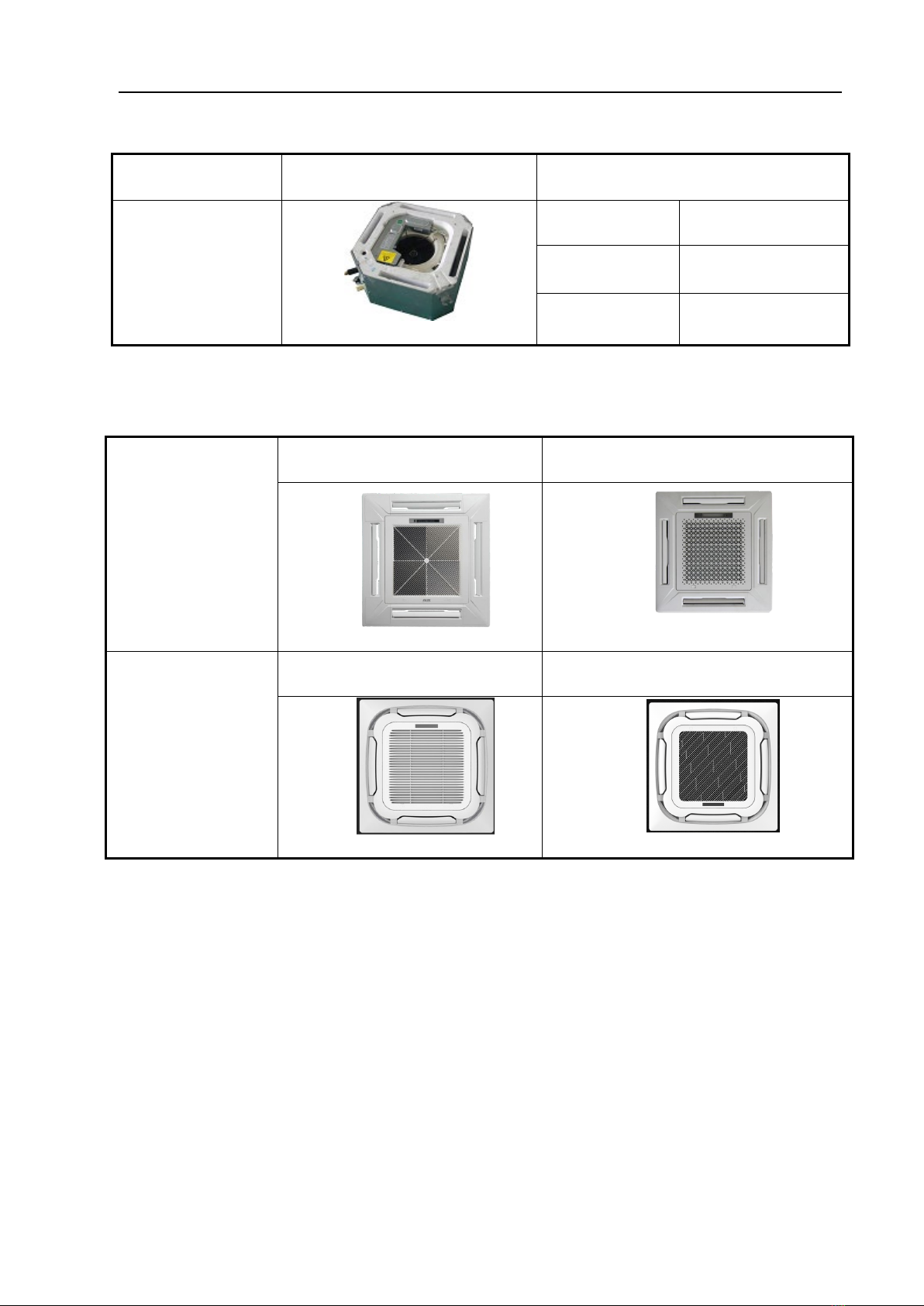

2.2 Cassette
/
Capacity Range / Mode
Four-way cassette
09 K Btu/h
AMCA-H09/4R3A
12 K Btu/h
AMCA-H12/4R3A
18 K Btu/h AMCA-H18/4R3A
Standard Panel
MB13A-I
MB13B-I
Optional Panel
MB09A
MB09B

11

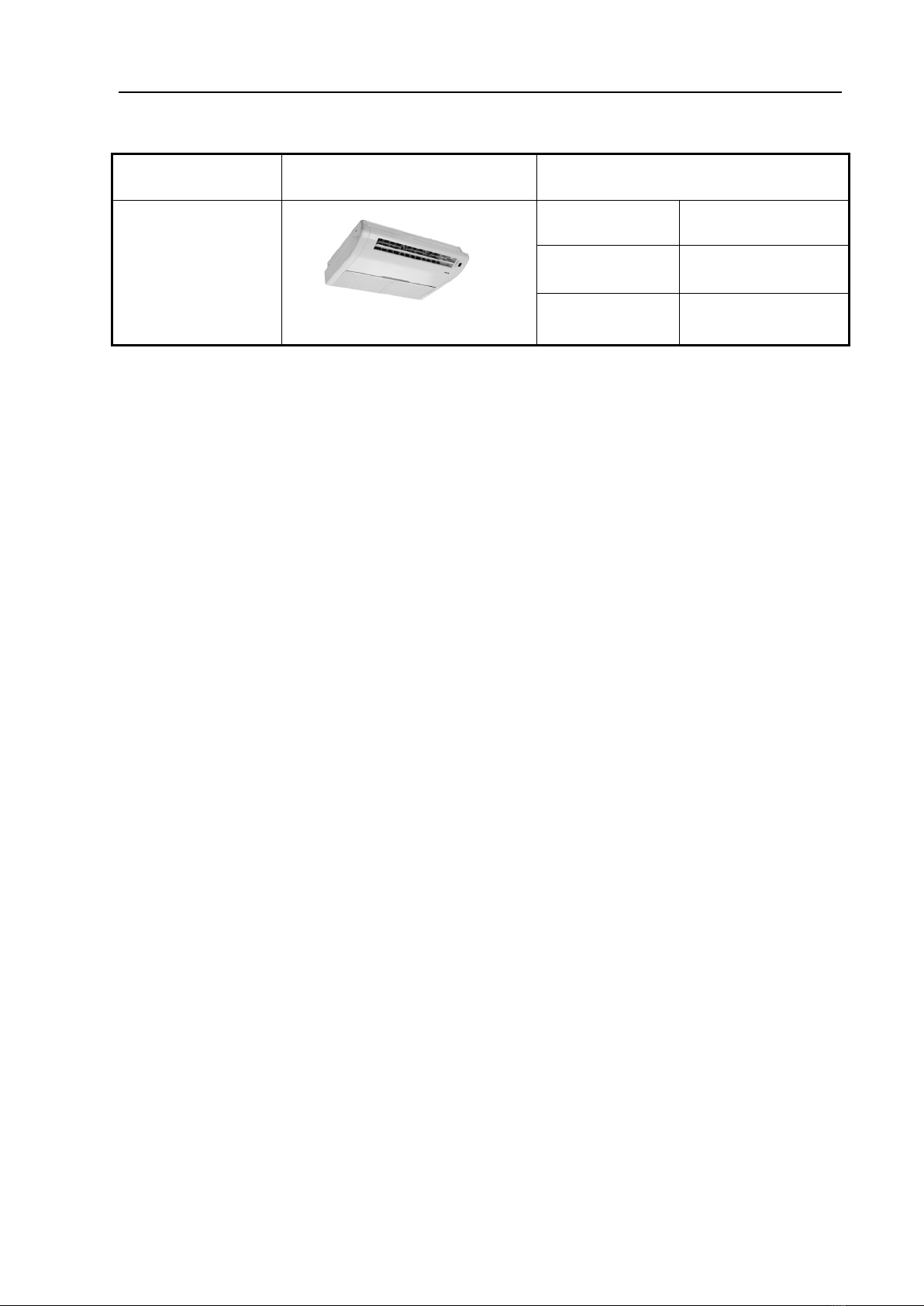

2.3 Ceiling Floor
/
Capacity Range / Mode
Ceiling Floor
09 K Btu/h
AMCF-H09/4R3A
12 K Btu/h
AMCF-H12/4R3A
18 K Btu/h AMCF-H18/4R3A

12
2.4 Duct
/
Capacity Range / Mode
DUCT
07 K Btu/h
AMSD-H07/4R3A
09 K Btu/h
AMSD-H09/4R3A
12 K Btu/h
AMSD-H12/4R3A
18 K Btu/h AMSD-H18/4R3A

13
2.5 Outdoor Unit
Capacity(Btu)
1 drive 2 14k/18k
1 drive 3 21k/27k
（AM2-H14/4DR3）
（AM3-H21/4DR3）
（AM2-H18/4DR3）
（AM3-H27/4DR3）
Capacity(Btu)
1 drive 4 36k
1 drive 5 42k
（
AM4-H36/4DR3
） （
AM5-H42/4DR3
）

14
3. Combination Table
14K
AM2-H14/4DR3
Suggested Combination
1 drive 2
One Unit
Two Units
7
7+7
—
9
7+9
—
12
9+9
—
18
—
—
18K
21K
AM3-H21/4DR3
Suggested Combination
1 drive 3
One Unit
Two Units
Three Units
—
7+7
9+12
7+7+7
—
7+9
9+18
7+7+9
—
—
7+12
12+12
7+7+12
—
18
7+18
—
7+9+9
—
24
9+9
—
9+9+9
—
27K
AM3-H27/4DR3
Suggested Combination
AM2-H18/4DR3
Suggested Combination
1 drive 2
One Unit
Two Units
9
7+7
9+9
12
7+9
9+12
18
7+12
—
—
—

15
1 drive 3
One Unit
Two Units
Three Units
18
7+12
9+24
7+7+7
7+9+18
24
7+18
12+12
7+7+9
7+12+12
—
7+24
12+24
7+7+12
9+9+9
—
9+9
18+18
7+7+18
9+9+12
—
9+12
18+24
7+9+9
9+12+12
—
9+18
—
7+9+12
36K
AM4-H36/4DR3
Suggested Combination
1 drive4
One
Unit Two Units Three Units
18
7+12
12+12
7+7+7
7+9+18
9+9+12
12+12+12
24
7+18
12+18
7+7+9
7+9+24
9+9+18
12+12+18
—
7+24
12+24
7+7+12
7+12+12
9+9+24
—
9+9
18+18
7+7+18
7+12+18
9+12+12
9+12
18+24
7+7+24
7+12+24
9+12+18
—
9+18
—
7+9+9
7+18+18
9+12+24
—
9+24
—
7+9+12
9+9+9
9+18+18
AM4-H36/4DR3
Suggested Combination
1 drive4
Four Units
7+7+7+7
7+7+9+18
7+9+12+18
7+7+7+9
7+7+12+12
7+12+12+12
7+7+7+12
7+7+12+18
9+9+9+9
7+7+7+18
7+9+9+9
9+9+9+12
7+7+7+24
7+9+9+12
9+9+9+18
7+7+9+9
7+9+9+18
9+9+12+12

16
7+7+9+12
7+9+12+12
9+12+12+12
42K
AM5-H42/4DR3
Suggested Combination
1 drive5
One Unit
Two Units
18
7+18
18+18
24
7+24
18+24
—
9+12
24+24
—
9+18
—
—
9+24
—
—
12+12
—
—
12+18
—
—
12+24
—
AM5-H42/4DR3
Suggested Combination
1 drive5
Three Units
7+7+7
7+9+24
9+9+18
12+12+18
7+7+9
7+12+12
9+9+24
12+12+24
7+7+12
7+12+18
9+12+12
12+18+18
7+7+18
7+12+24
9+12+18
12+18+24
7+7+24
7+18+18
9+12+24
18+18+18
7+9+9
7+18+24
9+18+18
—

17
7+9+12
9+9+9
9+18+24
—
7+9+18
9+9+12
12+12+12
—
AM5-H42/4DR3
Suggested Combination
1 drive5
Four Units
7+7+7+7
7+7+12+12
7+9+12+24
12+12+12+12
7+7+7+9
7+7+12+18
7+12+12+12
12+12+12+18
7+7+7+12
7+7+12+24
9+9+9+9
—
7+7+7+18
7+9+9+9
9+9+9+12
—
7+7+7+24
7+9+9+12
9+9+9+18
—
7+7+9+9
7+9+9+18
9+9+12+12
—
7+7+9+12
7+9+12+12
9+12+12+12
—
7+7+9+18
7+9+12+18
9+12+12+18
—
AM5-H42/4DR3
Suggested Combination
1 drive5
Five Units
7+7+7+7+7
7+7+7+9+24
7+7+12+12+12
9+9+9+9+18
7+7+7+7+9
7+7+7+12+12
7+9+9+9+9
9+9+9+12+12
7+7+7+7+12
7+7+7+12+18
7+9+9+9+12
9+9+12+12+12
7+7+7+7+18
7+7+9+9+9
7+9+9+9+18
—
7+7+7+7+24 7+7+9+9+12 7+9+9+12+12 —
7+7+7+9+9 7+7+9+9+18 7+9+12+12+12 —
7+7+7+9+12 7+7+9+12+12 9+9+9+9+9 —

18
7+7+7+9+18 7+7+9+12+18 9+9+9+9+12 —
Note
：
All of the above indoor unit can be freely matched and combined, but must be
installed strictly according to the above table or the cooling capacity and stability would
be decreased.

19
4. Accessories Included
4.1 Outdoor Units
N° Name
QUANTITY
AM2-H14/
4DR3
AM2-H18/
4DR3
AM2-H21/
4DR3
AM3-H27/
4DR3
AM4-H36/
4DR3
AM5-H42/
4DR3
1
Installer
manual 1 1 1 1 1 1
2
Drainage
connector 1 1 1 1 1 1
3
Pipe
adaptor 0 0 0 0 0 0
4
copper
nuts 8 8 12 12 16 20
4.2 Indoor Units
N° Name
QUANTITY
Wall
Mounted Duct Cassette Ceiling & Floor
1
User manual
1
1
1
1
2
Remote control
1
0
1
1
3
Batteries for Remote Control
2
0
2
2
4
Touch screen wired Control
0
1
0
0
5
Panel screw
0
0
4
0
6
Drainage tube
0
1
1
1
7
Pipe adaptor
0
1
1
1
8
Thermal insulation pipe
0
2
2
2

AUX DC Inverter Free Match 50HZ R32
20
Part2 Features
1. Outdoor Units
Environmental-friendly Refrigerant R32
The GWP value of R32 is smaller, so the effect on the greenhouse effect is smaller. The ODP
value of R32 is 0, so it’s no harm to our planet’s ozone layer.
High Efficiency
Equipped with high efficiency DC Inverter compressor, adjustable fan motor and advanced
180° sine wave vector driver, the system can be higher than 6.1 in SEER and 4.0 in SCOP so as
to meet the European and Australian new energy efficiency standards.
Reliability

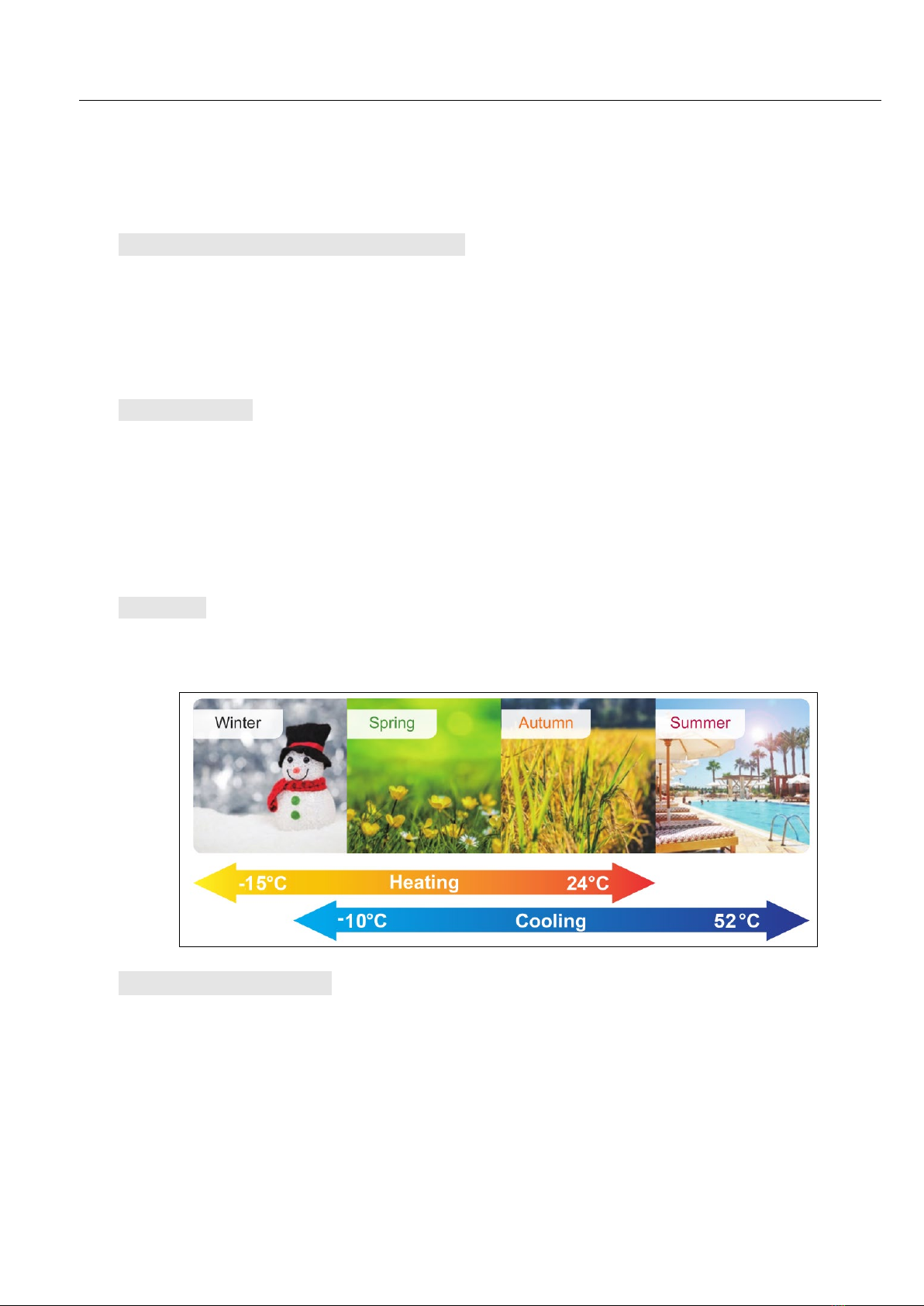

Stable cooling under -10°C and heating under -15°C outdoor environment temperature.
180
°
Sine Wave Control
DC inverter compressor uses 180°sine wave vector control technique, make compressor
motor operates smoothly and efficiency increases significantly.
