Avantco A36951 User manual

Drum type concrete mixer
2018 1
Operator's Manual for Attachment
Drum type concrete mixer
Product number
A36951
English
A432271 2018 1 EN 2018-
www.avanttecno.com

Drum type concrete mixer 2018 1

Drum type concrete mixer 2018 1
CONTENTS
1. FOREWORD ............................................................................................................................................4
Warning symbols used in this manual ............................................................................................................................... 5
2. DESIGNED PURPOSE OF USE.............................................................................................................6
3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT........................................................7

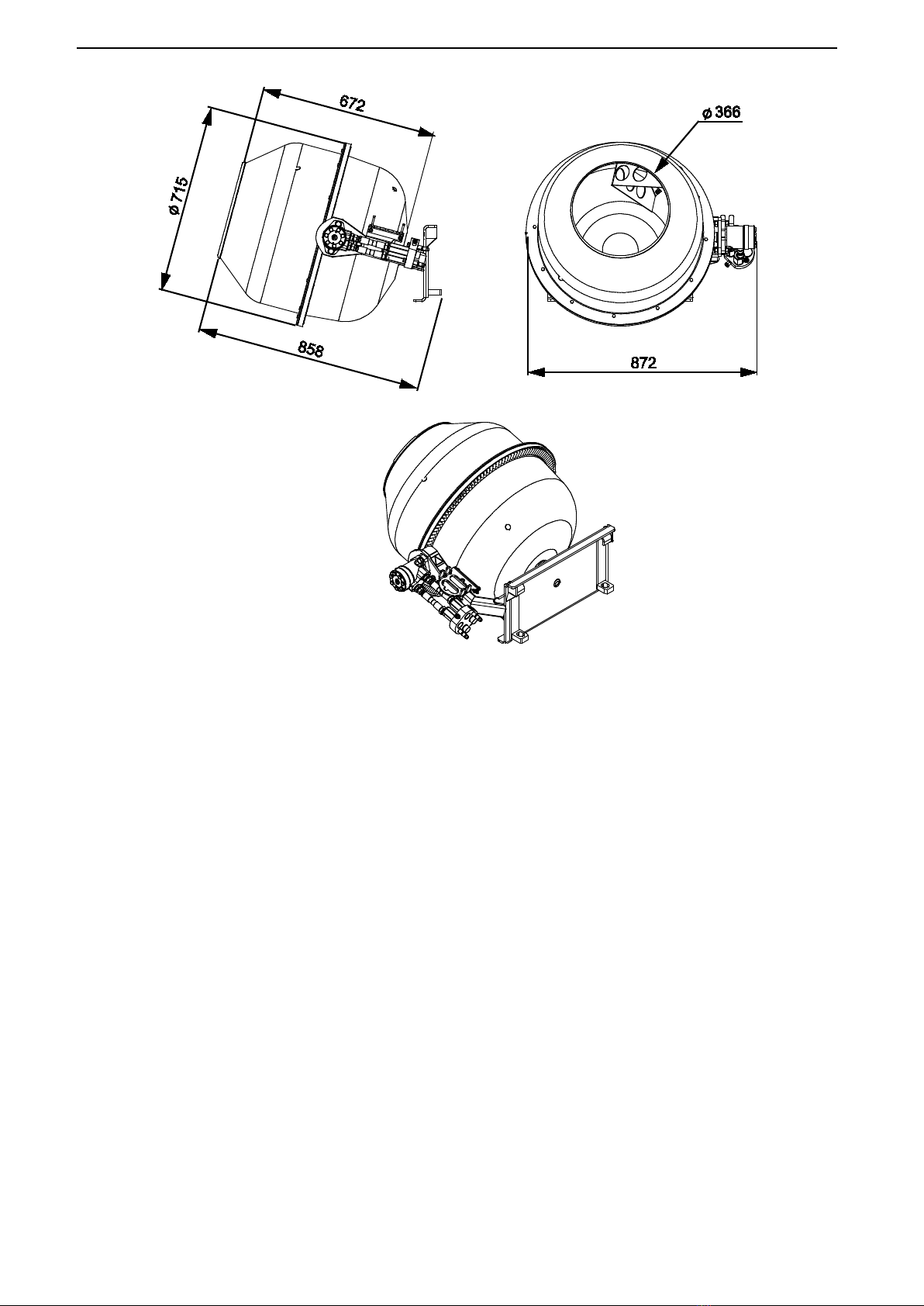

4. TECHNICAL SPECIFICATIONS ..........................................................................................................11

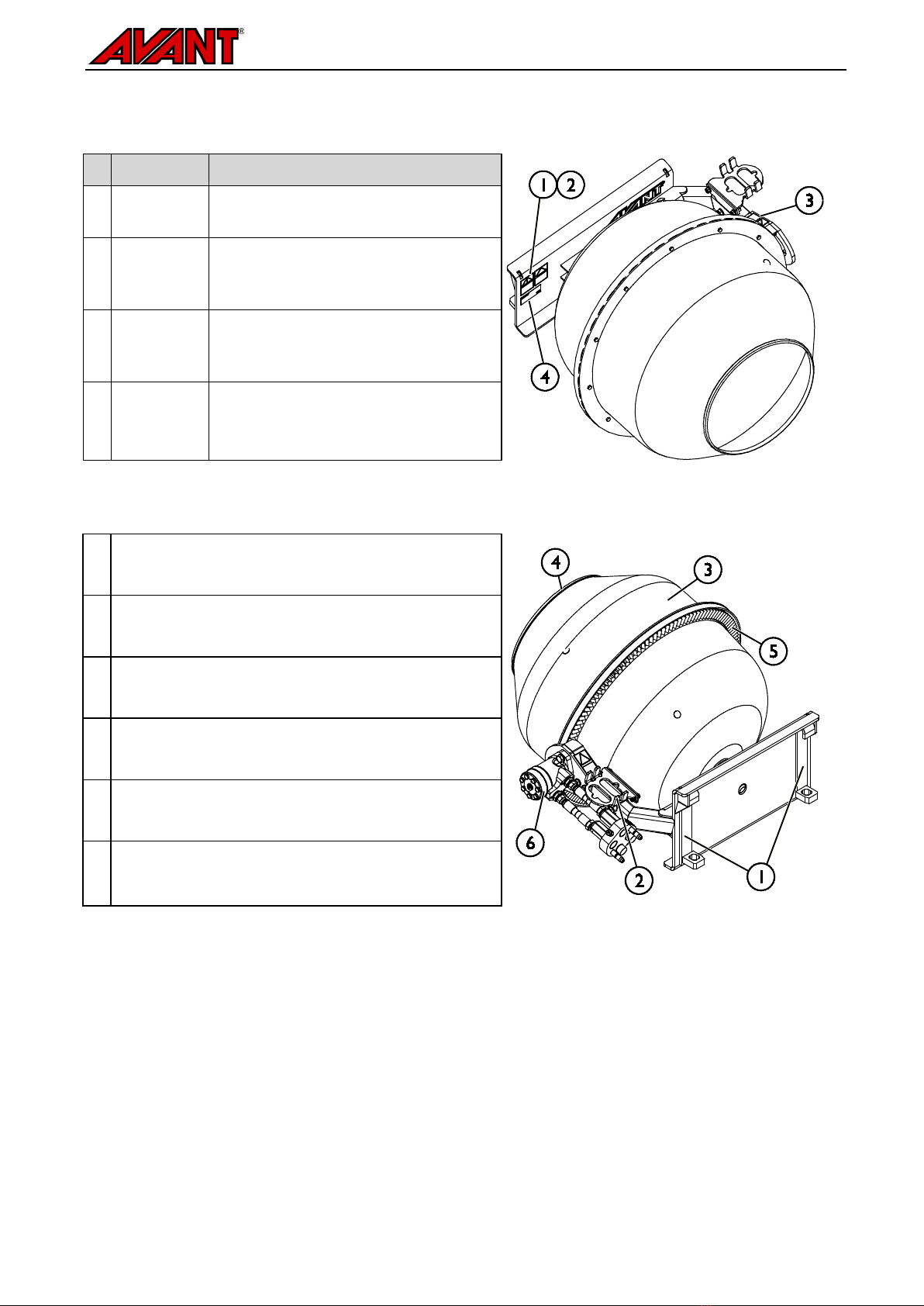

4.1 Safety labels and main components of the attachment.................................................................................. 12
5. ASSEMBLING THE ATTACHMENT....................................................................................................14

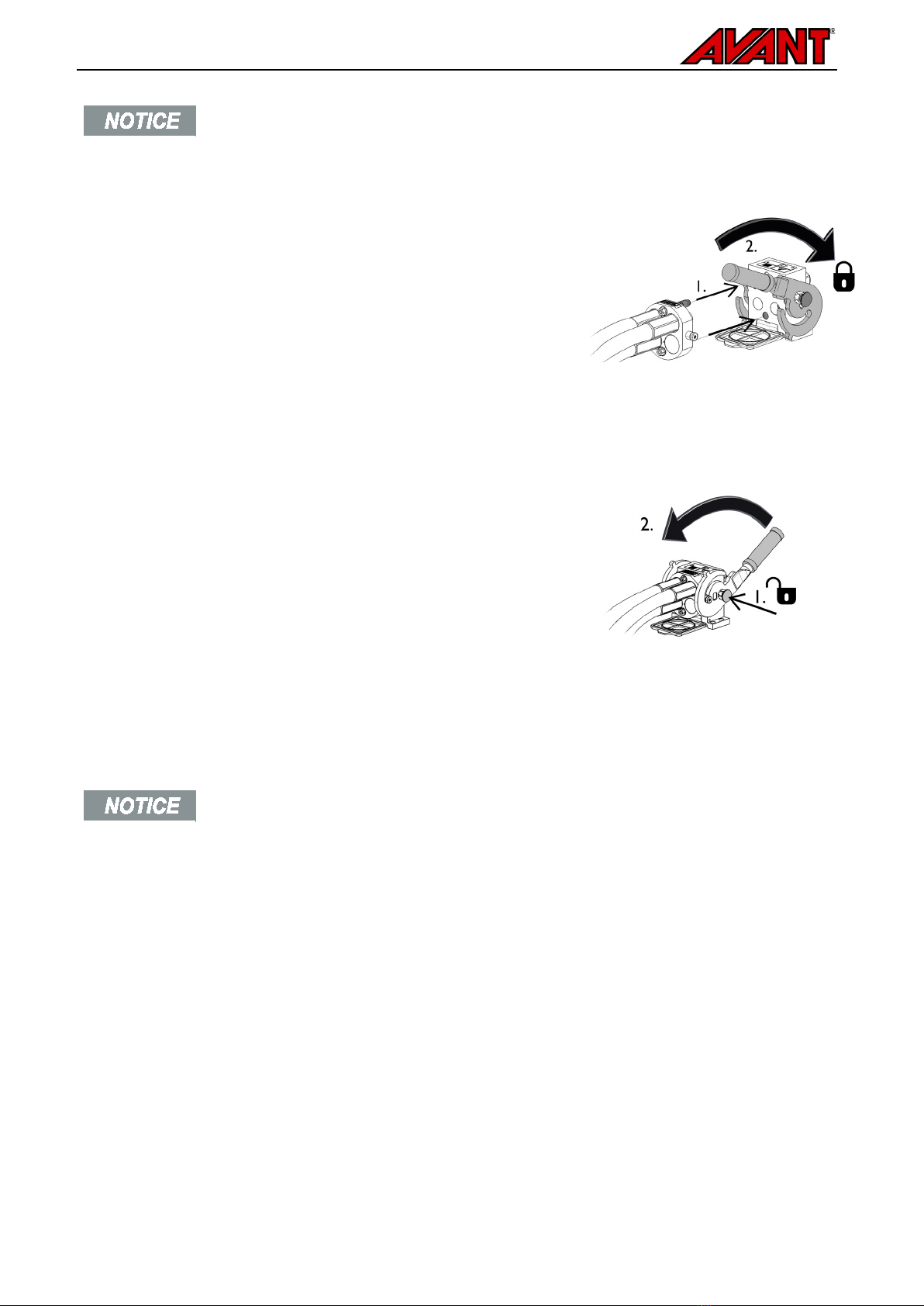

5.1 Connecting and disconnecting hydraulic hoses............................................................................................... 15
6. OPERATING THE ATTACHMENT .....................................................................................................17
6.1 Checks before use................................................................................................................................................. 18
6.2 Operator qualification .......................................................................................................................................... 19
6.3 Operating the concrete mixer............................................................................................................................ 19

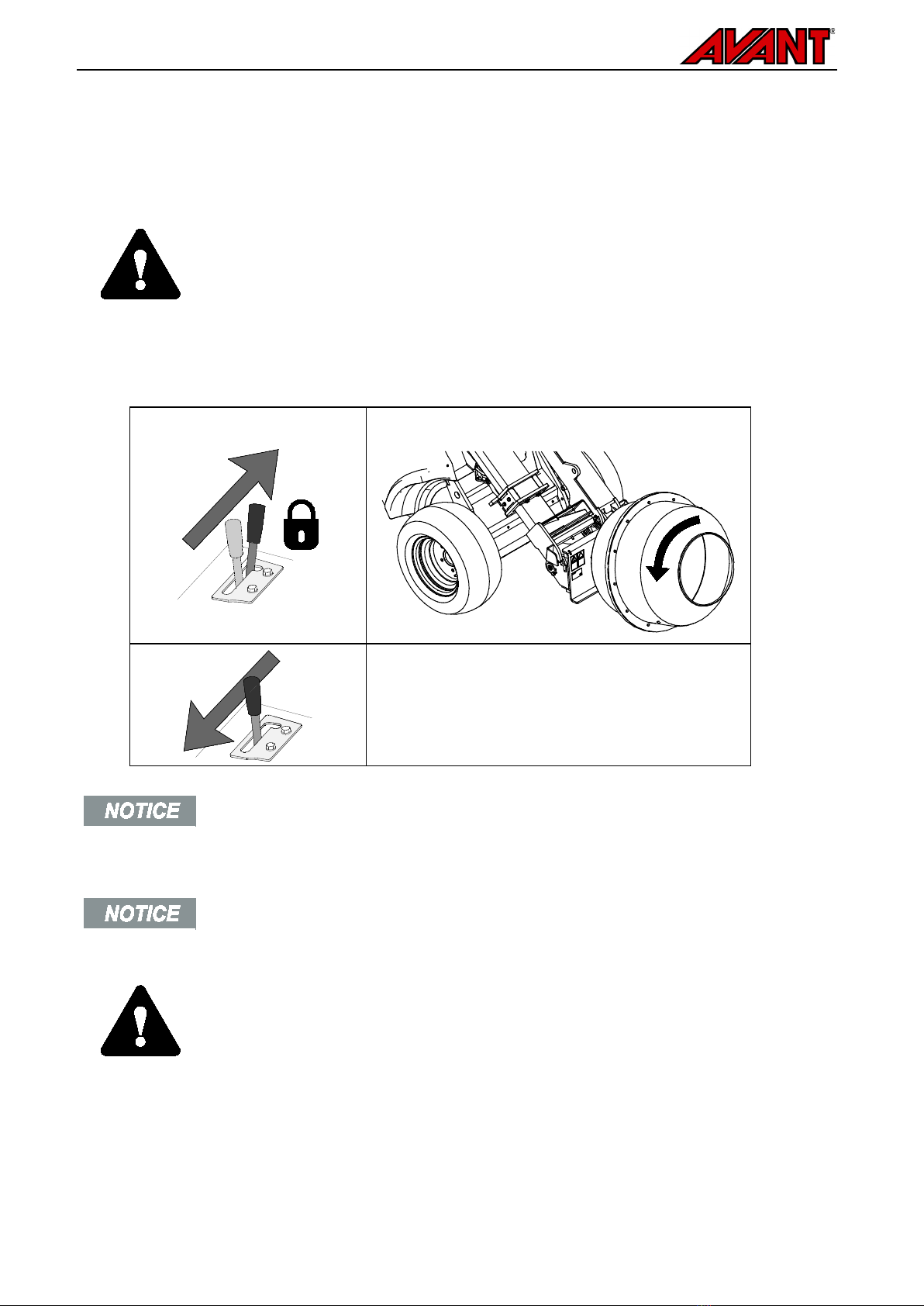

6.3.1 Controlling the concrete mixer ................................................................................................................. 20
6.4 Working on uneven ground................................................................................................................................ 21
6.5 Transport position ................................................................................................................................................ 21
6.6 Storage of the concrete mixer ........................................................................................................................... 22
7. MAINTENANCE AND SERVICE ..........................................................................................................23
7.1 Inspection of hydraulic components.................................................................................................................. 23
7.2 Cleaning of concrete mixer................................................................................................................................. 24
7.3 Inspection of metal structures............................................................................................................................ 24
7.4 Maintenance............................................................................................................................................................ 24
7.5 Drive motor adjustment ...................................................................................................................................... 24
8. WARRANTY TERMS..............................................................................................................................25

4 (28)
1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured based on years of experience on product development and manufacturing.
By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure
the reliable operation and long service life of the equipment. Read the instructions carefully before starting to
use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this manual, you must observe all occupational safety
regulations, local laws, and other regulations concerning the use of the equipment. Particularly the regulations
concerning the use of the equipment on public road areas must be observed. Contact your Avant dealer for
more information about local requirements before you operate the loader on road areas.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2018 Avant Tecno Oy. All rights reserved.

5 (28)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING: SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER:
This signal word indicates a hazardous situation which, if not avoided, will cause
death or serious injury.
WARNING:
This signal word indicates a potentially hazardous situation which, if not avoided,
could cause serious injury or death.
CAUTION:
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompan
ying the symbol can lead to equipment
breakdown or other property damage.

6 (28)
2. Designed purpose of use
The AVANT Drum type concrete mixer is an attachment suitable for use with AVANT multi purpose loaders
shown in Table 1. The concrete mixer is an essential attachment for mixing and transporting concrete, mortar,
plaster or similar material even at difficult locations. Pouring concrete to desired location is possible by simply
tilting the drum with the loader boom. The drum type concrete mixer is an ideal attachment for concrete mixing
at locations where there is no electricity available. When larger volume of concrete is needed, the Avant
concrete mixing bucket is recommended.
Operating a rotating concrete mixer includes inherent hazards that can be fully avoided only by using the
equipment carefully and in correct way. Filling the mixer and transporting or lifting a filled mixer are tasks that
require special attention. The attachment is intended for operators who have learned the safe operation of the
loader and the attachment, and are able to notice the risks arising from using the equipment and conditions of
operating area. The attachment is set to correct height and angle while sitting in the driver’s seat of the loader,
and it is also started from the driver’s seat. Driving speed must be adjusted according to operating and terrain
conditions. Unintended moving of the loader must be prevented using suitable blocks as needed in addition to
the parking brake of the loader.
The Drum type concrete mixer is not designed for any other use than what is specified in this manual and
must not be used for any other purposes than intended.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional maintenance. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if
you require spare parts or maintenance services.
Table 1 - Drum type concrete mixer - Compatibility with Avant loaders
Model
220
225
225LPG
313S
320S
420
423
520
523
R20
525LPG
R28
528
530
630
R35
635
640
745
750
755i
760i
e5
e6
A36951 - ••••••
It is recommended to use the attachment only with loaders marked with •in Table 1. When using with models
marked with (•), full performance may not be achieved. Additional counterweights may also be required. For
compatibility with a model not shown in table, contact your Avant dealer.

7 (28)
3. Safety instructions for using the attachment
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
DANGER
Misuse, careless use, or using an attachment that is in poor condition, may
cause risk of serious injuries. Familiarise yourself with the controls of the
loader,
correct coupling procedure, and the correct way to operate the attachment at a safe
area. Study especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment
WARNING

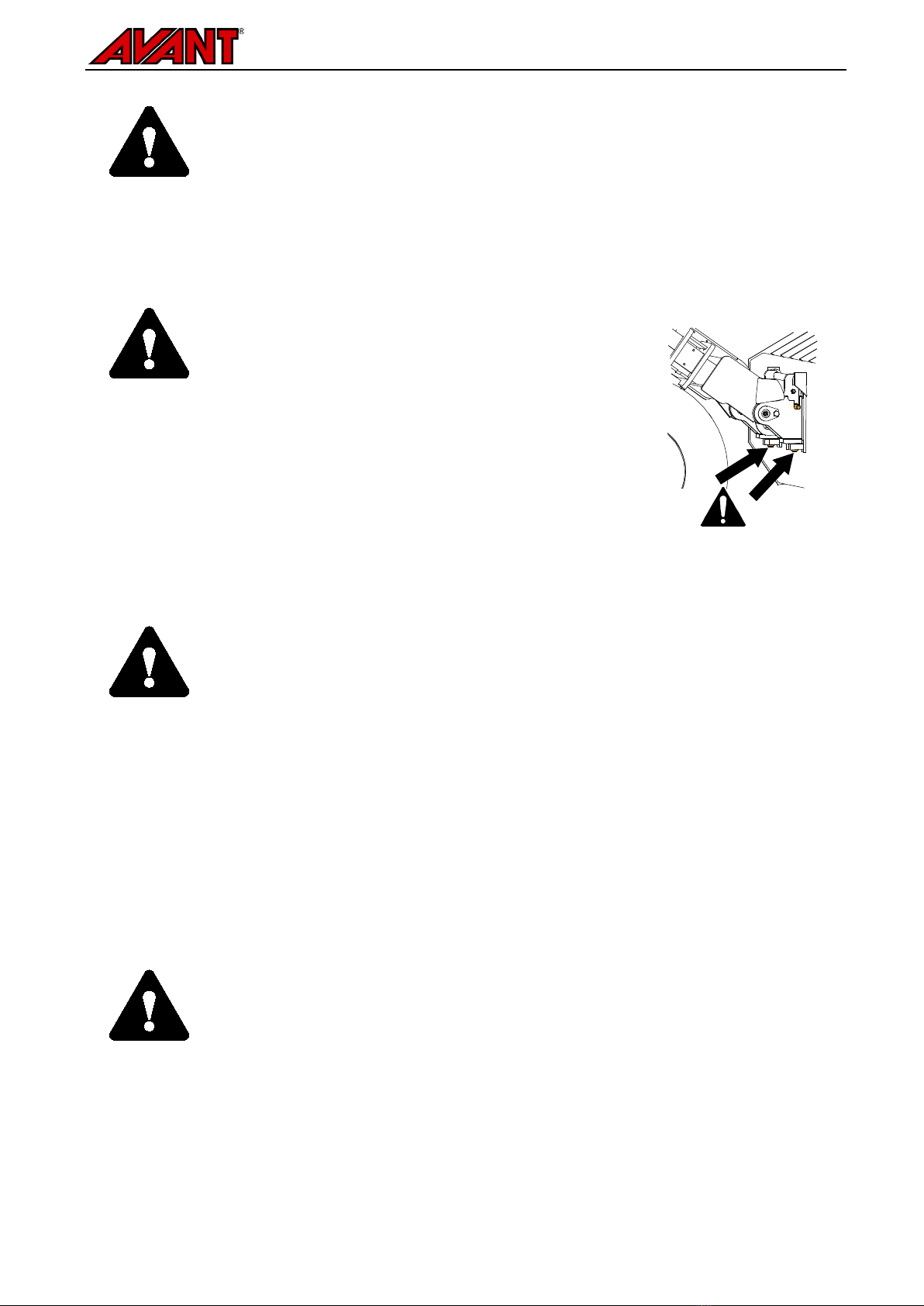

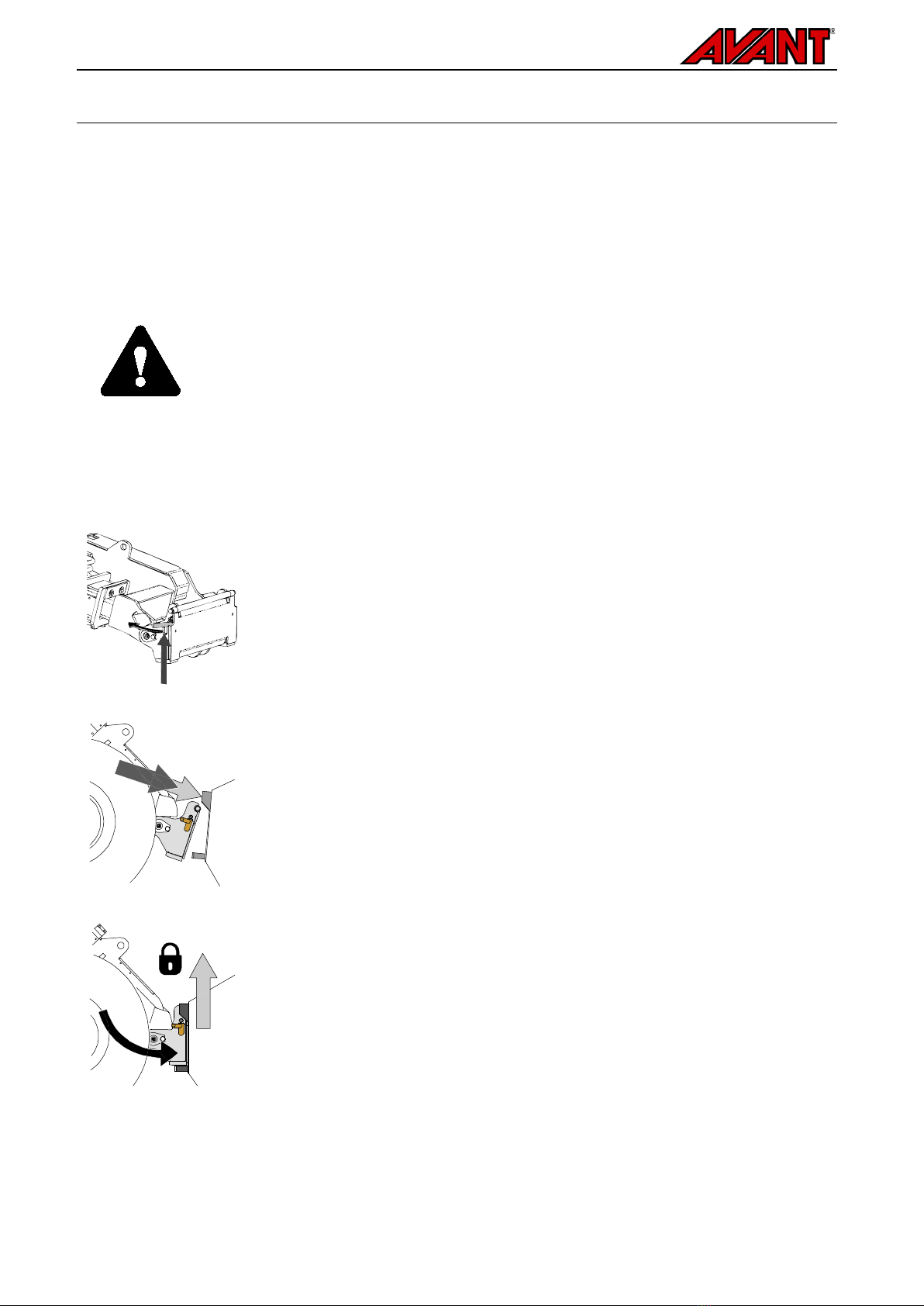

When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.
The Drum type concrete mixer is designed to be used by one operator at a time. Do
not let others near the danger area of the equipment when it is in use.
Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
The mixer is intended to be use d by one adult operator at a time. Prevent others from
entering the work area or getting near the loader when in use. Pay attention to the
surroundings and other persons and machines moving in the vicinity. Always make
sure that it issafe to move with the machine. Always keep a minimum safety distance
of at least one metre from other persons. When driving, pay attention to the contours
of the terrain and, for example, holes or loose rocks, as well as other hazards, such
as branches and trees reaching the driver's area.
Keep hands away from moving parts. Never reach into the mixer drum ifthe drum
can start by accident. Make sure that, for example, loose clothing can’t get entangled
with the rotating mixer.
Note the recommended and maximum operating speeds. Do not rotate the mixer at
higher than recommended speed, the material will not get mixed, and the mixer can
throw material out, or it may get damaged.
Before starting the concrete mixer, make sure that there are no foreign objects in the
drum that could be ejected from the attachment or that could damage the mixer.
When taking the concrete mixer off from the loader, ensure that it is secured against
accidental movement. To prevent the attachment from tipping over, lower it on even
surface and use blocks of wood as necessary.
Use the concrete mixer for its intended use only. Check the mixing tools and the
inside of the drum regularly. Read the instructions on maintenance and servicing and
only use original spare parts.
Operate the controls of the loade rin a slow and calm manner. Be careful when lifting
load to high level or lifting load from high. Avoid sudden changes in speed or
direction to maintain balance of the loader especially when handling heavy loads.
Drive slowly and carefully especially on inclined terrain or slippery surfaces.

8 (28)
The stability of the loader may change when leaving the driver’s seat, leading to
tipping over of the machine. Always remember that the boom
may lower
unexpectedly due to loss of stability, mechanical fault, or if another person operates
the controls of the loader, leading to crushing hazard. The attachment or the loader
are not intended to be left to keep a load elevated for longer periods. L
ower the
attachment before leaving the driver's seat.
Keep the loader articulation in straight position when handling heavy loads. When
turning the articulation, the loader may tilt forward.
Observe maximum load indicated in the operator’s manual of the loader. Be
especially careful when the load sensor indicator is activated.
Make sure that the surface can bear the total load. Also follow the correct tyre
pressure settings.
Ensure that ventilation is sufficient when operating indoors. Do not operate the loader
in closed spaces regardless of the engine or fuel type. Exhaust gases may
concentrate to hazardous levels.
Never use the attachment to lift or to transport persons or as any kind of work
platform even temporarily.
Make sure to use only an attachment that is in good condition. Check the attachment
thoroughly in regular intervals. Do not modify the attachment in a manner that would
affect its safety. It is prohibited to drill holes on the attachment, and welding or other
means of fixing hooks or other objects on the attachment is strictly prohibited.
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.
Pay attention to the surroundings and any other persons and machines moving in the
vicinity. Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Make sure to use only an attachment that is in good condition. Do not modify the
attachment in any way that could affect its safety.
Use the attachment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Seat belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
WARNING

9 (28)
.

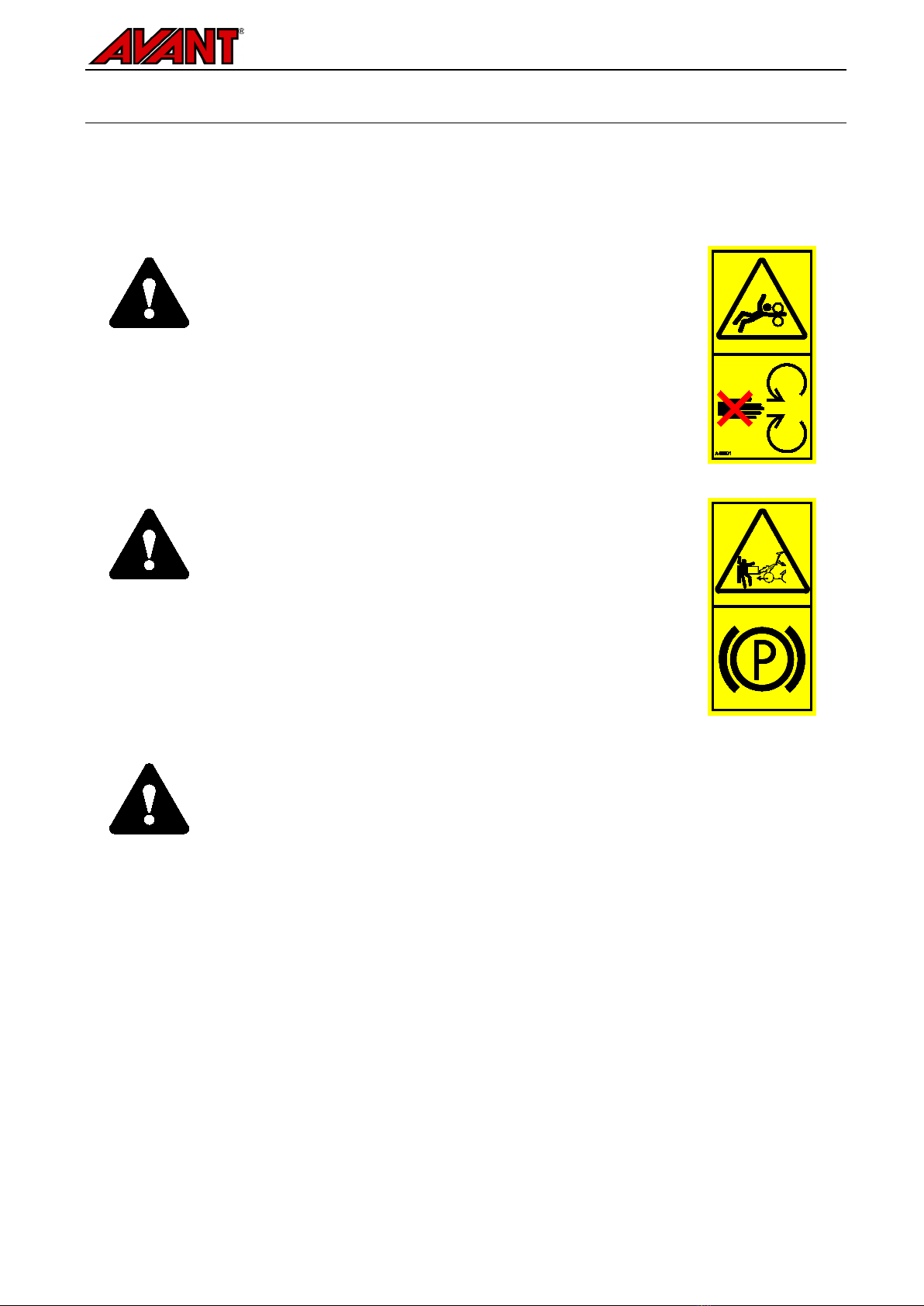

WARNING
Risk of tipping over - Avoid overload.
Loader can tip over
when handling too heavy loads, or because of dynamic
movements caused by driving with and handling of a heavy
load. Do not extend the telescopic boom when the load
approaches the lifting capacity of the loader, or when the
loader boom is in horizontal position. When you notice that
the rear wheels of the loader are about to lift from the ground,
or if the load indicator of the loader (if fitted) signals:
Lower the load calmly and retract the telescopic boom
Avoid sudden changes in speed or direction whenever load is lifted
Use additional counterweights as needed
WARNING
Risk of crushing - Never allow
anyone to get under a
lifted attachment or loader boom.
Keep in mind that the
loader boom can be lowered or tilted even if the engine has
been shut down (crushing hazard). The loader is not intended
to be left to keep a load elevated for longer periods. Always
lower the attachment to a safe position before leaving the
driver's seat.
. ..
DANGER
Risk of entanglement and crushing between moving
components -
Always stop the attachment by following
the safe stopping procedure before reaching into the
mixing drum.
Using the concrete mixer makes it necessary
to work near a rotating tool. Never wear loose clothing that
could get entangled with the rotating parts. Never reach into a
mixer that can start.
WARNING
Choking hazard - Ensure ventilat
ion when using a loader with combustion engine
indoors.
Using the loader engine indoors increases, among other things, the carbon
dioxide level of the air, which affects the safety of the operator. Make sure that ventilation
is sufficient and adapt use periods according to operating conditions.

10 (28)
.
Remember to wear proper personal protective equipment:

The noise level at the driver's seat may exceed 85 dB(A) depending on loader
model and operating cycle. Extended exposure to loud noise can cause
hearing impairment. Wear hearing protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses when handling hydraulic components.
Handling some materials can cause sprea
ding of dust. Wear respirator mask
when handling loose materials.
When working at construction sites, a safety helmet is recommended and may
be mandatory in addition to the falling objects protective structure (FOPS) on
the loader. Find out about oth
er necessary safety equipment at your specific
work site.
. ..
Safe stopping of the attachment, before going near the attachment:
WARNING
Always stop the attachment following safe stopping procedure before leaving
the driver's seat. Safe stopping pr
ocedure prevents all unintentional movements of
the attachment. Note that the loader boom can move down even if the engine of the
loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.

Release residual pressure from the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

11 (28)
4. Technical specifications
Table 2 - Drum type concrete mixer - Specifications
Product number A36951
Total volume: 170 l
Mixing volume: 100 l
Weight: 85 kg
Drum rotation: Hydraulic motor, gear rim drive
Maximum rotating speed: Max 1 rev/s (60 rpm, 30 l/min)
Recommended input of hydraulic flow,
recommended rotating speed:
0,3 – 0,6 rev/s
(20 – 40 rpm, 9 – 21 l/min)
Maximum input of hydraulic energy: max 25 l/min
Suitable Avant loaders: See Table 1
. ..

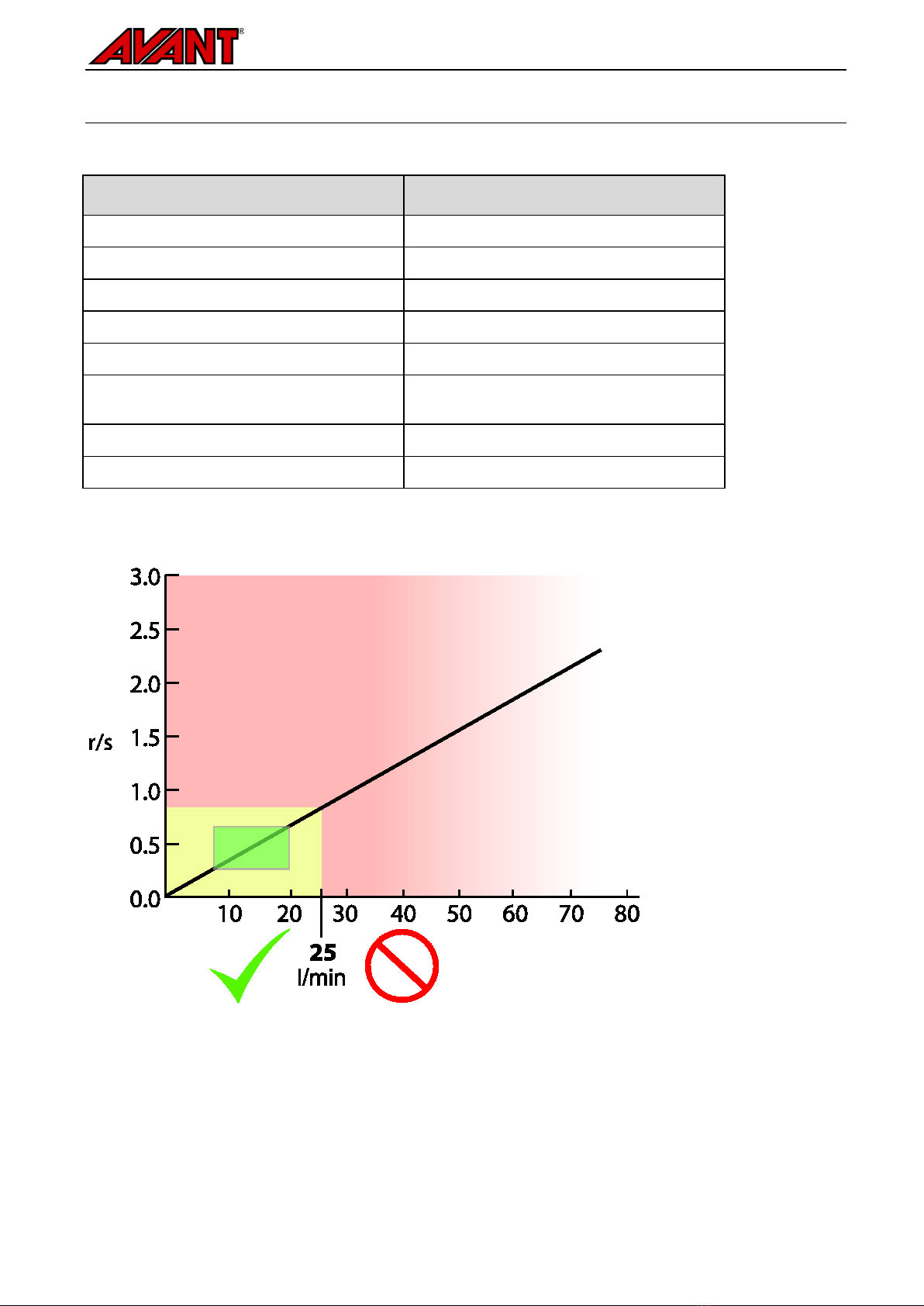

Recommended operating speed and maximum allowed oil flow:

12 (28)
.
4.1 Safety labels and main components of the attachment
Listed below are the labels and markings on the attachment. They must be visible and readable on the
equipment. Replace any unclear or missing label. New labels are available via your retailer or contact
information provided on the cover.
WARNING
Make sure all warning decals are readable.
The warning labels contain important
safety information and they help to identify and remember the hazards related to the
equipment. Replace damaged or missing warning labels with new ones.
. ..
Attachment identification plate A420982
A46771 A46772 A46801
. ..
To apply a new label: Clean the surface thoroughly to remove all grease. Allow it to dry completely. Peel off
the protective film of the label and press firmly to apply. Take care not to touch the glue of the label.

13 (28)
.
Table 3 - Decal locations and warning messages
Decal Warning message
1 A46771 Misuse hazard -
Read instructions before
use.
2 A46772 Crushing hazard -
Do not go under a
raised attachme
nt; stay away from raised
equipment.
3
A46801
Entanglement hazard, keep clear of
moving components. Stop the machine
before going near it.
4
A420982
Attachment identification plate
. ..
Table 4 - Drum type concrete mixer - Main components
1 Frame with Avant coupling brackets
2 Multiconnector holder
3 Mixer drum
4 Mixing tools inside drum
5 Gear rim
6 Hydraulic motor drive

14 (28)
5. Assembling the attachment
Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is
mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the
attachment.
If the attachment is not locked to the loader, it may detach from the loader and cause a hazardous situation.
The loader must not be driven and the boom must never be lifted when the attachment has not been locked.
To prevent hazardous situations, always follow the coupling procedure shown below. Also remember the
safety instructions shown in this manual. The attachment is mounted to the loader as follows:
WARNING
Crushing risk - Make sure that an unlocked attachment will not move or fall over.
Do not stay in the area between the attachment and the loader. Mount the attachment
only on level surface.
Never move or lift an attachment that has not been locked.
Avant quick coupling system:
Step 1:

Lift the quick attach plate locking pins up and turn them backwards into the slot
so that they are locked in the upper position.
If your loader is equipped with a hydrau
lic attachment locking system, see
additional instructions about the use of the locking system from the relevant
manuals.
Ensure that the hydraulic hoses are not in the way during installation.
Step 2:
Turn the quick attach plate hydraulically to an obliquely forward position.

Drive the loader onto the attachment. If your loader is equipped with a
telescopic boom, you can utilise this.

Align the upper pins of the loader’s quick coupling plate so that they are under
the corresponding brackets of the attachment.
Step 3:
Lift the boom slightly –
pull the boom control lever backward to raise the
attachment off the ground.

Turn the boom control lever left to turn the bottom section of the quick attach
plate onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of both locking pins.

15 (28)
WARNING
Risk of crushing - Avoid tipping over the attachment.
Excessive tilting or lifting of an
unlocked attachment increases the risk of tipping the attachment o
ver. Do not use the
automatic locking of the locking pins when the attachment is lifted more than one meter
from the ground. If the locking pins do not return to the normal position when tilting, do
not tilt or raise the attachment any more. Lower the atta
chment on the ground and
secure the locking manually.
WARNING
Risk of falling objects -
Prevent dropping of
attachment.
An attachment that has not been completely locked to the
loader may fall on the boom or towards the operator, or
fall under the l
oader during driving, causing loss of
control of the loader. Never move or lift an attachment
that has not been locked. Before moving or lifting the
attachment, make sure that the locking pins are in the
lower position and come through the fasteners on the
attachment on both sides.
WARNING
Make sure the loader is compatible with the attachment.
Stability of the loader,
possible overload of the attachment, and compatibility of loader control systems must be
ensured in addition to mechanical c
ompatibility of the attachment. If you use the
attachment with a loader that is not fit to be used with the attachment model you have,
risks include tipping over, damage to attachment due to overload, and risks related to
uncontrolled motion of attachment
and its parts. If your loader is not listed in Table 1 on
page , ask your Avant dealer before using this attachment.
5.1 Connecting and disconnecting hydraulic hoses
On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant
300-700 series loader with the conventional quick couplers and wish to change to the multi connector system,
contact your Avant dealer or service point for instructions or installation services.
WARNING
Risk of movement of the attachment and ejection of hydraulic oil -
Never connect
or disconnect quick couplings or other hydraulic components while the control
lever of the auxiliary hydraulics control lever is locked on or if the system is
pressurized. Connecting or disconnecting the hydr
aulic couplings while the system is
pressurized may lead to unintended movements of the attachment, or ejection of high-
pressure fluid, which can cause serious injuries or burns. Follow safe stopping procedure
before disconnecting hydraulics.

16 (28)
Keep all fittings as clean as possible; use the protective caps on both the attachment and
the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never
leave the hoses hanging on the ground; place the couplings onto the holder on t
he
attachment.
Connecting the multiconnector system:
1.
Align the pins of the attachment connector with corresponding
holes of the loader connector. The multiconnector will not connect
if the attachment connector is upside down.
2. Connect and lock the mu
lticonnector by turning the lever towards
the loader.
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure.
To disconnect the multiconnector system:
Before disconnecting put the attachment down on a solid and even
surface.
1. Switch off the auxiliary hydraulics of the loader.
2. While pushing unlock button, turn
the lever to disconnect the
connector.
3.
After ending operation put the multiconnector on its holder on the
attachment.
Disconnecting hydraulic hoses:
Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the
control lever of the auxiliary hydraulics to its neutral position.
When uncoupling the attachment, always disconnect the hydraulic couplings before
unlocking the quick attach plate, to prevent hose damage and any oil spills. Reinstall the
protective caps on the fittings to prevent impurities from entering the hydraulic system.
Releasing residual hydraulic pressure:
In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the
hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the
residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the
engine is turned off. To make sure that there will not be residual pressure in the hydraulic system of the
attachment, shut down the loader engine and move the auxiliary hydraulics control lever of the loader back
and forth before disconnecting the couplings.

17 (28)
6. Operating the attachment
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
. ..
DANGER
Risk of entanglement and crushing between moving
components -
Always stop the attachment by following
the safe stopping procedure before reaching into the
mixing drum.
Using the concrete mixer makes it necessary
to work
near a rotating tool. Never wear loose clothing that
could get entangled with the rotating parts. Never reach into a
mixer that can start.
WARNING
Risk of crushing -
Ensure that the parking brake of the
loader is engaged when working near the attachment.
Use additional blocks if needed. Whenever possible, lower
the attachment firmly on the ground.
. ..
WARNING
Risk of injuries to other persons -
Stop the concrete mixer drum if others get too
close of the rotating mixer.
The mixer is int
ended to be used by one adult operator at a time. Prevent others from
entering the work area or getting near the loader when the mixer is in use.

To avoid accidents caused by movements of the loader, never allow anyone to stay
in the driver's seat of the l
oader while filling the concrete mixer. Always engage the
parking brake.

Always make sure that it is safe to move with the machine. Pay attention to the
surroundings and other persons and machines moving in the vicinity. Keep a
minimum safety distance of a
t least two metres from other persons. Stop the loader
and rotation of the drum if other persons are in risk of getting too close to the
concrete mixer.

18 (28)
.
WARNING
Risk of inhaled dust - Use respirator mask as needed.
Handling of cement,
sand, a
nd other materials related to the typical use of the concrete mixer can
cause spreading of dust. Wear respirator mask when handling loose materials to
avoid inhaling dust.
. ..
CAUTION
Risk of thrown parts - Avoid running the attachment at very high speed.
Operating
the attachment at too high speed may cause high vibrations, noise, or thrown parts from
the attachment, or damage that could lead to personal injury. See recommended input
flow in this manual.
6.1 Checks before use
Check that the concrete mixer is intact and remove any material left in the mixing drum before starting
the mixer. Clean also the drive gear rim for smooth operation. Check that the drum can rotate freely,
and that there is no foreign material coiled around the drum or stuck on the gear rim.
Operate the equipment only on a level working site, which can carry the load of the equipment when
fully loaded. The operating area must be sufficiently flat and it should be cleared from any obstacles
that could cause a tripping hazard for the operators. Make sure the area is lit well enough.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
Check the general condition of the attachment and the loader, and check for possible hydraulic oil
leaks. The attachment must not be used, if there is a fault in the hydraulic system of the loader or the
attachment. Refer to Chapter 7 for maintenance instructions.
Operate the attachment and the controls of the loader only when seated on the driver’s seat. Ensure
that the loader and the attachment are used in a safe manner and as intended. Do not allow children
to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Remember correct working methods and avoid leaving the driver’s seat unnecessarily.

19 (28)
.
6.2 Operator qualification
Anyone who intends to use the attachment must:
Know the intended use of the attachment.
Know how to use the loader safely in different operating conditions.
Read and always follow the instructions concerning the use of the attachment in this operator's
manual.
Have this manual and the operator's manual of the loader available.
Ensure that the loader and the attachment are used in a safe manner and as intended.
Never allow children to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Complete any possible mandatory training required by the employer before use.
. ..
6.3 Operating the concrete mixer
With the concrete mixer, the drum is rotated hydraulically with the Auxiliary hydraulics of the loader, and
emptying of the drum is done simply by tipping the drum forward with the boom of the loader.
The concrete mixer is intended to be used approximately the position shown below. Keep the telescopic boom
of the loader retracted for the best stability during operation.
The concrete mixer is operated by moving the auxiliary hydraulics control lever of the loader (or by pressing
buttons of the electric joystick, if equipped).

20 (28)
Rotate the concrete mixer slowly during initial filling. The correct final rotating speed for mixing varies
depending of the mixed material. The rotating speed should never exceed above one revolution per
second.
Empty the drum by tilting it with the loader boom while rotating the concrete mixer slowly simultaneously.
During emptying, the rotating direction of the concrete mixer can be varied as needed.
CAUTION
Risk of ejected material and noise - Keep rotating speed low.
Keep the rotating
speed low to avoid spilling of materia
l in the drum, and to avoid movements of the loader
due to centrifugal forces of a fast spinning drum. See this operator's manual for
recommended and maximum allowed operating speeds.
6.3.1 Controlling the concrete mixer
Normal running direction
Reverse rotation while emptying the mixer
Operate the attachment keeping the hydraulic flow within recommended range. Never
exceed maximum allowed input of hydraulic energy.
The concrete mixer is intended to be filled manually, e.g. with shovels. Never lift materials
from the ground with the concrete mixer itself to avoid damaging the drum.
CAUTION
Risk of flying debris -
Keep rotation speed low and check the drum for foreign
materials. Before starting the concrete mixer, make sure that th
ere are no foreign objects
in the drum that could be ejected from the attachment or that could damage the mixer.
Always follow the recommended operating speed.
