Avantco MX20 User manual

User Manual
www.AvantcoEquipment.com 1
Gear Driven 20 Qt. Commercial Mixer
User Manual
Models: MX20
Please read and keep these instructions. Indoor use only.
Shifting gears while this unit is
running will void warranty. 08/2012

User Manual
2 www.AvantcoEquipment.com
Index
Parts Overview .............................................................. 3
Standard Accessories.................................................... 4
Operation Instructions .................................................. 4
Mixer Capacity Chart ..................................................... 5
Troubleshooting And Specifications............................. 6
Figure 1 Transmission Case .......................................... 7

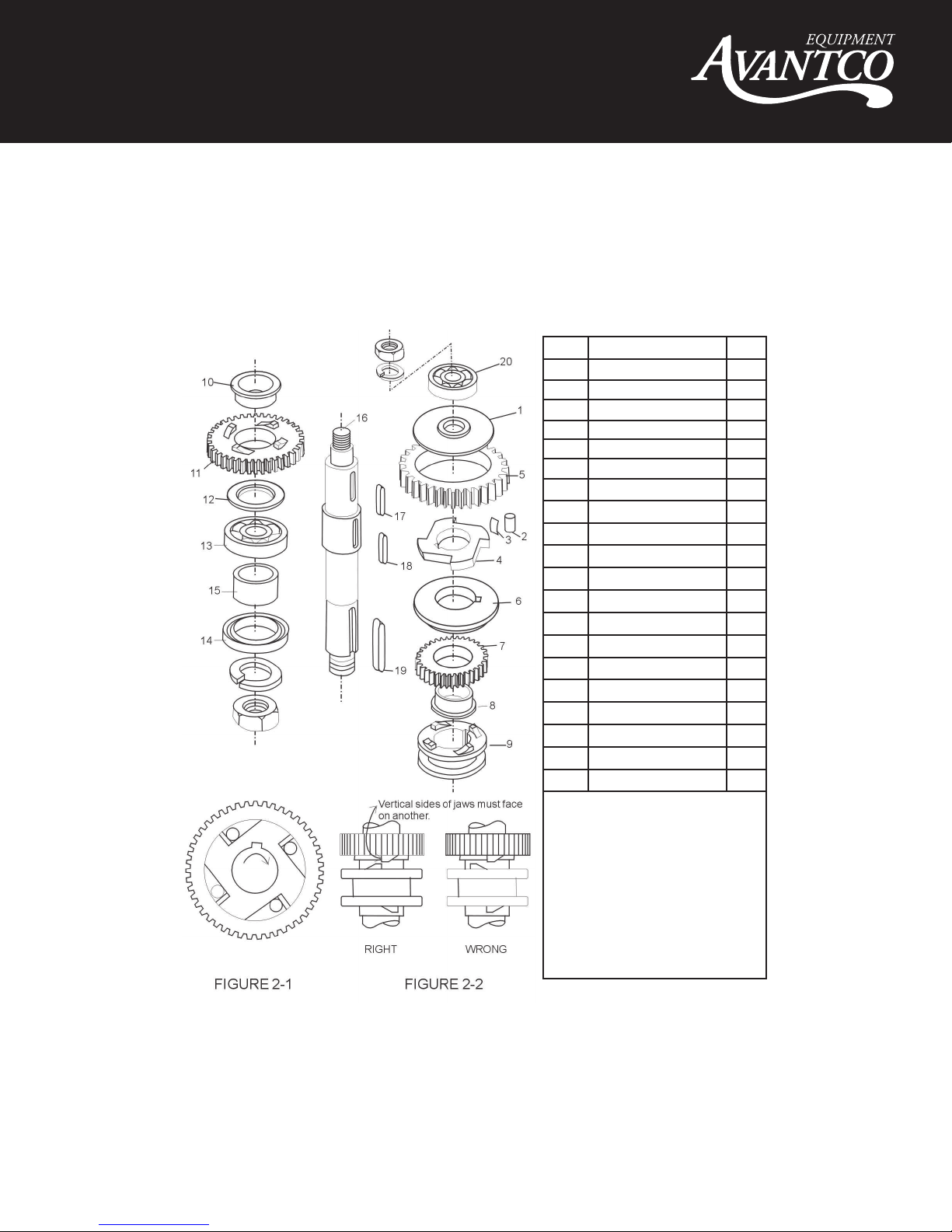

Figure 2 Planetary Shaft Assembly .............................. 8

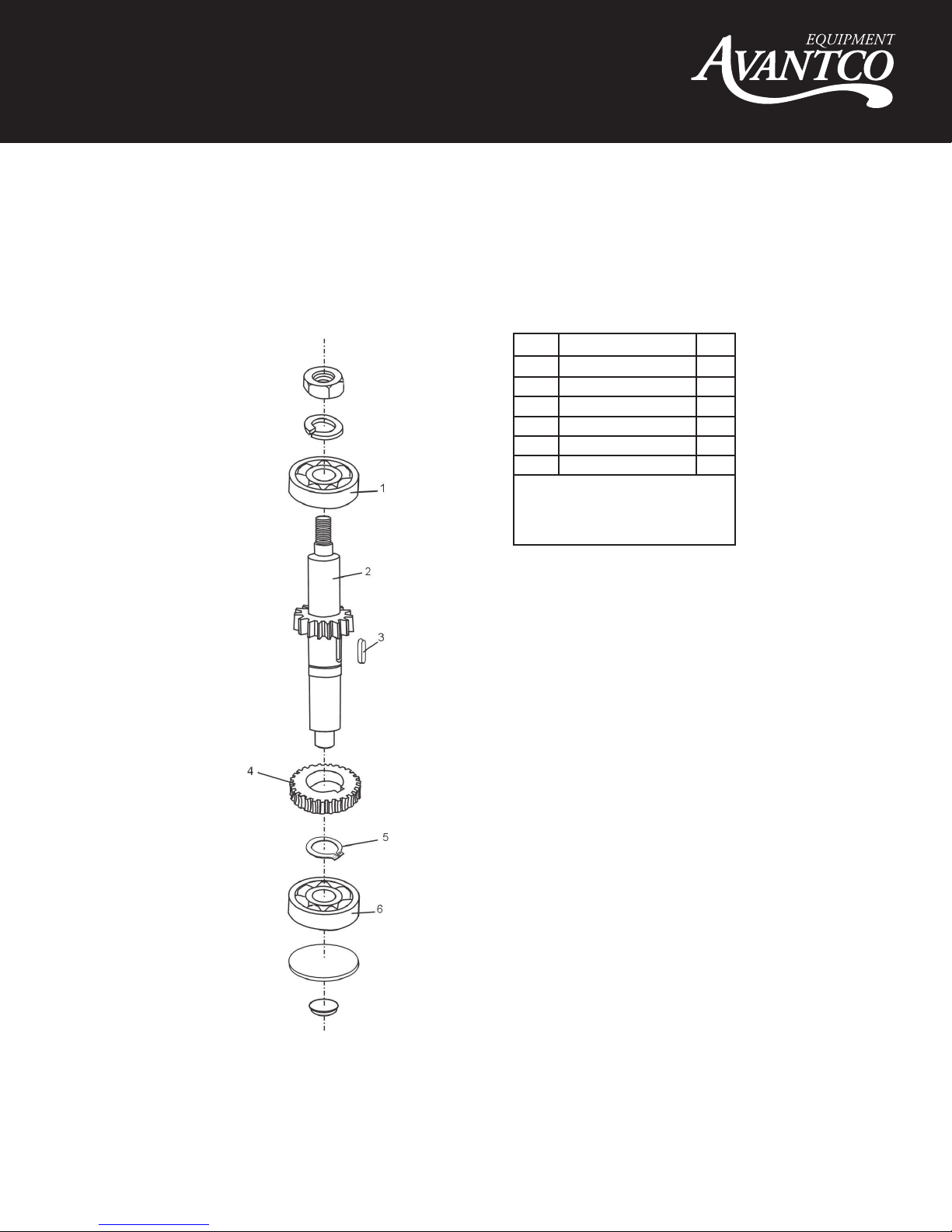

Figure 3 Transmission Shaft Assembly ....................... 9
Figure 4 Worm Gear Assembly Shaft ......................... 10
Figure 5 Motor Unit ..................................................... 11

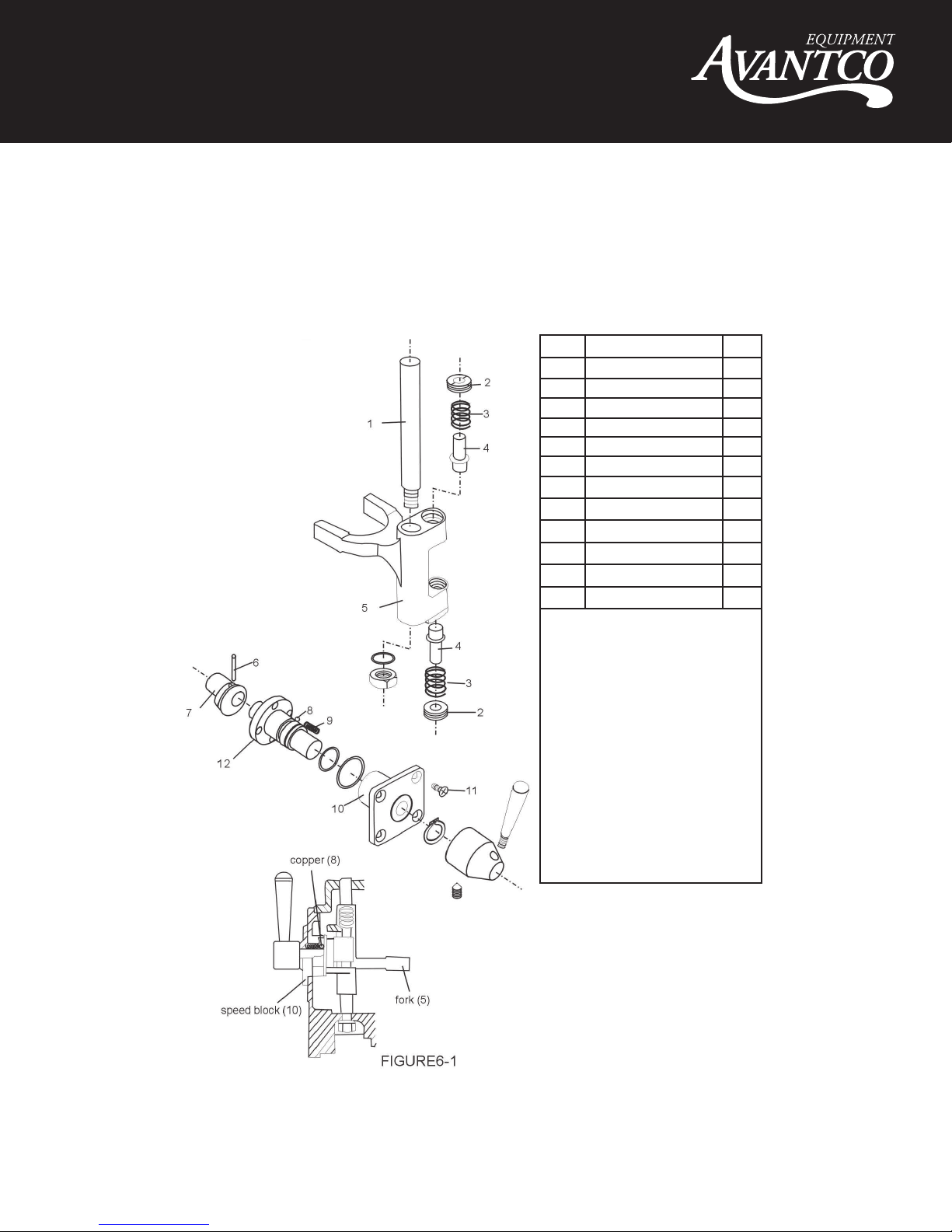

Figure 6 Shift Mechanism............................................ 12

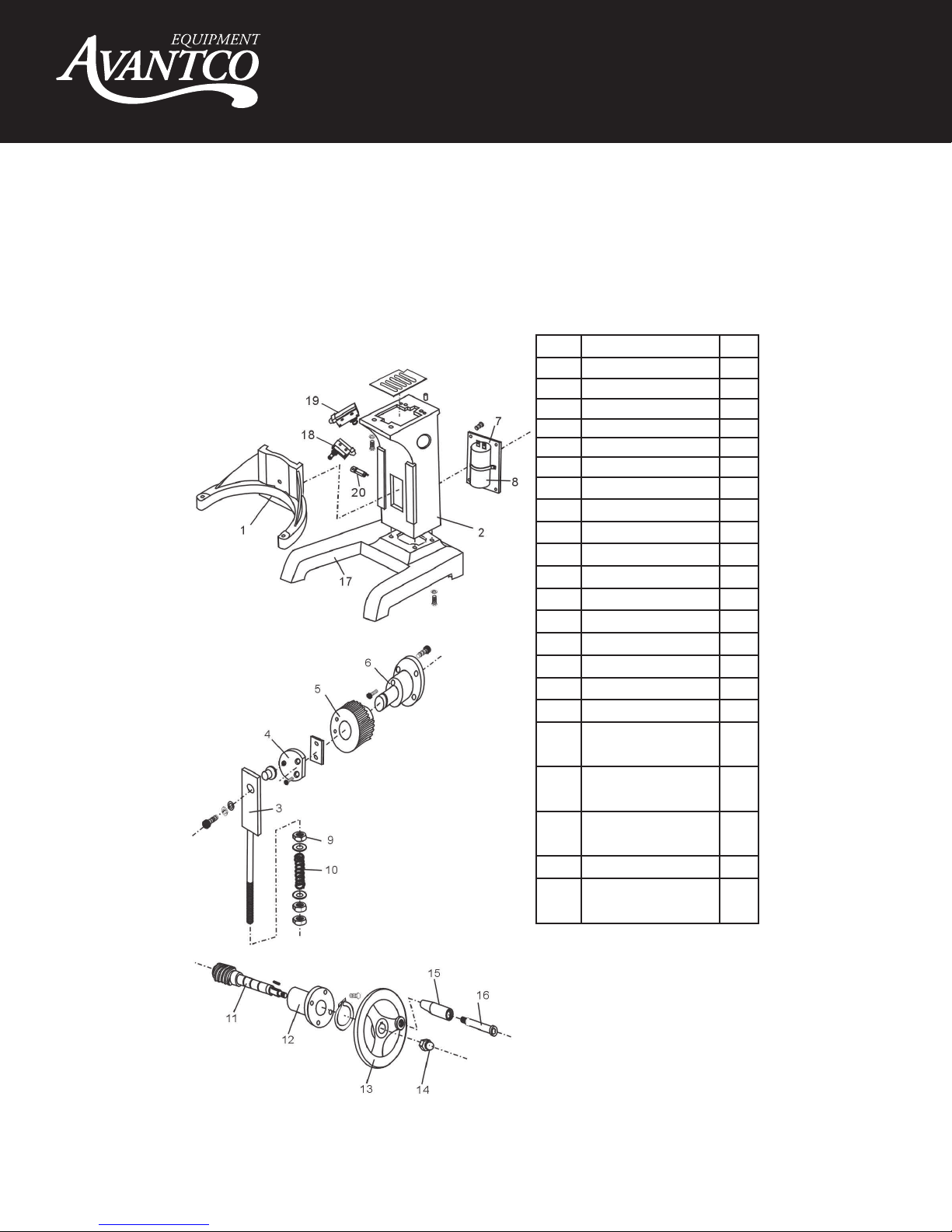

Figure 7 Stand & Bowl Lift Unit .................................. 13
Figure 8 Lifter Unit ...................................................... 14
Figure 8 Planetary Assembly ..................................... 15
Electric Diagram .......................................................... 16
Warranty Information ................................................... 17

User Manual
www.AvantcoEquipment.com 3
ITEM DESCRIPTION
1 Cover
2 Rear Cover
3 Safety Guard
4 Mixing Device
5 Bowl Lift Wheel
6 Bowl
7 Power
8 Speed
Notes:
• Do not hose down mixer.
• Do not operate the mixer with wet
hands.
• Unlpug mixer from electrical sup-
ply prior to any maintenance or
repairs.
32
TRANSMISSION CASE
FIGURE 1
PARTS CATALOG OVERVIEW
ITEM DESCRIPTION QTY
1 Screw M6*45 1
2 Cover 1
3 Screw M5*8 4
4 Cover 1
5 Bearing 6201 2
6 Screw M6*25 4
7 End Cover 1
8 Body 1
9 Screw M5*8 3
10 Cover 1
11 Bearing 6003 1
12 Rear cover 1
NOTES:
• The factory has provided superior
lubricant for several years of use. If
the mixer is repaired please ensure
that the service technician replaces
any lubricant lost or removed.
• Please lubricate bearings before
refitting bearing covers.
ITEM DESCRIPTION
1 Cover
2 Rear Cover
3 Safety Guard
4 Mixing Device
5 Bowl Lift Wheel
6 Bowl
NOTES:
• Do not hose down mixer.
• Do not use wet hands while
operating the mixer.
• Unlpug mixer from electrical
supply prior to any
maintenance or repairs.
Parts Overview
7
8

User Manual
4 www.AvantcoEquipment.com
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
Operation Instructions
Standard Accessories
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
Item Description Qty
1 Flat Beater 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by simply raising it onto the mixing axle, and the rotating it clockwise on the shaft
until iit locksnto place. To remove, raise the agitator on the shaft until it clears the lock and then rotate counter-
clockwise and lower.
• All of the accessories are precisely fitted to the bowl, have rounded corners, and are easily removable for cleaning.
Please ensure that your power supply matches your machine
For changing the speed: Please stop machine first before changing speed in order to avoid
damage to the gear box. Also make sure that the bowl is in fully lifted position and the guard is closed.
• Slow Speed is the middle, dough hook setting. The knob will be facing forward.
• Medium Speed is the bottom, flat beater setting. The knob will be straight down.
• High Speed is the top, whisk setting. The knob will be straight up.
Mixing: Always use the correct attachment for the job.
A. Wisk: Suitable for mixing liquids and soft ingredients, can work in all speeds. Do not run for
more than 15 minutes.
B. Flat Beater: Suitable for mixing dry ingredients, can work in low & medium speeds only.
Do not use in high speed. Do not run for more than 15 minutes.
C. Dough Hook: Suitable for mixing dough, can work in low & medium speeds only. Do not
use in high speed, do not run for more than 20 minutes. Absorption ratio must be more than
50%. Refer to mixer capacity chart.
!
!
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C

User Manual
www.AvantcoEquipment.com 5
Product Agitator and Speed Maximum Bowl
Capacity 20 qt
Bread and Roll Dough -60 % AR Dough Hook - 1st only 25 lbs.
Heavy Bread Dough -55% AR Dough Hook - 1st only 15 lbs.
Pizza Dough, Thin -40% AR Dough Hook - 1st only 9 lbs.
Pizza Dough, Medium -50% AR Dough Hook - 1st only 10 lbs.
Pizza Dough, Thick -60% AR Dough Hook - 1st only 10 lbs.
Raised Donut Dough -65% AR Dough Hook - 1st and 2nd 20 lbs.
Mashed Potatoes Flat Beater 15 lbs.
Waffle or Hot Cake Batter Flat Beater 8 qt.
Egg Whites Wire Whisk 1 qt.
Whipped Cream Wire Whisk 4 qt
Cake Batter Flat Beater 20 lbs.
When mixing dough ( pizza, bread or bagels), check your "AR" absorption ratio - water weight divided by flour weight.
Above capacities based on 12% flour moisture at 70°F water temperature. If high gluten flour is used, reduce above
dough batch size by 10%.
Example: If recipe calls for 5 lbs. of water and 10 lbs. of flour, then 5 divided by 10 = 0.50 x 100 = 50 %AR.
• 2nd Speed should never be used on mixtures with less than 50% AR.
• Do not use attachments on hub while mixing.
When calculating the correct size mixer for your application, here are some helpful weights & measures:
• 8.3 lbs. = 1 gallon of water – 2.08 lbs. = 1 Quart.
Mixer Capacity Chart

User Manual
6 www.AvantcoEquipment.com
Troubleshooting
Trouble Possible Causes Solution
The axles can’t work when
operating the machine
Poor contact of the electrical
equipment
Check the Plug
The mixing bowl is out of position Moving direction is not correct Change
Leaks oil Sealing washer is damaged Change
Difficult to move the bowl up and down Slideway is rusted Clean the slideway and lubricate
The motor is overheated
and speed is down
The voltage is not enough, or
incorrect speed
Check the voltage or use
lower speed
Noise and overheating Poor lubrication Add or change lubrication
Mixer touches bowl The mixing device or bowl de-
formed
Repair or change the bowl
or mixing device

User Manual
www.AvantcoEquipment.com 7
32
TRANSMISSION CASE
FIGURE 1
PARTS CATALOG OVERVIEW
ITEM DESCRIPTION QTY
1 Screw M6*45 1
2 Cover 1
3 Screw M5*8 4
4 Cover 1
5 Bearing 6201 2
6 Screw M6*25 4
7 End Cover 1
8 Body 1
9 Screw M5*8 3
10 Cover 1
11 Bearing 6003 1
12 Rear cover 1
NOTES:
• The factory has provided superior
lubricant for several years of use. If
the mixer is repaired please ensure
that the service technician replaces
any lubricant lost or removed.
• Please lubricate bearings before
refitting bearing covers.
ITEM DESCRIPTION
1 Cover
2 Rear Cover
3 Safety Guard
4 Mixing Device
5 Bowl Lift Wheel
6 Bowl
NOTES:
• Do not hose down mixer.
• Do not use wet hands while
operating the mixer.
• Unlpug mixer from electrical
supply prior to any
maintenance or repairs.

User Manual
8 www.AvantcoEquipment.com
54
PLANETARY SHAFT ASSEMBLY
FIGURE 2
TRANSMISSION SHAFT
FIGURE 3
ITEM DESCRIPTION QTY
1 Bearing 1
2 Transmission Axle 1
3 Key 5*11 1
4 Key 5*11 1
5 Gear 1
6 Stop Ring 1
7 Gear 1
8 Stop Ring 1
9 Bearing 6201 1
NOTES:
• At the center in the shaft unit. To the
above gear is the gear shaft and gear
shaft I (see figure 3-1)
• C-type stop ring (6/8) has to be fixed
when reassembling.
• Be sure that the keys are inserted for
each gear.
ITEM DESCRIPTION QTY
1 Baffle 1
2 Roller 4
3 Spring 8
4 Engager 1
5 Gear Ring 1
6 Dividing Ring 1
7 Joint Gear I 1
8 Bearing Ring 1
9 Joint 1
10 Bearing Ring 1
11 Joint Gear I 1
12 Ring 1
13 Bearing 6205 1
14 Oil Seal Pd30*45*10 1
15 Sleeve 1
16 Axle 1
17 Key 6*14 1
18 Key 5*35 2
19 Key 6*30 1
20 Bearing 1
NOTES:
• Be sure to install correct position (see
Figure 2-1) and lubricate all of the pins
in the sleevedrive when reassembling.
• Joint (9) must always be raised and
lowered smoothly. Be sure joint
sleeve as shown in Figure 2-2
• Check oil seal (14), if serious oil
leaks from drip cup.

User Manual
www.AvantcoEquipment.com 9
54
PLANETARY SHAFT ASSEMBLY
FIGURE 2
TRANSMISSION SHAFT
FIGURE 3
ITEM DESCRIPTION QTY
1 Bearing 1
2 Transmission Axle 1
3 Key 5*11 1
4 Key 5*11 1
5 Gear 1
6 Stop Ring 1
7 Gear 1
8 Stop Ring 1
9 Bearing 6201 1
NOTES:
• At the center in the shaft unit. To the
above gear is the gear shaft and gear
shaft I (see figure 3-1)
• C-type stop ring (6/8) has to be fixed
when reassembling.
• Be sure that the keys are inserted for
each gear.
ITEM DESCRIPTION QTY
1 Baffle 1
2 Roller 4
3 Spring 8
4 Engager 1
5 Gear Ring 1
6 Dividing Ring 1
7 Joint Gear I 1
8 Bearing Ring 1
9 Joint 1
10 Bearing Ring 1
11 Joint Gear I 1
12 Ring 1
13 Bearing 6205 1
14 Oil Seal Pd30*45*10 1
15 Sleeve 1
16 Axle 1
17 Key 6*14 1
18 Key 5*35 2
19 Key 6*30 1
20 Bearing 1
NOTES:
• Be sure to install correct position (see
Figure 2-1) and lubricate all of the pins
in the sleevedrive when reassembling.
• Joint (9) must always be raised and
lowered smoothly. Be sure joint
sleeve as shown in Figure 2-2
• Check oil seal (14), if serious oil
leaks from drip cup.

User Manual
10 www.AvantcoEquipment.com
76
WORM GEAR SHAFT ASSEMBLY
FIGURE 4
MOTOR UNIT
FIGURE 5
ITEM DESCRIPTION QTY
1 Stop Ring 1
2 Worm Gear 1
3 Oil Seal 1
4 Bearing 6203 1
5 Key 4*22 1
6 Axle 1
7 Rotor 1
8 Governor 1
9 Governor Plate 1
10 Bearing 6203 1
11 Bearing Cover 1
12 Fan 1
NOTES:
• If the motor does not work, first verify
the power source and connection. Next,
check for damaged or faulty wiring or
connections inside the mixer. A faulty
motor may be the result of incorrect
voltage, broken wires, a defective cen-
trifugal governor. Motor damage may
also be cause by bowl over load during
mixing.
• Motor set includes motor axle (6),
rotor (7) and stator.
• Figure 5-1 is component system
diagrams of motor.
ITEM DESCRIPTION QTY
1 Bearing 6201 1
2 Gear Axle 1
3 Key 5*14 1
4 Gear 1
5 Stop Ring 1
6 Bearing 6201 4
NOTES:
• C-Type stop ring (5) has to be fixed
when reassembling.

User Manual
www.AvantcoEquipment.com 11
76
WORM GEAR SHAFT ASSEMBLY
FIGURE 4
MOTOR UNIT
FIGURE 5
ITEM DESCRIPTION QTY
1 Stop Ring 1
2 Worm Gear 1
3 Oil Seal 1
4 Bearing 6203 1
5 Key 4*22 1
6 Axle 1
7 Rotor 1
8 Governor 1
9 Governor Plate 1
10 Bearing 6203 1
11 Bearing Cover 1
12 Fan 1
NOTES:
• If the motor does not work, first verify
the power source and connection. Next,
check for damaged or faulty wiring or
connections inside the mixer. A faulty
motor may be the result of incorrect
voltage, broken wires, a defective cen-
trifugal governor. Motor damage may
also be cause by bowl over load during
mixing.
• Motor set includes motor axle (6),
rotor (7) and stator.
• Figure 5-1 is component system
diagrams of motor.
ITEM DESCRIPTION QTY
1 Bearing 6201 1
2 Gear Axle 1
3 Key 5*14 1
4 Gear 1
5 Stop Ring 1
6 Bearing 6201 4
NOTES:
• C-Type stop ring (5) has to be fixed
when reassembling.

User Manual
12 www.AvantcoEquipment.com
98
STAND & BOWL LIFT UNIT
FIGURE 7
SHIFTING MECHANISM
FIGURE 6
ITEM DESCRIPTION QTY
1 Bowl Support 1
2 Columns 1
3 Slide 1
4 Plate 1
5 Gear 1
6 Support Seat 1
7 Capacitor Board 1
8 Capacitor 200uF 1
9 Nut M10 3
10 Spring 1
11 Spiral 1
12 Bowl Lift Support 1
13 Handwheel 1
14 Nut M10 1
15 Handle 1
16 Handle Screw 1
17 Machine Seat 1
18 Limit Switch of 1
Safety Guard
19 Fluctuate Safety 1
Switch
20 Overload Protection 1
Switch
21 AC Contact Device 1
22 AC Contact Device 1
Box
ITEM DESCRIPTION QTY
1 Axle 1
2 Nut 1
3 Spring 1
4 Shaft 1
5 Fork 1
6 Pin 3*20 1
7 Eccentricity Knot 1
8 Steel Ball 3
9 Speed Spring 3
10 Speed Block 1
11 Screw M5*10 1
12 Shaft 1
NOTES:
• The speed selector / shifting mecha-
nism is designed for simplicity and reli-
ablity. It features three mixing speeds.
• Apply sealant to the shift selector
assembly when installing.
• Speed selection is made by align
ing the pointer of the shift handle to
the required action.
i.e. Whisk for eggs & cream etc,
Paddle for batter
Hook for dough
Important: Stop the mixer
before changing speed.

User Manual
www.AvantcoEquipment.com 13
98
STAND & BOWL LIFT UNIT
FIGURE 7
SHIFTING MECHANISM
FIGURE 6
ITEM DESCRIPTION QTY
1 Bowl Support 1
2 Columns 1
3 Slide 1
4 Plate 1
5 Gear 1
6 Support Seat 1
7 Capacitor Board 1
8 Capacitor 200uF 1
9 Nut M10 3
10 Spring 1
11 Spiral 1
12 Bowl Lift Support 1
13 Handwheel 1
14 Nut M10 1
15 Handle 1
16 Handle Screw 1
17 Machine Seat 1
18 Limit Switch of 1
Safety Guard
19 Fluctuate Safety 1
Switch
20 Overload Protection 1
Switch
21 AC Contact Device 1
22 AC Contact Device 1
Box
ITEM DESCRIPTION QTY
1 Axle 1
2 Nut 1
3 Spring 1
4 Shaft 1
5 Fork 1
6 Pin 3*20 1
7 Eccentricity Knot 1
8 Steel Ball 3
9 Speed Spring 3
10 Speed Block 1
11 Screw M5*10 1
12 Shaft 1
NOTES:
• The speed selector / shifting mecha-
nism is designed for simplicity and reli-
ablity. It features three mixing speeds.
• Apply sealant to the shift selector
assembly when installing.
• Speed selection is made by align
ing the pointer of the shift handle to
the required action.
i.e. Whisk for eggs & cream etc,
Paddle for batter
Hook for dough
Important: Stop the mixer
before changing speed.

User Manual
14 www.AvantcoEquipment.com
11
ITEM DESCRIPTION QTY
1 Screw M6*45 6
2 Turning Plate 1
3 Ring 1
4 Nut M20*1.5 1
5 Safety Guard 1
6 Inner Gear 1
7 Screw M8*15 1
8 Planetary Gear 1
9 Bearing 6203 1
10 Bearing 6204 1
11 Oil SealPd25*50*10 1
12 Key 5*18 1
13 Mixing Axle 1
14 Pin 1
10
BOWL LIFT UNIT
FIGURE 8
PLANETARY ASSEMBLY
FIGURE 9
ITEM DESCRIPTION QTY
1 Lifting Bar 1
2 Cotton Pin 3*30 1
3 NutM10 3
4 Flat Washer 2
5 Compression Spring 1
6 Little Knot 1
7 Lifting Handle Bracket 1
8 Flat Washer 1
9 Flange Knot 1
10 Screw M6*25 1
11 Key 5*20 1
12 Bowl Lift Handle 1

User Manual
www.AvantcoEquipment.com 15
11
ITEM DESCRIPTION QTY
1 Screw M6*45 6
2 Turning Plate 1
3 Ring 1
4 Nut M20*1.5 1
5 Safety Guard 1
6 Inner Gear 1
7 Screw M8*15 1
8 Planetary Gear 1
9 Bearing 6203 1
10 Bearing 6204 1
11 Oil SealPd25*50*10 1
12 Key 5*18 1
13 Mixing Axle 1
14 Pin 1
10
BOWL LIFT UNIT
FIGURE 8
PLANETARY ASSEMBLY
FIGURE 9
ITEM DESCRIPTION QTY
1 Lifting Bar 1
2 Cotton Pin 3*30 1
3 NutM10 3
4 Flat Washer 2
5 Compression Spring 1
6 Little Knot 1
7 Lifting Handle Bracket 1
8 Flat Washer 1
9 Flange Knot 1
10 Screw M6*25 1
11 Key 5*20 1
12 Bowl Lift Handle 1

User Manual
16 www.AvantcoEquipment.com
1
INDEX
Parts Catalog Review .................................................................2
Figure 1 Transmission Case.......................................................3
Figure 2 Planetary Shaft Assembly ............................................4
Figure 3 Transmission Shaft Assembly ......................................5
Figure 4 Worm Gear Assembly Shaft .........................................6
Figure 5 Motor Unit.....................................................................7
Figure 6 Shift Mechanism...........................................................8
Figure 7 Stand & Bowl Lift unit ...................................................9
Figure 8 Lifter Unit ....................................................................10
Figure 8 Planetary Assembly ....................................................11
Figure 9 Standard Accessories.................................................12
Operation Instruction ................................................................13
Warning and Special Attention..................................................14
Trouble Shooting and Specification ..........................................15
Electric Diagram .......................................................................16
ELECTRIC DIAGRAM /
SPECIFICATIONS
Type B20GA
Mixer (L) 20
Power Supply (V) 230~
Input Power (W) 1100
462
317
197
Maxflour Capacity ( KG ) 5
Mixing
Speed
(RPM)
Electrical Diagram
110
HP 1/2

User Manual
www.AvantcoEquipment.com 17
Limited Warranty
All equipment, which is sold under Avantco trademark and used for commercial purpose is warranted against defects
in materials and workmanship. The warranty runs for one year from the date of original installation and is for the benefit
of the original purchaser only. All other Warranties, Expressed or Implied, Statutory or Otherwise, including Without
Limitation any implied Warranty of Merchantability or Fitness for Purposes are excluded. The Seller shall in no event be
liable for direct, indirect or consequential damages in connection with Avantco commercial products.
This warranty is not effective if damage occurs because of accident, carelessness, improper installation, lack of proper
set – up, supervision when required or if the equipment is installed or operated in any manner contrary to the installa-
tion and operating instructions. In these cases, repairs will be made at a reasonable cost. Work performed by unauthor-
ized personnel or unauthorized service agencies voids this Warranty.
Items not covered under warranty:
Changing Gears on the Mixers while Unit is Running and Overloading as Determined by an Approved Certified Technician.
This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on products sold or used
outside of the United States.
