Avanti WCR683DZD User manual

DUAL ZONE WINE CHILLER/VINERACON 2 ZONAS
INSTRUCTIONMANUAL
MANUAL DE INSTRUCCIONES
Model Number/ No. de Modelo: WCR683DZD
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
Lasección en español empieza en la página19.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152
www.avantiproducts.com

2
APPLIANCESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and onyour appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words”DANGER”, “WARNING”or“CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personalinjury, or property or
equipment damage.
Allsafetymessageswill alert you to know what thepotential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.

3
IMPORTANT SAFEGUIDES
Before theappliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
?Plug into a grounded 3 -prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
?Replace all panels before operating.
?It is recommended that a separate circuit, serving only yourappliance be provided. Use
receptacles that cannotbe turned off by a switch or pull chain.
?Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
?Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
?Do not connect or disconnect the electric plug when your hands are wet.
?Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
inelectricalshockordeath.
?Do not attempt to repair or replace any part of your appliance unless it isspecifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
?Use two or more peopleto move and install appliance. Failure to do so can result in back or other
injury.
?To ensure proper ventilation for your appliance, the front of the unit m ust be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F(32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
?The applianceshould not be located next to ovens, grills or other sources of high heat.
?The appliancemust be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly groundedin
accordance with the National Electrical Code and local codes and ordinances is required.
?Do not kink or pinch the power supply cord ofappliance.
?The fuse (or circuit breaker) size should be 15 amperes.
?It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
?All installation must be in accordance with local plumbing code requirements.
?Make certain that the pipes are not pinched or kinked or damaged duringinstallations.
?Check for leaks after connection.
?Never allow children to operate, play with or crawl inside theappliance.
?If you use thedrainage container, you must set the drain selectswitch to OFF or the water can
overflow from the drainage container
?Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
?Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
?Do not use this apparatusfor other than its intended purpose.

4
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti products. Please fill out thisform and return it within 100
days of purchase and receive theseimportant benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604-Miami, Florida 33152 USA
?Protect your product:
We will keep the model number and date of purchase of your new Avanti Products product on
file to help you refer to this information in the event of an insurance claim such as fire or theft.
?Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detachhere)----------------------------------------------------------
Avanti Registration Form
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?Food Loss ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Products Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other_______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________

5

6
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your newWine Chillerproperly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
SerialNumber
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the WineChiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTIO
N
:
THIS WINE CHILLERIS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICALPRODUCTS.

7
PARTS & FEATURES
1. DIGITAL CONTROL PANEL
2. TOP INSERT
3. STAINLESS STEELDOOR
4. STAINLESS STEELHANDLE
5. ROLL-OUT LARGE SHELVES (TOTAL 13)
6. MIDDLE PARTITION
7. ROLL-OUT SMALL SHELF (TOTAL 1)
8. BOTTOM WOODEN SHELF (TOTAL 1)
9. LEVELING LEGS
10. SECURITY LOCK
11. BOTTOM GRILLE
12. CABINET

8
TABLE OF CONTENTS
Appliance Safety 2
Important Safeguides 3
RegistrationInformation ________________________________________________________ 4
Help Us Help You…_____________________________________________________________ 6
Parts And Features _____________________________________________________________ 7
Important Safety Instructions ____________________________________________________ 9
Installation Instructions _________________________________________________________ 9
Before Using Your Wine Chiller __________________________________________________ 9
Installation Of Your Wine Chiller _________________________________________________ 9
Electrical Connection__________________________________________________________10
Extension Cord 10
Reversing The Door Swing Of Your Appliance 10
OperatingYour Wine Chiller ____________________________________________________10
ON/OFF Power 11
Setting The Temperature Control _______________________________________________11
Storage 12
Interior Light 12
Door Lock 12

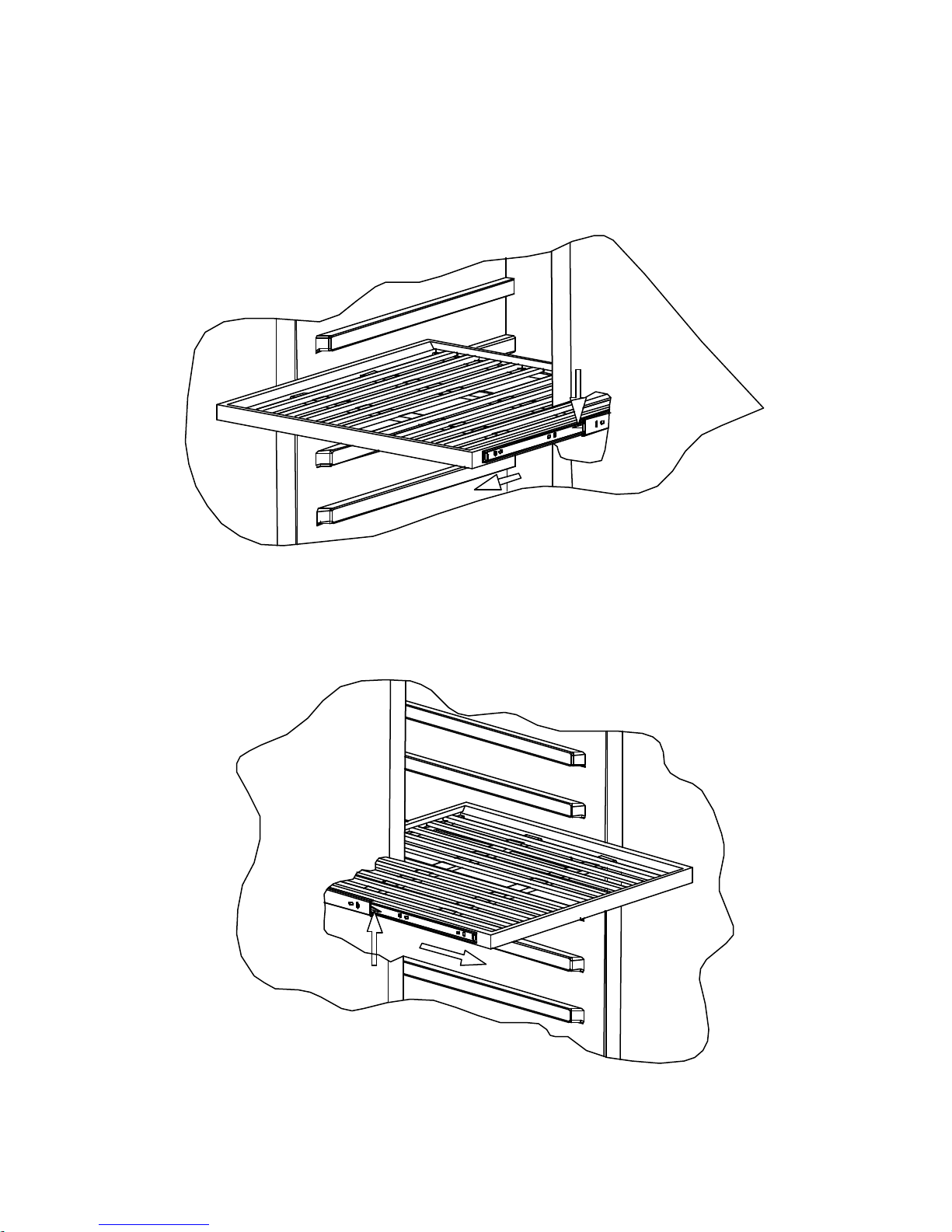

Shelves 12
Care And Maintenance 14
Cleaning Your Wine Chiller _____________________________________________________14
Power Failure 14
Vacation Time_________________________________________________________________14
Moving Your Wine Chiller 14
Energy Saving Tips____________________________________________________________14
Troubleshooting Guide ________________________________________________________15
Service For Your Wine Chiller___________________________________________________16
Your Product Warranty_________________________________________________________17

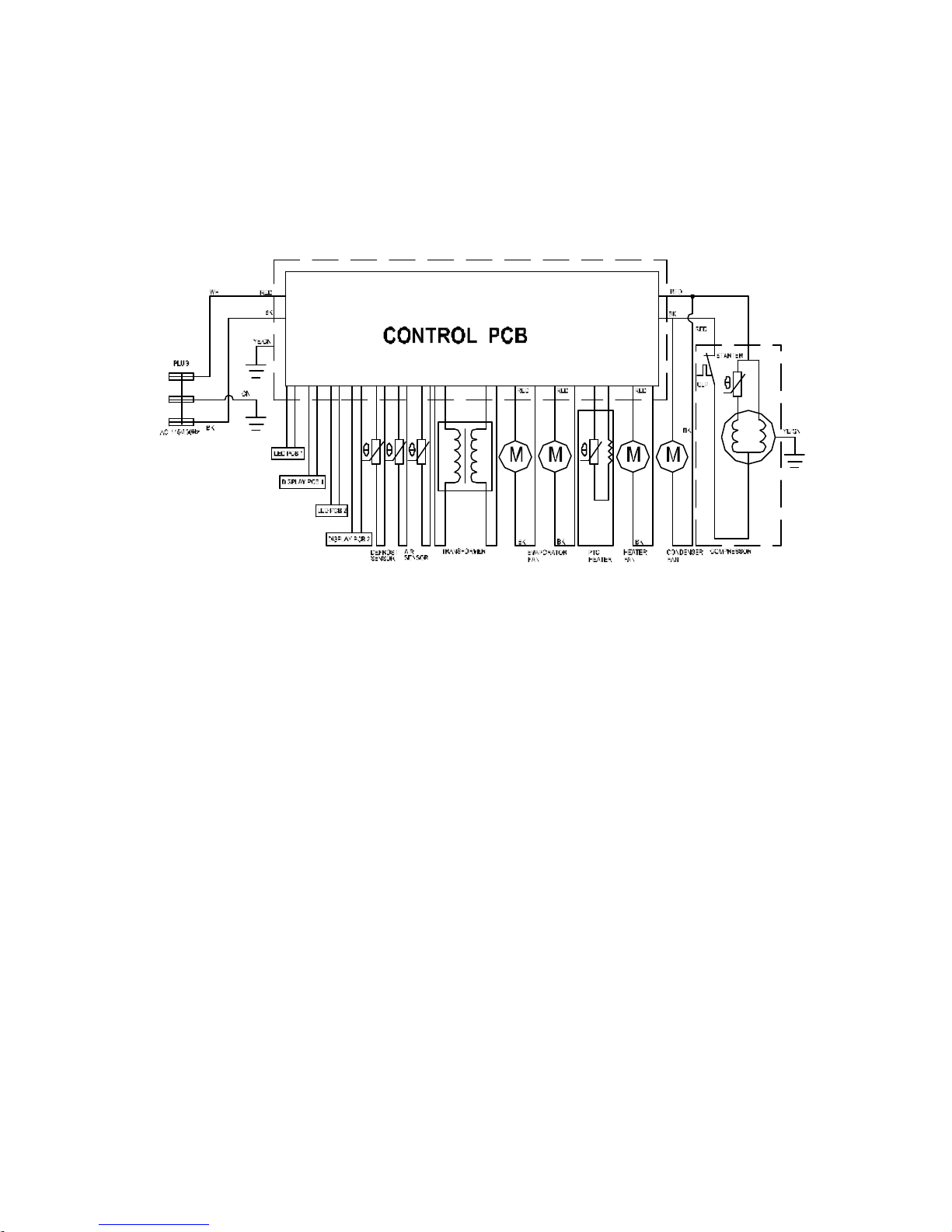

Wiring Diagram _______________________________________________________________18
INSTRUCCIONES EN ESPAÑOL______________________________________________19~22

9
IMPORTANT SAFETY INSTRUCTIONS
?WARNING? To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
?Read all instructions before using theWineChiller.
?DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
?Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
?Never allow children to operate, play with, or crawl inside the appliance.
?Never clean appliance parts with flammable fluids. Thefumes can create a fire
hazard or explosion.
?Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
?BEFORE USING YOUR WINE CHILLER
?Remove the exterior and interior packing.Read the Installer’s Directions.
?Check to be sure you have all of the following parts:
?13 Roll-out Large Shelves
?1Roll-out Small Shelf
?1 Bottom Wooden Shelf
?2 Keys
?1 Stainless Steel Handle Assembly
?1 Instruction Manual
?Before connecting the Wine Chiller to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
?Clean the interior surface with lukewarm water using a soft cloth.
?Install the handle on the left side of the door.
?INSTALLATION OF YOUR WINE CHILLER
?This appliance is designed to be for free standing installation only, and should not be recessed
and built-in.
?Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Chiller, adjust the front leveling leg at the bottom of the Wine Chiller.
?Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
?Avoid locating the u nit in moist areas.
?Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

10
?ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
?EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
?REVERSING THE DOOR SWING OF YOUR APPLIANCE
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
OPERATING YOUR WINE CHILLER
It is recommended you install the WineChiller in a place where the ambient temperature is between
72-78 degrees Fahrenheit. If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme
cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees
Fahrenheit may not be reached.
?
Warning
?
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

11
Recommended Temperatures for Chilling Wine.
Red Wines 58-65?F
Dry/White Wines 48-57?F
Rose Wines 49-51?F
Sparkling Wines 40-47?F
?ON/OFF POWER
To turn ON or OFF the appliance, press the ON/OFF button.
?SETTING THE TEMPERATURE CONTROL
You can press the left side UP and DOWN buttons to control the internal temperature of
the upper zone and press the right side UP and DOWN buttons to control the internal
temperature of the lower zone.
The degrees indicators will appear in the display window markedUPPER ZONE and LOWER ZONE.
The temperature range of UPPER ZONE is 40 ~ 55 ºF which is suitable for storing sparkling and
white wines. The temperature range of LOWER ZONE is 55 ~ 65ºFwhichis suitable for storing white
and red wines.
?The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button
once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN
button once.
?When you store mostly red wines, you should store them in the LOWER ZONE, the temperature
which you control by pushing the above UP andDOWN buttons need to be set at
between 58 to 65?F and the LED lampunder “RED” will be lit.
?When you store mostly white wines, you can store themin the UPPER ZONE or LOWER ZONE.
When you use the LOWER ZONE, the temperature can be set at between 55 to 57?F and the
LED lamp under “WHITE” will be lit. When you use the UPPER ZONE, the temperature can be
set at between 48 to 55?F and the LED lamp under“WHITE” will be lit.
?When you store mostly sparkling wines, you should store them in the UPPER ZONE, the
temperatureneeds to be set at between 40 to 47?F and the LED lamp under “SPARKL” will be lit.
?The temperature inside the unit will appear in red color in the window marked “DISPLAY”.
NOTE:
?If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, theWine Chiller will not start.
?When you use the wine chiller for the first time or restart the wine chiller after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the wine chiller is running for a few hours everything will be back to normal.
The LED readout will show the original temperature set previously (the preset temperature at the
factory for UPPER ZONE is50ºF and for LOWER ZONE is 60ºF).
You can select temperature display setting from Fahrenheit to Celsius degree by pushing theUP
and DOWN buttons at the same time for 5 seconds. Fahrenheit or Celsius degrees indicator will
appear in green color in the window marked “SCALE”.

12
?STORAGE
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary.
NOTE: You can place 77 standard bottles in the upper zone with 11 bottles on each shelf and 78
standard bottles in the lower zone with 11 bottles on each large shelf and 6 bottles on each small
shelf.
?INTERIOR LIGHT
?Interior lights are available in both upper and lower zones.
?You can turn the interior light on in each zone by pushing the button marked with the “bulb”
symbol .
?The lightswill turn offautomatically if it remains ON for 10 minutes or more.You have to push the
button marked with the“bulb”symbol again and the light will turn back on.
?DOOR LOCK
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
?SHELVES
This appliance is equipped with a pull out roller assembly and you can move the wooden shelves out
and in smoothly.
To prevent damaging the door gasket, make sure to have the door all the way opened when pulling
shelves out of the rail compartment.
For easy access to the bottles, you must pull the shelves approximately 1/3 out of the rail
compartment.

13
To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat screwdriver
to press down the right plastic notch as shown in Figure A and at the same time lift the left plastic
notch as shown in Figure B. Then proceed to pull out the shelf slowly. Contact our service department
if assistance is needed.
Figure A
Figure B

14
CARE AND MAINTENANCE
?CLEANING YOUR WINE CHILLER
?Turn offthe power, unplug the appliance, and remove all items including shelves.
?Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
?Wash the shelves with a mild detergent solution.
?Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
?Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
?POWER FAILURE
?Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
?VACATION TIME
?Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
?Long vacations: If the appliance will not be used for several months, remove all items and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary.
?MOVING YOUR WINE CHILLER
?Remove all items.
?Securely tape down all loose items (shelves) inside your appliance.
?Turn the adjustable leg up to the base to avoid damage.
?Tape the door shut.
?Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
?ENERGY SAVING TIPS
?The Wine Chiller shouldbe located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.

15
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Wine Chiller does not operate. Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Chilleris not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently. The room temperature is hotter than normal.
A large amount of contents has been added to
the wine chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations. Check to assure that the Wine Chiller is level.
The Wine Chiller seems to make too much noise. The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Chiller.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Chiller is not level.
The door will not close properly. The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

16
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.

17
YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
?Content losses of food or other, due to
spoilage.
?Incidental or consequential damages.
?Parts and labor costs for the following will
not be considered as warranty:
?Door springs, and/or frames.
?Inner door panels, door rails and/or door
supports.
?Light bulbs and/or plastic housing.
?Plastic cabinet liners.
?Punctured evaporator that voids the
warranty on the complete sealed system.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the appliance to the
servicers’ shop and back to the user's home,
as may be required, are the user's
responsibility.
?Repairs performed by unauthorized
servicers.
?Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
?Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
?Replacement of house fuses or resetting
circuit breakers.
?Failure of the product if it is used for other
than its intended purpose.
?This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

18
WIRING DIAGRAM

19
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA –El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE CABLES PARA
EXTENDER EL CORDON ELECTRICO DE LA UNIDAD
Use un tomacorriente de pared exclusivo. No conecte su vinera acables para extender el cordon
eléctrico o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bienel exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
UBICACION
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.
Nota: Espere entre 3 a 5 minutos antes de volver a encender si el funcionamiento ha sido
interrumpido.
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23-25 grados centígrados.
Si la temperatura ambiental oscila afuera de esos límites,puedaafectar la temperatura de launidad.
Por ejemplo, si su unidad estásituada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperaturade launidad.

20
Temperaturas recomendadas para enfriar vinos:
Vinos tintos: 58 -65ºF (14-18ºC)
Vinos blanco/seco: 48 -57ºF (9-14ºC)
Vinos rosé/Zinfandel: 49 -51ºF (9-11ºC)
Vinos blanco/espumante: 40 -47ºF (4-8ºC)
Para encender o apagar su electrodoméstico, oprima el botón marcado “ON/OFF”.
OPERACION
Oprima los botones marcado “ “ y “ “ localizados en el lado izquierdo delpanel de
controles para programar la temperatura interna de la zona superior. Repita esa operación pero con
los botones localizados en el lado derecho para programar la temperatura interna de la zona inferior.
La pantalla marcada “DISPLAY” mostrará los grados respectivamente para cada zona en color rojo.
La temperatura en la zona superior varia entre 55~65ºF (13~18ºC) y es la indicada para los vinos
rojos o blancos.
La temperatura en la zona inferior varia entre 45~55ºF (7~13ºC) y es la indicada para los vi nos
blancos o espumosos.
Alpresionar los botones marcados“ “ o “ “ por primera vez, el indicador en la pantalla
marcada “DISPLAY” mostrará la temperatura programada de fábrica o la más reciente.
Oprima el botón marcado ( ) una vez y la temperatura aumentará un grado. Si Ud oprime el
botónmarcado( ) una vez la temperatura bajará un grado.
Si en su mayoría Usted solamente guarda vinos rojos, debe colocarlos en la zona superior.
El indicador marcado (RED) se alumbrará en color rojo. Ud necesita programar esa temperatura
entre los 58~65ºF (14~18ºC).
Si Ud solamente guarda vinos blancos, usted puede colocarlos en cualquier zona pero tendrá que
mantener una temperatura entre 55~57ºF (13~14ºC) en la zona superior y una temperatura de
48~55ºF (9~12ºC) en la zona inferior.
El indicador marcado “WHITE” se alumbrará en color verde.
Cuando Ud guarda vinos espumosos, deberá colocar las botellas en la zona inferior y marcar la
temperatura entre los 45~47ºF (7~8ºC).
El indicado marcado “SPARKL” se alumbrará en color amarillo.
LUZ INTERIOR
La luz interior para cada zona se controla manualmente y no funciona al abrir ni cerrar la puerta.
Para prender o apagár la luz, presione el botón marcado ( ) de la luz ubicado en el panel de
control. Si la luz está prendida, por más de 10 minutos, se apagará automáticamente.
CERRADURA DE LA PUERTA
Su unidad viene equipada con una combinación de cerradura y llave.
En la fábrica se programa la zona superior a los 60ºF (15ºC).
La zona inferior se programa a los 50ºF (10ºC).
Ud puede cambiar de grados Centígrados a Fahrenheit o viceversa, oprimiendo los botones “
“ y “ “ a la misma vez por un mínimo de5 segundos.
En la pantalla digital marcada “SCALE” aparecerán los grados en color verde.
