Avanti EWC4001DZ User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Number / No. de Modelo: EWC4001DZ
THERMOELECTRIC WINE CHILLER
VINERA TERMOELECTRICA
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 12.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

2
TABLE OF CONTENTS
Help Us Help You 3
Parts and Features 4
Important Safety Instructions 5
Installation Instructions 5
Before Using Your Wine Chiller 5
Installation of Your Wine Chiller 5
Electrical Connection 6
Extension Cord 6
Operating Your Wine Chiller 7
Temperature Control 7
Storage Capacity 7
Interior Light 8
Care and Maintenance 8
Cleaning Your Wine Chiller 8
Power Failure 8
Vacation Time 8
Movin
g
Your Wine Chiller 8
Energy Saving Tips 8
Troubleshooting Guide 9
Service for Your Appliance 9
Wiring Diagram 10
Your Avanti Products Warranty 11
Instrucciones en Español 12 – 14
Registration Information and Registration Card 15

3
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Wine Chiller properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Wine Chiller.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller,
immediately contact the dealer (or builder) that
sold you the Wine Chiller.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

4

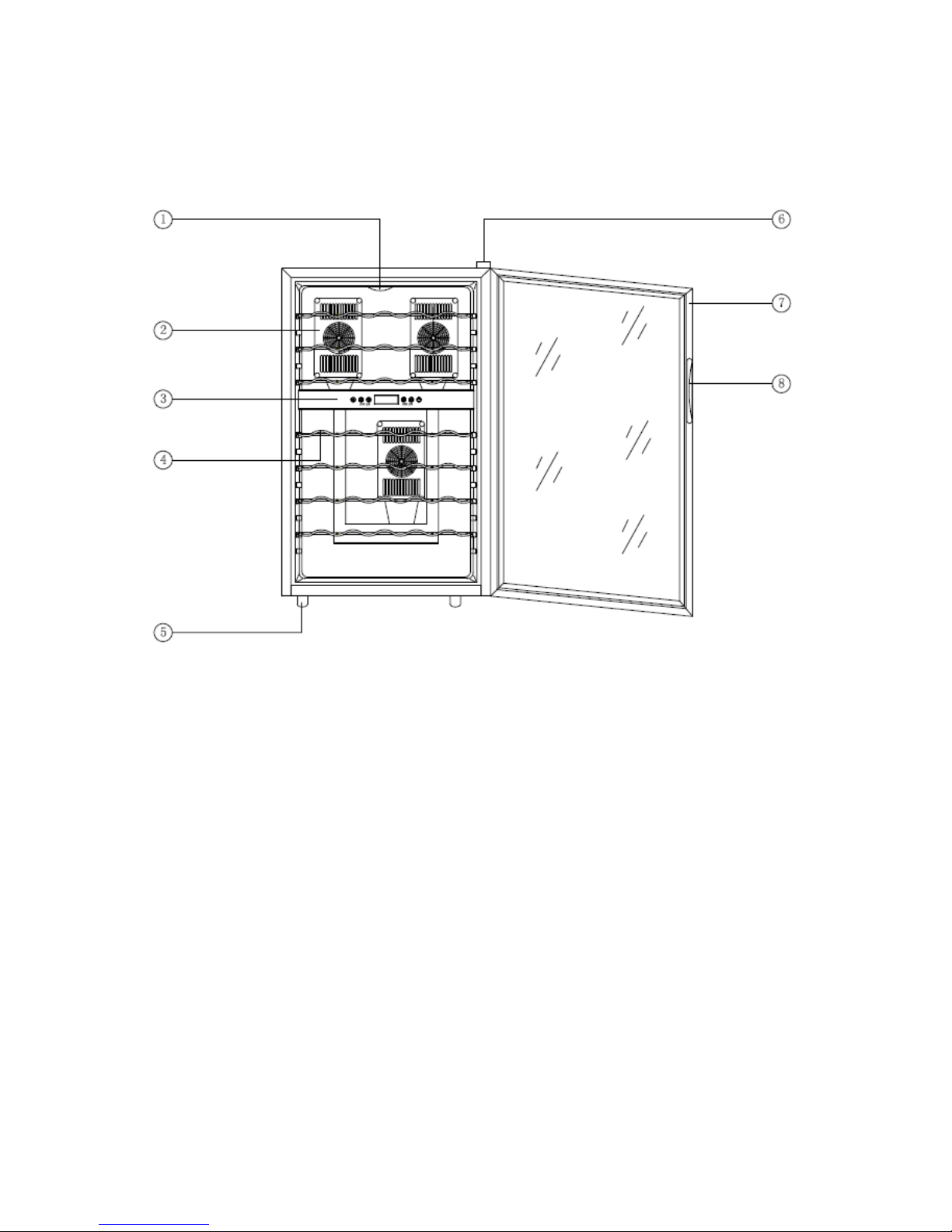

PARTS & FEATURES
1. LED Interior Light
2. Upper Zone Fans
3. Control Panel
4. Shelves (7 total)
5. Leveling Legs
6. Door Hinge with Cover
7. Glass Door
8. Integrated Door Handle

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
Read all instructions before using the Wine Chiller.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
Do not repair or replace any part of the refrigerator or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions. Replace the fuse with the same type.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Wine Chiller
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
7 Shelves
1 Handle
1 Instruction Manual
Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Wine Chiller
This Wine Chiller is designed to be free standing installation only, and should not be recessed or
built-in (Fully recessed).
Place your Wine Chiller on a surface that is strong enough to support it when it is fully loaded.
Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper
air circulation to cool the heat sink.
Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
This Wine Chiller uses thermoelectric refrigeration technology (no compressor) and is not
designed for storage in hot areas like garages, warehouses or outdoors since it is designed to
operate at a maximum of 30 degrees below the ambient temperature.
Avoid locating the unit in moist areas.
Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
After plugging the Wine Chiller into a wall outlet, allow the unit to cool down for 2-3 hours before
placing any items in the compartment.

6
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115 Volt AC / 60Hz electrical ground outlet with three-prong. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

7
OPERATING YOUR WINE CHILLER
It is recommended you install the Wine Chiller in a place where the ambient temperature is between
23º-26ºC/ 72º-78ºF. If the ambient temperature is above or below recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 8º-18ºC/46º-64ºF may not be
reached.
Recommended Temperatures for Chilling Wine.
Red Wines 15º - 19º C 58 – 64º F
Dry/White Wines 9º - 14º C 48 – 57º F
Rose Wines 10º - 11º C 49 – 51º F
Sparkling Wines 5º - 9º C 40 – 47º F
Temperature Ranges for Your Wine Chiller
Upper Zone 6º - 12º C 43 - 54º F
Lower Zone 11º - 18º C 52 - 64º F
SETTING THE TEMPERATURE CONTROL
You can set the temperature as you desire by pushing the or button. When you push the
two buttons for the first time, the LCD readout will show the original temperature set at previous
time (the temperature preset at the factory is 12ºC / 54ºF).
The temperature that you desire to set will increase 1ºF or 1ºC if you push the button once,
on the contrary the temperature will decrease 1ºF or 1ºC if you push the button once.
When you store mostly red wines, the temperature which you control by pushing the above two
buttons need to be set at between 15º - 19ºC (58º - 64ºF).
When you store mostly white wines, the temperature needs to be set at between 9º - 14ºC (48º -
57ºF).
When you store mostly sparkling wines, the temperature needs to be set at between 5º - 9ºC (40º
- 47ºF).
NOTE:
When you use the wine chiller for the first time or restart the wine chiller after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LCD readout. This is normal and it is due to the length of the
activation time. Once the wine chiller is running for a few hours everything will be back to
normal.
You can select temperature display setting from Fahrenheit to Celsius degree by
pushing the button shown. Fahrenheit or Celsius degrees indicator will appear in white
color in the LCD temperature display window with blue background.

8
Storage Capacity
NOTE: You can place 40 standard bottles in this wine chiller.
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux
750ml bottles and include bulk storage.
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “bulb” symbol .
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button
marked with the “bulb” symbol again and the light will turn back on.
CARE AND MAINTENANCE
Cleaning Your Wine Chiller
UNPLUG the Wine Chiller, and remove all items including shelves.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.
CAUTION
Failure to unplug the Wine Chiller could result in electrical shock or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.
Moving Your Wine Chiller
Remove all bottles.
Securely tape down all loose items (shelves) inside your appliance.
Tape the door shut.
Protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
The Wine Chiller should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
One characteristic of thermoelectric units is the length of time it requires to recover from having
the door opened and shut frequently. It may be necessary to wait longer for the temperature to
return to its former level once the door has been opened for too long. This is normal for this type
of unit.
Thermoelectric technology costs just pennies to operate. It is environmentally friendly due to the
lack of CFC’s.

9
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Wine Chiller does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
Wine Chiller is not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The Wine Chiller does not have the correct
clearances.
Abnormal volta
g
e.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Vibrations. Check to assure that the Wine Chiller is level.
The door will not close properly. The Wine Chiller is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

10
SERVICE FOR YOUR WINE CHILLER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about our products,
help is available.
Part Orders
800-220-5570
You may order parts and accessories that will be
delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
WIRING DIAGRAM
TECHNICAL / ELECTRICAL SPECIFICATIONS
Rated Voltage 115V
Rated Frequency 60Hz
Rated Input Powe
r
200W
Estimated Power
Consumption 2.3 KWh / 24hrs

11
YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. Avanti Products will
provide you with a reasonably similar
replacement product that is either new
or factory refurbished. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
Content losses of food or other, due to
spoilage.
Incidental or consequential damages.
Parts and labor costs for the following will
not be considered as warranty:
Door springs, and/or frames.
Inner door panels, door rails and/or door
supports.
Light bulbs and/or plastic housing.
Plastic cabinet liners.
Repairs performed by unauthorized
servicers.
Shipping and handling costs associated
with the replacement of the unit.
Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service calls to
remote areas, including the State of
Alaska
Replacement of house fuses or resetting
circuit breakers.
Failure of the product if it is used for other
than its intended purpose.
This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

12
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE
PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Deje cinco pulgadas de espacio entre la parte posterior de la vinera y toda pared contigua.
3. Las bodegas termoeléctricas necesitan cierto tiempo de recuperación cuando la puerta se
abre y se deja abierta por mucho tiempo. Esto es normal para este tipo de unidad.
4. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
5. Para un mejor desempeño, nivele la vinera utilizando las patas ajustables o tornillos
niveladores.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.

13
CONTROL DE TEMPERATURA:
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23º-26ºC / 72º-78ºF.
Si la temperatura ambiental oscila afuera de esos límites, pueda afectar la temperatura de la unidad.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la unidad y no alcanzara los límites (5º-19ºC/40º-65ºF).
Temperaturas recomendadas para enfriar vinos:
Vinos rojos 15º - 19º C 58 – 65º F
Vinos blancos 9º - 14º C 48 – 57º F
Vinos tintos 10º - 11º C 49 – 51º F
Vinos espumantes 5º - 9º C 40 – 47º F
Control de temperature
Su unidad viene equipada con un control de temperatura electrónico en una pantalla digital.
Ud. puede seleccionar la temperatura preferida a su gusto presionando los botones marcados
▲o .. Cuando Ud. presione uno de los dos botones por primera vez enseñará la
temperatura seleccionada originalmente en la factoría. (12ºC / 54ºF).
La temperatura que Ud. selecciona subirá 1ºC/F cada vez que presione el botón marcado al
contrario la temperatura bajará 1ºC/F cada vez que presione el botón marcado .
AVISO:
Cuando Ud. encienda su vinera por primera vez o después de un largo tiempo de estar apagado,
habra una diferencía entre la temperatura que Ud. selecciona y la temperatura indicada en la pantalla
digital. Este situación es normal debido al tiempo de que estuvo apagado. En cuanto la unidad esté
encendida por un par de horas la temperatura estará normal.
Luz interior
Ud. puedes encender o apagar la luz interior presionando el botón marcado . La luz interior se
apagará automáticamente si está encendida por 10 minutos seguidos. Ud. necesita presionar el
botón de nuevo para encender la luz.
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Período de vacaciones
Para períodos cortos de vacaciones, deja los controles en su programación corriente. Durante
ausencias más largas;
(a) saque todas las botellas,
(b) desconecte la vinera del tomacorriente,
(c) limpie bien la vinera,
(d) deje la puerta abierta para evitar la formación de condensación, moho u olores.

14
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada. Durante los cortes de corriente de larga duración, tome medidas para
proteger sus botellas de vino.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
Las bebidas deben guardarse en botellas cerradas.
No sobrecargue el compartimiento interior.
No abra la puerta a menos que sea necesario.
Si la vinera se guardara sin uso por períodos largos, se sugiere que, luego de una limpieza
cuidadosa, se deje la puerta entreabierta para permitir que el aire circule dentro de la caja y evitar
una posible formación de condensación, moho u olores.
Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier otro
material para cubrir estantes que puedan obstruir la circulación del aire.

15
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152 USA
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detach here)----------------------------------------------------------
AVANTI REGISTRATION FORM
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number Own Rent
Did You Purchase An Additional Warranty: Your Age:
Extended None under 18 18-25 26-30
Reason For Choosing This Avanti Product: 31-35 36-50 over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase Married Single
this product. Is This Product Used In The:
Price Home Business
Product Features How Did You Learn About This Product:
Avanti Products Reputation Advertising
Product Quality In Store Demo Personal Demo
Salesperson Recommendation Other______________________________
Friend/Relative Recommendation Comments____________________________
Warranty _____________________________________
Other_______________________ _____________________________________

16
PRINTED IN CHINA
