Avantree BTHS-AH6 User manual

Stereo Wireless Headset
BTHS-AH6
User Manual

1
EN

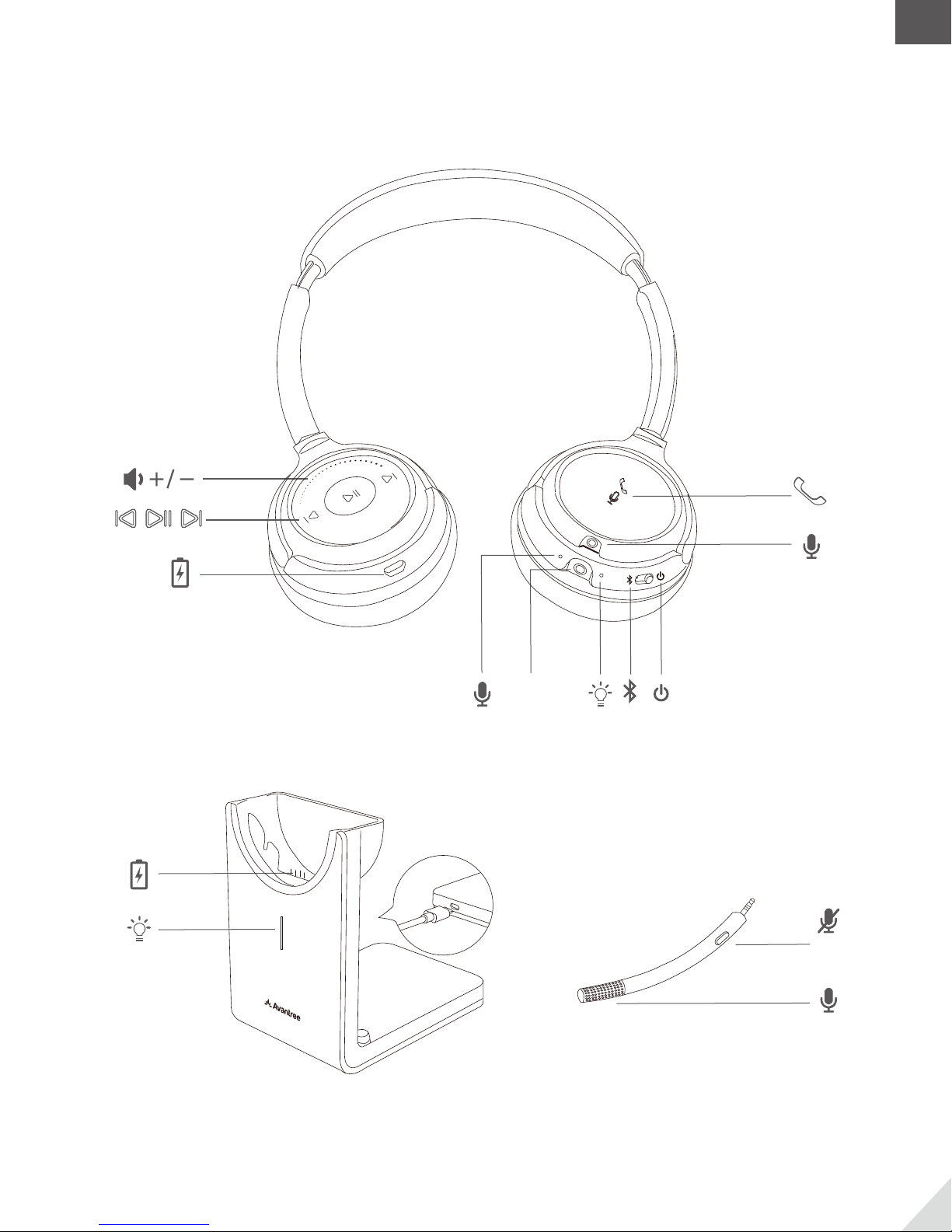

Product Overview
AUX
MUTE

2
Basic Operations & LED indicators
Button Function Operations
Power ON
Pairing
Power OFF
Microphone
Mute ON/OFF
Answer / End a call
Reject a call
Activate smart
voice assistant
Track forward
Track backward
Play/Pause
Volume
Wheel Volume up
Volume down
Microphone
Mute ON/OFF
Voice Prompt OFF
Voice Prompt ON
Hold 1s whilst a call coming
Tap once
Tap twice
While on an active call, tap and hold 1s to activate/close
Microphone Mute function. You’ll hear “Microphone Mute ON/OFF”
MUTE
While on an active call with boom mic, tap and hold 1s to
activate/close Microphone Mute function. You’ll hear
“Microphone Mute ON/OFF”
MUTE
& Hold & till you hear “Voice Prompt OFF”
& Hold & till you hear “Voice Prompt ON”
Tap once
Tap once
Tap once
Rotate the volume wheel forward to volume up
Rotate the volume wheel backward to volume down
Power
Switch
Slide the power switch towards middle you’ll hear
“Welcome to Avantree”
Slide the power switch to left and hold for 3 seconds.
You’ll hear “Pairing” and the LED indicator blinks RED and BLUE
alternately.
Slide the power switch to right you’ll hear “Good Bye”
NOTE: Functionality varies by applications
Blinks RED three times every 10 seconds
Working Status LED indicator
Blinks BLUE & RED alternately
Reconnecting Blinks BLUE once every 1 second
Disconnected Blinks BLUE once every 10 seconds
Microphone Mute ON Remains WHITE
Connected with SBC Codec Blinks BLUE once every 5 seconds
Connected with Fast Stream Codec Remains BLUE
Blinks WHITE once every 5 secondsConnected with AptX Codec
Connected with AptX-LL Codec
Connected with AptX-HD Codec
Low battery
Remains WHITE
Blinks WHITE twice every 5 seconds
Paring Mode

3
•
•
aptX-LL supported devices: Avantree Oasis, Avantree Audikast etc.
aptX-HD supported device: Avantree Oasis Plus
For full list of suppprted devices please visit www.aptx.com
Connect & Pair
Pair to mobile device
Set the headphones into Pairing Mode as above.
Activate Bluetooth on your phone and set it to search for new devices.
Select “Avantree AH6”,once successfully paired you’ll hear “connected”.
To add another cell phone
Connect with the FIRST phone as above, then turn o the headphones.
Connect headphones with SECOND phone as above.
Tap and select “Avantree AH6” on the FIRST phone Now, Avantree AH6 connected
with TWO phones simultaneously.
Enter Headphones into Pairing Mode:
Slide the power switch to left and hold for 3 seconds. You’ll hear “Pairing” and the LED indicator blinks
RED and BLUE alternately.
Reconnection
Normally, when the next time you turn on Avantree AH6, it will automatically reconnect the last paired device.
Alternatively, Slide the power switch to left once then release to enter into its Reconnection Mode.
Connect to the PC/Laptop
Set the headphones into Pairing Mode as above.
Activate Bluetooth function on your PC/Laptop, search & select “Avantree AH6” to pair and connect.
For music stream, please set “Avantree AH6” as the Playback Default Device/Output device in Sound Setting page.
For Skype call, please set “Avantree AH6 Hands-free Headset” as microphone and speaker device in Audio Settings.
•
•
•
•
•
•
•
•
•
•
Charging

4
If you have issues with the audio stream skipping or cutting out when using Avantree AH6, please try to clear pairing
history as following:
Firstly, turn on the headset (Non-calling Status), then Tap and Hold BOTH & 5 seconds till the LED blinks PINK
for 2 seconds, then the headphones enter into PAIRING MODE automatically.
When the LED ashes RED 3 times per 10 seconds or you hear the voice prompts “Low battery please turn o and
charge”, you should fully recharge the device for about 1 hour. The headset can be charged with the desktop
charging stand (DC5V/0.5-1A) or with the micro USB cable (DC5V/0.5-1A).
Clear pairing history
Charged with the desktop charging stand – The LED indicator on the charging stand will remain WHITE while
charging and turn to GREEN when charging is complete.
Charged with the micro USB cable - The LED indicator on the headphones will remain RED while charging and
turn o when charging is complete.
•
•
Frequently Asked Questions
1. No Sounds
2. Can this headset be used with TV/ PC?
3. Audio delay
4. Poor sound quality
There are FOUR possibilities if the headset seems no sounds
Headphones and your Bluetooth audio device are not properly paired / connected
PC/Laptop's current default output is not set as this headset.
The headphones volume is too low to be heard.
Headset is a defective unit.
For more detailed settings please search “Avantree AH6” on “support.avantree.com” or contact
Yes, it can, for more detailed step by step instructions please search “Avantree AH6 TV/PC” on “support.avantree.com”
To take advantage of the better performance of aptX Low Latency codec please make sure your Bluetooth devices/
transmitters support the aptX Low Latency codec. If the Bluetooth devices/ transmitters only support the normal aptX
codec, SBC or aptx-HD, these codec will be used instead, that’s why you still experience an audio delay/lip-sync delay.
To take advantage of the better sound quality of its aptx-HD codec please makes sure your Bluetooth devices/
transmitters support the aptX-HD codec.
•
•
•
•
WARNINGS / CAUTIONS
• Permanent hearing loss may result from long-term exposure to sound at high volumes.
• This product contains small parts which may be a choking hazard. Not suitable for children under age 3.
• To reduce the risk of re or electrical shock, do NOT expose this product to rain, liquids or moisture.
• Do NOT make unauthorized alterations to this product.
• Do NOT expose products containing batteries to excessive heat (e.g. direct sunlight, re, etc.).
• Do not leave a fully charged battery connected to a charger; overcharging may shorten its life. Declaration of
Conformity.

5
Z-PKQG-AH6-TTN-V1
Dispose of the packaging and
this product in accordance with
the latest provisions.
CE: The product is in conformity with the essential requirements of Article 3.1 (a) (b), 3.2 of Directive 1999/5/EC
and the essential requirements of Directive 2004/108/EC.This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does not cause harmful interference (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation. Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AITF-BTHS-AH6
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with
minimum distance between 20cm the radiator your body: Use only the supplied antenna.
Any questions? Please visit:
support.avantree.com
(User Manuals, FAQ, Video Tutorials and more)
Live chat: www.avantree.com

Paarungshistorie löschen
6
Verbinden und paaren
Gehen Sie in den Avantree AH6 Paarungsmodus:
Schieben Sie den An-/Ausschalter im AUSGESCHALTETEN Zustand Richtung , bis Sie „Paarung“ hören und die
LED-Anzeige abwechselnd ROT und BLAU aueuchtet.
Mit einem mobilen Gerät paaren
Ein weiteres Handy hinzufügen
Erstellen Sie die Verbindung mit dem ERSTEN Handy wie oben beschrieben und schalten Sie dann die Kopfhörer aus.
Verbinden Sie die Kopfhörer wie oben beschrieben mit dem ZWEITEN Handy.
Drücken Sie auf und wählen Sie „Avantree AH6“ auf dem ERSTEN Handy aus.
HINWEIS:
HINWEIS:
Avantree AH6 unterstützt nur einen Audiokanal. Wenn Sie Musik von einem anderen Bluetooth-Gerät
abspielen möchten, halten Sie die Musik auf dem benutzten Gerät zuerst an.
Um die aptX-LL Funktion auf dem Avantree AH6 nutzen zu können, muss die Bluetooth-Funktion auf Ihrem
Gerät oder Ihr Bluetooth-Transmitter aptX-LL unterstützen.
Erneut verbinden
Das nächste Mal, wenn Sie den Avantree AH6 einschalten, verbindet sich das Gerät automatisch mit dem zuletzt
gepaarten Gerät.
Alternativ können Sie auch einmal drücken, um den WIEDERVERBINDUNGSMODUS zu aktivieren. Oder Sie können
noch einmal in den Paarungsmodus gehen, um die Verbindung mit dem gewünschten Gerät zu erstellen.
Ladevorgang
Wenn die LED-Anzeige alle 10 Sekunden 3 Mal aufblinkt, oder Sie die Sprachansage „Niedriger Akku, bitte ausschalten
und auaden“ hören, sollten Sie das Gerät für 3 Stunden vollständig auaden. Das Headset kann mit dem
Schreibtischladegerät (DC5V/0.5-1A) oder mit einem Mikro-USB-Kabel (DC5V/0.5-1A) aufgeladen werden.
Wenn Sie das Schreibtischladegerät verwenden, leuchtet die LED-Anzeige während des Ladevorgangs WEISS auf
und wird GRÜN, sobald der Akku vollständig aufgeladen ist. Wenn Sie ein Mikro-USB-Kabel verwenden, leuchtet die
LED-Anzeige an den Kopfhörern während des Ladevorgangs ROT auf und geht dann aus, sobald der Ladevorgang
abgeschlossen ist.
Halten Sie die BEIDEN Knöpfe und im STANDBY-Modus (Strom an, nicht mit BT/BA Geräten verbunden)
5 Sekunden lang gedrückt, bis die LED-Anzeige 2 Sekunden lag GRÜN aueuchtet, jetzt sind die Kopfhörer im
Paarungsmodus.
Setzen Sie die Kopfhörer wie oben beschrieben in den Paarungsmodus.
Aktivieren Sie Bluetooth auf Ihrem Handy und suchen Sie nach neuen Geräten.
Wählen Sie „Avantree AH6“ aus. Sobald die Paarung besteht, hören Sie „verbunden“.
•
•
•
•
•
•
DE

La prochaine fois que vous allumerez l'Avantree AH6, il se reconnectera automatiquement au dernier appareil couplé.
Ou appuyez 1 fois pour activer la RECONNEXION Oumettez-vous à nouveau en appairage pour reconnecter votre
équipement préféré.
7
Casque éteint, glissez et maintenez l'interrupteur d'alimentation vers , jusqu'à ce que vous entendiez “pairing”
avec l'indicateur LED clignotantalternativementen ROUGE et BLEU.
Dans le mode VEILLE du casque (allumé, déconnecté avec les appareils BT / BA), maintenez les deux boutons
et 5s jusqu’à observer la LED clignoter VERT 2 secondes.Ceci fait, le casque se mettra en APPAIRAGE
automatiquement.
•
•
•
•
•
•
Connection et appairage
Mettre l’Avantree AH6 en appairage:
Appairage à un téléphone mobile
Mette en appairage votre casque comme ci-dessus..
Activez le Bluetooth sur votre téléphone et recherchez les nouveaux appareils.
Sélectionnez “Avantree AH6”. Une fois associé, vous entendre “connected”.
Connecter un téléphone supplémentaire
Connectez-vous avec le premier téléphone comme ci-dessus, puis éteignez le casque.
Connectez le casque avec le 2nd téléphone comme ci-dessus.
Sélectionnez “Avantree AH6” sur le 1ier téléphone
L’Avantree AH6 est maintenant connecté avec 2 téléphones simultanément.
NOTE:
NOTE:
L'Avantree AH6 ne prend en charge qu'un seul canal audio. Si vous souhaitez écouter de la musique à partir
d'un autre périphérique Bluetooth, veuillez d'abord mettre en pause la musique de l'appareil en cours d’utilisation.
Pour utiliser l’aptX-LL avec votre AH6, votre équipement Bluetooth (ou le transmetteur) doit également
supporter l’aptX-LL.
Reconnexion
Recharge
Lorsque la LED clignote ROUGE 3 fois toutes les 10 secondes (ou si vous entendez les instructions vocales «Low battery
please turn off and charge»), vous devez charger complètement votre casque pendant 3 heures. Le casque peut être
rechargé avec son chargeur de bureau (DC5V / 0.5-1A) ou à l’aide d’un câble micro USB classique (DC5V / 0.5-1A).
S'il est chargé avec le socle de charge, le voyant LED du socle reste BLANC durant toute la charge et devient VERT
lorsque la batterie est pleine.
Si chargé avec le câble micro USB, le voyant LED du casque reste ROUGE pendant le chargement et s'éteint lorsque
le chargement est terminé.
Eacer l’historique d’appairage
FR

Con le cue in MODALITÀ STANDBY MODE (acceso, disconnesso con i dispositivi BT/BA) tenere premuti I pulsanti
e per 5s no a quando il LED non lampeggia in VERDE per 2 secondi, poi le cuffie entreranno in MODALITÀ
ACCOPPIAMENTO.
•
•
•
•
•
•
Connettere il PRIMO telefono come sopra riportato, poi spegnere le cue.
Connettere le cue con il SECONDO telefono come sopra riportato.
Selezionare “Avantree AH6” sul PRIMO telefono
Ora Avantree AH6 è connesso con I due telefoni simultanea mente.
Avantree AH6 supporta solo un canale audio. Se si desidera ascoltare la musica da un altro dispositivo
Bluetooth, prima mettere in pausa il dispositivo attuale
per utilizzare la funzione aptX-LL di Avantree AH6 i dispositivi Bluetooth o le trasmittenti Bluetooth devono
supportare la funzione aptX-LL. Riconnessione Quando si accende Avantree AH6 la volta successiva, questo
di riconnetterà automaticamente all’ultimo dispositivo accoppiato. Oppure è possibile premere una volta
per riattivare la modalità RICONNESSIONE Oppure è possibile ritornare in Modalità Accoppiamento per
connettersi con il dispositivo desiderato.
8
Connessione e accoppiamento
Portare Avantree AH6 in modalità accoppiamento:
Da spento, portare il pulsante dell’accensione verso e tenerlo premuto no a quando non si sente il comando
vocale “accoppiamento” e l’indicatore LED non lampeggia in ROSSO e BLU in modo alternato
Accoppiamento con un dispositivo mobile
Portare le cuffie in Modalità Accoppiamento come descritto sopra.
Attivare il Bluetooth sul proprio telefono e ricercare nuovi dispositivi.
Selezionare “Avantree AH6”. Una volta accoppiato, si udirà il comando vocale “connesso”.
Per aggiungere un altro cellulare
NOTA:
NOTA:
Ricarica
Quando il LED lampeggia in ROSSO per 3 volte per 10 secondi o si sente il comando vocale “Batteria bassa, si prega
di spegnere il dispositivo e ricaricarlo”, occorre ricaricare il dispositivo per 3 ore. Le cue possono essere caricate
attraverso il caricature da tavolo (DC5V/0.5-1A) o attraverso un cavo micro USB (DC5V/0.5-1A). Se si utilizza il caricatore
da tavolo, l’indicatore LED rimarrà BIANCO durante la ricarica e diventerà VERDE una volta completata. Se si utilizza
il cavo micro USB, l’indicatore LED rimarrà ROSSO durante la ricarica e si spegnerà una volta completata.
Eliminazione della cronologia
IT

9
•
•
•
•
•
•
Conecte con el PRIMER teléfono como arriba, y luego desactive los auriculares.
Conectar los auriculares con el SEGUNDO teléfono, como se indica arriba
Pulse y seleccione "Avantree AH6" en el PRIMER teléfonoAhora el Avantree AH6 está conectado a DOS teléfonos
simultáneamente.
Nota:
Nota:
Conectary emparejar
Entrar en Modo de EmparejamientoAvantree AH6:
Con el dispositivo apagado, deslizar y mantener el interruptor en dirección a , hasta que escuche “emparejando”
y el indicador LED alterne luz ROJA y AZUL.
Emparejar al dispositivo móvil
Entrar en modo de sincronización de auriculares como arriba.
Activar el Bluetooth en el teléfono y programar para que busque nuevos dispositivos.
Seleccionar "Avantree AH6". Una vez emparejado con éxito, escuchará "conectado".
Para añadir otro teléfono móvil
El Avantree AH6 sólo soporta un canal de audio. Si quiere reproducir música desde otro dispositivo Bluetooth,
por favor primero pausar la música del dispositivo actual.
Para hacer uso de la función AH6 de suAvantreeaptX-LL los dispositivos Bluetooth o los transmisores Bluetooth
deben ser compatibles conaptX-LL.
Reconexión
La próxima vez que encienda el Avantree AH6, se volverá a conectar automáticamente con el último dispositivo
emparejado. O puede pulsar una vez para activar el modo de RECONEXIÓN O puede entrar en modo de
emparejamiento otra vez para conectarlo con su dispositivo favorito.
Recarga
Cuando el LED parpadea en ROJO 3 veces cada 10 segundos o escucha el comando de voz de "baja batería" por favor
apagar y cargar, debe cargar completamente el dispositivo durante 3 horas. El auricular puede cargarse con el soporte
de carga para el escritorio (0.5-DC5V/1A) o con un micro cable USB (0.5-DC5V/1A).Si carga con el soporte de carga para
escritorio el indicador de LED del soporte permaneceráBLANCO durante la carga y volverá a luz VERDE cuando la
batería está completa.Si carga con el cable micro del USB el indicador LED de los auriculares permanecerá ROJO
durante la carga y apagará cuando la carga esté completa.
Borrarhistorial de emparejamiento
Con los auriculares en MODO STANDBY (encendido, desconectado con dispositivos BT/BA) mantenga pulsados AMBOS
y 5s hasta que el indicador LED parpadee en VERDE durante 2 segundos, después los auriculares entrarán en el
modo de emparejamiento.
ES
Other manuals for BTHS-AH6
1
Table of contents
Other Avantree Headset manuals

Avantree
Avantree Vox-pop User manual

Avantree
Avantree AS9P User manual

Avantree
Avantree HM100P User manual

Avantree
Avantree BTHS-AH6 User manual

Avantree
Avantree Sacool User manual

Avantree
Avantree Sacool User manual

Avantree
Avantree Alto 8060 User manual

Avantree
Avantree Clipper User manual

Avantree
Avantree HT3189 Instruction manual
