Avari Fitness AVARI Easy Glide Rower User manual

When calling for parts or
service, please specify
the following number :
Model#: A350-600
CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's Manual
This Product is Distributed Exclusively by
2040 N. Alliance, Springeld, MO 65803
Customer Service
1 [phone]
www.staminaproducts.com
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
© 2013 Stamina Products, Inc.
2013, 06
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!WARNING
EASY GLIDE

TABLE OF CONTENTS
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning, Caution & Notice Labels ... 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Operational Instructions ........................... 12
Storage ....................................................... 13
Maintenance ............................................... 14
Conditioning Guidelines ........................... 15
Warm-Up and Cool-Down ......................... 16
Warranty ..................................................... 17

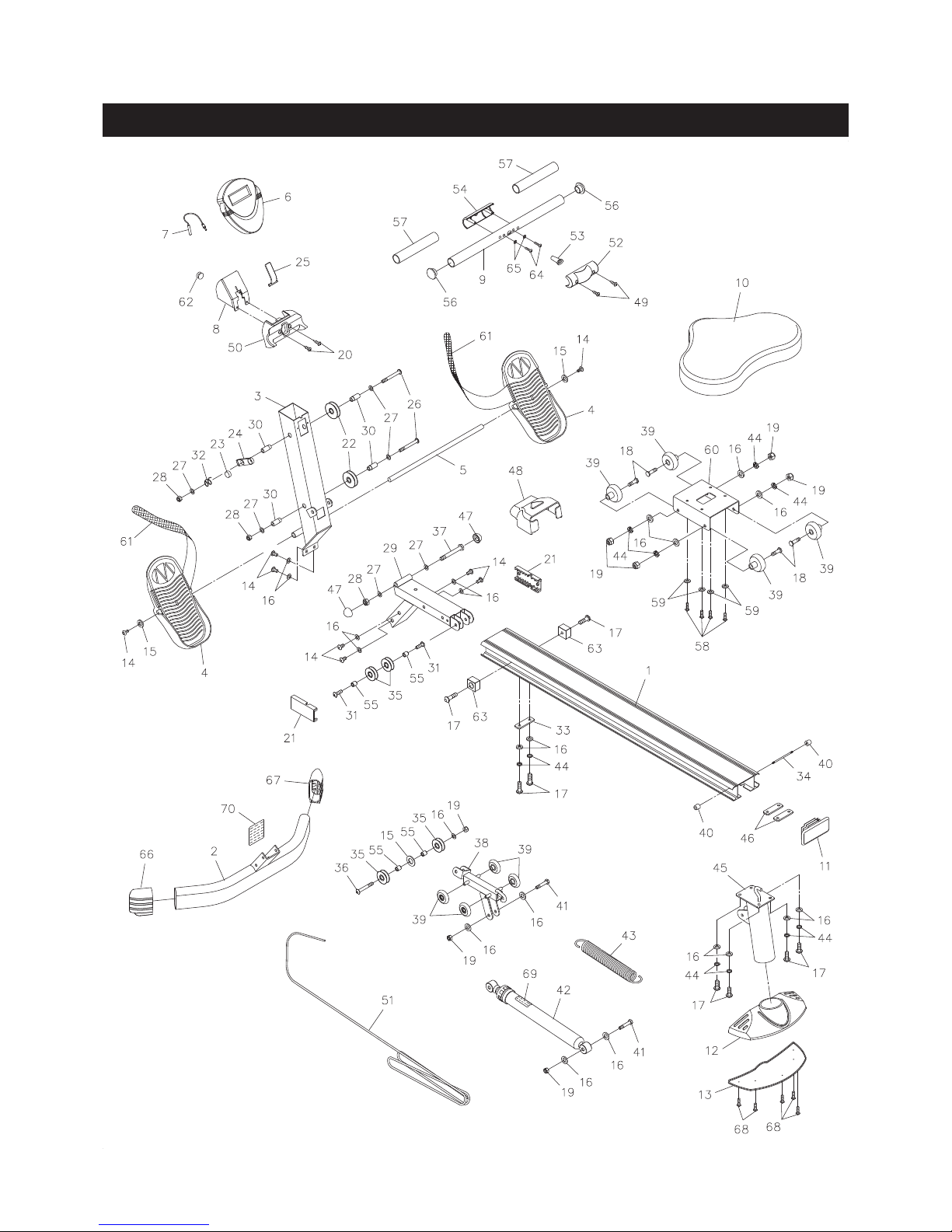

Product Parts Drawing .............................. 18
Parts List .................................................... 19
Notes ........................................................... 21
Fax/Mail Ordering Form ............................ 22
SAFETY INSTRUCTIONS
2
1. Read all warnings and cautions posted on the AVARI® Easy Glide Rower.
2. The AVARI® Easy Glide Rower should only be used after a thorough review of the Owner’s Manual.
Make sure that it is properly assembled and tightened before use.
3. We recommend that two people be available for assembly of this product.
4. Keep children away from the AVARI® Easy Glide Rower. Do not allow children to use or play on the
AVARI® Easy Glide Rower. Keep children and pets away from the AVARI® Easy Glide Rower when
it is in use.
5. It is recommended that you place this exercise equipment on an equipment mat.
6. Set up and operate the AVARI® Easy Glide Rower on a solid level surface. Do not position the
AVARI® Easy Glide Rower on loose rugs or uneven surfaces.
7. Make sure that adequate space is available for access to and around the AVARI® Easy Glide Rower.
8. Before using, inspect the AVARI® Easy Glide Rower for worn or loose components, and securely
tighten or replace any worn or loose components prior to use.
9. Before using, check the condition of the ROPE(51). Replace the ROPE(51) if it is cracked or broken.
10. Shocks on steppers/rowers get HOT during use. To avoid burns, do not touch the shocks until they
have had time to cool.
11. Consult a physician prior to commencing an exercise program and follow his/her recommendations
in developing your tness program. If at any time during exercise you feel faint, dizzy, or experience
pain, stop and consult your physician.
12. Always choose the workout which best ts your physical strength and exibility level. Know your limits
and train within them. Always use common sense when exercising.
13. Do not wear loose or dangling clothing while using the AVARI® Easy Glide Rower.
14. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or cross
training shoes that t well, provide foot support, and feature non-skid rubber soles.
15. Be careful to maintain your balance while using, mounting, dismounting, or assembling the AVARI®
Easy Glide Rower, loss of balance may result in a fall and bodily injury.
16. Do not use the SEAT(10) to move the AVARI® Easy Glide Rower.The SEAT(10) will move and the
SEAT CARRIAGE(60) may pinch your hand or ngers.
17. The AVARI® Easy Glide Rower should not be used by persons weighing over 250 pounds.
18. The AVARI® Easy Glide Rower should be used by only one person at a time.
19. The AVARI® Easy Glide Rower is for consumer use only. It is not for use in public or semipublic
facilities.
!WARNING This product contains a chemical known to the State of California to cause
cancer and birth defects or other reproductive harm.
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suffer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in bodily injury and property damage.
To reduce the risk of serious injury, read the following Safety Instructions
before using the AVARI® Easy Glide Rower.
!WARNING
!CAUTION

3
To help you get started, we have pre-assembled most of your
AVARI® Easy Glide Rower at the factory with the exception
of those few parts left unassembled for shipping purposes.
Simply follow the few assembly instructions set forth in this manual.
With regular workouts, you will be getting your body into shape
and be on your way to achieving a happier and healthier lifestyle.
Should you have any questions,
please call our Customer Service Department toll-free number,
1 [phone]
Monday - Thursday, 7:30 A.M. - 5:00 P.M., Central Time.
Friday, 8:00 A.M. - 3:00 P.M., Central Time.
TELEPHONE
CUSTOMER SERVICE
Tel: [phone]
FAX
CUSTOMER SERVICE
Fax: [phone]
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Service
P.O. Box 1071
Springeld, MO. 65801-1071
ONLINE
CUSTOMER SERVICE
[email protected]
www.staminaproducts.com
To enact your warranty, please register your product
by going to register.staminaproducts.com
Call Us First
www.staminaproducts.com
1(800) 375-7520
Customer Service
THANK YOU FOR PURCHASING THE
AVARI® Easy Glide Rower

Thank you for choosing the AVARI® Easy Glide
Rower. We take great pride in producing this
quality product and hope it will provide many hours
of quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The AVARI® Easy Glide
Rower provides a convenient and simple method
to begin your journey of getting your body in shape
and achieving a happier and healthier lifestyle.

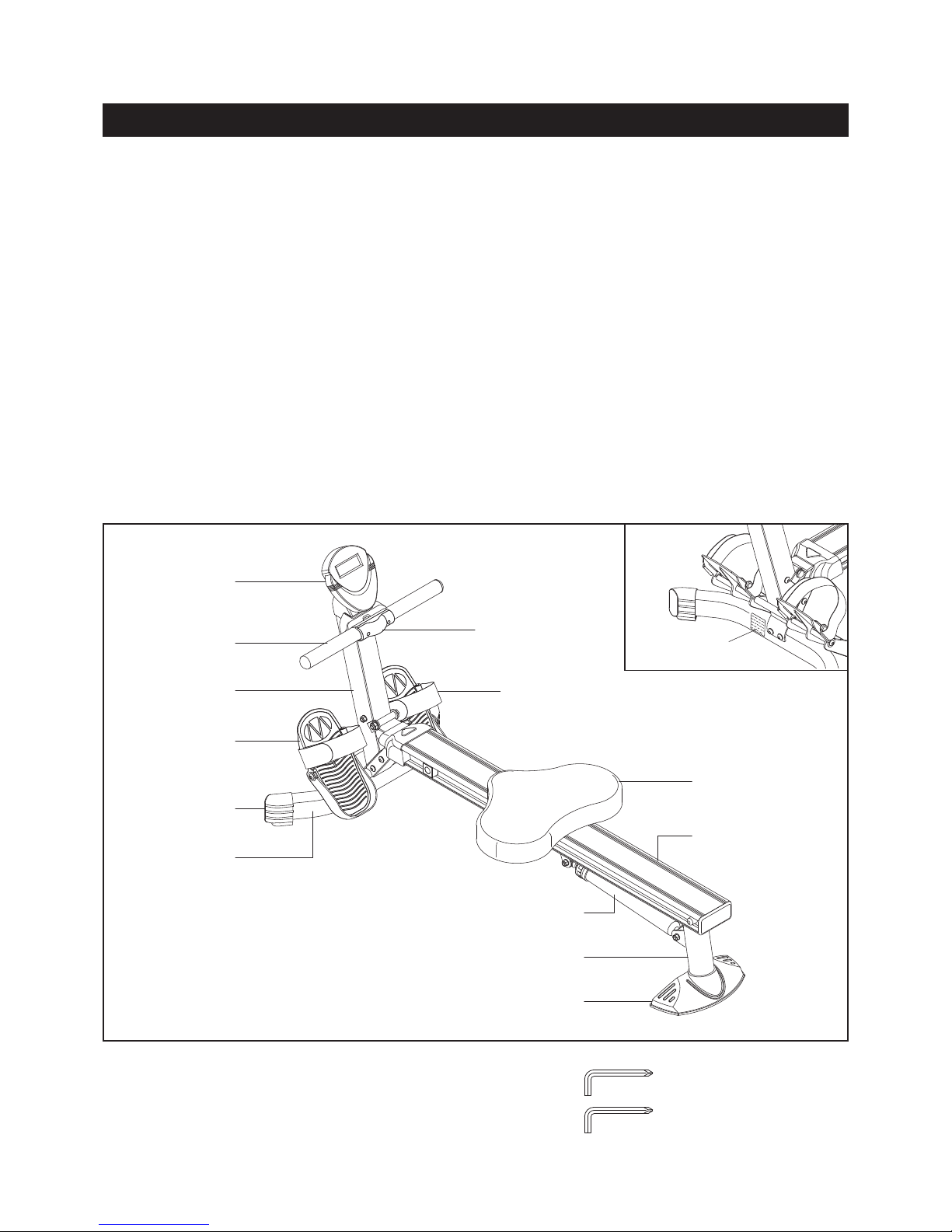

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled.
Read this manual carefully before using the
AVARI® Easy Glide Rower.
BEFORE YOU BEGIN
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your AVARI® Easy Glide
Rower, please do not return the product. Contact
us FIRST!
If a part is missing or defective, please go to
staminaproducts.com to the Services section and
order the part needed, or call us toll free at 1-800-
375-7520 (in the U.S.). Our Customer Service Staff
is available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
4
THE FOLLOWING TOOLS ARE REQUIRED FOR ASSEMBLY : Allen Wrench (6mm)
Allen Wrench (6mm)
Center Beam
Shock
Rear Support
Seat
Pedal Strap
Handlebar Cover
Handlebar
Meter
Pedal Cap
Front
Stabilizer
Left
Stand Cap
Caution Label
Upright
Stabilizer Cap

This chart is provided to help identify the warning, caution, and notice labels on the AVARI® Easy
Glide Rower. Please take a moment to familiarize yourself with all of the warning, caution, and notice
labels.

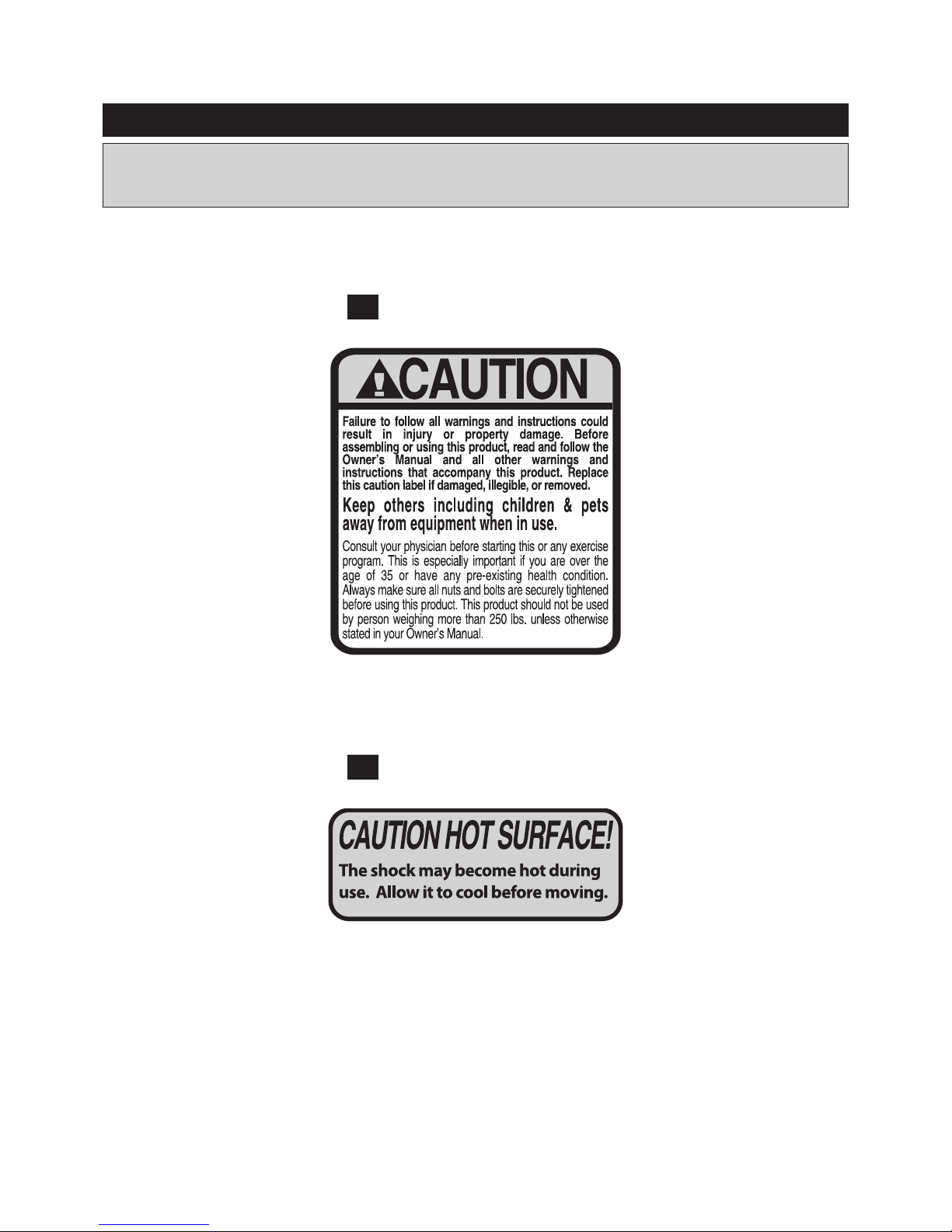

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
5
CAUTION LABEL(70)C1
Labels are larger than actual size
SHOCK CAUTION(69)C2

Part Number and Description Qty
6
length
length
mm.
in.
INCHES

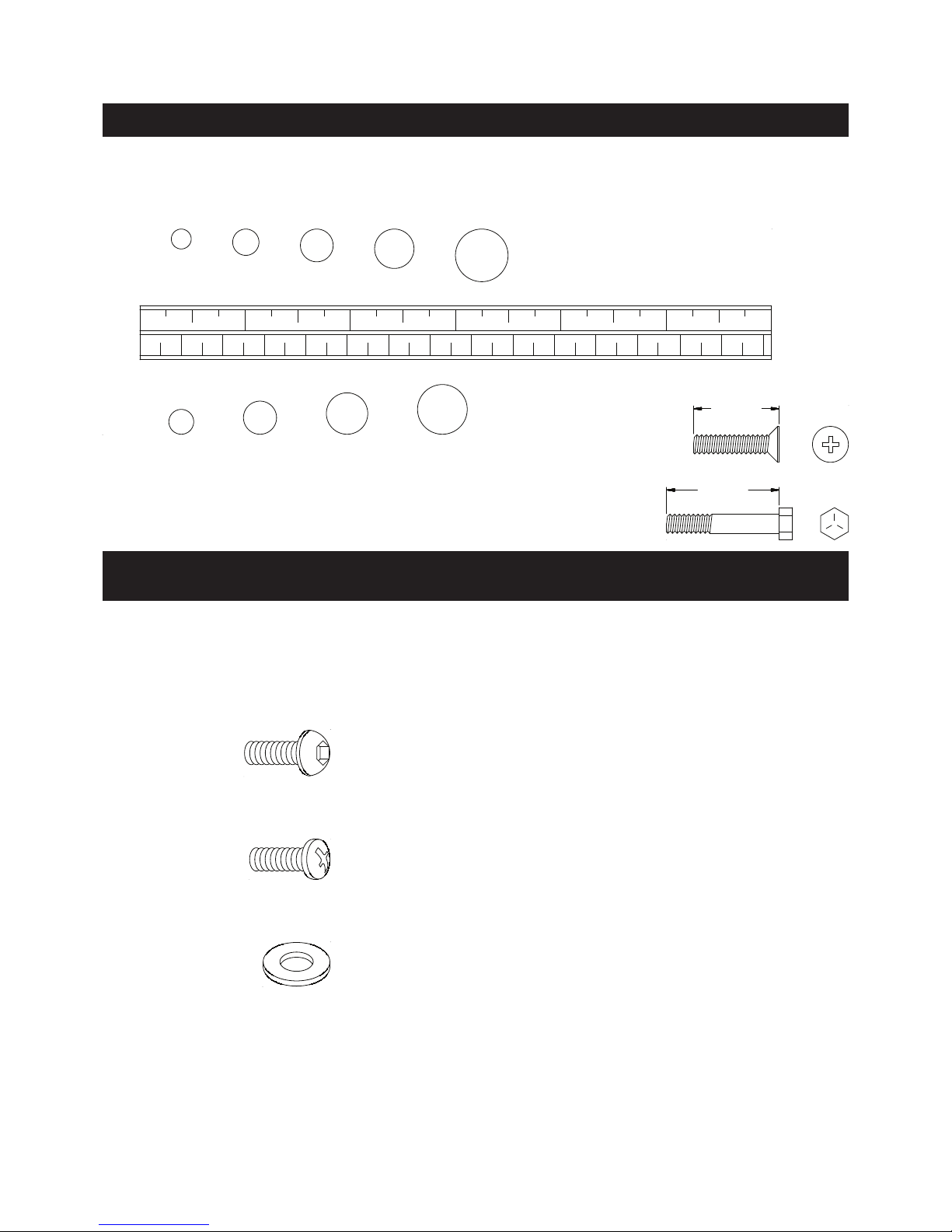

This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
6 8 10 12
3/16" 1/4" 5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
15 Large Washer (M8) 2
16 Washer (M8) 6
59 Washer (M6) 4
14 Bolt, Button Head (M8 x 1.25 x 15mm) 8
58 Bolt, Round Head (M6 x 1 x 15mm) 4

ASSEMBLY INSTRUCTIONS
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com to the Services section and order the part needed, e-mail
us at [email protected], or call us toll free at 1-800-375-7520 (in the U.S.). Our
Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central Time) Monday
through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Key Rib

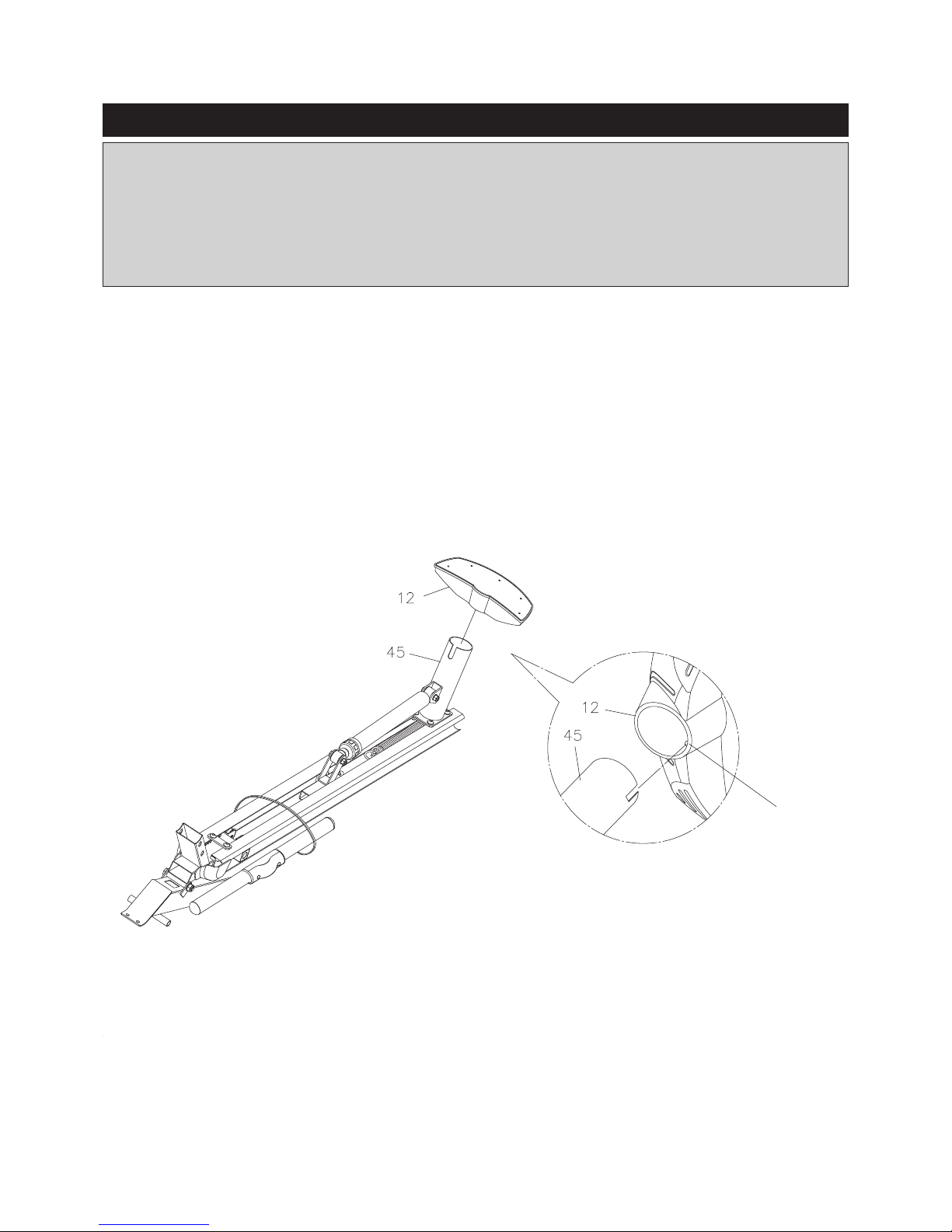

STEP 1
Lay the Center Beam Assembly on the oor as shown in the illustration. Now refer to the inset drawing.
Make sure the Key Rib in the STABILIZER CAP(12) aligns with the slot in the REAR SUPPORT(45), then
press the STABILIZER CAP(12) onto the REAR SUPPORT(45).

ASSEMBLY INSTRUCTIONS
8

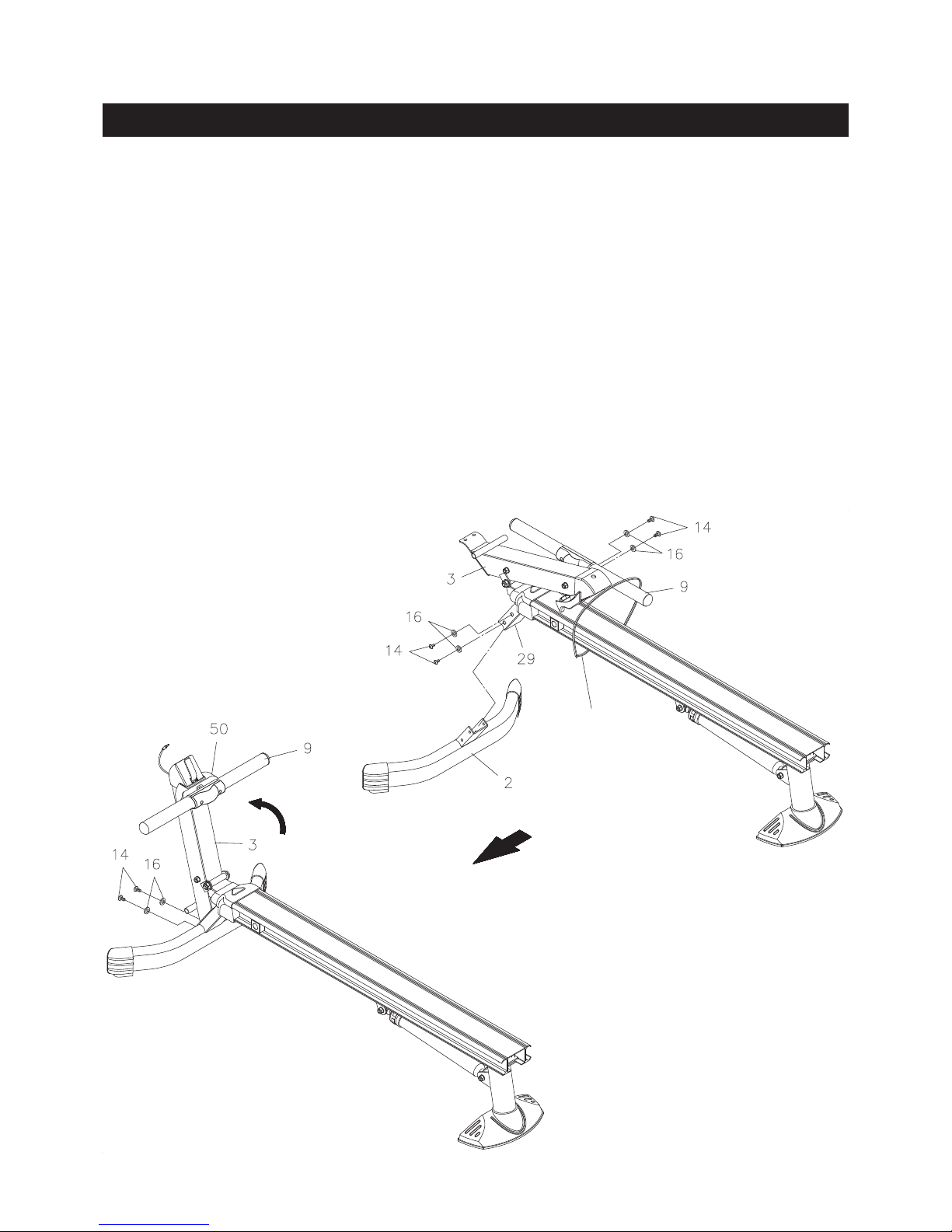

STEP 2
Turn the Center Beam Assembly to the normal upright position. Insert the Bracket on FRONT STABILIZER(2)
into the FRONT SUPPORT(29) and secure with BUTTON HEAD BOLTS(M8x1.25x15mm)(14) and
WASHERS(M8)(16). Do not tighten the bolts until Step 4.
STEP 3
NOTE: During this step it is important that you hold the HANDLEBAR(9) while you are cutting the Cable
Tie. For packing, a section of the ROPE(51) that is attached to the HANDLEBAR(9) is pulled out
of the UPRIGHT(3). The ROPE(51) has a spring force that will snap the HANDLEBAR(9) to the
UPRIGHT(3) after cutting off the Cable Tie.
Hold the HANDLEBAR(9) and cut off the Cable Tie which ties the HANDLEBAR(9) to the UPRIGHT(3).
Swing the UPRIGHT(3) up and place the HANDLEBAR(9) on the HANDLEBAR HOLDER(50).
STEP 4
Attach the UPRIGHT(3) to the FRONT STABILIZER(2) with BUTTON HEAD BOLTS(M8x1.25x15mm)
(14) and WASHERS(M8)(16). Tighten all the bolts from Step 2.
Cable Tie

ASSEMBLY INSTRUCTIONS
9
STEP 5
Insert the PEDAL SHAFT(5) through the tube located on the UPRIGHT(3). Slide the PEDAL CAPS(4)
onto both ends of the PEDAL SHAFT(5) and secure with BUTTON HEAD BOLTS(M8x1.25x15mm)(14)
and LARGE WASHERS(M8)(15).
NOTE: You need to use two Allen Wrenches to tighten the BUTTON HEAD BOLTS(M8x1.25x15mm)(14)
at both ends of the PEDAL SHAFT(5) at the same time.

ASSEMBLY INSTRUCTIONS
10

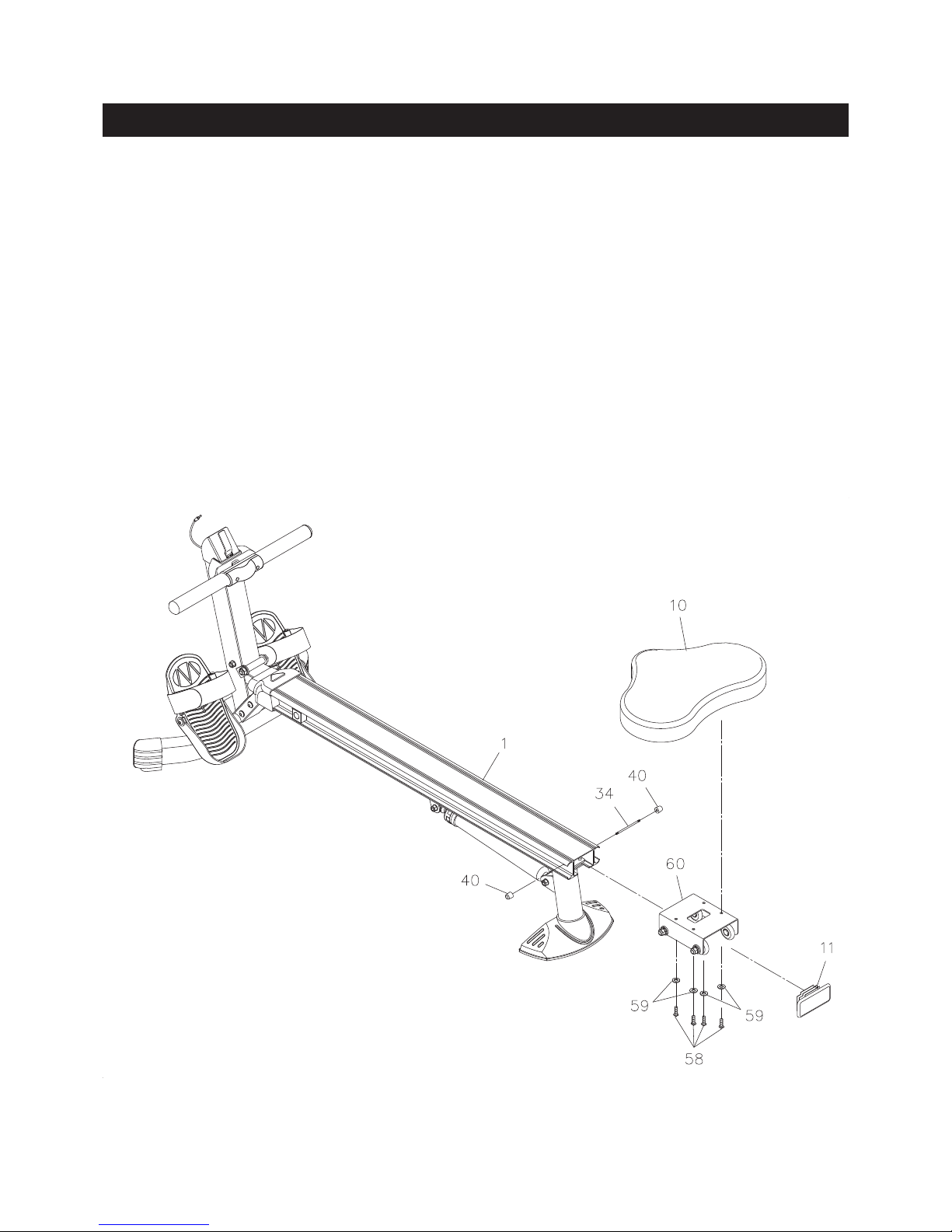

STEP 6
Attach the SEAT(10) to the SEAT CARRIAGE(60) with ROUND HEAD BOLTS(M6x1x15mm)(58) and
WASHERS(M6)(59).
STEP 7
Slide the SEAT ASSEMBLY(10, 60) onto the CENTER BEAM(1). Insert the SCREW ROD(34) through the
CENTER BEAM(1) and screw the SEAT STOPPERS(40) onto both ends of the SCREW ROD(34).
STEP 8
Press the CENTER BEAM CAP(11) into the back end of the CENTER BEAM(1).

11
ASSEMBLY INSTRUCTIONS
STEP 9

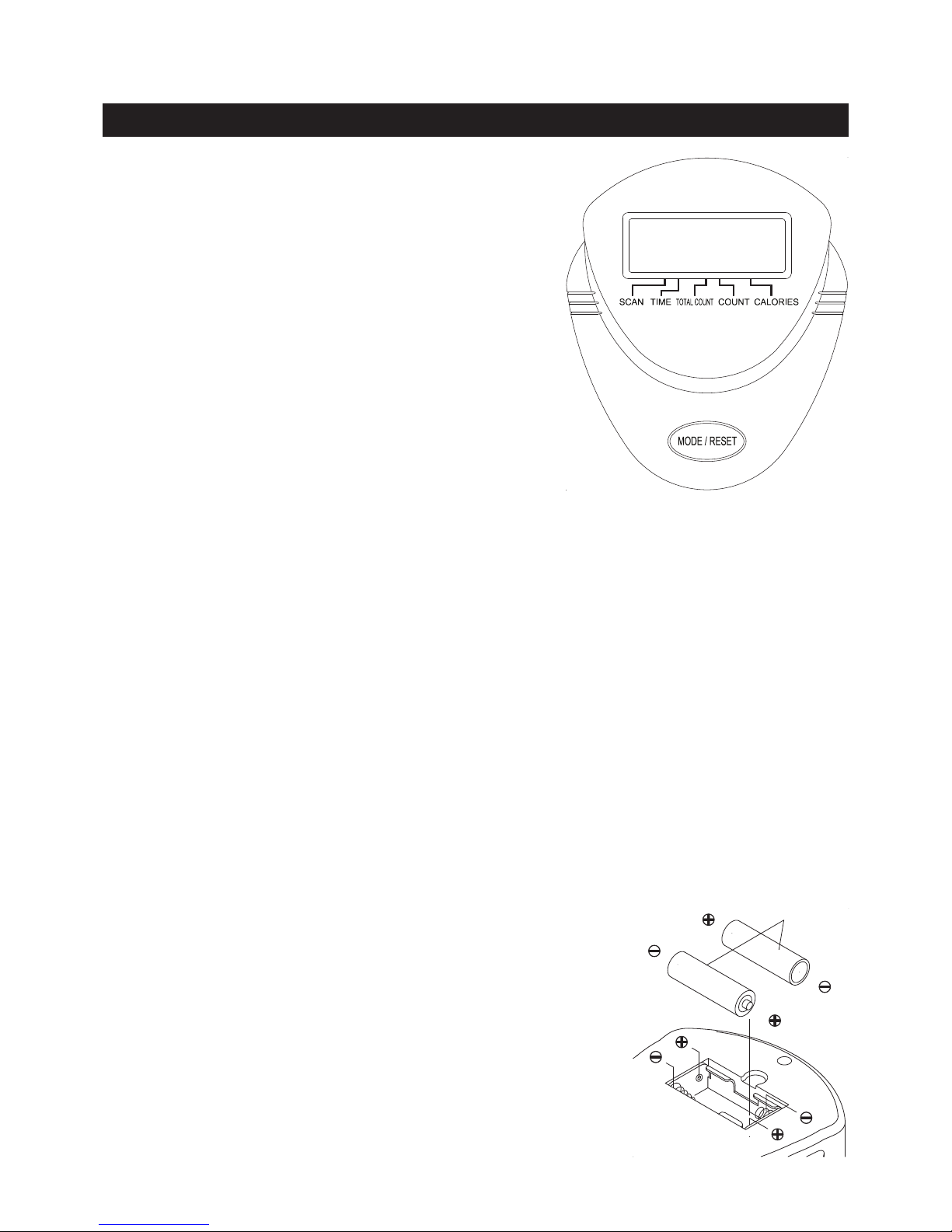

Install two AA batteries into the METER(6), the batteries are not included.See page 12 for detailed battery
installation instructions. Insert the SENSOR WIRE(7) into the METER(6). Slide the METER(6) onto the
BRACKET(25).

OPERATIONAL INSTRUCTIONS
12
Functions:
Seat movement or press the button.
Automatic shut off after four minutes of
inactivity.
SCAN:
COUNT:
TIME:
CALORIES:
Automatically scans each function of TIME, TOTAL COUNT, COUNT, and CALORIES in
sequence with a change every six seconds.
Displays the elapsed time from 1 sec up to 99:59 minutes.
Displays the total accumulated number of rows you have taken from zero to 9999 rows.
The total accumulated rows is retained when the meter is turned off.
Displays the total number of rows you have taken from zero to 9999 rows.
Displays the calorie consumption from zero to 9999 cal.
The calorie readout is an estimate for an average user. It should be used only as a comparison
between workouts on this unit.
HOW TO INSTALL AND REPLACE BATTERIES:
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline battery with
another type of battery.
3. Rechargeable batteries are not recommended.
NOTE:
1. Open the Battery Door on the back of the meter.
2. The meter operates with two AA batteries, the batteries are not
included. Refer to the illustration to install or replace the batteries.
AA Batteries
TOTAL COUNT:
The TOTAL COUNT will be reset to zero after batteries are removed for battery replacement
or storage of the unit.
NOTE:
USING THE FITNESS METER
POWER OFF :
POWER ON :
MODE/RESET BUTTON:
Press to select display functions, include SCAN, TIME,
TOTAL COUNT, COUNT, and CALORIES.
Press and hold for two seconds to reset all functions to
zero, except TOTAL COUNT.

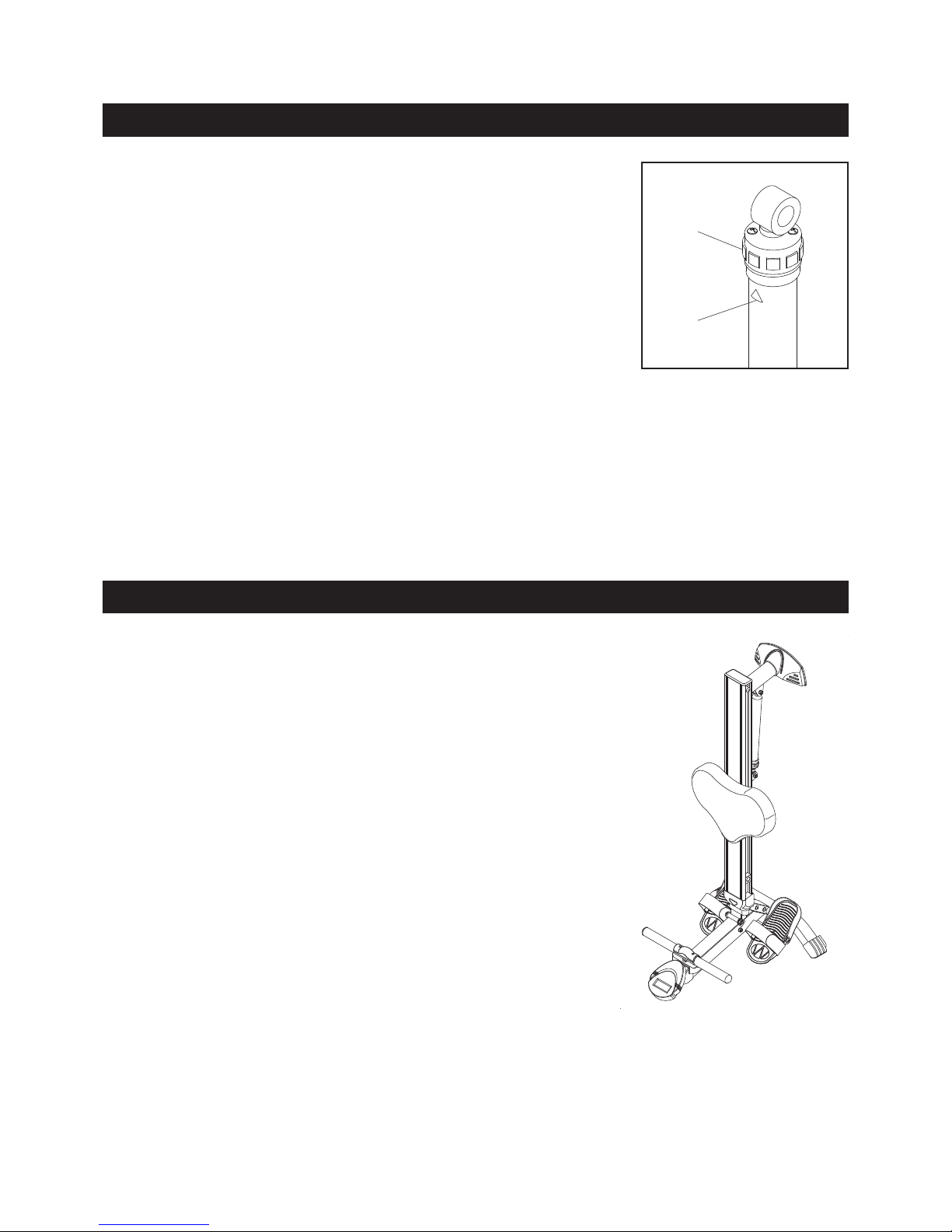

LOAD ADJUSTMENT
The resistance of the shocks can be adjusted by twisting the adjustment
knob at the top of the shocks. There are settings from 1 to 12. Setting
#1 will provide the lowest resistance. Setting #12 will provide the highest
resistance.
CAUTION: The shocks get HOT after a few minutes of use.
Adjustment
Knob
Mark
OPERATIONAL INSTRUCTIONS
13
1. To store the AVARI® Easy Glide Rower, simply keep it in a clean
dry place.
2. To avoid damage to the electronics meter, remove the batteries
before storing the AVARI® Easy Glide Rower for one year or
more.
3. Grasp the Front and Rear Stabilizers to move the AVARI® Easy
Glide Rower.Do not use the Seat to move the AVARI® Easy
Glide Rower. The Seat will move and the Seat Carriage may pinch
your hand or ngers.
4. Refer to the illustration. You can stand the AVARI® Easy Glide
Rower on end for storage.
STORAGE

14
The safety and integrity designed into the AVARI® Easy Glide Rower can only be maintained when the
AVARI® Easy Glide Rower is regularly examined for damage and wear. Special attention should be
given to the following:
1. Pull on the HANDLEBAR(9) and verify that the SHOCK(42) provides tension.
2. Clean the roller tracks in the CENTER BEAM(1) with an absorbent cloth.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
4. Verify that the CAUTION LABEL(70) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(70) if it is missing or damaged.
5. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
6. Worn or damaged components shall be replaced immediately or the AVARI® Easy Glide Rower
removed from service until repair is made.
7. Only Stamina Products supplied components shall be used to maintain/repair the AVARI® Easy Glide
Rower.
8. Keep your AVARI® Easy Glide Rower clean by wiping it off with an absorbent cloth after use.
9. Check the condition of the ROPE(51). Replace the ROPE(51) if it is cracked or broken.
MAINTENANCE

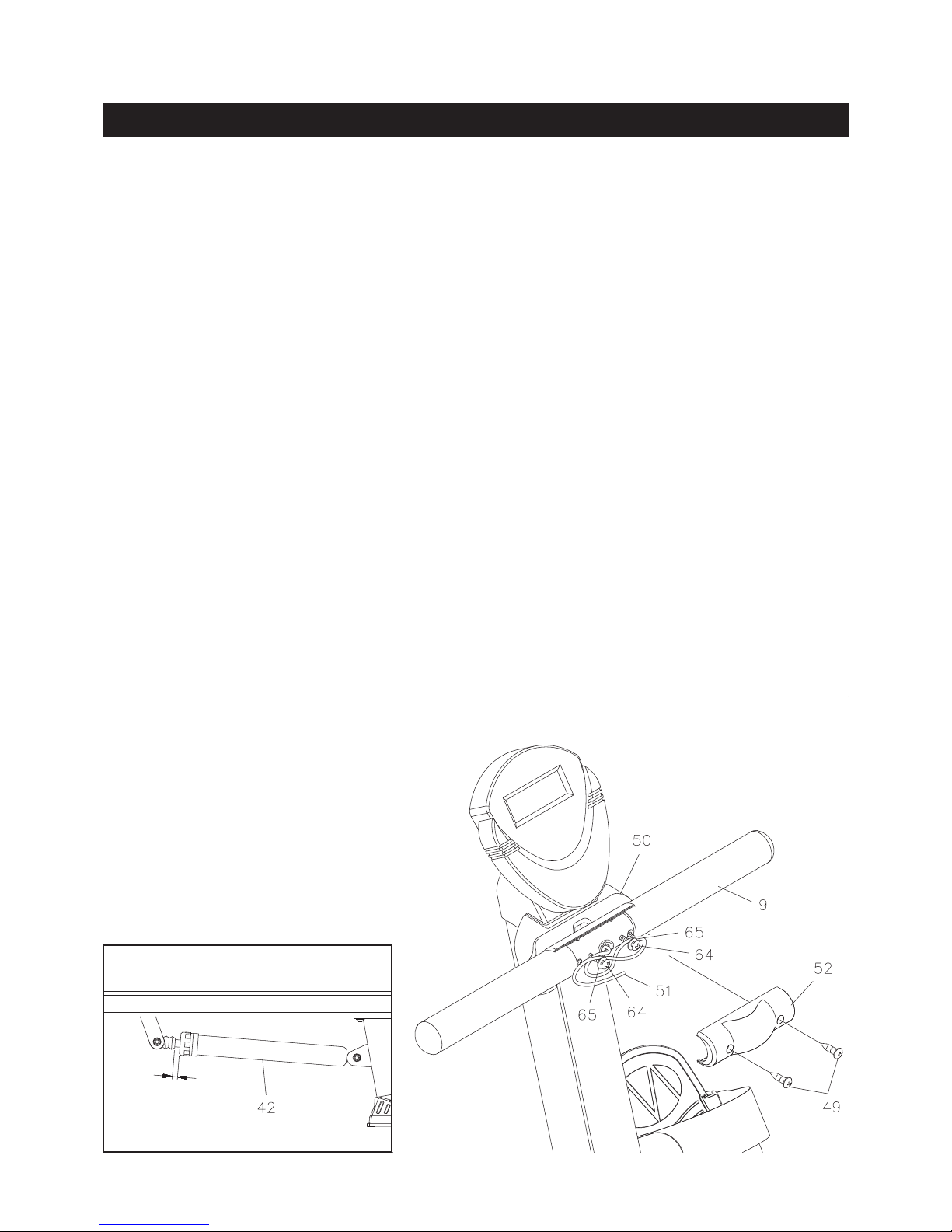

ROPE ADJUSTMENT
Over time your ROPE(51) may stretch. If the ROPE(51) doesn’t retract fully into the UPRIGHT(3) and the
HANDLEBAR(9) doesn’t stay on the HANDLEBAR HOLDER(50), make this adjustment. Remove the
HANDLEBAR COVER(52) by unscrewing the SCREWS(M4x15mm)(49). Loosen the BOLTS(M6x1x20mm)
(64), but do not remove them. Pull the ROPE(51) until there is a 3/8 inch of gap on the shaft of the SHOCK(42),
refer to illustration A. Then entwine the ROPE(51) around the BOLTS(M6x1x20mm)(64) using a gure eight
pattern and tighten the bolts so the ARC WASHERS(M6)(65) press against and secure the ROPE(51) in
position. Re-attach the HANDLEBAR COVER(52) with the SCREWS(M4x15mm)(49).
Gap
A.

How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
15

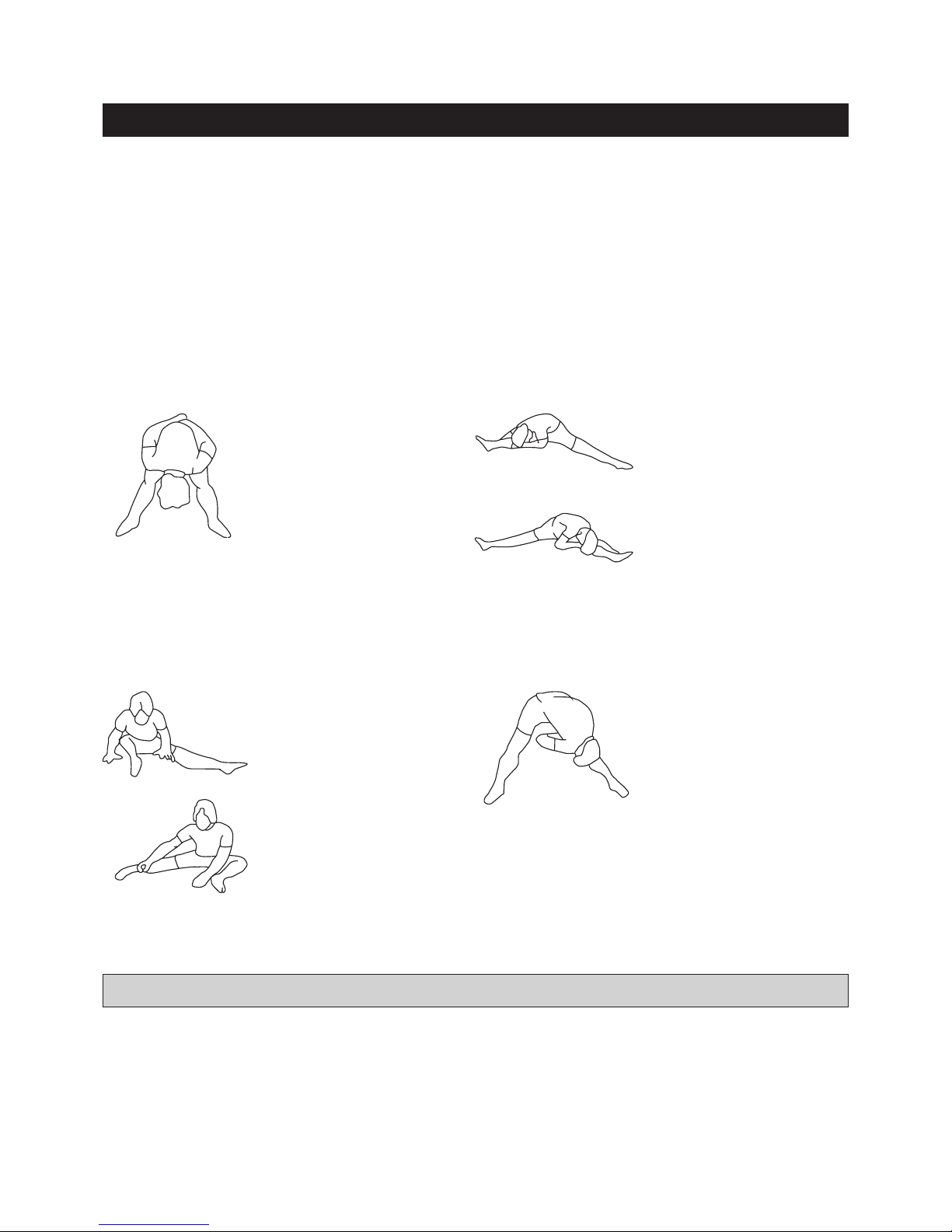

WARM-UP and COOL-DOWN
Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
16

LIMITED WARRANTY
WARRANTY
MODEL A350-600
17
Stamina Products, Inc. warrants that this product will be free from defects in materials and workmanship
under normal use, service, proper assembly and proper operation for a period of 90 days on the
parts and one year on the frame from the date of the original purchase from an authorized retailer.
THIS WARRANTY SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT
TO COMMERCIAL USE, ABUSE, MISUSE, ALTERATION OF ANY TYPE OR CAUSE OR TO
ANY DEFECT OR DAMAGE CAUSED BY IMPROPER ASSEMBLY, REPAIR, REPLACEMENT,
SUBSTITUTION OR USE WITH PARTS OTHER THAN PARTS PROVIDED BY STAMINA PRODUCTS,
INC. Commercial use includes use of the product in athletic clubs, health clubs, spas, gymnasiums,
exercise facilities, and other public or semipublic facilities whether or not the product's use is in
furtherance of a prot making enterprise, and all other use which is not for personal, family, or household
purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071,
Springeld Missouri, USA, 65801-1071, or email us at [email protected], or
call us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to
return the product or part to us for free repair or replacement at our option. NO ACTION FOR BREACH
OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE THAN ONE (1) YEAR AFTER THE
DATE THE ALLEGED BREACH WAS OR SHOULD HAVE BEEN DISCOVERED. NO ACTION FOR
BREACH OF ANY IMPLIED WARRANTY MAY BE COMMENCED MORE THAN ONE (1) YEAR AFTER
DELIVERY OF THE PRODUCT TO THE PURCHASER. This limited warranty is not transferable. IF
ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED WARRANTY OR ANY
IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY
AVAILABLE TO YOU. In the event that the purchaser makes any claim under this limited warranty or any
implied warranty, the Warrantor reserves the right to require the product to be returned for inspection,
at the purchaser's expense, to the Warrantor's premises in Springeld, Missouri. Return of the enclosed
warranty registration card is not required for warranty coverage, but is merely a way of establishing the
date and place of purchase.
Stamina Products, Inc. SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS
OF TIME, INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL,
SPECIAL OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY
IMPLIED WARRANTY.
This limited warranty is the only written or express warranty given by Stamina Products, Inc. This
warranty gives you specic legal rights, and you may also have other legal rights which vary from state
to state. ANY OTHER RIGHT WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
The laws in some jurisdictions restrict the rights of manufacturers and distributors of consumer goods
to disclaim or limit implied warranties and consequential and incidental damages with respect thereto.
If any such law is found to be applicable, the foregoing disclaimers and limitations of and on implied
warranties and consequential and incidental damages with respect thereto shall be disregarded and shall
be deemed not to have been made to the extent necessary to comply with such legal restriction.

PRODUCT PARTS DRAWING
18
FRONT
BACK

PARTS LIST
19
1 Center Beam 1
2 Front Stabilizer 1
3 Upright 1
4 Pedal Cap 2
5 Pedal Shaft 1
6 Meter 1
7 Sensor Wire 1
8 Upright Cover 1
9 Handlebar 1
10 Seat 1
11 Center Beam Cap 1
12 Stabilizer Cap 1
13 Stabilizer Pad 1
14 Bolt, Button Head (M8 x 1.25 x 15mm) 8
15 Large Washer (M8) 3
16 Washer (M8) 21
17 Bolt, Button Head (M8 x 1.25 x 25mm) 8
18 Bolt, Button Head (M8 x 1.25 x 35mm) 4
19 Nylock Nut (M8 x 1.25) 7
20 Screw, Round Head (M5 x 15mm) 2
21 Sleeve 2
22 Large Pulley 2
23 Magnet 1
24 Magnet Housing 1
25 Bracket 1
26 Bolt, Hex Head (M10 x 1.5 x 80mm) 2
27 Washer (M10) 6
28 Nylock Nut (M10 x 1.5) 3
29 Front Support 1
30 Spacer 4
31 Bolt,Button Head (M8 x 1.25 x 20mm) 2
32 Spring 1
33 Support Plate 1
34 Screw Rod 1
35 Pulley 4
36 Bolt, Button Head (M8 x 1.25 x 55mm) 1
37 Bolt,Hex Head (M10 x 1.5 x 90mm) 1
38 Slider Frame 1
39 Roller 8
40 Seat Stopper 2
41 Bolt, Hex Head (M8 x 1.25 x 40mm) 2
42 Shock 1
43 Tension Spring 1
44 Lock Washer (M8) 10
45 Rear Support 1
46 Threaded Support Plate 2
47 Nut Cap (M10) 2
PART# PART NAME QTY

PARTS LIST
20
48 Center Beam Cover 1
49 Screw, Round Head (M4 x 15mm) 2
50 Handlebar Holder 1
51 Rope 1
52 Handlebar Cover 1
53 Rope Grommet 1
54 Front Handlebar Cover 1
55 Bushing 4
56 Dome Plug 2
57 Foam Grip 2
58 Bolt, Round Head (M6 x 1 x 15mm) 4
59 Washer (M6) 4
60 Seat Carriage 1
61 Pedal Strap 2
62 Grommet 1
63 Square Seat Stopper 2
64 Bolt, Round Head (M6 x 1 x 20mm) 2
65 Arc Washer (M6) 2
66 Left Stand Cap 1
67 Right Stand Cap 1
68 Screw, Round Head (M3.5 x 15mm) 5
69 Shock Caution 1
70 Caution Label 1
71 Allen Wrench (6mm) 2
72 Owner’s Manual 1
PART# PART NAME QTY
