Avaya PW5115 500 RM User manual

Avaya Line Interactive RM
Uninterruptible Power Systems
Site Preparation,
Installation and Operator’s Manual
www.powerware.com/avaya

Avaya Line Interactive RM
Uninterruptible Power Systems
Site Preparation,
Installation and Operator’s Manual
www.powerware.com/avaya

US Patent 6,462,961
Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:
SHarmonized Standards: EN 50091-1-1 and EN 50091-2; IEC 60950 Third Edition
SEU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]
Avaya and the Avaya logo are trademarks of Avaya Inc. and may be registered in certain jurisdictions. Powerware,
ABM, X-Slot, and LanSafe are registered trademarks and ConnectUPS is a trademark of Eaton Electrical Inc.
Microsoft is a registered trademark of Microsoft Corporation.
ECopyright 2002–2006 Avaya Inc. All rights reserved. No part of this document may be reproduced in any way
without the express written approval of Avaya Inc.

Class B EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
SReorient or relocate the receiving antenna.
SIncrease the separation between the equipment and the receiver.
SConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
SConsult the dealer or an experienced radio/TV technician for help.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference Causing
Equipment Regulations ICES-003.
Cet appareil numérique de la classe B respecte toutes les exigences du Reglement sur le matériel brouilleur du
Canada.

Special Symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
Risk of Electric Shock
Do Not Open Cover
CAUTION
CAUTION To reduce the risk of electric shock,
Do not remove cover (or back)
No user-serviceable parts inside
Refer servicing to the factory
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for
additional information, such as important operating and maintenance
instructions.
RJ-45 RECEPTACLE - For 230V models only: this receptacle provides network
interface connections. Do not plug telephone or telecommunications equipment
into this receptacle.
This symbol indicates that you should not discard the UPS or the UPS batteries
in the trash. This product contains sealed, lead-acid batteries and must be
disposed of properly. For more information, contact your local recycling/reuse or
hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local
recycling/reuse or hazardous waste center.

AvayatLine Interactive RM UPS Site Preparation, Installation and Operator’s Manual S164201663 Rev 1 i
Table of Contents
1 Introduction 1.........................................................
2 Safety Warnings 3.....................................................
3 Installation 23..........................................................
Inspecting the Equipment 23................................................................
Connecting the UPS Internal Battery 23........................................................
UPS Setup 25..........................................................................
Mounting the UPS in a 19” Rack 25........................................................
Mounting the UPS in a 23” Rack 29........................................................
Zero-U Mounting 30...................................................................
Wall-Mount Setup 32..................................................................
Installing the UPS 33.....................................................................
4 Operation 35...........................................................
Turning the UPS On 35....................................................................
Starting the UPS on Battery 35..............................................................
Turning the UPS Off 36....................................................................
Standby Mode 36.......................................................................
UPS Front Panel 37......................................................................
Initiating the Self-Test 37..................................................................
5 Additional UPS Features 39...............................................
Voltage Configuration 39..................................................................
Network Transient Protector 40..............................................................
Load Segments 41.......................................................................
6 Communication 43......................................................
USB Port 43............................................................................
DB-9 Communication Port 44...............................................................
ConnectUPS-X Web/SNMP Card 45...........................................................
7 UPS Maintenance 47....................................................
UPS and Battery Care 47..................................................................
Storing the UPS and Batteries 47............................................................
Replacing Batteries 48....................................................................

TABLE OF CONTENTS
AvayatLine Interactive RM UPS Site Preparation, Installation and Operator’s Manual S164201663 Rev 1
ii
Testing New Batteries 50..................................................................
Recycling the Used Battery or UPS 50.........................................................
8 Specifications 51.......................................................
9 Troubleshooting 55......................................................
Audible Alarms and UPS Conditions 55........................................................
Silencing an Audible Alarm 55............................................................
Site Wiring Fault (120V Models Only) 56.....................................................
Obtaining Service 58.....................................................................

AvayatLine Interactive RM UPS Site Preparation, Installation and Operator’s Manual S164201663 Rev 1 1
Chapter 1 Introduction
The AvayatLine Interactive Rack-Mount (RM) uninterruptible power
system (UPS) is a high-density power protection solution ideal for
servers, storage systems, network equipment, and other critical devices.
The slim design and wide range of installation possibilities make the
Avaya Line Interactive RM the most versatile UPS available. With only
1U (1.75”) of rack-height, the UPS can be installed in rack-mount, wall-
mount, side-mount (zero-U), and bench-top applications.
Providing a true sine wave output, the UPS delivers smooth, continuous
power during normal and battery operation. In addition, the UPS corrects
incoming voltage fluctuations to further protect the connected
equipment from power problems such as power sags and surges.

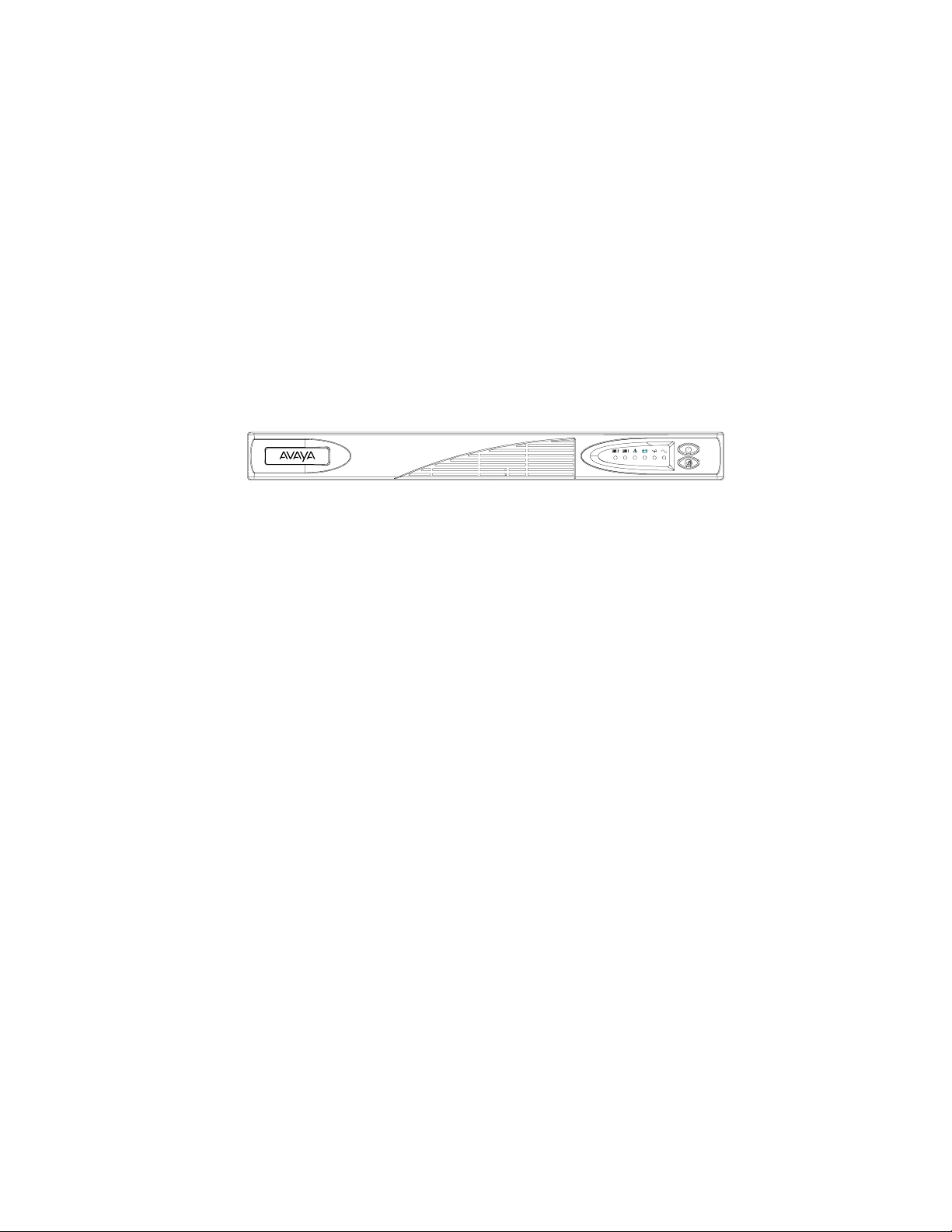

Figure 1. The Avaya Line Interactive RM UPS
Providing outstanding performance and reliability, the Avaya Line
Interactive RM’s unique benefits include the following:
S1U rack height that conserves valuable rack space.
SBuck and Boost voltage regulation that ensures consistent voltage to
your load by correcting voltage fluctuations.
SABM®technology that uses advanced battery management to
increase battery service life, optimize recharge time, and provide a
warning before the end of useful battery life.
SStart-on-battery capability for powering up the UPS even if utility
power is not available.
SHot-swappable batteries that simplify maintenance by allowing you to
replace batteries safely without powering down the critical load.
SOptional X-Slot®cards with enhanced communication capabilities for
increased power protection and control.

INTRODUCTION
AvayatLine Interactive RM UPS Site Preparation, Installation and Operator’s Manual S164201663 Rev 1
2
SNetwork transient protector that guards your network
communications equipment from surges. Low voltage models can
also protect modems, fax machines, or other telecommunications
equipment.
SAdvanced power management with the Software Suite CD for
graceful shutdowns and power monitoring.
SSequential shutdown and load management through separate
receptacle groups, called load segments.
SBacked by worldwide agency approvals.
