Avaya RS9 User manual

Site Preparation,
Installation and Operator’s Manual
for
Avaya RS9 Uninterruptible Power Systems
Material Code 700255599
Issue 1
Copyright 2002 Avaya Inc.
All Rights Reserved

Site Preparation,
Installation and Operator’s Manual
for
Avaya RS9 Uninterruptible Power Systems
Material Code 700255599
Issue 1
Copyright 2002 Avaya Inc.
All Rights Reserved

Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:
:
Harmonized Standards: EN 50091-1-1 and EN 50091-2; IEC 950 Second Edition, Amendments A1, A2, A3, and A4
:
EU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Powerware Corporation
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]
Class A EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
ICES-003
This Class A Interference Causing Equipment meets all requirements of the Canadian Interference Causing Equipment
Regulations ICES-003.
Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel brouilleur du Canada.
EN 50091-2
Some configurations are classified under EN 50091-2 as “Class-A UPS for Unrestricted Sales Distribution.” For these
configurations, the following applies:
WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio interference, in
which case, the user may be required to take additional measures.
VCCI Notice
Avaya and the Avaya logo are trademarks of Avaya Inc. and may be registered in certain jurisdictions.
.
Copyright 2002 Avaya Inc. All rights reserved. No part of this document may be reproduced in any way without the
express written approval of Avaya Inc.

i
Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
TABLE OF CONTENTS
1 Introduction 1....................................................
Power Modules 1..............................................................
Battery Configurations 1.........................................................
Battery Charger Modules 2.......................................................
Safety Warnings 2.............................................................
Physical Features 3.............................................................
2 Installation Setup 7...............................................
Equipment Clearances 7.........................................................
Location Requirements 7.........................................................
UPS Setup 8.................................................................
Moving the Cabinets 10..........................................................
3 Electrical Installation 11............................................
Input Current Ratings 12..........................................................
UPS Installation 13..............................................................
System Wiring Diagram 18........................................................
4 Battery Cabinet Installation 19.......................................
5 UPS Startup 21....................................................
Power and Battery Module Installation 22..............................................
UPS Startup 23................................................................
Initial Startup Parameters 25.......................................................
6 Operation 29......................................................
Turning the UPS On 30...........................................................
Removing Input Power 31.........................................................
Front Panel Display 31...........................................................
Using the Front Panel Display 32....................................................
Parameters 34.................................................................
Changing Parameter Settings 34....................................................
Reading the Avaya RS9 System Logs 35...............................................
Inverter Log 35..............................................................
Alarm Log 36...............................................................
Menu Map 37.................................................................

Table of Contents
ii Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
7 Communication 39.................................................
LanSafe III Power Management Software 39............................................
Optional Internal Web/SNMP Card 40................................................
Optional Relay Card 40...........................................................
Communication Slots 40..........................................................
Dedicated Input Signals 41........................................................
DB-9 Communication Port 42.......................................................
8 Maintenance 43...................................................
Storage Temperature 44..........................................................
Battery Replacement 44..........................................................
Power Module or Battery Charger Module Replacement 45.................................
9 Specifications 47..................................................
10 Troubleshooting 51................................................
Alarms 52....................................................................
Obtaining Service 57............................................................

1
Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
CHAPTER 1
INTRODUCTION
The AvayaZRS9 uninterruptible power system (UPS) is a modular UPS
that contains battery modules and power control modules (referred to as
power modules). These modules plug into a rack cabinet structure
containing additional control, communication, and display functions
that enable integrated control of all power modules. The UPS is housed
in a single cabinet, with extra battery capacity housed in auxiliary
battery cabinets.
Power Modules
The pluggable power modules can be removed and replaced
(hot-swapped) without powering the UPS down if the UPS has sufficient
redundant capacity. Battery modules may also be hot-swapped for
maintenance. Power control circuitry in the cabinet senses problems in
power modules, and automatically transfers control and load to the
remaining power modules.
All power modules share the load requirements equally. For example,
three power modules are capable of supplying a total of 9 kVA. If a load
requires only 4.5 kVA, each power module supplies 1.5 kVA to the
output. If one power module is removed or for some reason fails, each of
the two remaining power modules would supply half of the load, or
2.25 kVA. In other words, redundancy exists when the load can be
supplied by less than all of the installed power modules.
Battery Configurations
The Avaya RS9 UPS has two different options for additional battery
configurations:
:External Battery Module Cabinet (EBMC) - this cabinet is recommended
for applications that require less than two hours of run time. One
EBMC can be connected to the UPS.
:120 Vdc Extended Battery Cabinet (EBC120) - this cabinet is recommended
for applications that require more than two hours of run time. Up to
14 EBC120s can be connected to the UPS.

Introduction
2Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
Battery Charger Modules
NOTE One battery charger module is required for every five EBC120s. A 12-slot
cabinet with 37 battery strings also requires one battery charger module.
The optional battery charger module is designed to provide additional
current for faster recharging of UPS battery modules in systems with
many batteries. It is capable of providing up to 20 amperes of current for
optimum charging, based upon the condition and number of batteries in
the system.
The battery charger module is similar in appearance to a power module.
The primary difference is the light-purple colored front label. It can be
plugged into any UPS cabinet slot above the battery modules.
The battery charger module operates in automatic modes within the UPS
cabinet under control of the UPS power modules. It communicates
through a controller area network (CAN) bus with the power modules.
The power modules monitor and control the battery charger. Alarm
conditions detected by the battery charger module are logged and
announced by the UPS system (refer to the UPS user’s guide). Normal
output voltage is 133 Vdc.
Safety Warnings
Read the following precautions before you install the UPS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manual contains important instructions that you
should follow during installation and maintenance of the UPS and batteries. Please
read all instructions before operating the equipment and save this manual for future
reference.
CAUTION
:A maximum of seven power and/or battery charger modules can be installed in the
system.
:Battery modules used in the Avaya RS9 system weigh 30 lb (14 kg). Use care in
lifting and moving battery modules.
:All input and output wiring must be copper and adequate to carrying currents as
listed in Table 8 on page 48.

Introduction
3
Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
:Torque all bolts holding input and output power conductors to values specified in
Table 2 on page 12.
:The user is required to provide power input and output disconnect devices for the
UPS. These must be within sight of the UPS and easily accessible.
Physical Features
Figure 1 shows the 12-slot UPS cabinet and identifies basic Avaya RS9
system features. A 12-slot External Battery Module Cabinet is also
available.
Front Panel
Display
Cabinet Base
Front Cover
Panels

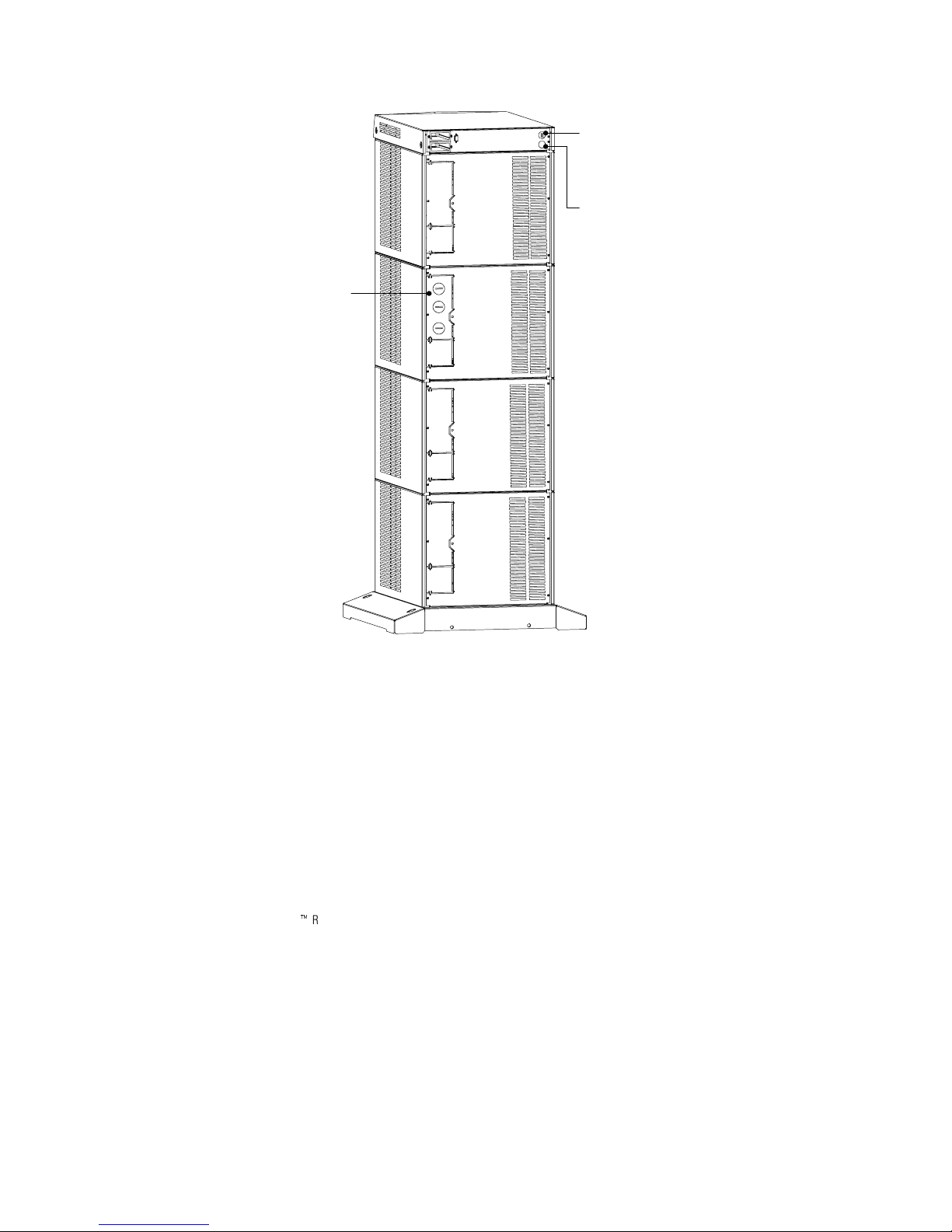

Figure 1. 12-Slot Cabinet (Front View)

Introduction
4Avaya
Z
RS9 UPS Site Preparation, Installation and Operator’s Manual :700255599 Issue 1
Communication
Slots
Entrance Panel

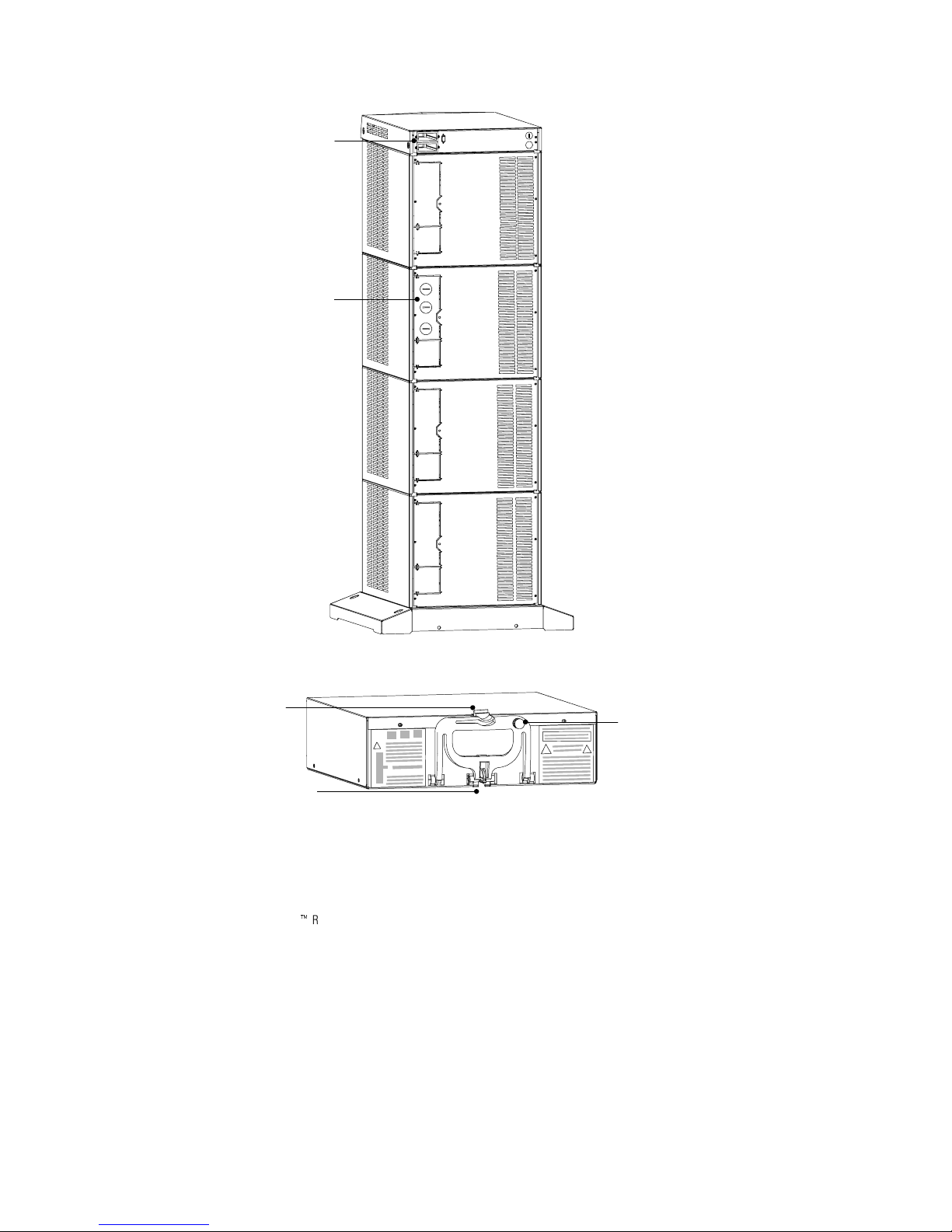

Figure 2. 12-Slot Cabinet (Rear View)
Handle/Latch
Release
Insertion/Extraction
Cams
Handle
Thumbscrew

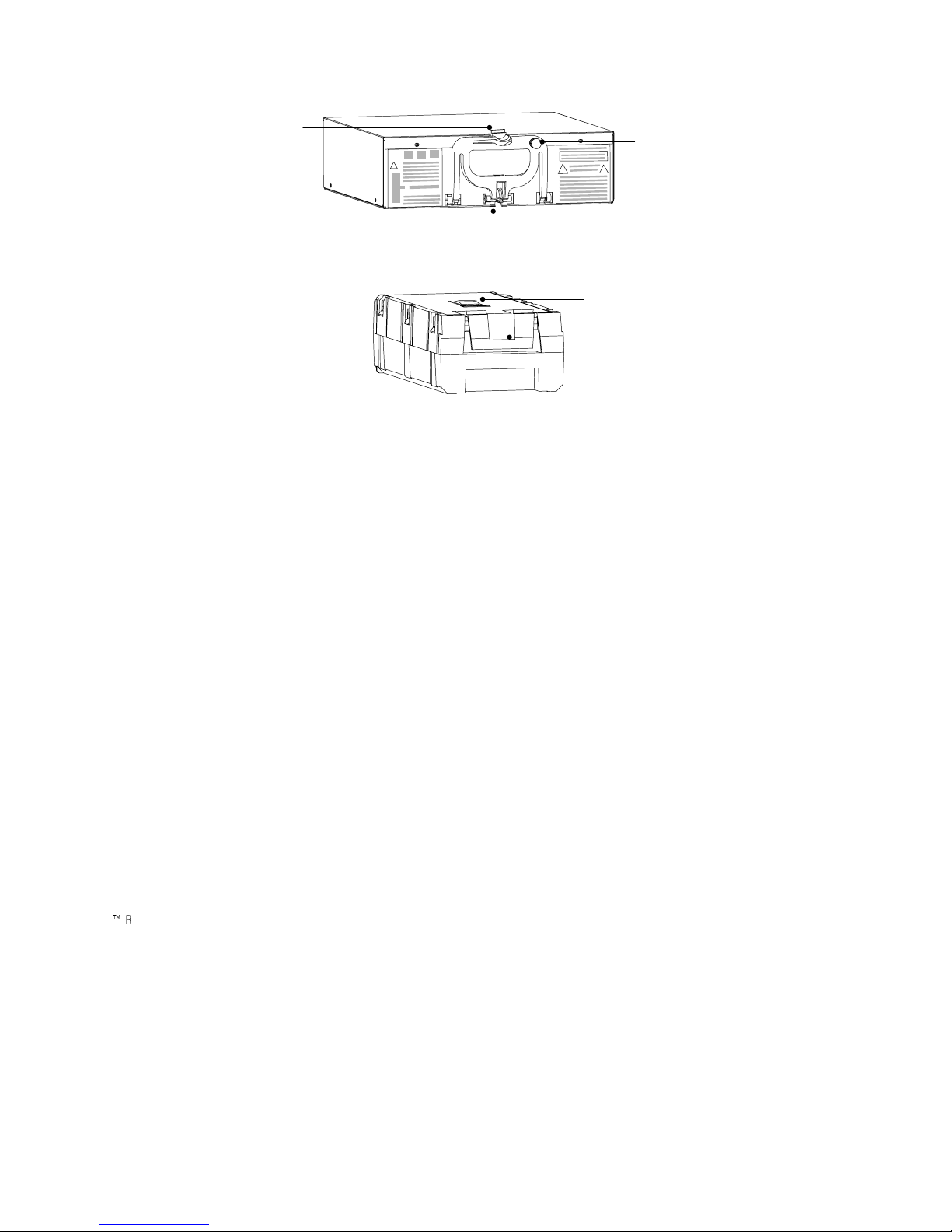

Figure 3. Power Module (700248974)
