aventon Aventure User manual

Aventure Electric Bicycle
User Manual
Thank you for purchasing the Aventon Aventure Ebike.
We are here to help!
Aventon Support Center: https://www.aventon.com/pages/support
Phone: [phone]
enjoyment. Please read and understand this manual fully before
assembling and riding your bike. If youhave questionsafter readingthis
manual, please refer to aventon support or contact us by email or give
us a call.
Customer service link: https://support.aventon.com/contact-us

USING THIS MANUAL
GENERAL INFORMATION
WARNINGS AND SAFETY
SPECIFICATIONS
ASSEMBLY INSTRUCTION
BATTERY CHARGING (LOCK & REMOVAL)
OPERATION
MAINTENANCE
TROUBLESHOOTING
LIMITED WARRANTY
LINK TO ASSEMBLY VIDEO AND ONLINE RESOURCES
02
02
04
07
08
16
21
23
26
27
29
TABLE OF CONTENTS
01

USING THIS MANUAL
This manual contains details of the product,itsequipment, and information on operation, maintenance, and
other helpful tips for owners. Read it carefully andfamiliarize yourself with the ebike before usingit to
ensure safe use andprevent accidents. This manual contains many warnings and cautionsconcerningthe
safe operation and consequencesifproper setup, operation,andmaintenance are not performed. All
information in thismanual should be carefully reviewed and if you have any questions you should contact
Aventon immediately.
The notes, warnings, and cautions contained within the manual and paragraphs are marked by the triangular
Caution Symbol at the left side should be given special care. Users should also pay special attention to
information marked in this manual beginning with NOTICE.
Keep thismanual, alongwith any other documentsthat were included with your bike, for future reference,
however all content in this manual is subject to change or withdrawal without notice. Visit https://www.aven-
the accuracy of itsdocumentation and assumes no responsibility or liability if any errorsor inaccuracies
appear within.
Because it isimpossible to anticipate every situation or condition that will occur while riding, this manual
makes no representations about the safe use of bikes under all conditions. There are risks associated with
the use of any bike that cannot be predicted or avoided and are the sole responsibility of the rider.
GENERAL INFO
Assembly andFit
Correct assembly and fit are essential elements to ensure your bicyclingsafety, performance, and comfort.
Even ifyou have the experience, skill, and toolsto complete these essential steps before your first ride,
Aventon recommends having a certified,reputable bike mechanic to check your work.
NOTICE: If you do not have the experience, skill, and tools to complete assembly and fit, Aventon highly
recommends having acertified,reputable bike mechanic complete these procedures as well as any future
adjustmentsor tuning.
NOTICE: A critical aspect of assemblingyour bike issecuring the front wheel and checking the tightness of
the rear wheel axle nuts. Aventon bikes use boltedon,through axle or quick release front wheel mounting
mechanism and the rear wheel is bolted on. These mechanisms may become loose or unsecured during
shipment or over time. The torque and security of all wheel mountinghardware should be inspectedupon
arrival and on aregular basis. Both wheelsneedto be properly secured before operating your bike.
Mandatory Equipment and Use Locations
Before riding, ensure you have all required and recommended safety equipment and are following all laws
pertaining to use an electric bike in your region. For example, these laws may specify the need for
mandatory equipment, use of hand signals, and where youcan ride.
Changing Components or Attaching Accessories
The use of non-original componentsor spare partscan jeopardize the safety ofyour ebike, voidyour
warranty and,in some cases, cause your ebike to not conformwith laws pertainingto your bike.
02

Safety Check Before Each Ride
Always check the condition of your bike before youride in addition to havingregular maintenance
performed. If youare unsure of howto conduct acomplete check of the condition ofyour bike before every
ride, you should consult a certified, reputable bike mechanic for assistance.
Electrical System (Applicable to Pace 500, Pace 350, Sinch, Level, Aventure)
and user preferences.It iscritical that you familiarize yourself with all aspectsof your ebike selectrical
system and check to see if it isworkingcorrectly before every ride. The front and rear brake leverscontain
should be checked for correct operation. The throttle shouldprovide smooth acceleration when gradually
intermittently, or not working, please discontinue the use ofyour ebike immediately and contact the
Aventon Support team for assistance.
Brakes
Ensure that the brakes andtheir system components are free from damage, properly securedand working
correctly. When fully squeezed, both front andrear brake levers shouldnot be touchingthe handlebar. Take
your bike to a certified, reputable bike mechanic to have the brakes repairedifyou findaproblem.
Tires andWheels
Your wheels should always spin straight and must be repaired or replacedifthey wobble side to side or up
and down when spinning. If your wheels become untrue or spokes loosen, which can happen with normal
use, we recommend that a certified, reputable bike mechanic performs all wheel tuning and truing
operations on your bike from Aventon. Do not attempt to true wheelsor tighten spokes unless youhave
adequate knowledge, tools, and experience. Ensure the tires and inner tubes are in goodworkingcondition
without any visual damage and have the correct amount of air pressure. Always replace tires and inner
tubeswith punctures,cuts,or damage before youride. Tires without the correct amount of air pressure can
reduce performance, increase tire andcomponent wear, and make ridingyour bike unsafe.
Accessories, Straps, and Hardware
Ensure all hardware is securedandall approved accessoriesare properly attachedper the specific
component manufacturer s instructions. It is goodpractice to look over all hardware, straps, and accesso-
ries before each ride andifyoudo discover something wrongor somethingthat you are not sure about,
have it checked by a certified, reputable bike mechanic.
Suspension, Handlebar, Grips, and Seat Adjustments
before use. The suspension fork should be properly adjustedaccordingto your weight and terrain. Ensure
the handlebar and handlebar stem are properly aligned, fittedto the user, and securedto their recommend-
ed torque values. Handlebar grips should not move easily on the handlebar end. Loose, worn,or damaged
handlebar grips shouldbe replaced before you ride. The seat and seatpost shouldbe properly aligned,
fitted to the user, and the seatpost quick release should be properly tightened, fully closed, and secured
before riding.
03
The replacement of original components or installation of third-party accessories or accessories
not from Aventon explicitly recommended for your bike model is atyour own risk. Using
aftermarket accessories or components thathavenot been tested by Aventon for safety and
compatibility may void your warranty, create an unsaferiding condition, damage property or
your bike by Aventon, or result inserious injury or death.
’
’
’

Battery Charged, Secured, and Unplugged
Ensure the battery isadequately charged andoperating properly. Ensure the battery charger is unplugged
fromthe outlet, battery, then storedin a safe location before youride. The battery MUST be locked onto
the frame battery mount properly before use. Do not operate the electrical systemif the battery is removed.
WARNINGS AND SAFETY
Throttle on Demand
With throttle on demand,you can throttle the bike fromacomplete stop. This feature is to help give you
that extra push when youneed it on a steep hill, when hitting multiple stops signs,etc. However, we
strongly recommendto pedal first and throttle second to ensure proper stability and preparedness.

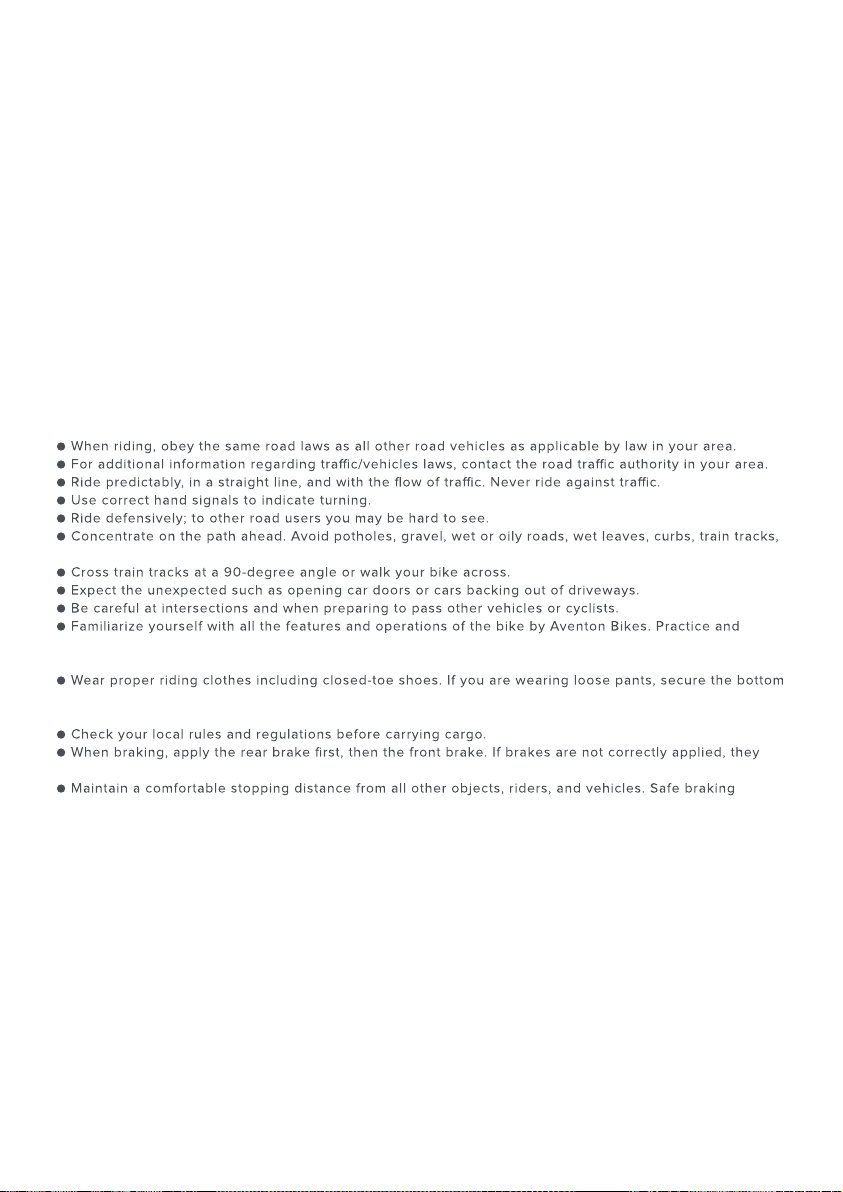

General Operating Rules
Notice: Pay special attention to all the general operatingrules belowbefore operatingyour bike from
Aventon.
speed bumps,drain gates, thorns, broken glass, and other obstacles, hazards, and puncture flat risks.
become proficient at shifting gears,applyingthe brakes, usingthe pedal assist system, and using the
throttle in acontrolled settingbefore ridingin riskier conditions.
usinglegclipsor elastic bandsto prevent themfrom being caught in the chain or gears. Do not use items
that may restrict your hearing.
may lock up and lead to youlosingcontrol and/or falling.
distancesare basedon factors such as road surface and light conditions among other variables.
04
Make sure push hard enough while installing the battery into the frame, and hear the “CLICK” sound.

Safety Notes
The following safety notes provide additional information on the safe operation ofyour bike from
Aventon and should be closely reviewed. Failure to review these notes can lead to serious injury or
death.
manuals for components usedon the bike may also be provided and should be read before installingor
usingthose components.
or too small.
instructionsare usedfor fit and care ofyour helmet. Failure to wear ahelmet when riding may result in
seriousinjury or death.
before first usingit and check the setup, tightening, and condition of components and hardware regularly.
the area(s) where youride.
you to lose control and fall.
not tested for safety and compatibility and have verifiedas safe andcompatible with the bike.
Wear appropriate safety gear and do not ride alone in remote areas. Check local rules and regulations
exceeds your capabilities. Although many articles/advertisements/catalogs depict extreme riding, thisis not
recommended nor permitted,and you can be seriously injuredor killedifyou performextreme riding.
to jumps, stunts, etc., should not be performed as it can damage bike components and/or cause or lead to
dangerousriding situationsin which youmay be seriously injuredor killed.
component or accessory can result in serious injury or death.
bike mechanic for a comprehensive inspection of all components, functions, and operations of the bike.
situation.
Ensure you understand and are prepared for the pedal assistance to engage as soon as pedalingis
underway.
usingthe bike and must take care to travel at speeds appropriate for the usage area, riding conditions, and
user experience level. Always use the lowest assist level until you are comfortable with the bike and feel
confident in controlling the power.
couldvoid the warranty andcreate an unsafe ridingexperience.
while riding.
distances. Feet or handscan slip in wet conditions and leadto serious injury or death.
05

Helmets
Whenriding a bike, always wear a properly fitted helmet that covers the forehead. Many locations
requirespecificsafety devices. Itis your responsibility to familiarizeyourself with the local laws, rules,
and regulations where you ride and to comply with all applicable laws, including equipping yourself and
your bike as thelaw requires.
General Warnings
Like any sport, bicycling involves risk of damage, injury, and death. By choosing to ridea bike, you
assume the responsibility for thatrisk, soyou need to know, and practice the rules of safe and responsi-
ble riding and the proper use and maintenance of this bike. Proper useand maintenance of your bike
reduces risk of damage, injury, and death.
Biking and controlledsubstances do not mix. Never operate abike while under the influence of alcohol,
drugs, or any substance or condition that could impair motor functions, judgement, or theability to
safely operate a bike or another vehicle.
The Aventureis designed for useby persons 18 years old and older. Riders must have the physical
sudden situations, as well as respect the laws governing electric bike use where they ride, regardless of
age. Ifyou have an impairment or disability such as a visual impairment, hearing impairment, physical
impairment, cognitive/language impairment, aseizure disorder, or any other physical condition that
couldimpact your ability to safely operate a vehicle, consult your physicianbeforeriding any bike.
A Note for Parents and Guardians
As a parent or guardian, you are responsible for the activities and safety of your child. Aventure isnot
designed for use by children under the age of18. If youare carryingapassenger in achild safety seat, they
should also be wearingaproperly fitted and approvedhelmet.
Wet Weather
It is recommended to not rideinwet weather if avoidable. Ride inwet weather only if necessary. This
electric bike is not meant for use in heavy rain,or streams. Never immerse or submerge this product in
water or liquid as the electrical system may be damaged.
conditions.
lights.
NightRiding
It is recommended to not rideat night if avoidable. Rideat night only if necessary.
06
 Ensure head light and tail light/brake light are functioning correctly and use them.

07
Model Name Aventure
Max. LoadCapacity 250lbs. / 113 kg (Bike); 50lbs. /22.68 kg (Racks)
MAX.Speed Configurable to 28 MPH
Motor 48V 750W BrushlessHub
Battery 48V 720Wh Li-ion
Average 45 Miles
Wheel Size 26 x4" Front / Rear
Tire Pressure
Charger 48V 3A
Charging Time Approx. 6 Hours
Water Resistance IPX4
Weight 101.4 Lbs/ 46kg
Light Front / Rear
SPECIFICATIONS
86°F(30°C), 70% humidity, on a level road, in pure electric ridingmode. Actual results may vary
Range Average Per Charge
Inflation to 5-30PSI

08

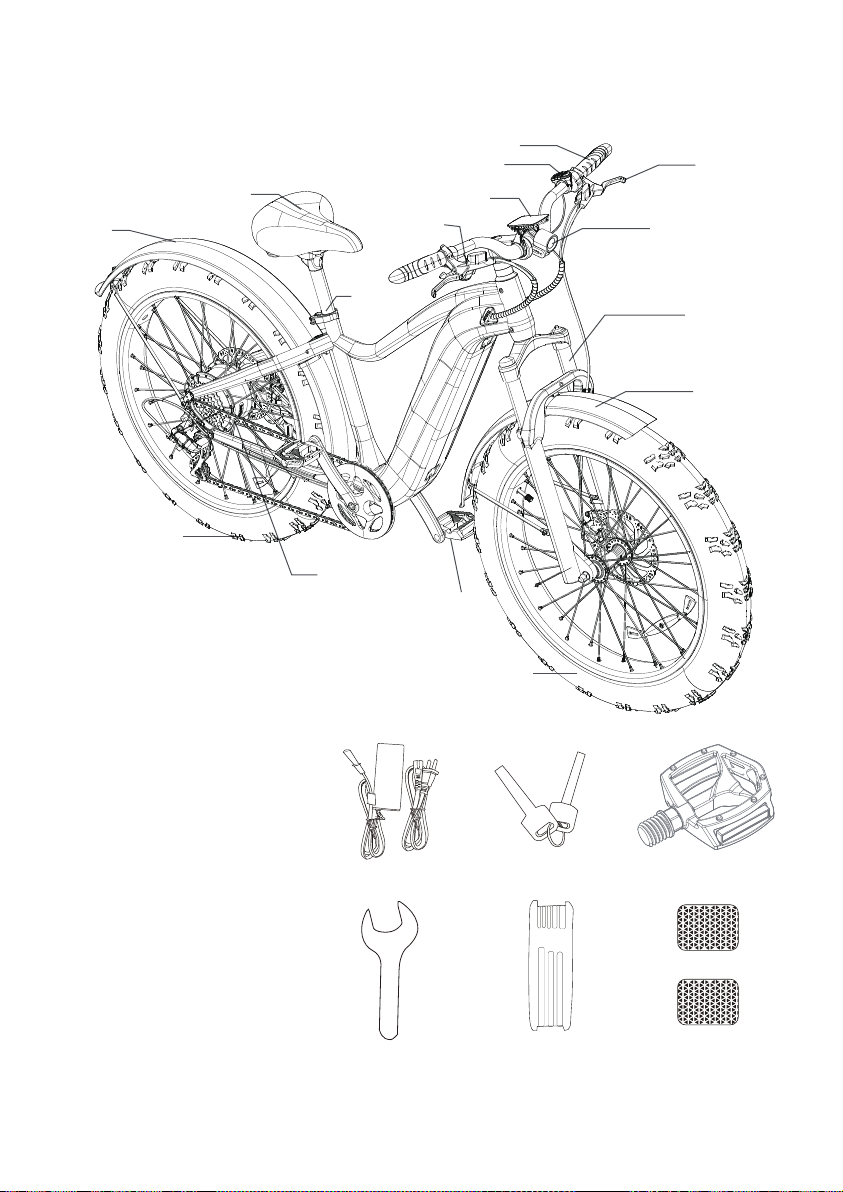

WHAT’ S IN THEBOX
ASSEMBLY INSTRUCTION
1*Aventure ebike
1*Charger box
1*Charger line
2*Front/Rear reflector
1*Spare derailleur hanger
1*Grease
1*Hex key
1*Wrench
1*Owner's manual
2*Reflector holder
1*Left pedal
1*Right pedal
HUB MOTOR
REAR WHEEL
FRONT WHEEL
SEATPOST
PEDAL
SEAT
REARBRAKE
HANDLE BAR
THROTTLE
DISPLAY
FRONT
BRAKE
SUSPENSION
FORK
FRONT
FENDER
HEAD LIGHT
REAR
FENDER

09
Step 1: Unpack the bike.
Open the bike box. With the help of another person capable of safely liftingaheavy object, remove the
ebike from the bike box. Carefully remove the packaging material protecting the bike frame andcomponents,
as well as remove the small boxes attachedto the fork. These are your charger and accessories. Please
recycle packaging materialsespecially cardboardandfoam whenever possible.
Step3: Handlebar Installation.
Loosen the 2 screwsin the stem, place stemonto the head tube with the display facingupwards,replace the
top cap and use 5mm hex key to securely tighten the handlebar. Reinsert the rubber cover backinto the top
cap.
Step 2: Preparing for handlebar installation.
Remove the stemrubber cover, loosen the bolt using5mm hex key, and discard the plastic white
protective guard.
NOTICE: The following steps are only ageneral guide to assistin the assembly of your ebike and are
not a complete or comprehensive manual of all aspects of assembly, maintenance, and repair. Consult
a certified, reputable bike mechanictoassist with assembly, repair, and maintenance of your ebike.
ASSEMBLY
Rubber Cover
White Plastic Stem
Protective Guard
5mm Hex Key

10

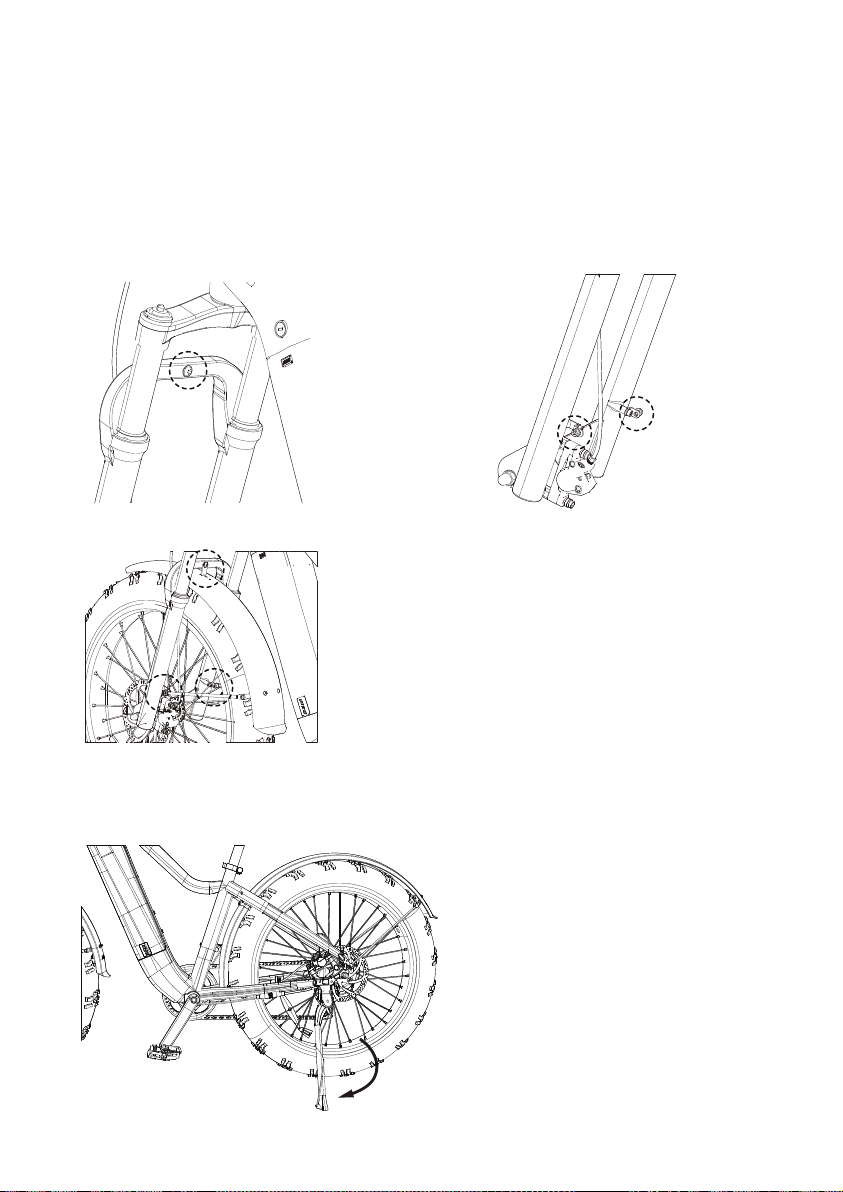

Step4: Front wheel installation.
A. Take out front wheel B. Remove fork protective cover and take
remove black protective guard. out plastic insert from front wheel brake caliper.
Rubber Cover
Black Protective GuardPlastic Insert
C. Loosen the front axle nuts and place the front
suspension fork onto the front Wheel. Ensure the
brake rotor isbetween the brake pads ofthe
brake caliper.
D. Use 15mmopen wrench to tighten front axle
nut, recommended torque value at 25-30Nm.

11
Caution:Never touch the brake rotor, especially when the wheel and/or bike is in motion, or serious injury
couldoccur. Hand oils can cause squeaking and decrease brake performance
WARNING:An improperly secured front wheel and/or handlebar stemcan cause loss ofcontrol,accidents,
serious injury, or death. Check that the front wheel and handlebar stem are properly securedto the bike
duringassembly and before each ride.
Step 5: Front fender installation.
A.Use 4mm hex key to loosen front fork screws.（3pcs)
B.Align front fender to the screw holes, use 4mm hex key to tighten front fork screws. (3 pcs)
Step 6:Put down kickstand to support the ebike.

12
Step 8: Remove motor protector and install the motor protection guard on right side of back wheel.
Note: Part ofplastic motor protector may break andwill be left inside the freewheel.
Use apair ofpliers to carefully remove it.
Grease
Wrench

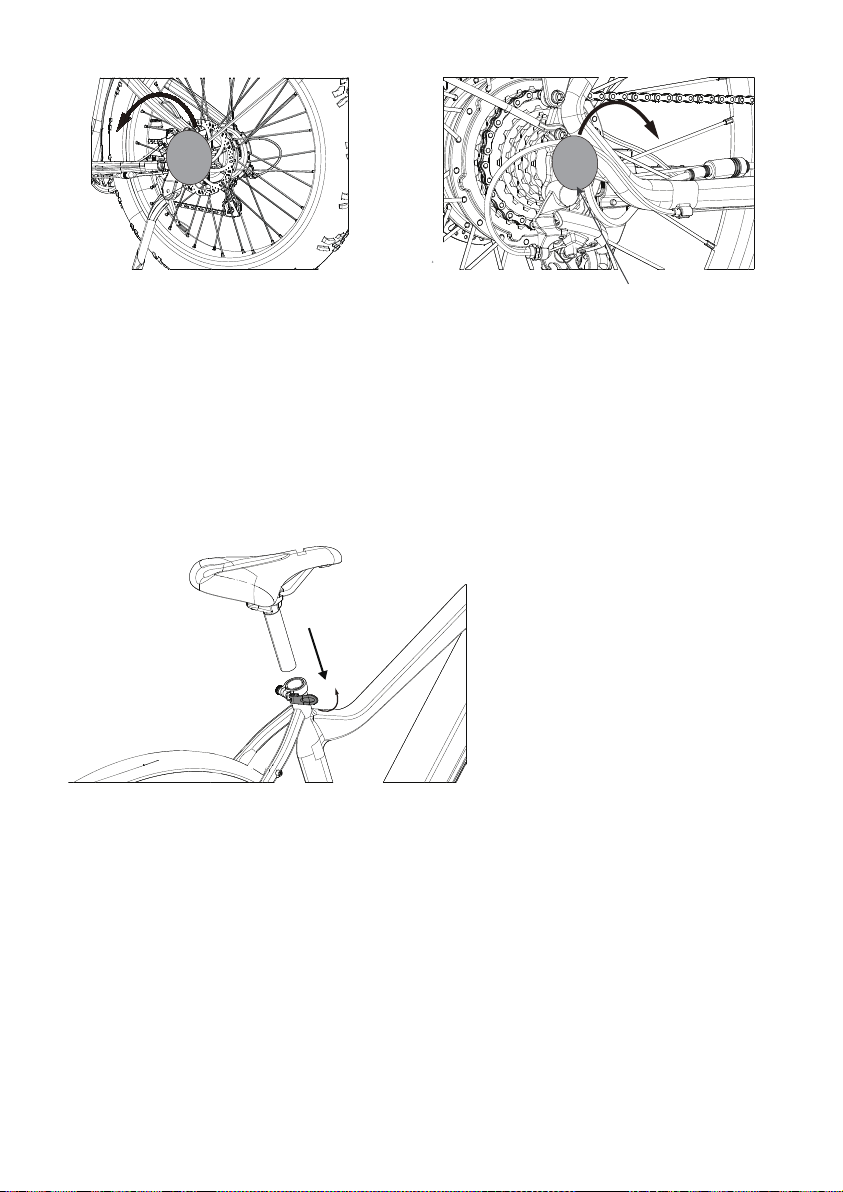

Step 7: Pedal installation.
Use wrench to install the pedals. Locate the pedal with asmooth pedal axle exterior and an “R”
sticker label (1, below), which indicatesit isthe right pedal. The right pedal goes
on the crank on the right side of the bike (which has the drivetrain gears and is the same as arider’s right
side when riding).
1. Therightpedal (pedal with "R" sticker label) is threaded sothatit is tightened by turning clockwise.
Apply grease to the thread and carefully thread the right pedal onto the crank on the right side ofthe bike
slowly and by hand. Do not cross threador damage the threads.
2. Theleft pedal (pedal with "L" sticker label) is reverse-threaded and tightens counterclockwise.
Apply grease andcarefully thread the pedal onto the left crank by hand slowly.
Do not crossthread or damage the threads.
Torque each pedal to 35 Nm.
Identifying marks Right pedal (has a “R” sticker) tightens clockwise, Left pedal (has a “L” sticker)
tightens counterclockwise

13
Step 9: Inflate tires.
Check that the tire beads and tires are evenly seatedon the rims. Use apump with a Schrader valve and
pressure gauge to inflate each tire to the recommended pressure indicatedon the tire, min of5 PSI , max
of 30PSI. Do not overinflated or underinflate tires.
Step 10: Install saddle.
Open seatpost clamp lever, adjust the seatpost to acomfortable height, while ensuringthe seatpost is
inserted past the minimum insertion point, as indicatedon the seat post. Close the seatpost clamp lever.
Protector

14
Step 11: Adjustingthe seat position andangle
To change the angle and horizontal position ofthe seat:
Seat Adjustment Bolt
B.Move the seat backward or forward and tilt to adjust the angle. The seat position horizontal to flat groundis desirable for
most riders. Do not exceed the limit markingson the seat rail, which showthe minimum andmaximum horizontal movement
allowed.
C.While holdingthe seat in the desired position,use a 5mm allen key to tighten the seat angle adjustment bolt securely to
the recommended torque value(8Nm).
A.Use a 5mm Allen wrench to loosen the seat adjustment bolt on the clamp positioned directly underneath the seat,
above the rear wheel. Do not completely remove the bolt.
Step 12: Adjustingthe display and handlebar.
A. Stand in front of the bike and clamp front wheel between both legs, verify the handle bars are straight and
in line with the front wheel. Make sure the pinch boltsare tight and you can not turn the stem freely from
the front wheel.

15
B. Sit on the saddle, adjust handlebar to the desiredposition,tighten the screwswhich secure it to the
handlebar with 4mm hex key.
C. Adjust display to the desiredposition,tighten the screws with 2mm hex key.
D. Adjust the head light to desired position,tighten the screwswith a 4mm hex key

Power ON/OFF Button
Step 14: Poweringon the display.
A. Press the power button for about 3 seconds
To turn on the display.
B. For more details, please refer to the BC280 operating
manual.
16
6. Battery indicator light: Blue: 90%-100%. Green: 33%-90%. Red: 0%-33%.
BATTERY CHARGING
Charging procedure
Follow these steps for chagring your ebike battery from Aventon Bikes:
1. Ensure the battery is o.
2. Remove the rubber cover on the charging port.
3. Plug the charger into the battery’s charging port, BEFORE PLUGGING CHARGER INTO POWER OUTLET.
With the battery on or o the bike, place the charger in a flat, secure place, and connect the DC output plug
from the charger (round barrel connector) to the charging port on the side of the battery.
4. Plug the charger into a power outlet: Connect the charger input plug (110/240-volt plug) to the power
outlet. Charging should initiate and will be indicated by the LED charge status light on the charger
illuminating as red light.
5. Unplug the charger from the outlet, then the charging port: Once fully charged, indicated by one
charging indicator light turning green, unplug the charger from the wall outlet first and then remove the
charger outlet plug from the battery charging port.
Always charge your battery in tempreature between 50˚F - 77˚F (10˚C -25˚C) and ensure the battery
and charger are not damaged before initiating charge. If you notice anything unusual while charging,
please discontinue charging and using the bike and contact Aventon Bikes Product Support for help.

17
 For turning on the bike: Quick press the button on the battery, make sure the light comes on. Then hold
the button next to the display to turn on the bike.
 For turning o the bike: Hold the button next to the display. Then hold the button on the battery for around
3 seconds to turn o the bike.
REMOVING THE BATTERY
BATTERY CHARGING INFORMATION AND BEST PRACTICES
 Check the charger, charger cables, and battery for damage before beginning each charge.
 Be sure to charge in an area where it is clear and safe from any potential damage or tripping situations
can occur while it is charging. Always charge your battery in temperature between 50˚F - 77˚F (10˚C -25˚C).
 The battery can be charged on or o the bike. To remove the battery, turn the key to the unlocked
position, and take the battery out.
 The battery should be recharged after each use, so it is ready to go the full range for your next ride. There
is no memory eect, so charging the battery after short ride will not cause damage.
 Charging the battery normally takes 3-7 hours.
 The indicator light on the charger will show red light while the battery charges. When charging is complete,
the indicator light will turn green. Ensure the light faces upward when charging.
 Remove the charger from the battery within one hour of the green light indicating a complete charge.
The charger is designed to automatically stop charging when the battery is full, but unnecessary wear of
the charging components could occur if the charger is left attached to the battery and a power source for
longer than 12 hours.
 Never charge a battery for more than 12 hours at a time.
 DO NOT leave a charging battery unattended.
Failure to follow Battery Charging Information could result in unncessary wear to the
charging components, battery, and or charger, and could lead to an underperforming or
non-functional battery and replacement will not be covered under warranty.
To remove the battery from the bike, insert the key and turn to the unlocked position. When the battery is
completely locked, you can feel resistant while turning the key.

.
18
 Ensure the battery battery is turned o.
 DO NOT force the battery into the tray; slowly align and gently push the battery down into the tray. Then
push the battery in (make sure you push hard enough) and hear the “CLICK” sound. Slightly turn the key to
feel if there’s resistance from the key. If you can feel the resistance, then the battery is completely locked.
 Make sure there is no spaced between battery and tray, confirm battery.
 Ensure the battery has been properly secured to the bike before each use by carefully pulling outwards
on the battery with both hands once locked.
Use caution to avoid damage to battery connector terminals, which are exposed when the battery
is unlocked and removed from the frame of the bike. In the case of damage to the terminals or
battery mounts, please discontinue use and contact Aventon Support immediately.
WHEN INSTALLING THE BATTERY ON THE BIKE
 The charger should only be used indoors in a cool, dry, ventilated area, on a flat, stable, hard surface.
 Avoid charger contact with liquids, dirt, debris, or metal objects. DO NOT cover the charger while in use.
 Store and use the charger in a safe place away from children.
 Fully charging the battery before each use can help extend the life of the battery and reduces the chance
of over-discharging.
 DO NOT charge the battery with any chargers other than the one originally supplied by Aventon Bikes or
a charger designed for use with your specific bike purchased directly from Aventon Bikes.
 The charger works on 110/240V 50/60 Hz standard home AC power outlets and automatically detects
and accounts for incoming voltage. DO NOT open the charger or modify voltage input.
 DO NOT yank or pull on the cables of the charger. When unplugging carefully remove both the AC and DC
cables by pulling on the plastic plugs directly, and not on the cables.
 The charger is expected to get relatively warmer as it charged. If the charger gets too hot to touch, you
notice a strange smell, or any other indicator of overheating, discontinue using the charger and contact
Aventon Support.
CHARGER SAFETY INFORMATION
Charge the battery only with the charger originally supplied with the bike from Aventon BIkes,
or a charger purchased directly from Aventon Bikes, designed for use with your specific bike
serial number, as approved by Aventon Bikes. Never use an aftermarket charger, which can
result in damage, serious injury, or death.
Please take special care in charging your bike from Aventon Bikes in accordance with the
procedures and safety information detailed in this manual. Failure to follow proper charging
procedures can result in damage to your bike, the charger, or personal property, and/or cause
serious injury or death.

19
LONG TERM BATTERY STORAGE
If storing your bike from Aventon Bikes for longer than 2 weeks at a time, follow the instructions below
to maintain the health and longevity of your battery.
 Charge(or discharge) the battery to approximately 75% charged.
 DO NOT leave the battery attached to the bike frame. Remove it from the bikeduring long-term stoage.
 Store the battery in a dry, climate controlled, indoor location between 50˚F -77˚F (10˚C-25˚C).
 Check the battery every month, and if necessary, use the Aventon Bikes charger to charge the battery
to 75% charged.
Please follow the above instructions for storing your bike and battery from Aventon Bikes.
Failure to follow proper battery storage procedures can result in a non-functional battery.
Replacement will not be covered under warranty.
If the battery is physically damaged, non-functional, performing abnormally, or was dropped
or involved in a crash, with or without obvious signs of damage, please discontinue use and
charging and contact Aventon Bikes immediately.
DO NOT cover up the charger while it is charging. The charger air cools and needs to
be on a hard, flat surface in an open space. Use the charger with the indicator lights facing
upward. DO NOT use with the charger inverted, which can inhibit cooling and reduce charger
lifespan.
DO NOT open the battery housing, which will void the warranty and can result in damage to
the battery, property or cause serious injury and/or death.
