Aventura CAM-5Z-27X Instruction Manual

INSTALLATION & USER MANUAL
For all CAM-5Z-27X and CAM-5Z-36X model PTZ Cameras

i / ii
Thank You for Choosing an Aventura PTZ
Camera!
When you open the box:
; Check that the packing and the contents are not visibly damaged. Contact the retailer immediately if any parts are
either missing or damaged.
; Make sure if the contents are all included as per the packing list.
; Do not attempt to use the device with missing or damaged parts. Send the product back in its original packing if it is
damaged.
The information contained in the document is subject to change without notice.

ii / ii
Table of Contents
1. Safety Notes --- Important!!!
............................................................................................................................... 1
2. About the
Product ................................................................................................................................................ 2
2.1. Features
..................................................................................................................................................... 2
2.2.
Functions .................................................................................................................................................... 2
3. Installation
............................................................................................................................................................ 5
3.1. DIP Switch
Settings.................................................................................................................................... 5
3.2. Wall Mount
Installation ............................................................................................................................. 11
4. Operation
Guide ................................................................................................................................................ 13
4.1. Operation at Power
Up............................................................................................................................. 13
4.2. Preset Positions Programming and
Recalling ......................................................................................... 13
4.3. Function Program
Menu........................................................................................................................... 13
4.3.1. Product Information
Menu .............................................................................................................15
4.3.2. Display Menu
(Setup) ....................................................................................................................15
4.3.2.1. Label Position
(submenu) ................................................................................................... 15
4.3.3. Main Programming Menu (Dome Settings 1) ...............................................................................16
4.3.3.1. Camera
(submenu) ............................................................................................................. 16
4.3.3.2. Motion
(submenu) ............................................................................................................... 19
4.3.3.3. Power Up
(submenu) .......................................................................................................... 21
4.3.3.4. Presets
(submenu).............................................................................................................. 21
4.3.3.5. Patterns (submenu)
............................................................................................................ 22
4.3.3.6. Zones
(submenu) ................................................................................................................ 22
4.3.3.7. Clear Settings
(submenu) ................................................................................................... 23
4.3.3.8. Preset Number (submenu)
................................................................................................. 24
4.3.4. Secondary Programming Menu (Dome Settings
2) ......................................................................24
4.3.4.1. Alarm (submenu)
................................................................................................................ 24
4.3.4.2. AUX (submenu)
.................................................................................................................. 26
4.3.4.3. Password
(submenu) .......................................................................................................... 26
4.3.4.4. Windows Blanking
(submenu) ............................................................................................ 27
4.3.4.5. Heater Settings
(submenu) ................................................................................................. 29
4.3.4.6. Cruise (submenu)
............................................................................................................... 30
4.3.4.7. Tracking Settings
(submenu) .............................................................................................. 30
4.3.5. Dome Label
Menu .........................................................................................................................33
4.4. Special Control Panel
Commands ........................................................................................................... 33
5.
Troubleshooting ................................................................................................................................................. 35

1. SAFETY NOTES --- IMPORTANT!!!
The following important notes must be followed carefully to run the PTZ camera and respective accessories in total safety.
The camera and relative accessories are called video system in this section.
Use the instructions correctly and fully
Read all safety rules and instructions carefully before starting to run the video system.
Follow the instructions in the instruction manual. Pay attention to all warnings on the camera and in the instruction manual.
Keep the safety notes and instructions for use for future reference.
Attachments & Accessories
Do not use attachments other than those recommended in the instruction manual because this could cause risks to the
products. Only use the recommended accessories for the camera for installation and operation.
Protect the video system
To protect the camera, avoid installing and using it in direct sunlight or any source of bright light. Bright light, like that from
a spotlight, can cause dimming and blurs. A vertical line may appear on the screen. This does not indicate a problem.
Keep it away from rain and dust. Do not touch the zoom lens with your fingers. If needed, use a soft cloth and methylated
spirit to remove traces of dust. Apply a specific cap to protect the zoom lens when the camera is not in use.
Install the camera away from video interference. The pictures could present interference if the leads are arranged near a
TV set or other device. Either move the leads or re-install the device to solve the problem.
Do not use any part of the video system near water, i.e. bathtubs, wash basins, sinks, tubs, on damp surfaces, near
swimming pools, etc. Do not insert objects of any kind through the camera openings to avoid touch live parts: fire and
electrocution risk. Do not pour any kind of liquid on the device.
A switch for performing maintenance operations on the camera must be included. Connect the camera only to the
electrical power supply shown on the ratings plate. Contact your retailer if in doubt.
Lay the power wires keeping them from being trodden on or squeezed by objects placed on top of them. Pay particular
attention to leads near plugs, screws and the product outlet.
Disconnect the power lead and the wiring to protect the camera during electrical storms or when it is left unattended and
not used for a long time. This will prevent damage to the video system in the event of lightening or electrical line overload.
Do not overload the electrical power and the extensions to prevent the risk of fire or electrocution.
Do not place the camera near or over radiators or sources of heat. Check that the area is suitably ventilated before
installing the camera inside partially closed areas (such as recesses, bookshelves and shelves).
Do not position the camera on unsteady trolleys, stands, brackets or tables. The camera could fall and severely injury
adults and children in addition to seriously damaging the product.
Maintenance & Repairs
Always contact a qualified service technician to repair the camera (or any other part of the video system). Unauthorized
opening or removing the lids may cause fire and electrocution risk and other dangers.
Disconnect all electrical parts from the mains before cleaning.
Uses spare parts specified by the manufacturer or spare parts with equivalent characteristics when replacements
required. Unauthorized replacements can cause fires, electrical shocks and other dangers.
After any servicing intervention or repair to the video system, ask the technician to run a safety check to ensure that
everything is working safely.
Damage requiring professional assistance
Disconnect the video system from the power mains and call qualified service personnel in the following cases:
; If the power lead or plug is damaged.
; If liquid or foreign objects accidentally penetrate inside the device.
; If the device was exposed to rain or water.
; If the device was dropped, subjected to heavy shocks or if the camera packaging was damaged.
; If the device performance changes considerably.
1 / 35

2. ABOUT THE PRODUCT
The tracking PTZ is based on our unique motion tracking technology with high position resolution, high speed, low price
and selectable communication protocols. It is widely used in surveillance system as unattended CCTV device.
2.1. FEATURES
; Auto tracking of moving object (auto PTZ) based on our motion tracking technology.
; Max 36X optical, 0.0Lux of module specifications.
; 360º horizontal rotation at maximum speed of 240º /sec.
; Vertical rotation from -5º to 92º with maximum speed of 160º/sec.
; Auto panning function with 256 preset positions.
; Built-in OSD Menu, to change dome parameter, save or call preset, and achieve auto scan, pattern etc.
; Features password protection to prevent unauthorized changes to the dome setting.
; Windows blanking and tracking boundary for privacy purpose
; EasyClip installation features
; The feature of defining specific activity when the dome parks.
; Integrated design with high reliability.
; RS-485 data communication.
; Auto-flip to follow object and surveillance of any subject that is constant and continuous.
; The speed can be adjusted automatically according to zooming times.
; Auto focus lens and auto white balance, BLC function.
; Multi protocol compatible (Pelco-P, Pelco-D, KALATEL, etc).
; Alarm input, Alarm output, Alarm action.
2.2. FUNCTIONS
Object Tracking
The camera can be manually controlled from the control system by using the controller to pan, tilt and zoom the camera
up and down, right and left to follow objects under observation.
In auto tracking mode, the camera can tracking a moving object in the target area with auto pan, tilt and zoom which
realizes smart unattended surveillance.
Proportional Pan
Proportional pan automatically reduces or increases the pan and tilt speeds in proportion to the zooming times. At
telephoto zoom settings, the pan and tilt speeds will be slower for a given amount of joystick deflection then at wide zoom
settings. This keeps the image from moving too fast on the monitor when there is a large amount of zoom.
Auto Flip
When the camera tilts downward and goes just beyond the vertical angle, the camera rotates 180º. When the camera
rotates (flips), the camera starts moving upward as you continue to hold joystick in the down position. Once you let go of
the joystick after the dome rotates, joystick control returns to normal operation. The auto-flip feature is useful for following
a person who passes directly beneath the camera.
Save/Call Preset
Preset function is that dome saves current horizontal angle and title angle of pan/tilt, zoom and position parameters into
memory. When necessary dome calls these parameters and adjusts Pan/Tilt and camera to that position. User can save
and call presets easily and promptly by using keyboard controller or infrared controller. The camera supports up to 256
presets.
Lens Control
1) Zoom control
User can adjust zoom wide or near by controller and get desired image.
2) Focus control
System defaults Auto Focus mode, that is, the lens and camera will automatically adjust the focus to get the best image.
Focus can also be controlled manually from the controller if required. Press Focus Near or Focus Far key to manually
focus. Focus can be manual via keyboard or matrix, please refer to control keyboard or matrix operation manual for
2 / 35

3 / 35
detailed operation. When adjusting position is set with focus status, it goes back to auto focus.
The camera will NOT auto focus in the following status.
; Target is not in the center of image.
; Targets are in near and far at the same time.
; Target is of strong light object. Such as spotlight etc.
; Target is behind the glass with water drop or dust.
; Target moves too fast.
; Large area target such as wall.
; Target is too dark or vague.
3) IRIS control
System defaults Auto IRIS. Camera can adjust immediately according to the alteration of back ground illumination so that
a lightness steady image can be achieved.
You may adjust IRIS by controller to get required image brightness.
You can call back Auto IRIS by controlling the joystick.
Auto Back-Light Compensation
Lens has been divided to six areas for back light compensation (BLC). In a strong light background camera will auto
compensate the darker object and adjust light input from the lighter area to avoid a mass image that usually presents a
sharp contrast of brightness and darkness.
Auto White Balance
Camera can automatically adjust white balance (WB) according to the alteration of background lightness to give a true
color image.
Back Light Compensation (BLC)
If a bright backlight presents, the subjects in the picture may appear dark or as a silhouette. Backlight compensation
enhances objects in the center of the picture. The camera uses the center of the picture to adjust the IRIS. If there is a
bright light source outside this area, it will wash out to white. The camera will adjust the IRIS so that the object in the
sensitive area is properly exposed.
Day/Night Function
The IR cut filter of camera module inside the camera can be removed by sending special command, so that the camera
can change from color to mono. The picture is clear even if the illumination is as low as 0.01Lux.
This based on the relative modules. Please refer to technical parameters.
Auto Cruise
The preset position is programmed to be recalled in sequence. This feature is called auto cruise. Up to 54 presets can be
saved in each cruise tour.
Patterns
A pattern is a saved, repeating, series of pan, tilt, zoom and preset functions that can be recalled with a command from a
controller or automatically by a programmed function (alarm action or park action or power-up action).
Auto, Random and Frame Scan
Auto Scan: Make the camera scan 360º ranging from the current position.
Random Scan: Make the camera random scan 360º ranging from the current position.
Frame Scan: This feature freezes the scene on the monitor when going to a preset. This allows for smooth transition from
one preset scene to another.
Zones Setting
A zone is a pan area, defined by a left and right limit, on the 360º pan plane. The camera has eight zones, each with a
6-character label.
Alarms Input
The camera has four alarm inputs, which can be programmed as high, medium or low priority. When an alarm is received,
an input signal to the camera triggers the user-defined action (go to preset, run pattern, etc.) programmed for the alarm.
Auxiliary Output
An auxiliary output is a programmable signal from the camera back box that can trigger another device to operate. An
auxiliary output is programmable to trigger from an alarm or from a controller.

4 / 35
Password Protection
The camera features password protection to prevent unauthorized changes to the camera settings. You can open the
System Information and Display Setup Screens, but cannot access any of the camera Settings menus.
Windows Blanking
A set window can be saved so that it is the only visible tilt area of the scene. All other parts of the tilt area of the scene will
be blanked.
Windows blanking is only available for Sony Modules at present.

3. INSTALLATION
This section contains detailed instructions for installing the camera. These instructions assume that the installer has a
good knowledge of installation techniques and is capable of adopting safe installation methods.
3.1. DIP SWITCH SETTINGS
Before installing the camera drive, check the DIP switches; configure the receiver address, communication protocol, and
baud rate setting. Pic. 1 shows switches position and default settings. SW1 switches (1bit) and SW2 switches (1, 2, and 7
bit) are set to the ON position. For normal user, setting switches to default position is enough.
Pic. 1 Switch
Position
The camera can be controlled via various communication protocols by setting SW1 switches(1, 2, 3,and 4) and operate at
1200bps, 2400bps, 4800bps, 9600bps and 19200bps baud rate by setting SW1 switches(5, 6, 7, and 8). Refer to Table 3:
SWITCH1 SETTING for communication protocol and baud rate settings, do not set the switches to reserved position. Pic.
2 shows the default settings for the DIP switches.
Pic. 2 Default settings of DIP switches
Please refer to the following tables to set baud rate, and communication protocol type and camera address.
POS 1234DESCRIPTION
COMM
PTOL
ON OFF OFF OFF Reserved for future use
OFF ON OFF OFF PELCO-P
ON ON OFF OFF PELCO-D
OFF OFF ON OFF KALATEL
…… Reserved for future use
POS DESCRIPTION 5 6 7 8
BAUD
RATE
(BPS)
1200 ON OFF OFF OFF
2400 OFF ON OFF OFF
4800 ON ON OFF OFF
9600 OFF OFF ON OFF
19200 ON OFF ON OFF
Reserved for future use …
Table 1: SWITCH1 SETTING
5 / 35

A
DDRESS 12345678
0OFF OFF OFF OFF OFF OFF OFF OFF
1ON OFF OFF OFF OFF OFF OFF OFF
2OFF ON OFF OFF OFF OFF OFF OFF
3ON ON OFF OFF OFF OFF OFF OFF
4OFF OFF ON OFF OFF OFF OFF OFF
5ON OFF ON OFF OFF OFF OFF OFF
6OFF ON ON OFF OFF OFF OFF OFF
7ON ON ON OFF OFF OFF OFF OFF
8OFF OFF OFF ON OFF OFF OFF OFF
9ON OFF OFF ON OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF
19 ON ON OFF OFF ON OFF OFF OFF
20 OFF OFF ON OFF ON OFF OFF OFF
21 ON OFF ON OFF ON OFF OFF OFF
22 OFF ON ON OFF ON OFF OFF OFF
23 ON ON ON OFF ON OFF OFF OFF
24 OFF OFF OFF ON ON OFF OFF OFF
25 ON OFF OFF ON ON OFF OFF OFF
26 OFF ON OFF ON ON OFF OFF OFF
27 ON ON OFF ON ON OFF OFF OFF
28 OFF OFF ON ON ON OFF OFF OFF
29 ON OFF ON ON ON OFF OFF OFF
30 OFF ON ON ON ON OFF OFF OFF
31 ON ON ON ON ON OFF OFF OFF
32 OFF OFF OFF OFF OFF ON OFF OFF
33 ON OFF OFF OFF OFF ON OFF OFF
34 OFF ON OFF OFF OFF ON OFF OFF
35 ON ON OFF OFF OFF ON OFF OFF
36 OFF OFF ON OFF OFF ON OFF OFF
37 ON OFF ON OFF OFF ON OFF OFF
38 OFF ON ON OFF OFF ON OFF OFF
39 ON ON ON OFF OFF ON OFF OFF
40 OFF OFF OFF ON OFF ON OFF OFF
41 ON OFF OFF ON OFF ON OFF OFF
42 OFF ON OFF ON OFF ON OFF OFF
43 ON ON OFF ON OFF ON OFF OFF
44 OFF OFF ON ON OFF ON OFF OFF
45 ON OFF ON ON OFF ON OFF OFF
46 OFF ON ON ON OFF ON OFF OFF
47 ON ON ON ON OFF ON OFF OFF
48 OFF OFF OFF OFF ON ON OFF OFF
49 ON OFF OFF OFF ON ON OFF OFF
6 / 35

50 OFF ON OFF OFF ON ON OFF OFF
51 ON ON OFF OFF ON ON OFF OFF
52 OFF OFF ON OFF ON ON OFF OFF
53 ON OFF ON OFF ON ON OFF OFF
54 OFF ON ON OFF ON ON OFF OFF
55 ON ON ON OFF ON ON OFF OFF
56 OFF OFF OFF ON ON ON OFF OFF
57 ON OFF OFF ON ON ON OFF OFF
58 OFF ON OFF ON ON ON OFF OFF
59 ON ON OFF ON ON ON OFF OFF
60 OFF OFF ON ON ON ON OFF OFF
61 ON OFF ON ON ON ON OFF OFF
62 OFF ON ON ON ON ON OFF OFF
63 ON ON ON ON ON ON OFF OFF
64 OFF OFF OFF OFF OFF OFF ON OFF
65 ON OFF OFF OFF OFF OFF ON OFF
66 OFF ON OFF OFF OFF OFF ON OFF
67 ON ON OFF OFF OFF OFF ON OFF
68 OFF OFF ON OFF OFF OFF ON OFF
69 ON OFF ON OFF OFF OFF ON OFF
70 OFF ON ON OFF OFF OFF ON OFF
71 ON ON ON OFF OFF OFF ON OFF
72 OFF OFF OFF ON OFF OFF ON OFF
73 ON OFF OFF ON OFF OFF ON OFF
74 OFF ON OFF ON OFF OFF ON OFF
75 ON ON OFF ON OFF OFF ON OFF
76 OFF OFF ON ON OFF OFF ON OFF
77 ON OFF ON ON OFF OFF ON OFF
78 OFF ON ON ON OFF OFF ON OFF
79 ON ON ON ON OFF OFF ON OFF
80 OFF OFF OFF OFF ON OFF ON OFF
81 ON OFF OFF OFF ON OFF ON OFF
82 OFF ON OFF OFF ON OFF ON OFF
83 ON ON OFF OFF ON OFF ON OFF
84 OFF OFF ON OFF ON OFF ON OFF
85 ON OFF ON OFF ON OFF ON OFF
86 OFF ON ON OFF ON OFF ON OFF
87 ON ON ON OFF ON OFF ON OFF
88 OFF OFF OFF ON ON OFF ON OFF
89 ON OFF OFF ON ON OFF ON OFF
90 OFF ON OFF ON ON OFF ON OFF
91 ON ON OFF ON ON OFF ON OFF
92 OFF OFF ON ON ON OFF ON OFF
93 ON OFF ON ON ON OFF ON OFF
94 OFF ON ON ON ON OFF ON OFF
95 ON ON ON ON ON OFF ON OFF
96 OFF OFF OFF OFF OFF ON ON OFF
97 ON OFF OFF OFF OFF ON ON OFF
98 OFF ON OFF OFF OFF ON ON OFF
99 ON ON OFF OFF OFF ON ON OFF
100 OFF OFF ON OFF OFF ON ON OFF
7 / 35

101 ON OFF ON OFF OFF ON ON OFF
102 OFF ON ON OFF OFF ON ON OFF
103 ON ON ON OFF OFF ON ON OFF
104 OFF OFF OFF ON OFF ON ON OFF
105 ON OFF OFF ON OFF ON ON OFF
106 OFF ON OFF ON OFF ON ON OFF
107 ON ON OFF ON OFF ON ON OFF
108 OFF OFF ON ON OFF ON ON OFF
109 ON OFF ON ON OFF ON ON OFF
110 OFF ON ON ON OFF ON ON OFF
111 ON ON ON ON OFF ON ON OFF
112 OFF OFF OFF OFF ON ON ON OFF
113 ON OFF OFF OFF ON ON ON OFF
114 OFF ON OFF OFF ON ON ON OFF
115 ON ON OFF OFF ON ON ON OFF
116 OFF OFF ON OFF ON ON ON OFF
117 ON OFF ON OFF ON ON ON OFF
118 OFF ON ON OFF ON ON ON OFF
119 ON ON ON OFF ON ON ON OFF
120 OFF OFF OFF ON ON ON ON OFF
121 ON OFF OFF ON ON ON ON OFF
122 OFF ON OFF ON ON ON ON OFF
123 ON ON OFF ON ON ON ON OFF
124 OFF OFF ON ON ON ON ON OFF
125 ON OFF ON ON ON ON ON OFF
126 OFF ON ON ON ON ON ON OFF
127 ON ON ON ON ON ON ON OFF
128 OFF OFF OFF OFF OFF OFF OFF ON
129 ON OFF OFF OFF OFF OFF OFF ON
130 OFF ON OFF OFF OFF OFF OFF ON
131 ON ON OFF OFF OFF OFF OFF ON
132 OFF OFF ON OFF OFF OFF OFF ON
133 ON OFF ON OFF OFF OFF OFF ON
134 OFF ON ON OFF OFF OFF OFF ON
135 ON ON ON OFF OFF OFF OFF ON
136 OFF OFF OFF ON OFF OFF OFF ON
137 ON OFF OFF ON OFF OFF OFF ON
138 OFF ON OFF ON OFF OFF OFF ON
139 ON ON OFF ON OFF OFF OFF ON
140 OFF OFF ON ON OFF OFF OFF ON
141 ON OFF ON ON OFF OFF OFF ON
142 OFF ON ON ON OFF OFF OFF ON
143 ON ON ON ON OFF OFF OFF ON
144 OFF OFF OFF OFF ON OFF OFF ON
145 ON OFF OFF OFF ON OFF OFF ON
146 OFF ON OFF OFF ON OFF OFF ON
147 ON ON OFF OFF ON OFF OFF ON
148 OFF OFF ON OFF ON OFF OFF ON
149 ON OFF ON OFF ON OFF OFF ON
150 OFF ON ON OFF ON OFF OFF ON
151 ON ON ON OFF ON OFF OFF ON
8 / 35

152 OFF OFF OFF ON ON OFF OFF ON
153 ON OFF OFF ON ON OFF OFF ON
154 OFF ON OFF ON ON OFF OFF ON
155 ON ON OFF ON ON OFF OFF ON
156 OFF OFF ON ON ON OFF OFF ON
157 ON OFF ON ON ON OFF OFF ON
158 OFF ON ON ON ON OFF OFF ON
159 ON ON ON ON ON OFF OFF ON
160 OFF OFF OFF OFF OFF ON OFF ON
161 ON OFF OFF OFF OFF ON OFF ON
162 OFF ON OFF OFF OFF ON OFF ON
163 ON ON OFF OFF OFF ON OFF ON
164 OFF OFF ON OFF OFF ON OFF ON
165 ON OFF ON OFF OFF ON OFF ON
166 OFF ON ON OFF OFF ON OFF ON
167 ON ON ON OFF OFF ON OFF ON
168 OFF OFF OFF ON OFF ON OFF ON
169 ON OFF OFF ON OFF ON OFF ON
170 OFF ON OFF ON OFF ON OFF ON
171 ON ON OFF ON OFF ON OFF ON
172 OFF OFF ON ON OFF ON OFF ON
173 ON OFF ON ON OFF ON OFF ON
174 OFF ON ON ON OFF ON OFF ON
175 ON ON ON ON OFF ON OFF ON
176 OFF OFF OFF OFF ON ON OFF ON
177 ON OFF OFF OFF ON ON OFF ON
178 OFF ON OFF OFF ON ON OFF ON
179 ON ON OFF OFF ON ON OFF ON
180 OFF OFF ON OFF ON ON OFF ON
181 ON OFF ON OFF ON ON OFF ON
182 OFF ON ON OFF ON ON OFF ON
183 ON ON ON OFF ON ON OFF ON
184 OFF OFF OFF ON ON ON OFF ON
185 ON OFF OFF ON ON ON OFF ON
186 OFF ON OFF ON ON ON OFF ON
187 ON ON OFF ON ON ON OFF ON
188 OFF OFF ON ON ON ON OFF ON
189 ON OFF ON ON ON ON OFF ON
190 OFF ON ON ON ON ON OFF ON
191 ON ON ON ON ON ON OFF ON
192 OFF OFF OFF OFF OFF OFF ON ON
193 ON OFF OFF OFF OFF OFF ON ON
194 OFF ON OFF OFF OFF OFF ON ON
195 ON ON OFF OFF OFF OFF ON ON
196 OFF OFF ON OFF OFF OFF ON ON
197 ON OFF ON OFF OFF OFF ON ON
198 OFF ON ON OFF OFF OFF ON ON
199 ON ON ON OFF OFF OFF ON ON
200 OFF OFF OFF ON OFF OFF ON ON
201 ON OFF OFF ON OFF OFF ON ON
202 OFF ON OFF ON OFF OFF ON ON
9 / 35

203 ON ON OFF ON OFF OFF ON ON
204 OFF OFF ON ON OFF OFF ON ON
205 ON OFF ON ON OFF OFF ON ON
206 OFF ON ON ON OFF OFF ON ON
207 ON ON ON ON OFF OFF ON ON
208 OFF OFF OFF OFF ON OFF ON ON
209 ON OFF OFF OFF ON OFF ON ON
210 OFF ON OFF OFF ON OFF ON ON
211 ON ON OFF OFF ON OFF ON ON
212 OFF OFF ON OFF ON OFF ON ON
213 ON OFF ON OFF ON OFF ON ON
214 OFF ON ON OFF ON OFF ON ON
215 ON ON ON OFF ON OFF ON ON
216 OFF OFF OFF ON ON OFF ON ON
217 ON OFF OFF ON ON OFF ON ON
218 OFF ON OFF ON ON OFF ON ON
219 ON ON OFF ON ON OFF ON ON
220 OFF OFF ON ON ON OFF ON ON
221 ON OFF ON ON ON OFF ON ON
222 OFF ON ON ON ON OFF ON ON
223 ON ON ON ON ON OFF ON ON
224 OFF OFF OFF OFF OFF ON ON ON
225 ON OFF OFF OFF OFF ON ON ON
226 OFF ON OFF OFF OFF ON ON ON
227 ON ON OFF OFF OFF ON ON ON
228 OFF OFF ON OFF OFF ON ON ON
229 ON OFF ON OFF OFF ON ON ON
230 OFF ON ON OFF OFF ON ON ON
231 ON ON ON OFF OFF ON ON ON
232 OFF OFF OFF ON OFF ON ON ON
233 ON OFF OFF ON OFF ON ON ON
234 OFF ON OFF ON OFF ON ON ON
235 ON ON OFF ON OFF ON ON ON
236 OFF OFF ON ON OFF ON ON ON
237 ON OFF ON ON OFF ON ON ON
238 OFF ON ON ON OFF ON ON ON
239 ON ON ON ON OFF ON ON ON
240 OFF OFF OFF OFF ON ON ON ON
241 ON OFF OFF OFF ON ON ON ON
242 OFF ON OFF OFF ON ON ON ON
243 ON ON OFF OFF ON ON ON ON
244 OFF OFF ON OFF ON ON ON ON
245 ON OFF ON OFF ON ON ON ON
246 OFF ON ON OFF ON ON ON ON
247 ON ON ON OFF ON ON ON ON
248 OFF OFF OFF ON ON ON ON ON
249 ON OFF OFF ON ON ON ON ON
250 OFF ON OFF ON ON ON ON ON
251 ON ON OFF ON ON ON ON ON
252 OFF OFF ON ON ON ON ON ON
253 ON OFF ON ON ON ON ON ON
10 / 35

254 OFF ON ON ON ON ON ON ON
255 ON ON ON ON ON ON ON ON
Table 2: SWITCH2 SETTING
Always use the “PELCO P” or “PELCO D” protocols.
It is advisable to select PELCO-D protocol at 9600 bps baud rate to ensure the correct operation of the camera
with the compatible products in the catalogue.
Do not use address “0” with the “PELCO P” and “PELCO D” protocols.
11 / 35

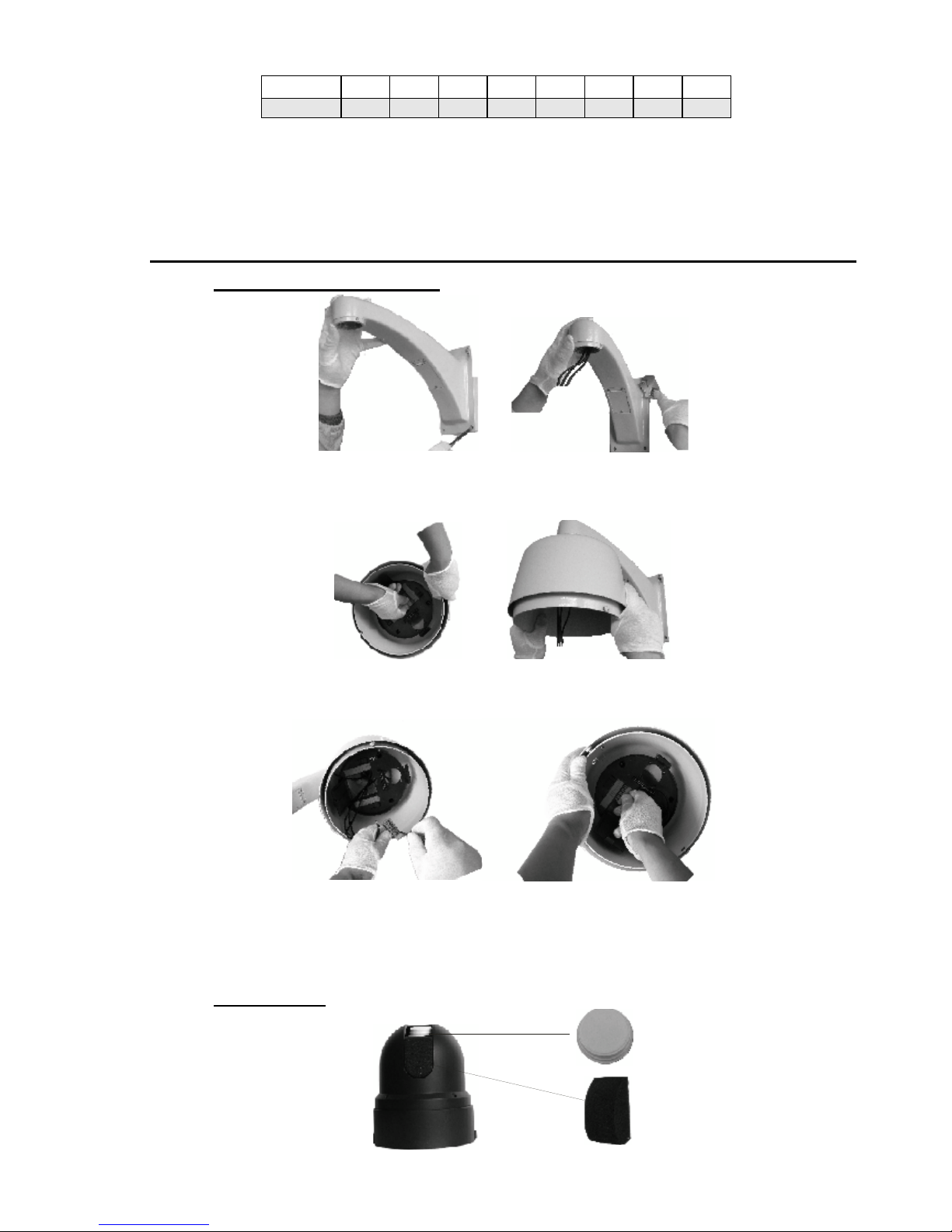

3.2. WALL MOUNT INSTALLATION
Step 1. Install the bracket for pendant dome
Pic.
3
When installing outdoors, make sure installation is properly sealed to keep moisture out.
Refer to the instructions supplied with the bracket. Take out cables for the dome through the bracket. See Pic. 3.
Pic.
4
Press the thumb fastener and open the hinged door to the back box. Take out hole of pin. Screw the metal cover into the
bracket. See Pic. 4.
Pic.
5
Connect cables to hole of pin. Insert the pin inside the back box. When finished, close the door to the back box and turn
on the power. The LED will light up. See Pic. 5.
If the LED does not light up, refer to Section 5:troubleshooting.
Step 2. Install dome drive

Pic. 6
Set the DIP switches for SW1 and SW2 at the bottom of the dome drive for the appropriate receiver address,
communication protocol, and baud rate. Refer to the labels on the dome drive or DIP SWITCH SET at the beginning of
this manual.

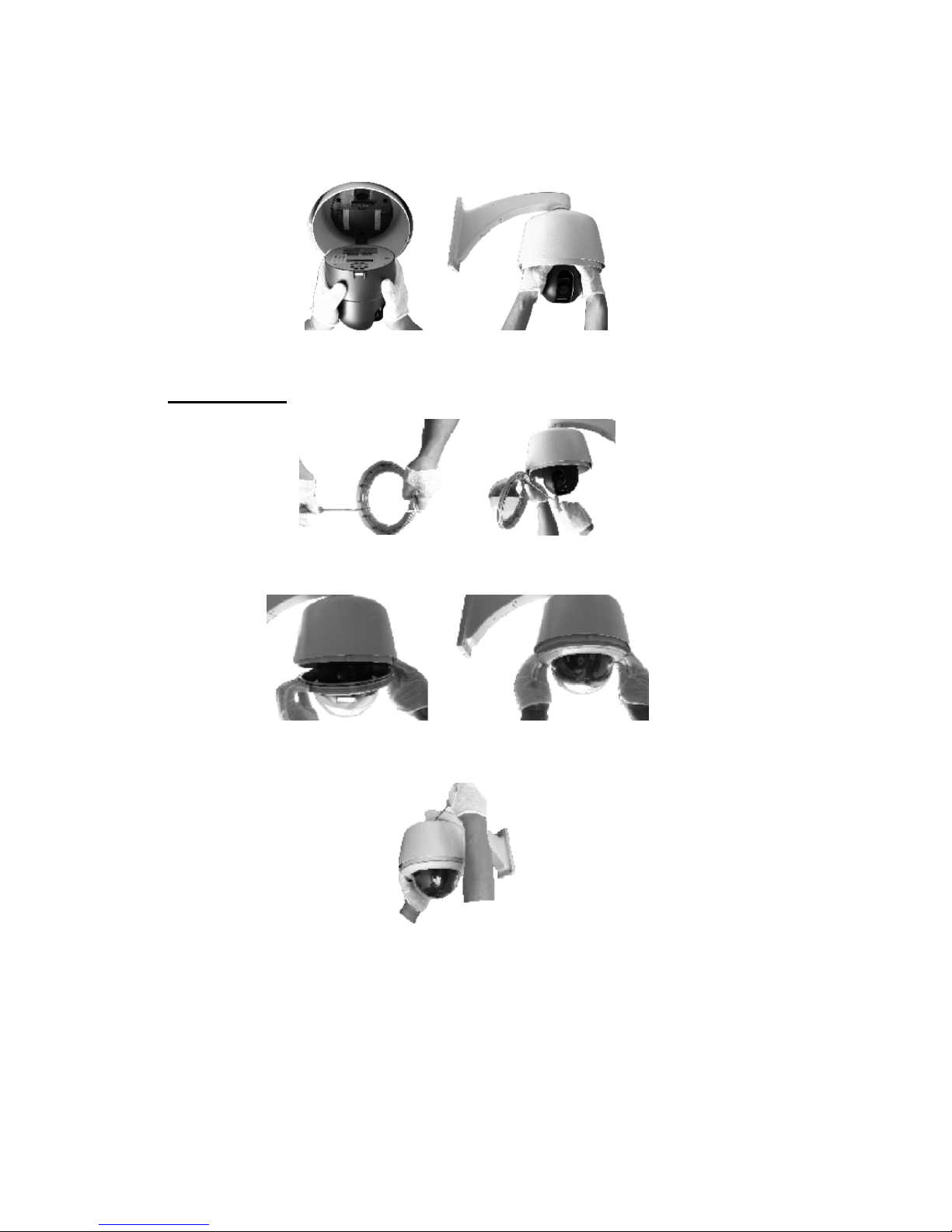

Remove cover of camera and sponge. See Pic. 6.
Pic.
7
Line up link card and faucet of the back board of the dome. Push the dome drive in. See Pic. 7.
Step 3. Install lower dome.
Pic.
8
Take out a screw from lower dome. Link cables, screw, and lower dome. See Pic. 8.
Pic.
9
Line up the mounting screw holes, and install the two mounting screws. Push the lower dome inside the back box. See
Pic. 9.
Pic. 10
Screw the two mounting screws, and screws in the bracket. See Pic. 10.
12 / 35

4. OPERATION GUIDE
4.1. OPERATION AT POWER UP
The camera employs the default settings the first time it is switched on. Changes to the settings will be permanently
stored and will be made available the next time the camera is switched on. You can return to the default settings by
means of the appropriate menu option at any time.
The camera will work as follows when it is switched on.
The camera will run a calibration procedure and a message showing the following information will appear on the video
output OSD (On Screen Display): protocol, communication parameters, and camera address and software version.
Check that the data are suitable for operation. Otherwise, refer to the section in this document that shows how to install
the camera correctly
PTOL: PELCO-D
COMM: 9600,N,8,1
ADDR: 01
SW version
At the end of the calibration step, the camera will switch to stand-by as programmed (POWER UP ACTION in DOME
SETTINGS1 > POWER UP). The camera will continue working this way until any command is received from the keypad.
The camera during this phase can be pointed to a fixed point or pan across the field. Refer to the detailed described in the
POWER UP
ACTION menu section for more details.
4.2. PRESET POSITIONS PROGRAMMING AND RECALLING
The camera can store up to 256 panning, tilting and zooming configurations (called preset positions) which can be
recalled at any time.
The manual focusing and IRIS opening settings cannot be stored.
When storing presets, it is important to remember that some are reserved and cannot be either storednor used for
positioning the camera.
; Presets from 80 to 99 are reserved for managementcontrols
; Presets from 100 to 103, 170 to 173 are reserved for Tracking and Pattern controls
The saved value will be written over if the setting is reprogrammed.
The Presets are saved in a permanent memory area of the camera where they are maintained also when power
is disconnected.However, restoringdefault settings will delete all preset values.
Press PRESET + 83 + ENTER to delete all the saved PRESET values.
The Presets store the coordinates according to an angular reference system. Therefore, the reference system
zero point may become misaligned with the camera mechanics after prolonged use of the tilting and panning
functions. Minor inaccuracies in preset positions may occur. In this case, calibrate the angular coordinate system
using the REBOOT
SYSTEM command. This calibration is automatically run when the camera is switched on.
4.3. FUNCTION PROGRAM MENU
Use the following control panel command (Save 95th preset) to access the function programming menu.
PRESET + 95 + ENTER
At this point, if no password is required for access, the following first level menu will appear on the screen:
13 / 35

MAIN MENU
< SYSTEM INFORMATION
>
< DISPLAY SETUP
>
< DOME SETTINGS
1>
< DOME SETTINGS
2>
<DOME
LABEL>
RESET
CAMERA
REBOOT SYSTEM
LANGUAGE ENGLISH
EXIT
Screen 1: Main
Menu
Otherwise, if a password is required, the following prompt will appear.
PLEASE INPUT PASSWORD
PASSWORD
1 2 3 4 5 6 7 8 9 0
▲
CLEAR
ENTER
EXIT
Screen 2: Password
Protection
The password is a numeric combination (max. 4 digits).
Select the password digits by moving the joystick in the horizontal direction. Symbol “▲” indicates the digit which will be
entered.
Press OPEN to enter the selected digit.
The entered numbers will be replaced by a “*” symbol on the screen for privacy.
Select ENTER and press OPEN to access the first level menu after entering all the digits correctly.
THE DEFAULT PASSWORD IS “0000”.
It is advisable to change the default password to prevent intrusions.
Do not lose or forget the programmed password.
Take note of the new password and keep it in a safe place.
Simply move the joystick vertically to scroll the menu and point the cursor to the menu item to be selected: at the point,
select OPEN to access the selected second level.
Simply press BACK and use OPEN to go back to the previous level menu.
To completely exit a menu on any level, simply select
EXIT and use the OPEN command.
Option Value Explanation
SYSTEM INFORMATION ON/OFF Product information menu (refer to Section 4.3.1).
DISPLAY SETUP ON/OFF Display menu (refer to Section 4.3.2).
DOME SETTINGS 1 ON/OFF Main programming menu (refer to Section 4.3.3).
DOME SETTINGS 2 ON/OFF Secondary programming menu (refer to Section 4.3.4).
DOME LABEL ON/OFF Menu for as ociating the text to be associated to the camera (refers
Section 0).
RESET CAMERA ON/OFF This function reset the device without clearly the settings
performed by the user. Resets the camera menu settings, except
for the password.
REBOOT SYSTEM ON/OFF This function restarts the device without clearly the settings
performed by the user. The camera is repositioned.
LANGUAGE ENGLISH /
CHINESE Menus in English or Chinese.
Table 3
14 / 35

15 / 35
4.3.1. PRODUCT INFORMATION MENU
In the first level menu, select SYSTEM INFORMATION to display information concerning the protocol, the camera address,
the presetting number, the language of use and the measured temperature.
SYSTEM INFORMATION
COMM 2400, N, 8, 1
ADDRESS 26
PROTOCOL PELCO-D
PRESETS 256
LANGUAGE ENGLISH
TEMPERATURE 36°C
SOFTWARE VERSION V4.2
BACK
EXIT
Screen 3: System
Info
The information in this menu cannot be edited.
4.3.2. DISPLAY MENU (SETUP)
The DISPLAY SETUP menu is used to enable the labels to be displayed for the various camera functions.
DISPLAY SETUP
PRESET LABEL ON
ZONE LABEL ON
ZOOM ON
AZIMUTH/ELEVATION ON
CAMERA LABEL ON
<LABEL POSITION>
BACK
EXIT
Screen 4: Display
Menu
Option Value Explanation
PRESET LABEL ON/OFF Show or hide presetting labels (max. 64).
ZONE LABEL ON/OFF Show or hide zone labels.
ZOOM ON/OFF Show or hide zoom labels.
AZIMUTH/ELEVATION ON/OFF Show or hide camera pan/tilt labels. The coordinates refer to the
monitor centre.
CAMERA LABEL ON/OFF Show or hide camera labels.
LABEL POSITION Label positioning submenu (refer to Section 4.3.2.1)
Table 4
4.3.2.1. LABEL POSITION (SUBMENU)
The labels may be positioned where required on the screen.
ZONE CAMERA PRESET
SAVE
RESET
AZIMUTH
ZOOM
ZOOM
Screen 5: Label
Position
To establish a position:

1) Point the cursor to the label to be moved by moving the joystick vertically.
2) Press OPEN
3) Symbol “■” will appear.
4) Position the entire label in the chosen position using the joystick.
5) Press OPEN.
Repeat this operation for each label.
Point the cursor “►” to SAVE and press OPEN.
4.3.3. MAIN PROGRAMMINGMENU (DOME SETTINGS 1)
In the first level menu, select <DOME SETTINGS 1> and the corresponding submenus to access the main menus.
DOME SETTINGS1
<CAME
R
A>
<MOTION>
<POWER
U
P
>
<P
R
ESETS>
<PATTERN
S
>
<ZONES>
<CLEAR
S
E
T
T
I
N
G>
PRESET
N
U
M
B
E
R
2
56
BACK
EXIT
Screen 6: Dome Settings 1
Option Value Explanation
CAME
R
ACamera parameter programming submenu (refer to Section 4.3.3.1)
MOTION Camera motion parameter programming submenu (refer to Section 0)
POWE
R
UP Power up parameter submenu (refer to Section 4.3.3.3)
P
R
ESETS Preset parameter submenu (refer to Section 4.3.3.4)
PATTERNS Pattern parameter submenu (refer to Section 4.3.3.5)
ZONES Zone parameter programming submenu (refer to Section 4.3.3.6)
CLEA
R
SETTINGS Clear settings submenu (refer to Section 4.3.3.7)
P
R
ESET
N
UMBE
R
40/64/256 Maximum number of Presets. Always enter 256 (refer to Section
4.3.3.8)Table
5
16 / 35
4.3.3.1. CAMERA (SUBMENU)
The first level of this menu contains the following options grouped as shown in the following table.
To edit the value, simply select the required menu item using the joystick with vertical movements and the OPEN
button. Then edit as required. Select BACK/EXIT to close the item.
CAMERA
DIGITAL ZOOM OFF
BACKLIGHT COMP OFF
<PROGRAM AE MODE>
<OTHERS>
BACK
EXIT
Screen 7: Camera
(Sub-Menu)
Option Value Explanation
DIGITAL ZOOM ON/OFF Switch digital zoom
ON or OFF.
