D-Link DCS-2670L User manual

User Manual
Version 1.00 | 6/1/2017
DCS-2670L
Full HD 180-Degree Outdoor Wi-Fi Cam

2D-Link DCS-2670L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change.
Manual Revisions
Revision Date Description
1.00 06/01/2017 A1 release with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App
StoreSM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows®
and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
ErP Power Usage
This device is an Energy Related Product (ErP) designed to be always on. If it is not needed during certain periods of time, it can be unplugged to
save energy.
Preface

3D-Link DCS-2670L User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 5
Introduction ................................................................................... 6
Features............................................................................................ 6
Hardware Overview..................................................................... 7
Front View................................................................................ 7
Rear View ................................................................................. 8
Wireless Installation Considerations...................................... 9
Installation ....................................................................................10
Mobile App Setup ......................................................................11
mydlink...........................................................................................13
Mounting the Camera...............................................................14

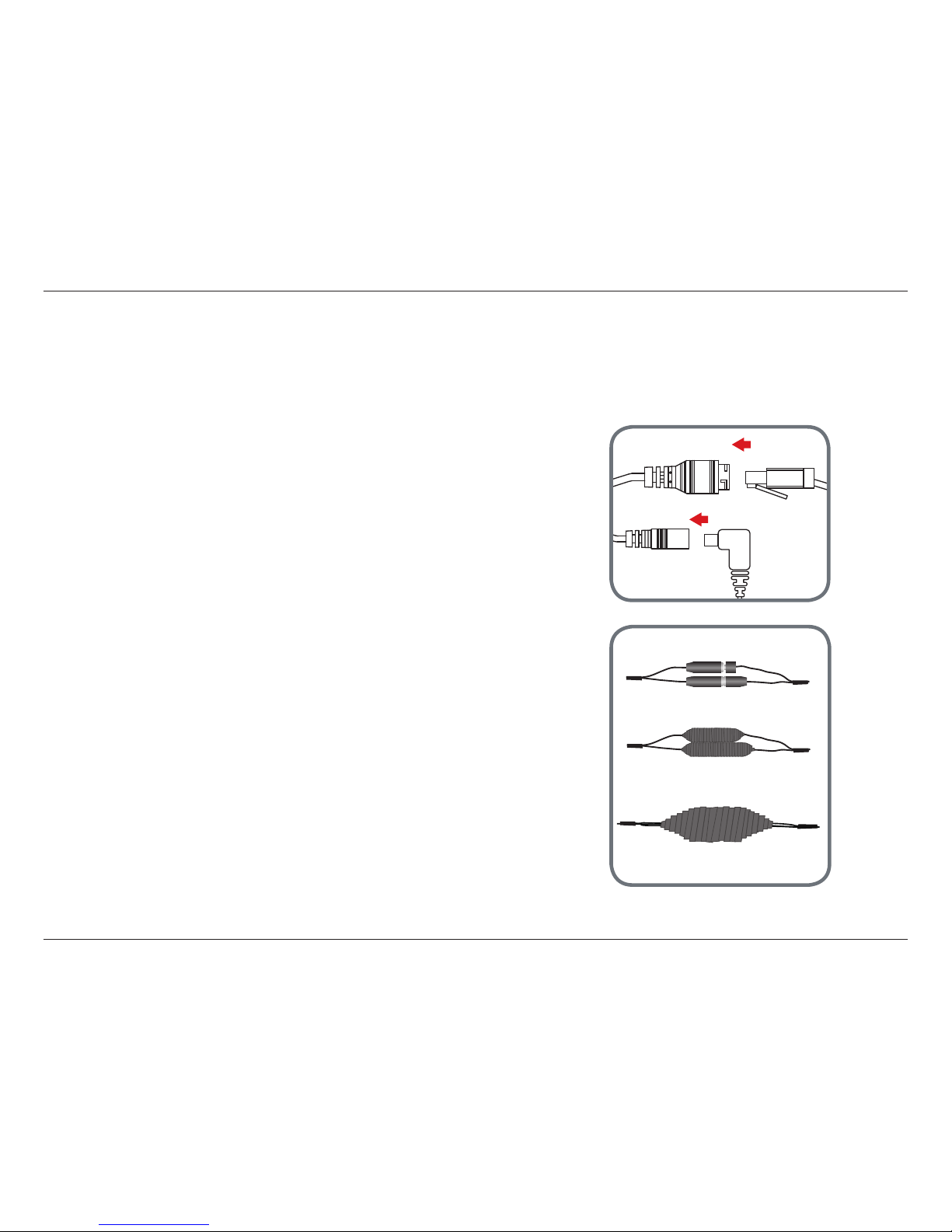

Waterproong Your Camera...................................................16
Conguration...................................................................18

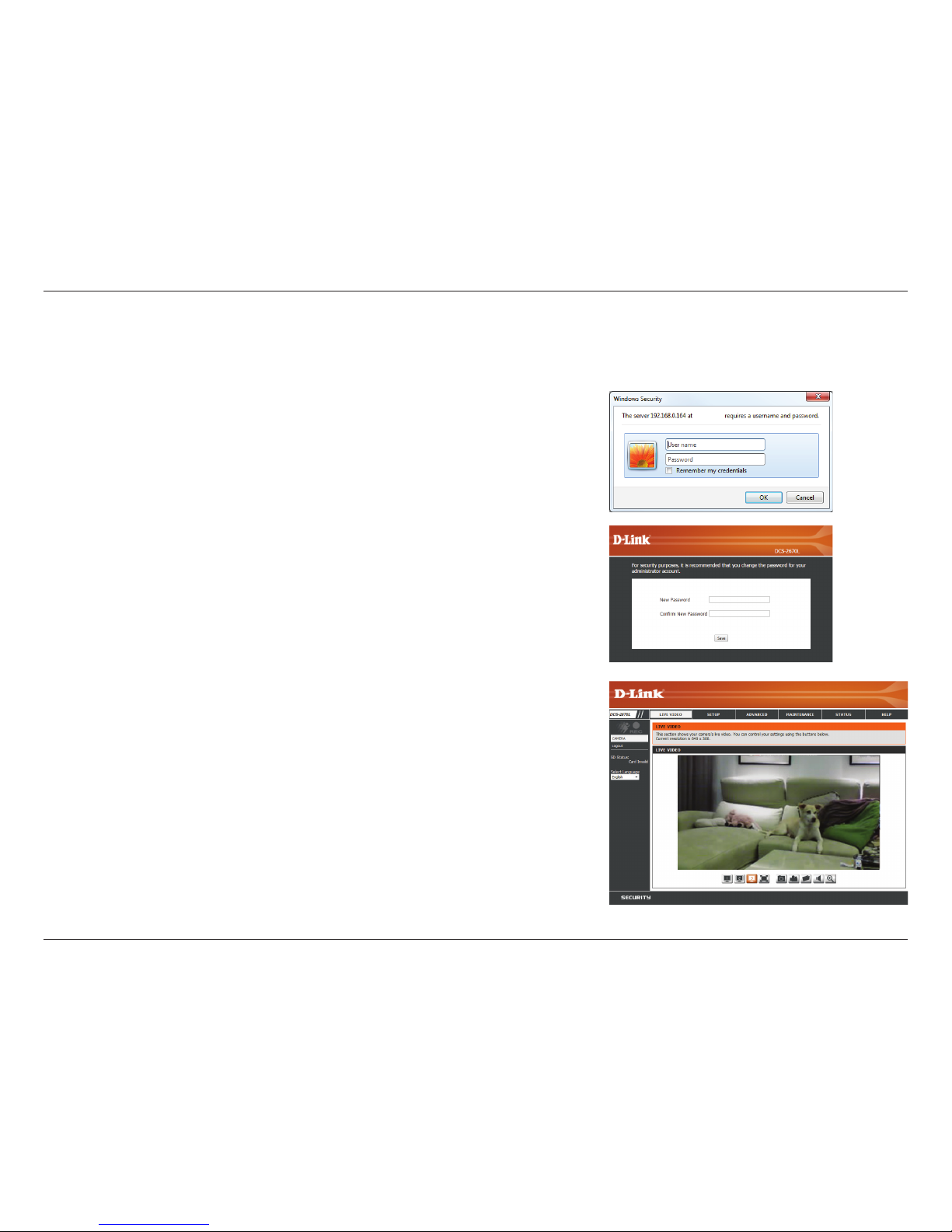

Accessing the Web Conguration Utility...........................18
Live Video ......................................................................................19
Setup...............................................................................................21
Setup Wizard ........................................................................21
Network Setup.....................................................................26
Wireless Setup......................................................................29
Dynamic DNS .......................................................................30
Image Setup .........................................................................31
Audio and Video..................................................................33
Motion Detection ...............................................................34
Sound Detection.................................................................35
Time and Date......................................................................36
Event Setup...........................................................................37
SD Card...................................................................................44
Advanced ......................................................................................45
ICR and IR...............................................................................45
HTTPS......................................................................................46
Access List..............................................................................47
Maintenance ................................................................................48
Admin .....................................................................................48
System ....................................................................................49
Firmware Upgrade..............................................................50
Status ..............................................................................................51
Device Info ............................................................................51
Log ...........................................................................................52
Help .................................................................................................53
Troubleshooting ..............................................................54
Technical Specications..................................................56
Regulatory Information ..................................................58

4D-Link DCS-2670L User Manual
Section 1: Product Overview
Product Overview

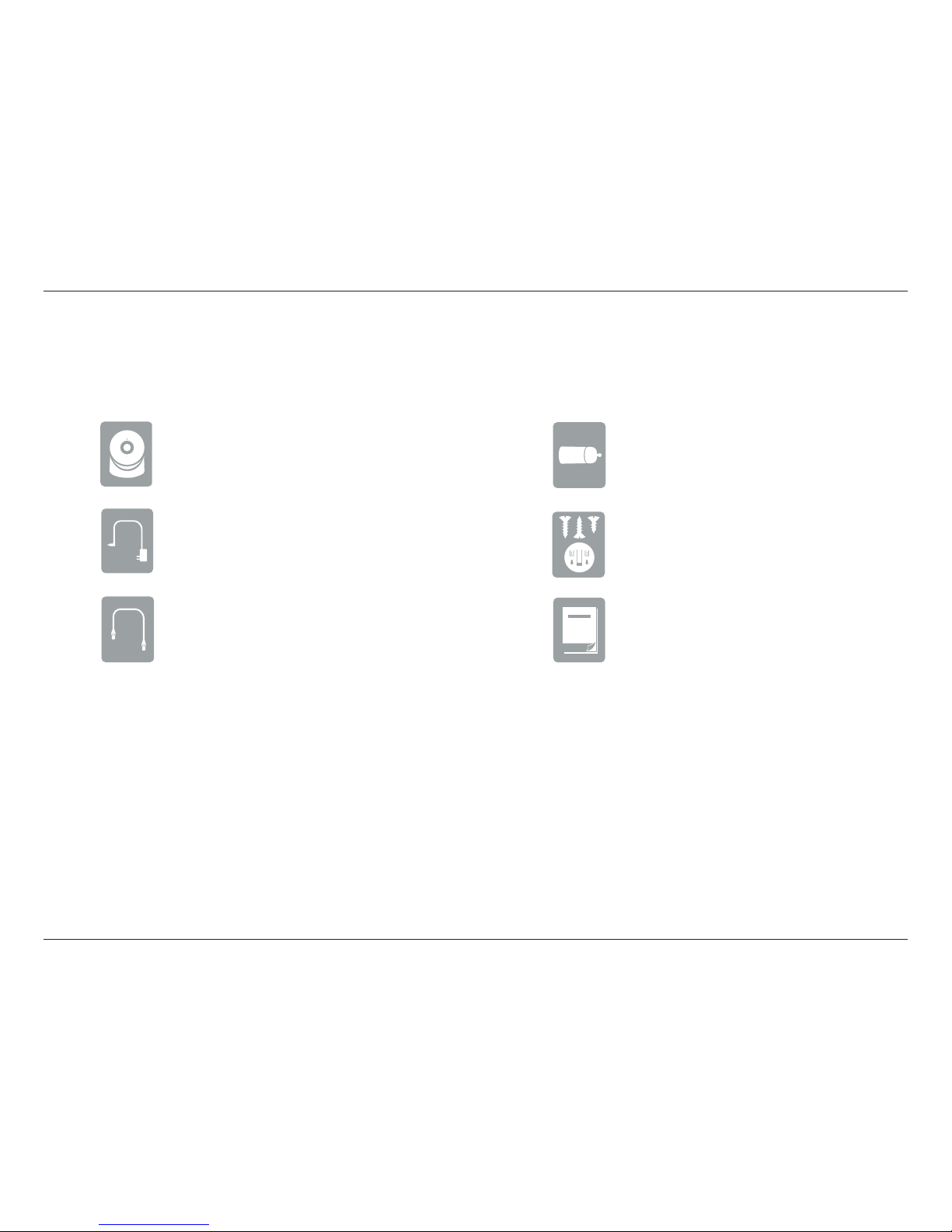

Package Contents
DCS-2670L Full HD 180-Degree Outdoor Wi-Fi Cam
Power Adapter Camera Base and Mounting Kit
Ethernet Cable Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the
warranty for this product.
Waterproof Cable Connector

5D-Link DCS-2670L User Manual
Section 1: Product Overview
System Requirements
Network Requirements
• 10/100 Ethernet network or a 802.11n/g/b wireless network
• An Internet connection
• A router connected to your broadband modem
mydlink Lite App Requirements • An iPhone, iPad, iPod touch, or Android smartphone or tablet (please refer
to the mobile app’s store page to check whether your device is compatible)
mydlink Website Requirements
A computer with:
• Internet Explorer 8 or higher
• Firefox 12 or higher
• Safari 6 or higher
• Chrome 20 or higher
Note: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

6D-Link DCS-2670L User Manual
Section 1: Product Overview
Introduction
The DCS-2670L Full HD 180-Degree Outdoor Wi-Fi Cam boasts a ultra-wide 180° lens that easily captures your entire room in high-quality 1080p.
Its IP65 certication, three-axis adjustment, wireless network connectivity, and built-in night vision let you watch over your home or small oce
at all times and under any lighting conditions. Rounding out the solution is the free mydlink™ Lite app, which pushes notications to your mobile
device in case of an event and lets you quickly view live streams no matter where you are.
180° Wide-Angle Lens
The DCS-2670L provides whole-room coverage with a 180°wide-angle lens, eliminating the need for multiple cameras to cover a single room.
Built-in de-warping technology automatically corrects the image for you.
1080p Full HD Video
The 1080p Full HD sensor provides crisp detail and clarity for high-quality snapshots and video.
IP65-Certied for Waterproof Installations
The DCS-2670L has the toughness to withstand wet conditions in both indoor or outdoor environments.*
Comprehensive Day/Night Surveillance
The built-in infrared LEDs enable night-time viewing of up to 10 meters (32.8 feet) in complete darkness. The microSD card slot allows the camera
to record snapshots and video directly to onboard storage for a complete surveillance solution.
Wireless N Connectivity
The DCS-2670L uses high-speed Wireless N to connect to your wireless router, and is compatible with 802.11n/g.
mydlink™ Lite App Support for Your Mobile Device
Setup is easy via the in-app setup wizard, and you can receive instant notications and view live streams from anywhere using your mobile device.
mydlink Web Portal
Using a standard web browser, you can manage the DCS-2670L via the mydlink website, so you can access your DCS-2670L anytime, anywhere in
the world.
*Note: Due to its IP65 rating, we recommend that you install your device under a roof or shelter.
Features

7D-Link DCS-2670L User Manual
Section 1: Product Overview
Hardware Overview

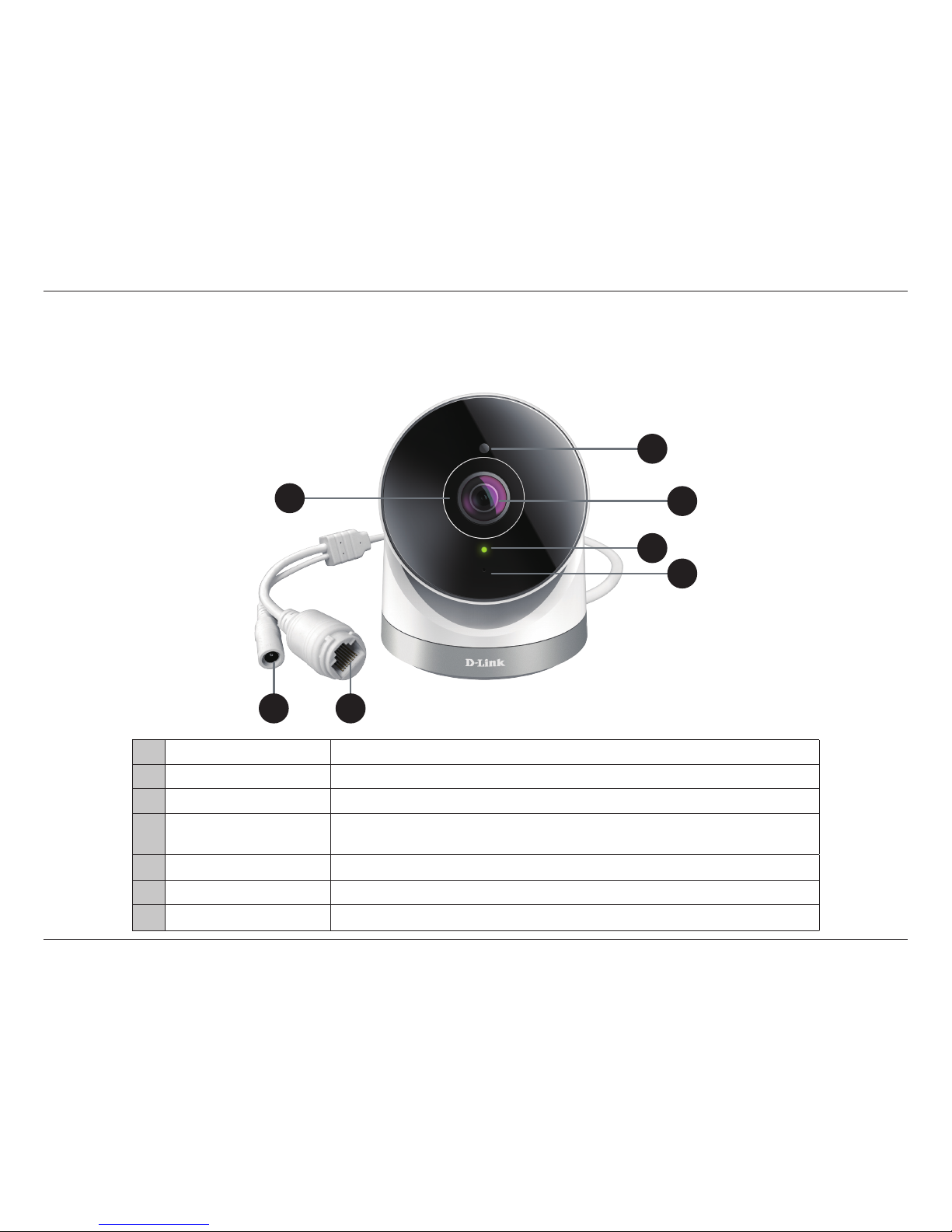

Front View
1 IR LEDs Illuminate the camera’s eld of view in low light environments.
2 Power Connector Plug in the included power adapter to this connector.
3 Ethernet Connector Use an Ethernet cable for a wired connection to your network.
4 Light Sensor The IR-Cut sensor monitors lighting conditions and switches between color and
infrared modes accordingly.
5180°Camera Lens Provides a wide-angle view and streams/records video of your environment.
6 Status LEDs Indicates the camera’s current status.
7Microphone Records audio from the camera's environment.
1
2 3
4
5
6
7

8D-Link DCS-2670L User Manual
Section 1: Product Overview

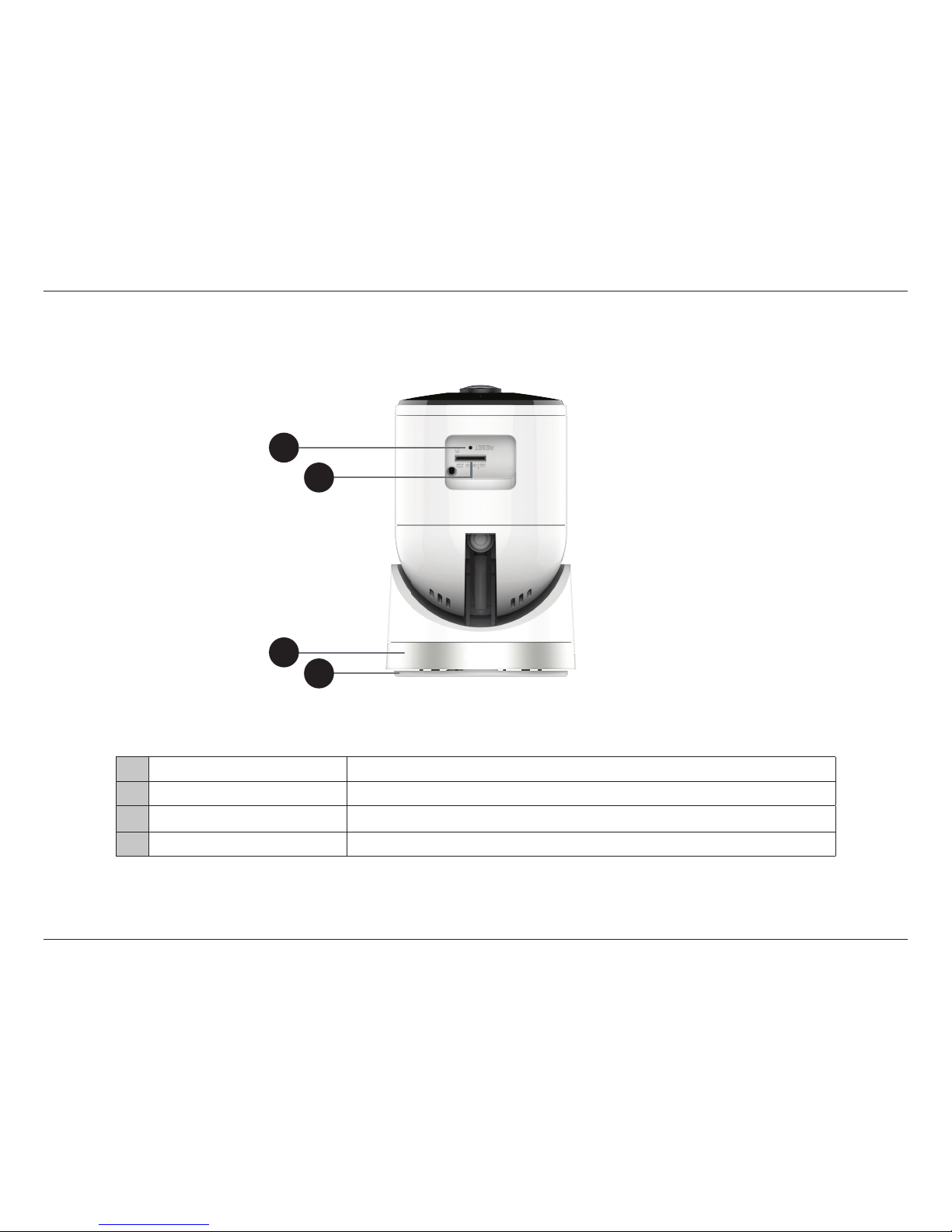

Rear View
1 Reset Button Press and hold this button for 10 seconds to reset the camera.
2 microSD Card Slot Insert a microSD card to record videos and images to the card.
3 Camera Base Rotate the camera base until you achieve your desired viewing angle.
4 Baseplate Use the baseplate to easily mount the camera to the surface of your choice.
1
2
34

9D-Link DCS-2670L User Manual
Section 2: Installation
Wireless Installation Considerations
The DCS-2670L connects to your network using a wireless connection from anywhere within the operating range of your wireless network. However,
the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges
vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your camera and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your camera’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.

10D-Link DCS-2670L User Manual
Section 2: Installation
Installation
You will need to connect the power adapter and an Ethernet cable before you can set up and use your camera. Follow the steps below to set up
your DCS-2670L.

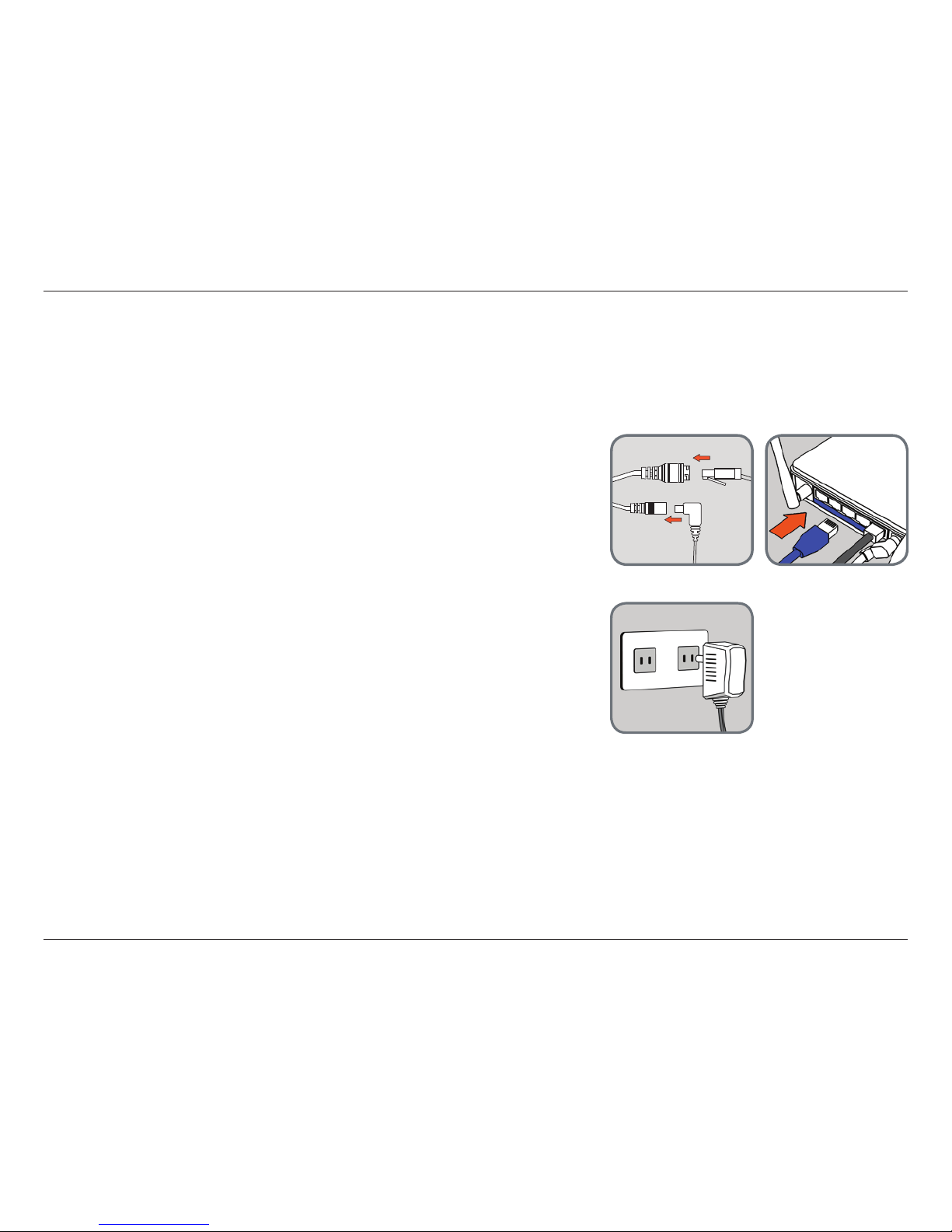

Step 1: Connect the Ethernet Cable and the Plug
Use an Ethernet cable and plug it into the camera. Connect the other end into an available LAN
port on your router. Connect one end of the included power adapter to the back of the camera.
Step 2: Plug the Power Adapter to a Wall Outlet
Plug the other end of the power adapter to a wall outlet to power on your camera.

11D-Link DCS-2670L User Manual
Section 2: Installation
Mobile App Setup
After installing the hardware, you can congure your camera through the mydlink Lite mobile app. On your mobile device, download mydlink Lite
by searching for mydlink Lite in the App Store or Google Play.
Launch the mydlink Lite app and create a new account or sign in to your existing account. Follow the onscreen instructions to set up your camera.

12D-Link DCS-2670L User Manual
Section 2: Installation

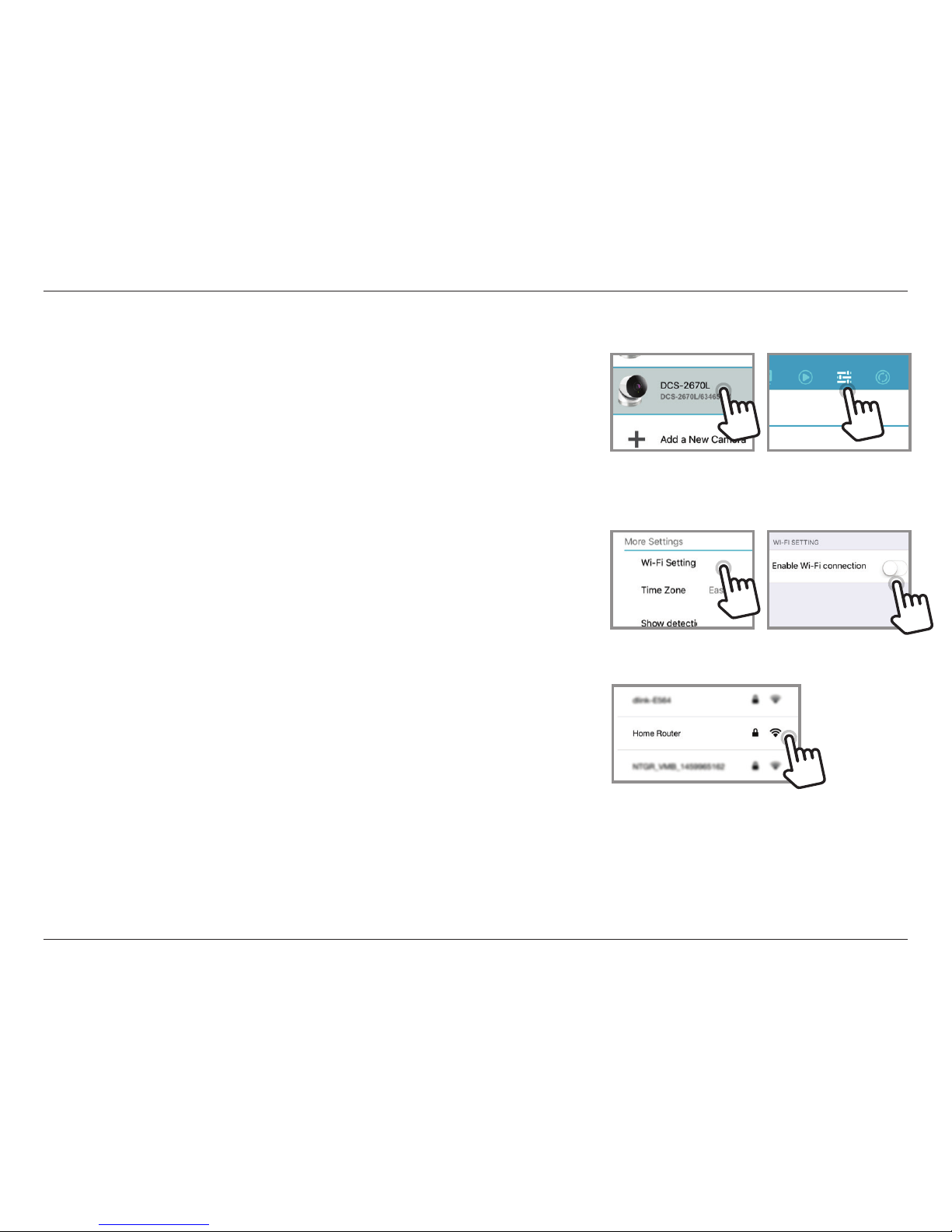

Step 1:
Once your camera is set up, select your camera and tap the Settings button.
Step 2:
Select Wi-Fi Setting and “Enable Wi-Fi connection”.
To connect your camera to your network wirelessly, follow the instructions below.
Step 3:
Select your wireless network and enter your password, then tap Apply.
Step 4:
You can now disconnect the Ethernet cable and move the camera to your preferred location.

13D-Link DCS-2670L User Manual
Section 2: Installation
mydlink

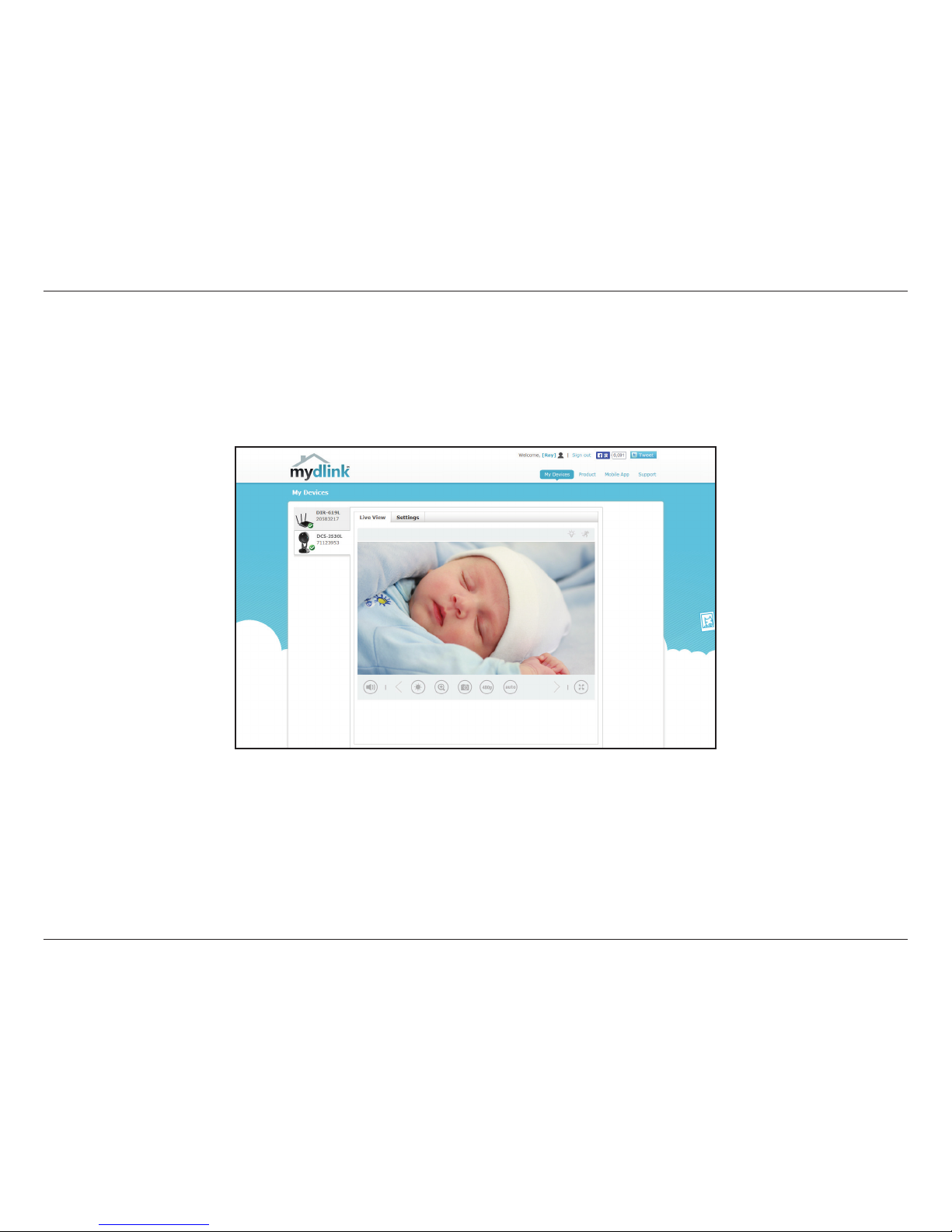

After registering your camera with a mydlink account, you will be able to remotely access your camera from the www.mydlink.com website. After
signing in to your mydlink account, you will see a screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User Manual section for
your product to nd the latest guides for your camera’s mydlink features.

14D-Link DCS-2670L User Manual
Section 2: Installation

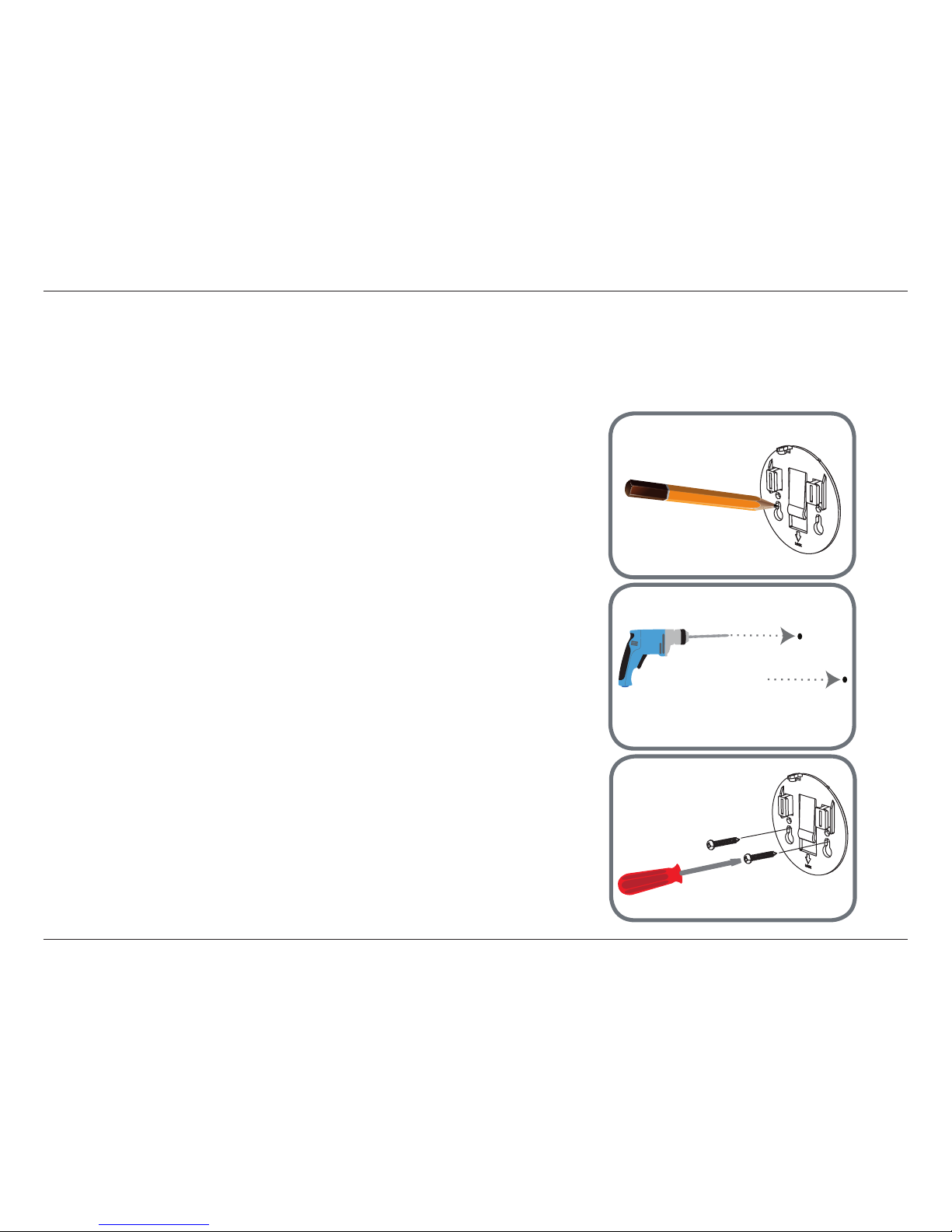

Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1:
Place the baseplate where you want to position the camera and use a pencil to mark the holes.
You can use the large holes for a removable installation, or the small holes for a xed one. Make
sure the lock arrow on the plate is pointing down.
Step 2:
Depending on the material of the wall or ceiling, use proper tools to drill holes 25 mm deep
with a 6 mm drill bit where you marked. If the wall is made out of concrete, drill the holes rst,
then insert the plastic anchors to support the screws.
Step 3:
Place the baseplate over the holes that are in the wall. Make sure to align the baseplate holes
with the holes in the wall. Use the supplied screws to attach the baseplate to the surface of
the wall.

15D-Link DCS-2670L User Manual
Section 2: Installation

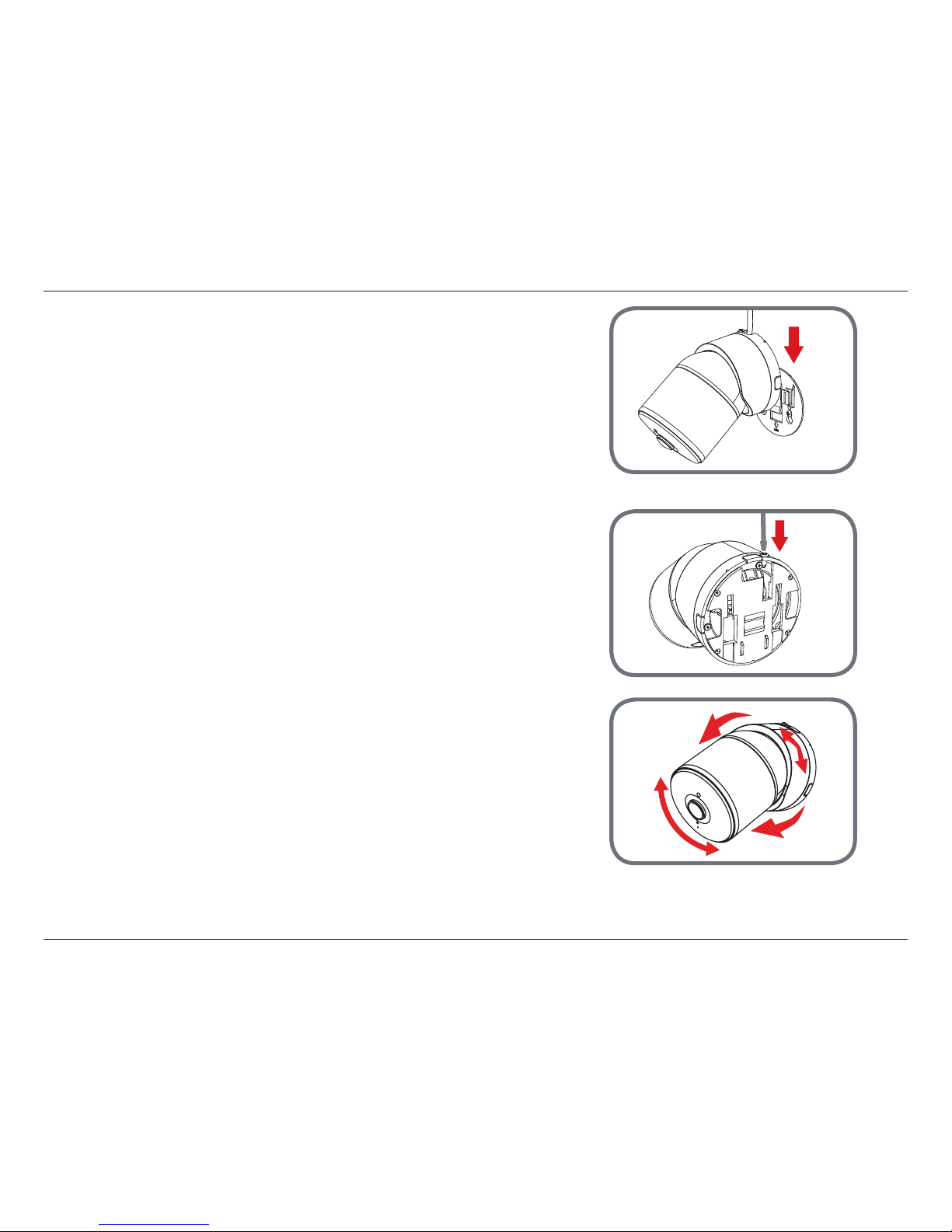

Step 4:
Place the camera over the baseplate and align the nub with the hole on the camera. Attach the
camera by sliding it in the direction of the arrow. Then screw the baseplate to the camera body.
Step 6:
Adjust the angles via the camera body and rotate the silver base until you achieve your desired
viewing angle.
Step 5:
Once the camera is secured to the baseplate, use a screwdriver to fasten the screw next to the
hole at the back of the camera body.

16D-Link DCS-2670L User Manual
Section 2: Installation
Waterproong Your Camera
After conguring your camera, follow the instructions below to prevent water from entering the camera's Ethernet and Power Cable connections.
Waterproong your connectors when using Wi-Fi:
Note: Due to its IP65 rating we recommend that you install your device under a roof or a shelter
to protect the Power and Ethernet connections from water seepage. However, the cables and
connections need to be located away from all potential water hazards.

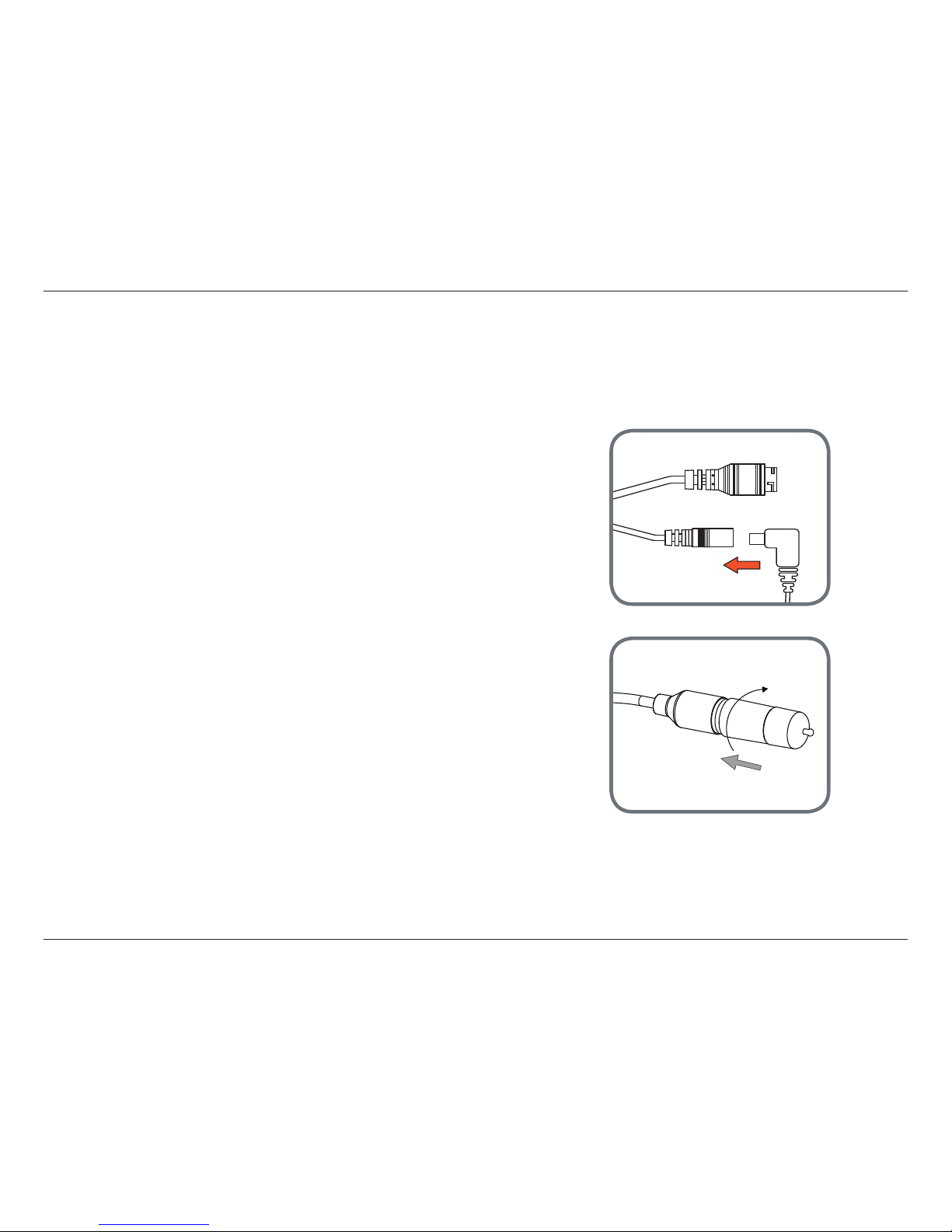

Step 1:
Plug the power adapter into the dongle.
Step 2:
To waterproof the Ethernet socket, align the cap according to the thread and twist it clockwise
to seal it.

17D-Link DCS-2670L User Manual
Section 2: Installation
Waterproong your connectors using electrical tape:
If you are using an Ethernet connection, follow the instructions below to prevent water from entering the camera's Ethernet and power cable
connectors.
Step 1:
Connect the power and Ethernet cables to their sockets.
Step 2:
Wind waterproof tape, such as butyl rubber or vinyl tape, around the individual cables and
connectors in a half-overlapping manner then wrap all the connectors together. Be sure to
cover all of the connectors and any unsheathed cables.
Note: Butyl rubber tape should be wrapped by stretching the tape to about twice its length,
and wrapping it around the cable. Failure to stretch the tape suciently will result in insucient
waterproong performance.

18D-Link DCS-2670L User Manual
Section 3: Conguration
Conguration
Accessing the Web Conguration Utility
After completing the setup wizard in the mydlink Lite app, you are ready to use your camera.
The camera’s built-in Web conguration utility is designed to allow you to easily access and
congure your DCS-2670L. Once it is set up, enter the IP address of your camera into a web
browser, such as Internet Explorer®. To log in, use the User name admin and the password you
created in the Installation Wizard. If you did not create a password, you will be prompted to
create one. Initially, you can log in using the default password, which is blank. After entering
your new password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on
a closed network, the default IP is 192.168.0.20.
Please make sure that you have the latest version of Java application installed on your computer
to ensure proper operation when viewing the video in Java mode. The Java application can
be downloaded at no cost from Sun’s web site (http://www.java.com).
When you connect to the home page of your camera, you may be prompted to download
ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must
download ActiveX.
DCS-2670L

19D-Link DCS-2670L User Manual
Section 3: Conguration

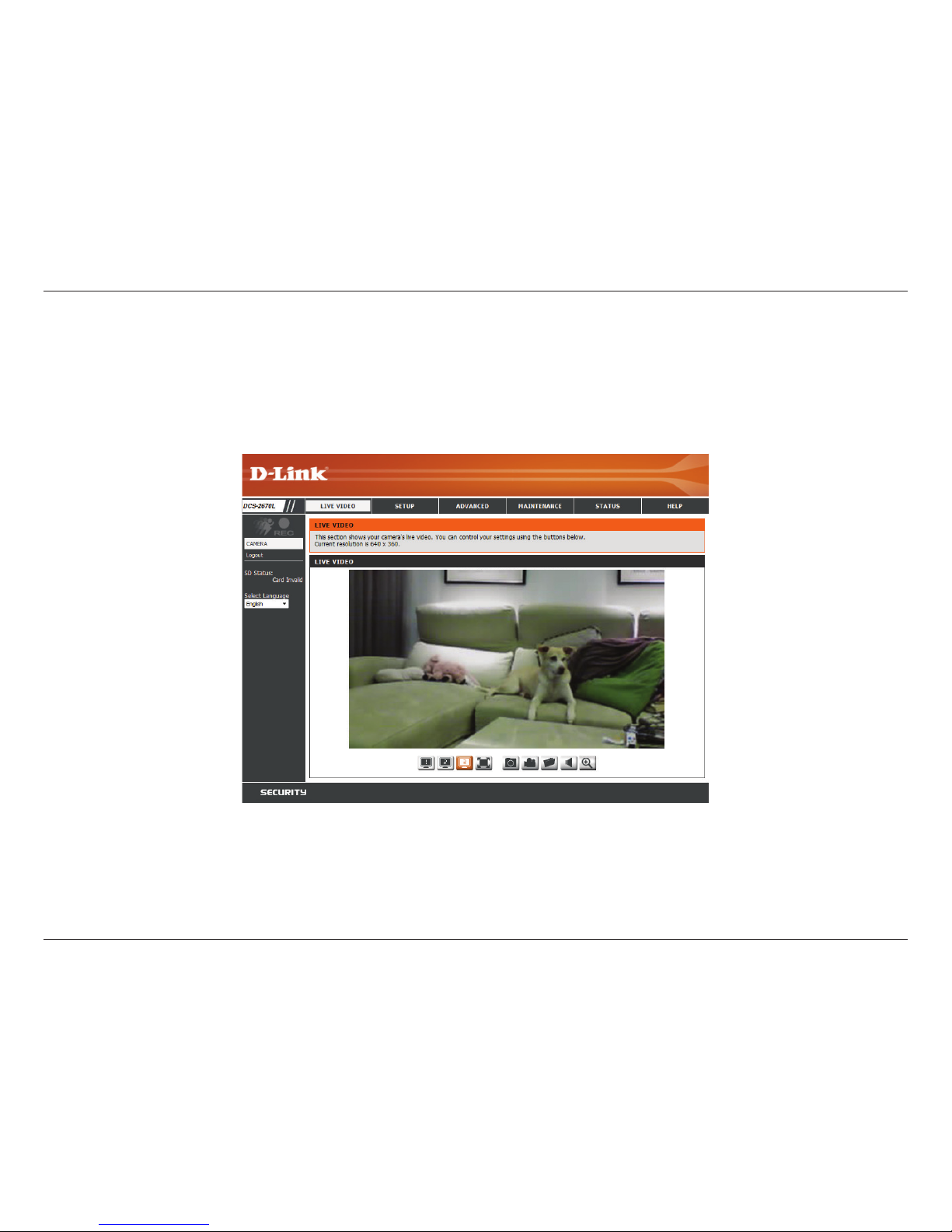

Live Video
The Live Video page lets you view the live video stream from your camera.
Please make sure that you have the latest version of Java installed on your computer to ensure proper operation when viewing the video in Java
mode. The Java application can be downloaded free from Sun’s web site (http://www.java.com).

20D-Link DCS-2670L User Manual
Section 3: Conguration

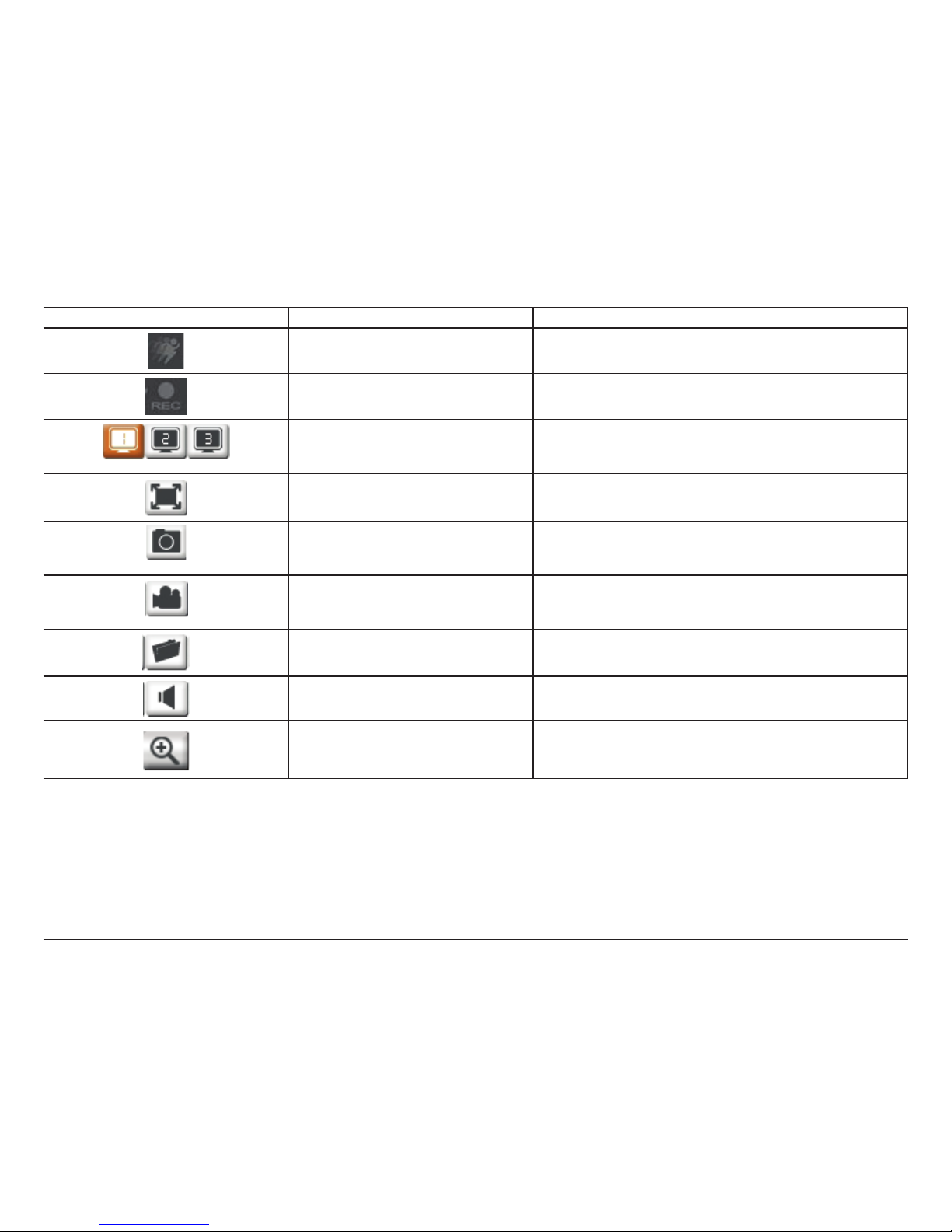

Icon Button Name Function
Event Trigger Indicator This indicator will change color when a trigger event occurs,
such as when motion or sound is detected.
Recording Indicator When a recording is in progress, this indicator will change
color.
Proles
Use these buttons to switch between video proles. Refer
to Audio and Video on page 33 for more information on
setting up proles.
Full Screen Switches to a full screen view of the camera video.
Snapshot
Takes a snapshot of the image currently displayed on the
screen and saves it to the hard drive in the folder specied
using the Storage folder button.
Video Recording
Triggers the camera’s recording function. This will record the
video displayed on the screen and saves it to the hard drive in
the folder specied using the Storage folder button.
Storage Folder Sets the storage folder for snapshots and video recordings.
Speaker Sends the audio received from the camera’s microphone
through to the PC’s speakers.
Magnify Use this button to zoom in on the live view stream.
