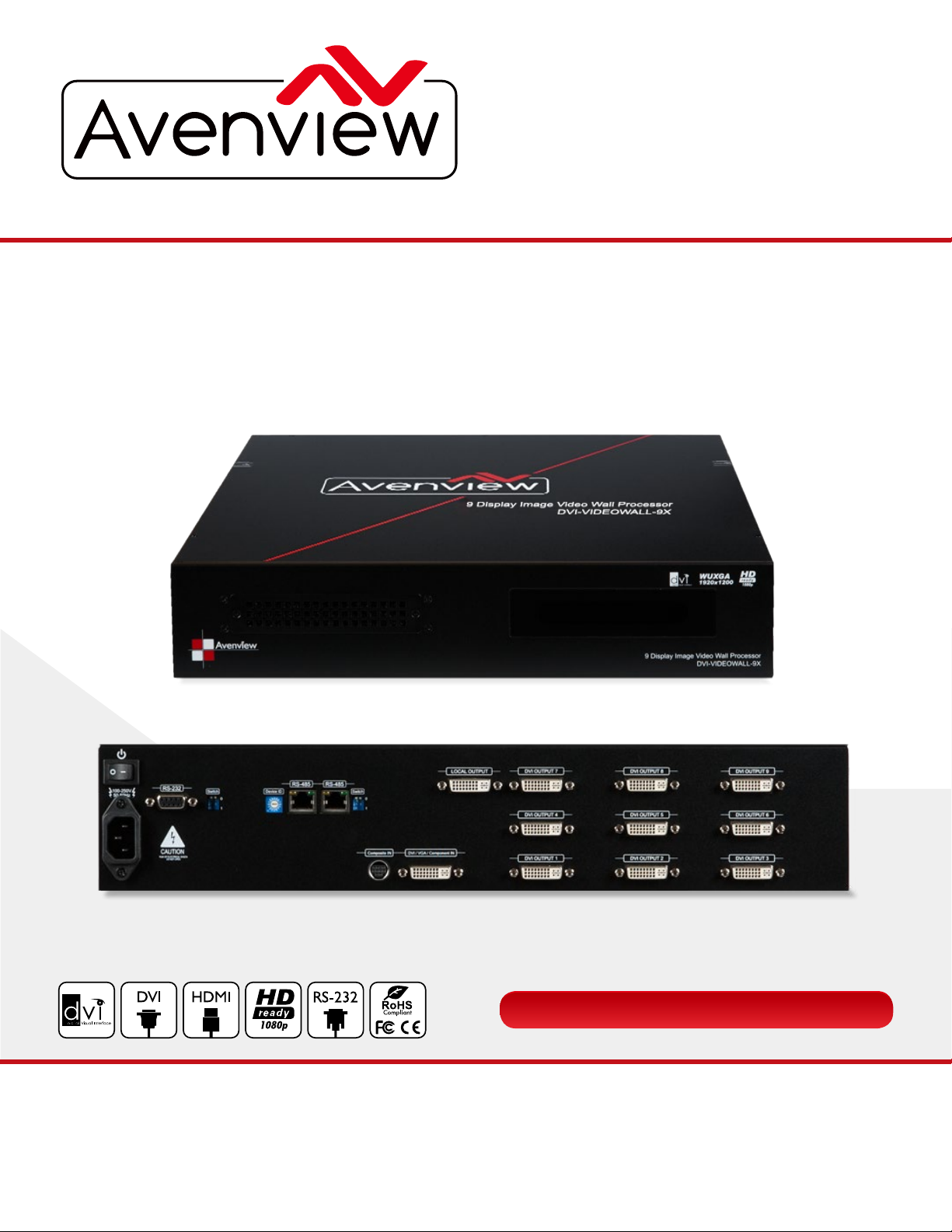

MODEL #: DVI-VIDEOWALL-9X

Military Residential
Medical Aviation
Education Industrial
Corporate House Of Worship
www.avenview.com
Product Application & Market Sectors

www.avenview.com Page 3
TABLE OF CONTENTS
1. GETTING STARTED......................................................................................................................1
1.1 IMPORTANT SAFEGUARDS................................................................................................1
1.2 SAFETY INSTRUCTIONS ....................................................................................................1
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ..........2
2. INTRODUCTION..........................................................................................................................3
2.1 PACKAGE CONTENTS .......................................................................................................5
2.2 BEFORE INSTALLATION.....................................................................................................6
3. PANEL DESCRIPTION ..................................................................................................................6
4. HARDWARE CONECTION ..........................................................................................................7
4.1 Unpacking .............................................................................................................................7
4.2 Placement .............................................................................................................................7
4.3 System Requirements............................................................................................................7
4.4 System Connection ...............................................................................................................7
5. SOFTWARE OPERATION .............................................................................................................8
6. SOFTWARE TOOLBAR .................................................................................................................9
Examples of 3 supported Videowall Functions.............................................................................10
7. OUTPUTCARDS CONFIGURE...................................................................................................10
8. EXAMPLE OF 2X2 VIDEOWALL SETUP....................................................................................12
9. CASCADING................................................................................................................................13
10. SUPPORTED RESOLUTION.......................................................................................................14
DVI-IN ..........................................................................................................................................14
DVI-OUT......................................................................................................................................14
11. GENERAL TROUBLESHOOTING ..............................................................................................15
12. SPECIFICATIONS ........................................................................................................................16

www.avenview.com Page 1
SECTION 1: GETTING STARTED
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
•Any product, on which the serial number has been defaced, modified or removed.
•Damage, deterioration or malfunction resulting from:
•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
•Repair or attempted repair by anyone not authorized by us.
•Any damage of the product due to shipment.
•Removal or installation of the product.
•Causes external to the product, such as electric power fluctuation or failure.
•Use of supplies or parts not meeting our specifications.
•Normal wear and tear.
•Any other causes which does not relate to a product defect.
•Removal, installation, and set-up service charges.
The Avenview DVI-VIDEOWALL-9X Display Video Wall Processor has been tested for conformity to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipment’s, the DVI-VIDEOWALL-9X
should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk
of damage to the unit.
!Do not dismantle the housing or modify the module.
!Dismantling the housing or modifying the module may result in electrical shock or burn.
!Refer all servicing to qualified service personnel.
!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
!Keep the module away from liquids.
!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
!Have the module checked by a qualified service engineer before using it again.
!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1.1 IMPORTANT SAFEGUARDS
1.2 SAFETY INSTRUCTIONS

www.avenview.com Page 2
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

www.avenview.com Page 3
The DVI-VIDEOWALL-9X has 9 output ports that are DVI/HDMI Compliant with Local output port to Monitor. This powerful
device has real time data/video processor for multiple flat panel displays or projectors. With the most flexibility on the input side,
the unit accepts DVI/HDMI, VGA, CVBS, S-Video, and YPbPr and splits the input onto the connected 9 displays.

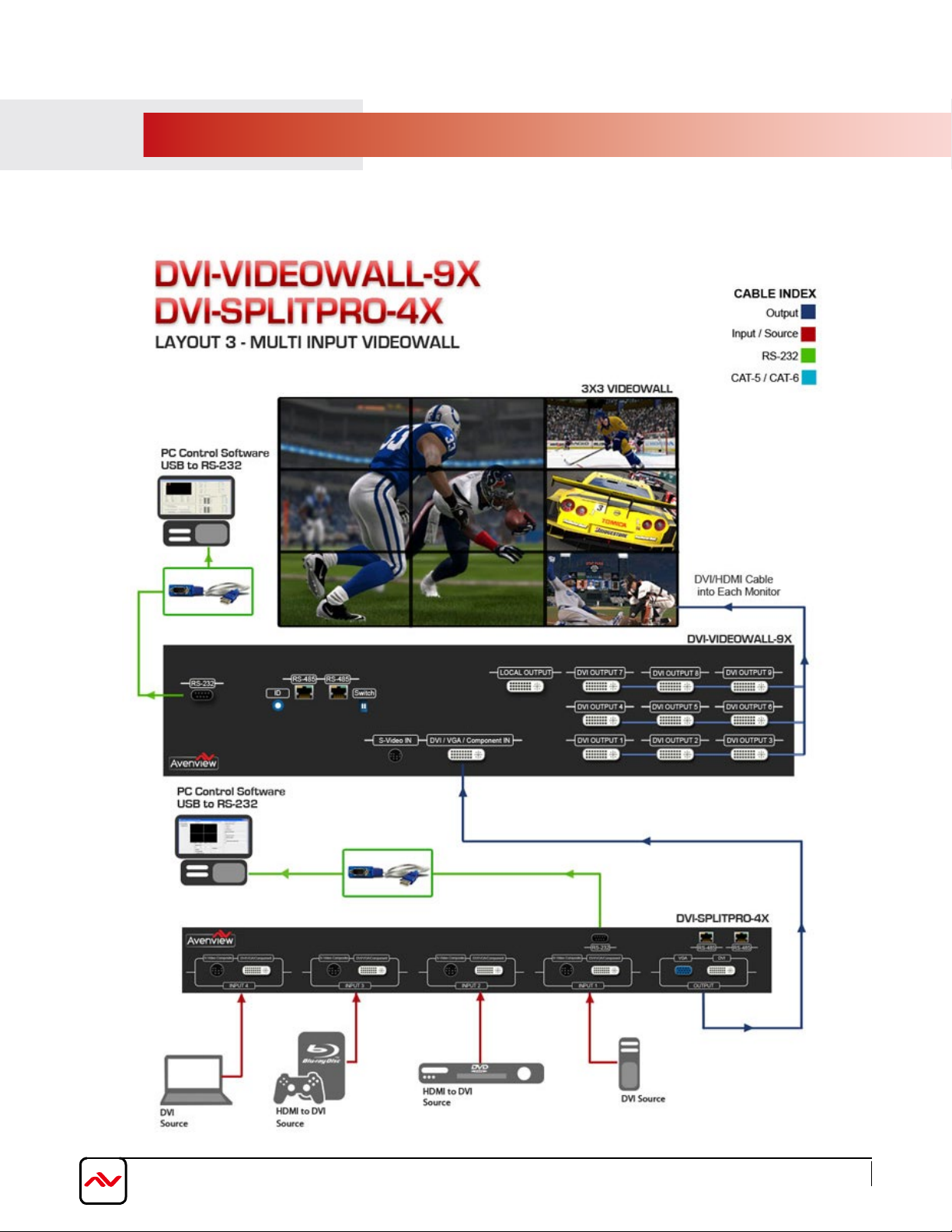

The DVI-VIDEOWALL-9X can display simultaneously 2 video inputs (1st Digital and 2nd Analog) from the front end Input port
together with the supplied Y cable. If you require Multiple Digital Inputs our DVI-SPLITPRO-4x is compatible with this unit. This
device handles Thru DVI transmission, the quality of the outcome videos is guaranteed. The output display is grained up to 255
by 255 squares. Virtually any setups for the display layout can be possible by the provided software.
The embedded mixer is an advanced video processor for multimedia presentations. It supports up to four popular types of
video inputs, of which two can be outputted simultaneously in Picture-In-Picture (PIP) or Picture-Aside-Picture (PAP) modes.
The DVI-VIDEOWALL-9X allows you to manipulate input videos, wherever position and whatever sizes you want for viewing.
The embedded scalar converts signals from input sources to match the native resolution of monitors, flat panel displays,
projectors as well as user-selectable output settings up to WUXGA (1920x1200).
The DVI-VIDEOWALL-9X sends the resulting mixed video thru DVI interface to the connected monitors/projectors based on
the display layout. The layout can be readily modified to fit your applications and optimize visual effects. Typical applications
include digital signage, and broadcasting/education/ surveillance systems etc.
- Nine DVI outputs from 640x480 to 1920x1200 with a local loop out for monitoring
- Supports HDMI, DVI, S-Video, CVBS, Component, and VGA input, from 640x480 to 1920x1200, interlaced or progressive
- Advanced video de-interlace for improving 480i and 576i SD video input
- PIP, PAB, Full screen modes and adjustable size& position through software
- Resize, position, flip, zoom output video
- Perfectly as a video screen splitter, a video converter and a video switcher
- Each DVI output has an independent controllable display area
- User-selectable output settings, up to 1920x1200
- Can be cascaded to obtain more displays
- Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
- Several Image parameters and layouts can be saved in computers and can be loaded for later use
- Software control through RS-232/RS-485
- Firmware upgradable for support of new features and technology enhancements
- Built-in factory reset switch
- 2U size
2. INTRODUCTION

www.avenview.com Page 4

www.avenview.com Page 5
Before you start the installation of the converter, please check the package contents.
1DVI-VIDEOWALL-9X X 1
2
Y CABLE –S-VIDEO TO S-VIDEO-CVBS X1
USER’S MANUAL X 1
INSTALLATION SOFTWARE CD X 1
DVI TO DVI CABLE
DVI TO DVI & VGA BREAKOUT CABLE X 1
COMPONENT TO VGA ADAPTER X 1
DVI TO VGA ADAPTER X 1
RS232 TO USB ADAPTER X 1
UL AC POWER CORD X 1
RACK-MOUNTING KIT -2 X 1
2.1 PACKAGE CONTENTS

www.avenview.com Page 6
2.2
•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
•Do not twist or pull by force ends of the DVI cable. It can cause malfunction.
3.1 INPUT PANEL (DVI-VIDEOWALL-9X) REAR
1. AC Power/Power Switch: AC 100-120V Power
On/Off Switch
2. RS-232: Device Control communication port
Via RS-232 Cable or USB to RS-232 (Supplied)
3. Dip Switch: UP Position - Normal operation
mode; Down Position - Firmware update mode
4. Device ID: To identify multiple units in cascade
mode
5. RS-485: Communication ports for cascade mode
6. Dip Switch: UP- Factory Default and RS-232
control Mode.
DOWN- RS485 mode (Cascade Function)
7. Input Port : Support Digital (DVI/HDMI) –Analog
(VGA) Simultaneously and S-video/Composite
8. Local Output Port: Shows the Input Image on
Local Monitor at device or extended.
9. Output Ports: DVI/HDMI compatible 9 output
ports to display/monitor
2.2 BEFORE INSTALLATION
3. PANEL DESCRIPTION
1 2 3 4 5 6 7 8 9

www.avenview.com Page 7
4.1 Unpacking
Remove the DVI-VIDEOWALL-9X from the Packaging and please examine the unit for any signs of shipping damage or missing
items (see package contents 2.1). All shipping items should be secured safely for future return for service. Returning the unit for
service not in the original box may result in voiding warranty or additional cost.
4.2 Placement
Please place the unit in a secure place and not to block the sides of this device or stack another device on the top or bottom of
the DVI-VIDEOWALL-9X.
4.3 System Requirements
The Avenview DVI-VIDEOWALL-9X includes Software Control program can be installed with the following Operating Systems
Windows XP / 2000 / Vista / 7 or later.
Connect the provide RS-232 to USB adapter to DVI-VIDEOWALL-9X and USB Port to your Windows based system that will
be used to configure the DVI-VIDEOWALL-9X. Once it is connected to USB Port, Windows will look for appropriate drivers. If
you are using an older version of Windows, then insert the Installation CD (provided) and have Windows search for drivers (you
may need to download latest drivers from Prolific’s website if you are using Windows Vista or Windows 7 or later).
4.4 System Connection
- We HIGHLY recommend quality cables for both input and output connections to ensure proper results.
- Power off the DVI-VIDEOWALL-9X and all devices that you want to connect.
- Connect 9 monitors, projectors or other displays that comes with DVI/HDMI inputs by using male-to-male DVI cables
or DVI to HDMI or HDMI to DVI to DVI-VIDEOWALL-9X DVI outputs.
- Connect a device equipped with DVI output (such as PC) to the DVI input connector of DVI-VIDEOWALL-9X.
- Switch on all devices connected and then control the display output through RS-232 and software.
- Power up the DVI-VIDEOWALL-9X and you can see Vacuum Fluorescent Display (VFD) on the front panel blinks.
Make sure the serial port (RS232) connection is secured.
- Click on the icon Avenview to start the control software
- When Avenview software is launched, let it automatically detect the device response from RS-232 port. The process
takes 5 – 15 seconds. If there is no response, a warning window will show up.
4. HARDWARE CONECTION

www.avenview.com Page 8
The possible reasons for the above error could be:
- No Power to DVI-VIDEOWALL-9X or it is in sleep state. Please check the power and restart the DVI-
VIDEOWALL-9X
- The serial connection is not well established. Please ensure that the Prolific drivers are properly installed and
all cables are securely connected. Check device manager, and ensure that RS-232 to USB Adapter is assigned a
COM Port # and there is no exclamation mark.
Please click on to manually chose your COM port # (to verify check Device Manager in your PC)
5. SOFTWARE OPERATION

www.avenview.com Page 9

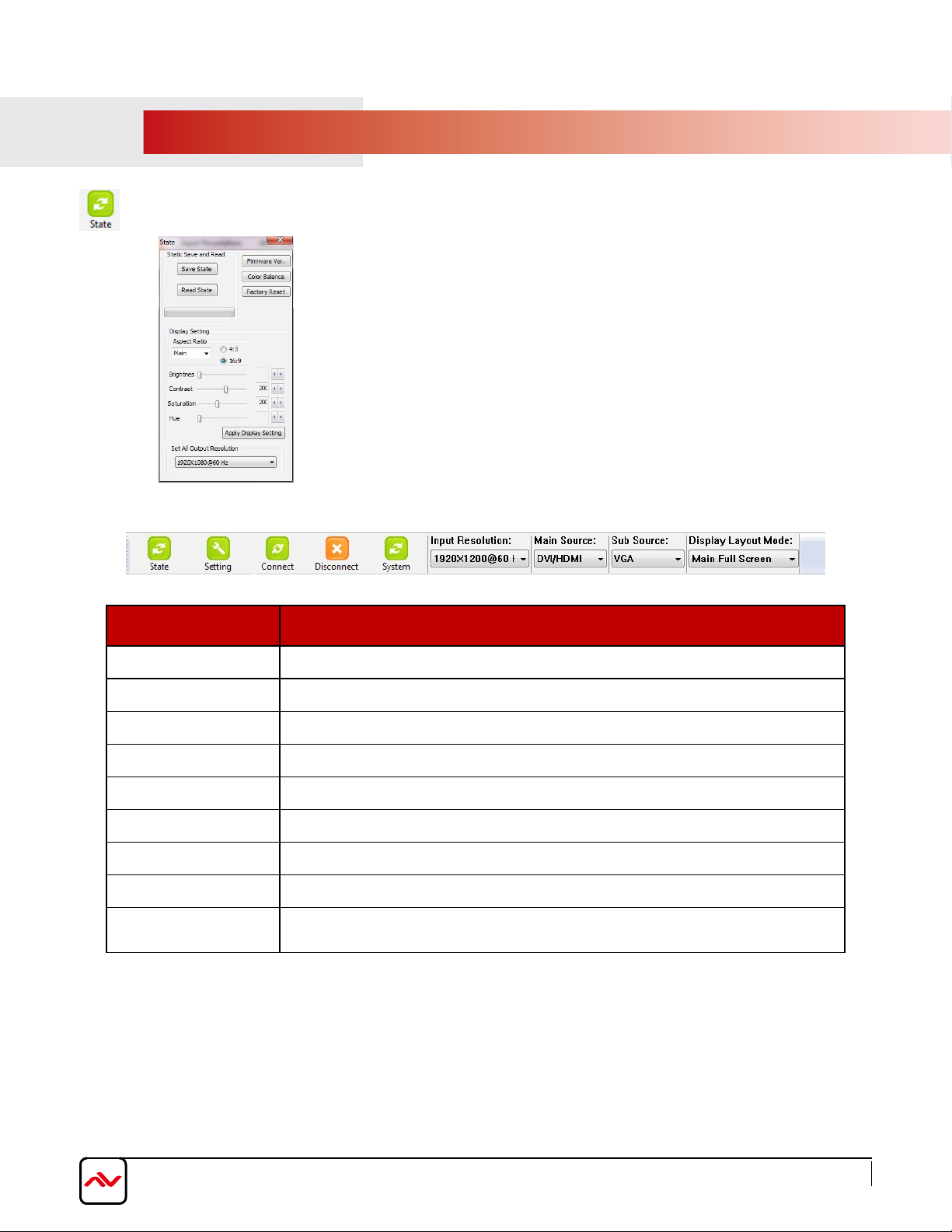

When the State Button is selected the user can perform global functions and configurations within the unit.
Overall State and Format Settings:
1. Save and Read: The current layout of the nine outputs can be saved to a file.
The file can be uploaded in the future to resume the settings.
2. Display Setting: The main and sub sources, both can be adjusted to 16:9 or
4:3 aspect ratio. The brightness and contrast of the mixed video also can be
adjusted for different requirement. After adjusting the settings, press Update
Setting to save the changes.
3. Firmware Ver.: Display the current firmware of the device.
4. Color Balance: The color of the video can be automatically adjusted. It only
works when the source is Analog and the mode is Full Screen.
5. Apply Display settings: This applies the changes selected by the user.
Button Name Description & Function
STATE Please refer to Section 6
SETTING Serial Port Setting –Select the correct COM Port for Connection to device.
CONNECT Once the correct COM port selected this button activates connection to device
DISCONNECT Disconnects communication to the RS232 port
SYSTEM Please refer to section 1.14 (System Control)
INPUT RESOLUTION Set the Input Resolution of the source 800x600@60Hz to 1920X1200@60Hz
MAIN SOURCE Choose which source will be the MAIN from CVBS\SVIDEO\VGA\DVI HDMI
SUB SOURCE Choose which source will be the SUB from CVBS\SVIDEO\VGA\DVI HDMI
DISPLAY LAYOUT
MODE
Choose your OUTPUT Layout Main Full Screen\Sub Full\PIP Mode\Side By
side\Custom
6. SOFTWARE TOOLBAR

www.avenview.com Page 10
Examples of 3 supported Videowall Functions
There are totally 9 channel outputs for DVI-VIDEOWALL-9X, and each output can be independently setup to display any area of
the input video. Each output can be with different output resolutions to adapt different combinations of monitors or projectors.
To select each individual Output to setup with preferable output, please click on the desired Output, and the control dialog
windows will show up accordingly.
1
7. OUTPUTCARDS CONFIGURE
Duplicate
PAP
PIP

www.avenview.com Page 11

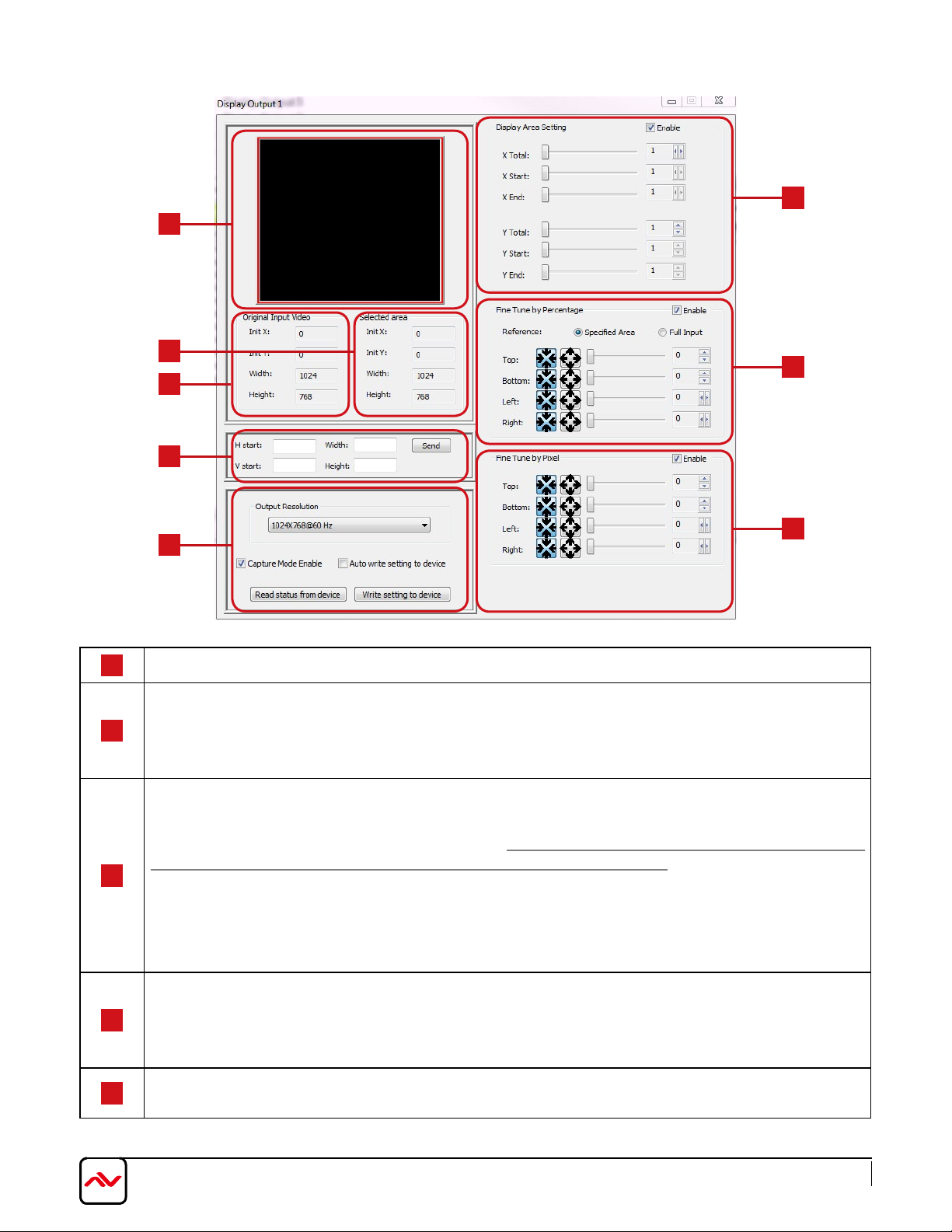

1This area demonstrates the resulting selection of the Input video to be display for the selected Output Channel.
2
“Original Input Video” shows the resolution information of the Input Video to each Output Channel. It varies up
the Input Video
“Selected Area” shows the information of the selected area to be displayed. The numbers will vary according to
different settings.
3
“Output Resolution” This section can set the output resolution for individual output channel. Notice that each
display can run at different resolutions to adapt more situations coming from different panels
“Capture Mode Enable” will enable parameters effective. IF USERS DISABLED THIS SELECTION, EACH OUTPUT
CHANNEL WILL DISPLAY SIMPLY THE FULL DISPLAY OF THE INPUT SOURCE.
“Auto Apply Settings” will automatically load the new settings into processor.
Clicking on “Read status from device” will show the current settings that Output card is configured.
Clicking on “Write Settings to device” will load the user parameters into the video processor.
4
User can directly configure each text field to set the area to display on the screen.
Remark: For each display, users can define which area of the input video is to be displayed. Please define the upper-
left (V Start, H Start) and its length (V length, H length) corners for each display channel. User can Press “SEND”
to confirm custom defined settings.
5Define X Total, Y Total, this section creates the user defined configuration for the Videowall setup Ex. 2x2, 3x3,1x4.
Users can view the resulting captured area to the Input video in Window to the left.
1
4
5
5
2
2
3
3

www.avenview.com Page 12
6
“Fine Tune by Percentage” provides the alternative to further adjust the position and area defined in section
5. For Outward Extension For Inward Shrink
By percentage, users need to determine what will be the reference. There are two choices for this part “Specified
Area” and “Full Input”. “Specified Area” will work more appropriately while users are dealing with panel masking,
because the overlapped masking area will be closed to specified area instead of full input video.
7
“Fine Tune by Pixel” offers similar approach to adjust the position and area of the Output channel. The idea behind
this section is the same as “Fine Tune by Percentage”. The difference is that the adjustment is based on Pixels. Users
can therefore adjust the Output Channel area by One Pixel increments
2x2 VIDEOWALL SETUP DVI OR HDMI
Hardware
Please connect DVI or DVI/HDMI cable Output 1 to Monitor 1
Please connect DVI or DVI/HDMI cable Output 2 to Monitor 2
Please connect DVI or DVI/HDMI cable Output 3 to Monitor 3
Please connect DVI or DVI/HDMI cable Output 4 to Monitor 4
Software
1. Click on Display Output 1
2. In display area setting set the X Total: 2 / Y Total: 2 for 2x2 Setup
8. EXAMPLE OF 2X2 VIDEOWALL SETUP
1
1
2
3
4
3
2
4
Note: Display Area
Setting Values

www.avenview.com Page 13
The Avenview DVI-VIDEOWALL-9X can be cascaded with as many as 255 DVI-VIDEOWALL-9X devices.
Example shows another model (4 Port Videowall) but same setup can be accomplished with 9 Port.
9. CASCADING

www.avenview.com Page 14
DVI-IN
SUPPORTED MODE RESOLUTION SUPPORTED MODE RESOLUTION
480P/525P 720x483 @60Hz MAC 832x624 @75Hz
480P (16:9) 960x483 @60Hz VESA 1024x768 @60Hz
576P/625P 720x756 @50Hz MAC 1024x768 @60Hz
(HDTV) 720p 1280x720 @50Hz VESA 1024x768 @70Hz
(HDTV) 720p 1280x720 @60Hz IBM 1024x768 @72Hz
(HDTV) 1080p 1920x1080 @30Hz VESA 1024x768 @75Hz
VESA 720x400 @85Hz MAC 1024x768 @75Hz
VESA 640x350 @85Hz VESA 1024x768 @85Hz
VESA 640x400 @85Hz VESA 1152x864 @75Hz
IBM 720x400 @70Hz MAC 1152x870 @75Hz
IBM 720x350 @70Hz SUN 1152x900 @66Hz
IBM 640x350 @70Hz SUN 1152x900 @76Hz
IBM 640x400 @70Hz VESA 1280x960 @60Hz
VESA 640x480 @60Hz VESA 1280x960 @85Hz
MAC 640x480 @67Hz VESA 1280x1024 @60Hz
VESA 640x480 @72Hz HP 1280x1024 @60Hz
VESA 640x480 @75Hz IBM 1280x1024 @67Hz
VESA 640x480 @85Hz HP 1280x1024 @72Hz
VESA 800x600 @56Hz VESA 1280x1024 @75Hz
VESA 800x600 @60Hz SUN 1280x1024 @76Hz
VESA 800x600 @72Hz VESA 1600x1200 @60Hz
VESA 800x600 @75Hz VESA 1920x1200 @60Hz
VESA 800x600 @85Hz
DVI-OUT
SUPPORTED MODE RESOLUTION SUPPORTED MODE RESOLUTION
(HDTV) 720p 1280x720 @50Hz VESA 1280x768 @60Hz
(HDTV) 720p 1280x720 @60Hz VESA 1366x768 @60Hz
(HDTV) 1080p 1920x1080 @60Hz VESA 1400x1050 @60Hz
VESA 640x480 @60Hz VESA 1400x1050 @50Hz
VESA 800x600 @60Hz VESA 1152x864 @75Hz
VESA 1024x768 @60Hz VESA 1600x1200 @60Hz
VESA 1152x864 @75Hz VESA 1920x1200 @50Hz
VESA 1280x1024 @60Hz VESA 1920x1200 @60Hz
10. SUPPORTED RESOLUTION

www.avenview.com Page 15
PROBLEM POSSIBLE SOLUTION
NO POWER
•Check if AC Power Cord is firmly plugged into DVI-VIDEOWALL-9X
• If you are recovering from Power Outage, leave the device OFF for a while and
then power it ON again.
OFF-CENTER
SCREEN IMAGE,
ODD COLORS OR
NO PICTURE
• Make sure all cables are in good working condition and properly connected DVI-
VIDEOWALL-9X.
• Configure the Output video resolution so that it doesn’t exceed the native
supported resolution of TV/Monitor/Projector (Display). Usually a message of
“Out of Range” is display on TV/Monitor.
• Every time you change the resolution of Input Source, wait 10 – 20 seconds. After
the resolution is changed, the selection of Input and the Display layout mode
will return to default. Adjust the Input source and Display Layout Mode to your
requirements again.
• VGA Source can take up to 10 Seconds before it is recognized
POOR QUALITY VIDEO
• We suggest you don’t use T-Connectors to split your video source into images
displayed on two difference screens. This lowers the Output video quality. Use a
distribution amplifier instead of T-Connectors
• Make sure the video source is not compressed and maintains the highest native
resolution
WRONG COLOR • Press “Color Balance” key in “State” for auto configuration.
POOR LINKING • When the linking of the Serial Control cannot work, reboot DVI-VIDEOWALL-
9X to establish the link.
11. GENERAL TROUBLESHOOTING

www.avenview.com Page 16
ITEM DESCRIPTION
MODEL DVI-VIDEOWALL-9X
UNIT DESCRIPTION 9 Display Video Wall Processor
VIDEO FORMAT SUPPORT
HDMI, DVI, VGA, Component, S-Video, Composite
(Only one Digital and one Analog can be input simultaneously)
DUAL OUTPUT SUPPORT DVI & VGA
LOCAL OUTPUT Yes
VIDEO BANDWIDTH
DVI (Single Link 4.95Gbps)
VGA (165MHz)
SUPPORTED RESOLUTIONS Up to 1920x1200@60Hz
AUDIO SUPPORT No
SYSTEM CONTROL RS-232 / RS-485
CASCADABLE Yes
INPUT TMDS SIGNAL 1.2 Volts (peak-to-peak)
INPUT DDC SIGNAL 5 Volts (peak-to-peak, TTL)
ESD PROTECTION
- Human body model — ±15kV (air-gap discharge) & ±8kV (contact discharge)
- Core chipset — ±8kV
INPUT CONNECTORS
DVI x 1
S-Video x 1
RS232 x 1
RS485 x 1
OUTPUT CONNECTORS DVI x 9
HDMI INPUT SELECTION
Push Button / IR Remote / RS232
Push Button / IR Remote
RCA CONNECTOR 75Ωfemale
DVI CONNECTOR DVI-I (29-pin female, digital only)
RJ45 CONNECTOR WE/SS 8P8C with 2 LED indicators
RS232 CONNECTOR DE-9 (9-pin D-sub Female)
DIMENSIONS (L X W X H) 17.75” x 17.25” x 3.5”
POWER SUPPLY AC Power 100~240V
POWER CONSUMPTION 60 Watt (max)
Environmental
OPERATING TEMPERATURE 32˚~ 104˚F (0˚to 40˚C)
STORAGE TEMPERATURE -4˚ ~ 140˚F (-20˚ ~ 60˚C)
RELATIVE HUMIDITY 20~90% RH (no condensation)
12. SPECIFICATIONS

TECHNICAL SUPPORT
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
AV Connectivity, Distribution And Beyond...
