Model #: HDM-C6IP4K-SET

Military Residential
Medical Aviation
Education Industrial
Corporate House Of Worship
www.avenview.com
Product Application & Market Sectors

www.avenview.com Page
3
TABLE OF CONTENTS
1. GETTING STARTED ..........................................................................................................................1
1.1 IMPORTANT SAFE GUARDS..............................................................................................................1
................................................................................................................1
1.2 SAFETY INSTRUCTIONS
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISIION (FCC) ........................... 2
2. INTRODUCTION ..............................................................................................................................3
.....................................................................................................................4 2.1 PACKAGE CONTENTS
2.2 BEFORE INSTALLATION ................................................................................................................... 4
2.3 APPLICATION DIAGRAM ..................................................................................................................5
2.4 PANEL DESCRIPTION ......................................................................................................................7
2.4.1 FRONT PANEL (SENDER/ENCODER, HDM-C6IP4K-S) ...
................................................7
2.4.2 REAR PANEL (SENDER/ENCODER, HDM-C6IP4K-S) .........................................................7
3. INSTALLATION (HDM-C6IP4K-SET) ...............................................................................................9
4. PC CONFIGURATOR .....................................................................................................................10
5. SPECIFICATIONS .............................. .............................................................................................19
6. TROUBLESHOOTING ....................................................................................................................20
2.4.3 FRONT PANEL (RECEIVER/DECODER, HDM-C6IP4K-R) ..................................................8
2.4.4 FRONT PANEL (RECEIVER/DECODER, HDM-C6IP4K-R) ..................................................8

www.avenview.com Page
1
SECTION 1: GETTING STARTED
1.1 IMPORTANT SAFE GUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
•Any product, on which the serial number has been defaced, modified or removed.
•Damage, deterioration or malfunction resulting from:
•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
•Repair or attempted repair by anyone not authorized by us.
•Any damage of the product due to shipment.
•Removal or installation of the product.
•External causes to the product, such as electric power fluctuation or failure.
•u se of supplies or parts not meeting our specifications.
•Normal wear and tear.
•Any other causes which does not relate to a product defect.
•Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The Avenview HDM-C6IP4K-SET, HDMI IP Matrix Decoder/Encoder has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the HDM-C6IP4K-SET should
be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage
to the unit.
! Do not dismantle the housing or modify the module.
! Dismantling the housing or modifying the module may result in electrical shock or burn.
! Refer all servicing to qualified service personnel.
! Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
! k eep the module away from liquids.
! Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
! Have the module checked by a qualified service engineer before using it again.
! Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1. GETTING STARTED

www.avenview.com Page
2
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with part 15 of the f CC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONlY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAl PARTS. THIS MAY RESULT IN El ECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WIll
VOID THE WARRANTY AND CONTINUED USE OF
THE PRODUCT
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON
A SURFACE, IT SHOULD BE IN A GROUNDED
ENVIROMENT.

www.avenview.com Page
3
2. INTRODUCTION
The Avenview HDM-C6IP4K-SET, HDMI IP Matrix Decoder/Encoder enables the extension, switching and composition of
real-time, uncompressed Ultra-HD AV signal with zero frame latency over 10 Gigabit Ethernet Switch, it receives the encoded
IP signal through LAN port and decodes video/audio signal out through HDMI interface, it also supports stereo de-embeding
and streaming resolutions up to 3840 x 2160@30Hz.
Point to Point - (Direct Connection with CAT5/6) - 328ft
Point to Multi - point with CAT5/6 requires a POE Network Switch which supports port based, IGMP v2.0 or above protocol.
for large application, we would recommend Dell Networking 5500 series, which use 2 HDMI port or 2 SFP port to cascade.
Matrix Function – with CAT 5/6 cable without any signal loss add multiple Sources to multiple encoders which links via LAN
by cascading any POE Gigabit Ethernet switches up to 3 layer network, to the decoder connected to the HD Monitors at
different locations on the Network. Transporting 4K or Full HD 1080p video and internally JPEG video compression adapts to
available network bandwidth if needed while retaining vivid picture with PCM audio.
- NOTE: The QUALITY and TRANSMISSION of the video signals depends on the characteristics and quality of the UTP cables
and Network Infrastructure . We recommend any Network Switches with 10GB POE IGMP v2.0 support . Tested and configured
on the below models
FEATURES:
- Uncompressed HDMI digital video signal up to 3840 x 2160@30Hz and 3D support;
- Supports 4K signal at 6 GbE and 1080P signal at 1.485GbE
- Lower end-to-end latency at 30ms;
- Supports point to point transmission, distance up to 100m with 4K signal;
- Supports point to multiple, multiple to multiple mode via 10GbE Ethernet Switch;
- Instant and seamless switching between Non-HDCP and same timing sources;
- Independent analog audio input and output at 2-channels, 24-bits@48KHz/channel;
- Supports Bi-directional IR;
- Supports Bi-directional RS232 With 10/100/GbE auto sensing port, for PC control and device upgrades;
- Control Software;
Other features include:

www.avenview.com Page
4

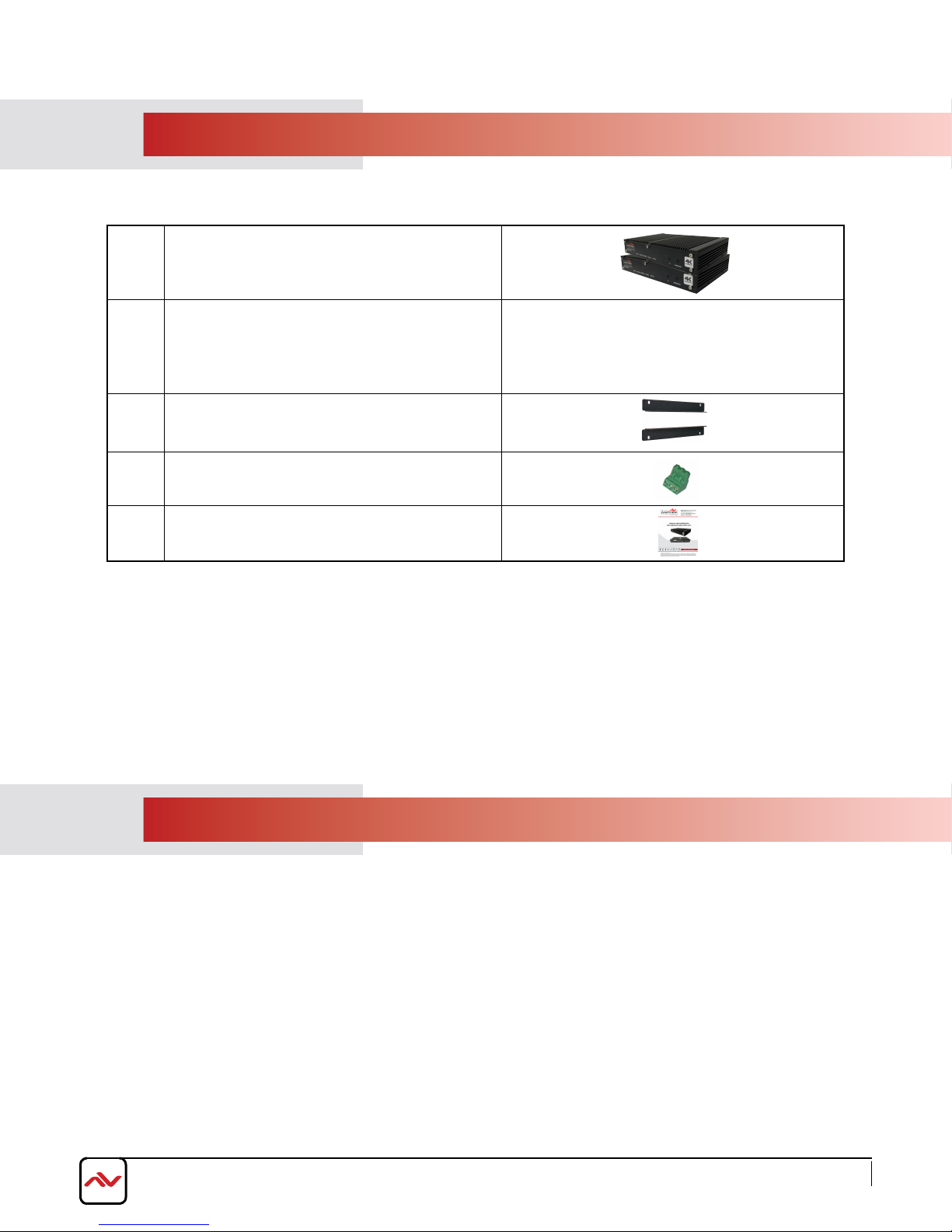

2.1 PACKAGE CONTENTS
Before you start the installation of the HDMI Extender, please check the package contents.
1HDM-C6IP4K-SET
(HDM-C6IP4K-S)
(HDM-C6IP4K-R)
X 2
2Power Brick (+12V DC 2A) + Power Cord X2
User Guide X 1
2.2 BEFORE INSTALLATION
•put the product in a level and stable location. If the product falls, it may cause damage or malfunction to components
within the casing.
•Do not place the product in temperatures under 0˚C or over 50˚C. High humidity may also cause the unit to malfunction.
•u se the DC power adapter with correct specifications supplied with the unit. If the improper power supply is used, this
may result in malfunction of the unit and may cause fire.
•Do not twist or pull by force the ends of the UTP cable. It will cause malfunction.
Right and Left Ear Rack Sets X4
Phoenix Connector (Male, 3.5 mm, 3 pins) X 1
3
5
6

www.avenview.com Page
5

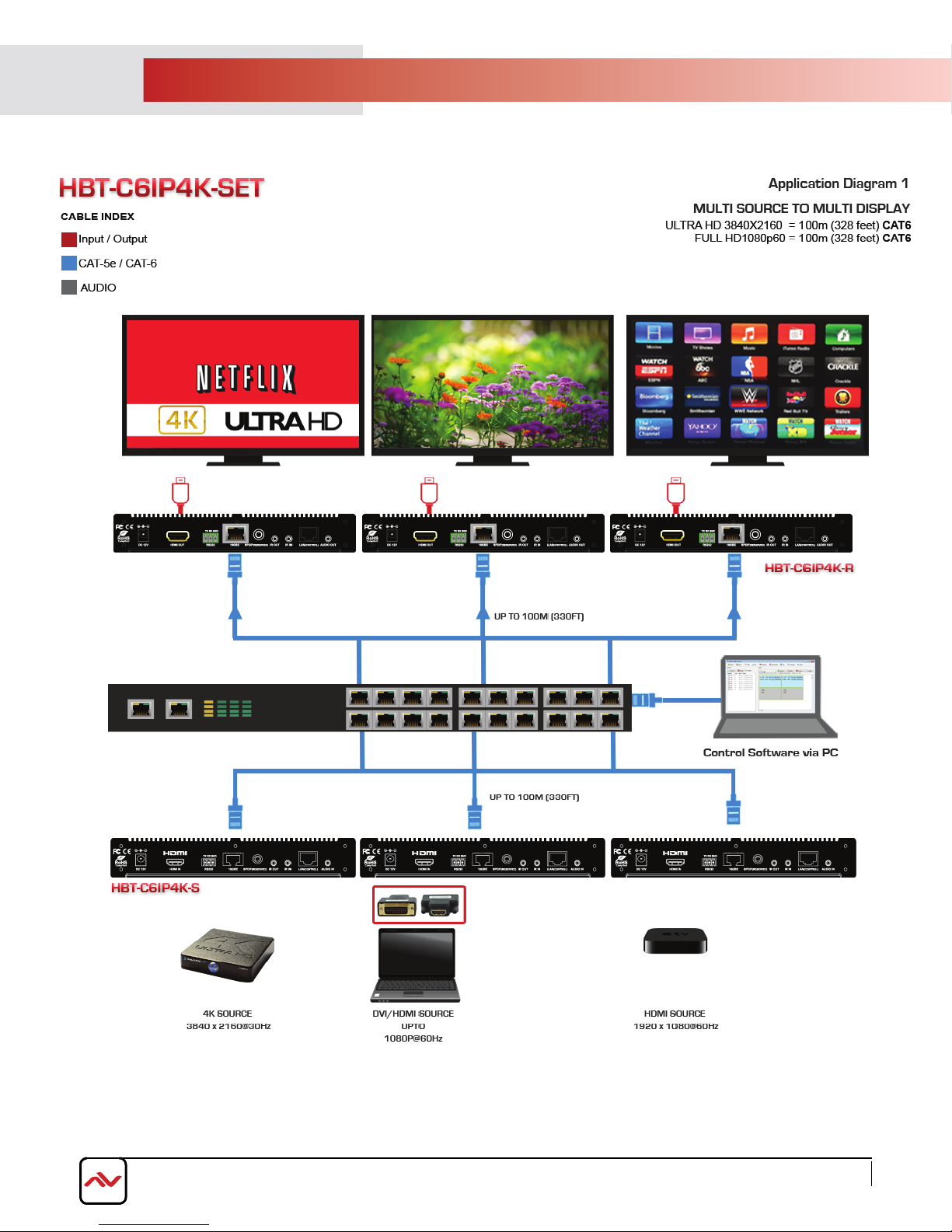

2.3 APPLICATION DIAGRAM

www.avenview.com Page 6

www.avenview.com Page
7
2.4 PANEL DESCRIPTION
2.4.1 FRONT PANEL (Sender/Encoder, HDM-C6IP4K-S)
2.4.2 REAR PANEL (Sender/Encoder, HDM-C6IP4K-S)
456
3
217
1. Power LED: Indicates if unit is ON or OFF
2. Link LED (HDMI): Light ON indicates unit is receiving signal
3.Reserved LED: Reserved for manufacturer future use.
4.Link RX LED: Light ON indicates unit is on but not communicating, Slow Blinking: Indicates Sender/
Receiver communication
5.Status Indicator LED: Light ON indicates unit is on but not communicating, Fast Blinking: Indicates Sender/
Receiver communication
6.P1: Reserved for future use
7.Reserved: Reserved for future use
8.Power Connector: Connects to a power supply,
DC 12V 2A.
9.HDMI IN: Connects to HDMI Source.
10.RS 232: Device bi-directional communication 11.RJ-45 Port: Connect to Sender (Point to Point)
Connect to 10 Gigabit switch
12.SPDIF: Reserved for future use.13.IR Out : Connects to an IR transmitter
14.IR In: Connects to an IR receiver
16.Audio Out: Connects to audio output device
15.RJ-45 LAN : Connects to network switch or PC for
upgrading and software control
910 11 12 14
13
8 15 16

www.avenview.com Page
8
2.4.3 FRONT PANEL (Receiver/Decoder, HDM-C6IP4K-R)
2.4.4 FRONT PANEL (Receiver/Decoder, HDM-C6IP4K-R)
8.Power Connector: Connects to a power supply,
DC 12V 2A.
9.HDMI Out: Connects to HDMI Display.
10.RS 232: Device bi-directional communication 11.RJ-45 Port: Connect to Sender (Point to Point)
Connect to 10 Gigabit switch
12.SPDIF: Reserved for future use.13.IR Out : Connects to an IR transmitter
14.IR In: Connects to an IR receiver
456
32 17
16.Audio Out: Connects to audio output device
15.
1. Power LED: Indicates if unit is ON or OFF
2. Link LED (HDMI): Light ON indicates unit is receiving signal
3.Reserved LED: Reserved for manufacturer future use.
4.Link RX LED: Light ON indicates unit is on but not communicating, Slow Blinking: Indicates
Receiver/Sender communication
5.Blinking: Indicates Receiver/Sender communication
6.P1: Press once to copy the connected HDMI display's EDID to all transmitters.*
7.Reserved: Reserved for future use
* If other display devices are not compatible with this display's EDID, these displays may not display picture properly.
Try replacing the display devices or press P1 buttons at the receivers to overcome this problem.
RJ-45 LAN : Connects to network switch or PC for
upgrading and software control
15
11 12 13 16
1098 14

www.avenview.com Page
9
3. INSTALLATION (HDM-C6IP4K-SET)
To setup Avenview HDM-C6IP4K-SET please follow these steps for connecting to a device:
1. Turn off all devices including monitors / TV.
2. Connect an HDMI source (such as a Blu-Ray Disc player or PC) to the Encoder HDM-C6IP4K-S.
3.
4.
5.
Connect CAT5/6 from Encoder to Decoder at the LAN port.
6.
7.
Ensure all cable connections are secure and not loose.
Plug in 12V DC power (supplied)
Power on HDMI Source.
Power on the HDMI display.
Connect an HDMI out from HDM-C6IP4K-R decoder to a Display/Monitor.
Connect Audio out to Speakers or Amplifier.
8.
9.

www.avenview.com Page
10
4.PC CONFIGURATOR
Before Using PC Configurator
Before using PC configurator, you need to set a static IP address on your computer and configure your operating system
firewall to allow this software to communicate on your network. This document takes software version

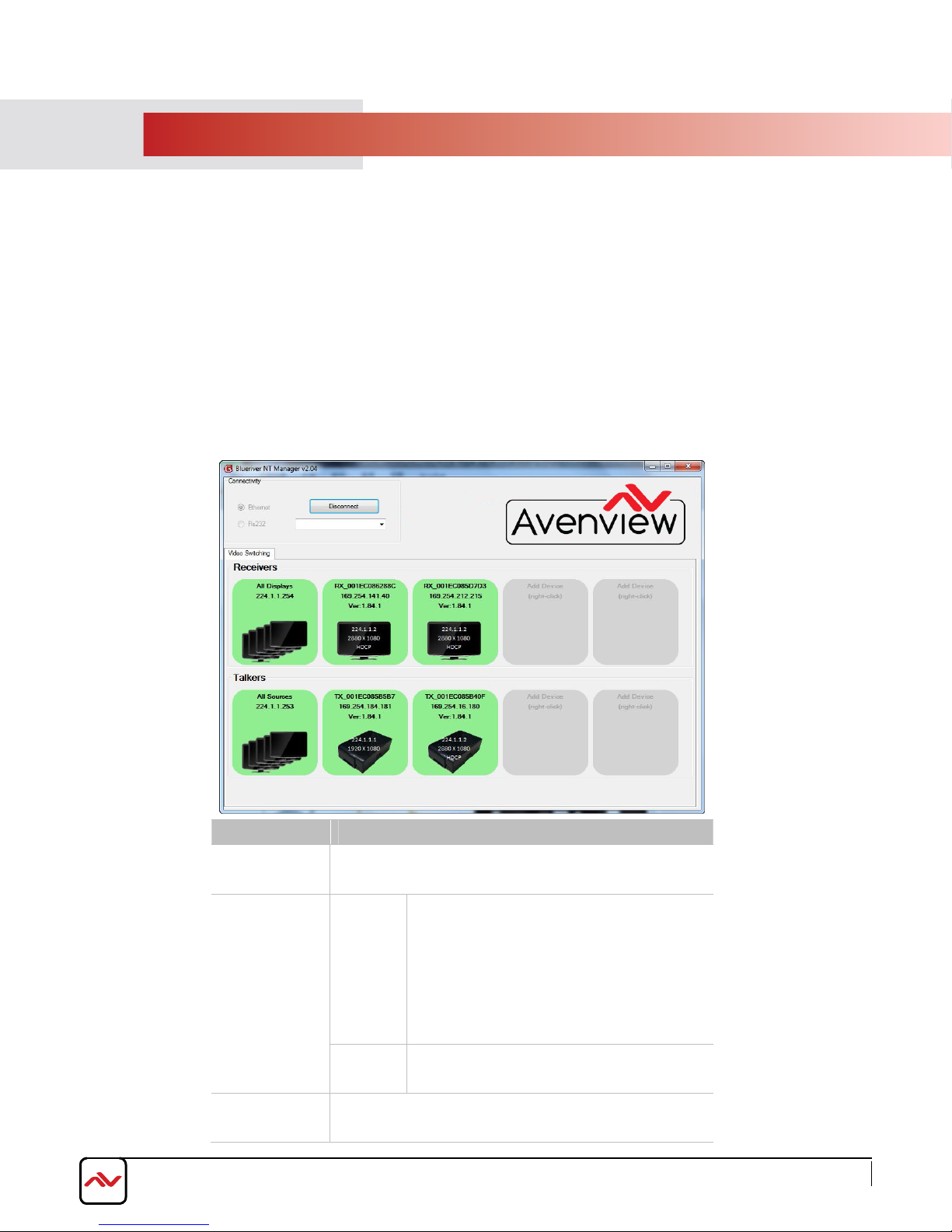

BlueriverNT_Manager_V2_04 as an example to introduce on how to switch between transmitters and receivers.
Notes:
It's recommended that you install PC Configurator in a computer runing Windows 7 or later.
Setting a Static IP on Your Computer
Before using PC Configurator, make sure that the IP address of your computer installed with this software, transmitter
and receiver are in the same network segment. Otherwise, this software may not communicate with transmitter and
receiver in the network. By default, the IP settings for transmitter and receiver are as follows: IP address is
169.254.X.X and subnet mask is 255.255.0.0. A computer running Windows 7 is used as an example to configure its
static IP address of the same segment.

www.avenview.com Page
11
1. Click Start.
2. Choose Control Panel > Network and Internet > Network and Sharing Center
> Change Adapter Settings, right click Local Area Connection, and then choose
Properties.
3. Double-click Internet Protocol Version 4 (TCP/IPv4).

www.avenview.com Page
12
4. Select Use the following IP address. After configuring the settings in the
following example, click OK.
IP address: 169.254.2.5
Subnet mask: 255.255.0.0
5. Click OK.
Configuring Your Operating System
Firewall

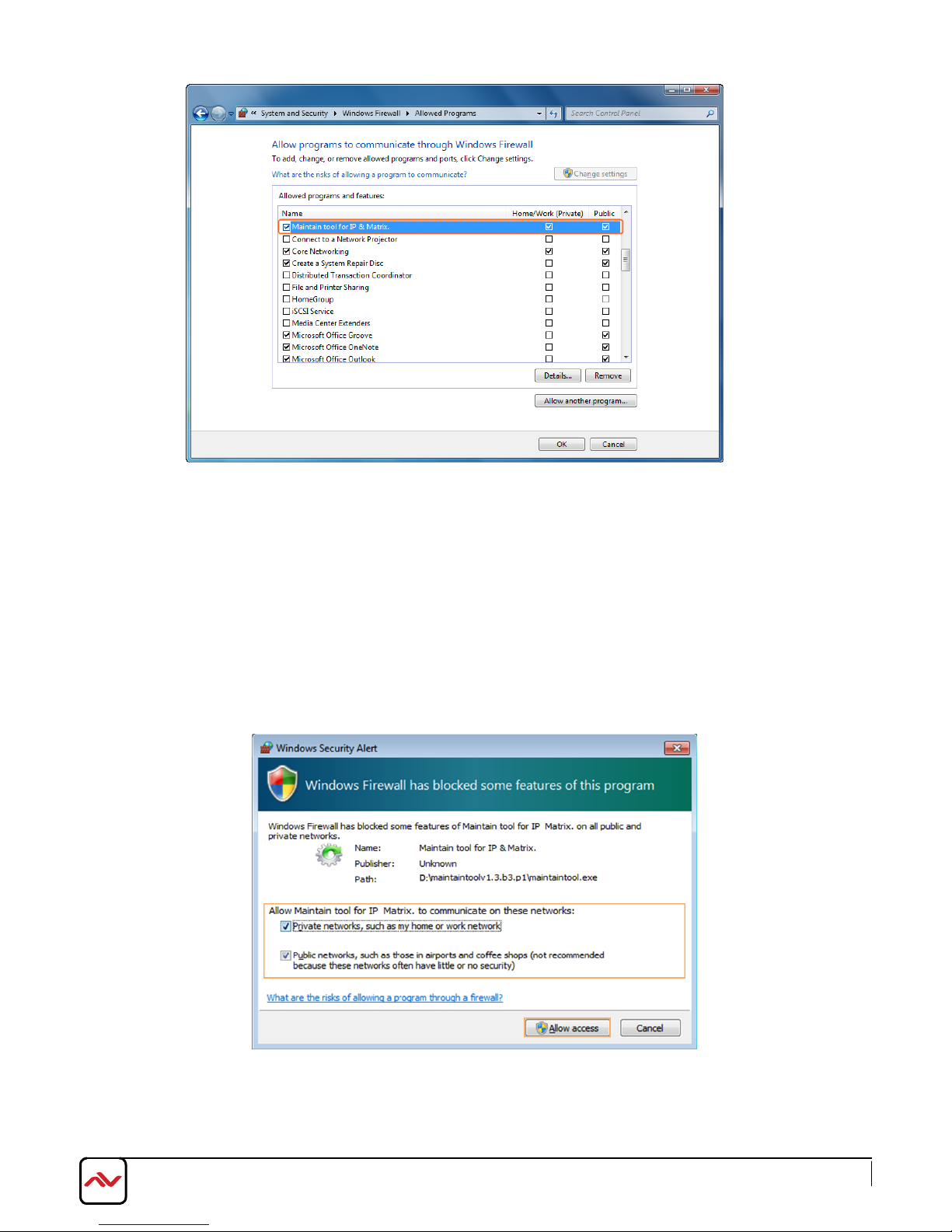

Your operating system firewall may block some features of MaintainTool and prevent it
from communicating with HDM-C6IP4K-S and HDM-C6IP4K-R. A computer running
Windows 7 is used as an example to configure your operating system firewall through
either of the following two approaches.
Method 1
You can configure the firewall in the Windows Firewall panel on your computer, for
example select both Home/Work (Private) and Public for Maintain tool for IP &
Matrix. For more information, see "Troubleshooting" section.

www.avenview.com Page
13
Method 2
You can also configure the firewall in the Windows Security Alert window. When starting
MaintainTool, the Windows Security Alert may display. If so, use the administrator
privileges to select a network you allow this software to communicate on, for example select
both private and public networks, and then click Allow access.

www.avenview.com Page
14
Starting PC Configurator
1. Set a static IP address on your computer and configure your
operating system firewall by referring to "Before Using PC
Configurator" on page 14.
2. Uncompress the RAR file of PC configurator.
3. Locate the BlueriverNT_Manager_V2_04.exe.
4. Double click it to start PC configurator.
Introduction to PC Configurator
GUI Element Description
Blueriver NT
Manager v2.04 Indicates the name of this software.
Connectivity
Ethernet
Click Connect to connect this
software to a network of
transmitters and receivers.
Click Disconnect to disconnect this
software from a network of
transmitters and receivers.
Rs232 Used for upgrading transmitters and receivers
via RS232 ports in the rear panels.
Video Switching Indicates a working place for switching between
transmitters and receivers.

www.avenview.com Page
15
GUI Element Description
Receivers
All Displays: indicates all the
displays.
224.1.1.254: indicates the
broadcast address.
Click this area box to view all the
transmitters and receivers in
Video Switching area.
Click and drag a transmitter's
area box from Talkers area to
this area box to make all the
displays to play the pictures from
the source device connected to
this transmitter.
GUI Element Description
RX: indicates it is a receiver.
001EC086288C: indicates the
MAC address of this receiver,
which can be found on the label of
the rear panel.
169.254.141.40: indicates the
IP address of this receiver.
Ver: 1.84.1: indicates the
current software version of this
receiver.
If the information similar to that in the
following list is displayed, it means
this receiver is connected to a
transmitter with a source device.
224.1.1.2: indicates the
multicast address.
2880 x 1080: indicates the
resolution of the source video
connected to the transmitter.
HDCP: indicates the source video
connected to the transmitter is
encrypted.

www.avenview.com Page
16
GUI Element Description
If a receiver area box contains a display
picture inside, it indicates this receiver is
connected to a display device. Otherwise,
no display device is connected.
Reserved for future version.
Talkers All Sources: indicates all the
sources.
224.1.1.253: indicates the
broadcast address.
Click this area box to view all the
transmitters and receivers in
Video Switching area.
TX: indicates it is a transmitter.
001EC085B40F: indicates the
MAC address of this transmitter,
which can be found on the label of
the rear panel.
169.254.16.180: indicates the
IP address of this transmitter.
Ver: 1.84.1: indicates the
current software version of this
transmitter.
If the information similar to that in the

www.avenview.com Page
17

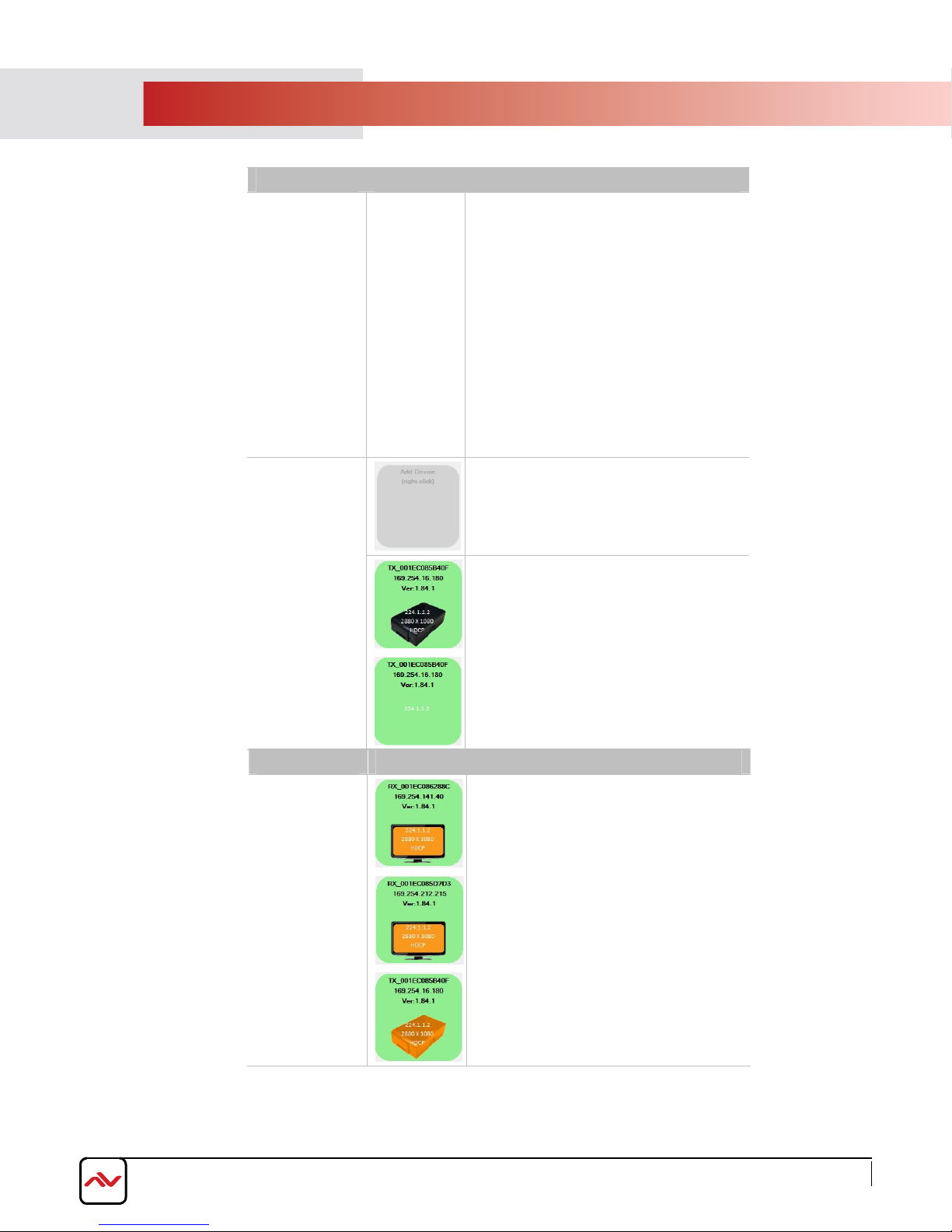

GUI Element Description
following list is displayed, it means
this transmitter is connected to a
receiver and a source device.
224.1.1.2: indicates the
multicast address.
2880 x 1080: indicates the
resolution of the source video
connected to this transmitter.
HDCP: indicates the source video
connected to this transmitter is
encrypted.
Reserved for future version.
If a transmitter area box contains a device
inside, it indicates that it is connected to a
source device. Otherwise, no source
device is connected.
GUI Element Description
After clicking an area box, if orange
devices appear, if their information such as
multicast address, resolution and HDCP
(optional) is the same, it means
transmitters in them are linked to the
receivers in them.
