Avermedia AVerAI AG411 User manual

1
AVerAI Carrier Board AG411 and Box PC AG411B
Designed for NVIDIA®JetsonTM AGX Xavier™ Modules
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: [phone]
Fax: [phone]
Sales and Marketing: Contact
Technical Support: Professional User

2
Table of Contents
Preface.........................................................................................................................................4
Disclaimer....................................................................................................................................4
Technical Support ......................................................................................................................4
Contact Enquiry .........................................................................................................................4
Download User Manual..............................................................................................................4
Revision History..........................................................................................................................4
AVerMedia Global Offices.........................................................................................................5
Limited Product Warranty........................................................................................................6
Copyright Notice.........................................................................................................................6
Trademark Acknowledgement..................................................................................................6
ESD Warning..............................................................................................................................7
1.0 Introduction ..........................................................................................................................8
1.1 Product Specifications..........................................................................................................9
2.0 Product Overview...............................................................................................................11
2.1 AG411 Compatible Cards..................................................................................................11

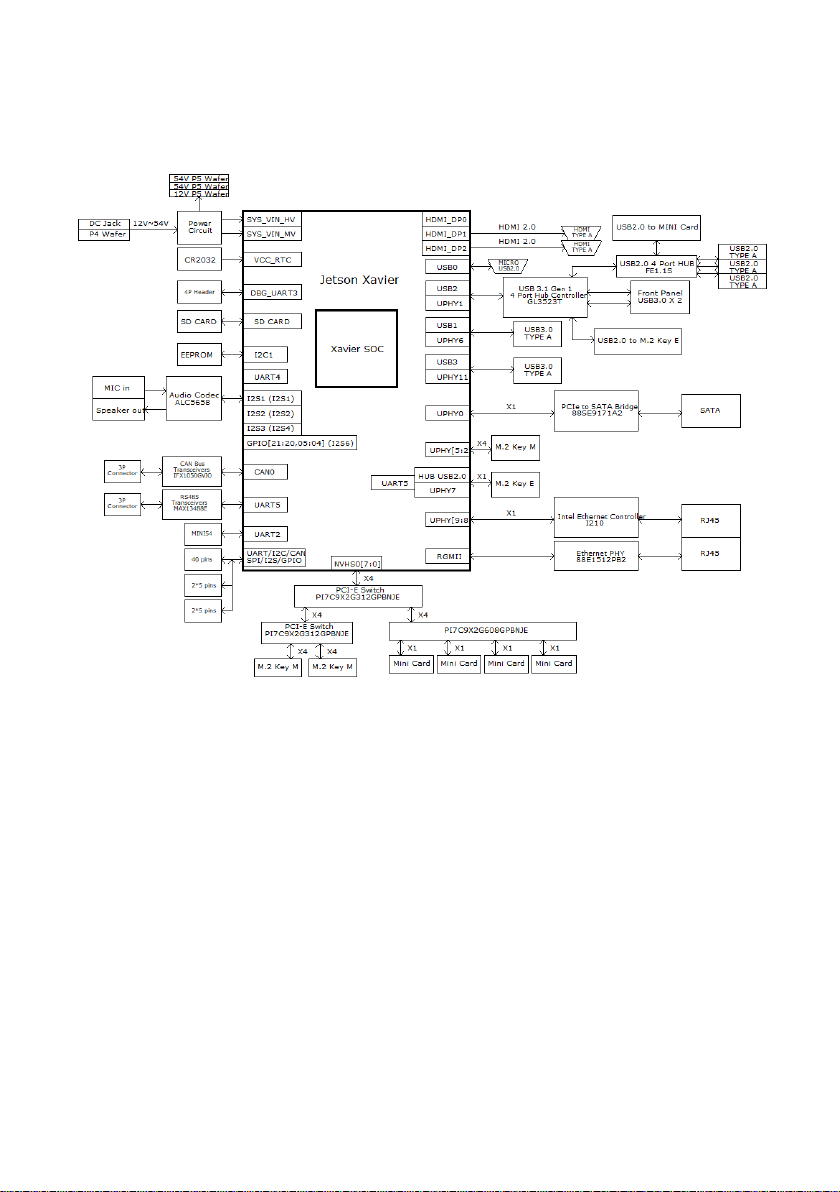

2.2 Block Diagram ....................................................................................................................12
2.3 Top View and Bottom View of AG411carrier board.......................................................13

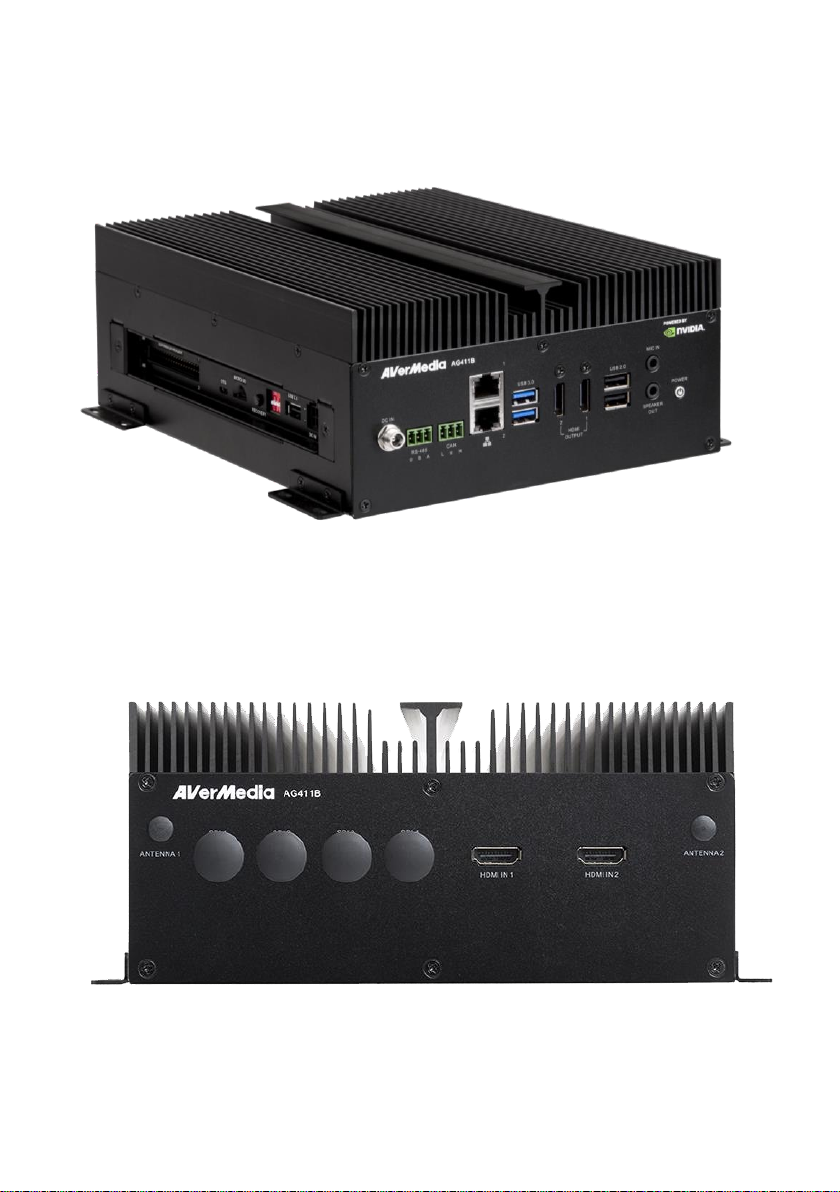

2.4 Front View and Rear View of AG411 BOXPC ................................................................14
2.5 Connector Summary ..........................................................................................................15
3.0 Feature Description............................................................................................................17
3.1 699 Pin High-Speed/High-Density Connector (for NVIDIA® Jetson™ AGX Xavier™
Module) .....................................................................................................................................17
3.2 RTC Battery Connector.....................................................................................................17
3.3 HDMI Output #A and #B...................................................................................................18
3.4 USB 3.1 Gen 1 Type-A Connector #1 and #2....................................................................18

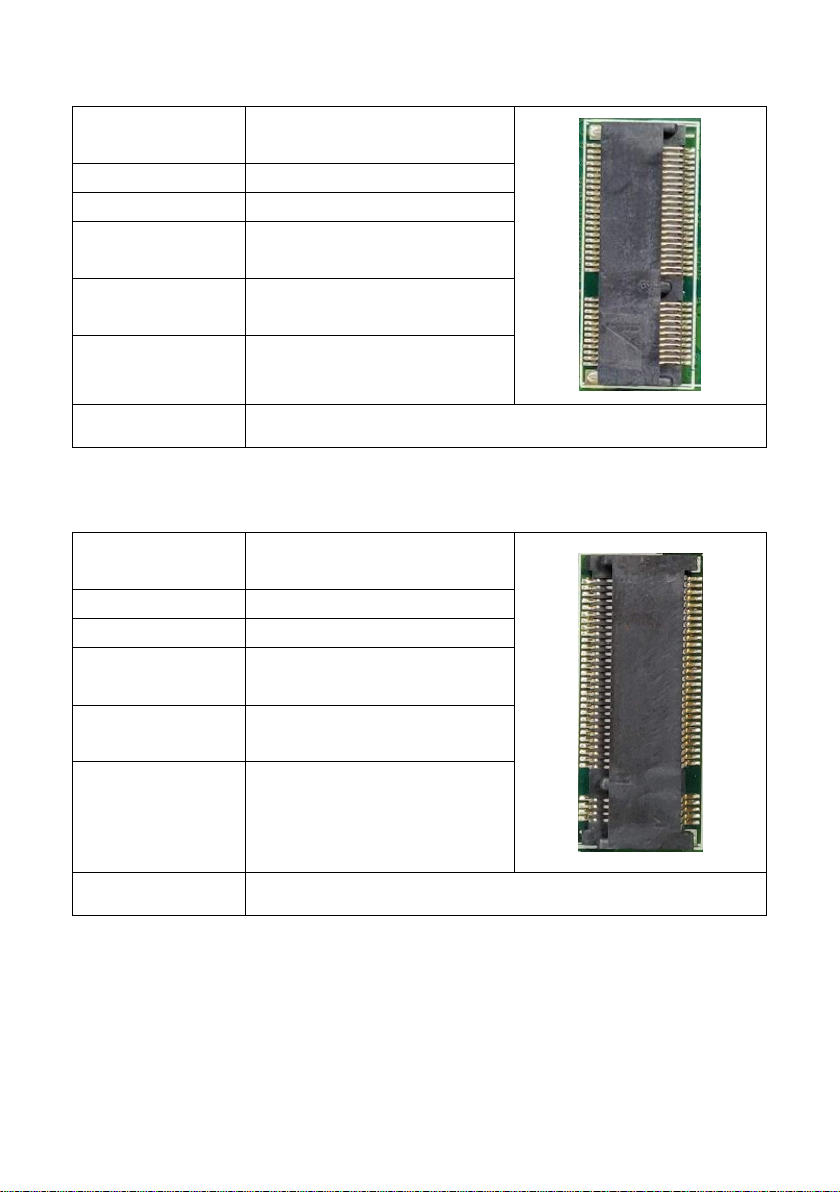

3.5 M.2 E Key Connector.........................................................................................................19
3.6 M.2 M Key Connector........................................................................................................19
3.7 OTG/USB Micro-Type Connector ....................................................................................20
3.8 Micro SD Card Reader Connector....................................................................................20
3.9 Gigabit Ethernet Connector ..............................................................................................20

3
3.10 40-Pin Expansion I/O Connector.....................................................................................21
3.11 50 SATA Connector..........................................................................................................22
3.12 M.2 M Key Connectors ....................................................................................................23
3.13 Connectors.........................................................................................................................23
3.14 DC IN Power Jack............................................................................................................24
3.15 4-Pin Female Power Connector.......................................................................................24
3.16 USB 2.0 Type-A Connector #1 and #2.............................................................................24
3.17 USB 2.0 Type-A Connector..............................................................................................25
3. 18 DIP Switch........................................................................................................................25
3.19 RS485 Connector..............................................................................................................26
3.20 CAN Bus Connector.........................................................................................................26
3.21 POWER on Button...........................................................................................................27
3.22 RECOVERY Button.........................................................................................................27
3.23Other Switches and Jumpers...........................................................................................27
4.0 Installation...........................................................................................................................28
4.1 BSP Setup Instructions.......................................................................................................28
5.0 Software...............................................................................................................................29
6.0 Power Consumption ...........................................................................................................32
7.0 Accessory Drawings............................................................................................................33
7.1 Power Adapter....................................................................................................................33
7.2 Power Cord .........................................................................................................................33
8.0 Dimension Drawings and Assembly Drawings.................................................................37

4
Preface
Disclaimer
The information contained in this user manual, including but not limited to any product
specification is subject to change without notice. AVerMedia assumes no liability for any
damages incurred directly or indirectly from any technical or typographical errors or omissions
contained herein or for discrepancies between the product and the user manual.
Technical Support
If you experience the difficulty after reading this manual and/or using the product, please
contact the reseller from which you purchased the product. In most cases, the reseller can help
you with the product installation and the difficulty you encountered.
In case the reseller is not able to resolve your problem, our highly capable global technical
support team can certainly assist you. Our technical support section is available 24 hours a day
and 7 days a week through our website, with the click here. For more contact information, you
may find it in the section of AVerMedia Global Offices.
Contact Enquiry
For more information of our products, pricing, and order placement, please fill in our inquiry
form here, we will contact you within 24 hours.
Download User Manual
Please click the link here to download the file of this user manual from AVerMedia website.
Revision History
Revision
Date
Updates
1.0
2021/7/9
First release.
2.0
2022/2/7
Detail Revised

5
AVerMedia Global Offices

6
Limited Product Warranty
AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's
opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its
option, repair or replace it at no charge, provided that the product has not been subjected to
abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
You may obtain the warranty service by delivering this product to an authorized AVerMedia
business partner or to AVerMedia along with the proof of purchase. Product returned to
AVerMedia must be pre-authorized by AVerMedia with an RMA (Return Material
Authorization) number marked on the outside of the package and sent prepaid, insured, and
packaged for the safe shipment. AVerMedia will return the product by prepaid shipment
service.
The limited product warranty is only valid over the serviceable life of the product. This is
defined as the period during which all components are available. Should the product prove to be
irreparable, AVerMedia reserves the right to substitute an equivalent product if available or to
retract the product warranty if no replacement is available.
The above product warranty is the only warranty authorized by AVerMedia. Under no
circumstances will AVerMedia be liable in any way for any damages, including any lost profits,
lost savings, or other incidental or consequential damages arising out of the use of, or inability
to use, such product.
Copyright Notice
The information contained in this document is subject to change without notice. AVerMedia
shall not be liable for errors contained herein or for incidental consequential damages in
connection with the furnishing, performance, or use of this material. This document contains
proprietary information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to another language without the prior
written consent by AVerMedia.
TrademarkAcknowledgement
AVerMedia acknowledges all the trademarks, registered trademarks, and/or copyrights referred
to in this document as the property of their respective owners. Not listing all possible
trademarks or copyright acknowledgments does not constitute the lack of acknowledgment to
the rightful owners of the trademarks and copyrights mentioned in this document.

7
ESD Warning
Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When
handling any circuit board assemblies including AVerMedia AVerAI products, it is highly
recommended that ESD safety precautions can be observed. ESD safe best practices can include,
but are not limited to the following ones.
1. Leave the circuit board in the antistatic package until it is ready to be installed.
2. Use a grounded wrist strap when handling the circuit board. At a minimum, you need to
touch a grounded metal object to dissipate any static charge, which may be present on you.
3. Avoid handling the circuit board in the carpeted areas.
4. Handle the board by the edges and avoid the contact with the components.
5. Only handle the circuit boards in ESD safe areas, which may include ESD floor and/or table
mats, wrist strap stations, and ESD safe lab coats.

8
1.0 Introduction
AVerMediaAVerAI AG411B includes one fully featured carrier board and one associated Box
PC’s which is all developed for NVIDIA®JetsonTM AGX Xavier™ modules. AVerAI
AG411_AG411B provides not only the access to a great list of latest interfaces on AGX
Xavier™ modules but also one RS-485 interface, one CAN bus with transceiver, and one RTC
battery as the function enrichment.
AG411B provides two M.2 Key M 2280 and three mPCIe slots alternatively for Xavier to
receive various video inputs by using AVerMedia’s capture cards. These two M.2 Key M 2280
and four mPCIe slots share four PCIe Gen2 lanes, so AG411_AG411B Box PC can provide
three different combinations for developers to install video capture cards alternatively, such as
two M.2 Key M 2280 slots, three mPCIe slots, or two mPCIe slots with one M.2 Key M 2280
slot.
By using AVerMedia’s extended video capture cards, Xavier is able to receive HDMI, VGA,
SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application
scenarios.
Operating with NVIDIA® JetsonTM AGX Xavier™ module and the rich I/O functions, AVerAI
AG411_AG411B is the perfect choice in building the high performanceAI edge computing
platform for the intelligent video analytics

9
1.1 Product Specifications
Model
AG411
AG411B
Type
Carrier Board
Box PC with Fanless
NVIDIA GPU SoC
Module Compatibility
NVIDIA® Jetson AGX Xavier™
NVIDIA® Jetson AGX Xavier™ 32GB
Networking
2x GbE (RJ-45)
2x GbE (RJ-45)
Display Output
2x HDMI 2.0
Maximum resolution: 3840 x 2160 at 60Hz
2x HDMI 2.0
Maximum resolution: 3840 x 2160 at 60Hz
Temperature
Operating Temperature -20°C ~ 85°C
Storage Temperature -40°C ~ 85°C
Relative Humidity 40 °C @ 95%,
Non-Condensing
Operating Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 85°C
Relative Humidity 40 °C @ 95%,
Non-Condensing
USB
1x USB 2.0 Micro-B for RNDIS & BSP
installation
2x USB 3.0 Type-A (USB3.1 x2)
3x USB 2.0
1x USB 2.0 Micro-B for RNDIS & BSP
installation
2x USB 3.0 Type-A (USB3.1 x2)
3x USB 2.0
Storage
32GB eMMC 5.1 & 1x micro-SD card slot
32GB eMMC 5.1 & 1x micro-SD card slot
RS-485
1x RS-485
1x RS-485
CAN bus
1x CAN bus with transceiver
1x CAN bus with transceiver
Expansion Header
40 pins: 1x UART, 2x 12C, 1x I2S, 1x SPI
1x CAN (W/O transceiver), 5x GPIO
40 pins: 1x UART, 2x I2C, 1x I2S, 1x SPI
1x CAN (W/O transceiver), 5x GPIO
User Expansion
1 x M.2 Key E 2230 for Wi-Fi module
(PCIe Gen4x 1)
1 x M.2 Key M 2280 for NVMe
(PCIe Gen4x 4)
2 x M.2 Key M 2280 (PCIe Gen2x 4) or
4x mPCIe Gen2 x1
1 x SATA
1 x M.2 Key E 2230 for Wi-Fi module
(PCIe Gen4x 1)
1 x M.2 Key M 2280 for NVMe
(PCIe Gen4x 4)
2 x M.2 Key M 2280 (PCIe Gen2x 4) or
3x mPCIe Gen2 x1
1 x SATA
DIP Switch Expansion
1. Auto power on enable/Disable
2. FAN PWM on enable/Disable
3. RS485 Terminal ON/OFF
4. CAN Bus Terminal ON/OFF
1. Auto power on enable/Disable (External)
2. FAN PWM on enable/Disable (External)
3. RS485 Terminal ON/OFF (External)
4. CAN Bus Terminal ON/OFF (External)
Input Power
12-54V
12-54V
Buttons
Power and Recovery (Power button with green
LED)
Power and Recovery (Power button with green
LED)

10
RTC Battery
Support RTC battery and Battery Life Monitoring
by MCU
Support RTC battery and Battery Life Monitoring
by MCU
Carrier board/ Chassis
Dimension
W: 170mm x L: 220 mm x H: 53 mm
W: 214mm x L: 240mm x H: 89mm
Carrier board/ Chassis
Weight
300g
4100g
Certifications
CE, FCC,KC
CE, FCC,KC

11
2.0 Product Overview
2.1 AG411 Compatible Cards
Model Name
CN311-H
CN312SW
CN312MN
Host Interface
PCIe Gen2 x2
PCIe Gen2 x4
PCIe Gen2 x4
Max Input
Resolution
4096x2160 30fps
2048x1080 60fps
2048x1080 60fps
Max Record
Resolution
4096x2160 30fps
1920x1080 60fps
1920x1080 60fps
Channel No.
1
2
2
Audio Interface
HDMI embedded
SDI embedded
SDI embedded
HDMI embedded
Video Interface
HDMI
SDI
HDMI
SDI
Color
Depth/Precision
8/10 bit
8 bit
8 bit
Color Format
YUY2, YUYV
YUY2, YUYV
YUY2, YUYV
Operating
Temperature
0°~40°C
-20°~70°C
0°~40°C
Dimensions ( LxW )
mm
22x80
22x80
22x80

12
2.2 Block Diagram

13
2.3 Top View and Bottom View of AG411 carrier board

14
2.4 Front View and Rear View of AG411B BOXPC

15
2.5 Connector Summary
PCB Code
Designation
Description
AG411
(Carrier
Board)
J1
699 pin high-speed/high-density connector (for NVIDIA®Jetson™
AGX Xavier™ module)
J3
RTC battery connector
J4
HDMI output connector #A
J5
USB 3.1 Gen 1 Type-A connector #1 and #2
J6
M.2 E Key Connector for WIFI
J7
M.2 M Key Connector for SSD
J8
Micro USB connector
J9
Micro SD card reader connector
J13
Gigabit Ethernet connector #1 and #2
J14
40 pin expansion header
J19
M.2 M Key Connector
J20
M.2 M Key Connector
J22
Mini Card (PCIe)
J23
Mini Card (PCIe)
J24
Mini Card (PCIe)
J25
Mini Card (PCIe)
J30
DC IN 12~54V power jack
BSW1
POWER button
BSW3
RECOVERY button
SW1
DIP Switch Expansion
J34
USB 2.0 Type-A connector
J31
DC IN ATX 4P
BJ2
RS485
BJ3
CAN bus
J33
USB 2.0 Type-A connector #1 and #2

16
J29
HDMI output connector #B
J12
SATA connector
AG411B Carrier Board Top View.
AG411B Carrier Board Bottom View.

17
3.0 Feature Description
3.1 699pin High-Speed/High-Density Connector (for NVIDIA® Jetson™ AGX Xavier™
Module)
Function
Provide connection with NVIDIA®
Jetson™ AGX Xavier™ module
Location
J1
Type Description
MOLEX 699pin socket
Manufacturer and
Part Number
MOLEX,203456-0003
Mating Connector
MOLEX,203456-0003
Pinout
Please refer to NVIDIA Jetson™
AGX Xavier™ and AGX Xavier™
System-on-Module datasheet for
pinout details.
Remarks
None
3.2 RTC Battery Connector
Function
RTC battery for module
Location
J3
Type Description
BATTERY HOLDER CR2032
Manufacturer and
Part Number
LOTES, AAA-BAT-054-P06
Mating Connector
CR2032
Pinout
Pin #
Description
1
3V Power
2
GND
Remarks
RTC Battery: MITSUBISHI, CR2032 3V

18
3.3 HDMI Output #A and #B
Function
HDMI output connector
Location
J4,J29
Type Description
HDMI Type-A female connector
Manufacturer and
Part Number
Compupack,
ACNHM210021-001
Mating Connector
Any HDMI standard Type-A
interface cable or device.
Pinout
Please refer to HDMI standard.
Remarks
None
3.4 USB 3.1 Gen 1 Type-AConnector #1 and #2
Function
USB 3.1 Gen 1 Type-A connector
#1 & #2
Location
J5
Type Description
Dual-port USB 3.1 Gen 1 Type-A
female connector
Manufacturer and
Part Number
Champway,
CU3B-AFR15U-096H
Mating Connector
Any USB 3.1 standard Type-A
interface cable or device.
Pinout
Please refer to USB 3.1 Gen 1
standard.
Remarks
None

19
3.5 M.2 E Key Connector
Function
Provide M.2 interface to connect
other 2230 M.2 E key devices.
Location
J6
Type Description
SOCKET_M.2-TYPE E_75PIN
Manufacturer and
Part Number
Aces, 51750-0750P-005
Mating Connector
Any M.2 E key 2230 card
standard interface device.
Pinout
Please refer to M.2 E key card
standard for the pinout details.
Remarks
None
3.6M.2 M Key Connector
Function
Provide M.2 interface to connect
other 2280 M.2 M key devices.
Location
J7
Type Description
SOCKET_M.2-M KEY_75PIN
Manufacturer and
Part Number
Aces, 51733-06702-012
Mating Connector
Any M.2 M key 2280 card
standard interface device.
Pinout
Please refer to M.2 M key card
standard for the pinout details.
Remarks
None

20
3.7 OTG/USB Micro-Type Connector
Function
OTG programming recovery
Location
J8
Type Description
USB micro-type B female
connector
Manufacturer and
Part Number
Fullglory, FG-MCB-111440
Mating Connector
Any USB standard Micro-type
interface cable or device.
Pinout
Please refer to USB Micro-type
standard.
Remarks
None
3.8 Micro SD Card Reader Connector
Function
Micro-SD card reader
Location
J9
Type Description
Micro-SD memory card
connector
Manufacturer and
Part Number
Champway,
MSPP-1014090RG-MN4
Pinout
Comply with Micro-SD card
standards.
Remarks
None
3.9 Gigabit Ethernet Connector
Function
1Gb dual-port Ethernet connector,
used to connect to the host
system.
Location
J13
Type Description
JACK_RJ45*2_TRANSFOMER
+LED
Manufacturer and
Aquatech,
