NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
AVerAI EN715 Carrier board and
NO111B/ TN111B/ NX211B Box PC
Apply to NVIDIA®Jetson Nano(Version B01)/ TX2 NX/ Xavier NX module
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing: Contact
Technical Support: Professional User

1
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
Table of Contents
Preface.............................................................................................................. 3
1.0 Introduction............................................................................................. 7
1.1Product Specifications __________________________________________________8
1.2OPTION ACCESSORY ______________________________________________ 10
2.0 Product Overview ...................................................................................11
2.1Block Diagram_________________________________________________________ 11
2.2Front View and Back View of Carrier board _______________________ 12
2.3Front View and Three-Quarter View of BoxPC ____________________ 14
2.4Connector Summary__________________________________________________ 16
2.5Switch Summary ______________________________________________________ 16
3.0 Feature Description............................................................................... 17
3.1Connector and Switch Locations_____________________________________ 17
3.2SerDes (V-by-One® HS)______________________________________________ 18

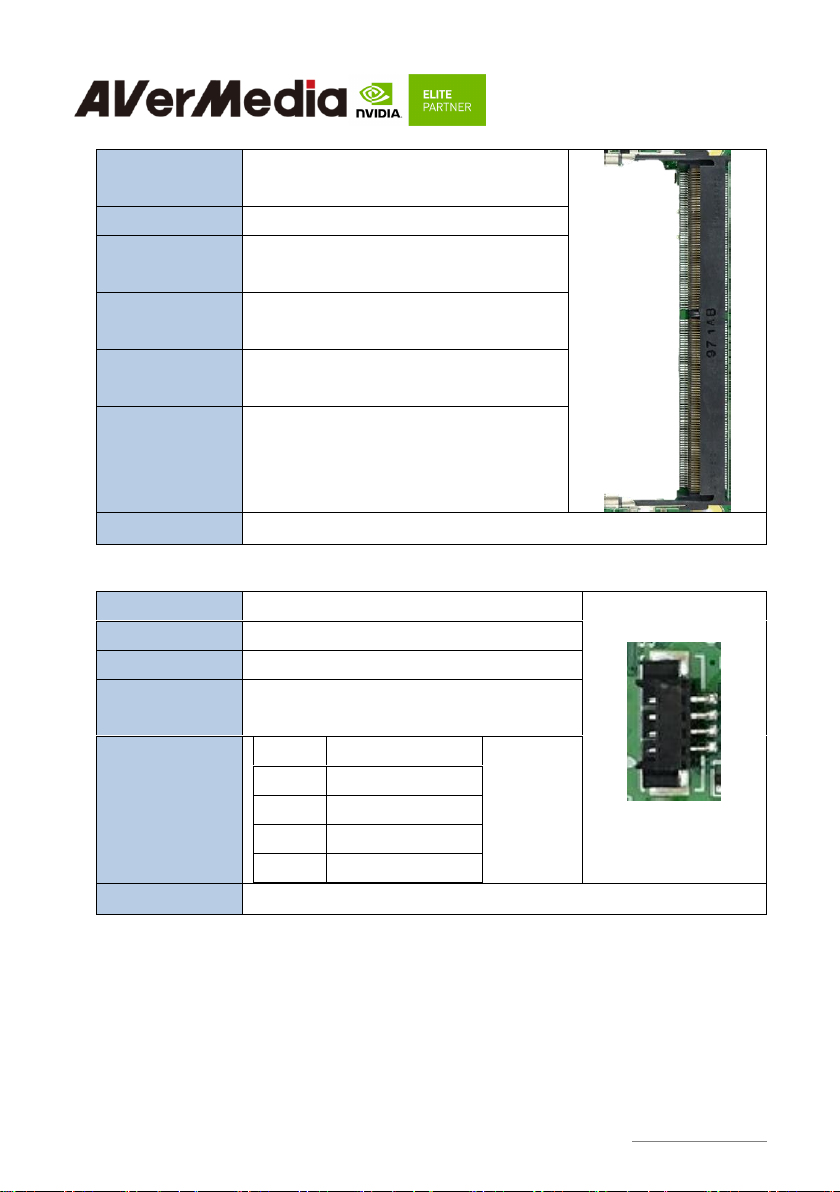

3.3Jetson module Connector_____________________________________________ 19
3.4Fan Power connector__________________________________________________ 19
3.5MIPI CSI-2 DPHY Lanes_____________________________________________ 20
3.6RTC Battery Connector ______________________________________________ 22
3.7USB Micro-Type Connector__________________________________________ 22
3.820-Pin GPIO expansion_______________________________________________ 23
3.9Power Supply Connector _____________________________________________ 26
3.10 Gigabit Ethernet Connector _______________________________________ 27
3.11 USB 3.1 Gen 1 Type-A Connector #1 and #2 _____________________ 28
3.12 HDMI OUTPUT____________________________________________________ 28
3.13 Optional Function Selection _______________________________________ 29

2
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
3.14 Micro SD Card Slot_________________________________________________ 29
3.15 Other Switches and Jumpers ______________________________________ 29
4.0 Installation............................................................................................. 30
4.1BSP Setup Instructions _______________________________________________ 30
5.0 Software................................................................................................. 31
6.0 Force Recovery Mode............................................................................ 31
7.0 Power Consumption .............................................................................. 32
8.0 Accessory Drawings .............................................................................. 33
8.1Fan Module/ Adapter/ Power Cord__________________________________ 33
9.0 Dimension Drawings and Assembly Drawings .................................... 40
9.1Dimension Drawings of carrier board_______________________________ 40
9.2Dimension Drawing of NO111B/ TN111B/ NX211B Box PC _____ 41

3
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
Preface
Disclaimer
The information contained in this user manual, including but not limited to any product
specification is subject to change without notice. AVerMedia assumes no liability for any
damages incurred directly or indirectly from any technical or typographical errors or omissions
contained herein or for discrepancies between the product and the user manual.
Technical Support
If you experience the difficulty after reading this manual and/or using the product, please contact
the reseller from which you purchased the product. In most cases, the reseller can help you with
the product installation and the difficulty you encountered.
In case the reseller is not able to resolve your problem, our highly capable global technical
support team can certainly assist you. Our technical support section is available 24 hours a day
and 7 days a week through our website, with the click here. For more contact information, you
may find it in the section of AVerMedia Global Offices.
Contact Enquiry
For more information of our products, pricing, and order placement, please fill in our inquiry
form here, we will contact you within 24 hours.
Download User Manual
Please click the link here to download the file of this user manual from AVerMedia website.
Revision History
Revision
Date
Updates
Version 1.0
Feb,20, 2021
1st Released
Version 1.1
Apr, 22, 2021
J4/J5 pin define update
Version 1.2
June 30, 2021
J1 pin define update, TN111B data update
Version 1.3
Jan 26, 2022
P12 front view/black view
P21 3.7 OTG/USB Micro Type Connector
P26 3.9 Power Supply Connector

5
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
Limited Product Warranty
AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's
opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its
option, repair or replace it at no charge, provided that the product has not been subjected to abuse,
misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
You may obtain the warranty service by delivering this product to an authorized AVerMedia
business partner or to AVerMedia along with the proof of purchase. Product returned to
AVerMedia must be pre-authorized by AVerMedia with an RMA (Return Material Authorization)
number marked on the outside of the package and sent prepaid, insured, and packaged for the safe
shipment. AVerMedia will return the product by prepaid shipment service.
It is not recommended to disassemble the box PC, which will impact the warranty. The limited
product warranty is only valid over the serviceable life of the product. This is defined as the
period during which all components are available. Should the product prove to be irreparable,
AVerMedia reserves the right to substitute an equivalent product if available or to retract the
product warranty if no replacement is available.
The above product warranty is the only warranty authorized by AVerMedia. Under no
circumstances will AVerMedia be liable in any way for any damages, including any lost profits,
lost savings, or other incidental or consequential damages arising out of the use of, or inability to
use, such product.
Copyright Notice
The information contained in this document is subject to change without notice. AVerMedia shall
not be liable for errors contained herein or for incidental consequential damages in connection
with the furnishing, performance, or use of this material. This document contains proprietary
information that is protected by copyright. All rights are reserved. No part of this document may
be photocopied, reproduced, or translated to another language without the prior written consent
by AVerMedia.

6
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
Trademark Acknowledgement
AVerMedia acknowledges all the trademarks, registered trademarks, and/or copyrights referred to
in this document as the property of their respective owners. Not listing all possible trademarks or
copyright acknowledgments does not constitute the lack of acknowledgment to the rightful
owners of the trademarks and copyrights mentioned in this document.
ESD Warning
Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When
handling any circuit board assemblies including AVerMedia AVerAI products, it is highly
recommended that ESD safety precautions can be observed. ESD safe best practices can include,
but are not limited to the following ones.
1. Leave the circuit board in the antistatic package until it is ready to be installed.
2. Use a grounded wrist strap when handling the circuit board. At a minimum, you need to touch
a grounded metal object to dissipate any static charge, which may be present on you.
3. Avoid handling the circuit board in the carpeted areas.
4. Handle the board by the edges and avoid the contact with the components.
5. Only handle the circuit boards in ESD safe areas, which may include ESD floor and/or table
mats, wrist strap stations, and ESD safe lab coats.

7
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
1.0 Introduction
AVerMedia AVerAI EN715/NO111B/ TN111B/ NX211B includes fully featured carrier board
which is all developed for NVIDIA®Jetson Nano(Version B01)/ /TX2 NX/ Xavier NX modules.
AVerAI EN715/NO111B/ TN111B/ NX211B provides not only the access to a great list of
latest interfaces on NVIDIA®Jetson (Version B01)/ TX2 NX/ Xavier NX modules but also one
RJ-45 interface and one RTC battery as the function enrichment.
EN715/NO111B/ TN111B/ NX211B provides one 4Kp60 HDMI video output, two USB 3.0
ports, one GbE RJ-45 port, 20-pin GPIO expansion, and one Micro-B USB 2.0 port for recovery.
Operating with NVIDIA®Jetson Nano(Version B01)/TX2 NX/ Xavier NX modules and the rich
I/O functions, AVerAI EN715/ NO111B/ TN111B/ NX211B is the perfect choice in building a
compact, high performance AI edge computing platform for the intelligent video analytics
applications.

8
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
1.1 Product Specifications
Model
EN715
Compatibility
Apply to NVIDIA®Jetson Nano(Version B01)/TX2 NX/ Xavier NX
module
Networking
1x GbE RJ-45
Display Output
3840 x 2160 at 60Hz
Temperature
Operating temperature 0°C~70°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera
Inputs
(internal I/O)
-2x 2 Lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
-1x 4 Lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB
1x USB 2.0 Micro-B for recovery
2x USB 3.0 Type-A
Storage
1x micro-SD card slot
GPIO Expansion
20 pin: 2x I2C, 1x UART, 9x GPIOs
Input Power
3.5mm Screw Terminal, 12V/5A ; 9V~19V is recommended.
Buttons
Power and Recovery
RTC Battery
Support RTC battery and Battery Life Monitoring by MCU
Dimension/ Weight
W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”), Weight: 70g
Accessory
12V/5A adapter and power cord (optional)
Certifications
CE, FCC, KC

9
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
Model
NO111B/ TN111B/ NX211B
Compatibility
NVIDIA®Jetson Nano(Version B01) for NO111B
NVIDIA®Jetson TX2 NX for TN111B
NVIDIA®Jetson Xavier NX for NX211B
Networking
1x GbE RJ-45
Display Output
3840 x 2160 at 60Hz
Temperature
Operating temperature 0°C~60°C for NO111B, 0°C~55°C for TN111B
(TBD), 0°C~55°C for NX211B,
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera
Inputs
(internal I/O)
-2x 2 Lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
-1x 4 Lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB
1x USB 2.0 Micro-B for recovery
2x USB 3.0 Type-A
Storage
1x micro-SD card slot
GPIO Expansion
(internal I/O)
20 pin: 2x I2C, 1x UART, 9x GPIOs
Input Power
12V/5A ; 9V~19V is recommended.
Buttons
Power and Recovery
RTC Battery
Support RTC battery and Battery Life Monitoring by MCU
Dimension/ Weight
W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”)
Weight: 495g
Accessory
12V/5A adapter and power cord
Certifications
CE, FCC, KC

10
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
1.2 OPTION ACCESSORY
Item
EN715/NO111B/ TN111B/ NX211B
NVIDIA®
Jetson
NVIDIA®Jetson Nano(Version B01) for NO111B
NVIDIA®Jetson TX2 NX for TN111B
NVIDIA®Jetson Xavier NX for NX211B
Power cord
EU/JP/TW/US/CN/UK
MIPI Camera
(internal I/O
for Box PC)
For 15 pin MIPI connector
1. raspberry pi camera v2
2. Manufacturer: APPRO.PHO
B-04: IMX179(8M)MIPI, 1080P(30fps)
C-04: IMX290(2M)MIPI, 1080P(30fps)
C-05: IMX290(2M)+ISP(YUV), 1080P(30fps)
For 36 pin MIPI connector
1. Manufacturer: APPRO.PHO
B-03: IMX334(4K) MIPI, 4K(30fps)
A-06: IMX334(4K) V-by-One® HS x1,
4K(30fps)

11
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
2.0 Product Overview
2.1 Block Diagram
Jetson Nano/
TX2 NX/
Xavier NX

12
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
2.2 Front View and Back View of Carrier board
Front view
VerC
VerC (as yellow circle)
White cable connect to
“+”
Black cable connect to
“-“(GND)
VerB
VerB (as yellow circle)
White cable connect to
“+”
Black cable connect to
“-“(GND)
+
▁+
+
▔
▔

13
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com

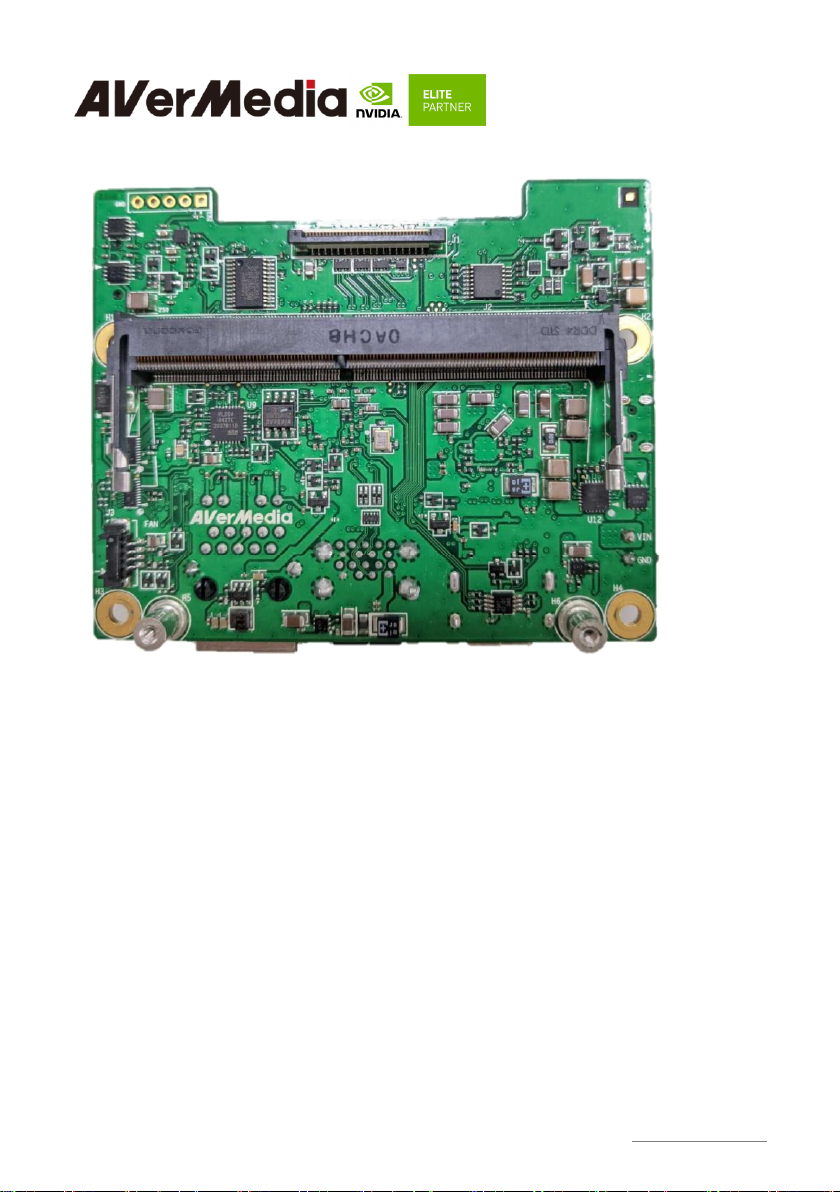

Back View

14
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com

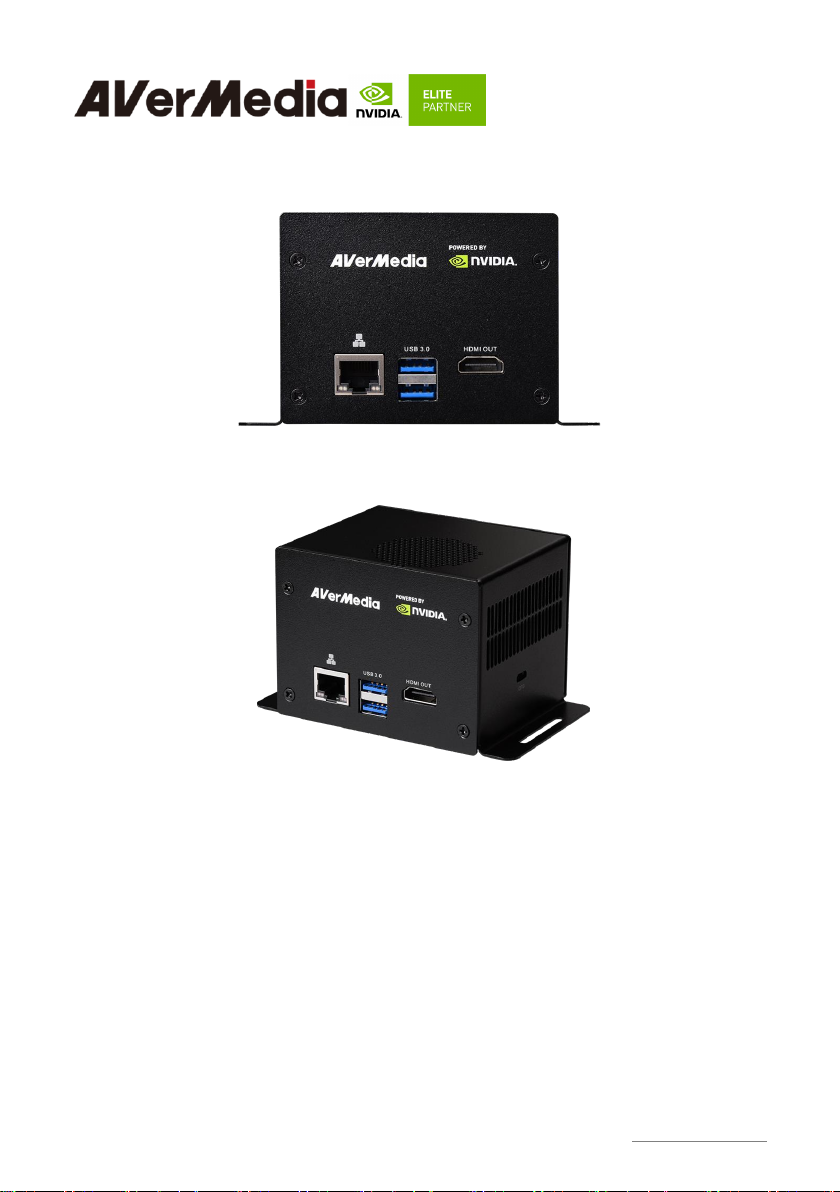

2.3 Front View and Three-Quarter View of BoxPC

15
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com

16
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
2.4 Connector Summary
PCB Code
Designation
Description
NO111B/TN1
11B/NX211B
J1
4 Lane MIPI CSI-2 camera connector
J2
SO-DIMM socket for NVIDIA®Jetson / NX module
J3
Fan Power connector
J4
2 Lane MIPI CSI-2 camera connector
J5
2 Lane MIPI CSI-2 camera connector
J6
RTC battery connector
J7
USB 2.0 Micro-B
J8
20-pin GPIO expansion
J9
Power connector
J10
Gigabit Ethernet connector
J11
USB 3.1 Gen 1 Type-A connectors
J12
HDMI 2.0 connector
J13
Micro SD card slot
2.5 Switch Summary
Designation
Description
SW3
RECOVERY button
SW4
POWER on button
SW5
Fan PWM controller/Auto Power on

17
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
3.0 Feature Description
3.1 Connector and Switch Locations
J3
J1
J2
J6
J10
J5
J4
J11
J12
J7
SW5
5
J13
SW3
SW4
J8
J9

18
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com

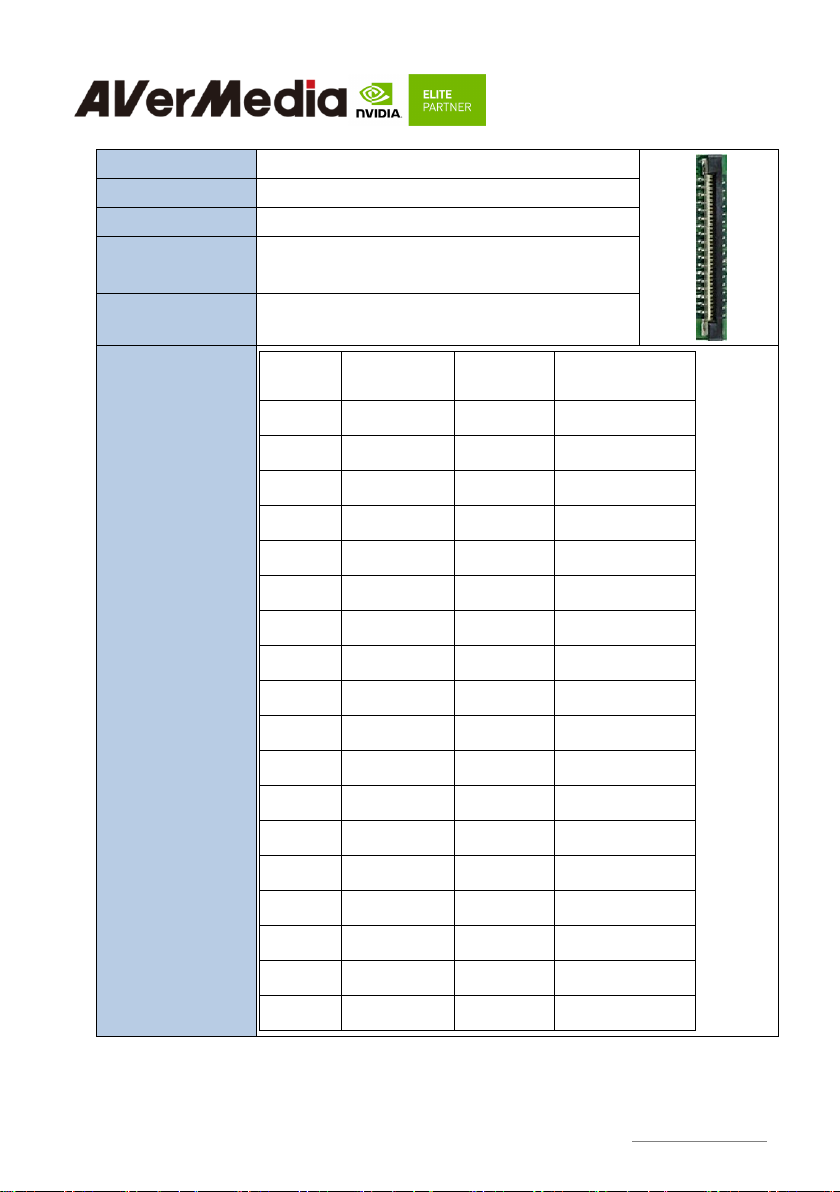

3.2 SerDes (V-by-One® HS)
Function
MIPI camera module connector
Location
J1
Type Description
WAFER_1*36PIN_0.5㎜_180°
Manufacturer and
Part Number
PINREX 979-44-93610A_ZIF FPC
Mating Connector
4 Lane MIPI CSI-2 camera connector (36PIN)
PIN OUT
Pin
Number
Signal
Pin Number
Signal
1
5V
19
GND
2
5V
20
CSI4_D3_P
3
1.8V
21
CSI4_D3_N
4
3.3V
22
GND
5
3.3V
23
N/A
6
3.3V
24
N/A
7
GND
25
N/A
8
CSI4_D0_P
26
MIPI4_PWDN
9
CSI4_D0_N
27
CSI4_I2C_SDA
10
GND
28
CSI4_I2C_SCL
11
CSI4_CLK_P
29
GND
12
CSI4_CLK_N
30
N/A
13
GND
31
N/A
14
CSI4_D1_P
32
N/A
15
CSI4_D1_N
33
N/A
16
GND
34
GND
17
CSI4_D2_P
35
CAM4_MCLK
18
CSI4_D2_N
36
GND

19
NO111B_TN111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com
3.3 Jetson module Connector
Function
Provide connection with NVIDIA® Jetson
NANO /TX2 NX/ Xavier NX modules
Location
J2
Type Description
SOCKET_DDR4
SO-DIMM_260PIN_90°
Manufacturer
and Part Number
Foxconn ASAA826-EASB0-7H
Mating
Connector
NVIDIA® Jetson Nano(Version B01) /
TX2 NX/ Xavier NX
Pinout
Please refer to NVIDIA Jetson
System-on-Module datasheet for pinout
details.
Remarks
https://developer.nvidia.com/ embedded/downloads
3.4 Fan Power connector
Function
Fan Power Connector
Location
J3
Type Description
WAFER_1*4PIN_1.25㎜_90°
Manufacturer
and Part Number
ACES 50271-0040N-001_BLACK
Pinout
Pin #
Description
PIN 1
GND
PIN 2
Power +5V
PIN 3
FAN_TACH
PIN 4
FAN_PWM
Remarks
None
This manual suits for next models
7
Table of contents
Other Avermedia Carrier Board manuals

Avermedia
Avermedia EX713AA User manual

Avermedia
Avermedia AVerAI AG411 User manual

Avermedia
Avermedia D131 Series User manual

Avermedia
Avermedia AVerAI EN715 User manual

Avermedia
Avermedia AVerAI NO111B User manual

Avermedia
Avermedia D131ONB User manual

Avermedia
Avermedia AVerAI EN713-AAE9 User manual

Avermedia
Avermedia AVerAI EN715 User manual
