Quick Installation Guide
Quick Installation Guide
AVerMedia®DVD EZMaker 7
C039
English
Slovenský
Magyar
Slovenčina
Polski
Česky
Български
Русский
Українська
Türkçe
Hrvatski

Quick Installation Guide
FCC NOTICE (CLASS B)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
‧ Reorient or relocate the receiving antenna.
‧ Increase the separation between the equipment and receiver.
‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
‧ Consult the dealer or an experienced radio/television technician for help.
CAUTION ON MODIFICATIONS
To comply with the limits for the Class B digital device, pursuant to Part 15 of the FCC Rules, this
device must be installed in computer equipment certified to comply with the Class B limits. All cables
used to connect the computer and peripherals must be shielded and grounded. Operation with
non-certified computers or non-shielded cables may result in interference to radio or television
reception.
Changes and modifications not expressly approved by the manufacturer could void the user’s authority
to operate this equipment.
EUROPEAN COMMUNITY COMPLIANCE STATEMENT
Class B (EMC)
This product is herewith confirmed to comply with the requirements set out in the
Council Directives on the Approximation of the laws of the Member States relating to
Electromagnetic Compatibility Directive 2004/108/EC.

DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the contents of this
documentation, its quality, performance, merchantability, or fitness for a particular purpose.
Information presented in this documentation has been carefully checked for reliability; however, no
responsibility is assumed for inaccuracies. The information contained in this documentation is subject
to change without notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages
arising out of the use or inability to use this product or documentation, even if advised of the possibility
of such damages.
TRADEMARKS
AVerMedia is registered trademarks of AVerMedia TECHNOLOGIES, Inc. IBM PC is a registered
trademark of International Business Machines Corporation. Macintosh is a registered trademark of
Apple Computer, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft
Corporation. All other products or corporate names mentioned in this documentation are for
identification and explanation purposes only, and may be trademarks or registered trademarks of their
respective owners.
COPYRIGHT
©2009 by AVerMedia Technologies, Inc. All right reserved. No part of this document may be
reproduced or transmitted in any form, or by any means without the prior written permission of
AVerMedia Technologies Inc. AVerMedia Technologies Inc. reserves the right to modify its models,
including their characteristics, specifications, accessories and any other information stated herein
without notice. The official printout of any information shall prevail should there be any discrepancy
between the information contained herein and the information contained in that printout.
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT
MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD,
YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A
DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL
AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF
YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE
DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.
№РОСС T
W
.MP18.B01001
Срок действия с07.09.2009гпо
06.09.2010г
Москва
MP18

Quick Installation Guide
ENG-1
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
1 Package Contents
QuickInstallationGuide
Quick Installation Guide
AVerMedia
→
DVDEZMaker7
C039
English
Slovenský
Magyar
Slovenčina
Polski
Česky
Български
Русский
Українська
Türkçe
Hrvatski
AVerMedia®DVD EZMaker 7 Quick Installation Guide
CyberLink DVD Suite CD Installation CD USB Cable
2 System Requirements
Intel®Pentium®4, 2.4 GHz or higher or equivalent AMD processor.
512 MB RAM or above
USB 2.0 port
Sound card
Graphic card with 256 MB of memory
CD / DVD burner
1 GB for VCD/ 5 GB for DVD or higher of available hard disk space
Windows XP SP2 / Windows Vista / Windows 7

ENG-2
3 Hardware Installation
Connecting AVerMedia DVD EZMaker 7
Use the figure below to connect your AVerMedia DVD EZMaker 7. To record video with sound,
you need to specify the audio input source and make sure the sound is NOT muted and have
enough volume. To do this, double-click the yellow speaker volume icon on the taskbar or click
Start, point to Programs > Accessories > Entertainment and then click Volume Control. Refer to
the Volume Control Help Contents and look for “Adjust the recording volume” for more
information.
Example:
Camcorder VCR
AV Output Port
RCA Cable
(not supplied)
RCA Cable
(not supplied)
RCA Cable
(not supplied)
S-Video Cable
(not supplied)
(Yellow)
(Red)
(White)
USB Cable USB Port
Computer

Quick Installation Guide
ENG-3
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
4 Installing the Driver
After you have properly installed your AVerMedia DVD EZMaker 7, turn on your computer. The
system will automatically detect the newly installed device on the first time you reboot your
computer. Simply skip the wizard, and insert the accompanying installation CD to install the
driver.
Important notice :
BEFORE installing the driver, make sure your system has DirectX 9.0c or above installed.
You can find the latest version of DirectX on CD in the folder DirectX9c.
The CyberLink DVD Suite software must be installed only AFTER the drivers are completely
installed.
Windows®XP
1. The “Found New Hardware Wizard” dialog
box will appear. Just click Cancel to skip
the Wizard installation procedures.
2. Place the Installation CD into your CD-ROM
drive. The installation main screen will
appear.
Click Install Driver. The InstallShield
Wizard will install Drivers for AVerMedia
DVD EZMaker 7 on your computer.
3. If you are instructed to restart your
computer, select Yes.
4. Click Browse CD to access the content of
the CD.
Click Exit to close the installation main
screen.

ENG-4
Windows®Vista
1. The “Found New Hardware Wizard” dialog
box will appear. Just click Cancel to skip
the Wizard installation procedures.
2. Place the installation CD into the
CD-ROM drive.
3. When the “AutoPlay” dialog box
appears, select Run Autorun.exe.
4. When the installation main screen
appears, choose Install Driver.
5. If the “User Account Control” dialog box
appears, select Allow to continue the
process.
Windows®7
1. Place the installation CD into the
CD-ROM drive.
2. When the “AutoPlay” dialog box
appears, select Run Autorun.exe.
3. When the installation main screen
appears, choose Install Driver.
4. If the “User Account Control” dialog box
appears, select Yes to continue the
process.

Quick Installation Guide
ENG-5
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
5 Installing CyberLink PowerDirector and CyberLink
PowerProducer
1. After you have completed installing the
driver, you can install CyberLink
PowerDirector to edit the video or install
CyberLink PowerProducer to make movie
disc. Or install PhotoNow! to automatically
and manually adjust images.
2. Eject the installation CD from your
CD-ROM drive and insert the CyberLink
DVD Suite CD. The installation main
screen will appear.
3. Click on the Install Now and follow the on
screen instruction to install the softwares.
4. For more detailed information regarding
editing please refer to the Cyberlink
instruction.
6 Uninstalling the Driver
Windows®XP
1. Click Start, point to Settings, and then click Control Panel.
2. Double-click Add / Remove Programs icon.
3. In the add/remove programs list, select AVerMedia C039 USB Capture Card and then click
on the Change/Remove or Add/Remove button.
Note: AVerMedia DVD EZMaker 7 requires the system to support isochronous transfer. At
present, VIA KT400, KT333 and K266A chipset motherboards are not supported; VIA 8235 and
VT6202 chipsets can only operate on Windows®XP & 2000.

ENG-6
Windows®Vista / Windows®7
1. Click on the START button and go to Control Panel.
2. Double-click Programs and Features icon.
3. Select AVerMedia C039 USB Capture Card and click on the Uninstall/Change button.

Inštalačná príručka
SKY-1
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
1 Obsah balenia
QuickInstallationGuide
Quick Installation Guide
AVerMedia
→
DVDEZMaker7
C039
English
Slovenský
Magyar
Slovenčina
Polski
Česky
Български
Русский
Українська
Türkçe
Hrvatski
AVerMedia®DVD EZMaker 7 Inštalačná príručka
CyberLink DVD Suite CD Inštalačné CD USB kábel
2 Systémové požiadavky
Intel Pentium 4, 2.4GHz alebo vyšší, alebo zodpovedajúci AMD procesor.
512 MB RAM alebo viac
USB 2.0 port
Zvuková karta
Grafická karta s 256 MB pamäťou
CD / DVD mechanika
1 GB pre VCD/ 5 GB pre DVD alebo viac voľného miesta na hard disku
Windows XP SP2 / Windows Vista / Windows 7

SKY-2

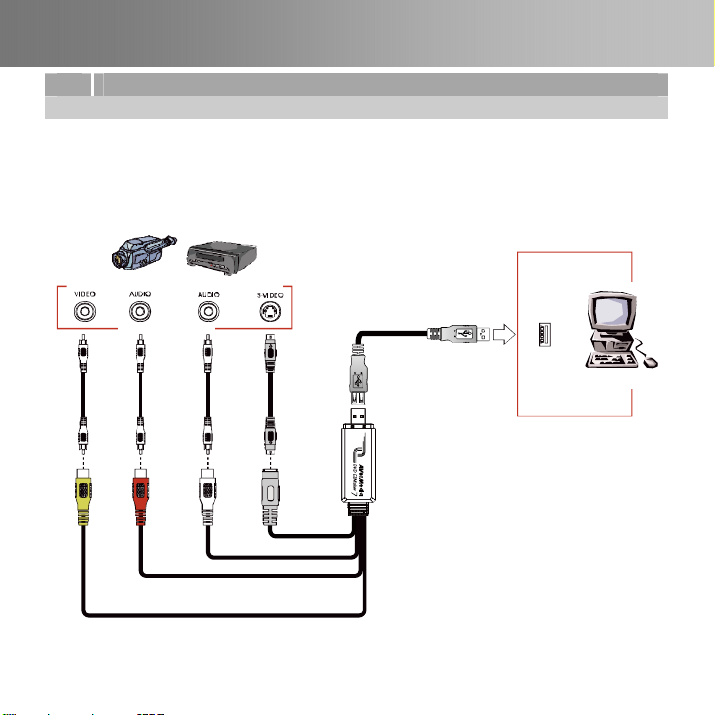

3 Inštalácia hardvéru
Zapojenie AVerMedia DVD EZMaker 7
Použite ikonu pre spojenie AVerMedia DVD EZMaker 7. Na nahrávanie videa so
zvukom potrebujete špecifikovaťzvukový zdrojový vstup a uistiťsa, že zvuk NIE JE umlčaný a
má dostatok hlasitosti. Urobte tak dvojklikom na žltú ikonu reproduktorov na ovládacom paneli a
kliknite Start, Programs > Accessories > Entertainment a potom Volume Control, Volume
Control Help Contents a vyhľadajte “Adjust the recording volume” pre viac informácié.
Príklad
Kamera Video zariadenie
AV výstupný port
RCA kábel
(Nedodané)
RCA kábel
(Nedodané)
RCA kábel
(Nedodané)
S-Video kábel
(Nedodané)
(Žltý)
(Červený)
(Biely)
USB kábel USB port
Počítač

Inštalačná príručka
SKY-3
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
4 Inštalacia ovládača
Po správnom nainštalovaní karty AVerMedia DVD EZMaker 7 , zapnite počítač. Systém pri
prvom zapnutí automaticky rozpozná nainštalovanú kartu a spustí inštaláciu ovládača.
Jednoducho preskočte wizard a vložte inštalačné CD na inštaláciu drivera.
Doležité upozornenie:
PREDTÝM ako začnete inštalovaťovládač, presvedčite sa, či máte nainštalovaný DirectX
9.0c alebo vyššiu verziu. Poslednú verziu DirectX nájdete na priloženom CD v adresári
DirectX9c
CyberLink DVD Suite software musí byťnainštalované iba PO predchádzajúcej kompletnej
inštalácii driverov.
Windows®XP
1. Na obrazovke sa objaví okno “Found New
Hardware Wizard”(Nájdený nový
sprievodca inštaláciou). Kliknite na
Cancel (Zrušiť) pre začatie inštalačného
procesu.
2. Vložte inštalačné CD do CD-ROM
mechaniky. Objaví sa inštalačné okno.
Kliknite na Inštaluj ovládač. Sprievodca
inštaláciou (The InstallShield Wizard)
nainštaluje ovládačpre AVerMedia DVD
EZMaker 7.
3. Ak sa Vám podľa inštrukcií doporučuje
reštart počítača, vyberte ÁNO.
4. Klinite na Browse CD pre pokračovanie
CD.
Kliknite na Exit pre zatvorenie ištalačného
okna.

SKY-4

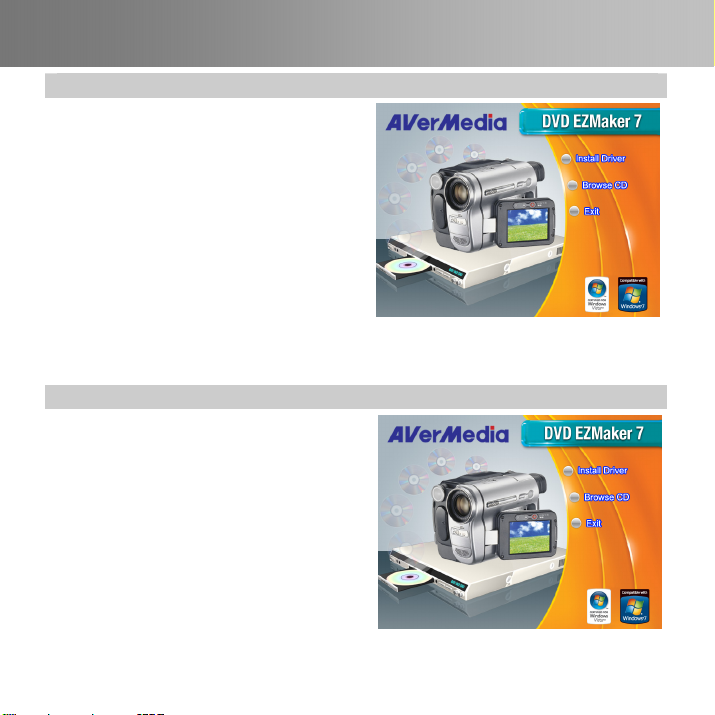

Windows®Vista
1. Na obrazovke sa objaví okno “Found New
Hardware Wizard”(Nájdený nový
sprievodca inštaláciou). Kliknite na
Cancel (Zrušiť) pre začatie inštalačného
procesu.
2. Vložte inštalačné CD do CD-ROM
mechaniky.
3. Ak sa zobrazí dialógové okno pre „
Automatické prehrávanie“, zvoľte Run
Autorun.exe (SpustiťAutorun.exe).
4. Keďsa zobrazí hlavná obrazovka
inštalácie, vyberte položku Install Driver.
5. Ak sa zobrazí dialógové okno „ Nastavenie
konta užívateľa“, zvoľte Umožniťpre
pokračovanie procesu.
Windows®7
1. Vložte inštalačné CD do CD-ROM
mechaniky.
2. Ak sa zobrazí dialógové okno pre „
Automatické prehrávanie“, zvoľte Run
Autorun.exe (SpustiťAutorun.exe).
3. Keďsa zobrazí hlavná obrazovka
inštalácie, vyberte položku Install Driver.
4. Ak sa zobrazí dialógové okno „ Nastavenie
konta užívateľa“, zvoľte ÁNO pre
pokračovanie procesu.

Inštalačná príručka
SKY-5
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
5 Inštalácia CyberLink PowerDirector a CyberLink
PowerProducer
1. Po ukončení inštalácie ovládačov môžete
nainštalovaťCyberLink PowerDirector pre
editáciu videa alebo inštalovaťCyberLink
PowerProducer pre možnosťvytvorenia
filmu. Alebo nainstalujte "PhotoNow!" na
automatické alebo manuálne uprávy
obrázkov.
2. Vyberte CD z CD-ROM mechaniky a CD
tam vložte znova. Okno inštalácie sa znova
objaví na obrazovke.
3. Kliknite na Inštaluj teraz a nasledujte
inštrukcie na obrazovke pre nainštalovanie
softvéru.
4. Pre detailnejšie informácie súvisiace s
editovaním, prosím nasledujte Cyberlink
inštrukcie.
6 Odinštalovanie ovládačov
Windows®XP
1. Kliknite na Start, Settings a potom Control Panel.
2. Dvojklik na ikonu Add/Remove Programs.
3. V zozname programov zvoľte AVerMedia C039 USB Capture Card a kliknite na
Change/Remove alebo Add/Remove.
Poznámka: AVerMedia DVD EZMaker 7 nie je podporovaný pri VIA KT400, KT333 a K266A
chipsetom na základných doskách; VIA 8235 a VT6202 chipset funguje pri Windows®XP.

SKY-6
Windows®Vista / Windows®7
1. Kliknite na tlačidlo START a prejdite do části Control Panel (Ovládacie panely).
2. Dvakrát kliknite na ikonu Programs and Features (Programy a funkcie).
3. Vyberte položku AVerMedia C039 USB Capture Card a kliknite na tlačidlo Uninstall/Change
(Odinštalovať/zmeniť).

Telepítési útmutató
HUN-1
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
1 A csomag tartalma
QuickInstallationGuide
Quick Installation Guide
AVerMedia
→
DVDEZMaker7
C039
English
Slovenský
Magyar
Slovenčina
Polski
Česky
Български
Русский
Українська
Türkçe
Hrvatski
AVerMedia®DVD EZMaker 7 Telepítési útmutató
CyberLink DVD Suite CD TelepítőCD USB kábel
2 Rendszer- követelmények
Intel®Pentium®4 2.4 GHz vagy nagyobb vagy azzal megegyezőAMD processzor
512MB, vagy több RAM
USB 2.0 port
Hangkártya
256 MB-os videokártya
CD / DVD író
Minimum 1 GB terület VCD/ 5 GB lemezterület DVD-hez
Windows XP SP2 / Windows Vista / Windows 7

HUN-2
3 Hardvertelepítés
Az AVerMedia DVD EZMaker 7 csatlakoztatása
Az AVerMedia DVD EZMaker 7 -t csatlakoztassa az alábbi ábra alapján. Hanggal együtti videó
felvételhez meg kell határozni az audio bemenet forrását és meg kell győződni róla, hogy a hang
NEM némított és a hangerőis megfelelő. Klikkeljen kétszer a sárga hangerőikonra a tálcán,
vagy a Start gombra, majd a Programok > Kellékek (Accessories) > Szórakozás
(Entertainment) útvonalon a hangerőszabályzás (Volume Control) gombra. További
információkhoz tekintse át a Volume Control Help Contents segédlet “Adjust the recording
volume” c. fejezetét.
Példa
Kamera Videofelvevő
AV kimeneti csatlakozó
RCA kábel
(nem tartozék)
RCA kábel
(nem tartozék)
RCA kábel
(nem tartozék)
S-Video kábel
(nem tartozék)
(Sárga) (Piros) (Fehér)
USB kábel USB port
Számítógép

Telepítési útmutató
HUN-3
English Slovenský Magyar Slovenčina Polski Česky български Русский Українська Türkçe Hrvatski
4 A meghajtó telepítése
AVerMedia DVD EZMaker 7 kártya helyes beszerelése után kapcsolja be a gépet. A rendszer
automatikusan megkeresi az új eszközt az újraindítás után. Egyszerűen ugorja át a varázslót és
helyezze be a mellékelt telepítőCD-t és telepítse arról drivert
FONTOS FIGYELMEZTETÉS:
A meghajtó telepítése ELŐTT ellenőrizze, hogy a DirectX 9.0c, vagy újabb verziója telepítve
legyen. A DirectX legfrissebb verzióját megtalálja a CD-n a DirectX9c mappában.
A CyberLink DVD Suite szoftver csak a driverek komplett telepítése után telepíthető.
Windows®XP
1. Megjelenik az „Új hardver” varázsló
párbeszédpanel. A Mégse gombra
kattintva lépjen ki a varázslóból.
2. Helyezze a telepítőCD-t a CD-ROM
meghajtóba. A telepítőablak megjelenik.
Klikkeljen az Install Driver gombra. A
telepítővarázsló telepíti az AVerMedia
DVD EZMaker 7 meghajtókat a
számítógépre.
3. Amint figyelmeztet a számítógép az
újraindításra, válassza az Igen-t
4. Klikkeljen a Browse CD opcióra a CD
tartalom megtekintéséhez.
Klikkeljen a Exit opcióra a telepítőablakból
történőkilépéshez.

HUN-4
Windows®Vista
1. Megjelenik az „Új hardver” varázsló
párbeszédpanel. A Mégse gombra
kattintva lépjen ki a varázslóból..
2. Helyezze a telepítőCD-t a CD-ROM
meghajtóba.
3. Amikor az “AutoPlay” ablak megjelenik,
válassza a Run Autorun.exe parancsot.
4. Amikor a telepítőfőoldala megjelenik,
válassza az Install Driver -t.
5. Ha a “User Account Control” ablak
jelenik meg, válassza az Allow opciót a
folyamat folytatásához.
Windows®7
1. Helyezze a telepítőCD-t a CD-ROM
meghajtóba.
2. Amikor az “AutoPlay” ablak megjelenik,
válassza a Run Autorun.exe parancsot.
3. Amikor a telepítőfőoldala megjelenik,
válassza az Install Driver -t.
4. Ha a “User Account Control” ablak
jelenik meg, válassza az Yes (Igen)
opciót a folyamat folytatásához.
