Avidsen 623382 User manual

EN
V1
ref. 623382
IP Camera
WIFI 720P
Motorised interior

CONTENTS
A - SAFETY INSTRUCTIONS 05
1 - OPERATING PRECAUTIONS 05
2 - MAINTENANCE AND CLEANING 05
3 - RECYCLING 05
B - PRODUCT DESCRIPTION 06
1 - KIT CONTENTS 06
2 - CAMERA 06
3 - MAINS ADAPTOR 07
C - INSTALLATION 08
1 - INSTALLING THE CAMERA 08
2 - INSERTING A MICRO SD CARD (NOT INCLUDED) 08
3 - CONNECTING THE CAMERA 09
D - CONFIGURATION 10
1 - CONFIGURING THE CAMERA AND ADDING IT TO THE APP 10
2 - ACCESS TO ALL SETTINGS 11
2.1 - CONFIGURATION 12
E - OPERATION 13
1 - LIVE VIDEO 13
2 - VIEWING VIDEOS RECORDED BY THE CAMERA 13
F - RESETTING 15
G - FAQ 16

3ENEN
MOTORISED 720P INDOOR WIFI IP CAMERA
3
H - TECHNICAL AND LEGAL INFORMATION 17
1 - TECHNICAL CHARACTERISTICS 17
2 - WARRANTY 18
3 - HELP AND ADVICE 18
4 - PRODUCT RETURNS/AFTER SALES SERVICE 18
5 - DECLARATION OF CONFORMITY 18

5EN
MOTORISED 720P INDOOR WIFI IP CAMERA
A - SAFETY INSTRUCTIONS
1 - OPERATING PRECAUTIONS
• The cameras must not be installed where the
lens filter may be vulnerable to scratching and
dirt.
• Do not expose the lens to direct sunlight or any
reflected light source.
• Do not daisy-chain extension cords and/or
multi-socket adapters.
• Do not install near acidic chemicals, ammonia
or sources of toxic gases.
• The installation and use of the camera must
comply with local laws.
• Do not move the camera motors by hand. This
could cause damage to the motors and void
the warranty
2 - MAINTENANCE AND CLEANING
• Always unplug the product from the mains
before carrying out any maintenance.
• Never use abrasive or corrosive substances to
clean the products.
• Use a soft, slightly damp cloth.
• Never use an aerosol to spray the product as
this may damage the internal workings.
3 - RECYCLING
This logo denotes that devices which are
no longer in use must not be disposed of as
household waste. They are likely to contain
hazardous substances that are dangerous to both
health and the environment. Return the equipment
to your local distributor or use the recycling collection
service provided by your local council.
Pour en savoir plus :
www.quefairedemesdechets.fr

6
MOTORISED 720P INDOOR WIFI IP CAMERA
EN

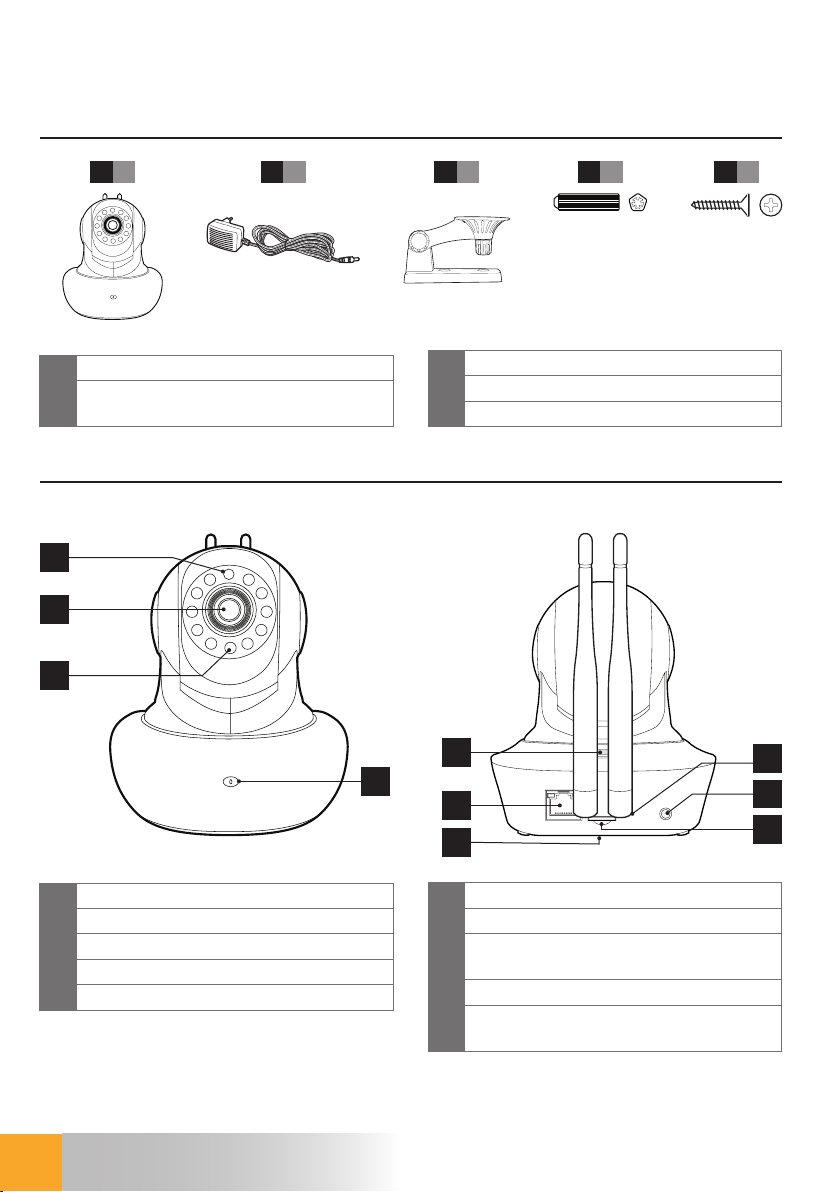

B - PRODUCT DESCRIPTION
1 - CONTENTS OF THE KIT
2 - CAMERA
1
6
7
8
4
5
9
10
2
3
1Camera
2230 V A/C 50 Hz mains adaptor / 5 V D/C
2 A
1Infra-red light for night vision
2Lens
3Dusk sensor for infra-red lighting control
4Microphone
5Loudspeaker
3Wall mounting bracket
4Wall plugs for wall-mounting
5Screws for wall-mounting
6Reset button: resets
7Mains adaptor power supply (included)
8Slot for microSD card (not included) of up
to 128 GB
9RJ45 network port (use is optional)
10 QR Code to be scanned when starting up
using the Protect-Home app (inside)
Front view Rear view
5x 2 4x 2 2x 1 1x 1 3x 1

7EN
MOTORISED 720P INDOOR WIFI IP CAMERA
B - PRODUCT DESCRIPTION
3 - MAINS ADAPTER
A 230 V A/C 50 Hz / 5 V D/C 2 A mains adapter for powering the camera is included in the kit. Do not use
other power supplies as they could damage the camera and invalidate the warranty.

8
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
C - INSTALLATION
1 - INSTALLING THE CAMERA
The camera may be attached to a wall, the ceiling or placed on a flat, horizontal surface.
Fix the camera mount using screws and wall plugs suitable for the type of supporting surface (the screws
and plugs included are suitable for solid walls).
Make sure the camera is properly secured to prevent it from falling.
2 - INSERTING A MICRO SD CARD (NOT INCLUDED)
Your camera has a micro SD card slot, which gives it an internal storage memory. The maximum size is 128
GB.
This use is optional, but it is necessary if you want the camera to record independently.

9EN
MOTORISED 720P INDOOR WIFI IP CAMERA
C - INSTALLATION
3 - CONNECTING THE CAMERA

10
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
D - CONFIGURATION
1 - CONFIGURING THE CAMERA AND
ADDING IT TO THE APP
Note: the screenshots displayed have been taken
from the Android version of the Protect-Home app.
The iPhone version works in exactly the same way.
Download the Protect-Home app from the
Appstore or Google Play, then launch the app.
Accept the authorisation requests sent by the app
if necessary (access to the camera for scanning the
QRCode, etc.).
Next, click on the icon , the app opens the
camera on your smartphone and invites you to scan
the QRCode shown on the camera:
At this point, the camera must be powered on and
started up. It plays a standby tune when it is ready.
Click on “Ready music played” to continue.
The app then asks you how you wish to configure
the camera:
AP connection: via WiFi connection.
Audio configuration: the data will be transmitted by
the smartphone loudspeaker.
Select one of the methods to continue (they are
equivalent):

11 EN
MOTORISED 720P INDOOR WIFI IP CAMERA
D - CONFIGURATION
The app then asks you what network and what key
it must send to the camera for internet access.
Important: Camera network compatibility: 2.4 GHz
- 20/40 auto - WPA/WPA2.
Not compatible with 5 GHz WiFi, not compatible
with WEP encryption.
Please check the WiFi settings of your gateway
with your Internet service provider if you experience
connection difficulties.
- If you have selected “audio configuration”, check
that you have activated the sound on your
smartphone.
- Position yourself close to your camera with your
smartphone (30 cm) to continue.
Click “Next” after indicating the WiFi network to be
used and the corresponding key. Your smartphone
then sends the instructions to the camera. After a
few seconds, once the camera has managed to
join the network indicated by your smartphone, the
camera plays a tune.
When your smartphone detects the presence of
your camera on the network, it asks you which time
zone it should use:
The time indicated is inset in the video recordings
made by the camera. (Europe: GMT+ 1 hour in
winter, GMT+ 2 hours in summer).
2 - ACCESS TO ALL SETTINGS
When first accessing your camera, you will
immediately be asked to change its default
password:

12
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
D - CONFIGURATION
The default password is an 8-letter code indicated
on the camera marking at the side of the QRCode.
The new password must be a combination of 8
characters consisting of letters and numbers.

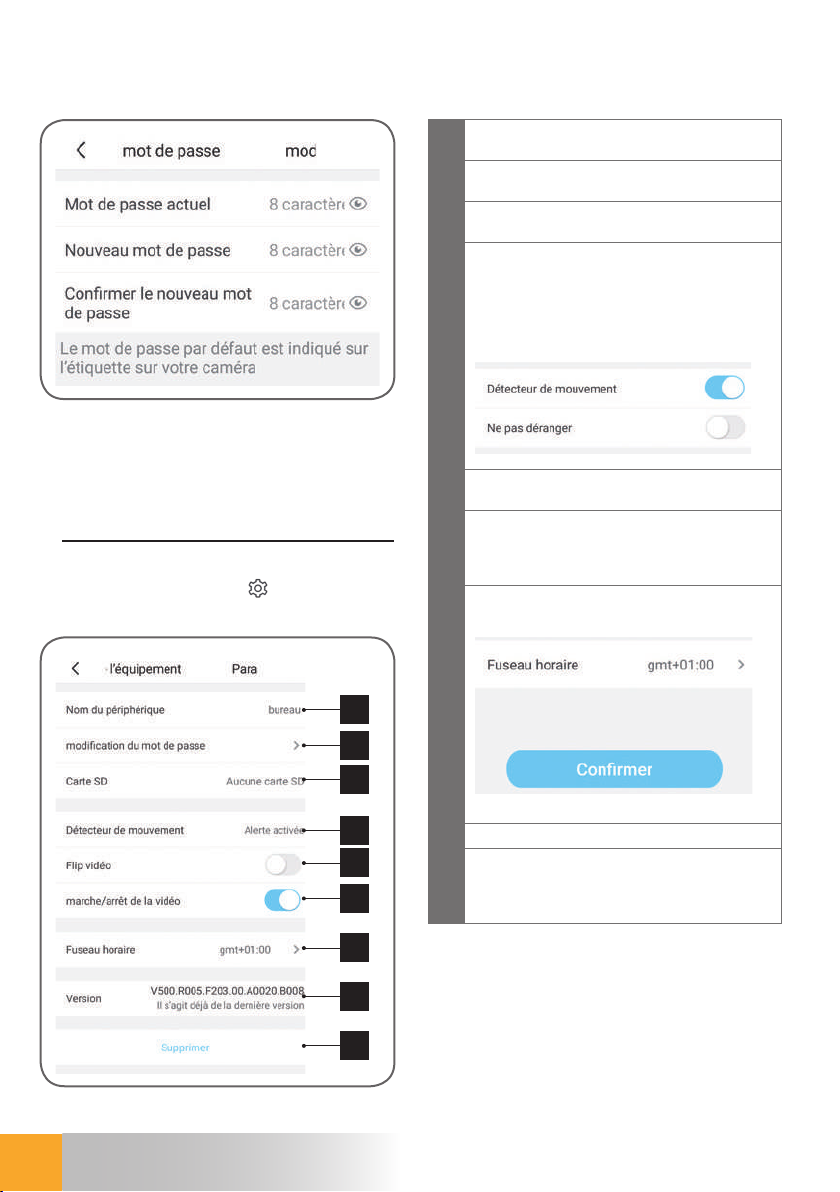

2.1 - CONFIGURATION
After clicking on the image of your camera from the
camera list, click on the icon to access the full
configuration of your camera:
1
2
3
4
5
6
7
8
9
1It is easier if you rename your camera here
after pairing
2Change of camera access password, which
changes when the camera is started up
3
MicroSD card management (not included)
and formatting
4Movement detection management:
starting/stopping the recording on the
microSD card when movement is detected in
the camera field and activation/deactivation
of notifications via the app for increased
peace of mind
5Vertical inversion of the image for ceiling
mounting
6Privacy mode: enables the image and sound
from the camera to be de-activated from the
app (stops all recording and notification at
the same time)
7Time zone setting to set the time inset in the
videos taken by the camera
8Current version of the camera firmware
9Deletion of the camera: removes the camera
from the list of cameras recognized by the
app (but does not change the personalised
connection password)

13 ENEN
MOTORISED 720P INDOOR WIFI IP CAMERA
E - OPERATION

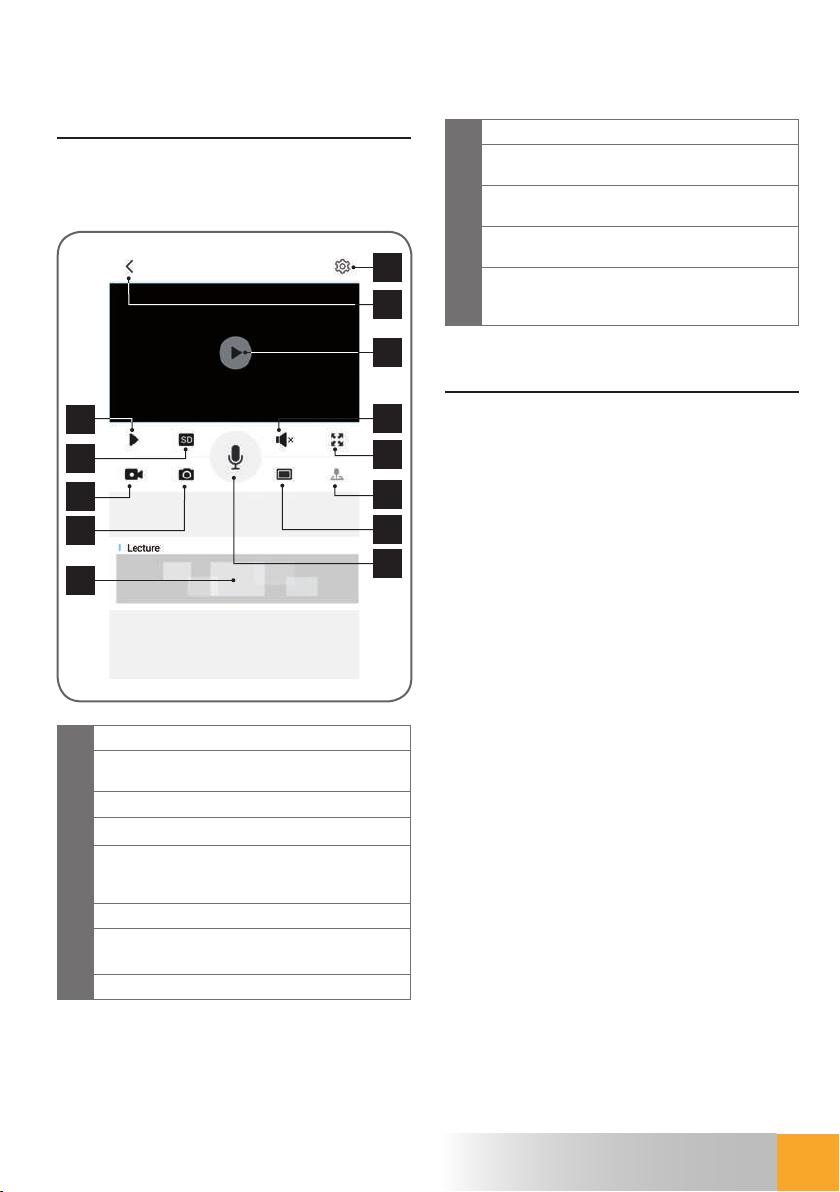

1 - LIVE VIDEO
From the list of cameras (home screen of the app
after start-up), click on the image or name of your
camera to display the live video:
1
6
7
8
9
2
3
10
4
5
11
12
13
1Access to the camera configuration
2Return to the list of cameras recognized
by the app
3
Live video
4Video start/stop
5Selection of image quality. Please note: high
quality requires a better connection in terms
of the camera and smartphone.
6On/off switch of camera microphone
7Switch to landscape format for full screen
video display
8Camera motor and position control
9Simultaneous display of up to 4 cameras
10 Smartphone microphone activation to speak
through the camera’s speaker
11 Start/stop of video recording (recording onto
smartphone memory)
12 Immediate photo taking (recording onto
smartphone memory)
13 If a MicroSD card is in the camera and video
recordings have been taken by the camera,
they can be viewed by clicking here.
2 - VIEWING VIDEOS TAKEN BY THE CAMERA
On the live display screen, click on the area at the
bottom of the screen to read the contents of the
microSD card (not included) and the recordings
made by the camera in your absence. If videos have
been recorded on the MicroSD card (not included)
inserted into the camera, their presence is indicated
as follows:

14
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
E - OPERATION
2
3
9
4
5
6
1
8
7
1When a recorded video is viewed, it appears
instead of the live image
2Review start/stop
3
On/off of sound on recorded video
4Taking an immediate photo of the recording
being viewed (saved to the smartphone
memory)
5Start/stop of video recording saved to the
smartphone memory for the video recording
being viewed
6Go to full screen
7Date being viewed (click on
“<” or “>” to change)
8The index in red indicates the current viewing
time (slide left or right to change the video
location or to change video)
9The presence of blue coloured lines indicates
that videos have been stored on the camera
at the corresponding time

15 ENEN
MOTORISED 720P INDOOR WIFI IP CAMERA
F - RESETTING
If there is a problem, the WiFi configuration may be reset by pressing and holding the Reset button at the
back until a beep is heard. Once reset, the camera will start up again. After 30 seconds, it is available for
reconfiguration.
Note: Pressing the Reset button does not delete the camera from your app

16
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
G - FAQ
Symptoms Possible causes Solutions
Unable to install the Protect-
Home app
on my Android device
You have an out-of-date or
incompatible version of Android
on your device
Please contact the technical
support of your device’s
manufacturer in order to obtain a
recent Android version
Google Play checks all the key
components needed to run
the application properly. If your
equipment does not meet the
necessary criteria, the installation
will not complete
Try the installation on a different
Android device
Unable to install the Protect-
Home app
on my Apple device
The version of iOS on your device
is not up to date
Update the operating system on
your device.
The camera is not detected as
being online when wanting to
connect it to a smartphone
Camera connection too slow
Temporarily connect your
smartphone to the same
network as the camera when
adding to the app.
Cannot connect to camera over
local network
Network/power supply issue Check your network and
electrical connections.
Network configuration problem Check your camera's network
connection settings.
The camera image feed
cannot be accessed over the
internet.
Poor quality
or shaky image
Network configuration problem Check your device settings (box,
router)
Incorrect video settings Check the video settings and
reduce the quality if necessary
Movement detection is triggered
unnecessarily
Unsuitable movement detection
settings Turn the camera
The camera is not detected as
being online when wanting to
connect it to a smartphone
Camera connection too slow
Temporarily connect your
smartphone to the same
network as the camera when
adding to the app.

17 ENEN
MOTORISED 720P INDOOR WIFI IP CAMERA
H - TECHNICAL AND LEGAL INFORMATION
Camera
Power supply 5V DC / 1A
Network interface WiFi IEEE 802.11 b/g/n 2.4 GHz WPA/WPA2 Compatible RJ45
Ethernet 10/100 Mbps
Optical sensor ¼’’ CMOS
Minimum luminous intensity 0 lux
Night vision Automatic (dusk-to-dawn sensor)
Range: 10m
Viewing angle 72°
Audio Built-in microphone and loudspeaker for two-way audio
communication
Buttons WiFi setting reset button
Motor control 300° horizontal curve / 90° vertical curve
Video compression H.264
Resolution 1280x720 pixels
Storage 1 micro SD card slot up to 128 GB memory for storing video via
remote access
Weight 262g
Dimensions L 110 mm x H 135 mm x D 145 mm
Operating temperature and humidity 0°C to 50°C, 10% to 90% RH, non-condensing
1 - TECHNICAL CHARACTERISTICS

18
MOTORISED 720P INDOOR WIFI IP CAMERA
EN
2 - WARRANTY
• This product is under warranty for parts and
labour for 2 years from the date of purchase.
Proof of purchase must be retained for the
duration of the warranty period.
The warranty does not cover damage caused by
negligence, knocks or accidents.
The warranty will be void if the device is tampered
with.
3 - HELP AND SUGGESTIONS
• If, despite the care we have taken in designing
our products and drafting these instructions,
you do encounter difficulties when installing
your product or you have any questions, we
recommend you contact one of our specialists
who will be glad to help.
• If you encounter operating problems during
the installation or a few days afterwards, it is
essential that you are in front of your installation
when contacting us, so that one of our
technicians can diagnose the source of the
problem, as it will probably be the result of a
setting that is incorrect or an installation that is
not to specification. If the problem is caused by
the product itself, the technician will give you
an RMA number so that you can return the
unit to the shop. Without this RMA number, the
shop may refuse to exchange the product.
Contact our after sales service team technicians:
0,35 € / min
0 892 701 369
Monday to Friday, 9AM to 12PM and 2PM to 6PM
CET.
4 - PRODUCT RETURNS - AFTER SALES
SERVICE
If, despite the care we have taken in designing and
manufacturing your product, it needs to be returned
to our customer service centre, you can check the
progress of the work on our website at the following
address:
http://retours.smart-home-france.com
Smarthome France undertakes to keep a stock
of spare parts for this product throughout the
contractual warranty period.
5 - EC DECLARATION OF CONFORMITY
Per the RED directive
Declaration of conformity with the RED Directive
SMART HOME FRANCE
hereby declares that the equipment designated
below:
Motorised 720p HD indoor IP camera 623982
Complies with the RED 2014/53/EU directive and
that its conformity has been assessed pursuant to
the applicable standards in force:
EN62368-1:2014
EN62479:2010
EN301 489-1 V2.1.1:2017-02
EN301 489-17 V3.1.1:2017-03
EN300 328 V2.1.1:2016-11
Drafted in Tours on 02/10/18
Alexandre Chaverot, CEO
H - TECHNICAL AND LEGAL INFORMATION

19 ENEN
MOTORISED 720P INDOOR WIFI IP CAMERA

SmartHome France
19 avenue Marcel Dassault
ZAC des Deux Lions - 37200 Tours - France
