Avipas AV-1360 User manual

Model: AV-1360
HD Video Conferencing Camera
User Manual
V2.3
(English)
Please read this User Manual
throughout before using.
www.avipas.com

2
Preface
Thank you for using this HD Video Conferencing Camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to
the camera:
Do not subject the camera to rain or moisture.
Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of
unintended equipment operation, contact an authorized engineer.
Never operate under unspecified temperature, humidity or power supply.
Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neuter detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the image
quality of TV in home environment.

3
Contents
Note.........................................................................................................................................................4
Supplied Accessories ...............................................................................................................................4
Quick Start...............................................................................................................................................5
Features ...................................................................................................................................................7
Product Specifications.............................................................................................................................8
Main Unit ..............................................................................................................................................10
Size........................................................................................................................................................ 11
IR Remote Control Explanation.............................................................................................................12
RS-232 Interface....................................................................................................................................14
VISCA Network Configuration .............................................................................................................15
Serial Communication Control ..............................................................................................................16
Command List .......................................................................................................................................16
Menu Settings........................................................................................................................................17
Network Function..................................................................................................................................22
Maintenance and Troubleshooting.........................................................................................................30

4
Note
Electric Safety
Installation and operation must be in accord with electric safety standard.
Use caution to transport
Avoid stress, vibration or soakage during transport, storage and installation.

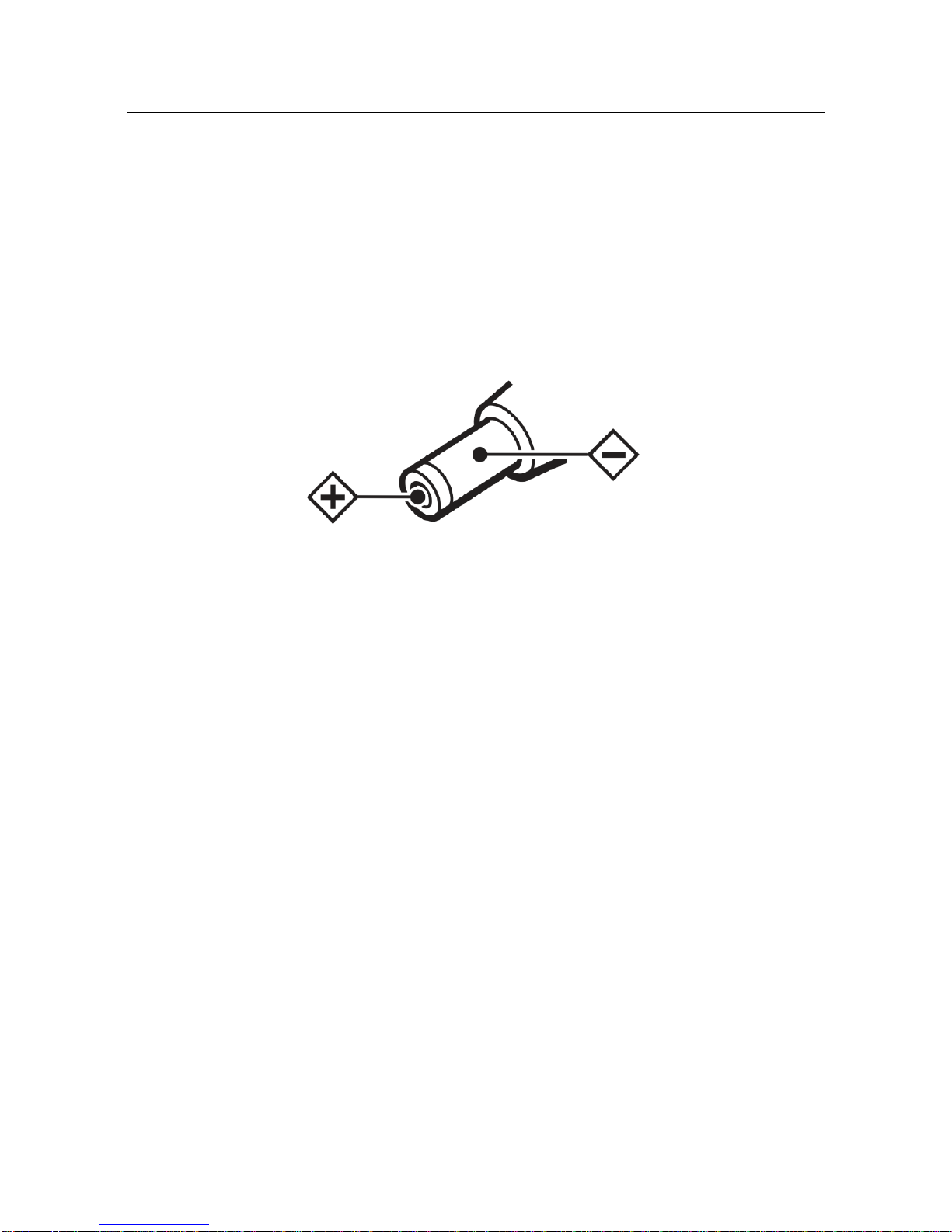

Polarity of power supply
The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power
supply plug is shown in the drawing below.
Installation Precautions
Do not grasp the camera lens when carrying it. Do not touch camera lens by hand. Mechanical
damage may result from doing so.
Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic material)
damage.
Make sure there is no obstacle within the rotation range.
Do not power on before installation is completed.
Do not dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Specific frequencies of electromagnetic field may affect the image of the camera!
SuppliedAccessories
When unpacked, check if all supplied accessories are included:
Camera ..............................................................................1PCS
AC power adaptor .............................................................1PCS
Power cord..........................................................................1PCS
RS232 cable........................................................................1PCS
Remote control....................................................................1PCS
User manual........................................................................1PCS

5
Quick Start
Step1. Check if connections are correct before starting
Step2. Set the bottom switches
Set both switch1 and switch2 to "OFF": the "Normal Working Mode".
SW-1
SW-2
Modes
1
OFF
OFF
Normal Working Mode
2
ON
OFF
-
3
OFF
ON
-
4
ON
ON
-

6
Step3. Set the system select switch
Video format options:
VIDEO SYSTEM
0
1080p60
8
720p30
1
1080p50
9
720p25
2
1080i60
A
-
3
1080i50
B
-
4
720p60
C
-
5
720p50
D
-
6
1080p30
E
-
7
1080p25
F
-
CAUTION:
a.After resetting the switches, the camera needs to be restarted for the changes to take effect.
b.720 p30 and 720 p25 are available only under the HDMI output.
Step4. Press the ON/OFF switch on the right rear of the camera. The power light will come on.
Step5. Pan-Tilt function rotates the camera to its maximum position (towards the top right) upon startup.
It then returns the camera to the center, and the process of initialization is complete. (Note: if there is an
entry for position preset 0, the camera will go to the corresponding position after initialization.)

7
Features
H.265 Support
The first conference video camera which supports H.265 encoding. It enables full HD 1080p60 video
stream with ultra-low bandwidth.
1080P Full HD
Support Panasonic's 1/2.7 inch, 2.07 million effective pixels with high quality HD CMOS sensor. The
camera can reach a maximum image resolution of 1920 x 1080.
Ultra-high Frame Rate
The output frame rate can extend up to 60fps in 1080P, and 120fps in 720P (supported by network
only), and 240fps in 640x480P (supported by network only, optional).
Face Detection
The built-in face detection module enables PTZ tracking (optional).
AACAudio Encoding
Supports AAC audio encoding. Better sound quality and smaller bandwidth can be attained.
Local Storage
Support local storage. Video records can be directly stored to local USB flash disk without NVR.
Low-light
The high SNR of the CMOS sensor combined with our 2D and 3D noise reduction algorithm,
effectively reduce the noise. Even under low illumination conditions, clear images can still be
acquired.
Abundant & User-friendly interface
Support HDMI output and 3G-SDI interface. Can perform effective transmission within distances of
up to 100 meters.
20x Optical + 32x Digital Zoom
Uses TAMRON high-quality super telephoto lens, with 20x optical zoom and 32x digital zoom.
Remote Control
Uses the RS232/485 interface. All camera parameters of the may be controlled remotely via
high-speed communication.
Freeze During Preset
Supports the "Freeze During Preset" function, which can mask the image when calling the preset.

8
Product Specifications
Name
HD Video Conferencing Camera
Camera Features
Video System
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60,
720p/50,720p30,720p25
Sensor
1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens
20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom
16x (optional)
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor,4000K,5000K/Outdoor,6500K-1,6500K-2,6500K-3,
One Push, Manual
Backlight Compensation
Supported
Digital Noise Reduction
2D&3D Digital Noise Reduction
Video S/N
≥55dB
Horizontal Angle of View
60.7° ~ 3.36°
Vertical Angle of View
34.1° ~ 1.89°
Horizontal Rotation Range
±170°
Vertical Rotation Range
-30° ~ +90°
Pan Speed Range
1.7° ~ 100°/s
Tilt Speed Range
1.7° ~ 69.9°/s
H & V flip
Supported
Image Freeze
Supported
Face Detection
Supported (optional)
Local Storage
Supported
Number of Preset
255
Preset Accuracy
0.1°

9
IPC Features
Video coding standard
H.265/H.264/MJEPG
Video Stream
First stream, Second stream
First stream resolution
1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second stream resolution
1280x720,1024x576, 720x576(Under 50Hz), 720x480(Under 60Hz),720x408,
640x360,480x270,320x240,320x180
Video Bit Rate
32Kbps ~ 20480Kbps
Bit Rate Type
Variable rate, Fixed rate
Frame Rate
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio encode standard
AAC
Audio stream rate
96Kbps, 128Kbps, 256Kbps
Support protocols
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
HD Output
1xHDMI: Version 1.3
1x3D-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network interface
1xRJ45: 10/100/1000M Adaptive Ethernet ports
Audio Interface
1-ch 3.5mm audio interface, Line In
USB
1xUSB2.0: Type A female jack
Communication interface
1xRS-232 IN: 8pin Min DIN; Max Distance: 30m;
Protocol: VISCA/Pelco-D/Pelco-P
1xRS-232 OUT: 8pin Min DIN; Max Distance: 30m;
Protocol: VISCA network use only
1xRS-485: 2pin Phoenix port; Max Distance: 1200m;
Protocol: VISCA/Pelco-D/Pelco-P
Power jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.0A (Max)
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)

10
Storage Temperature
-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
12W (Max)
MTBF
>30000h
Size
240mm x 144mm x 160mm
Net Weight
1.65Kg (3.6lb)
Main Units
1. Lens 11. RJ45 interface
2. Sensor for the remote commander 12. Line in interface
3. Power lamp 13. RS485 interface
4. Standby lamp 14. HD-SDI interface
5. Bottom switches 15. HDMI interface
6. Tripod screw hole 16. USB2.0
7. Fixing screw hole 17. DC IN 12V interface
8. System select switch 18. Power switch
9. RS232 OUT interface 19. POWER lamp
10. RS232 IN interface

11

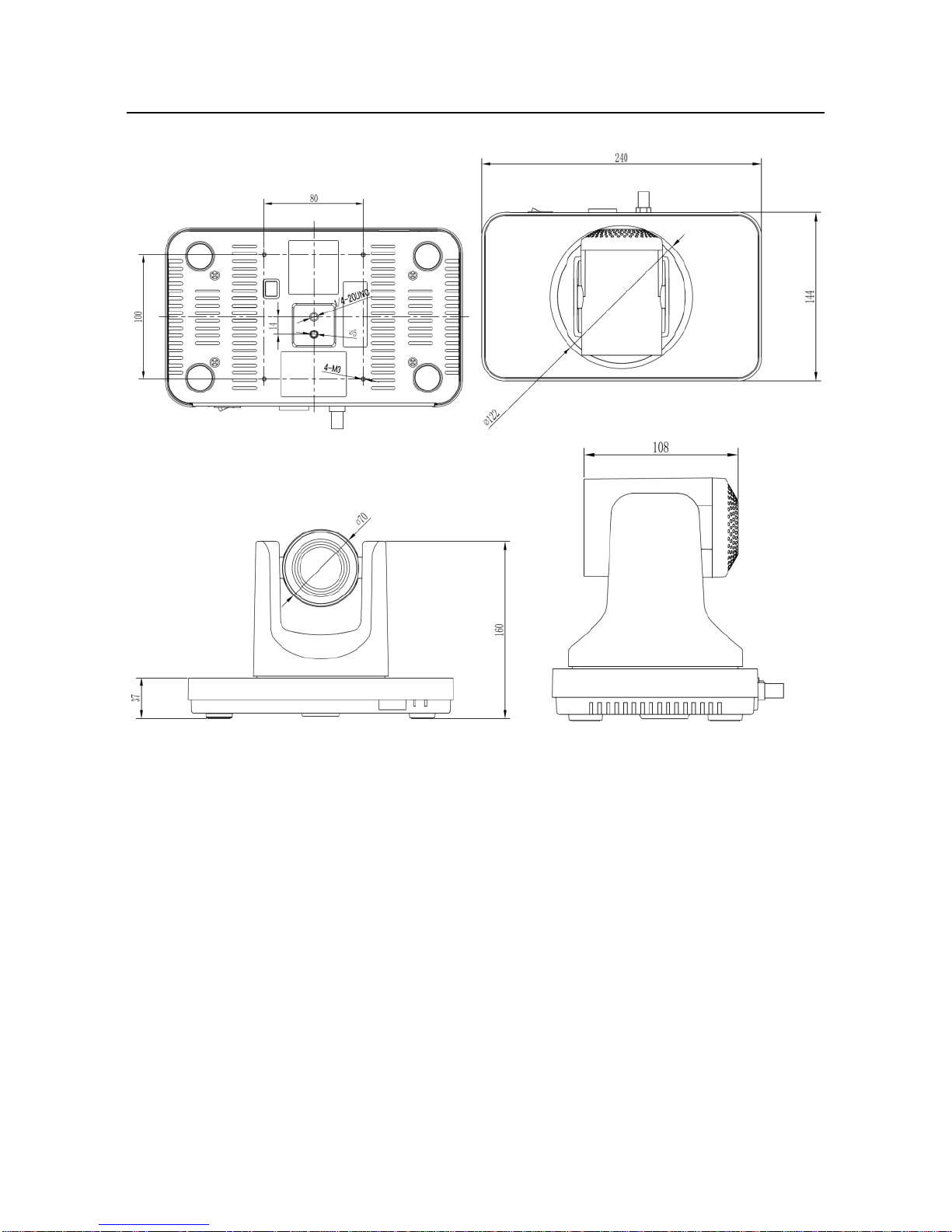

Dimensions

12

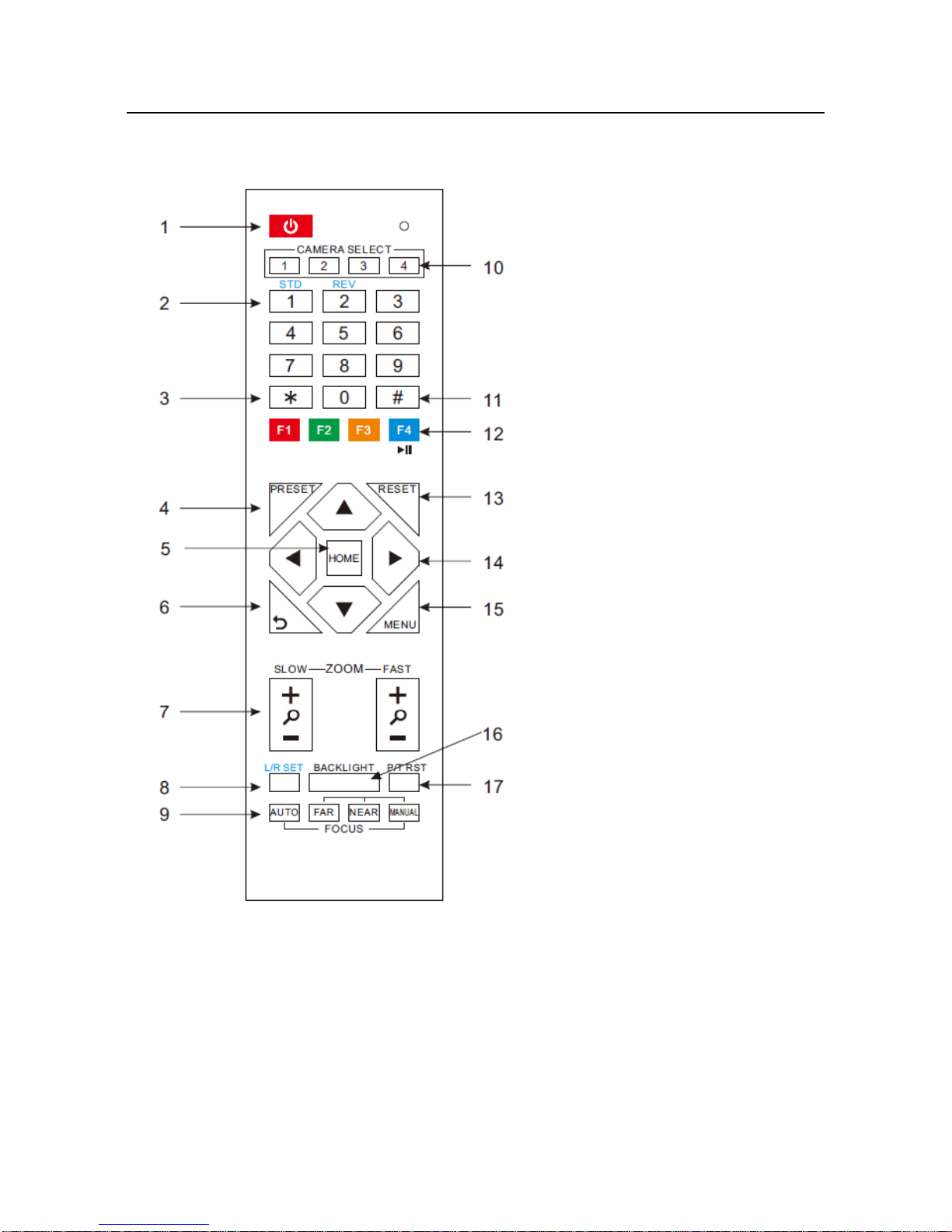

IR Remote Control Menu
1. Standby Button
Press this button to enter standby mode.
Press it again to enter normal mode. (Note:
Power consumption in standby mode is
approximately half that of the normal mode).
2. Position Buttons
To set or call preset.
3. *Button
For use with other buttons.
4. Set/ Preset Buttons
Set/ preset: store a preset position.
[SET/ PRESET] + Numeric button (0-9): set
a corresponding numeric key for the preset
position.
5. Pan-Tilt Control Buttons
Press the Pan-Tilt buttons to move back to
the middle position
6. Back buttons
Press the OSD menu to return to the previous
page.
7. Zoom Buttons
Slow Zoom: Zoom In [+] or Zoom Out [-]
slowly.
Fast Zoom: Zoom In [+] or Zoom Out [-]
quickly.
8. Pan-Tilt L/R set
Press 1 and 2 buttons to set the direction of the Pan-Tilt.
L/R Set +1[STD]: set the Pan-Tilt to turn the same direction as the L/R Set.
L/R Set +2[REV]: set the Pan-Tilt to turn the opposite direction from the L/R Set.
9. Focus Buttons
Use for focus adjustment.

13
Press [AUTO] to adjust the focus on the center of
the object automatically. To adjust the focus
manually, press [MANUAL]. Adjust focus with
[Far] (focus on far object) or [NEAR] (focus on
near object).
10. Camera Select Buttons
Press the button corresponding to the camera
being operated with the remote control.
11. # Button
For use with other buttons.
12. Camera IR Address Setup Buttons
[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4
13. Clear Preset Buttons
Clear preset: erase a preset position.
[CLEAR PRESET] + Numeric button (0-9)
individually.
Or: [*]+[#]+[CLEAR PRESET]: erase all the
preset positions.
14. Pan/Tilt Control Buttons
Press arrow buttons to perform panning and tilting.
Press [HOME] to reposition the camera back
towards the front.
15. MENU
MENU: enter or exit OSD MENU.
16. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the
backlight compensation. Press it again to disable
the backlight compensation. (NOTE: effective
only in auto exposure mode).
Note: if there is a light source behind the subject,
the subject will become dark. In this case, press
the backlight ON/OFF button to adjust.
17. Pan/Tilt reset
Preset Pan/Tilt self-test.
18. Image freezing function
Manually freeze: Enable the freezing function
after pressing [F4] on the remote control. "Freeze"
will display on the upper left corner of the screen,
and disappear automatically after 5 seconds. Press
[F4] again to return to normal mode. "Unfreeze"
will display on the upper left corner of the screen,
and disappear automatically after 5 seconds.
Recall the Preset Image Freeze：use "Recalling
the Preset Image Freeze" function in the OSD
Menu. After the function is activated, the screen
will pause. It can then be switched to any preset
position by pressing the corresponding number.
19. Shortcut Setup
[*]+[＃]+[1]: OSD menu default English
[*]+[＃]+[3]: OSD menu default Chinese
[*]+[＃]+[4]: Default IP address
[*]+[＃]+[5]: Save OSD
[*]+[＃]+[6]: Quick default reset
[*]+[＃]+[8]: Look up camera version
[*]+[＃]+[9]: Quick inversion setup

14
RS-232 Interface
Camera Windows DB-9
1.DTR 1.CD
2.DSR 2.RXD
3.TXD 3.TXD
4.GND 4.DTR
5.RXD 5.GND
6.GND 6.DSR
7.IR OUT 7.RTS
8.NC 8.CTS
9.RI
Camera Mini DIN
1.DTR 1.DTR
2.DSR 2.DSR
3.TXD 3.TXD
4.GND 4.GND
5.RXD 5.RXD
6.GND 6.GND
7.IR OUT 7.NC
8.NC 8.NC
No.
Function
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
GND
7
IR OUT
8
NC

15
VISCANetwork Configuration

16
Serial Communication Control
In the default working mode, the camera can connect to a VISCA controller with a RS232C serial
interface.
➢RS232 Communication Control:
The camera can be controlled via RS232. The parameters of RS232C are as follows:
Bit rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
➢RS485 Communication Control:
The camera can be controlled via RS485 in half-duplex mode:
Bit rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
Pan-Tilt function rotates the camera to its maximum position (towards the top right) upon startup.
It then returns the camera to the center, and the process of initialization is complete. (Note: if there is an
entry for position preset 0, the corresponding position preset 0 will be called up after initialization.)
Then user can control the camera with commands in the command list.
PTZ over TCP/UDP
A TCP server is embedded in camera, port number 5678. When the user establishes a TCP
connection with the server, and sends a PTZ control command to the server, the server will parse and
execute the PTZ command.
A UDP server is embedded in camera, port number 1259. When the user sends a PTZ control
command, the server will parse and execute the PTZ command.
Command List
The serial standard VISCA/ Pelco-D/ Pelco-P needs secondary development. If VISCA/ Pelco-D/
Pelco-P protocol command is needed, please list in detail and contact the manufacturer.

17
Menu Settings
1. MENU
Press [MENU] to display the main menu on
the screen. Use the arrow buttons to move the
cursor. Press [HOME] to enter the corresponding
sub-menu.
2. EXPOSURE
Move the cursor to Exposure in the main
menu and press [HOME], the EXPOSURE menu
is shown below.
Mode: Exposure mode. Options: Auto,
Manual, SAE, AAE, Bright.
ExpCompMode: Exposure compensation
mode. Options: On, Off (effective only in Auto
mode).
ExpComp: Exposure compensation value.
Options: -7 ~ 7(effective only when
ExpCompMode is On)
Backlight: Set the backlight compensation.
Options: On, Off (effective only in Auto mode)
Gain Limit: Maximum gain. Options: 0 ~ 15
(effective only in Auto, AAE, and Bright modes)
Anti-Flicker: Options: Off, 50Hz, 60Hz
(effective only in Auto and Bright modes)
Meter: Options: Average, Center, Bottom,
EXPOSURE
Mode Auto
ExpCompMode On
ExpComp -1
Backlight Off
Gain Limit 3
Anti-Flicker 50Hz
Meter Average
DRC 3
Select Item
Change Value
[Menu] Back
MENU
Exposure
Color
P/T/Z
Noise Reduction
Setup
Communication Setup
Restore Default
[Home] Enter
[Menu] Exit

18
Top
DRC: DRC strength. Options: 0 ~ 8.
Bright: Bright intensity control. Options:
00~17. (effective only in Bright mode)
Iris: Aperture value. Options: F1.8, F2.0,
F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6,
F11.0, Close (effective only in Manual and AAE
modes)
Shut: Shutter value. Options: 1/30, 1/60, 1/90,
1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000,
1/10000 (effective only in Manual and SAE mode)
3. COLOR
Move the cursor to “Color”in the main menu
and press [HOME], the COLOR menu is shown
below.
WB Mode: White balance mode. Options:
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K-1, 6500K-2, 6500K-3, One Push, Manual.
RG: Red gain. Options: 0~255 (effective only
in Manual mode)
BG: Blue gain. Options: 0~255 (effective
only in Manual mode)
RG Tuning: Red gain fine-tuning. Options:
-10 ~ +10 (effective only when AWBsens is Low)
BG Tuning: Blue gain fine-tuning. Options:
-10 ~ +10 (effective only when AWBsens is Low)
Saturation: Options: 60% ~ 200%.
Hue: Chroma adjustment. Options: 0 ~ 14.
AWBsens: White balance sensitivity. Options:
Normal, High, Low.
4. IMAGE
Move the cursor to “Image”in the main
menu and press [HOME], the IMAGE menu is
shown below.
COLOR
WB Mode Auto
RG Tuning +2
BG Tuning -1
Saturation 110%
Hue 7
AWB sens Low
Select Item
Change Value
[Menu] Back

19
Luminance: Brightness adjustment. Options:
0~14
Contrast: Contrast adjustment. Options: 0~14
Sharpness: Sharpness adjustment. Options:
Auto, 0~15
Flip-H: Flip image horizontally. Options: On,
Off.
Flip-V: Flip image vertically. Options: On,
Off
B&W-Mode: Image color. Options: On, Off
Gamma: Options: Default, 0.45, 0.5, 0.56,
0.63
Style: Options: Norm, Clarity, Bright, Soft,
5S.
LDC: Options: On, Off.
Note:
1080p60 and 1080p50 do not support lens
distortion.
5. P/T/Z
P/T/Z
SpeedByZoom On
AF-Zone Center
AF-Sense High
L/R Set STD
Display Info On
Image Freeze Off
Digital Zoom Off
Fast Zoom Off
Select Item
Change Value
[Menu] Back
Luminance 7
Contrast 7
Sharpness 2
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma Default
Style Clarity
LDC Off
Select Item
Change Value
[Menu] Back

20
SpeedByZoom: The depth of field scale
adjustment. Options: On, Off
AF-Zone: Focusing area of interest. Options:
Top, Center, Bottom
AF-Sense: Automatic focusing sensitivity.
Options: Low, Normal, High
L/R Set: Options: STD, REV
Display Info: Options: On, Off
Image Freeze: Options: On, Off
Digital Zoom: Options: On, Off
Fast Zoom: Options: On, Off
6. NOISE REDUCTION
Move the cursor to “Noise Reduction”in the
main menu and press [HOME]. The NOISE
REDUCTION menu is shown below.
NR2D-Level: 2D noise reduction. Options:
Off, Auto, 1 ~ 5
NR3D-Level: 3D noise reduction. Options:
Off, 1 ~ 8
D-HotPixel: Dynamic bad points. Options:
Off, 1 ~ 5
7. SETUP
Move the cursor to “Setup”in the main menu
and press [HOME]. The SETUP menu is shown
below.
Language: Menu language. Options: English,
Chinese, Russian
DVI Mode: Options: DVI, HDMI
Note:
When switching the camera from DVI to
HDMI mode, the user needs to save the change
and restart the camera. There will be embedded
audio in the HDMI output.
Lens: Lens type. Options: Type1, Type2
SETUP
Language EN
DVI Mode DVI
Lens Type2
Select Item
Change Value
[Menu] Back
NOISE REDUCTION
NR2D-Level 3
NR3D-Level 3
D-HotPixel Off
Select Item
Change Value
[Menu] Back
