Avision AV100III User manual

AV100III
Color
Image Scanner
User's Manual
Version 1.1
(Doc. No. 250-0047-0)
 AVISION INC. 1996AVISION INC. 1996

ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International
Business Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual, or otherwise, without the prior written
permission of Avision Inc.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright laws,
the customer is solely responsible for complying with all such
laws and regulations.

iii
Warranty
The information contained in this document is subject to
change without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties
of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.

iv
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause
harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for
help.
CAUTION: Any changes or modifications not expressly
approved by the manufacture of this device could
void the user's authority to operate the equipment.

v
Table of Contents
1. INTRODUCTION 1-1
2. SCANNER INSTALLATION 2-1
2.1 INSTALLATION OF THE SCANNER 2-1
2.2 CONNECTING THE CABLE 2-5
3. SCANNER DRIVER INSTALLATION 3-1
3.1 AUTO-INSTALLATION PROGRAM 3-1
3.2 AN EXAMPLE OF CONFIG.SYS 3-3
3.3 UNINSTALL THE SCANNER DRIVER 3-4
4. SCANNER OPERATION & DOCUMENT PRINTING 4-1
4.1 IMAGE TYPE 4-3
4.2 RESOLUTION CONTROL 4-4
4.3 IMAGE CONTROL 4-5
4.4 SCANNING 4-8
4.5 PRINTING 4-9
4.6 SCANNER CONTROL CENTER 4-10
5. MAINTENANCE 5-1
5.1 CLEANING THE ADF 5-1
5.2 CLEANING THE WINDOW GLASS 5-3
6. TROUBLESHOOTING 6-1
6.1 QUESTIONS AND ANSWERS 6-2
6.2 TECHNICAL SERVICE 6-6
7. SPECIFICATIONS 7-1
7.1 MODEL: AV100III 7-2

1-1
1. Introduction
Congratulations on your purchase of Avision AV100III color
image scanner. Avision Inc. is one of the leading companies in
the world to develop high performance sheet-fed scanners.
Before you install and operate the new scanner, please take a few
minutes to read through this manual. It provides you with the
proper instructions on how to unpack, install, operate and
maintain the scanner.
Figure 1-1 shows how the scanner is packed. Please check all
the items against your checklist. If you did not receive all the
items, please contact your authorized local dealer immediately.

1-2
Figure 1-1 Scanner packing
PAPER STAND

2. Scanner Installation
Precautions
* Keep the scanner out of direct sunlight. Direct exposure to
the sun or excessive heat may cause damage to the unit.
* Do not install the scanner in a humid or dusty place.
* Be sure to use the proper AC power source.
*Place the scanner securely on a level surface. Tilted or
uneven surfaces may cause mechanical or paper-feeding
problems.
*Retain the scanner box and packing materials for shipping
purposes.
2.1 Installation of the Scanner
Please unpack the scanner carefully, and check the contents
against the checklist. If any items are missing or damaged,
please contact your dealer immediately.
Installation of the slide guides, the paper guide and the
paper stand. (See Fig. 2-1)
Open the scanner front door by slightly pulling it away
from the unit.
Insert the paper guide into the center notch located on
top of the unit.
Insert the two slide guides to the left and right of the
paper guide. When properly installed, the guides should
move freely from side to side.
Insert the two ends of the paper stand into the small
holes on both sides of the paper guide.
Close the scanner front door.

2-2
Figure 2-1 Install the slide guides, the paper guide and the paper stand.

2-3
Document loading
Standard paper size should feed easily through the scanner. To
avoid occasional paper jam or double feed when automatically
feeding multiple documents, loosen the paper before loading.
(Figure 2-2)
Figure 2-2 Loosen the paper before loading.
Document feeding
Insert the document to be scanned face down in the scanner.
Align the two sides of the document with the slide guides.
(Figure 2-3)
Figure 2-3 Place documents in the ADF.

2-4
Scanning Small Documents
To scan small documents, such as business cards, exchange the
positions of the two slide guides, adjust the distance in between
so that it suits the size of the document, and hand feed the
document. (Figure 2-4)
1. Open the scanner front door.
2. Remove the two slide guides. Exchange their positions
and reinsert them with the left guide going now to the
right and the right now to the left.
3. Close the scanner front door.
Figure 2-4 Exchange the positions of the two slide guides.

2-5
2.2 Connecting the Cable
Be sure the scanner power is off.
Connect the power cable and signal cable as shown below.
Figure 2-5 AV100III scanner cable connection

3-1
3. Scanner Driver Installation
To run at rated speed, the AV100III color image scanner must
have the following minimum requirements:
* IBM compatible PC 386/486 or Pentium;
* Microsoft Windows 3.1 or Windows 95;
* DOS 5.0 or higher;
* One printer port available (enhanced parallel port
recommended);
* 2 megabytes of available hard disk space for installation;
* 4 megabytes of RAM (8 megabytes or higher recommended);
* A video graphics array (VGA) monitor;
* A Microsoft Windows-compatible pointing device (e.g.,
the mouse);
* A 3.5" floppy disk drive.
3.1 Auto-Installation Program
Installation procedure of Avision scanner driver with Avision
Auto-installation Program is as follows:
1. Start Windows 3.1 or Windows 95.
2. Insert Avision Sheet-fed driver into your disk drive.

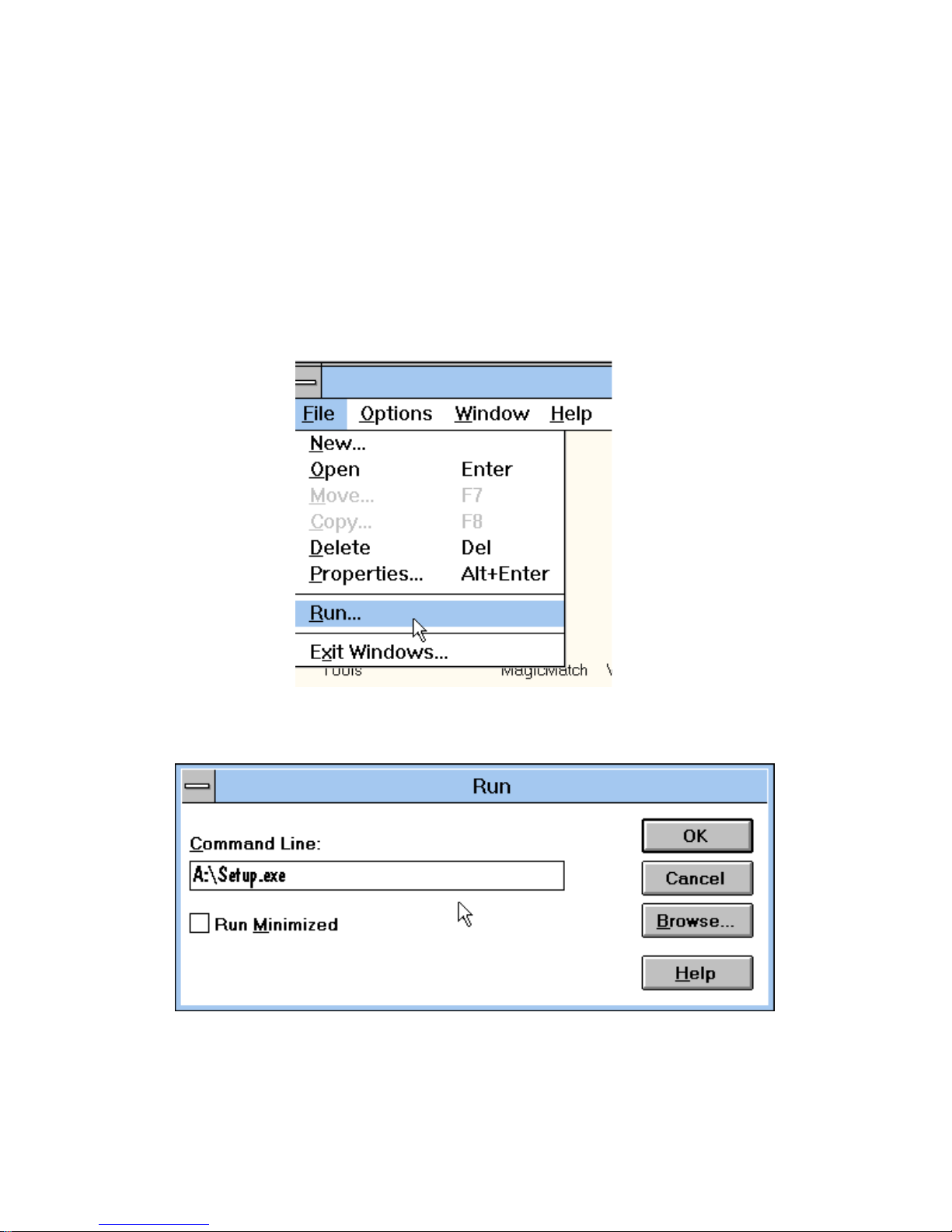

For Windows 3.1 or Windows 3.11 (See Figure 3-1,3-2)
3. From the File Menu, choose RUN, type a:\setup.exe or
b:\setup.exe, and then click O.K.

3-2
For Windows 95
3. Press the Start button, choose RUN, type a:\setup.exe or
b:\setup.exe (the drive in use), and click O.K.
4. Follow the instructions on the screen to complete the
installation (usually just clicking O.K. will complete the
installation).
Fig. 3.1
Fig. 3.2

3-3
3.2 An Example of CONFIG.SYS
The installation will add the line
DEVICE=C:\AV3C\DRVR\AV3C.SYS
in the CONFIG.SYS file.
CONFIG.SYS
DEVICE=c:\ WINDOWS\HIMEM.SYS
DEVICE=c:\ WINDOWS\EMM386.EXE noems ram
BUFFERS=40,0
DOS=UMB,high
BREAK=ON
DEVICE=C:\DOS\ANSI.SYS
SHELL=C:\COMMAND.COM C:\ /E:1024 /P
DEVICE=C:\AV3C\DRVR\AV3C.SYS

3-4
3.3 Uninstall the Scanner Driver
You can uninstall the scanner by simply double-clicking on the
Uninstall icon stored in the Avision Sheet-Fed Driver group.
...
Avision Sheet-Fed
Avision Sheet-Fed

4-1
4. Scanner Operation & Document Printing
There are two types of application software interface to use with
AV100III color image scanner. They are TWAIN and ISIS.
TWAIN is the most popular interface among image-editing
application software, while ISIS is most popular among archiving
application software.
Scanning Images from within an Application (TWAIN)
Open your application and choose Select Source from the
File menu. If the Select Sourcemenu options are not
available from the File menu, see the user’s guide of your
application to learn how the TWAIN link is used.
A dialog box appears containing the different TWAIN
sources you can choose to bring an image into your
application.
Select Avision Sheet-fed as the source.
You need to select Avision Sheet-fed for just once except
when you have used the dialog box to select a different
source. In that case, you will need to select Avision Sheet-
fed as the source again before you can resume your use of
AV100III color image scanner.
Do Calibration: Place a sheet of white, A4-size paper on
the ADF and press the Calibration button to do
calibration. This should be done each time you power on
the scanner to use. Also, It is suggested you do it after the
scanner has been powered on for 2 minutes, so that the
lamp may have enough time to warm up. Or you should

4-2
do this whenever the scanned image seems to be too dark.
Place the image to be scanned face down on the scanner.
From the File menu, select Acquire.
Avision Sheet-fed TWAIN user interface will pop up on
the screen. Click on the Prescan or Scan button to get
the image.
The TWAIN user interface:

4-3
4.1 Image Type
You can select the Type menu for the mode you want to use with
your document or image.
Line art
Line art includes only black and white areas.
There are no intermediate shades of gray in
between.
Halftone
Halftone simulates different shades of gray by
varying the threshold value of a matrix.
Error Diffusion
While taking up but a minimum storage space,
error diffusion gives good image texture and
excellent image details.
Gray (256 levels gray scale)
Scanner recognizes each point in the image as a
shade of gray (continuous tone). 8-bit gray gives
more detailed information about the image.
True Color (16.7 million colors)
Color image have continuous tones along with its
color hues.

4-4
Note: For best OCR and article print-out effect, we recommend
the scanning parameters to be that of 300 dpi, black and
white mode. To scan pictures or photos, the color or gray
scale mode is necessary But then, these modes invariably
take up much more disk space. An A4-size color image
scanned at 300 dpi, for instance, takes up as much as
24MB of disk storage space. To save disk space, then,
we suggest you set the scanning resolution at 100 dpi for
those images intended for screen display use only, now
that a scanning resolution of 100 dpi can do quite all right
for the said purpose.
4.2 Resolution Control
Resolution: The number of dpi (dots per inch) that AV100III
uses for a scan.
