Avision FL-0912S User manual

Sheet-fed Duplex Scanner
User’s Manual
Regulatory model: FL-0912S
Avision Inc.

Trademarks
Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows, and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or
other countries.
IBM, IBM PC are registered trademarks of International Business
Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without the prior
written permission of Avision Inc.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright
laws, the customer is solely responsible for complying with all
such laws and regulations.
Warranty
The information contained in this document is subject to
change without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties
of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
ii

User’s Manual
Federal Communications Commission (FCC) compliance
information statement
Part 15
The product has been tested and found to comply with the
limits for a Class A digital device pursuant to Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this
device must accept any interference received including
interference that may cause undesired operation.
The FCC Class A limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction
manual may cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take adequate measures.
iii

Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that
the product can not be disposed of with your other household
waste. Instead it should be sent to appropriate facilities for
recovery and recycling in an effort to protect human health and
the environment. Fore more information about where you can
drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or
the shop where you purchased the product.
As an ENERGY STAR®Partner, Avision Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
System Requirements
¾IBM compatible PC 586, Pentium or higher
¾Microsoft Windows 2000, Windows XP, Windows
Vista/Windows 7
¾USB port 2.0 (compatible with USB 1.1)
¾At least 100 MB of free hard disk space (500 MB is
recommended)
¾At least 128 MB of system memory (512 MB of RAM is
recommended)
At least 1 GB of RAM for Windows Vista
¾A CD-ROM drive
iv

User’s Manual
Table of Contents
1. Introduction..............................................1-1
2. Scanner Installation..................................2-1
2.1 Installing the ADF Paper Tray........................2-2
2.2 Installing the ADF Output Paper Tray .............2-3
2.3 Installing the Scanner Driver and Connecting
the Cables..................................................2-4
2.3.1 Connecting to Power.........................2-4
2.3.2 Installing the Scanner Driver .............2-5
2.3.3 Connecting to Computer ...................2-7
3. Completing Your First Scan .......................3-1
3.1 Loading Your Paper .....................................3-1
3.1.1 Notice on Using the ADF....................3-1
3.1.2 Loading Your Document in the ADF
Paper Tray ......................................3-2
3.1.3 Loading Your Cards on the ADF Paper
Tray...............................................3-3
3.1.4 Loading Your Cards and Document on
the ADF Paper Tray ..........................3-4
3.2 Verifying Your Scanner Installation ................3-7
3.1.5 A Glance of the Scanner Properties
Dialog Box .................................... 3-11
4. Using the Scanner Properties Dialog Box ..4-1
4.1 Buttons on the Scanner Properties Dialog Box.4-2
4.2 The Image Tab ...........................................4-4
4.2.1 The Image Selection Box...................4-5
4.2.2 Other Image Options........................4-8
4.2.3 Scanning color images.................... 4-18
4.2.4 Scanning grayscale images.............. 4-19
4.2.5 Scanning B&W images .................... 4-19
4.2.6 Editing Profiles............................... 4-20
4.3 The Compression Tab ................................ 4-23
4.4 The Color Dropout Tab............................... 4-25
v

4.4.1 Color Dropout Selection .................. 4-25
4.4.2 Other Color Dropout Options............ 4-27
4.5 The Paper Tab .......................................... 4-29
4.5.1 Cropping....................................... 4-30
4.5.2 Other Paper Selection..................... 4-32
4.6 The Multi-Feed Detection Tab...................... 4-35
4.6.1 Relative to Document ..................... 4-43
4.7 The Preview Tab ....................................... 4-46
4.8 The Options Tab........................................ 4-47
4.9 The Setting Tab ........................................ 4-55
4.10 The Imprinter Tab ................................. 4-58
4.11 The Information Tab .............................. 4-61
5. ISIS Interface Operation...........................5-1
6. Using the Buttons......................................6-1
6.1 Installing Button Manager ............................6-1
6.2 Checking the Button Configurations Before
Scanning...................................................6-2
6.3 Scanning From One Touch of the Buttons........6-4
7. Using Button Manager on Your Desktop....7-1
7.1 Starting Button Manager ..............................7-1
7.2 Checking the Scan Configurations..................7-3
7.3 Scanning from the Button Panel ....................7-4
8. Maintenance..............................................8-1
8.1 Cleaning the ADF ........................................8-1
8.2 Cleaning the Calibration Area........................8-3
8.3 Replacing the Snap-in Pad Module .................8-4
8.4 Replacing the ADF Roller ..............................8-5
9. Troubleshooting........................................9-1
9.1 Clearing a Paper Jam...................................9-1
9.2 Questions and Answers................................9-3
9.3 Technical Service ........................................9-5
10. Specifications.........................................10-1
Index .................................................................. a
vi

User’s Manual
1. Introduction
Congratulations on your purchase of the color sheet-fed
image scanner. With this scanner, you can scan documents
in duplex (double-sided) mode to increase productivity.
Before you install and operate the new scanner, please take
a few minutes to read through this manual. It provides
proper instructions for you to unpack, install, operate and
maintain the scanner.
The following figure indicates the package contents. Please
check all the items against your checklist. If you do not
receive all the items, please contact your authorized local
dealer immediately.
1-1

1 2
3
6
4 5
1. Scanner Main Unit
2. ADF Paper Tray
3. ADF Output Paper Tray
4. Paper Guide for Cards
5. USB Cable
6. Power Adapter & Power Cord
Note:
1. Only use the AC adapter HEG42-240200-7L by Hitron/DA-
48M24 by APD included in the machine. Using other AC
adapters may damage the machine and void the warranty.
2. Please unpack the packing carefully, and check the contents
against the checklist. If any items are missing or damaged,
please contact your dealer immediately.
1-2

User’s Manual
2. Scanner Installation
Precautions
Keep the scanner out of direct sunlight. Direct
exposure to the sun or excessive heat may cause
damage to the unit.
Do not install the scanner in a humid or dusty place.
Be sure to use the proper AC power source.
Place the scanner securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.
Retain the scanner box and packing materials for
shipping purposes.
2-1

2.1 Installing the ADF Paper Tray
1. Insert the right pin of the ADF Paper Tray to the right
hole on the top of the scanner.
2. Slightly press the left side of the ADF Paper Tray and
then insert the left pin of the ADF Paper Tray into the
left hole on the top of the scanner.
ADF
Paper
Tray
2-2

User’s Manual
2.2 Installing the ADF Output Paper Tray
1. Insert the left pin of the Output Paper Tray to the left hole
on the front of the scanner.
2. Gently press the hook on the Output Paper Tray and then
insert the right pin to the right hole on the front of the
scanner as indicated.
NOTE:
To remove the output paper tray, please first press the hook of
the right side of the output tray. Then detach the output tray
from the scanner.
Hook
Output
Paper Tray
Pin
2-3

2.3 Installing the Scanner Driver and Connecting the
Cables
NOTE:
1). The Windows system CD may be required when installing
on some PC’s.
2). To ensure your computer can identify the USB scanner,
please install scanner driver first before connecting the
scanner to your computer.
3). The scanner driver contains both TWAIN driver and WIA
driver. If you are running Windows Me, Windows XP, or
Windows Vista, after the installation of scanner driver is
completed, this scanner allows you to scan via a TWAIN
user interface or a WIA (Windows Image Acquisition)
interface. Start your TWAIN-compatible image editing
software application to select a TWAIN or WIA user
interface. Or you might launch Microsoft’s Scanner and
Camera Wizard to scan via a WIA user interface.
2.3.1 Connecting to Power
Before connecting, make sure the power switch is off.
Plug the small end of the power adaptor into the power jack of
your scanner. Insert the other end to an appropriate power
outlet.
2-4

User’s Manual
2.3.2 Turning on the Power
Press the Power Switch button on the front panel, the Power
LED will flash. When it is finished and ready to scan, the
LED indicator will stop flashing and become steadily on. To
turn off the scanner, press the Power Switch button for
about 3 seconds, the Power LED will be off.

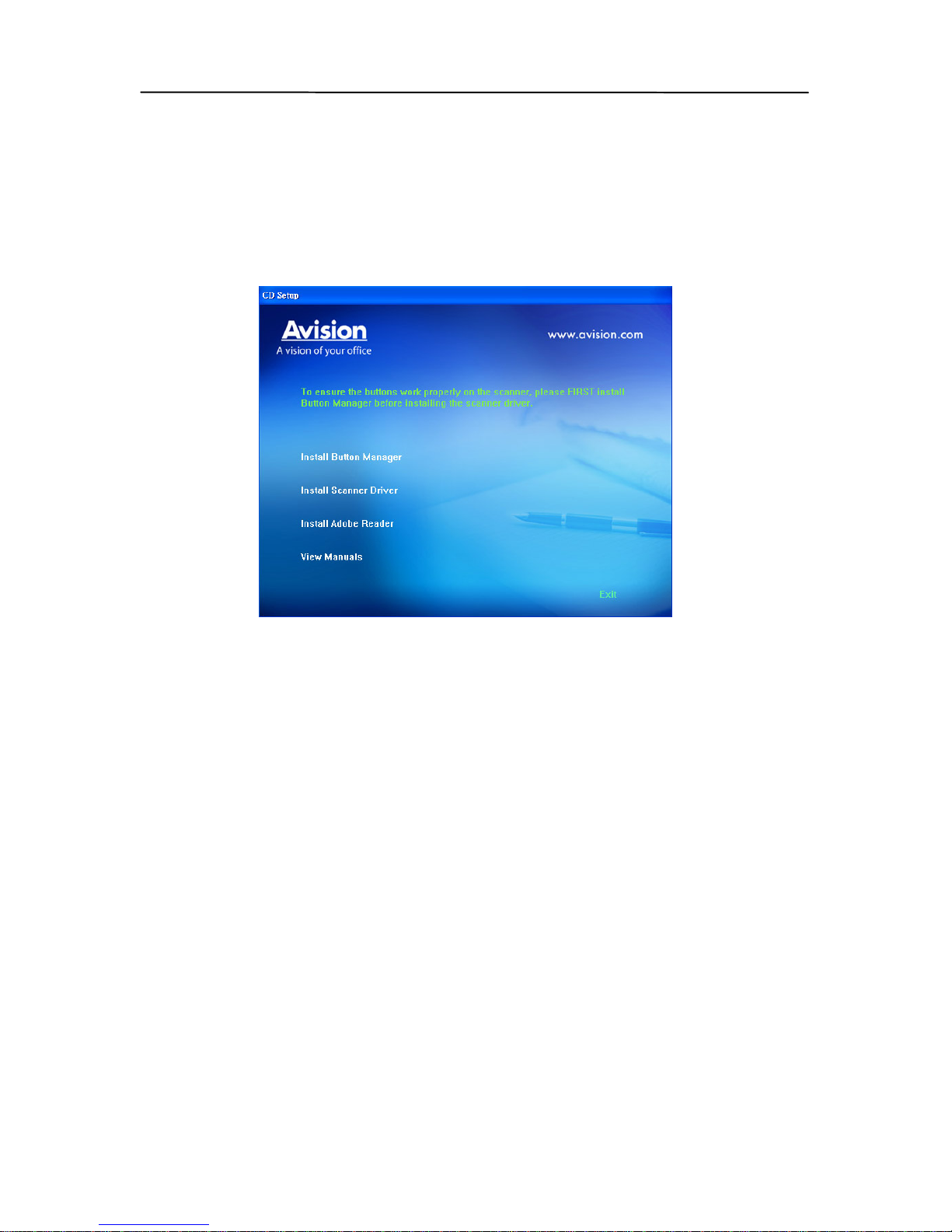

2.3.3 Installing the Scanner Driver
NOTE:
1. The Windows system CD may be required when installing
on some PC’s.
2. To ensure your computer can identify the USB scanner,
please install scanner driver first before connecting the
scanner to your computer.
3. The scanner driver contains both TWAIN driver and WIA
driver. If you are running Windows XP, or Windows Vista,
after the installation of scanner driver is completed, this
scanner allows you to scan via a TWAIN user interface or a
WIA (Windows Image Acquisition) interface. Start your
TWAIN-compatible image editing software application to
select a TWAIN or WIA user interface. Or you might
launch Microsoft’s Scanner and Camera Wizard to scan via
a WIA user interface.
2-5

1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run
“setup.exe”.
Contents on the installation graphic:
yInstall Button Manager: To use the buttons on
the scanner, you need to install Button Manager.
To ensure Button Manager works properly, please
FIRST install Button Manager before installing the
scanner driver.
yInstall Scanner Driver: To communicate with
your scanner, you need to install the scanner driver.
After installing the Button Manager software, click
Install Scanner Driver to install the scanner
driver on your computer.
yInstall Adobe Reader: To view the user’s
manuals for the scanner and Button Manager, you
need to use Adobe Reader to open and view the
manuals in pdf file format. If you already have
Adobe Reader installed on your computer, you may
disregard this item.
2-6

User’s Manual
yView Manual: Click “View Manual” to view or
print the detailed user manual for the scanner and
Button Manager respectively.
3. Click Install Button Manager to install the Button
Manager software and then click Install Scanner Driver
to install the scanner driver on your computer.
2.3.4 Connecting to Computer
1. Connect the square end of the USB cable to the USB port of
your scanner. Connect the rectangle end to the USB port of
your computer.
2. The computer should detect a new USB device and prompt
a “New Hardware Found” message.
3. In Windows 2000, confirm that the “Search for a better
driver.” is selected and click the “Next” button.
2-7

In Windows XP, click the Next button to continue. When
the XP certification screen appears, click Continue
Anyway to complete the installation.
4. When the Finish dialog is prompted, click the Finish
button.
Note:
To uninstall the scanner driver in Windows XP, be sure to keep
your scanner connecting to your computer.
2-8

User’s Manual
3. Completing Your First
Scan
3.1 Loading Your Paper
3.1.1 Notice on Using the ADF
Before using the ADF, please make sure that your paper meets
the following specifications:
•Document(s) can range in size from 3.5 by 2 inches to
8.5 by 14 inches (Legal).
•Document(s) can range in weight from 7 to 106 lbs (28
~400 g/m2)
•ID cards up to 1.25 mm (0.05 in.) thick
•Document(s) should be square or rectangular and in good
condition (not fragile or worn).
•Document(s) should be free of curl, wrinkle, tears, wet
ink, or punch holes.
•Document(s) should be free of staples, paper clips, paper
sticky notes.
3-1

3.1.2 Loading Your Document in the ADF Paper Tray
Fanning Your Document
Standard paper size should feed easily through the scanner.
To avoid occasional paper jam when automatically feeding
multiple documents, loosen the paper before loading.
Document Feeding
1. Load the stack of document face down with the top of
the pages pointing into the feeder.
2. Verify that the paper guides are aligned with the edges
of the stack.
Your
Document
(Face
Down)
Paper
Guide
3-2

User’s Manual
3.1.3 Loading Your Cards in the ADF Paper Tray
1. Place the stack of cards face down with the long dimension
parallel to the paper guide.
2. Adjust the paper guides to center the original. Make sure
the paper guides touch the edges of the original.
3-3

3.1.4 Loading Your Cards and Document on the ADF
Paper Tray

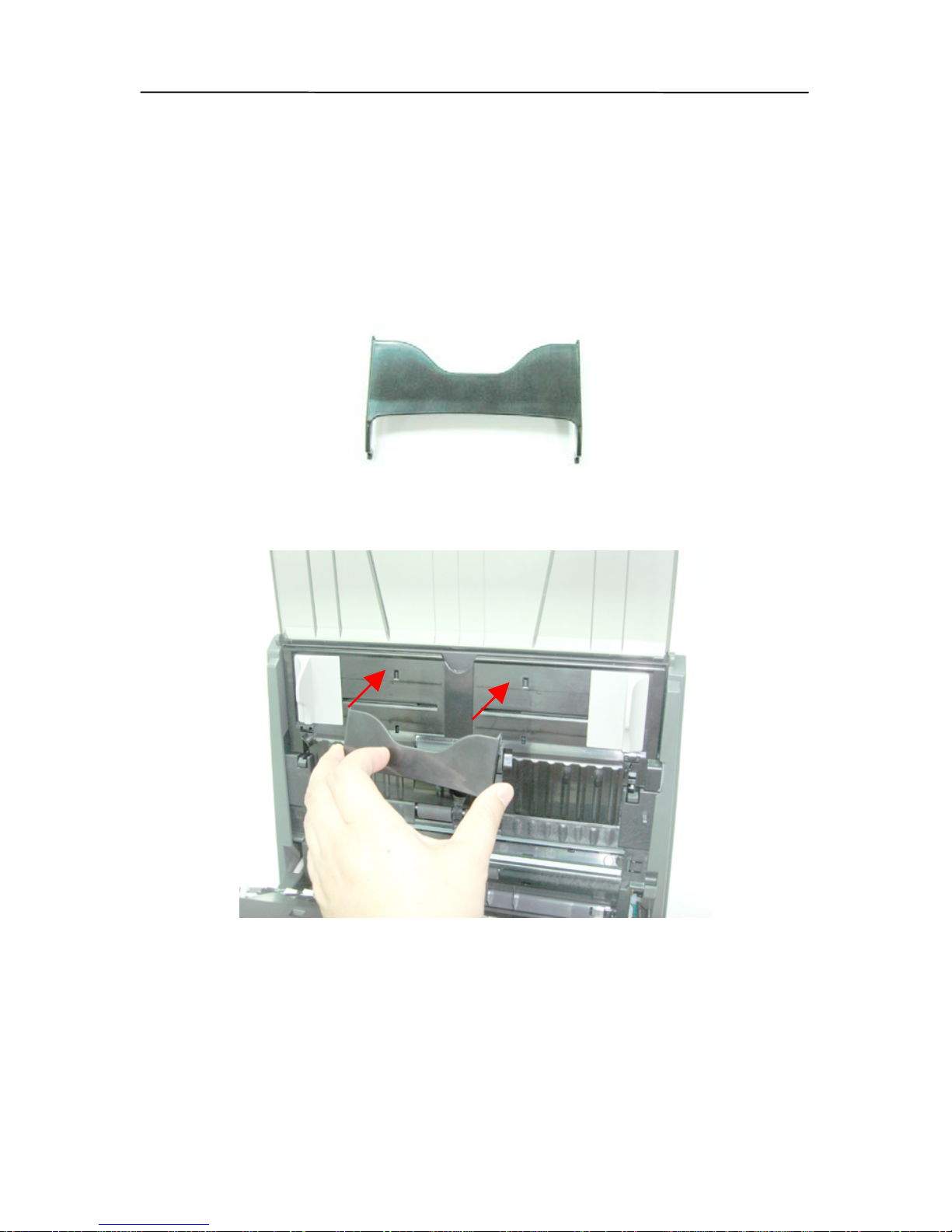

1. To scan your cards and document at the same time, you
need to first install the paper guide for the card on the auto
document feeder.
2. Insert four pins of the paper guide to the corresponding
holes in the document feeder.
3-4
