Intended Use
The product automatically measures human begins Systolic, Diastolic
blood pressure and pulse rate by oscillometric method. The
measurement results are displayed on the LCD. Measurement position
is at human being's arm. The intended use of this over-the-counter
device is for adults with arm circumference ranging from 125 mm to
210 mm (Approx. 4.9 ~ 8.3 inches) and for home use. When the device
detects the appearance of irregular heartbeats during measurement, an
indicated symbol will appear with measuring readings.
This device is designed only for adults.
Contra-indications
Do not use in this case. (e.g. common arrhythmias such as atrial or
ventricular premature beats or atrial fibrillation, arterial sclerosis, poor
perfusion, diabetes, age, pregnancy, pre-eclampsia, renal diseases,
patient motion, trembling, shivering, handicapped)

2
CAUTION:
•Beware of blood flow interference and resulting harmful injury to the
patient caused by continuous cuff pressure.
•Pressurization of the cuff can temporarily cause loss of function of
monitoring ME equipment simultaneously being used on the same
limb.
•Reading can be affected by the measurement site, the position of the
patient, exercise, or patient's physiologic condition.
•Automated sphygmomanometer can be affected by extremes of
temperature, humidity and altitude.
•Frequent measurements can cause injury to the patient due to blood
flow interference.
•Check that operation of the automated sphygmomanometer does
not result in prolonged impairment of patient blood circulation.
•Retake the measurement if unexpected readings are obtained

3
•Ensure that the cuff is not placed on an arm in which the arteries or
veins are undergoing medical treatment, e.g., intravascular access or
therapy, or an arteriovenous (AV) shunt.
•This product is suitable for use in the home healthcare environment.
•Keep this device out of the reach of children. Strangulation may result
from baby or child entanglement in cables.
•Please keep this device away from pets, pests, and children.
•Preventing potential allergic reaction, please avoid the device in
direct contact to patient's wound.
•Do not use with pregnant or pre-eclamptic patients
•Do not use the cuff on people who have undergone a mastectomy.
•Do not apply the cuff over a wound, as this can cause further injury.
•Do not use this device other than the intended purposes.
•Do not use in these cases (e.g. Device for use in an ambulance,
helicopter or professional environment)

4
•Cuff pressure 0 –300 mmHg
•Reduction rate: ≦30S Refer to IEC 80601-2-30
•No modification of this equipment is allowed.

5
Important Information Before Use
1. Blood pressure measurements should only be interpreted by a
physician or a trained health care professional who is familiar with
your medical history. Through regular use of this device and
recording of your measurements, you can keep your physician
informed of the changes in your blood pressure.
2. Perform your measurement in a quiet place. You should be seated
in a relaxed position.
3. Avoid smoking, eating, taking medication, alcohol consumption or
physical activity 30 minutes prior to taking a reading. If you are
exhibiting signs of stress, avoid taking your measurement until the
feeling subsides.
4. Rest 15 minutes prior to taking a reading.
5. Remove any constrictive clothing or jewelry that may interfere with
the cuff placement.
6. Keep the monitor stable during measurement to achieve an

6
accurate reading. Remain still; do not talk during the measurement.
7. Record your daily blood pressure and pulse readings on a chart.
8. Take your readings at the same time, each day or as recommended
by your physician to get an accurate indication of change in your
true blood pressure.
9. Wait a minimum of 15 minutes between readings to allow for the
blood vessels to return to normal. The wait time may vary
depending on your individual physiological characteristics.
10. Although such cases are rare, for those with an extremely weak
pulse or irregular pulse, errors may result which prevent proper
measurement. If abnormal variations are noticed, consult with your
physician or trained healthcare professional.
11. This device is intended for adult use. While taking a measurement,
you can stop the inflation or deflation process of the cuff at any
time by pressing the POWER button.
12. If any serious incident that has occurred in relation to the device
should be reported to the manufacturer and the competent

7
authority of the Member State in which the user is established.
For Customer Service, It is recommended that the accuracy should be
checked by manufacture every 2 years. To obtain the service please
contact AViTA Corp. for the address of the repair location. Enclose the
Proof of Purchase. Include $10.00 USD for the return shipping and
handling. Include a letter, with your name, address, phone number, and
description of the specific problem. Pack the product carefully to
prevent damage in transit. Because of possible loss in transit, we
recommend insuring the product with return receipt requested. If in
need of assistance of setting up, using, maintaining or to report
unexpected operation/events please contact manufacturer or local
representative for further information and assistance. Avoid the sensor
degrading; it is needed calibrate the device every 2 year.

8
Product Identification

9
Description of LCD Display

10
Battery Installation
Inserting the batteries
•Remove the battery compartment lid on the right side of the device.
•Insert two 1.5 V AAA micro (alkaline type LR03) batteries. Make sure
that the batteries are inserted the correct way round in accordance with
the markings. Do not use rechargeable batteries.
•Close the battery compartment lid again carefully.
•All display elements are briefly displayed, flashes on the display. Now
make the settings as described below.
If the battery replacement symbol flashes, you can no longer perform
any measurements and must replace all batteries. Once the batteries
have been removed from the device, the date and time must be set
again. Any saved measured values are retained.

11

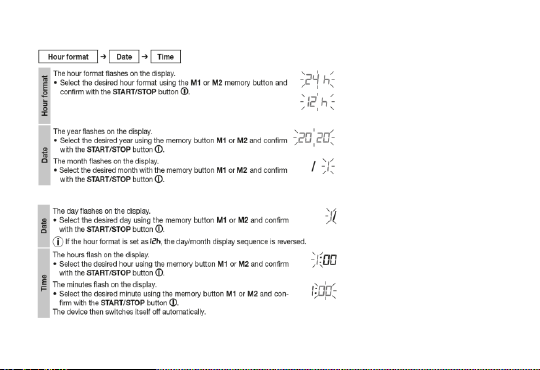

Setting the Date and Time
You must make sure that the device has the correct settings before use
in order to be able to make full use of all functions. Only by doing so
can your measurements with associated date and time be saved and
accessed later by you.
There are two different ways to access the menu from which you can
adjust the settings:
•Before initial use and after each time you replace the battery:
When inserting batteries into the device, you will be taken to the
relevant menu automatically.
•If the batteries have already been inserted:
With the device switched off press and hold the START/STOP button for
approx. 5 seconds.
In this menu you can adjust the following settings in succession:

12

13
Applying Your Cuff
General rules when measuring blood pressure yourself
•In order to generate as informative a profile of the progression of
your blood pressure as possible and ensure that the measured values
can be compared, you should measure your blood pressure regularly
and always at the same times of day. It is recommended that you
measure your blood pressure twice a day: once in the morning after
getting up and once in the evening.
•You should always carry out the measurement when you are
sufficiently physically rested. You should therefore avoid taking
measurements during stressful periods.
•Do not take a measurement within 30 minutes of eating, drinking,
smoking or exercising.
•Before the initial blood pressure measurement, make sure always to
rest for about 5 minutes.
•Furthermore, if you want to take several measurements in succession,

14
make sure always to wait for at least 1 minute between the individual
measurements.
•Repeat the measurement if you are unsure of the measured value.
Attaching the cuff
•Fundamentally, blood pressure can be measured on both arms.
Certain deviations between the measured blood pressure on the right
arm and left arm are due to physiological causes and completely
normal. You should always perform the measurement on the arm with
the highest blood pressure values. Before starting self-measurement,
consult your doctor in this regard. From this point on, always take
measurements on the same arm.
•The device may only be operated with the cuff attached when
supplied. Before using the device, the user should check the fit of the
cuff and, in doing so, ensure that their wrist circumference is within
the range printed on the cuff.
•Uncover your wrist. Ensure that the circulation of the arm is not
hindered by tight clothing or similar.

15
•Now place the cuff on the wrist so that the palm of your hand and the
device display are facing upwards.
•Position the cuff so that there is a distance of 1.0 –1.5 cm between it
and the heel of your
hand.
•Now fasten the cuff tightly around your wrist using the
hook-and-loop fastener. Make sure
that it is tight but that it does not cut into your wrist.
Adopting the correct posture
•To carry out a blood pressure measurement, make sure you are sitting
upright and comfortably. Lean back and place your arm on a surface.
Do not cross your legs. Place your feet next to each other flat on the
floor.
•Always make sure that the device is at heart level during the
measurement. Otherwise significant measurement deviations can
occur due to physiological causes. To do so, place your elbow on a

16
table to support your arm. In order to make the measurement even
more comfortable for you, you can place your lower arm on a suitable
object (e.g. the storage box).
•Relax your arm and the palm of your hand.
•To avoid distorting the measurement, you should remain as still as
possible during the measurement and not speak.

17
Measurement of Pulse Rate and Blood Pressure
Selecting the user
This device has 2 user memories with 100 memory spaces each in order
that you can save measurements from 2 different people separately
from each other.
If multiple people are using the device, make sure that the relevant user
is set before each measurement.
To select the relevant user memory, press the memory button M1 (for
user ) or M2 (for user memory ) when the device is switched off. Then
confirm your selection by pressing the START/STOP button .
Performing the blood pressure measurement
•Press the START/STOP button to start the blood pressure monitor. All
display elements are briefly displayed.
•The blood pressure monitor will begin the measurement
