Avita BPM32-GL User manual

Wrist Type Blood Pressure Monitor
BPM32-GL
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan, China.
China, AViTA(WUJIANG)
Importer
Distributor

INSTRUCTION MANUAL
Please read this instruction manual carefully before operating this unit
Contents
Intended Use .......................................................................................................... 1
Important Information Before Use ......................................................................... 7
Blood Pressure Monitor Features ..........................................................................11
Description of LCD Display.....................................................................................12
Battery Installation ................................................................................................14
Setting the Date and Time .....................................................................................15
Applying Your Cuff .................................................................................................17
Measurement of Pulse Rate and Blood Pressure ...................................................19
Hypertension Indicator..........................................................................................21
Irregular Heartbeat Detector.................................................................................23
Memory Function..................................................................................................25
Error Codes............................................................................................................28
Troubleshooting ....................................................................................................30

Cleaning and Disinfecting ......................................................................................33
Technical Specification...........................................................................................34
EMC Tables ............................................................................................................36
Explanation of Symbols .........................................................................................40

1
Intended Use
The product automatically measures human beings Systolic, Diastolic
blood pressure and pulse rate by oscillometric method. The
measurement results are displayed on the LCD. Measurement position
is at human being's wrist. The intended use of this over-the-counter
device is for adults with wrist circumference ranging from 125 mm to
210 mm (Approx.4.9 ~ 8.3 inches) and for home use. When the device
detects the appearance of irregular heartbeats during measurement, an
indicated symbol will appear with measuring readings.
This device is designed only for adults.
Contra-indications
Please do not place the cuff over a wound as this may cause further
injuries.
If an intravenous treatment is being carried out or a venous
catheter is inserted in the arm, blood pressure measurements can

2
lead to injury. Never use the cuff on the arm to which these
conditions apply.
If you are prone to hematoma, do not put on a cuff nor carry out a
blood pressure measurement.
Consult your doctor before measuring your own blood pressure if…
If you have any of the following conditions, it is essential you
consult your doctor before using the device: cardiac arrhythmia,
Cardiovascular disease, very low blood pressure, diabetes,
circulatory problems, diabetes, liver function disorders or
narrowing of blood vessels, blood disorders, pregnancy,
pre-eclampsia, hypotension, chills, shaking, tremors, implanted
electrical implants (e.g. pacemaker).
You are on dialysis or taking anticoagulant medication
(anticoagulants), platelet aggregation inhibitors or steroids.
You tend to bruise easily and/or are sensitive to pressure pain.

3
Caution:
Beware of blood flow interference and resulting harmful injury to
the patient caused by continuous cuff pressure.
Do not use the device at the same time as other medical electrical
devices (ME equipment). This could lead to a malfunction of the
device and/or an inaccurate measurement.
Measurement results fundamentally depend on the measurement
location and the position of the patient (sitting, standing, reclining).
They are also influenced by e.g. physical activity and physiological
preconditions of the patient. For comparable values, carry out the
measurement in the same location and in the same position.
Protect the device from impacts, humidity, dirt, marked
temperature fluctuations and direct sunlight.
Do not use the device outside of the specified storage and
operating conditions. This could lead to incorrect measurements.
Ensure the device is at room temperature before measuring. If the
measuring device has been stored close to the maximum or

4
minimum storage and transport temperatures and is placed in an
environment with a temperature of 20 °C, it is recommended that
you wait approx. 2 hours before using the measuring device.
Please note that when inflating the cuff, the functions of the limb in
question may be impaired.
During the blood pressure measurement, the blood circulation
must not be stopped for an unnecessarily long time. If the device
malfunctions remove the cuff from the arm.
The blood pressure monitor is made from precision and electronic
components. The accuracy of the measurements and service life of
the device depend on its careful handling.
Do not drop the device.
Do not perform measurements more frequently than necessary.
Due to the restriction of blood flow, some bruising may occur.
Retake the measurement if unexpected readings are obtained
Ensure that the cuff is not placed on an arm in which the arteries or
veins are undergoing medical treatment, e.g., intravascular access

5
or therapy, or an arteriovenous (AV) shunt.
Do not use the cuff on people who have undergone a mastectomy.
Do not place the cuff over wounds as this may cause further injury.
High BMI health condition users may result varied.
The blood pressure monitor must not be used in connection with a
high-frequency surgical unit.
Do not use the device in the vicinity of strong electromagnetic
fields and keep it away from radio systems or mobile telephones.
The measured values taken by you are for your information only -
they are no substitute for a medical examination. Discuss the
measured values with your doctor and never make your own
medical decisions based on them (e.g. regarding dosages of
medicines).
The device is only intended for the purpose described in these
instructions for use. The manufacturer is not liable for damage
resulting from improper or incorrect use. No modification of this
equipment is allowed.

6
Users shall notify serious adverse event to the central competent
authority or its commissioned agency, legal entity, or manufacture.
If the irregular heart beat symbol appears often, it may indicate
heart rhythm disorders. Please consult your doctor in that case.
Severe heart rhythm disorders may sometimes produce lead to
measurements or reduce the measurement accuracy. Please discuss
with your doctor whether taking your own blood pressure is
appropriate for you.

7
Important Information Before Use
1. Blood pressure measurements should only be interpreted by a
physician or a trained health care professional who is familiar with
your medical history. Through regular use of this device and
recording of your measurements, you can keep your physician
informed of the changes in your blood pressure.

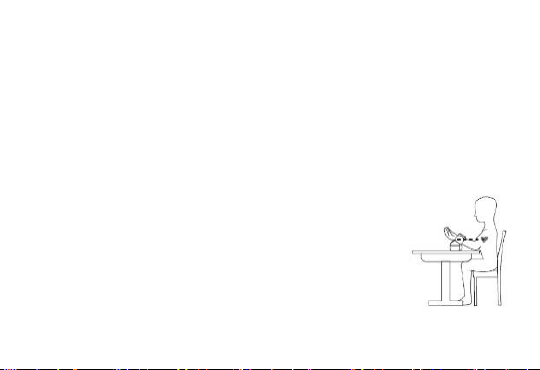

2. Perform your measurement in a quiet place. You should be seated in
a relaxed position.
3. Avoid smoking, eating, taking medication, alcohol consumption or
physical activity 30 minutes prior to taking a reading. If you are
exhibiting signs of stress, avoid taking your measurement until the
feeling subsides.
4. Rest 15 minutes prior to taking a reading.

8
5. Remove any constrictive clothing or jewelry that may interfere with
the cuff placement.
6. Keep the monitor stable during measurement to achieve an
accurate reading. Remain still; do not talk during the measurement.
7. Record your daily blood pressure and pulse readings on a chart.
8. Take your readings at the same time, each day or as recommended
by your physician to get an accurate indication of change in your
true blood pressure.
9. Wait a minimum of 15 minutes between readings to allow for the
blood vessels to return to normal. The wait time may vary
depending on your individual physiological characteristics.
10. Although such cases are rare, for those with an extremely weak
pulse or irregular pulse, errors may result which prevent proper

9
measurement. If abnormal variations are noticed, consult with your
physician or trained healthcare professional.
11. This device is intended for adult use. While taking a measurement,
you can stop the inflation or deflation process of the cuff at any
time by pressing the POWER button.
12. If any serious incident that has occurred in relation to the device
should be reported to the manufacturer and the competent
authority of the Member State in which the user is established.
For Customer Service, the blood pressure monitor is calibrated when
manufactured; it is recommended that the accuracy should be
maintained and calibrated by manufacture triennially (every 3 years). To
obtain the service please contact AViTA Corp. for the address of the
repair location. Enclose with the Proof of Purchase. Include $10.00 USD

10
for the return shipping and handling. Accompany with a letter, with your
name, address, phone number, and description of the specific problem
or routine check-up. Pack the device carefully with bubble wraps (if
there is) to prevent damages cause during transit. Due to possible
losses in transit, it is recommended insuring the device with return
receipt requested. If in any way of assistance of setting up, using,
maintaining or to report unexpected operation/adverse events please
contact manufacturer or local representative for further assistance.

11

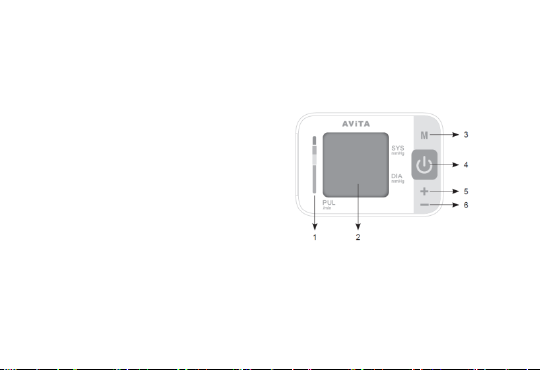

Blood Pressure Monitor Features
1. Hypertension Indicator(WHO indicator)
2. LCD Display
3. Memory Recall Button
4. Power Button
5. Advance Button
6. Retrogress Button

12

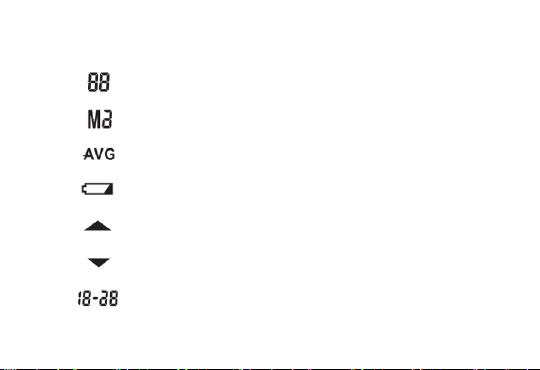

Description of LCD Display
Memory sets
Memory Symbol
Average Measurement Symbol
Low Battery Symbol
Inflation Symbol(Positioning Indicator Up)
Deflation Symbol(Positioning Indicator Down)
Date

13

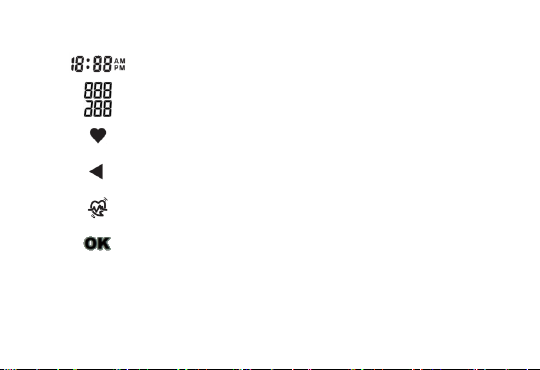

Time
Digital Display
Heartbeat Symbol
Hypertension Indicator
Irregular Heart Beat Symbol
Positioning Indicator “OK”

14
Battery Installation
Low battery warning:
It is necessary to replace the batteries when the Low Battery symbol
appears on the display, or when the display does not turn on after the
POWER button is pressed.
Replacing the Battery:
-Slide the battery cover on the bottom of the monitor.
-Insert or replace 2 x 1.5 V AAA batteries into the battery
compartment, ensuring to match the indicated polarity symbols.
Always use new batteries.
-Replace the battery cover.
Battery-operated
-Always use NEW batteries; never mix old and new batteries.
-Please properly dispose of the batteries away from small children

15
and heat.
-It is recommended to remove the batteries if the unit will not be
used for an extended period of time.
-Batteries must be disposed of in accordance with local
environmental and institutional policies.
-Remove the battery during extended storage.
-It is recommended not to use rechargeable, unqualified or different
spec battery may damage the device or cause circuit shortcut.
Setting the Date and Time
It is necessary to set the date and time for the unit every time batteries
are initially installed or replaced.
(1) After replacing batteries, the “Year” will begin to flash on the
display.
(2) Press the “+” button to advance or “-” button to retrogress
the display to the desired “Year”, press “M” button to

16
confirm the “Year”.
(3) Next, the “Month” will blink. Repeat steps 2 to set the “Month”
and “Day”, then “hour”, then “Minute”.
(4) After setting the minute, the unit will automatically exit out or
press power button the date/time setting mode and briefly show
the word OFF before shutting down.

17
Applying Your Cuff
It is important to avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to taking a reading. If
for any reason you are unable to or should not use your left wrist,
please modify the instructions for cuff application to your right wrist.
Your physician can help you identify which wrist is best for you to take
measurements from.
-Remove any constrictive clothing or jewelry that
may interfere with cuff placement.
-Be seated at a table or desk with your feet flat on the
floor.
-Hold your wrist in front of you at heart level with
your palm facing upward.
-Apply the preformed cuff to your wrist so that the
digital display face is positioned on the inside area
