Avonic AV-CM22-VCU User manual

www.avonic.eu | User Manual | Version 1.0
Avonic 4K Conference Camera USB3.0
AV-CM22-VCU

www.avonic.eu 2
CONTENTS
Introduction................................................................................................................................................. 3
Contact. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Join Avonic .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Safety Notes .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Package contents and Accessories.................................................................................. 4
Contents.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4
Handling precautions .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4
Product Overview.................................................................................................................................. 5
Features .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 5
Applications .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 5
Installation.................................................................................................................................................... 6
Connections .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6
Camera placement .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6
Operation...................................................................................................................................................... 8
Remote controller .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 8
Quick Codes list. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 10
OSD Menu.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 11
Maintenance.............................................................................................................................................. 15
Camera Maintenance . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 15
Unqualified Application.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 15
Troubleshooting...................................................................................................................................... 15
General advise .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 15
Power Issues.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 15
Image.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 16
Control .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 16

www.avonic.eu 3
• Installation and servicing should only be done by Qualified Service Personnel and conform to all
local codes.
• This unit is designed for indoor use only and it must not be installed where exposed to water or
other liquids and moisture.
• Before powering on the device, check the input power voltage carefully.
• Avoid shock and vibration when transporting and installing the device.
• Electronic devices produce heat. Do not block the ventilation slots of the device and make sure
the installation environment is well ventilated to avoid overheating.
• Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not use
strong or abrasive detergent to clean that will damage the device.
• If you wish to dispose this product, please contact Avonic to obtain info about the disposal
procedure.
facebook.com/avonicPTZ linkedin.com/company/avonic twitter.com/avonic
For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distri-
butor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic
website: www.avonic.eu
Thank you for your Avonic purchase. Before beginning to operate this device, please read the manual in
order to make sure the best performance is obtained. Save this manual for future reference.
Join Avonic
Safety Notes
Contact
INTRODUCTION
Back to top

www.avonic.eu 4Back to top
Be cautious to take the camera by its base and
do not touch the lens.
Quantity Description Avonic SKU
1 pc Device AV-CM22-VCU
4 pc USB Power Supply (EU, UK,
US, AUS)
AV-CM20-PSU
1 pc Remote Control CM-RC
1 pc USB 3.0 cable AV-USB30-AB
Handling precautions
Contents
PACKAGE CONTENTS AND ACCESSORIES

www.avonic.eu 5Back to top
• Lens: Auto focus lens with 120° Horizontal FOV.
• Crystal Clear Image: : 4K Progressive CMOS sensor 2160P UltraHD
• Output: HDMI and USB3.0 up to 4K30 or 1080p30 when using USB 2.0
• Audio: Built in noise cancelling micorphones with 4 meter pick up range
• Control: Control the camera via any UVC based videoconference application or
the included IR remote control
• Presets: 10 User definable presets with Digital Pan Tilt and Zoom including startup
preset
• Mount: The CM22 comes with an included detachable integration mount with
the ability to secure and mount the camer above or below a screen
The Avonic CM22-VCU boasts a 4K, wide angle lens up to 120 degrees FOV that makes sure you can capture all
attendees. It’s Smart automatic and fully user configurable modes guarantee crystal clear video even under
the most challenging light conditions. Built in user configurable dual microphones allow for easy audio capture.
A true integration product with a discrete design and mount developed for PRO-AV installations. It can be easily
mounted either on top of or below a screen for optimal line of sight during a meeting. The mount can be used
in combination with modern thin-bezel screens.
Designed to last the CM22-VCU comes with 3 year warranty.
Features
PRODUCT OVERVIEW
Applications
• Huddle Rooms
• Telemedicine
• Desktop Video Conferencing
• Small and Medium Size meeting rooms

www.avonic.eu 6Back to top
INSTALLATION
Camera placement
The CM22 comes with a detachable integration mount with multiple placement options:
1. Monitor placement
Connections
1 2
1. HDMI output
2. USB 3.0 connector

www.avonic.eu 7Back to top

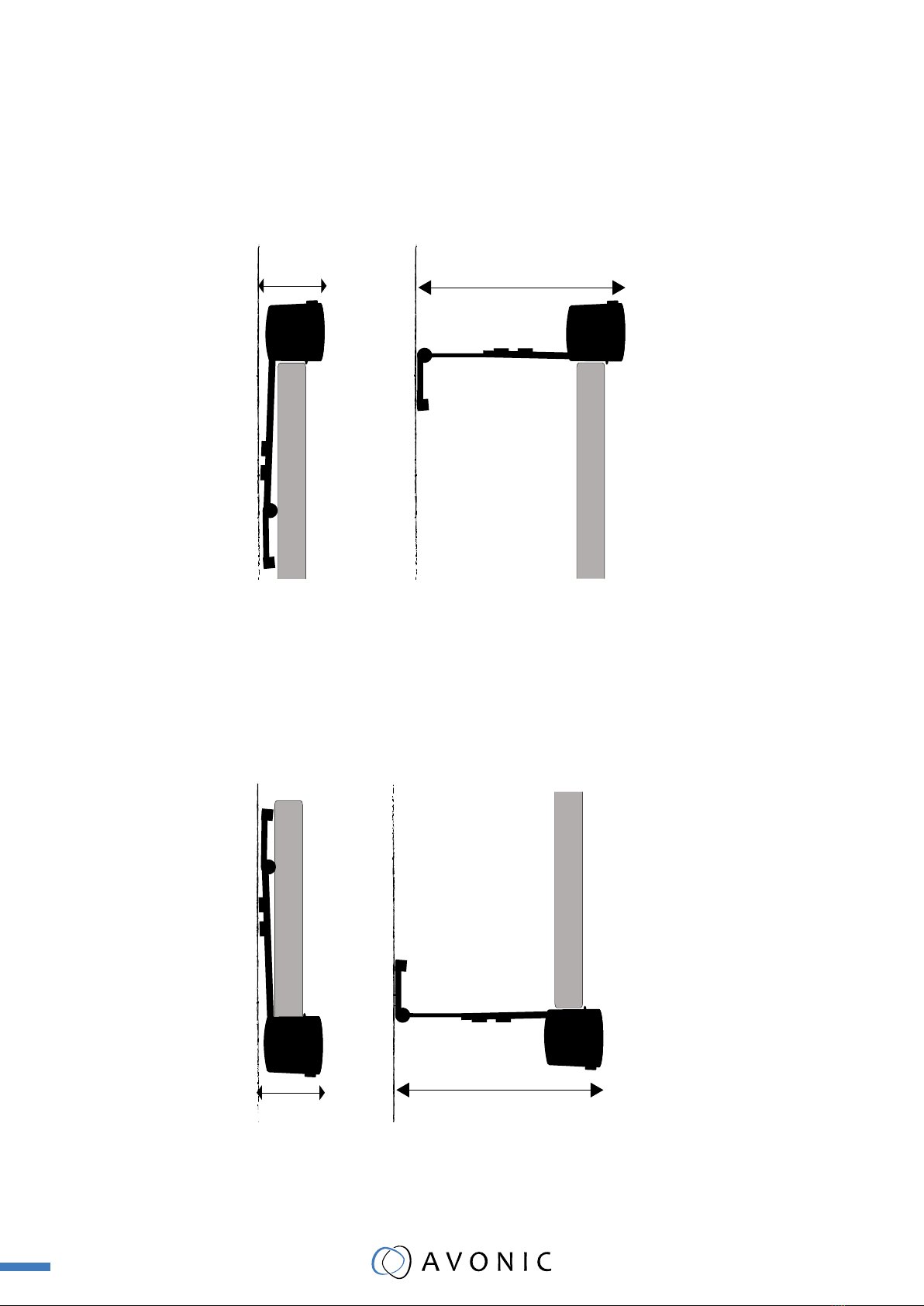

3. Wall mounted below a screen
The minimum (depending on connector type used) and maximum depth are indicated, due to the
dual articulated sliding mount design there are numerous variations to make.
2. Wall mounted above a screen
The minimum (depending on connector type used) and maximum depth are indicated, due to the
dual articulated sliding mount design there are numerous variations to make.
207mm 174mm
207mm 174mm
70mm
70mm
207mm
174mm
207mm 174mm
70mm
70mm
207mm 174mm
207mm
174mm
70mm
70mm
207mm 174mm
207mm 174mm
70mm
70mm

www.avonic.eu 8Back to top
1. Standby Key
2. Number Key
3. *Key
4. Preset Key
5. Home key
6. Return Key
7. Zoom Button
8. Left/Right
Setting Key
9. Focus Key
10. Camera IR Selection Key
11. #Key
12. IR Channel ProgramKey
13. Reset Key
14. PTZ control key
15. Menu Key
16. Backlight Key
17. PTZ reset key
Remote controller
OPERATION

www.avonic.eu 9Back to top
1. Standby Key
This button has no function with this camera.
2. Number Key
Call preset PTZ position.
3. *Key
Used with other keys.
4. Preset Key
Preset memory in combination with numeric keys (0-9)
5. Home Key
The PTZ camera/image will go back to the center position, or “enter” function in “On Screen Display (OSD)”
menu.
6. Return Key
Return back tot the previous level of the menu.
7. Zoom + -
Zoom the camera with these buttons. Slow zoom in and out/ fast zoom in and out.
8. Left/Right Setting Key
This button has no function with this camera.
9. Focus Key
This button has no function with this camera.
10. Selection Key
Select IR channel 1 to 4 to control multiple cameras individually.
11. # Key
Used with other keys.
12. IR Channel Program Key
[* ] + [#] + [F1]/ [F2] / [F3] / [F4]: program camera to IR channel 1 to 4
13. Reset Key
Delete the memory preset in combination with the numeric keys (0-9).
14. PTZ Control Key
When zoomed in, move the image with the up/down/left/right keys.
15. Menu Key
This Menu button opens of closes the the OSD menu. If the menu is not in English, please press
[*]+[#]+[1] to change the Menu language to English.
16. Backlight Key
This button has no function with this camera.
17. PTZ Reset Key
This button has no function with this camera.

www.avonic.eu 10Back to top
Quick Codes list
[*]+[#]+[1] : OSD menu default English
[*]+[#]+[4] : 1080P@30fps default hdmi resolution
[*]+[#]+[5] : Disable microphone, setting is persistant even after power cycle
[*]+[#]+[6]: Factory default
[*]+[#]+[7]: 1080P@60fps default resolution
[*]+[#]+[9]: Enable microphone, setting is persistant even after power cycle
Contact Avonic for latest firmware [email protected]

www.avonic.eu 11Back to top
The OSD menu can be accessed by
using the IR Remote Control.
In the following pages, the navigating
is described for using the IR Remote
Control.
OSD Menu
Exposure
Color
exp. compensation
Gain Limit
Backlight
DRC Strength
Antiflicker
Setting
Menu
Restore Default
exp.comp. mode
AWB sense
RG tuning
BG tuning
Saturation
Hue
WB mode
Contrast
Sharpness
Flip-H
Flip-V
Gamma
Luminance
Style
LDC
Noise Reduction 2D-NR
3D-NR
DPTZ
Zoom Limit
HDMI Enable
DVI Mode
HDMI Format
Language
Auto Framing
UVC EXT Setting
Information

www.avonic.eu 12Back to top
1. MENU
Press [MENU] button to display the main menu on the screen. Use the arrow buttons to move the cursor to
the item to be set. Press the [HOME] button to enter the corresponding sub-menu.
MENU
Exposure
Color
Noise Reduction
Setting
Information
Restore Default
Select Item
Change Value
[Home] Enter
[Menu] Exit
2. EXPOSURE
EXPOSURE
Mode Full Auto / Bright / Shutter Priority
ExpCompMode ON / OFF
Exposure Compensation -7 ~ 7
Gainlimit 0 ~ 15
Backlight ON / OFF
DRC Strength 0 ~ 8
Antiflicker 50hz / 60hz / OFF
Select Item
Change Value
[Menu] Back

www.avonic.eu 13Back to top
3. COLOR
COLOR
WB Mode auto / indoor / outdoor / One Push / manual / VAR
AWB Sense low / middle / high
RG Tuning -10 ~ 10
BG Tuning -10 ~ 10
Saturation 60 % ~ 200%
Noise Reduction
Select Item
Change Value
[Menu] Back
4. IMAGE
Luminace 0 ~ 14
Contrast 0 ~ 14
Sharpness 0 ~ 14
Flip-H ON / OFF
Flip-V ON / OFF
Gamma 0.45 / 0.50 / 0.56 / 0.63 / EXT / Default
Style Default / Normal / Clarity / Bright / PC / Clarity (LED) / Face
LDC -10 ~ 10
Select Item
Change Value
[Menu] Back
5. NOISE REDUCTION
NOISE REDUCTION
2D NR Close / Auto / 1 ~ 5
3D NR Close / Auto / 1 ~ 8
Select Item
Change Value
[Menu] Back

www.avonic.eu 14Back to top
6. SETTING
SETTING
Language English / Chinese
DPTZ ON / OFF
Zoom Limit 1.5x / 2x / 3x / 4x / 8x
HDMI Enable On / Off
DVI Mode DVI /HDMI
HDMI Format 4K30 / 1080p30 / 1080i60 / 1080i50
Auto Framing OFF/ ON
Select Item
Change Value
[Menu] Back
8. RESTORE DEFAULT
7. INFORMATION
Read out of model and firmware version
RESTORE DEFAULT
Restore default? NO / YES
Select Item
Change Value
[Menu] Back
[Home] OK

www.avonic.eu 15Back to top
MAINTENANCE
Unqualified Application
Camera Maintenance
• Do not film extreme bright objects for a long period of time, such as sunlight, light sources, etc.
• Don’t operate in unstable lighting conditions, otherwise the image might flicker.
• Don’t use this device close to powerful electromagnetic radiation, such as TV or
radio transmitters, etc.
• If the camera will not be used for a long time, please turn off the power switch,
disconnect AC power cord of AC adaptor to the outlet.
• Use soft cloth or tissue to clean the camera cover.
• Please use the soft dry cloth to clean the lens. If the camera is very dirty, clean it
with diluted neuter detergent. Do not use any type of solvents, which may damage
the surface.
• Turn the camera off and on again and check if the problem persists.
• No power LED
- Check the USB cable
- Check the power supply
General advise
Power Issues
TROUBLESHOOTING

www.avonic.eu 16Back to top
• No power LED
- Check the USB power
- Check the power supply
• Remote Controller does not work
- Check batteries of the controller
• No image
- Check power of camera and monitor
- Check video cable quality and length
- Check if video specifications of monitor match the specs of the camera
• Abnormal image
- Check video cable quality and length
- Check all cable connections
• Dithering or flickering image
- Check camera fixation and nearby vibration sources
- Check anti-flickering setting in OSD
- Check Noise Reduction settings in OSD
• Color issues
- Check options in OSD, like exposure, color temp, Red and Blue tuning
Control
