AVstumpfl Plus User manual

1
User Manual
HD Player Plus
AV Stumpfl GmbH
Mitterweg 46
A-4702 Wallern
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: http://www.AVstumpfl.com

2
FCC Notices
It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential installation. This equipment generated uses and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio of television reception, which can be determined by turning the
equipment off or on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
CE Declaration
This device complies with CE class B.
EN55022 IEC 61000-4-4
EN61000-3-2 IEC 61000-4-5
EN61000-3-3 IEC 61000-4-6
EN55024 IEC 61000-4-8
IEC 61000-4-2 IEC 61000-4-11
IEC 61000-4-3
Printed in Taiwan R.O.C.
All contents are subject to change without notice.
All trademarks are the property of their respective owner.

3
CONTENTS
1. Package Contents……..……………………………………….. 4
2. Introduction……………….……………………………………... 4
3. Features………………………….……………………………… 4
4. Hardware Overview……………………..……………………... 6
5. Remote Control……………………………..………………….. 7
5.1 Entering Text or IP Address……………..…………………
7
6. Start the HD Player plus…………………………………. 8
7. Setting Up……………………………………………………….. 9
7.1 Network Setup……………………………………………….
9
7.2 FTP Setup…………………………………………………… 11
7.3 Video Setup…………………………………………..…….. 13
7.4 Other Setup…………………………………………..…….. 14
7.5 Multi-Display Setup…………………………………..…….. 16
8. Using the HD Player plus……………………………..… 17
8.1 Play Media Files on the CF Card………………………….
17
8.2 Multiple Display Zones…………..…………..…………. 20
8.3 Log Function……………..…………..…………..…………. 20
8.4 Download Function…………………………..…………….
21
8.5 Play the Media Files on the PC…………………………… 24
8.6 Download/ Upload Media Files…………………………… 27
8.7 RS-232 Function…………………………………..……….. 30
9. Http Command Function………….……………………….….. 31
9.1 Player Control………………….………………..………….. 32
9.2 Network Setup…………………………………..…………..
34
9.3 Timer Setup………………………………..……………….. 35
10. Schedule Function……………....…..……………..………….. 36
10.1 Install the Schedule Software…….……..………………..
36
10.2 Set Up the Schedule Software…..………..…….……….. 36
10.3 Apply the Schedule on the HD Player plus.……..… 41
11. Optional Auxiliary Equipment……..……..………………..….. 42
11.1 Play-Button Box………………..………………………….. 42
11.2 IR Cable……………………………..……….…………….. 42
11.3 PIR Sensor………………………..………....……………..
43
11.4 Touch-Sensor Buttons…..…………………….………….. 43
12. Troubleshooting…………………………………..……………. 45

4
1. PACKAGE CONTENTS
1. HD Player plus
2. Remote Control
3. Audio Cable
4. Y.Pb.Pr Cable
5. S-Video Cable
6. Power Adapter
7. User Manual
8. Schedule Software
2. INTRODUCTION
The HD Player plus is a digital media player that plays media files (supports MPEG-2 AND HD
WMV9 format) from CF memory card without a computer. The HD Player plus supports High
Definition movie hardware decode acceleration, presents for you the smoother and clearer picture,
it supports high resolution video output such as 1080P / 1080i / 720P for movie theater quality
video on a big screen. By connecting to Video, S-Video, Y.Pb.Pr, VGA (resolution up to 1360 x
768), HDMI (1920 x 1080P) and Audio, you can play media files on any display device.
What’s more, the HD Player plus supports multiple display zones, you can play movie, picture
and scrolling text on the screen simultaneously. The scrolling text displays an animated text
message on a bar on bottom of your screen, the information of your product can catch the
customer’s eyes easily.
The HD Player plus can connect to a wired network at speed up to 100Mbps. This function
provides you with maximum throughput for sharing and transferring digital media.
3. FEATURES
Supports multiple file formats: MPEG-2, HD WMV9, MP3 and WMA.
Supports Video, S-Video, Y.Pb.Pr, HDMI, VGA and Audio output.
HD Y.Pb.Pr output supports resolution: NTSC Mode(60Hz): 480P/ 720P/ 1080i.
PAL Mode(50Hz): 576P/ 720P/ 1080i.
HDMI Output: 480P/ 720P/ 1080i/ 1080P.
VGA output supports resolution: 640x480/ 800x600/ 1024x768/ 1280x1024/ 1360x768.

5
3. FEATURES (continued)
Supports RS-232 port for computer control with ASCII command (play, stop, pause…etc).
Supports Multiple Display Zones: Displays the movie, picture (supports png format/
size: 150x400/ 96DPI) and scrolling text on the screen simultaneously.
-Supports two display modes:
Mode 1: Display demo files with scrolling text.
Mode 2: Display demo files (in main screen), pictures (in second screen) and scrolling text
simultaneously.
-The second screen (display picture files) can be repositioned to left or right of the
main screen.
-The display speed of scrolling text can be adjusted, and scrolling text supports
multi language (English/ Latin/ Japanese).
Touch-Sensor Buttons Function (optional)
-Press one of the touch-sensor buttons, the HD Player plus will play the corresponding
file automatically.
-Used with various operating environment (glass, plastics and acrylic material, except
metal material), the thickness supports 3mm -5mm, and it can be customized to 5cm for
OEM project.
PIR Sensor Function (optional)
-After sensing approaching subjects, the HD Player plus will play the files automatically.
-Sensing distance is up to 3 meters with an angle of 45∘.
Schedule Function: The HD Player plus will auto play the designated file (only supports video
files) at the designated date.
Supports Auto Power On/ Off Function: The HD Player plus will automatically power on & off
at the specify time.
Supports Log Function which can record the file and time that was be played.
Connect using an Ethernet network cable at up to 100Mbps.
Supports CF memory cards. (Suggest using the high speed (150X) CF card)
Supports HTTP command function.
Exports the Configuration Value: You can export the configuration value to the CF card.
The configuration can be modified on your PC, and can be applied to the HD Player plus or
others.
Compatible with Windows Media Player 11: Play media files stored in a network computer.
Supports FTP Auto Download Function: Connect to Remote FTP server and download
data to the CF card automatically.
Supports Download Pause / Resume Function: Continue unfinished downloads upon next
session.
Embedded FTP Server.
Supports NTP Network (G..M.T) Timer.
Supports Universal Plug and Play (UPnP) and DHCP.
Supports SLIDE SHOW Function (interval time with 10/ 15/ 30/ 60 seconds).

6
4. HARDWARE OVERVIEW
Power Switch: Toggle between main power on & off.
DC Input: For the power adapter. (DC 12V / 1.5A)
VGA Connector: Connects to devices that support VGA input. (LCD、projector)
Y.Pb.Pr Connector: Connects to devices that support Y.Pb.Pr input. (HDTV、projector)
HDMI Connector: Connects to devices that support HDMI input.
RS-232 Connector: Used for computer control with ASCII command.
RJ-45 Ethernet Connector: Connects to router or PC by RJ-45 Cable.
Audio Connector: Connects to sound input. (HDTV with amplified speaker)
S-Video Connector: Connects to devices that support S-Video input. (HDTV、projector)
IR IN: Connects to PIR Sensor (optional) or IR Cable (optional).
Video Connector: Connects to device that support Video input. (HDTV、projector)
“CF READY” LED: Steady green confirms that the CF card is inserted correctly.
CF Card Socket: For CF memory card.
“RESET” Button: To restart the HD Player plus.

7
5. REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Power on/ off
Select the output mode
Numeric Key
Delete last entry
Select a function or to play the selected file
Open the setup menu Mute sound
OSD display function on/ off
Auto-play function on/ off
Mute sound
Volume up/ down
Move the cursor
Confirm the selection/ entry
Go back one layer
Select the TV type (NTSC/ PAL)
Shuffle on & off
Play the file selected
View the previous/ next file
Play the previous/ next file if in playback
Select the repeat mode
Rewind/ forward movie or music files
Stop playback
Show the information of the file selected
Search video (movie) timeframe
Zoom in/ out on the movie or picture
Pause the playback or play frame by frame
5.1 ENTERING TEXT OR IP ADDRESS
Keys need to be pressed multiple times to enter the letter corresponding to that key.
For Example: To enter the letter “a”. you would press the “2” button twice.
Enter The IP Address
For Example: To enter the IP address”192.168.100.100”,
Step 1: Press “1” once, then “1” is displayed, and the color of “1” is orange.
Step 2: When the color of “1”turns white, press “9” once, then “9” is displayed.
Step 3: Repeat steps 1 and 2 to enter and complete the IP address.

8
6. START THE HD Player plus
Power On
Insert the CF memory card that has Picture, Music, Movie or WMV9 files.
Press the “POWER” button to power on the HD PLAYER PLUS, and then press the “TV
MODE” button to select the output mode.
NOTE: The HD PLAYER PLUS can’t be turned on without inserting the CF card.
Status After Power On
Status 1: If the “AUTOPLAY (Movie, Picture or MultiLayer)” function is enabled and there are
movie or picture files in the CF card, the HD Player plus will auto play movie or picture files on
the CF card after power on.

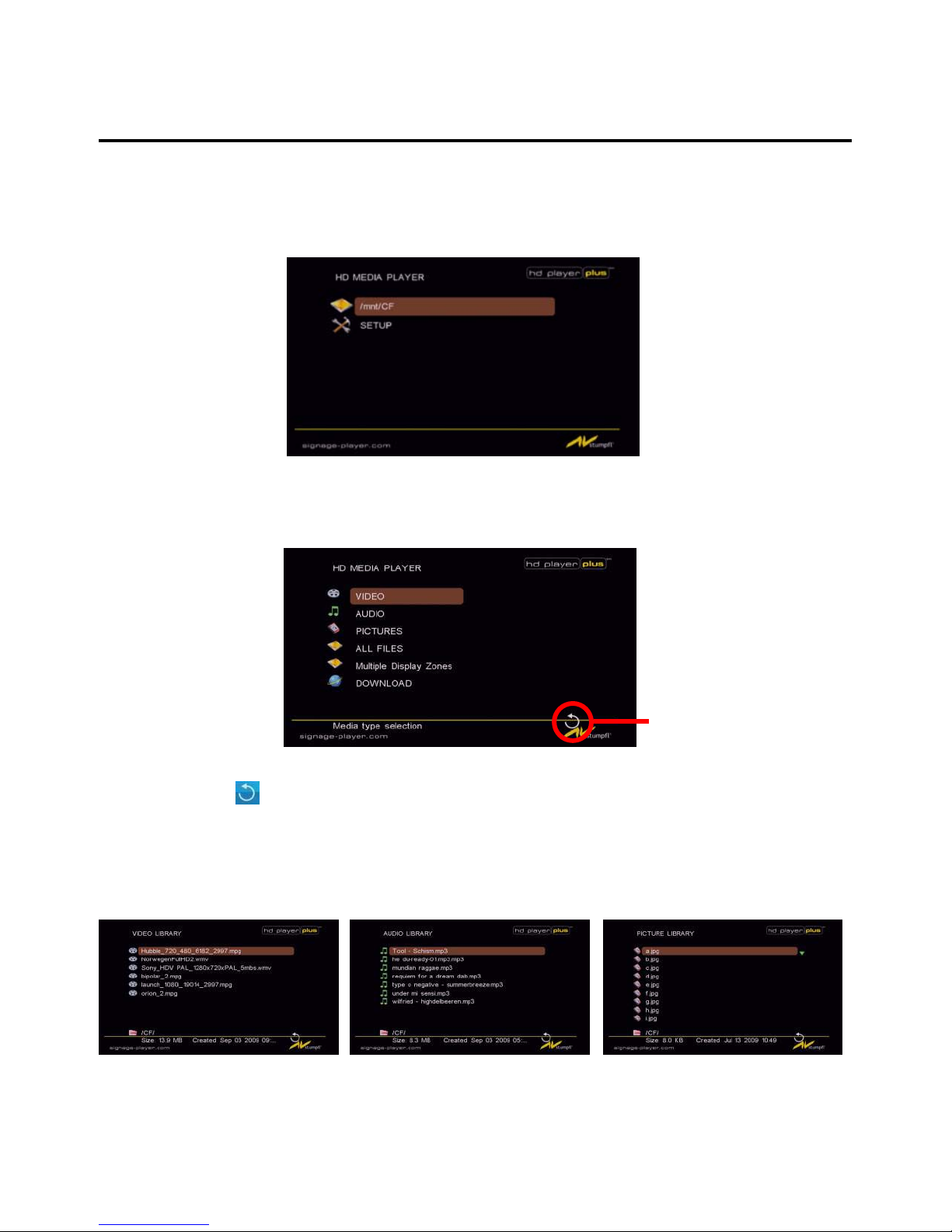

Status 2: If the “AUTOPLAY” function is disabled, after power on the main menu will appear
as shown in the following figure. There are two groups in the main menu (“/mnt/CF” and
“SETUP”).
NOTE: The pop-up window that shows the IP address will appear later, if DHCP mode is selected
when the HD Player plus is turned on.
Power Off: Press the “POWER” button again to power off.

9
7. SETTING UP
In the main menu, using the “▼” button on remote control to select the “SETUP” item, then
press the “ENTER” button. You will be presented with the HD Player plus settings screen.
You can also press the “SETUP” button on remote control to directly open the settings screen.
(If there is file that is being play, please stop first.)
There are four groups of sub-menu in the main menu (“Network Setup”, “FTP Setup”, “Video
Setup” and “Other Setup”).
In the settings screen, you can use the “▲、▼、
▲
、
▼
” buttons to select an item, and press the
“ENTER” button to confirm the selection.
Press the “SETUP” button on remote control to save and quit the settings screen.
7.1 NETWORK SETUP
Network with: Select your network connection Disable/ RJ45.
IP Assigned by DHCP: If you have a DHCP-enabled router, please select “On”, and then the
router will automatically assigns an IP address to the HD Player plus. If you don’t have a
DHCP –enabled router, select “Off” and type the network information in “Assign IP Address”.

10
7.1 NETWORK SETUP (continued)
Assign IP Address: If the HD Player plus is connected to a network without a DHCP server or
you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and DNS
for the HD Player plus.
PS. Refer to 5.1 for how to enter IP address by remote control.
NOTE: Before setting the IP address, Mask, Gateway and DNS, check the network information of your
PC. Please follow the steps below to get the network information of your PC.
Step 1: Click on “Start” → “Run” and type in “command”, then press “ENTER”. The MS-DOS window
will appear, type in “ipconfig” and then press “ENTER” to get the network information.
Step 2: Assign IP Address, Mask (Subnet Mask) and Gateway (Default Gateway) for the HD
Player plus.Enter the same values of the Subnet Mask and Gateway, and be careful not to enter
the values of IP address that are already used by other devices on the network.
Media Player 11 Server: Enable/ disable the Media Player 11 server.

11

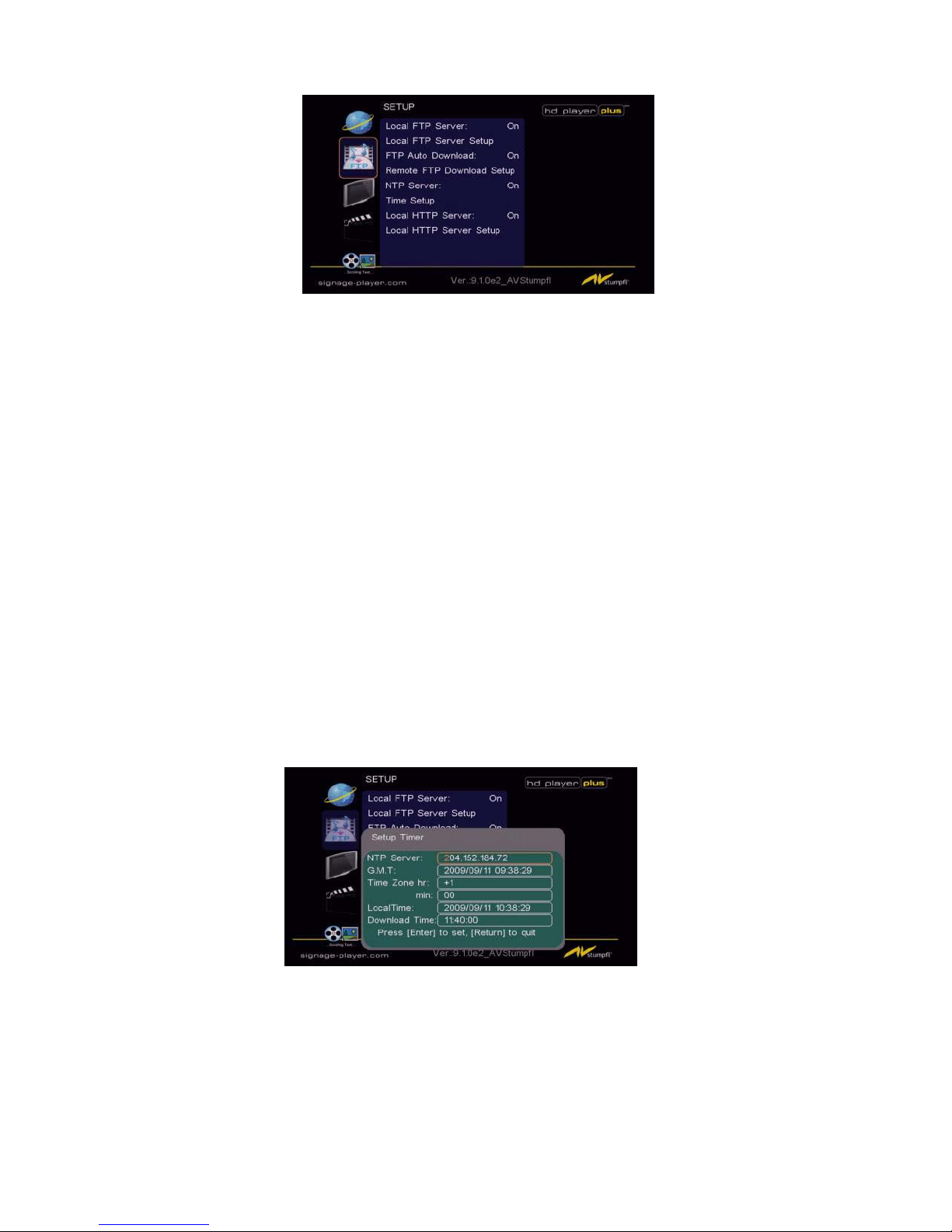

7.2 FTP SETUP
Local FTP Server: Turn on/ off the HD Player plus server.
(If you use the HD Player plus server, please disable the DHCP function and input a fixed IP
address, Mask, Gateway and DNS of the HD Player plus)
Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the HD Player plus.
(The Default Port: 21, User ID: root, Password: admin)
FTP Auto Download: Enable/ Disable the FTP auto download function.
Remote FTP Download Setup
- Server IP: Enter the domain name or IP address of the FTP as was given to you by
your Web hosting provider.
- Port: The default port for FTP is 21. In most cases you should not change this number.
If the FTP site uses a port other than 21, you should enter the correct port.
- User ID: Enter the user name of the Remote FTP server.
- Password: Enter the Password of the Remote FTP server.
- FTP Path: Enter the folder path that you want to share.
NTP Server: Enable/ Disable the NTP server function. (if the HD Player plus isn’t connect to
internet, please disable the NTP Server function)
Time Setup: Set the NTP Server, Local Time and Auto Download Time here.
①NTP Server (the HD Player plus must be already connected to the network)
-NTP Server: Enter the NTP server IP address like: 204.152.184.72.
-G.M.T: After HD Player plus get the time from NTP server, it will update the G.M.T field.
-Time Zone: Use the Volume +, -and Numeric Key to set the time zone of your location.
(time zone must be set properly for the Auto-Download and Schedule
functions)

12
Time Zone
NOTE: GMT and applied regions
Region
Time Zone
Region
(GMT-12:00) Eniwetok, Quazalen
(GMT+02:00) Helsinki, Riga, Tallinn
(GMT-11:00)
Midway, Ireland, Samoa
(GMT+03:00)
Nairobi
(GMT-10:00) Hawaii (GMT+03:00) Moscow, Saint Petersburg,
Volgograd
(GMT-09:00)
Alaska
(GMT+03:00)
Baghdad
(GMT-08:00) Pacific GMT (U.S. & Canada);
Tijuana (GMT+03:00) Kuwait, Raid
(GMT-07:00) Continental GMT (U.S. &
Canada)
(GMT+03:30) Tehran
(GMT-07:00) Arizona
(GMT+04:00) Baku, Tbilisi, Ere van
(GMT-06:00)
Mexico city
(GMT+04:00)
Abu Dhabi, Muscat
(GMT-06:00) Saskatchewan
(GMT+04:30) Kabul
(GMT-06:00) Eastern Coast GMT (U.S. &
Canada)
(GMT+05:00) Yekaterinburg
(GMT-06:00) Indiana (Eastern Coast)
(GMT+05:00) Islamabad, Karachi, Tashkent
(GMT-04:00) Atlantic GMT (Canada) (GMT+05:30) Calcutta, Chennai, Mumbai, New
Delhi
(GMT-04:00) Santiago
(GMT+05:45) Katmandu
(GMT-04:00)
Caracas, La Paz
(GMT+06:00)
Sri Jayewardenepura Kotte
(GMT-04:00) Newfoundland
(GMT+06:00) Astana, Dakar
(GMT-03:00)
Greenland
(GMT+08:00)
Irkutsk, Ulan Bator
(GMT-03:00) Buenos Aires, Georgetown
(GMT+08:00) Kuala Lumpur, Singapore
(GMT-03:00)
Brasilia
(GMT+08:00)
Taipei
(GMT-02:00) Mid-Atlantic
(GMT+08:00) Perth
(GMT-01:00)
Capo Verde Is.
(GMT+09:00)
Seoul
(GMT-01:00) Azores
(GMT+09:00) Yakutsk
(GMT-00:00) Greenwich GMT; Dublin,
Edinburgh, Lisbon, London
(GMT+09:00) Osaka, Sapporo, Tokyo
(GMT-00:00) Casablanca, Monrovia
(GMT+09:30) Darwin
(GMT+01:00) Beograd, Bratislava, Budapest,
Ljubljana, Prague
(GMT+09:30) Adelaide
(GMT+01:00) Brussels, Copenhagen, Madrid,
Paris (GMT+10:00) Guam, Port Moresby
(GMT+01:00) Sarajevo, Skopje, Sofia, Vilnius,
Warsaw, Zagreb
(GMT+10:00) Brisbane
(GMT+01:00) Midwest Africa
(GMT+10:00) Vladivostok
(GMT+01:00) Amsterdam, Berlin, Bern, Rome,
Stockholm, Vienna
(GMT+10:00) Canberra, Melbourne, Sydney
(GMT+02:00) Bucharest
(GMT+10:00) Hobart
(GMT+02:00) Athens, Istanbul, Minsk (GMT+11:00) Magadan, Solomon Is., New
Caledonia
(GMT+02:00) Jerusalem
(GMT+12:00) Auckland, Wellington
(GMT+02:00) Cairo (GMT+12:00) Fiji, Kamchatka Pen., Marshall
Is.
(GMT+02:00) Harare, Pretoria
(GMT+13:00) Nuku'alofa

13
②Local Time:Set the system time manually.
NOTE: If the NTP Server and Local Time have been set, the NTP Server will be the first
priority (the HD Player plus is already connected to the network).
③Download Time: Set the FTP auto-download time.
Local HTTP Server: Enable/ Disable the HTTP command function.
Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the HD Player plus.
(The Default Port: 80, User ID: root, Password: admin)
NOTE: Press the “SETUP” button on the remote control to save the settings, and it will auto exit
the settings screen, then restart the HD Player plus.
7.3 VIDEO SETUP
TV Standard: Select the output TV video format (NTSC / PAL).
NTSC Active Output: Select the output mode. (HDMI/ SD Video/ VGA/ HD Y.Pb.Pr)
You can also directly press the “TV MODE” button on the remote control to select output mode.
Aspecl-ratio: Select TV mode 4:3 or 16:9.
HDMI: Select the HDMI output resolution among 480i / 480p/ 720p / 1080i/ 1080p.
Select the “Auto EDID”, the HD Player plus will scan the display device connected and set the
correct resolution automatically.
SD Video: Select the SD output mode. (“Video/ S-Video” or “Y.Cb.Cr”)
VGA 60Hz: Select the VGA output resolution.
(640*480 / 800*600/ 1024*768/ 1280*1024/ 1360*768)
HD Y.Pb.Pr 60Hz: Select the Y.Pb.Pr output resolution among 480p / 720p / 1080i.

14
7.4 OTHER SETUP
Play OSD Display: Enable or disable the OSD display.
Auto Play
- Movies: Auto play movie files on the CF card after power on.
- Pictures: Auto play picture files on the CF card after power on (slideshow function).
- MultiLayer: Directly execute Multiple Display function after power on.
- Off: Turn off the Auto Play function.
SlideShow Interval Times:Set the time each photo is shown to 10, 15, 30 or 60 seconds.
Lock Remote Controller: Enable/ disable the auto key lock function. (The HD Player plus will
auto lock when there is no further input for 1 minute.)
Lock Password Setup: Press the “Enter” button to open the “Set Password” window. Enter the
password with numeric buttons and press the “Enter” button to save the new password (The
default password: 123).

15
7.4 OTHER SETUP (continued)
Export Setting File: Press the “Enter” button to export the configuration value to the CF card.
Copy the file “HDPlayerSetting.txt” on CF card to your PC. Use the “Wordpad” to open the file,
and you can see all the configuration value of HD Player plus.
You can modify directly the configuration value on your PC.
Example. [AutoPlay] Off Options: Movies, Pictures, Off
The “Auto Play” function is turned off, you can change directly the mode to Movies or
Pictures.
Copy the completed file “HDPlayerSetting.txt” from PC to CF card. Insert the CF card to the
HD Player plus, the HD Player plus will apply the new settings automatically.
Play Button: Only for used with play buttons. The HD Player plus supports two options (Repeat
Default / Repeat All) when the demo file finishes playing.
Log Function: Enable/ Disable the Log function (automatically record the file and time that was
be played everyday).
Auto Power On/ Off: Enable/ Disable the Auto Power On/ Off function.
Auto Power Setting: Set the time of power on/ off.

16

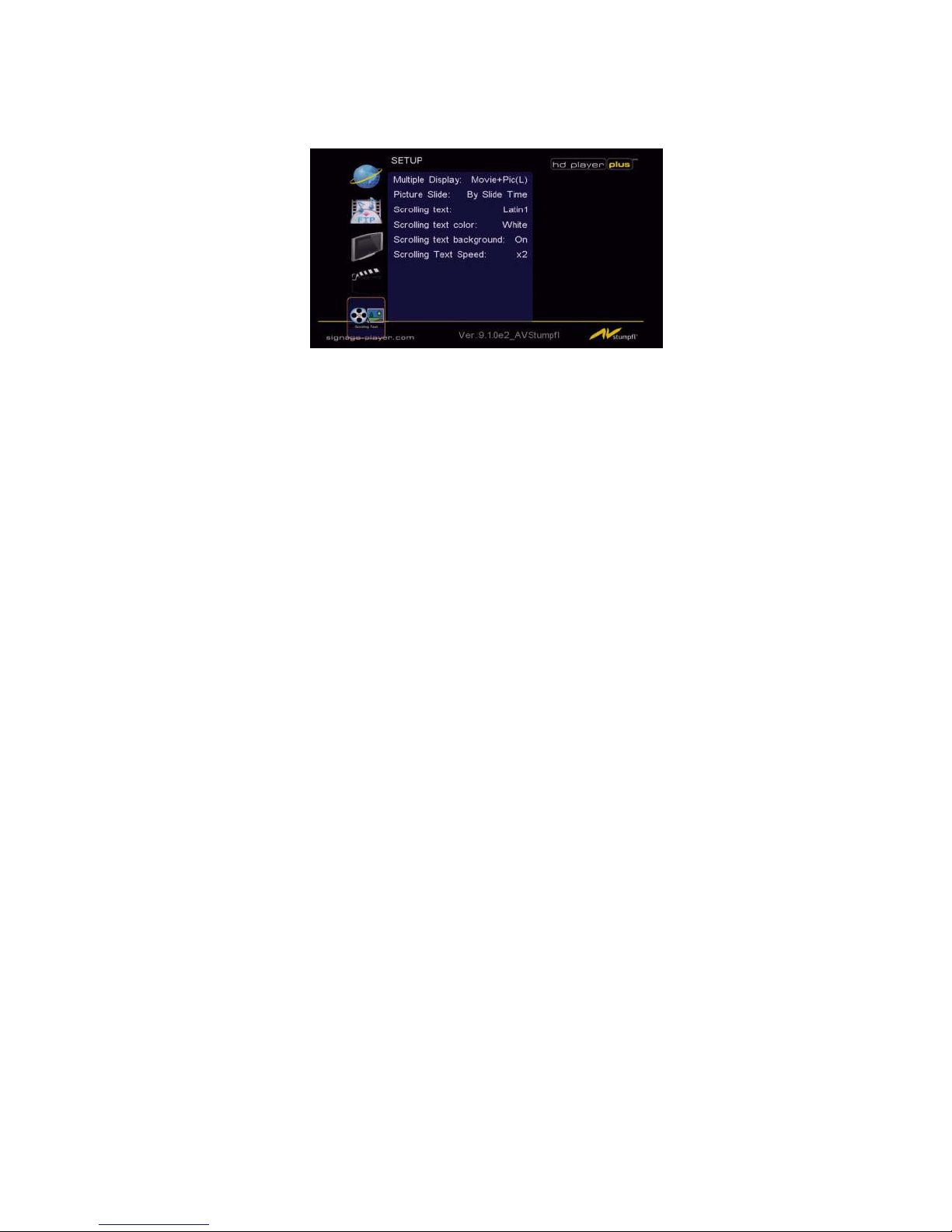

7.5 MULTI- DISPLAY SETUP
Multiple Display:
-Movie: Display movies with scrolling text.
- Movie + PIC (L): Play movies & pictures with scrolling text, and the pictures are on the left.
- Movie + PIC (R): Play movies & pictures with scrolling text, and the pictures are on the right.
Picture Slide: Set the mode of picture slideshow (By Slide Time/ Match Video).
Scrolling text: Select the language of scrolling text: Latin1 (English)/ Japanese/ Latin2/ Greek.
Scrolling text color: Select the text color (white/ yellow/ green/ rotation)
Scrolling text background: Turn on/ off the text background.
Scrolling Text Speed: Select the display speed of the scrolling text (x1/ x2/ x3).

17
8. USING THE HD Player plus
8.1 PLAY MEDIA FILES ON THE CF CARD
Step 1: Insert the CF card with media files, then turn on the HD Player plus and press the “ENTER”
button on the remote control when “’mnt/CF” is highlighted to take you into the CF card.
Step 2: Select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play, and then press the
“ENTER” button on remote control to take you into the “VIDEO LIBRARY”, “AUDIO LIBRARY” or
“PICTURE LIBRARY”.
PS. If the symbol (return) appears on the screen, you can use “RETURN” button of the remote
control to go back one layer.
Step 3: Select the file you want to play, and press “ENTER” or “PLAY” button on the remote control to
play the file.
VIDEO LIBRARY AUDIO LIBRARY PICTURE LIBRARY
RETURN

18
8.1.1 Using the Remote Control When Media File Is Playing
SETUP: Press the button to adjust the brightness, contrast or saturation while the movie or picture
is playing. With the “+ VOLUME –” button.
- First Press: Adjust the brightness.
- Second Press: Adjust the contrast.
- Third Press: Adjust the saturation.
Brightness Contrast Saturation
MUTE: Mute the sound while the movie or music is playing.
+ VOLUME -: Increase/ decrease the volume while the movie or music is playing.
SHUFFLE: Turn on/ off the shuffle function.
PREV / NEXT: Play the previous/ next file.
REPEAT: Select the repeat mode.
REV / FWD: Rewind/ forward movie or music file.
STOP: Stop playing, and go back one layer.
INFO: Display the file information.
File Information
SERACH: Search video (movie) timeframe
Press the “SEARCH” button, and enter the initial time that you want to start at, then press the
“ENTER” button to play.

19
PAUSE/STEP: Pause the playback or play frame by frame.
ZOOM: Zoom in/ out on the movie or picture
Original Size First Press：ZOOM 01
Second Press：ZOOM 02 Third Press：ZOOM 03
8.2 LOG FUNCTION
Please turn on the Log Function first. (Refer to 7.4 Other Setup)
The HD Player plus will automatically create log file on the CF card everyday.
The log file (.txt) can be viewed on your PC using WordPad.

20

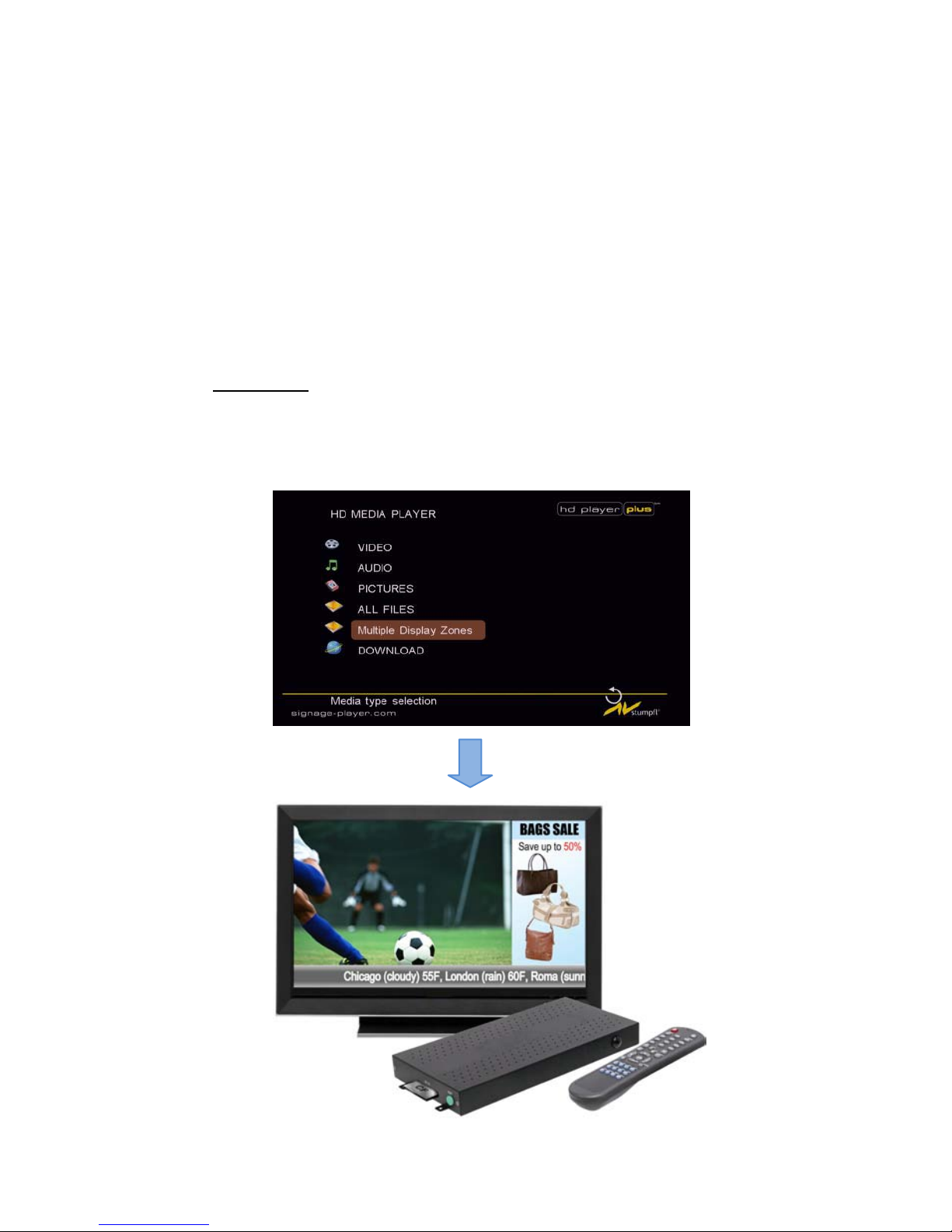

8.3 MULTIPLE DISPLAY ZONES
Step 1: Put movies, pictures (only supports PNG format/ size: 150x400/ 96DPI) and text file on CF card.
Picture Files
If you select the “By Slide Time” item of the picture slide mode; please name the picture files 0.png ~
9.png.
If you select the “Match Video” item of the picture slide mode, the file name of the picture must be the
same of the corresponding movie file.
Text File
Use the “Notepad” to create a text file on your PC. Enter the message that you want to display and
named the file “message.txt”.
Step 2: Select the Multiple Display Zones item to display the movies and pictures with scrolling text
immediately.
