AVstumpfl HD Player Pro User manual

1
User Manual
HD Player Pro Rev.2
AV Stumpfl GmbH
Mitterweg 46
A-4702 Wallern
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: http://www.AVstumpfl.com

2
FCC Notices
It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a residential installation. This equipment generated uses and can radiate
radio frequency energy and if not installed and used in accordance with the instruction
manual may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio of television reception, which can be
determined by turning the equipment off or on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
CE Declaration
This device complies with CE class B.
EN55022 IEC 61000-4-4
EN61000-3-2 IEC 61000-4-5
EN61000-3-3 IEC 61000-4-6
EN55024 IEC 61000-4-8
IEC 61000-4-2 IEC 61000-4-11
IEC 61000-4-3
Printed in Taiwan R.O.C.
All contents are subject to change without notice.
All trademarks are the property of their respective owner.

3
Index
1. PACKAGE CONTENTS........................................................................................................................5
2. INTRODUCTION..................................................................................................................................5
3. FEATURES...........................................................................................................................................6
4. HARDWARE OVERVIEW.....................................................................................................................7
5. REMOTE CONTROL............................................................................................................................8
5.1 Entering Text or IP-Address.............................................................................................................9
6. START THE HD PLAYER PRO.............................................................................................................9
7. SETTING UP......................................................................................................................................10
7.1 Networksetup ................................................................................................................................10
7.1.1 Setting the Network from the OSD Menu.........................................................................10

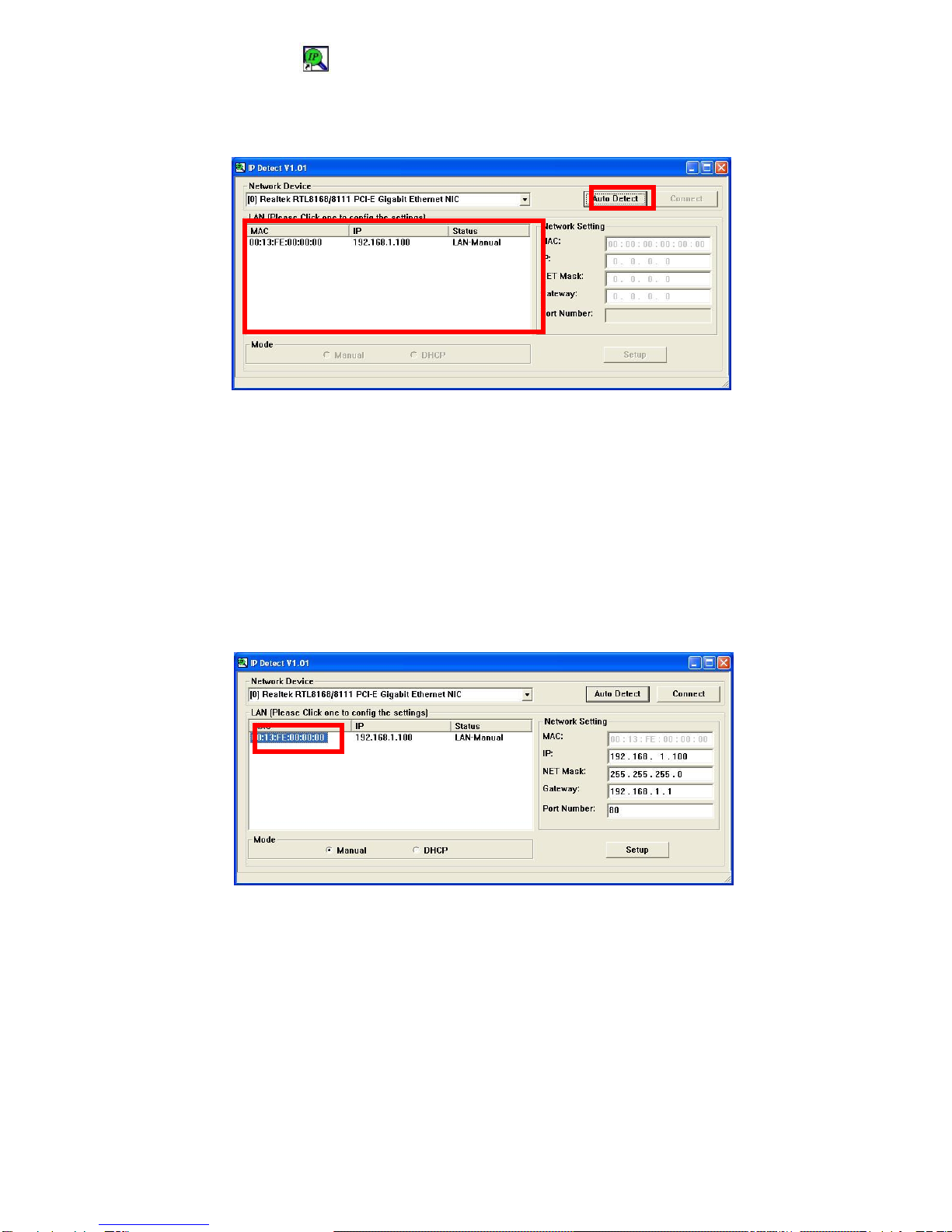

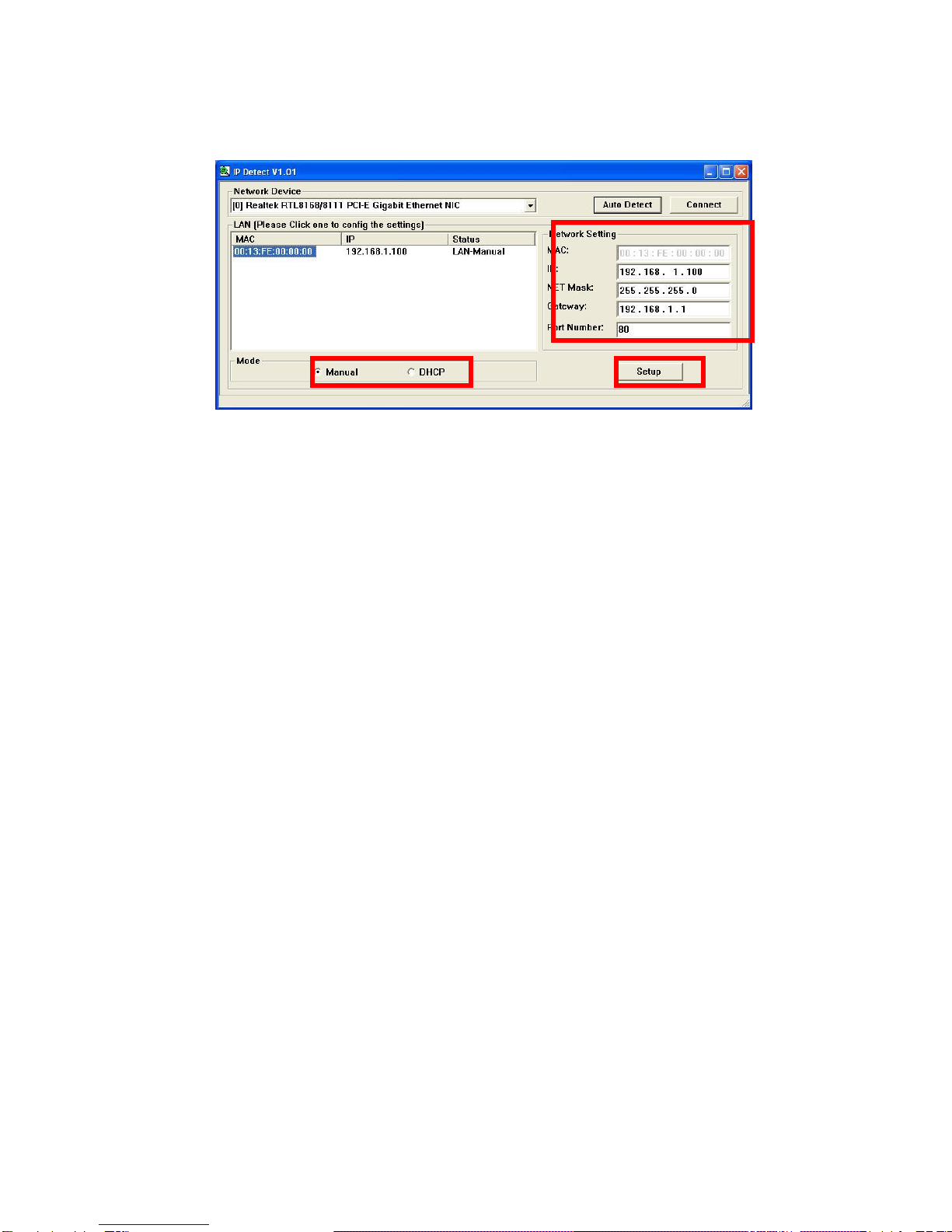

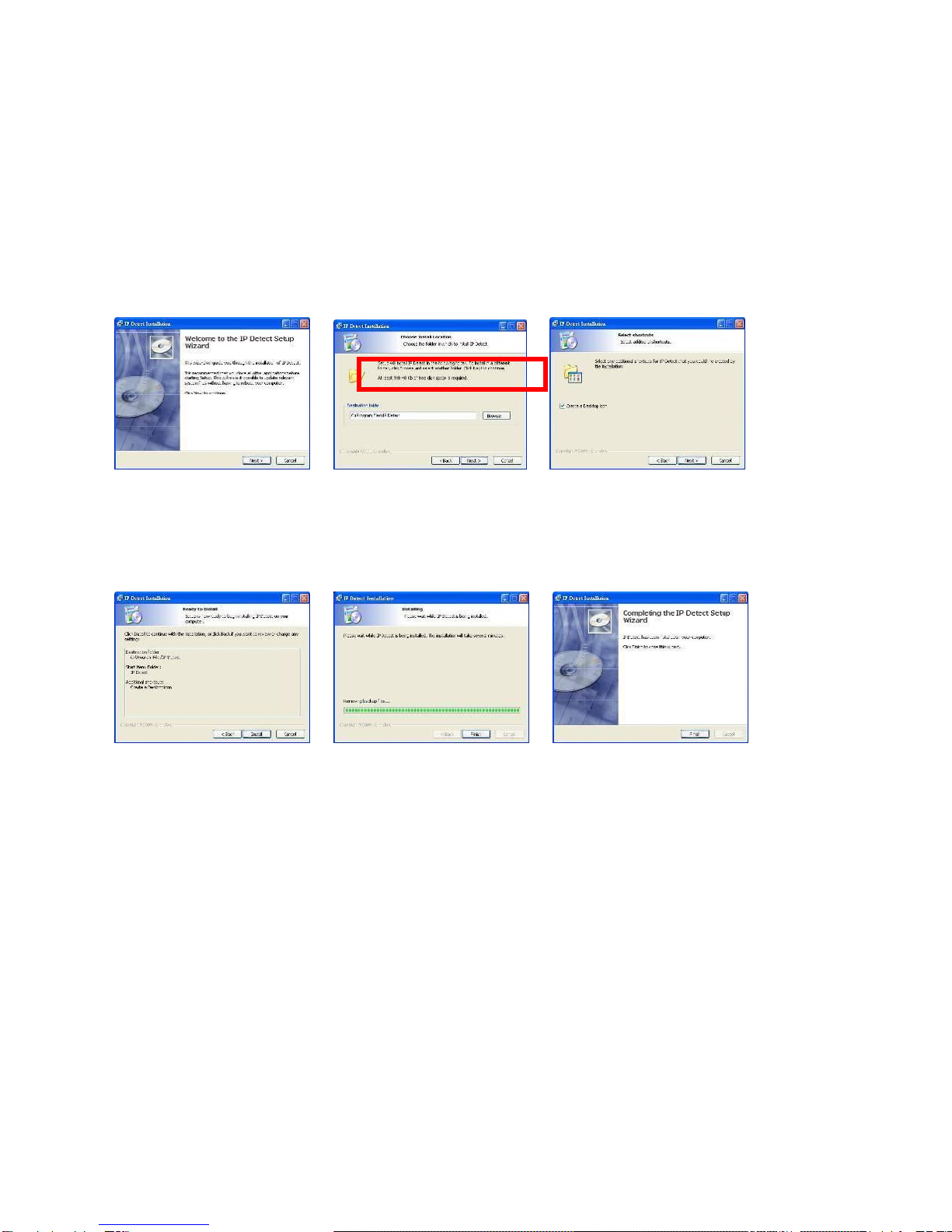

7.1.2 Setting the Network from the IP Detect Tool.....................................................................12
7.2 FTP Setup.....................................................................................................................................15
7.3 Video Setup...................................................................................................................................17
7.4 Other Setup...................................................................................................................................18

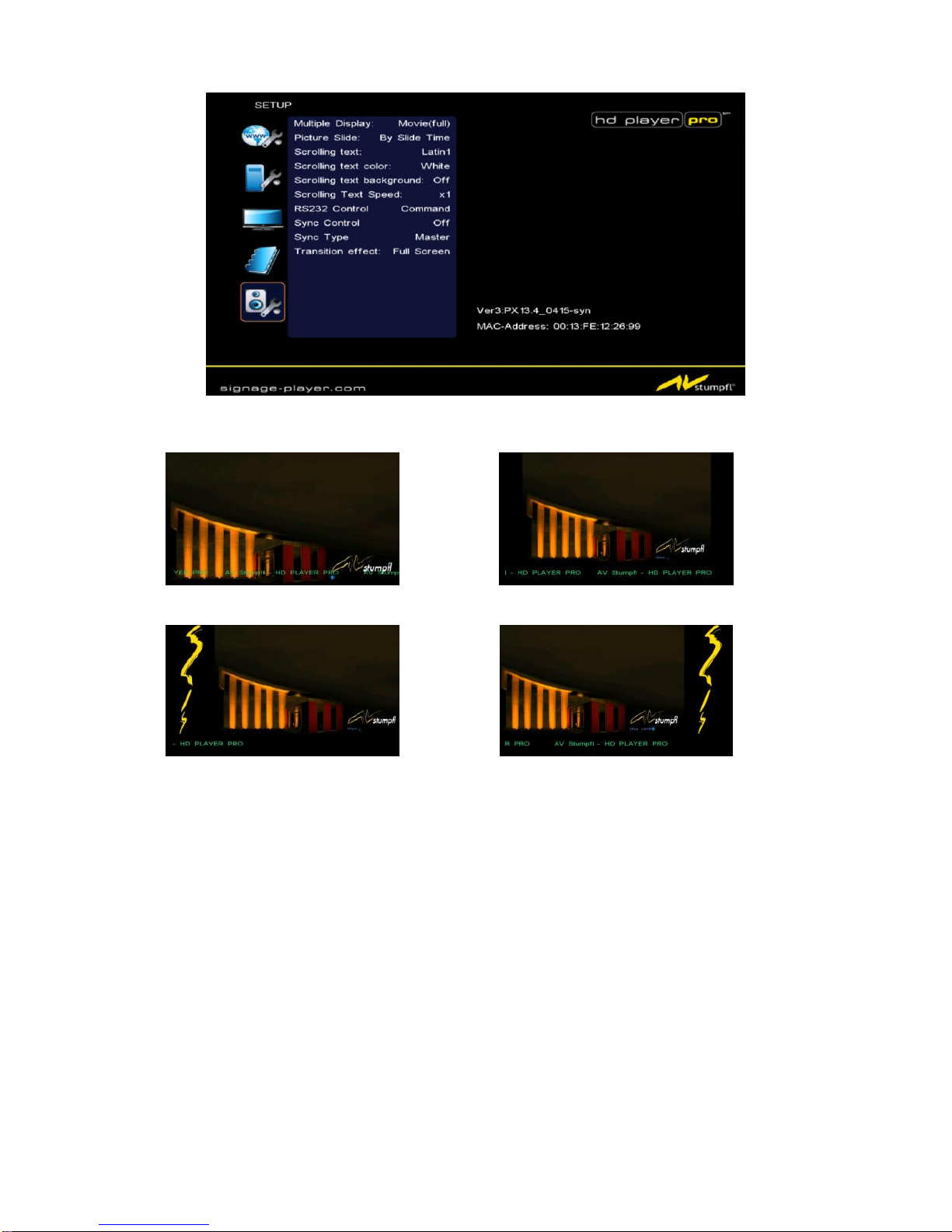

7.5. Scrolling Text Setup.......................................................................................................................20
8. USING THE HD PLAYER PRO...........................................................................................................21
8.1 Play media files on the CF-Card....................................................................................................21
8.1.1 Using the Remote Control when Media File is playing .....................................................22
8.2 Multiple display zones....................................................................................................................24
8.3 Log function...................................................................................................................................25
8.4 Seamless-Function........................................................................................................................25
8.5 FTP auto download function..........................................................................................................26
8.6 Controlling the HD Player Pro (RS232/TCP)..................................................................................29
8.7 How to sync several HD Player Pro...............................................................................................30
8.7.1 Important to know:...........................................................................................................33
9. HTTP COMMAND FUNCTION ...........................................................................................................34
9.1 Control...........................................................................................................................................35
9.2 Network.........................................................................................................................................36
9.3 Server............................................................................................................................................37
9.4 Time..............................................................................................................................................38

4
9.5 Features........................................................................................................................................39
10. SCHEDULE FUNCTION.....................................................................................................................40
10.1 Install the Schedule software.........................................................................................................40
10.2 Start the Schedule Software..........................................................................................................41
10.2.1 Basic Schedule................................................................................................................41
10.2.2 Advance Schedule...........................................................................................................43
10.2.3 Explanation of the Warning Message...............................................................................45
10.3 Apply the Schedule on the HD Player Pro......................................................................................45
11 OPTIONALAUXILIARY EQUIPMENT.................................................................................................46
11.1 Play-Button Box (SCV-HDZ-PBB)..................................................................................................46
11.2 IR cable (SCV-HDZ-IRC)...............................................................................................................46
11.3 PIR sensor (SCV-HDZ-PIR)...........................................................................................................47
11.3.1 Using the PIR Sensor......................................................................................................47
11.4 Touch sensor button (SCV-HDZ-WIR5SB).....................................................................................47
11.4.1 Features of the Touch-Sensor Buttons.............................................................................47
11.4.2 Ex. Using the wireless Touch Sensor Buttons..................................................................48
11.4.3 Connect to the Touch-Sensor Buttons..............................................................................48
11.4.4 Play the Demo Files ........................................................................................................48
11.5 LED button box..............................................................................................................................49
14. USB AUTO-COPY FUNCTION ...........................................................................................................50
13 TROUBLESHOOTING........................................................................................................................51
15. RECOMMENDED CF-CARDS............................................................................................................52
16. RECOMMENDED VIDEO FILE FORMATS.........................................................................................52

5

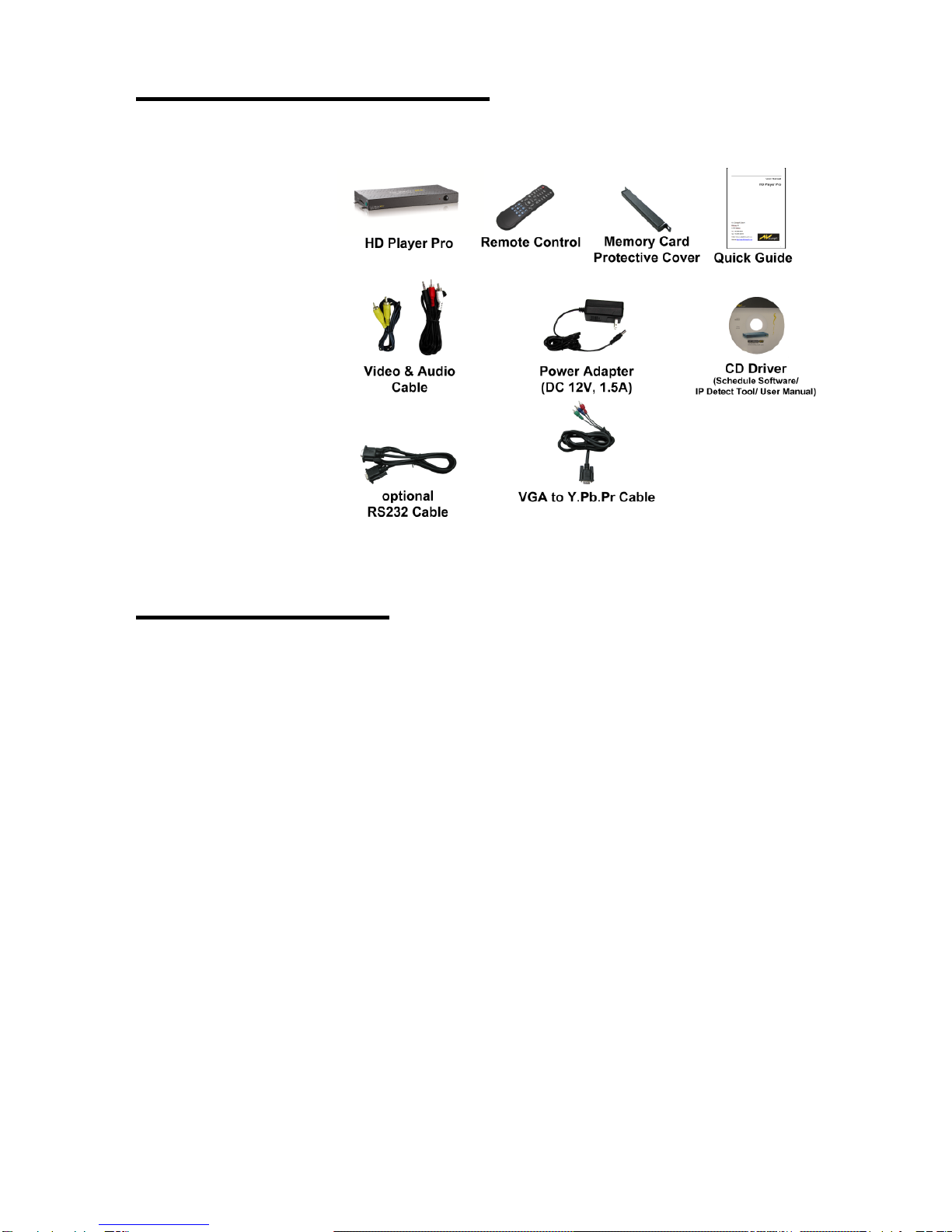

1. PACKAGE CONTENTS
1. HD Player Pro
2. Remote Control
3. CF Card Protective Cover
4. Video & Audio Cable
5. RS-232 Cable (optional)
6. VGA to Y.Pb.Pr Cable
7. Power Adapter
8. Quick Guide
9. CD Driver
- Schedule Software
- IP Detect Tool
- User Manual
2. INTRODUCTION
The new „HD Player“ by AV Stumpfl supports professional High Definition video playback from
Compact Flash card.
Integrated hardware decode acceleration ensures smooth full HD playback and clear images.
Flexible playback, control and configuration options allow the HD Player to be adapted to a variety of
different requirements.
Integration into the Iseo system and media update via the Internet provides for a decentralized Digital
Signage network.
The HD Player does not contain any wear or shock sensitive parts and is therefore the optimum
solution for continuous Operation.
Its compactness and low price open up new fields of application on any display device for advertising,
presentations, training and other media applications.

6
3. FEATURES
Synchronized Playback Function:Synchronize up to 254 units using Ethernet on same
subnet.
Seamless-function: possibility to playback videos with nearly no breakout
(only for H.264)
Support NTFS/FAT32 formatted CF-Cards
High-performance and high stability: With the same resolution and bit rate as Blu-ray players
The source of HD WMV9 MP@HL (Main Profile / High Level) supports resolution up to
1920x1080 (1080p30) and the maximum bit rate is 40Mbps
Supports multiple file formats: WMV9,MPEG4, MPEG2, H.264, MP3 and WMA
Supports Video, Y.Pb.Pr, HDMI, VGA and Audio output
HDMI Output: 576p/576i/ 720p/ 1080i/ 1080p
HDMI 1.1, 1.2 and 1.3 compliant
VGA output supports resolution: 640x480/ 800x600/ 1024x768/ 1280x1024/ 1360x768/
1366x768
Supports RS-232 port for computer control with ASCII command (play, stop, pause…etc)
Supports Multiple Display Zones: Displays the movies, picture (supports png format/ size:
213x641/ 96DPI) and scrolling text on the screen simultaneously
The display speed of scrolling text can be adjusted, and scrolling text supports multi
languages (Latin1/ Latin2/ Japanese/ Greek)
Schedule Function: The HD Player Pro will auto play the specific file at the specific date
Supports Log Function: Recording the file name and start time of the played files
Ethernet network supports up to 100Mbps
Supports CF memory cards. (We suggest using the high speed (200X) CF cards)
In general we recommend to use tested CF cards from AV Stumpfl
Supports HTTP Control Function
SupportsAuto Key Lock Function
Export of the Configuration Value: You can export the configuration value to the CF card
The configuration value can be modified on your PC, and can be applied to the HD Player Pro
Supports FTPAuto Download Function: Connect to Remote FTP server and download data to
the CF card automatically
Play files and FTP Auto Download Simultaneously: The HD Player Pro can play files while
downloading
Embedded FTP Server
Supports NTP Network (G.M.T) Timer
Supports Universal Plug and Play (UPnP) and DHCP
Supports SLIDE SHOW Function

7

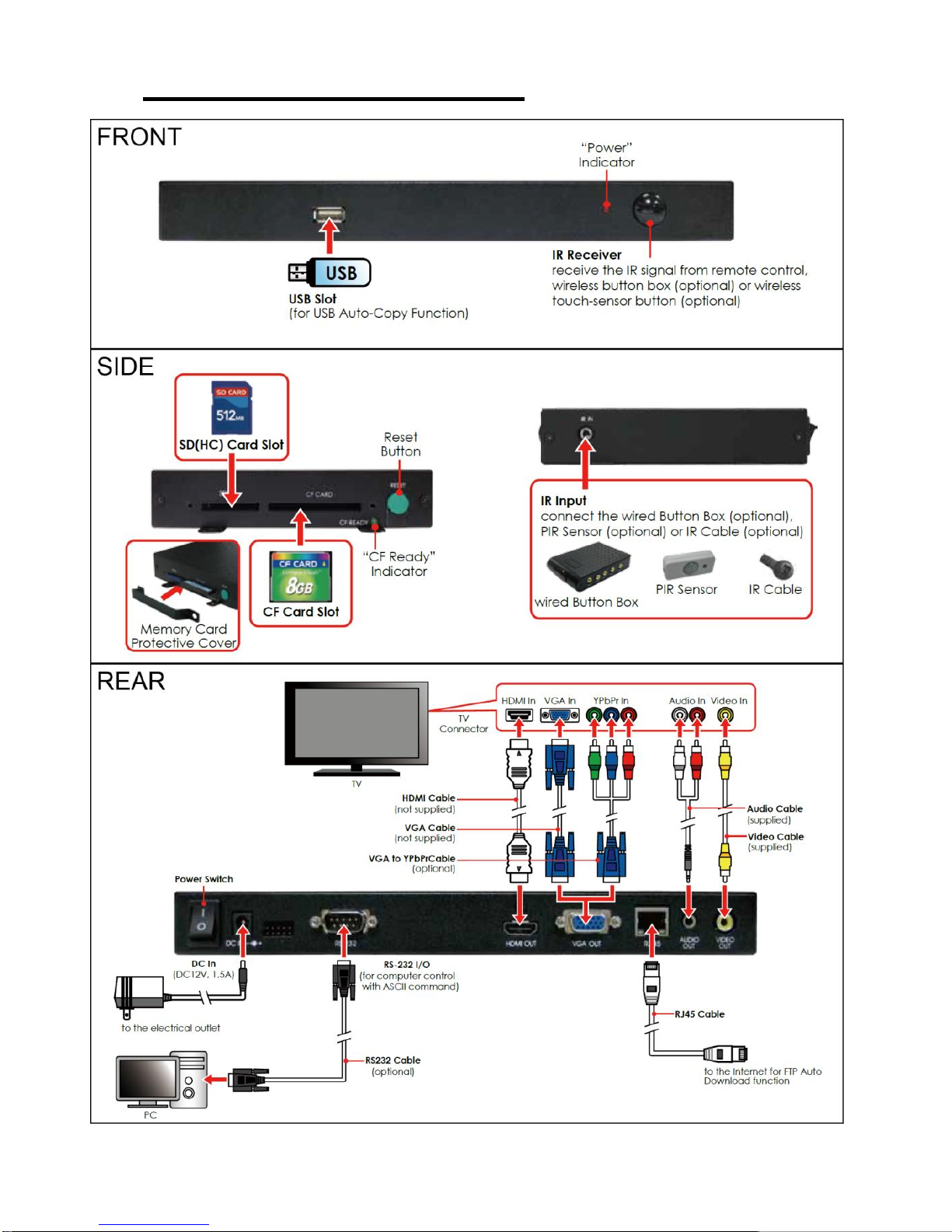

4. HARDWARE OVERVIEW

8
Power Switch: Toggle between main power on & off
DC Input: for the power adapter. (DC 12V / 1.5A)
VGA Output
HDMI Output
RJ-45 Ethernet Connector: Connecting to router or PC by RJ-45 Cable
Audio Output
Video Output
IR Input: Connection for PIR Sensor (optional) or IR Cable (optional)
RS-232 Connector: Connection for computer control withASCII command
“CF READY” LED: Steady green confirms that the CF card is inserted correctly
CF Card Socket: for Compact- Flash memory card
SDHC-Card Socket: for Secure- Digital- High- Capacity Cards
“RESET” Button: for restarting the HD Player Pro
5. REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Power on/ off
Select the output mode
Numeric Key
Delete last entry
Select a function or to play the selected file
Open the setup menu
OSD display function on/ off
Auto-play function on/ off
Mute sound
Volume up/ down
Move the cursor
Confirm the selection/ entry
Go back one layer
Select the TV type (NTSC/ PAL)
Shuffle on & off
Play the selected file
View the previous/ next file
Play the previous/ next file if in playback
Select the repeat mode
Rewind/ forward movie or music files
Stop playback
Show the information of the selected file
Search video (movie) timeframe
Zoom in/ out on the movie or picture
Pause the playback or play frame by frame

9
5.1 Entering Text or IP-Address
Keys need to be pressed multiple times to enter the letter corresponding to that key.
For Example: To enter the letter “a” press the button “2” twice
Enter an IP Address
For Example: To enter IP address”192.168.100.100”,
Step 1: Press “1” once, then “1” is displayed, and color of “1” is orange
Step 2: When the color of “1”turns white, press “9” once, then “9” is displayed
Step 3: Repeat steps 1 and 2 to enter and complete the IP address
6. START THE HD PLAYER PRO
Power On
Insert a CF-Card or SDHC-Card on which music, images or videos are stored.
NOTE: Never insert both cards in the Slot at the same time.
Press the “POWER” button to power on the HD Player Pro, and then press the “TV MODE”
button to select the output mode.
Status After Power On
Status 1: If the “AUTOPLAY (Movie/ Picture/ All Files/ MultiLayer)” function is enabled and
there are media files on the CF card or the HD Player Pro is already connected to the display
device, the HD Player Pro will auto play media files after Power on.

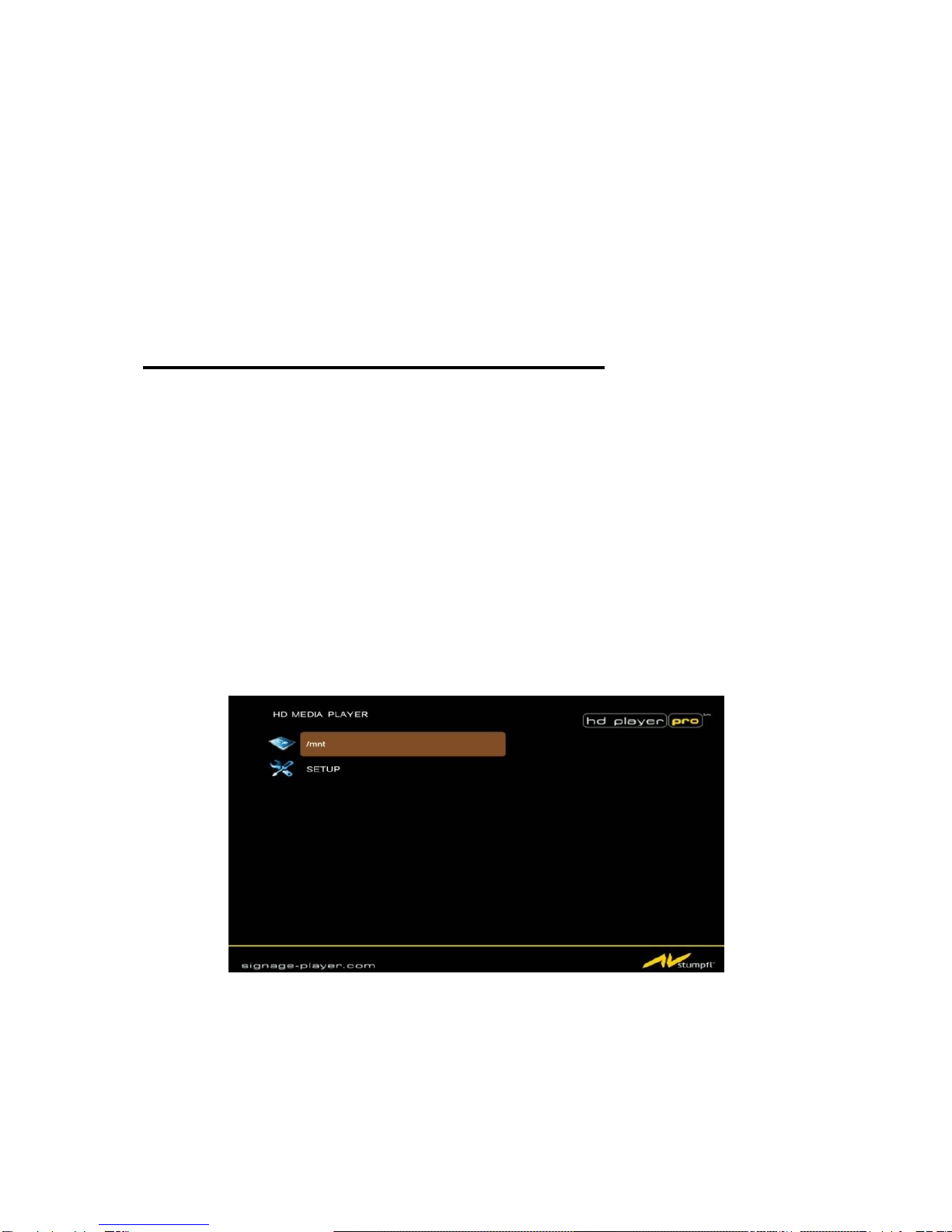

Status 2: If the “AUTOPLAY” function is disabled, after power on the main menu will appear as
shown in the following figure. There are two groups in the main menu (“/mnt/CF” and
“SETUP”).
Power Off: Press the “POWER” button again to power off.

10
7. SETTING UP
In the main menu, using the “▼” button on remote control to select the “SETUP” item, and then
press the “ENTER” button. You will be presented with the HD Player Pro settings screen.
You can also press the “SETUP” button on remote control to directly open the settings screen.
(If the HD Player already plays a file you’ll have to stop before entering the Setup)
There are five groups of sub-menu in the main menu (“Network Setup”, “FTP Setup”, “Video
Setup”, “Other Setup” and “Scrolling Setup”).
In the settings screen, you can use the “▲、▼、
▲
、
▼
” buttons to select an item, and press
the “ENTER” button to confirm the selection.
Press the “SETUP” button on remote control to save and quit the settings screen.
7.1 Networksetup
7.1.1 Setting the Network from the OSD Menu
Network with: Select your network connection Disable/ RJ45.
IP Assigned by DHCP: If you have a DHCP-enabled router, please select “On”, and then the
router will automatically assigns an IP address to the HD Player Pro. If you don’t have a DHCP
–enabled router, select “Off” and type the network information in “Assign IP Address”.

11
Assign IP Address: If the HD Player Pro is connected to a network without a DHCP server or
you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and
DNS for the HD Player Pro.
PS. Refer to 5.1 for how to enter IP address by remote control.
NOTE: Before setting the IP address, Mask, Gateway and DNS, check the network information of
your PC. Please follow the steps below to get the network information of your PC.

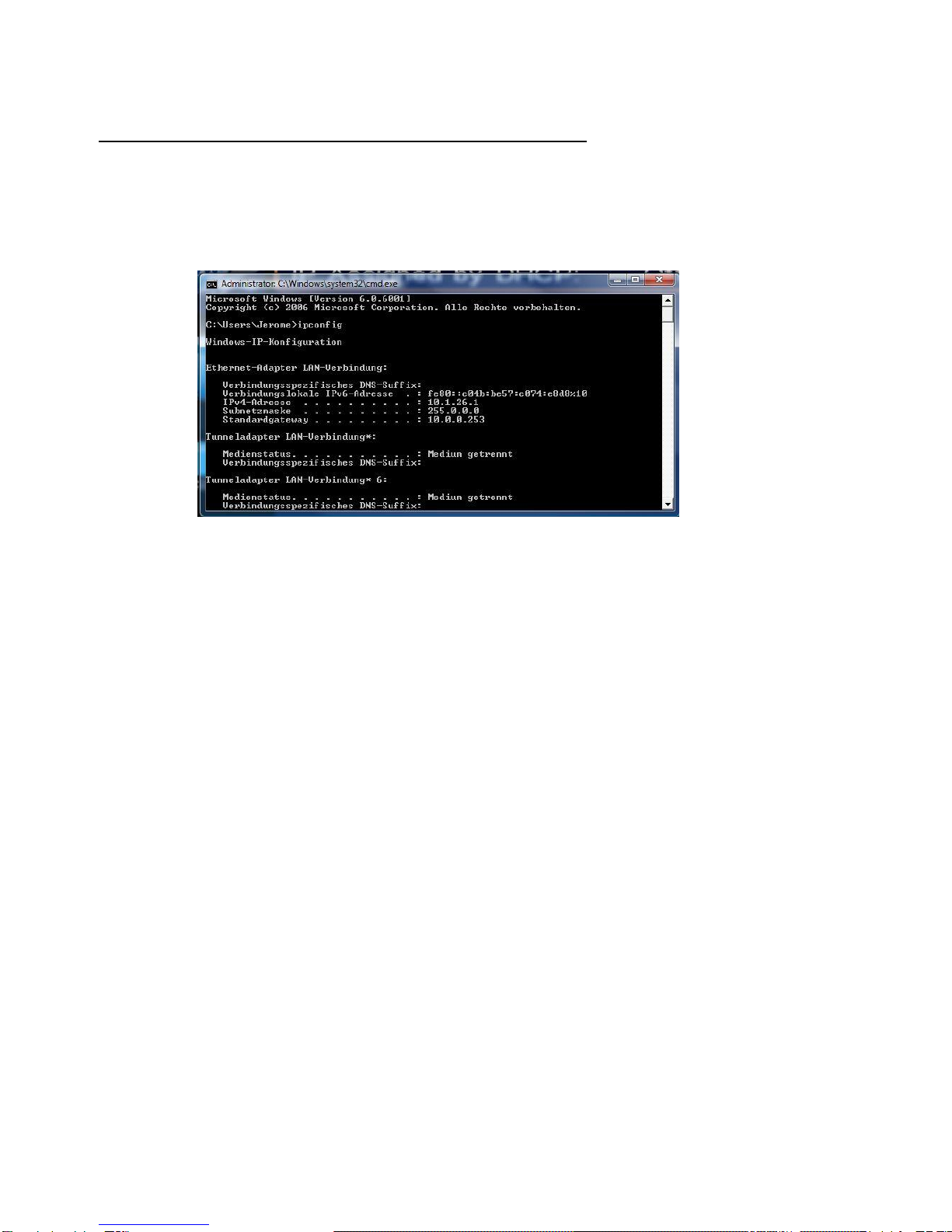

Step 1: Click on “Start” → “Run” and type in “command”, then press “ENTER”.
The MS-DOS window will appear - type in “ipconfig” and then press “ENTER” to get the
network information.
Step 2: Assign IPAddress, Mask (Subnet Mask) and Gateway (Default Gateway) for the HD Player
Pro.
Enter the same values of the Subnet Mask and Gateway, and be careful not to enter the
values of IP address that are already used by other devices on the network.

12
7.1.2 Setting the Network from the IP Detect Tool
With the bundle tool “IP Detect”, users can search for HD Player Pro on the local area network. Users
are also able to change the IP setting via this tool. For example, you want to assign a static IP to HD
Player Pro by the steps as below:
Step1: Insert the driver CD into your CD-ROM drive, then open the Folder IP Detect and run the
IPSetup.exe.
Step2: Click on the Install IP Detect to install the IP detect tool.
NOTE: The IP Detect Tool doesn´t support all Network adapters
Click Next to continue
Select the installation
folder and click Next to
continue
Create a desktop icon
and click Next to
continue
Click Install to start the
installation
Installing
Click Finish to complete
the installation

13
Step3: Double click on the icon to start the tool.
Step4: Click on the “Auto Detect” button, then the tool will show all available HD Player Pro in the local
area network.
NOTE: When use HD Player Pro under a DHCP-enabled network, user sometimes does not know
which IP address is assigned to HD Player Pro. User could also use this tool as a “Finder”, for
locating the IP address of HD Player Pro. By pressing the “Connect” button, IE browser will show
up and access to the build-in web of HD Player Pro automatically.
Step5: Select the HD Player Pro that you want to configure (by identifying the MAC address).

14
Step6: The default IP mode of HD Player Pro is DHCP. User should change the mode to “Manual”, if
he wants to assign a static IP address to HD Player Pro. Then enter the preferred “IP”, “Net Mask”
and “Gateway” in the “Network Setting”. Finally, click on the “Setup” button for completing the
setting.
NOTE: The IP setting will not show on the OSD menu instantly, but it should be available after
pressing “Setup” button. The prefer IP address will show on the OSD menu when HD Player
Pro restart.

15

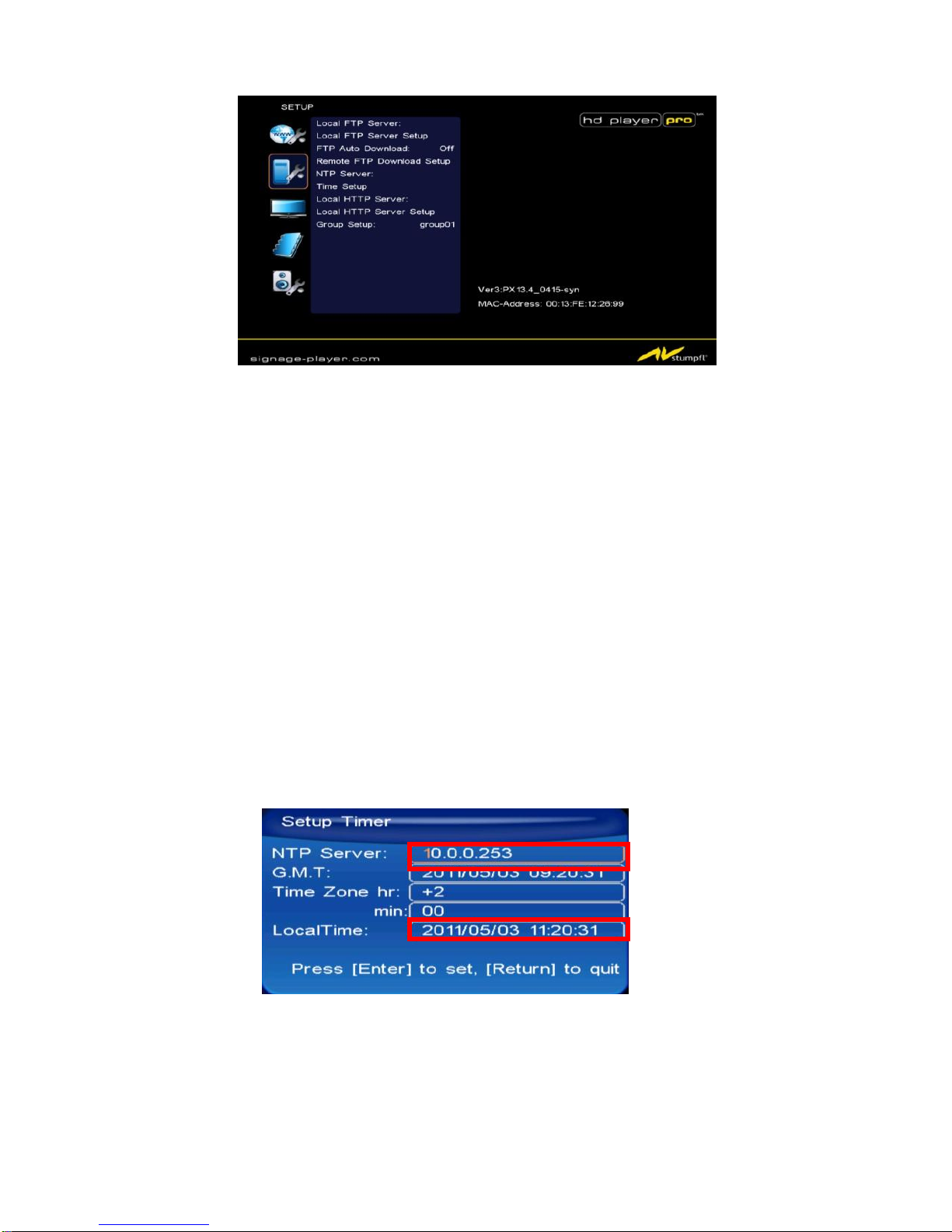

7.2 FTP Setup
Local FTP Server: Turn on/ off the HD Player Pro server.
(If you use the HD Player Pro server, please disable the DHCP function and input a fixed IP
address, Mask, Gateway and DNS of the HD Player Pro)
Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the HD Player Pro.
(The Default Port: 21, User ID: root, Password: admin)
FTP Auto Download: Enable/ Disable the FTP auto download function.
Remote FTP Download Setup
-Server IP: Enter the domain name or IP address of the FTP as was given to you by your
Web hosting provider.
-Port: The default port for FTP is 21. In most cases you should not change this number. If the
FTP site uses a port other than 21, you should enter the correct port.
-User ID: Enter the user name of the Remote FTP server.
-Password: Enter the Password of the Remote FTP server.
-FTP Path: Enter the folder path that you want to share.
NTP Server: Enable/ Disable the NTP server function. (if the HD Player Pro isn’t connect to
internet, please disable the NTP Server function)
-Time Setup: Set the NTP Server and Local Time here.
NTP Server (the HD Player Pro must be already connected to the network)
-NTP Server: Enter the NTP server IP address like: 10.0.0.253.
-.M.T: After HD Player Pro gets the time from NTP server, it will update the G.M.T field.
-Time Zone: Use the Volume +, -and Numeric Key to set the time zone of your location.
(time zone must be set properly for the Auto-Download and Schedule functions)
①
②

16
NOTE: GMT and applied regions
Time Zone
Region
Time Zone
Region
(GMT-12:00)
Eniwetok, Quazalen
(GMT+02:00)
Helsinki, Riga, Tallinn
(GMT-11:00)
Midway, Ireland, Samoa
(GMT+03:00)
Nairobi
(GMT-10:00)
Hawaii
(GMT+03:00)
Moscow, Saint Petersburg,
Volgograd
(GMT-09:00)
Alaska
(GMT+03:00)
Baghdad
(GMT-08:00)
Pacific GMT (U.S. & Canada);
Tijuana
(GMT+03:00)
Kuwait, Raid
(GMT-07:00)
Continental GMT (U.S. &
Canada)
(GMT+03:30)
Tehran
(GMT-07:00)
Arizona
(GMT+04:00)
Baku, Tbilisi, Ere van
(GMT-06:00)
Mexico city
(GMT+04:00)
Abu Dhabi, Muscat
(GMT-06:00)
Saskatchewan
(GMT+04:30)
Kabul
(GMT-06:00)
Eastern Coast GMT (U.S. &
Canada)
(GMT+05:00)
Yekaterinburg
(GMT-06:00)
Indiana (Eastern Coast)
(GMT+05:00)
Islamabad, Karachi, Tashkent
(GMT-04:00)
Atlantic GMT (Canada)
(GMT+05:30)
Calcutta, Chennai, Mumbai, New
Delhi
(GMT-04:00)
Santiago
(GMT+05:45)
Katmandu
(GMT-04:00)
Caracas, La Paz
(GMT+06:00)
Sri Jayewardenepura Kotte
(GMT-04:00)
Newfoundland
(GMT+06:00)
Astana, Dakar
(GMT-03:00)
Greenland
(GMT+08:00)
Irkutsk, Ulan Bator
(GMT-03:00)
Buenos Aires, Georgetown
(GMT+08:00)
Kuala Lumpur, Singapore
(GMT-03:00)
Brasilia
(GMT+08:00)
Taipei
(GMT-02:00)
Mid-Atlantic
(GMT+08:00)
Perth
(GMT-01:00)
Capo Verde Is.
(GMT+09:00)
Seoul
(GMT-01:00)
Azores
(GMT+09:00)
Yakutsk
(GMT-00:00)
Greenwich GMT; Dublin,
Edinburgh, Lisbon, London
(GMT+09:00)
Osaka, Sapporo, Tokyo
(GMT-00:00)
Casablanca, Monrovia
(GMT+09:30)
Darwin
(GMT+01:00)
Beograd, Bratislava, Budapest,
Ljubljana, Prague
(GMT+09:30)
Adelaide
(GMT+01:00)
Brussels, Copenhagen, Madrid,
Paris
(GMT+10:00)
Guam, Port Moresby
(GMT+01:00)
Sarajevo, Skopje, Sofia, Vilnius,
Warsaw, Zagreb
(GMT+10:00)
Brisbane
(GMT+01:00)
Midwest Africa
(GMT+10:00)
Vladivostok
(GMT+01:00)
Amsterdam, Berlin, Bern, Rome,
Stockholm, Vienna
(GMT+10:00)
Canberra, Melbourne, Sydney
(GMT+02:00)
Bucharest
(GMT+10:00)
Hobart
(GMT+02:00)
Athens, Istanbul, Minsk
(GMT+11:00)
Magadan, Solomon Is., New
Caledonia
(GMT+02:00)
Jerusalem
(GMT+12:00)
Auckland, Wellington
(GMT+02:00)
Cairo
(GMT+12:00)
Fiji, Kamchatka Pen., Marshall
Is.
(GMT+02:00)
Harare, Pretoria
(GMT+13:00)
Nuku'alofa

17
Local Time: Set the system time manually.
NOTE: If the NTP Server and Local Time have been set, the NTP Server will be the first
priority (the HD Player Pro is already connected to the network).
Local HTTP Server: Enable/ Disable the HTTP command function.
Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the HD Player Pro.
(The Default Port: 80, User ID: root, Password: admin)
NOTE: Press the “SETUP” button on the remote control to save the settings, and it will auto exit
the settings screen, then restart the HD Player Pro.
7.3Video Setup
TV Standard: Select the output TV video format (NTSC / PAL).
NTSC Active Output: Select the output mode. (HDMI/ SD Video/ VGA/ HD Y.Pb.Pr)
You can also press directly the “TV MODE” button on the remote controller to select output mode.
HDMI: Select the HDMI output resolution among 480i / 480p/ 720p / 1080i/ 1080p.
Select the “Auto EDID”, the HD Player Pro will scan the display device connected and set the
correct resolution automatically.
SD Video: Select the SD output mode. (“Video/ S-Video” or “Y.Cb.Cr”)
VGA: Select the VGA output resolution.
(640x480 / 800x600/ 1024x768/ 1280x1024/ 1360x768/ 1366x768)
HD Y.Pb.Pr: Select the Y.Pb.Pr output resolution among 480p / 720p / 1080i.

18

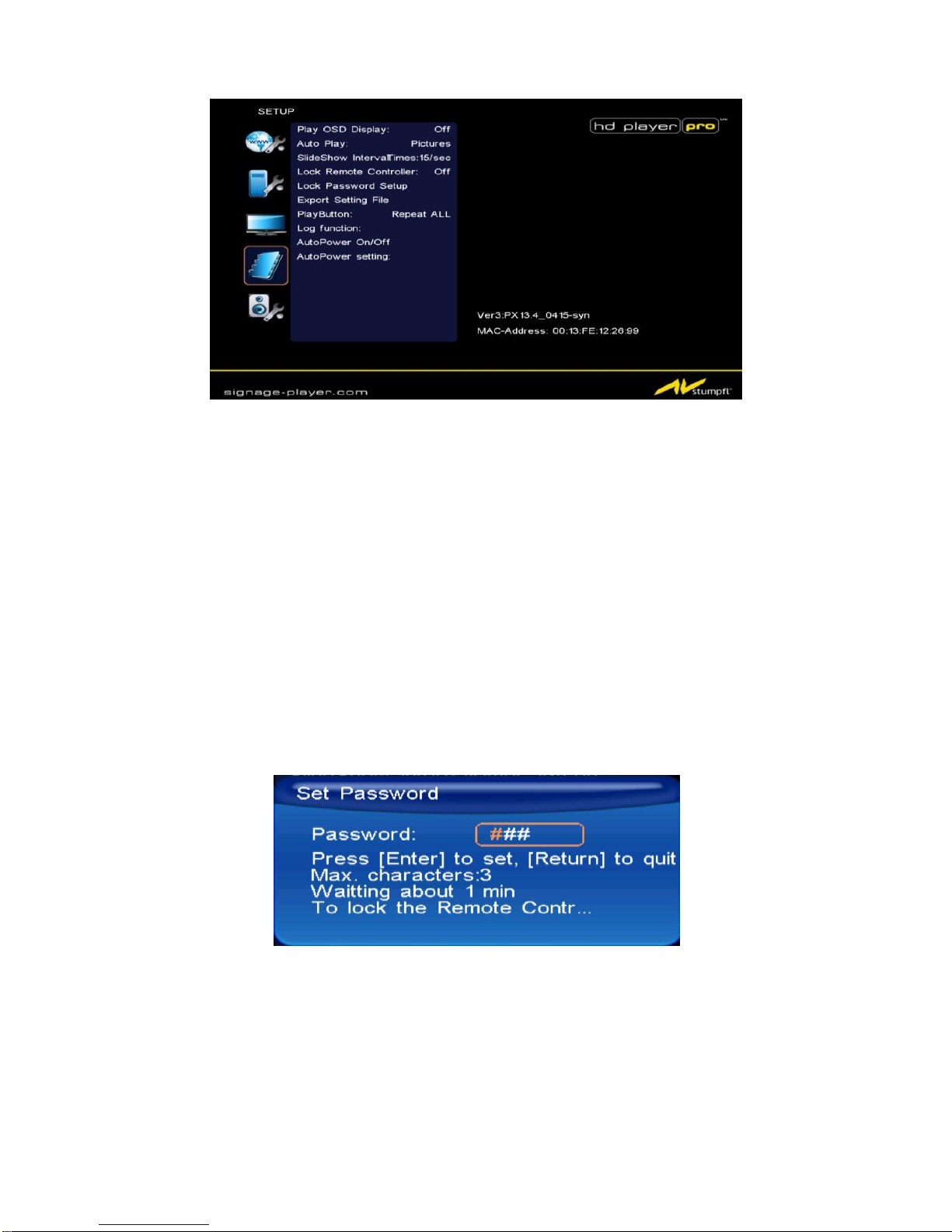

7.4 Other Setup
Play OSD Display: Enable or disable the OSD display.
Auto Play
Movies: Auto play movie files on the CF card after power on.
Pictures: Auto play picture files on the CF card after power on (slideshow function).
All Files: Auto play all files (movie and picture files) on the CF card after power on.
MultiLayer: Directly execute Multiple Display after power on.
Off: Turn off the Auto Play function.
SlideShow Interval: Set the time each photo is shown to 10, 15, 30 seconds or 1, 10, 15, 30
minutes or 1 hour. .
Lock Remote Controller: Enable/ disable the auto key lock function. (The HD Player Pro will
auto lock when there is no further input for 1 minute.)
Lock Password Setup: Press the “Enter” button to open the “Set Password” window. Enter
the password with numeric buttons and press the “Enter” button to save the new password
(The default password: 123).

19
Export Setting File: Press the “Enter” button to export the configuration value to the CF card.
Step1: Copy the file “HDPlayerSetting.txt” on the CF card to your PC. Use the “Wordpad” to open the file,
and you can see all the configuration value of HD Player Pro.
Step2: You can modify directly the configuration value on your PC.
Example: [NETWORK] Disable Options: Disable, RJ45, WiFi
The “Network” function is disabled; you can directly change the mode to RJ45.
Step3: Copy the completed file “HDPlayerSetting.txt” from PC to CF card. Insert the CF card to the HD
Player Pro, the HD Player Pro will apply the new settings automatically.
Play Button: Only for used with play buttons. The HD Player Pro supports two options
(Repeat Default / Repeat All) when the demo file finishes playing.
Log Function: Enable or disable the Log function.
Auto Power: Enable or disable theAuto Power function. If this function is enabled, user might
set a definite time for HD Player Pro to power on/off automatically
AutoPower Setting: Press “Enter” button on the remote controller, the “PowerOn” setting
window will pop up. You could set the power on/off time here:

20
7.5. Scrolling Text Setup
Multiple Display:
Movie (full) Movie (small)
Movie + Pic (L) Movie + Pic (R)
Picture Slide: Sets the mode of picture slideshow (By Slide Time/ Match Video).
Scrolling text: Sets the style of the font. Supported fonts are: Latin1, Latin2, Japanese and
Greek
Scrolling text color: Select the color of the text; you can choose between white, yellow, green
or rotation of this three colors.
Scrolling text background: Turn “on”or “off”the background of the scrolling text
Scrolling text speed: Adjust the speed of the scrolling text
RS232 Control: Enable or disable the RS232 control function
Sync Control: Enable or Disable the Sync Control
Sync Type: Select the Sync Type of the HD Player (Master/Slave)
Transition effect: Select the transition when displaying pictures
