Zinwell ZIN-5005HD User manual

Safety Instructions
This product has been engineered and manufactured to assure your
personal safety. However, improper use can result in potential electric
shock or fire hazards. In order not to defeat the safe-guards incorporated
in this instrument and its accessories, please adhere to the following
instructions when installing, operating and servicing.
Power Source Warning
 A marking label attached on the rear side of the adapter supplied)
indicates the correct power source for this equipment. Operate this
product only from an electrical outlet with the voltage and frequency
indicated on the product label. Incorrect power source may result in a
risk of electric shock or fire. If you are uncertain of the type of power
supplied to your home, consult your local power company or appliance
dealer.
 Only use the power cord and adapter provided by the manufacturer.
Internal component may be damaged if you use a different adapter to
power this product. To avoid electric shock and fire hazard, match the
plug and outlet connections carefully, then fully insert. If the plug fails to
fit the outlet, please contact an electrician to update your power outlets.
 Do not overload electrical outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock. And to
prevent power cord damage, arrange all power cords so that people
cannot walk on the cords. Do not place objects on the cords.
 Place this product in a location that is close enough to an electrical outlet
and where the power cord is easily accessible to be disconnected from the
wall outlet.

Usage Warning
 To reduce the risk of electric shock, do not remove the cover or attempt to
disassemble this product. There are no user-serviceable parts inside.
Please refer all servicing to qualified service personnel.
 Protect this product from foreign objects. Never push object of any kind
into this product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
 Do not expose this product to liquids, rain or moisture.
 This product has ventilation openings that protect it from overheating.
Never block or cover these openings. And do not place this product near
heat sources such as radiators, heat registers, stoves or other products
producing heat.
 Before cleaning or wiping this product, make sure your power cord is
already unplugged from the electrical outlet. Only use damp cloth to
clean this product, and never use a liquid cleaner or an aerosol cleaner.
 During a thunderstorm, or when this product is unused for long periods of
time, unplug power cord from the wall outlet. This will prevent damage
to the product due to lightning and power-line surges.
Service Warning
 Refer all servicing to qualified service personnel. For damage that
requires service, please unplug your power cord from the AC outlet first,
and contact your dealer or servicing personnel to obtain service for the
following conditions.
If there is damage to the adapter, power cord or plug.
If liquid enters this product.
If you drop this product, a heavy object falls on this product, or
damage occurs to the cover of this product.
If you expose this product to rain or water.
If this product does not operate normally by following the operating
instructions.
If this product exhibits a distinct change in performance.

Caution
Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Copyright Notice
No part of this user’s manual may be copied, translated, or reproduced
including electronic form without permission from the copyright owner. We
have made effort to ensure the accuracy and completeness of this document.
However, as ongoing development is continually improving the capabilities of
our products and the content described in this manual may be changed at any
time, we cannot guarantee the accuracy of the content of this document. We
disclaim liability for errors, omissions, or future changes. The information of
this document is subject to change without notice.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
（1） This device may not cause harmful interference.
（2） This device must accept any interferences received, including interference
that may cause undesired operation.

Table of Contents
1
11
1 INTRODUCTION 1
Package content........................................................................ 1
Specification.............................................................................. 2
Front View................................................................................. 3
Back View.................................................................................. 3
Remote Control ......................................................................... 4
2
2 2
2 INSTALLATION 6
Cable connections ..................................................................... 6
Internet Connections................................................................. 7
Connect USB devices ................................................................. 8
Power cord connection .............................................................. 8
Switch your TV Input/Source .................................................... 8
3
33
3 NETWORK 9

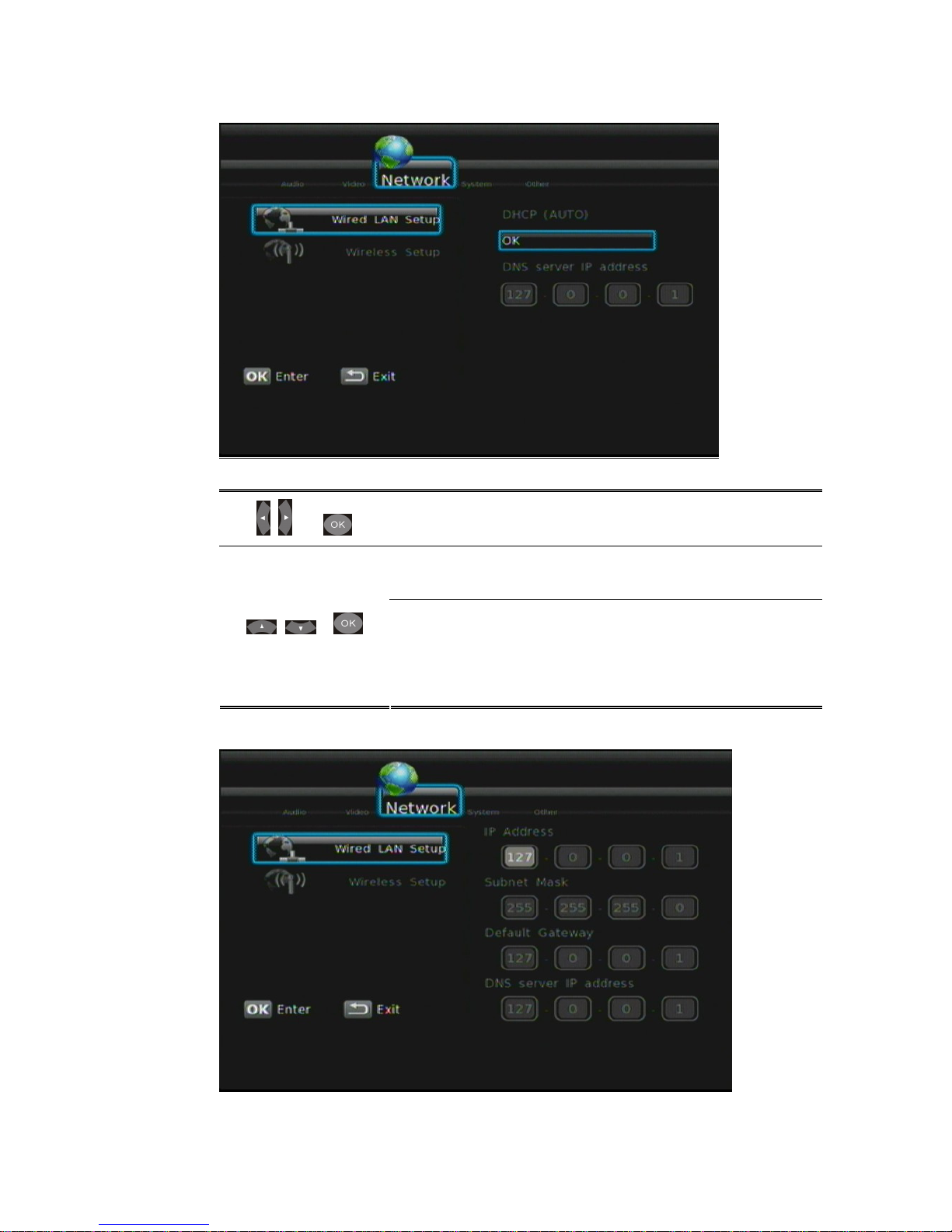

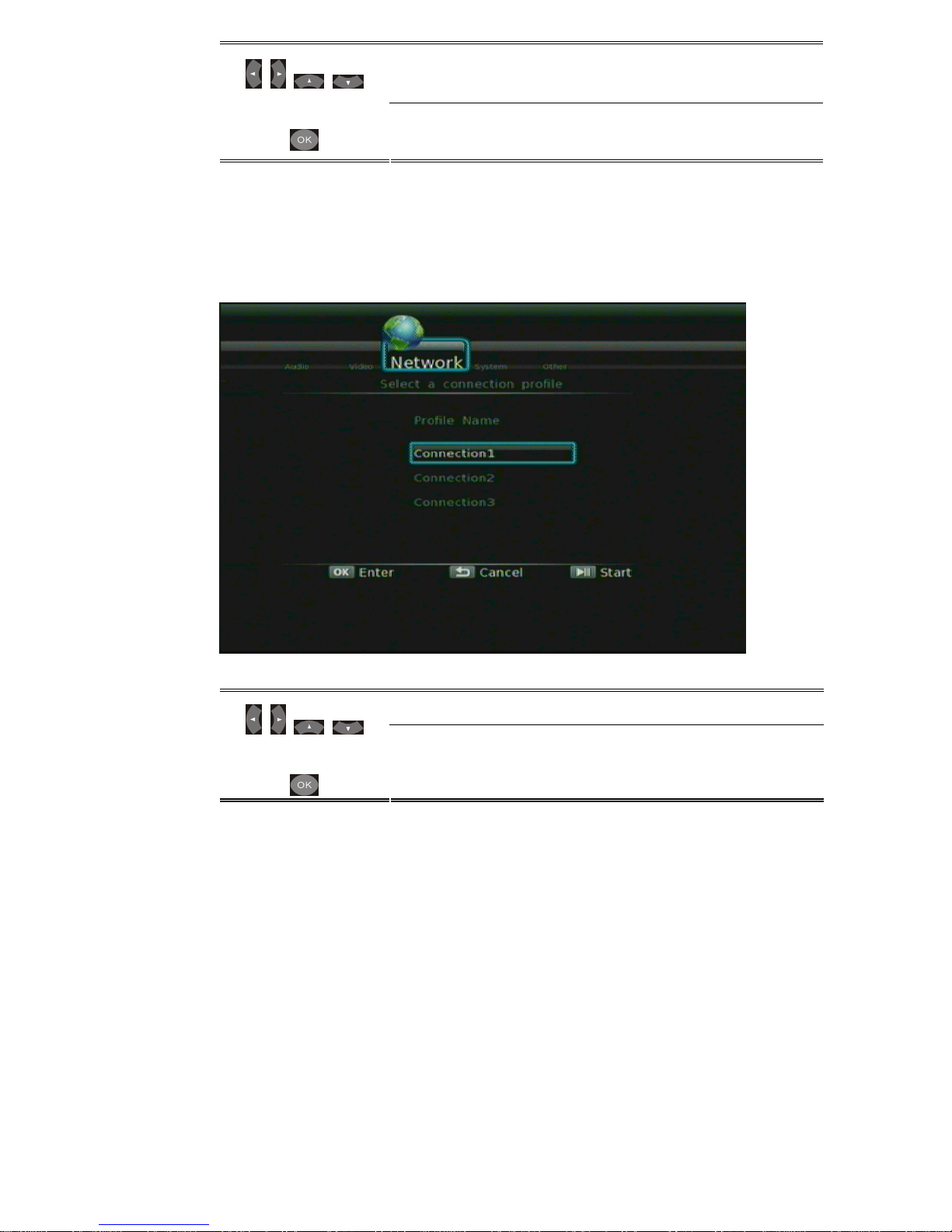

Wired Network Setup .............................................................. 10

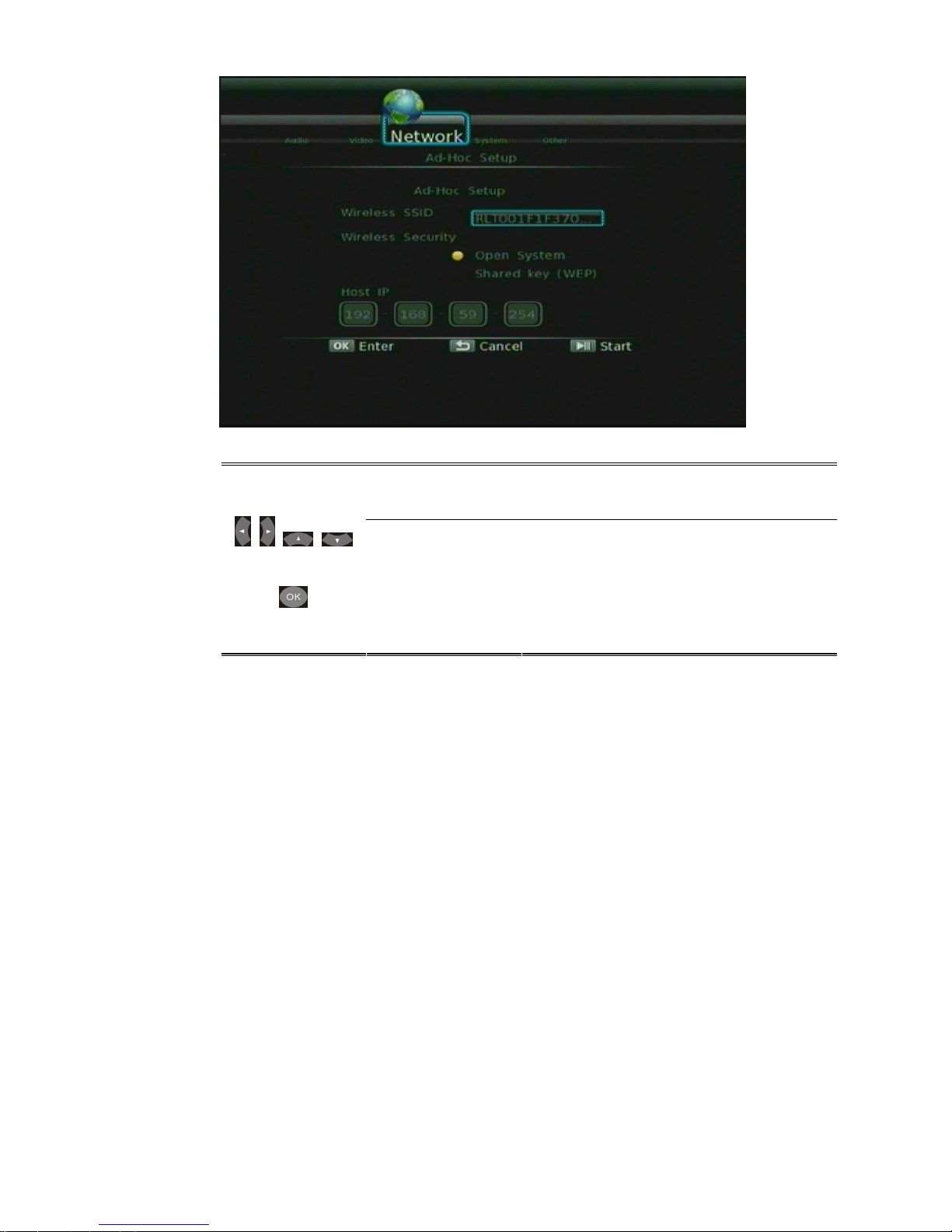

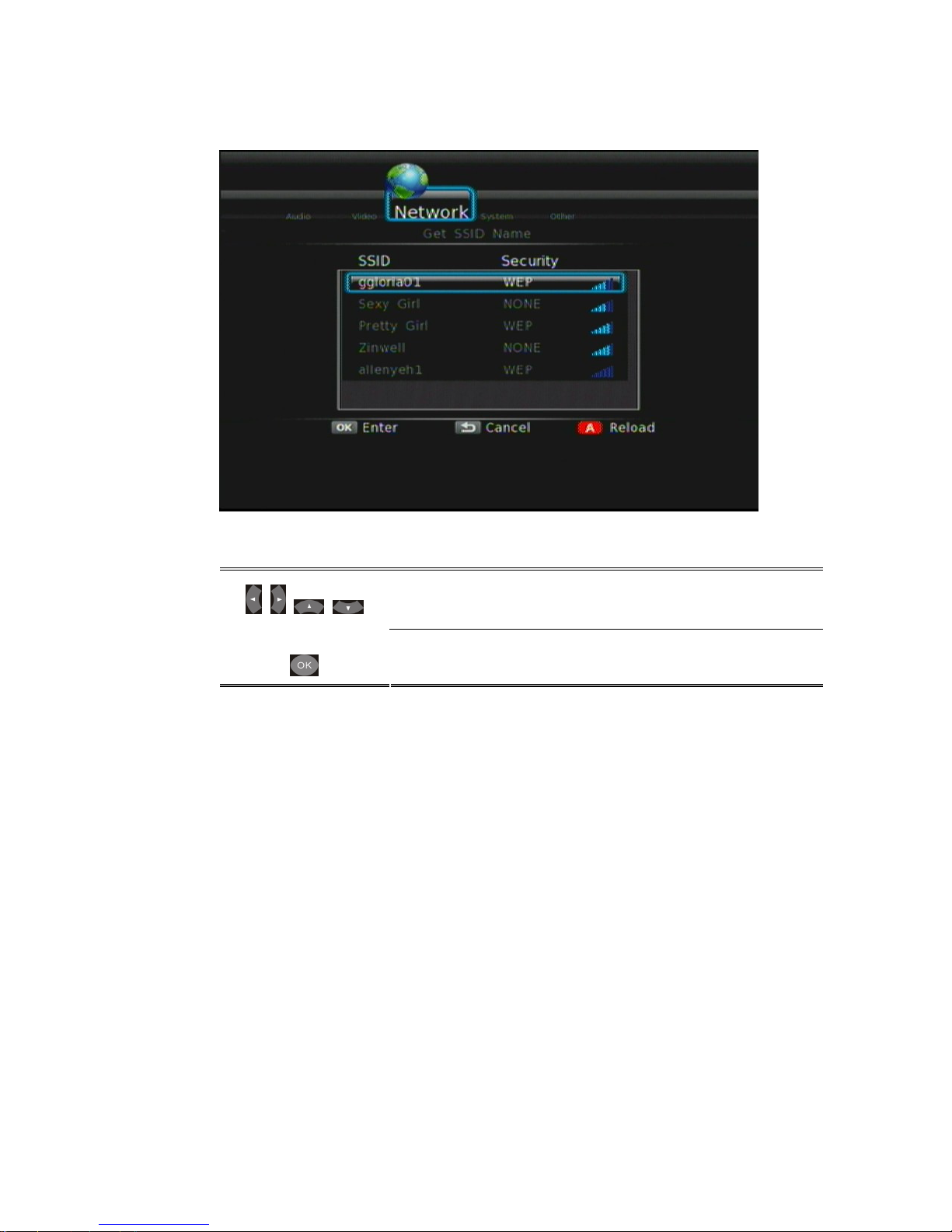

Wireless Network Setup .......................................................... 11
File sharing Configuration ....................................................... 14
4
4 4
4 MEDIA CENTER 18
Video Playback ........................................................................ 20
Music Playback ........................................................................ 21
Photo Playback........................................................................ 22
5
5 5
5 BONUS FEATURES 24
Torrent Download.................................................................... 24
6
66
6 SETUP MENU 26
Audio....................................................................................... 26
Video ....................................................................................... 27
System .................................................................................... 27
Other ....................................................................................... 28
7
7 7
7 TROUBLESHOOTING 29

1
1
11
1 INTRODUCTION
ZIN-5005HD is a high-definition multimedia player and streamer
connecting to the external USB hard drives and your HD TV, bringing
PC and internet entertainment to the living room. ZIN-5005HD is
also a BitTorrent downloader with built-in BitTorrent engine. It
downloads media files into the attached USB hard drives
corresponding to the BitTorrent seeds already saved on the USB
drive. Playing and downloading your favorite media files is now
PC-free. It supports most video/audio/image formats so you do not
need to convert downloaded media to another format. You can plug
in your USB devices to the ZIN-5005HD to play music, movies and
pictures on TV by following the on-screen display OSD) menu. The
ZIN-5005HD can also access the shared folders on the remote PCs
through the intranet local area network) and play the digital media
files there on your TV. It supports high-definition media playback
with HDMI output.
Package content
Please make sure the following items are included within your new
ZIN-5005HD package. ZIN-5005HD might not be compatible with
some accessories made by other manufacturers. We highly
recommend that you use only the specific accessories we suggest.
-Composite AV Cable
-AC Power Adapter
-Remote Control
-Battery AAA) x 2
-User Manual

2
Specification
Interfaces
Video Output HDMI、YPbPr、Composite Video
Audio Output Audio L/R、S/P DIF Optical)
Data Transfer USB x 2、Ethernet Port
General Specifications
MPEG1 AVI/MKV/TS/DAT/MPG/MPEG/VOB)
MPEG2
MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP)
/M2TS
MPEG4 AVI/MP4/MKV/MOV/WMV/ASF)
DivX 3/4/5/6、Xvid AVI/MKV/MP4/MOV)
H.264/AVC
TS/AVI/MP4/MKV/MOV/FLV)/M2TS
VC-1 TS/AVI/ASF/WMV)/M2TS
WMV9 ASF/WMV)
Video
Real Video 8/9/10 RM/RMVB)
Audio
MP3、MPEG Audio、Dolby Digital、DTS 、
WMA、PCM、LPCM、ADPCM、FLAC、WAV、
AAC、RA、OGG、MKA
Photo HD JPEG、GIF、PNG、BMP、TIF、TIFF
Subtitle SRT、SMI、SUB、SSA、IDX+SUB
Support Media
Format
HDD Device
File Systems
EXT3、NTFS、FAT16/32、HFS+
Decoding Up to 1080p RMVB up to 720p)
Output Up to 1080p
Power Supply 100~240V ±10% input voltage/ 12V @ 2A

3
Front View
Back View
① DC IN Connects to the DC output of the power adapter.
② USB Port Plug the supported USB devices into USB ports,
such as USB hard drives, cameras, camcorders
and wireless USB dongles.
③ LAN Connects to the RJ-45 Ethernet 10/100 based
network. Not compatible with the telephone line.
④ HDMI OUT Connects to the HDMI jack on the display; a single
cable transmits both audio and video data.
⑤ S/PDIF Connects the ZIN-5005HD to a display that has an
optical digital audio port, using an optical digital
audio also called S/PDIF) cable.
⑥ AUDIO L/R/ VIDEO
Connects to the display with the VIDEO IN/ AUDIO
L/R IN jacks on the display using VIDEO Yellow)/
AUDIO L White)/R Red) cables.
⑦ YPbPr Connect to a Y/Pb/Pr-compatible display using
three video Y/Pb/Pr) and two audio jacks AUDIO
L/R), through a component video cable with green,
blue, and red connectors.
① Power Press to turn the ZIN-5005HD on.
② Network LED The LED blinks when ZIN-5005HD accesses to
Network.

4
Remote Control
3
4
7
8
1 2
9
6
10
11
16
5
13 15
14
17 19
18
12

5
1
POWER Press to turn on the ZIN-
5005HD; press
again to switch to stand-by mode.
2
MUTE Press to mute the sound.
3
Number 0-
9 number keys for selecting desired
options.
4
GOTO Video/movie chapter selection.
5
INFO
Display the information of media files while
in play mode.
6
BACK Return to the previous display.
7 VOL Increase/decrease the volume.
8 CHANNEL Reserved keypad.
9
HOME Hot key to the main OSD menu.
REPEAT A-B
Press o
nce to mark desired repeat point A;
press again to mark desired repeat point B;
press yet again to turn this feature off
REPEAT Enable/disable repeat of file playback.
ANGLE Switch DVD display angles.
10
DVD MENU Show DVD Menu.
11
Navigate through menu screen
or media
libraries.
12 OK Confirm or select.
13 ASPECT Adjust aspect ratio
14 SETUP Enter setup menu
15 SUBTITLE Switch subtitle files.
RW / FF MULTI-
FUNCTION: Refer to the instructions
in the screen.
PALY/ PAUSE Play/pause selected file.
PREV Return to previous file.
NEXT Go to next file.
STOP
Stop playback and return to the previous
screen.
16
SLOW MOTION Play films in slow mode.
17 L/R Switch Left/Right speaker.
18 AUDIO Switch audio outputs.
19 ZOOM Zoom video or image display on screen.

6
2
22
2 INSTALLATION

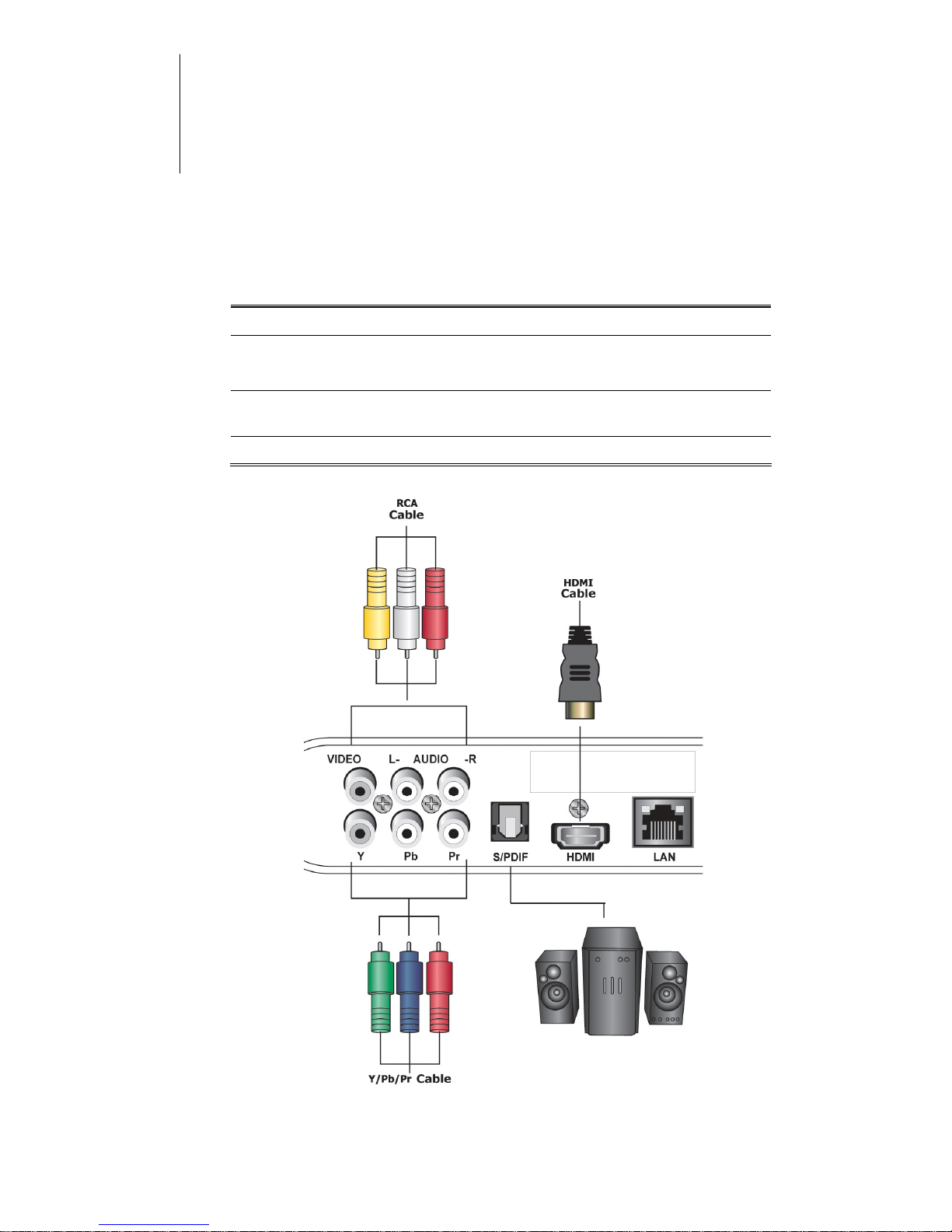

Cable connections
Match the cables to the connections on your TV or display. Your choices
of connection include:
HDMI For both audio and video output
RCA Cable For composite vid
eo yellow) and stereo
audio white and red)
Y/Pb/Pr For component video output
S/PDIF For audio output

7
Internet Connections
Connect the ZIN-5005HD to the home network through wired
LAN (Option A) or wireless LAN (Wi-Fi 802 11 b/g/n) (Option
B)
A. Plug the Ethernet cable to the “LAN” jack on the rear panel of
ZIN-5005HD, for wired Internet connection. ZIN-5005HD will
detect the network automatically.
B. If you have the optional wireless USB dongle we approved, it is
possible to connect ZIN-5005HD to the network wirelessly using
Wi-Fi 802.11 b/g/n. You need to plug the USB dongle into one of
the USB port on the front panel of the ZIN-5005HD and connect
to the internet through wireless IP sharing router. You may need
to know your wireless AP, name of the router, and encryption
keys in order to set up correctly.

8
Connect USB devices
Power cord connection
Plug one end of the power cord into the back of
the ZIN-5005HD and the other end into a power
outlet. ZIN-5005HD will start automatically
without pressing any other button once the
power is connected.
Switch your TV Input/Source
After choosing the desired video and audio connection, you need to
select appropriate video input mode using the remote control for your
TV/display to switch to the corresponding video output by pressing the
Input/Source button on the remote control.

9
3
33
3 NETWORK
▲ Network Connections: needed only when using “PC Media”, and
“Torrent Download ” features.
If your wired network equipment such as the IP Sharing router or AP
Access Point), uses DHCP to assign IP address, by default the
ZIN-5005HD will automatically request the IP and other related
information to set up ZIN-5005HD over the network in DHCP mode
under Setup> Network >Wired). If your network does not have
DHCP server, switch to the Static IP mode under Setup> Network
>Wired) and set up various parameters manually. If you have a
compatible wireless USB dongle, and have already set up the wireless
router/AP according to the instructions that come with the dongle,
please enter Setup> Network> Wireless mode to input the WEP or
WPA keys.

10
Wired Network Setup
> DHCP
+
To access “Setup” on the main menu.
Select “Network”.
Select “Wired” on the Network menu.
Select “DHCP”.
+ T
o implement DHCP network setting.
ZIN-
5005HD will automatically receive its IP
address from a DHCP sever that is buil
t into the
access point or IP sharing router.
> Static IP

11
Select “Wired” on the Network menu.
Select “Static IP”.
+
Input the value IP Address, Subnet mask
,
Gateway, and DNS text box respectively.
PS Please acquire information of these setting values from your ISP（Internet
Service Provider）first.
Wireless Network Setup
Select “Wireless setup
” on the Network menu.
+
ZIN-
5005HD provides you multiple profiles for
use across multiple networks.
Note:
ZIN-5005HD supports WEP, WPA-PSK and WPA2-PSK encryption
modes only.
Please use approved WI-FI dongle for wireless connection.

12
> Infrastructure (AP)
ZIN-5005HD performs a list of current wireless network
connections- “SSIDs”. Along with its security protocols WEP/WPA2
2 key) and signal strength.
Select your preferred wireless network
connection.
+
If an access key is required for the network
connection, the keyboard will pop up.
Once the wireless network setup is successful, the “SETUP
SUCCESSFUL” screen will appear.

13
> Ad-Hoc Setup
Rename SSID
Rename your wireless network
connection.
+
Wireless Security
Set your wireless network as an
open system or
have it protected
by WEP key
first, in order to
connect the ZIN-
5005HD to the
network.

14
File sharing Configuration
To activate this feature, please make sure:
The ZIN-5005HD is connected to the network;
The network is properly set up. For more information on this part,
please refer to “Step 2” in “Setting up ZIN-5005HD” section, and
“Network” under “Setup Menu”.
To allow the ZIN-5005HD to access folders on your computer, you
need:
1) ZIN-5005HD already connected to the network
2) to designate the folders/files on your PC as shared resources.
Please refer to Microsoft’s official website:
http://www.microsoft.com/windowsxp/using/networking/setup/home
net.mspx to see the initial and detailed process of Home Network Setup
in Windows XP. Please refer to the following instructions to allow the
ZIN-5005HD to access the shared folders on the remote PC.
Step 1: Right click on the folder to be shared and select Sharing and
Security.
Step 2: If this is the first time you intend to share a folder, Windows XP
will prompt a warning message, urging you to use the Network
Setup Wizard for safety purpose. Choose to either run the
Wizard or do it yourself. XP will display another warning. If you
want the firewall enabled, select Use the wizard to enable
file sharing. Otherwise, select enable file sharing.
Caution: File sharing may lead to security problems since, by definition, it gives other users
access to the content of a part of the hard drive. As a result, it is essential that you share
only folders for which it would not be extremely important if their contents are revealed.

15

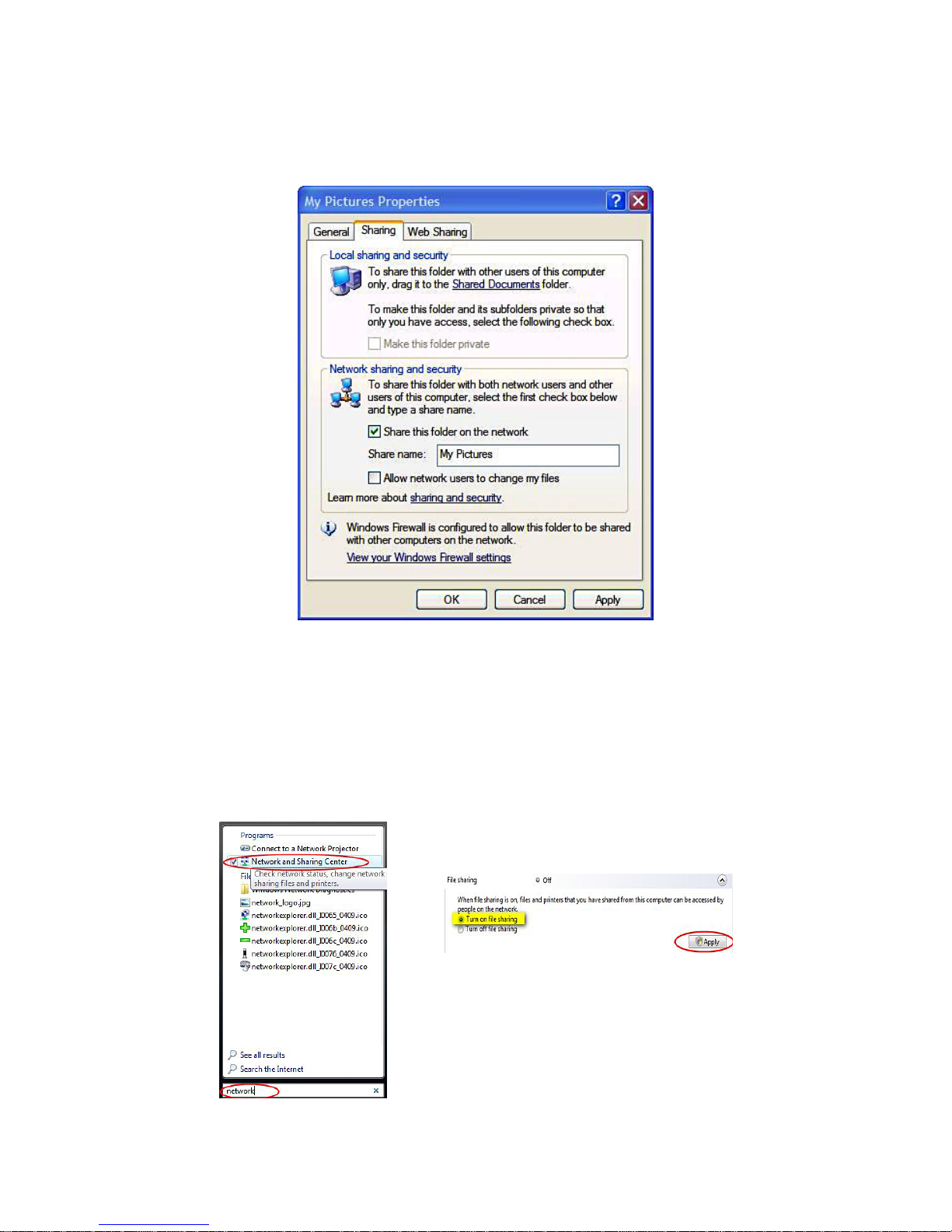

Step 3: You may now specify a “Share Name”, which will be used for
users on the network to access the shared folder. The icon of
the shared folder will be changed to showing a hand holding
the folder.
If your operating system is Windows Vista, please refer to the following
instructions:
(1) Open the Control Panel and then open Network and Sharing
Center.
(2) Click the down arrow to the right of File Sharing to expand it.
(3) Click Turn on file sharing and then click Apply.
You may also refer to Setup menu on the OSD screen of ZIN-5005HD
to select wired or wireless connection.
