AVstumpfl SC MASTER 6 User manual

SC MASTER 6/16
AV Stumpfl

Contents
Introduction 1
Control centre and multi-channel MP3-Player.....................1
The features ........................................................................2
Scope of supply ...................................................................5
Optional accessory .........................................................5
Address ...............................................................................7
Documentation status .....................................................7
Front and rear views 9

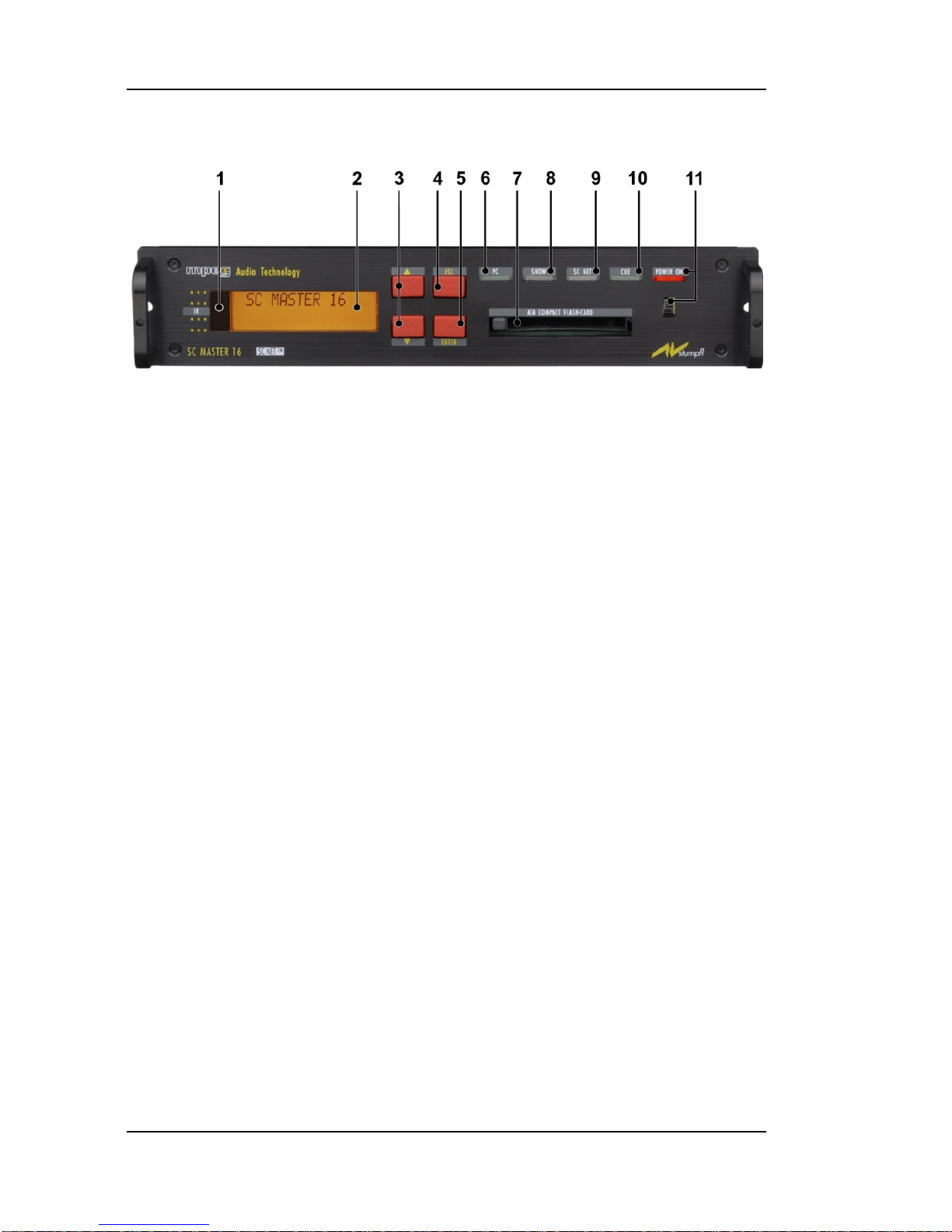

Front view ..........................................................................10
Rear View ..........................................................................12
IR remote control unit ........................................................13
Getting started 15
General .........................................................................15
Cable connections and power supply................................15
Programming shows 18
Overview............................................................................18
Connection to the computer...............................................19
Programming with Wings Platinum....................................21
Preparatory steps..........................................................21
Creating a project..........................................................21
SC Master 16 Contents •i

Special features for programming ................................ 23
Producing a show medium 25
General ............................................................................. 25
Generating data for the SC MASTER 6/16 ....................... 25
The FlashCard Dialog in Wings Platinum..................... 27
Generating presentation data for the CF card.............. 29
Specifying show properties .......................................... 34
Editing Remote properties of shows ................................. 35
Special settings ............................................................ 38
Editing Remote properties in SHOW.INI ...................... 39
The Key Table.............................................................. 40
Data transfer to CF card ................................................... 42
Copying the show data onto a CF card........................ 42
Playback of shows 44
Presentations - compact layout and comfortable handling 44
Extended selection of shows........................................ 47
Show selection via the IR remote control unit .............. 47
Show selection via buttons on the device .................... 47
IR remote control range................................................ 48
Show Start with Timer....................................................... 48
Time-controlled show start via the Scheduler ................... 49
Show start via transponder ............................................... 50
Structure of the card player 53
General......................................................................... 53
MP3 Card Player............................................................... 53
Playback of synchronized multi-channel sound ........... 54
Volume and sound control............................................ 55
ii •Contents

The SC Net System 56
General .........................................................................56
Cable Connections and Power Supply ..............................56
Address configuration........................................................57
Setting addresses in the Media Pool.............................57
Setting the addresses at the hardware .........................58
Subadresses of the SC MASTER 6/16 .........................61
Ensuring communication within the SC Net.......................62
The Menu 64
Layout of the Menu............................................................64
How to use the menu.........................................................66
Menu operation via IR remote control...........................69
Menu Chart........................................................................70
The Menu Items 73
Setting ...............................................................................73
Load ..............................................................................73
Save..............................................................................73
Factory ..........................................................................73
Options ..............................................................................75
Aux Address (Auxiliary Address) only for DLC mode....75
RS232Out Addrs (RS Out Address) only for DLC mode75
SC Net (SCNet Options) ...............................................75
Display ..........................................................................77
IR Receive ....................................................................78
Remote-Out ..................................................................78
Data In/Out....................................................................80
External Clock...............................................................81
RS232InBaudRat (Baud rate for RS232-In)..................82
Sound ................................................................................83
Master ...........................................................................83
SC Master 16 Contents •iii

Input ............................................................................. 83
Save Volume................................................................ 84
Slider ............................................................................ 85
CUE OUT Signal............................................................... 86
Priority .......................................................................... 86
Cue-Out........................................................................ 86
Continue Sign (Continue Signal).................................. 87
RS232 OUT ...................................................................... 88
Driver............................................................................ 88
Timer................................................................................. 89
AutoTimer..................................................................... 89
ShowNumber (Show Number) ..................................... 89
Timer Time ................................................................... 89
Info.................................................................................... 90
Show Control 92
General ............................................................................. 92
Sound track management on CF card .............................. 93
Sound track continues:................................................. 93
Sound track is interrupted: ........................................... 93
Variables........................................................................... 95
EEProm Variables:....................................................... 96
RAM Variables: ............................................................ 96
Monitoring of variables during programming ................ 97
Remote Input and Key Mask............................................. 99
Key Mask.................................................................... 100
Text in display or via RS232 ........................................... 102
These are the individual steps for displaying text....... 102
Trouble shooting 104
Finding faults................................................................... 104
iv •Contents

SC Master 16 Contents •v
List of problems ...............................................................105
Update of operating software 108
Updating ..........................................................................108
Technical Appendix 110
ASCII Protocol .................................................................110
Connector configuration...................................................115
RS232-IN connector ...................................................115
RS232-OUT connector ...............................................116
SC NET connector ......................................................117
CUE-OUT connector...................................................118
LINE-OUT connectors.................................................118
REMOTE connector....................................................119
REMOTE Connector Open-Collector Outputs ............120
DATA IN / OUT connector...........................................121
POWER connector......................................................122
Technical Data.................................................................122
Glossary 123
Index 126

Introduction
Control centre and multi-channel MP3-Player
SC MASTER 6/16 series units are MP3 players featuring
superordinate Show Control Management for controlling
multimedia events. Within the SC Net network, such a unit
forms the central control system with a variety of input and
output options. Sound and control information is stored on a
memory card the size of a postage stamp. Direct and unde-
layed access ensures both synchronization and interaction.
SC MASTER 6/16 gives you "complete control"! Congratula-
tions and welcome to the Stumpfl system!
The core of the device is a microprocessor with programmable
operating software which allows the many features and func-
tions of this new generation of control units to be implemented.
The required configuration settings can be made, saved and
called up in the entry menu. Any future developments can
easily be incorporated via software updates, which will keep
your unit constantly up-to-date.
This manual with its step-by-step instructions should help you
to familiarize yourself with all the features and possibilities of
this device.
SC Master 16 0BIntroduction •1

This manual is also available as PDF document. The latest
version can be downloaded from our website.
The features
To give you a feeling for the extraordinary efficiency of the SC
MASTER 6/16 we have listed the most important features
below. If some of the topics inspire your curiosity, just follow
the cross references for further information.
Audio
•The audio player offers up to 16 channels (8 stereo chan-
nel pairs) and uses a CompactFlash Card as data carrier
(called CF card for short). Flash memory design means no
moving parts to break or wear. The audio data are com-
pressed in accordance with the Fraunhofer MPEG1
Layer3 audio compression format (called MP3 for short).
•On a CF card the size of a postage stamp with a storage
capacity of 512 MB, 8 hours of stereo sound can be stored
at a CD-like quality.
•IR remote control unit for easy adjustment of volume and
sound.
•Every stereo pair can be adjusted in volume and sound
both individually or jointly.
2 •0BIntroduction

•Professional, balanced stereo jack outputs to avoid inter-
ferences. Allow direct connection of 8 headsets, using the
corresponding cable adapters.
Control
•Control of external components via SC NET, DLC data
signal or the integrated RS232 port.
•Control of lighting and other devices via DMX512 signals.
The first six channels are available via a special optional
cable, control of up to 64 channels via the optional DMX
Upgrade Module. Transmitting IR commands is not possi-
ble when the DMX output in use.
•Control of building services technology via the DALI sys-
tem and the configurable REMOTE connector (special ca-
ble SCK-MDALI/3). All 16 DALI groups are available, but
there is no differentiation between subaddresses.
•Multi-functional DATA I/O-Port for linking up with periph-
eral devices, e.g. open collector remote adapter or trans-
ponder reader for identification of individual visitors.
•Comprehensive timer function and synchronization with
DCF77 signal with the optional Radio Clock Module.
•Freely definable show configurations via Scheduler file.
Even highly complex conditions can be specified.
•Remote control via the RS 232 input for integration with
superordinate media control systems.
•Remote input for direct starting of shows via simple key-
pads.
SC Master 16 0BIntroduction •3

•Direct connection of a keypad matrix with up to 16 keys or
up to 16 parallel switch inputs.
•Connection of light barriers and motion detectors.
•Interactive show design in response to a variety of input
conditions, e.g. branching to other show sections by press-
ing a key.
•Simple, intuitive programming of all sequences via Wings
Platinum software. Extensive range of variable functions.
•All settings are menu driven via a graphic display. The
graphic display is well readable from all angles. Up to six
set-up configurations can be saved and retrieved at any
time.
•The SC MASTER 6/16 operating software can be updated
via a file and a Windows PC at any time.
4 •0BIntroduction

Scope of supply
The SC MASTER 6/16 includes the following:
•IR remote control unit
•Power Supply Unit AC-3
•User Manual and Wings Platinum CD ROM
Optional accessory
•Compact Flash cards (CF cards) with varying memory
capacities of up to 2 GB.
•Start keypad with up to 3 keys for connection to the
REMOTE connector
•Keypad with 16 keys for direct connection to the DATA I/O
socket.
•Transponder for object-oriented event triggering.
•Motion detectors and light barriers
•Radio clock module for time-controlled presentation to be
connected to the REMOTE connector.
•Open Collector Remote Module with 16 open collector
switch outputs and 8 remote inputs for floating switching
contacts.
•Remote 16in Module with 16 parallel remote inputs for
floating switching contacts.
SC Master 16 0BIntroduction •5

•DMX Upgrade Module for direct control of up to 64 DMX
channels.
•DMX512 extension cable for connection to REMOTE con-
nector, SCK-MDMXE
•External IR receiver for connection to the REMOTE connec-
tor
Important note on the disposal of the equipment
Please do not dispose of your Stumpfl equip-
ment in unsorted household waste. Take it to a
collection or recycling place for electronic waste
provided by your municipality, community or
city. This helps to protect the environment, as
all the parts of the unit, i.e. also the dangerous
substances contained in electronic compo-
nents, will be disposed of appropriately and the
reusable components be recycled.
6 •0BIntroduction

SC Master 16 0BIntroduction •7
Address
If you would like to contact us, just write a letter, send us a fax
or an e-mail. We'll be pleased to hear from you!
Visit our website on the Internet. We'll always have the latest
information and software ready for you!
AV Stumpfl GmbH
Mitterweg 46
A-4702 Wallern
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: http://www.stumpfl.com
Documentation status
Last reviewed: 14.03.2008
SC Master 6/16 operating software: 2.05
Wings Platinum Version: 3.50
This manual has been prepared with care and contains all
information about the SC MASTER 6/16 available at the time
of print.
This documentation is also available as a PDF file, which,
under certain circumstances, may be more up-to-date than the
printed version. If necessary, contact us for the latest Help
versions.

Front and rear views
SC Master 16 1BFront and rear views •9

Front view
1. IR receiving diode behind the display
2. LCD display
3. Keys for menu and show selection as well as volume
control for the SC MASTER 6/16
4. ESC key for the menu and for aborting running shows
(press for more than one second)
5. ENTER key for menu, show start and restarting from X-
times
6. PC LED is on when the PC is connected or flashes at an
interval of one second if the DCF77 Radio Clock Module is
connected.
7. Slot incl. ejection key for CompactFlash Card (called CF
card for short).
8. SHOW LED is on while a show is being played back and
flashes in Pause Mode or when an X-time has been
reached.
9. SC NET-LED lights up, when there is any communication
within the Show Control Network.
10 •1BFront and rear views

10. CUE LED flashes while a control signal is being generated
or when there is an error on the SC Net bus.
11. ON/OFF switch with control LED, is illuminated when ON
SC Master 16 1BFront and rear views •11

Rear View
1. REMOTE connector for connection of a cable-operated
remote control unit, a Radio Clock Module, of query
switches, of a DMX or DALI cable; output of two OC
switches (not all of them can be run at the same time!).
2. Connector for power supply unit AC-3
3. RS232 OUT connector for controlling external devices;
can also be used as remote input
4. RSRS232-IN connector for communication with a com-
puter or external devices, connection to a serial LAN
adapter, e.g. remote control of the SC MASTER 6/16.
5. SC NET connector for linking up with a Show Control
network.
6. Data port with 8 IN/OUT channels for connection to Open-
Collector Remote Modules or to special interfaces
7. CUE-OUT connector, output for control signals
(DLC/Mate-Trac) or SMPTE timecode
8. LINE-OUT connectors, 16 balanced audio outputs defined
as 8 left/right pairs
12 •1BFront and rear views
