AWA LMD-2808 User manual

Portable 8 DVD Player
LMD-2808
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Notice:
This Productincorporates copyrightprotection technologythat is pro-
tectedby methodclaims of certain U.S. Patents andotherintellectual
property rights ownedby Macrovision Corporationandother rights own-
ers. Use ofthiscopyright protectiontechnologymust be authorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses onlyunless otherwise authorized byMacrovision Corporation.
Reverse engineeringor disassemblyis prohibited.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Content
A.Introduction............................................................................1
B.CautionsandWarnings........................................................ 1
C.Contents............................................................................... 3
D. Poweringandinstallation ..................................................... 3
E.Controls,Indicators,andConnectors ................................... 4
F. Loading andPlaying aDisc.................................................. 5
G. Setup.................................................................................. 6
H. BasicOperation....................................................................15
I. Menu ....................................................................................17
J. Display................................................................................ 17
K. Playing Audio CDS ..........................................................22
L. PlayingMP3Discs ........................................................... 24
M.PlayingJPGfile....................................................................26
N.Connectingto anotheequipment.................................28
O.Specifications......................................................................29
P. Game ControllerFunctionDescription.............................29
Q. Troubleshooting ................................................................. 34
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

1
A.Introduction
Thank you forchoosingthe8 portable DVD player.Themain fea-
tures include a8" WideScreen (16:9Aspect Ratio)Liquid Crystal
Display(LCD)monitorandaDVD player. The unit applies the latest
state ofthe art electronics and is designed for use in hotels, offices
oryourhome.The unit is constructed toprovideyearsofreliable,
trouble-free service, and is compact so that you can take itwithyou
anywhereand is designed forquickand easyinstallation.Please read
theentire instructionmanual suppliedwith thisproductprior to using.
Thedocumentation will assist youininstalling thesystem properlyto
obtain thebest equipment performance. Please savethismanual for
later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensure that the 8 portable DVD player isinstalled in accordance
with the instructions and illustrations provided in this manual.
3. Caution
Toensure proper ventilation and proper operation, never cover
or blockthe slots and openings with a cloth or other material and
keep this distance should be no less than 10mm. Keep the unit
away from naked flamesource such as, fire, candle etc, and it is
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2
not allowed toplacethenakedflame on theunits.Use the apparatus
onlyin moderateclimates (not in tropical cilmates); Do not placeob-
jects filled withliquids, such as vases, on the apparatus.
CAUTION:
Danger ofexplosion ifbatteryis incorrectlyreplaced. Replaceonly
withthe sameorequivalent type,inordertoprotect theenvironment,
please disposethe battery properly.
CAUTION
Laser warning: Class 1 Mlaser radiation when open.
do not viewdirectlywith optical instruments.
4.Disassemble
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

3
C. Contents
1. 1 x 8’’ LCD Monitor & DVD Player Combo
2. 1 xAC to DC Adapter
3. 1 x Remote Control with battery(CR2025)
4. 1 x Instruction Manual
5. 1 x Audio/Video Cable
6. 1 xCarryBag
7. 2x Headphone
8. 1 xCar Cord
9. 1 xGame Pad
D. Powering and installation
1.Powering the system indoors
Plugone end oftheACtoDC adapterintotheDC Input jackonthe
right sideof the DVD player,then plugthe other endintothe
100~240VAC power receptacle.
2. Powering the systemin a car
Plug one end ofthecigarette lighter adapter into the DCInputjack
on the DVD player, thenplug theotherend into thecigarettelighter
socket.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

4
E.Controls,Indicators, and Connectors
1. Unit View (Refer to Figure 1)
Figure1
1)LCD Panel Shut Off Switch
2) Wide Button
3) Stop Button
4) Previous Button
5) NextButton
6) Play Button
7) MENUButton
8) UpButton
9) RightButton
10) OK Button
11) DownButton
12) LeftButton
13)Open Switch
14)IR Sensor
15) PowerLED
16)Power on/offSwitch
17) Brightness Up/Down Control
18) Volume Up/DownControl
19)Headphone 1
20)Headphone 2
21) E-Port
22)AVIN/OUT Switch
23)AVJack
24)DC9-12VInput Jack
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5
2. Remote ControlView (Refer to Figure2)
1) Setup Button
2) UpButton
3) Previous Button
4) Enter Button
5) Left/Reverse Button
6)DownButton
7) Numberic Button
8) DisplayButton
9) Zoom Button
10) Subtitle Button
11) NextButton
12) A-B Repeat Button
13) Right/Forward Button
14)1/ALLRepeat Button
15) Stop Button
16)MenuButton
17)Audio Button
18)Angle Button
19) Play/Pause Button Figure2
F. Loading and Playing a Disc
a.After connecting powerto theunit, poweron “DVDplayer with the
power switch. The powerindicator will light.
b. Open the disc traybypressing OPEN, and place adiscinto the
tray.
c. Close thetrayby pressingthe “PRESS .The unit will load the disc
and start playing.
d.Rotate BRIGHTNESS andVOLUME toadjust theLCD’sbright-
nessand the DVD player’s volume.
e. To stopplaying adisc,pressSTOP.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
G. Setup
Press ‘SETUP’to displaythe Main screenofthe Setup Menu on the
screen.Press ‘SETUP’again toexittheSetupMenuand the unitwill
resume it’s last playbackmode.
Main SetupMenu Screen
1) Press “SETUP , the ‘General Setup Page’will display on screen.
a).Select‘TVDisplay’using the UP/DOWNbutton, andthenpressRIGHT
to enter the submenu. Select the TV displaymode on thescreen using
UP/DOWN, and press ENTER toconfirm the setting. PressLEFT to
return.
*Normal/PS: When the player is connected to a normal TV, and a
wide picture is shown on the full screen.
* Normal/LB: When the player is connectedto a normal TV, anda
wide pictureis shownon the screen withablackstrip atboththe top and
bottom ofthe screen.
* Wide: When the player is connected to a wide screenTV, a wide
picture is shown on the full screen.
TV DisplayScreen Display
.... GeneralSetupPage
TVDisplay Wide
AngleMark
Off
ScreenSaver
On
LastMemory On
GoToGeneralSetupPage
.... GeneralSetupPage
AngleMark
Off
ScreenSaver
On
LastMemory On
GoToGeneralSetupPage
NormalPS /
NormalLB /
TVDisplay
Wide
Wide
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
b).Select ‘AngleMark’usingthe UP/DOWNbutton, and thenpress the
RIGHTbutton to enterthesubmenu. Choose Angle Markon or off
using the UP/DOWNbutton and then press ENTER to confirmthe
setting. Press the LEFT button to return.
AngleMark Screen Display
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain abovefeatures. The abovefeatures are
discdependent.
c).Select ‘ScreenSaver’usingtheUP/DOWNbutton,andthenpress
theRIGHTbuttonto enterthesubmenu.ChooseScreenSaveron or
offusingthe UP/DOWNbuttonand thenpressENTERto confirm the
setting. Press the LEFT button to return.
ScreenSaver ScreenDisplay
.... GeneralSetupPage
ScreenSaver
On
LastMemory On
SetAngleMark
TVDisplay
Wide
AngleMark
OffOn
Off
.... GeneralSetupPage
LastMemory On
SetScreenSaver
TVDisplay
Wide
AngleMark
Off On
Off
ScreenSaver On
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
*On:Enables screensaver
*Off:Disables screen saver(off)
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximatelyfive minutes ifthe same image remains onthe screen.
d).Select ‘LastMemory’by UP/DOWNbutton.and then press the RIGHT
button to enter the submenu. Choose Last Memory on or offusing
the UP/DOWNbutton and then press ENTER to confirm the setting.
Press the LEFT button to return.
Last MemoryScreen Display
*On: The unit will return to the last position on the disc.
*Off: Theunit will not return to the last position on the disc.
Note: TheLast positionmemory functiononlyeffectfor OPEN
operation.
.... GeneralSetupPage
SetLastMemory
TVDisplay
Wide
AngleMark
Off
On
Off
ScreenSaver On
LastMemory On
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
2) Select “VideoQuality Setup byusingtheLEFT/RIGHT button, press
ENTER to enterthevideoquality setuppage.

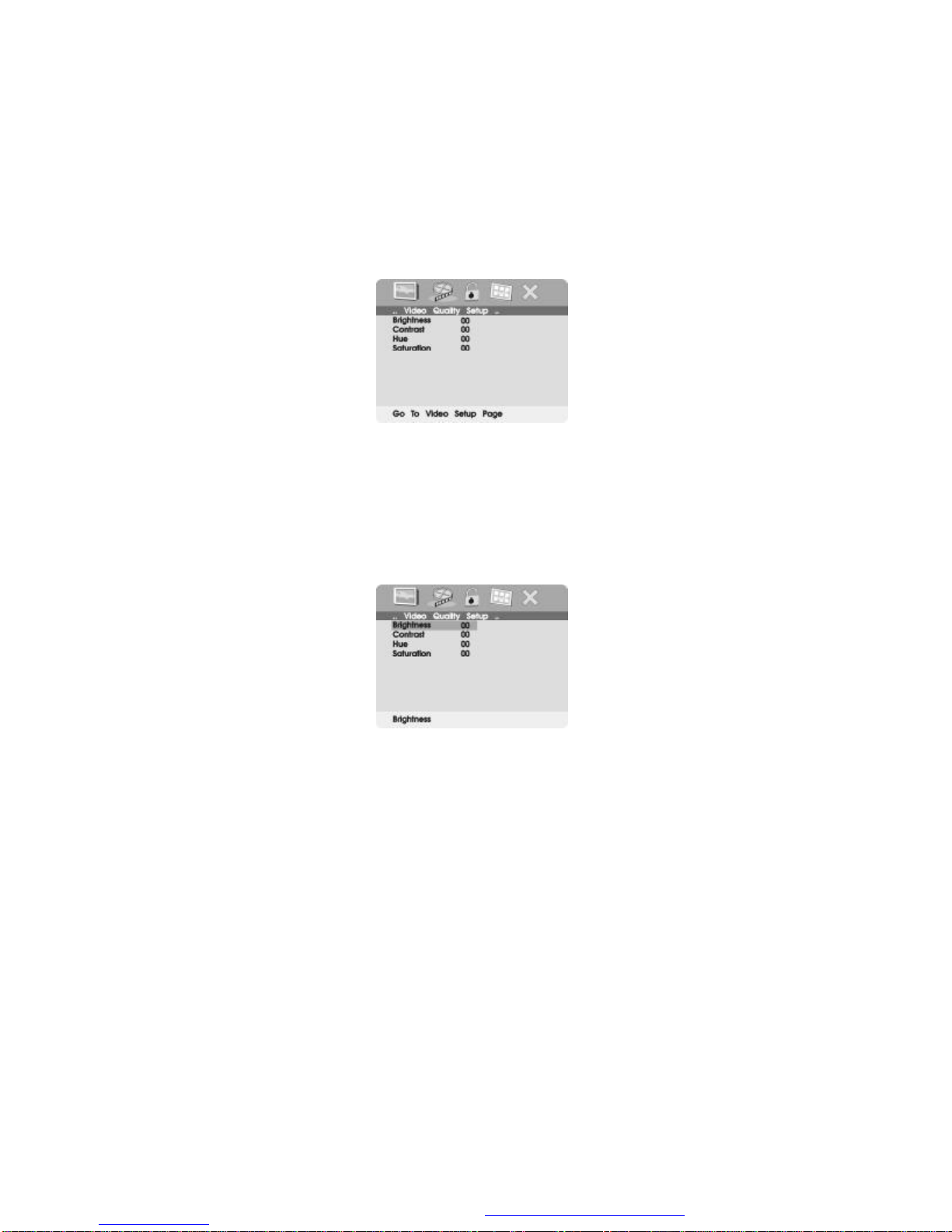

Video QualitySetup Screen Display
a).Select ‘Brightness’by usingtheUP/DOWNbutton, then pressEN-
TERyoucanchange theBrightnessbypressing the LEFT/RIGHT
button.Toexit ‘Brightness’setting, pressENTER againtoreturn
themainMenu.
Brightness Screen Display
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10
b).Select ‘Contrast’byusingthe UP/DOWN button, then press ENTER
you can adjust the Contrastby pressingtheLEFT/RIGHTbutton.
ContrastScreen Display
Toexit ‘Contrast’Setting,pressENTER againto return the main Menu.
c).Select ‘Hue’byusingthe UP/DOWN button, then press ENTER you
canadjust theHue by pressingtheLEFT/RIGHT button.
HueScreenDisplay
Toexit ‘Hue’Setting, press ENTERagainto return the main Menu.
d).Select ‘Saturation’byusing the UP/DOWNbutton,thenpress ENTER
youcanadjust the Saturation by pressing the LEFT/RIGHTbutton.
Saturation Screen Display
To exit ‘Saturation’setting, press ENTER again to returnto the main
Menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11
3).Select “Password using the LEFT/RIGHTbutton,thenpressthe
RIGHT button to enterthesubmenu.
Password Setup Page Screen Display
Press ENTER to enter the Password Change Page.Input the Old
Password ortheDefault Password, theNewPassword, andthe Con-
firmedNewPassword. Press ENTER to confirm the change.
Password Change Page ScreenDisplay
Note: The default password is 3308.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12
4).With nodisc inside the player select ‘Preference Page’usingthe LEFT /
RIGHTbuttons, thenpress ENTERto enterthe preference page.
a. Select ‘Audio’usingthe UP/DOWN button, thenpress RIGHTto
enterthe submenu. Selectthe audio languageyou desireusingthe
UP/DOWNbutton, thenpressENTERtoconfirm the setting. Press
LEFT toreturn.
PreferenceAudioLanguage
b. Select ‘Subtitle’theusing UP/DOWNbutton, then press RIGHT to
enterthe submenu.Selectthe desired subtitle languageorSubtitle
Offusing the UP/DOWNbutton, thenpressENTER to confirm the
setting. Press LEFT to return.
PreferenceSubtitleLanguage
PreferredAudioLanguage
Subtitle
DiscMenu
Default
.... PreferencePage
Parental
ENG
ENG French
Spanish
Chinese
Japanese
Audio ENG
English
PreferredSubtitleLanguage
DiscMenu
Default
.... PreferencePage
Parental ENG French
Spanish
Chinese
Japanese
Audio ENG
English
SubtitleENG
Off
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

13
c. Select ‘Disc Menu’usingtheUP/DOWN button,then pressRIGHTto
enterthesubmenu.SelecttheDiscMenu Languageyou desire using
theUP/DOWNbutton,thenpressENTERto confirmthesetting.Press
LEFT toreturn.
PreferenceDisc MenuLanguage
Note: Language and subtitle selection isonly available for discs that
arerecorded in the abovelisted languages.If the selected,language
is notavailable,the playerwill playand displayon thescreen the origi-
nalrecorded language containedin thedisc.
d. Select ‘Parental’using the UP/DOWNbutton,thenpressRIGHT to
enter thesubmenu.
Parental PreferenceScreenDisplay
Select the parental level you desireusingtheUP/DOWN button for
discs with lock-out function or multiplerating levels. Theseare listed
fromthe lowestlevel (1Kid Safe)to the highestlevel (8Adult). Entera
4digitpassword,thenpressENTER to confirmthe parentallevel
setting.
NOTE: The levelof8Adult isthe factorydefault.
PreferredMenuLanguage
Default
.... PreferencePage
Parental French
Spanish
Chinese
Japanese
Audio ENG
English
SubtitleENG
DiscMenu
ENG
SetParentalControl
Subtitle
DiscMenu
Default
.... PreferencePage
ENG
ENG
Audio ENG
Parental
1KIDSAFE
2G
3PG
4PG13
5PGR
6R
7NC17
8ADULT
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
e.Select ‘Default’usingtheUP/DOWN button, then press RIGHTtoen-
terthesubmenu. PressENTER to make thesettingreturnto thefac-
tory-set mode.
NOTE: The parental setting isnotaffected bythedefault reset
function.
Loading FactorySetting
NOTE: TheDefault Password is 3308.This passwordis always ef-
fectiveevenafteryou haveselected your ownpasswordand changed
it. Toavoid the possibilityofothers usingthe defaultpasswordto set
the parentallevelandchangethe password, you canrecord this
defaultpasswordin anotherareaand deleteit fromthismanual. Some
discscan be limited dependingonthe age ofuserswhile some discs
cannot.
GoToPreferencePage
Audio
Subtitle
DiscMenu
.... PreferencePage
Parental
ENG
ENG
ENG
Reset
Default
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
H. Basic Operation Remove/load the disc
Start Play/Execute item or setting
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe next chapter, trackor scenedur-
ing play back
Gobacktothe previous chapter, trackor
scene duringplay back
Scan forwardat 2,4,8,16or 32times speed
Scanbackwardat2,4, 8, 16 or32times
speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
RepeataspecificportionfrompointAtopoint
B ofthe disc
Display information(title, chapter, track,
time, etc.).
Changethe viewingangles on thescene
Select the subtitle languageand turn it on/
off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setup menuto selectandset
items, and exit the setup menu.
OPEN
PLAY/PAUSE
STOP
NEXT
PREVIOUS
RIGHT/FORWARD
LEFT/REVERSE
UP/DOWN
ENTER
NUMBERS
MENU
1/ALLREPEAT
A-B REPEAT
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

19
I.Menu
A DVD is divided into sections called titlesandchapters. When you
play a DVD,aroot menu ofthedisc will appearonthescreen ofyour
TV orMonitor. Thecontentsof themenu varyfrom disc todisc.Press
MENU duringplaybackto display the menu. Some DVDs onlyallow
you to select disc playbackoptionsusingtheDVD root menu.
J.Display
1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.

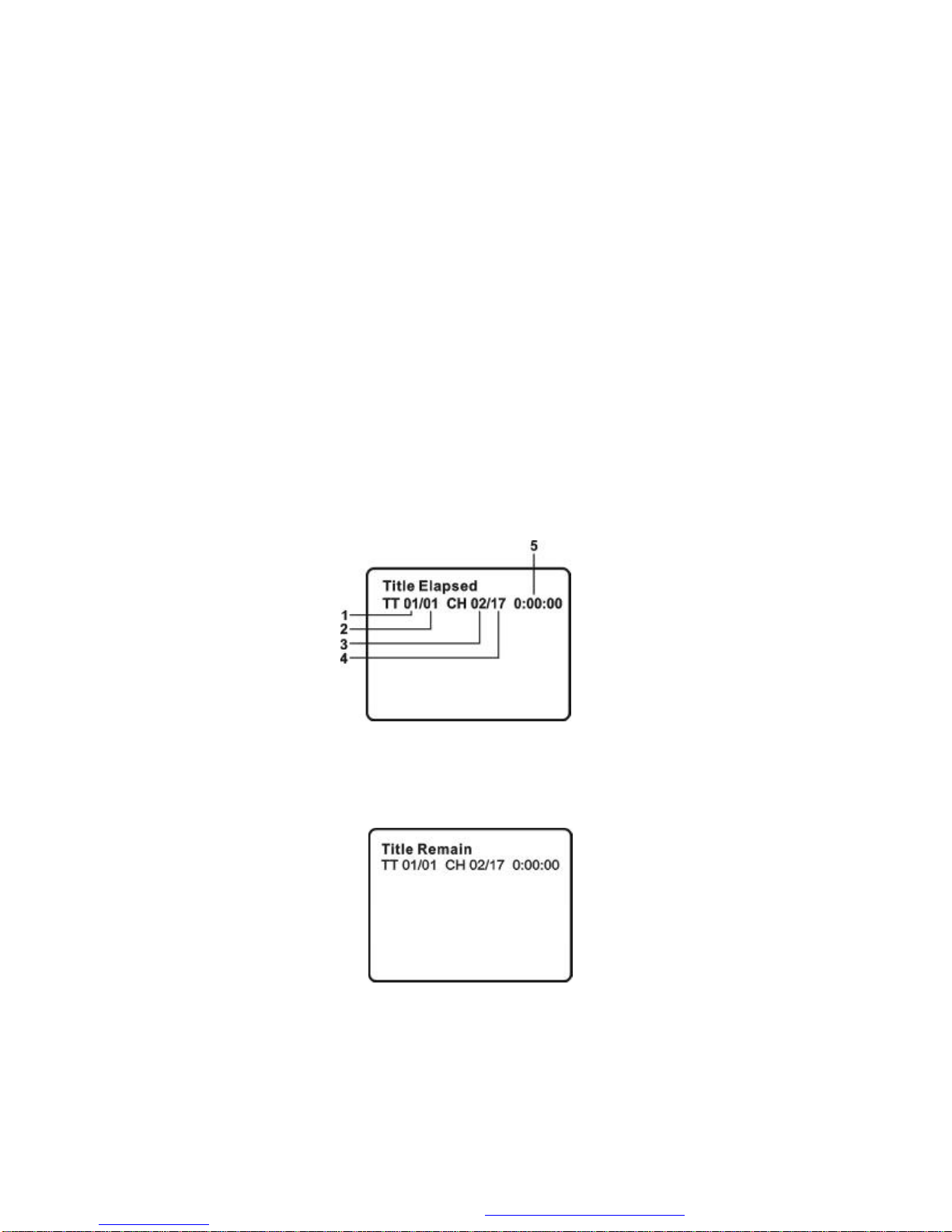

Title, Chapter Number, and TimeScreenDisplay
b.Press ‘DISPLAY’again todisplay the RemainingTime ofthe title.
The headingwill disappear automaticallyin 3 seconds.
Title Remaining TimeScreenDisplay
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17
c.Press ‘DISPLAY’a3rdtime todisplaythe Elapsed Time forthe
chapter. The headingwill disappear automaticallyin3 seconds.

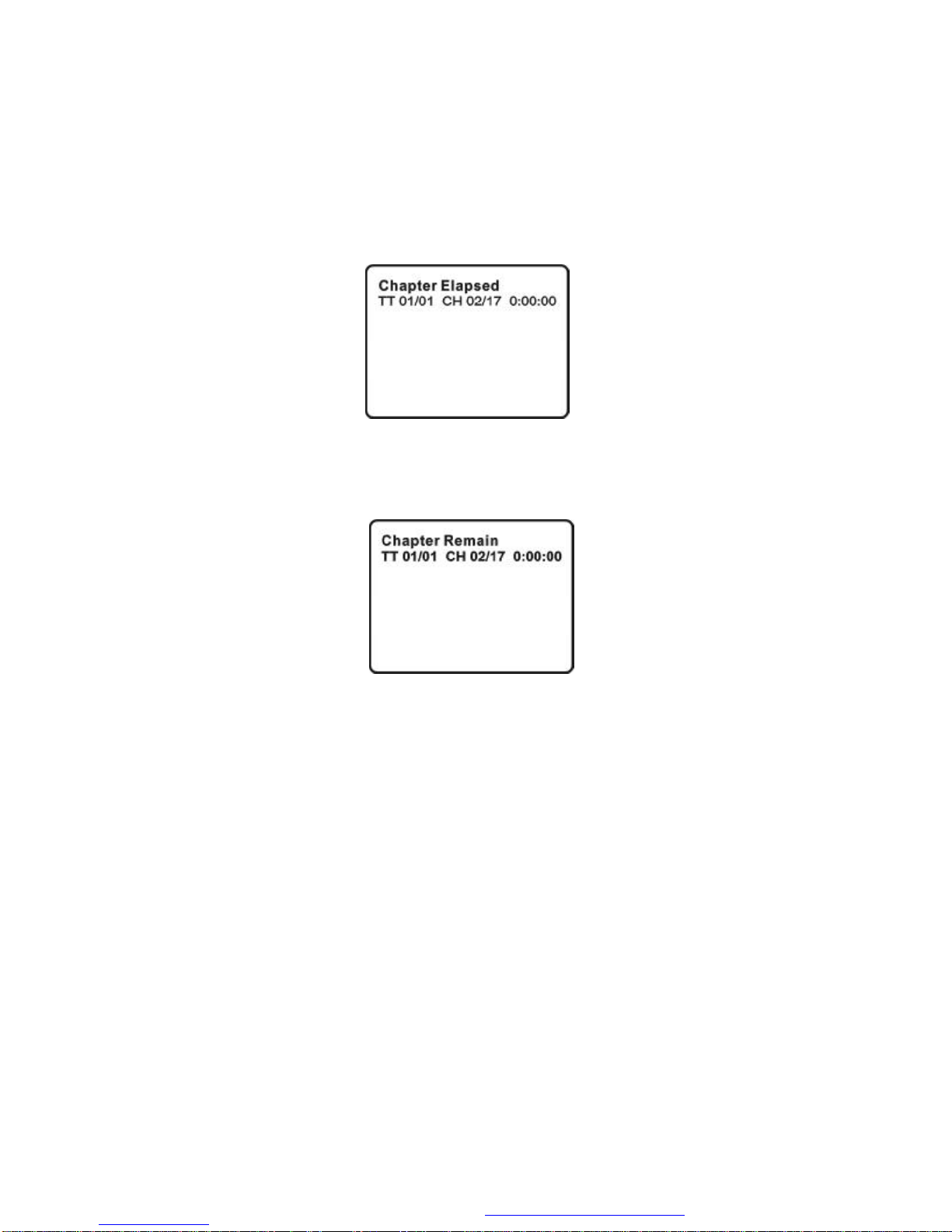

Chapter ElapsedTime ScreenDisplay
d. Press ‘DISPLAY’a 4th time to displaythe RemainingTime forthe
chapter. The headingwill disappear automaticallyin3 seconds.
Chapter Remaining TimeScreen Display
e.Press ‘DISPLAY’a 5thtime to exit, ‘DisplayOff’will be displayed
and will disappear automatically in 3 seconds.
2. ANGLE
Duringplayback ofadisc,press‘ANGLE’todisplaythe availableangles
fordiscscontainingmulti-angles*, with the current angle number (1)
andthetotal numberof angles(2) displaying.Press‘ANGLE’toselect
another angle, then press again to exitandreturn tothe normal
viewing angle.The angledisplaywill disappearautomatically if the
‘ANGLE’button is not pressed again within 3seconds.
*NOTE: Notall discscontain this feature.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
