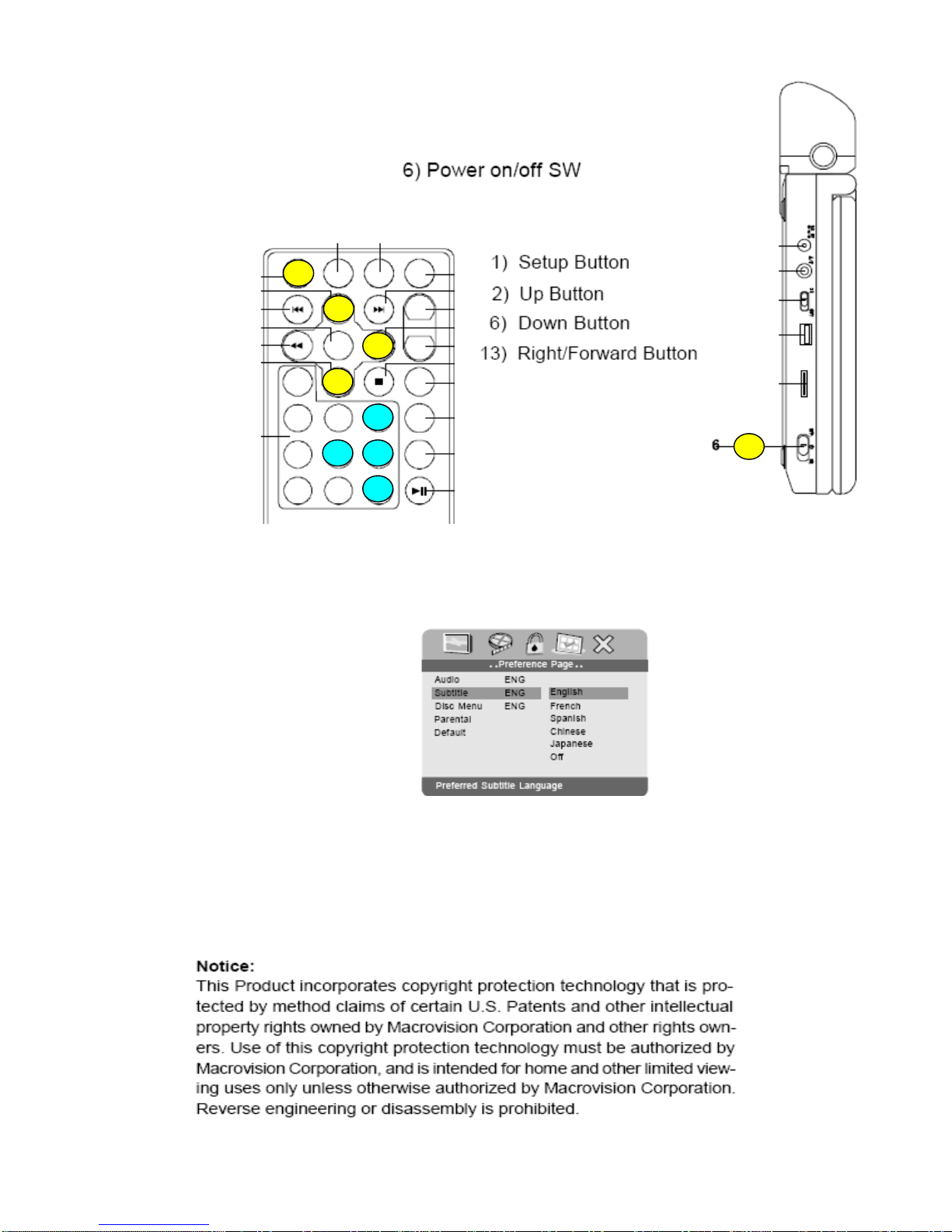

1/ Switch unit on by using the
7/ Press the [Set Up] Button to save and exit.
2/ Press the [SET UP] button on the remote control.
6/ Change to the correct code by pressing the [Up] or [ Down] Buttons.
Changing Region Code
3/ Go to "Preference Page " by pressing the [Right Button] 3 times.
4/ Go to "Subtitle" by pressing the [Down Button] 2 times.
5/ Press [9] [6] [5] [3]. In intervals of less than 2 seconds.
1
13
6
9
5 6
3
2
6

Content
A.Introduction.........................................................................................1
B.Cautions and Warnings..................................................................... 1
C.Contents............................................................................................ 3
D.Powering and installation.................................................................. 3
E. Controls,Indicators, and Connectors............................................... 5
F. Loadingand PlayingaDisc ............................................................... 6
G. BasicOperation.................................................................................. 7
H.Menu...................................................................................................8
I.Display...................................................................................................8
J.PlayingAudioCDS..............................................................................12
K.PlayingMP3Discs ............................................................................13
L.PlayingJPGfiles.................................................................................14
M.ConnectingtoaTVoranothermonitor............................................ 16
N.Setup................................................................................................18
O.Specifications....................................................................................21
P.Rechargeable BatteryInstallation and Use ...................................... 21
Q.Troubleshooting.................................................................................24
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

1
A.Introduction
Thank you for choosingthe portable DVD player. The main features
includea 22CMWideScreen (16:9 Aspect Ratio)LiquidCrystal
Display(LCD)monitorandaDVD player. The unit applies the latest
state ofthe art electronics and is designed for use in hotels, offices
oryourhome.The unit is constructed toprovideyearsofreliable,
trouble-free service, and is compact so that you can take itwithyou
anywhereand is designed forquickand easyinstallation.Please read
theentire instructionmanual suppliedwith thisproductprior to using.
Thedocumentation will assist youininstalling thesystem properlyto
obtain thebest equipment performance. Please savethismanual for
later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensurethatthe22CM portable DVD playeris installed inaccor-
dancewiththeinstructions andillustrations provided inthis manual.
3. Caution
Do not push objects ofany kindinto the unit throughopenings;
do not spill or sprayliquid ofanykind on or in the system (this
mayresult in a fire or electric shock). Do not place anything
heavy onthe unit. Toensure proper ventilation and proper
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2
operation,never cover or blocktheslots and openings with acloth
or other material. Keepthe unit awayfrom an open flame such as
fire,candle etc. Itishazardous toreplacethe batteryincorrectly.
Replacethe batteryonly with thesame or equivalenttype, in order
to protect the environment, please dispose the batteryproperly.
Do not use the unit in temperatures higher than 95 degrees Fahr-
enheit or 35 degrees Celsius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethe system isunplugged fromthe power
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

3
7.RegionalCoding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon t match, the disc wont play. This unit s code is region
4. DVD is with other regional codes cannot be played in thisunit
C. Contents
1. 1 x22CMLCD Monitor & DVD Player Combo
2. 1 xRemote Control with battery(CR2025)
3. 1xAudio/Video Cable
4. 1 xAC to DCAdapter
5. 1x Cigarette LighterAdapter
6. 1x Instruction Manual
7. 1 xRechargeable Battery
8. 2x Headphone
9. 1xGame Pad
10. 1 xCarryBag
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of theAC to DC adapterinto the DCinputjackon the
left side ofthe mainunit, then plugthe otherend intothe 110~240V
AC power receptacle.
2. Powering the systemin a car
Plugoneend ofthecigarette lighteradapter into the DC inputjack
on the unit, then plugthe otherendintothe cigarettelightersocket.
Figure1
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

4
Note: Unplugthe apparatus when not usingfor alongtime or
intent to disconnect from the Mains power.

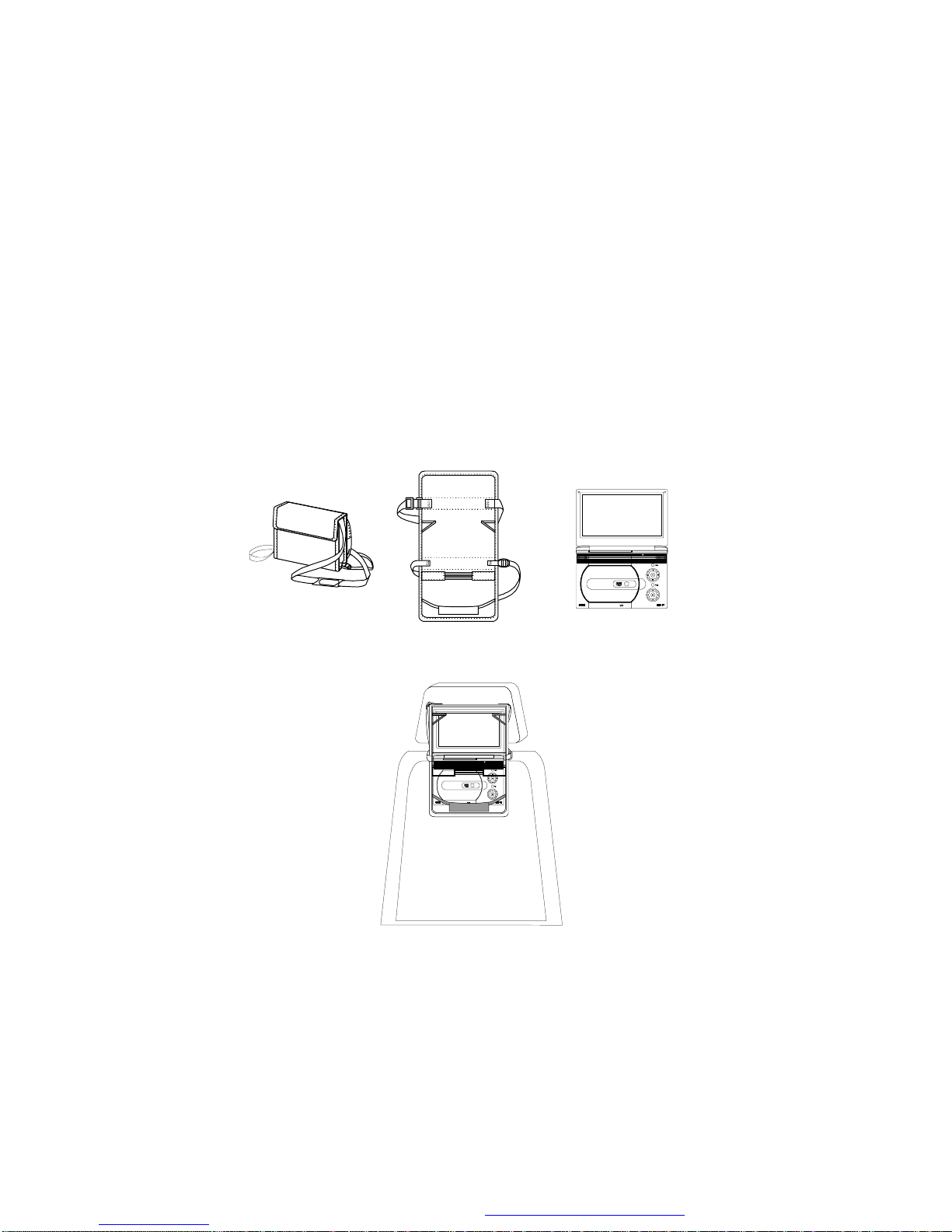

3.Installation In Vehicle
1) Take out carrybagandunit. Openthemforinstallation.
2) Placeunit into thebag across the waist flexand make sure
four corners of unit are tightenedby narrow flexes.
3) Place the bag withunit into backofcar seat and fasten it into
the headrest with length adjustable waist strap.
4) Handlethecarrying widestrapon thetop portionofbagnotto
turn backscreen.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5
E. Controls, Indicators, and Connectors
1. UnitView (Refer to Figure2)
Figure 2
1) DC 9V InputJack
2)AVJack
3)AVIn/Out SW
4) USB Port
5) E-Port
6) Power on/offSW
7) LCD Panel shut off
8) Wide Button
9) Previous/Next/Pause/Stop/Play
10)MenuButton
11) Up/Down/Left/Right/OK Button
12)Closeplace
13)SD/MMC/MSSlot
14) PowerLED
15) Remote Control Sensor
16)Open Switch
17) Brightness Up/Down Control
18) Volume Up/DownControl
19)Headphone Jack 1
20)HeadphoneJack 2
21) Charge LED
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
2. Remote Control (Refer to figure3)
1) Setup Button
2) UpButton
3) Skip- Button
4) Enter Button
5) Reverse/Left Keypad
6)DOWNButton
7) Numeric Button
8) DisplayButton
9) Zoom Button
10)SD/USB/DVD Button
11) Skip+ Button
12) A-B Repeat Button
13) Forward/Right Keypad
14)1/All Repeat Button
15) Stop Button
16)MenuButton
17) Subtitle Button
18)Audio Button
19) Play/Pause Button
F. Loading and Playing a Disc
a.After connecting powerto theunit, poweron “DVDplayer”with the
power switch. The powerindicator will light.
b.Openthe disc tray by slidingOPEN switch, and place adiscinto
the tray with the label sidefacing up.
c. Close thetray bypressingthe area marked “PRESS”.Theunitwill
load the discand start playing.
d.Rotate BRIGHTNESS andVOLUME toadjust theLCD sbright-
nessand the DVD player s volume.
e. To stopplaying adisc,pressSTOP.
Figure 3
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
G. Basic Operation
POWER
OPEN
PLAY/PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Goto thenextchapter, track or scene
during play back
Gobacktothe previouschapter, track
or scene duringplayback
Scan forward at 2, 4, 8,16 or
32 times speed
Scan backward at 2, 4, 8, 16or
32 times speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
Repeat a specific portionfrom
point A to pointBof thedisc
Displayinformation (title, chapter,
track, time, etc.).
Select thesubtitlelanguage andturn it
on/off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setup menuto select and
set items, and exit the setup menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
H.Menu
A DVD is divided into sections called titlesandchapters. When you
play a DVD,aroot menu ofthedisc will appearonthescreen ofyour
TVor Monitor. Thecontentsofthe menu varyfrom disc to disc.
Press MENU duringplaybackto display the menu. Some DVDs only
allowyou to select disc playbackoptions using the DVD root menu.
I. Display
1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.

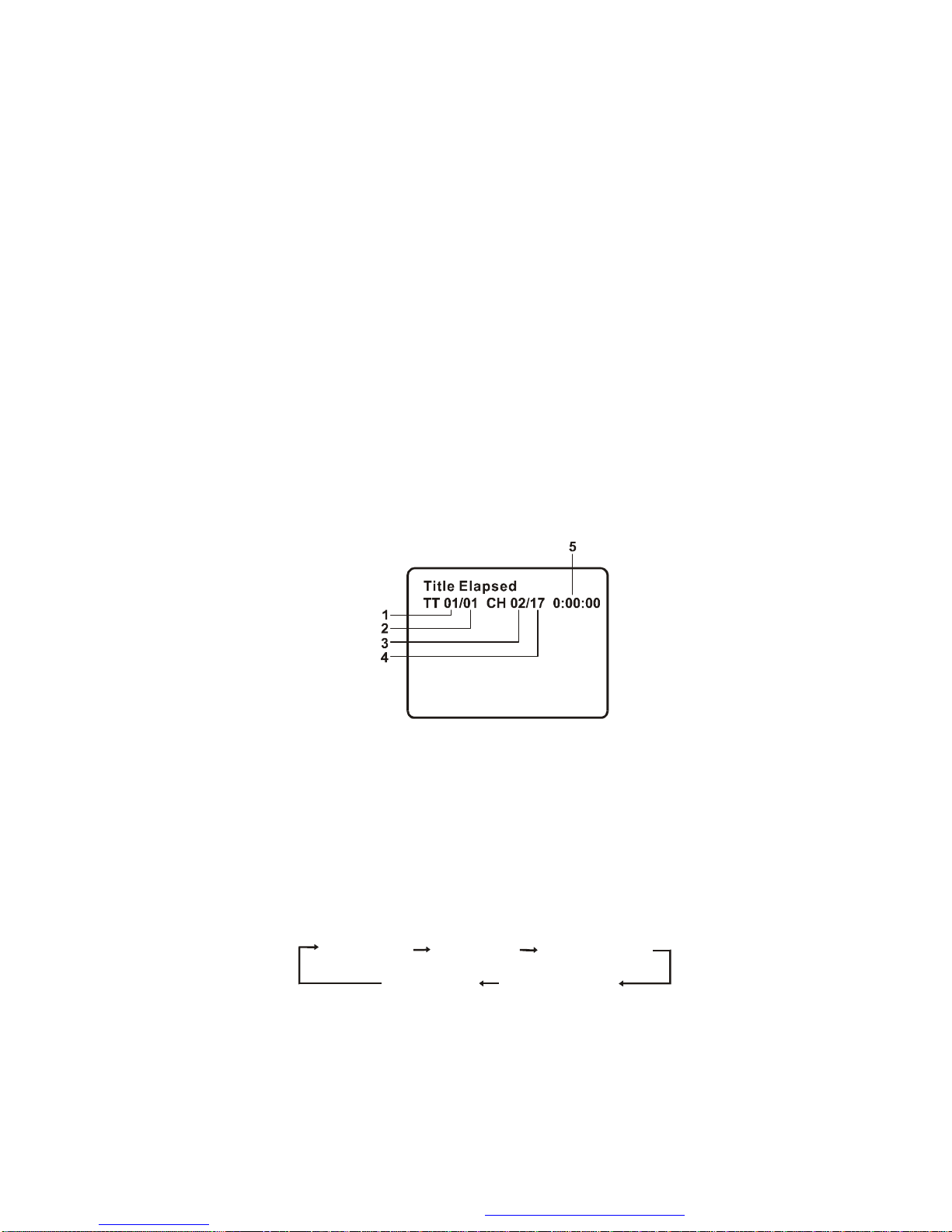

Title, Chapter Number, and TimeScreenDisplay
b. Press ‘DISPLAY constantlyto choosetheoptionsbelow in
sequence.
TitleElapsed: The elapsedtime ofthe title
Title Remain:The remaining time ofthe title
Chapter Elapsed: The elapsed time ofthe chapter
Chapter Remain: The remainingtime ofthe chapter
Display Off: The DVDstime Information will not be displayed.
Title Elapsed
TitleRemain
Chapter Elapsed
Chapter Remain
DisplayOff
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
Audio Language
2. SUBTITLE
Duringdisc playbackpress ‘SUBTITLE toselectthe subtitle language
youdesire*,withthecurrentSubtitle LanguageNumber(1) andthe
total Number of Subtitle Languages(2)displayed. Ifthere are mul-
tiplelanguagespress ‘SUBTITLE againto selectanother subtitlelan-
guage.Toturn subtitles OFF,press the ‘SUBTITLE button until ‘Sub-
titleOff isdisplayed.TheSubtitledisplay willdisappearautomatically
ifthe ‘SUBTITLE button is not pressed again within 3 seconds.
*Some DVDsonly allowaccessto this functionthrough theDVDmenu
3. AUDIO
Duringplaybackpress ‘AUDIO to select theaudiolanguage you
desire*, withthe currentAudio Channel Number(1)andthe total num-
ber of AudioChannels(2)displayed.PressAUDIOagain to select
anotheraudio language. The audiodisplaywill disappear automati-
callyifthe ‘AUDIO button is not pressed within for 3 seconds.
*SomeDVDsonly allow accessto this functionthrough theDVD menu.
Subtitle
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10
Zoom
AngleScreenDisplay
5.ZOOM
Duringplaybackpress ‘ZOOM to enlargethe picture by2x, 3x or 4X
with the current zoom multiple.(1)Press “zoom”once,the picture will
be enlarged 2X.(2)Press “zoom”asecond time ,the picture willbe
enlarged 3X.(3)Press “zoom”a 3rd time ,the picture will be enlarged
4X.(4)Press “zoom”a 4thtime ,the picture will return to normal size.
4. ANGLE
During playbackofadiscwithanglefunction, press‘Number0button
to displaythe available angles for discs containingmulti-angles*
*NOTE: Notall discscontain this feature.
(1)CurrentAngleNumber
(2) TotalNumberofAngle
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11
6. A-B REPEAT
a. Duringplaybackpress a first time ‘A-B to set the Starting
PointA.
b. Press ‘A-B asecond time to set the EndingPoint Band the
playerwill repeatedly playthe partbetween PointAand Point B.
c.PressA-Bathird time to cancelA-Brepeat and resume
normalplayback.
A-B Repeat Starting Point
A-BRepeatEnding Point
A-B Repeat Cancelled
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12
7.REPEAT

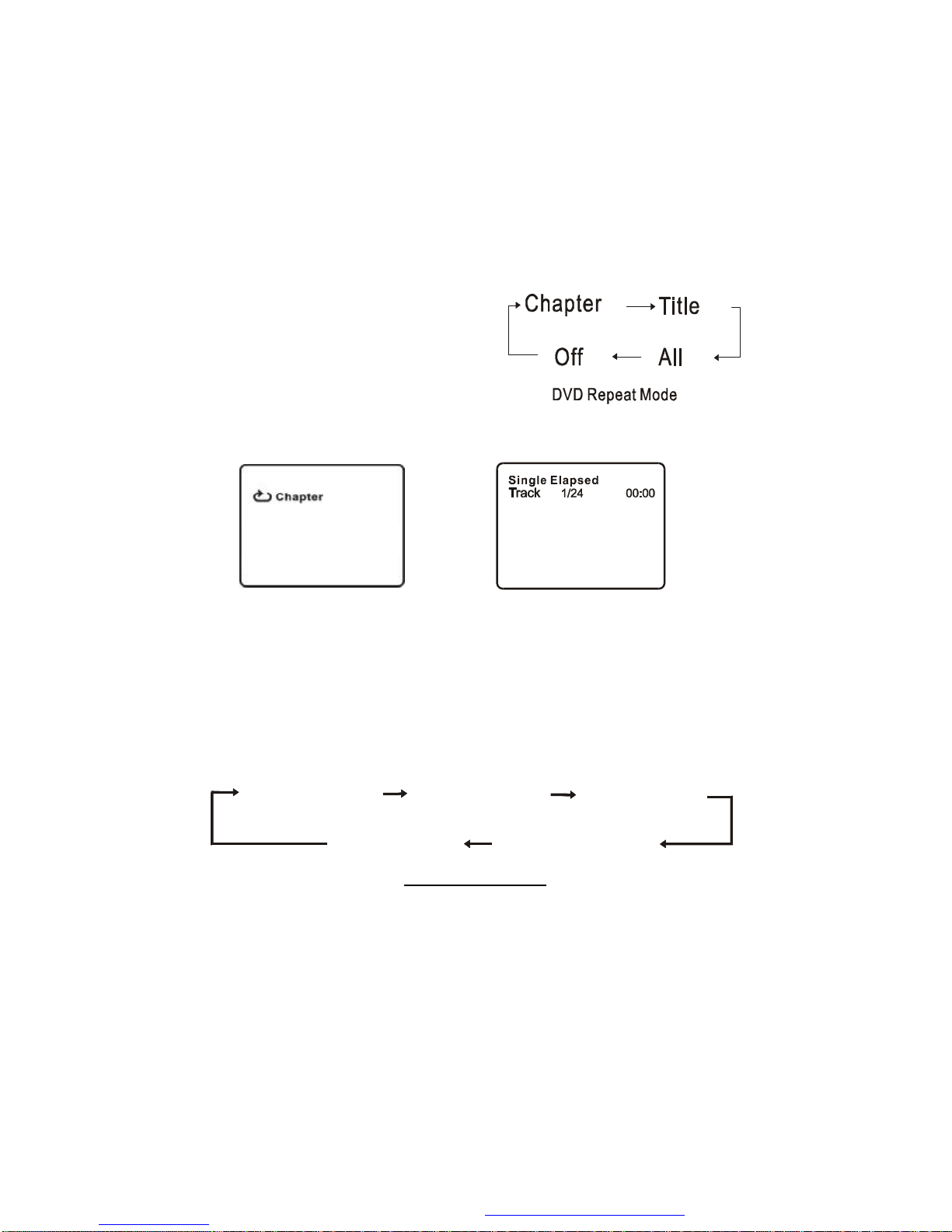

a.Duringplaybackpress ‘REPEAT constantly tosee therepeatmode
as right.
Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Repeat Off: Resume normal playback
The ‘Chapter repeat displayshows belowfor example:
J. PlayingAudio CDs
Whenplayingan audio CDpressthe DISPLAYbuttonconstantly on
theremoteto viewtimeinformation.Theoptions belowappear on
screendisplayinsequence toshow youwhatinformationis available
usingthis function.
CD Display Mode
SingleElapsed: The current track playingand playingtime ofthat
trackwill displayon the screen.
Single Remain: The current trackplayingand the amount oftime
left.
Single Elapsed
SingleRemain
TotalElapsed
TotalRemain
Display Off
Single Elapsed When Playing Audio CDs
Chapter Repeat
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

13
Total Elapsed: The current track playingand the total time that the
CD has been playing.
Total Remain: The current track playingand the amountoftime
remainingon the CD.
Display Off:The CD time Information will notbe displayed.
Take ‘Single Elapsed display as a example shown above:
USING THE1/ALLREPEATFEATURE
Thedefaultmode forthe Repeat feature isOFF.PressingREPEAT
consecutively changes the repeat options:
•Track-repeats the track that isplaying.
•All-repeats the disc that isplaying.
•Repeat Off
Asyou toggle throughthe options,the repeatoptionchanges. The selected
repeat option loops repeatedly until you turn itoff.
K.Playing MP3 Discs
MP3isa format for storingdigital audio.AnaudioCD-quality songis
compressed into theMP3 format with very littleloss ofaudio quality
whiletaking up much less disc space.CD-R/RWdiscs that have
beenencoded in MP3formatare compatible with this system.

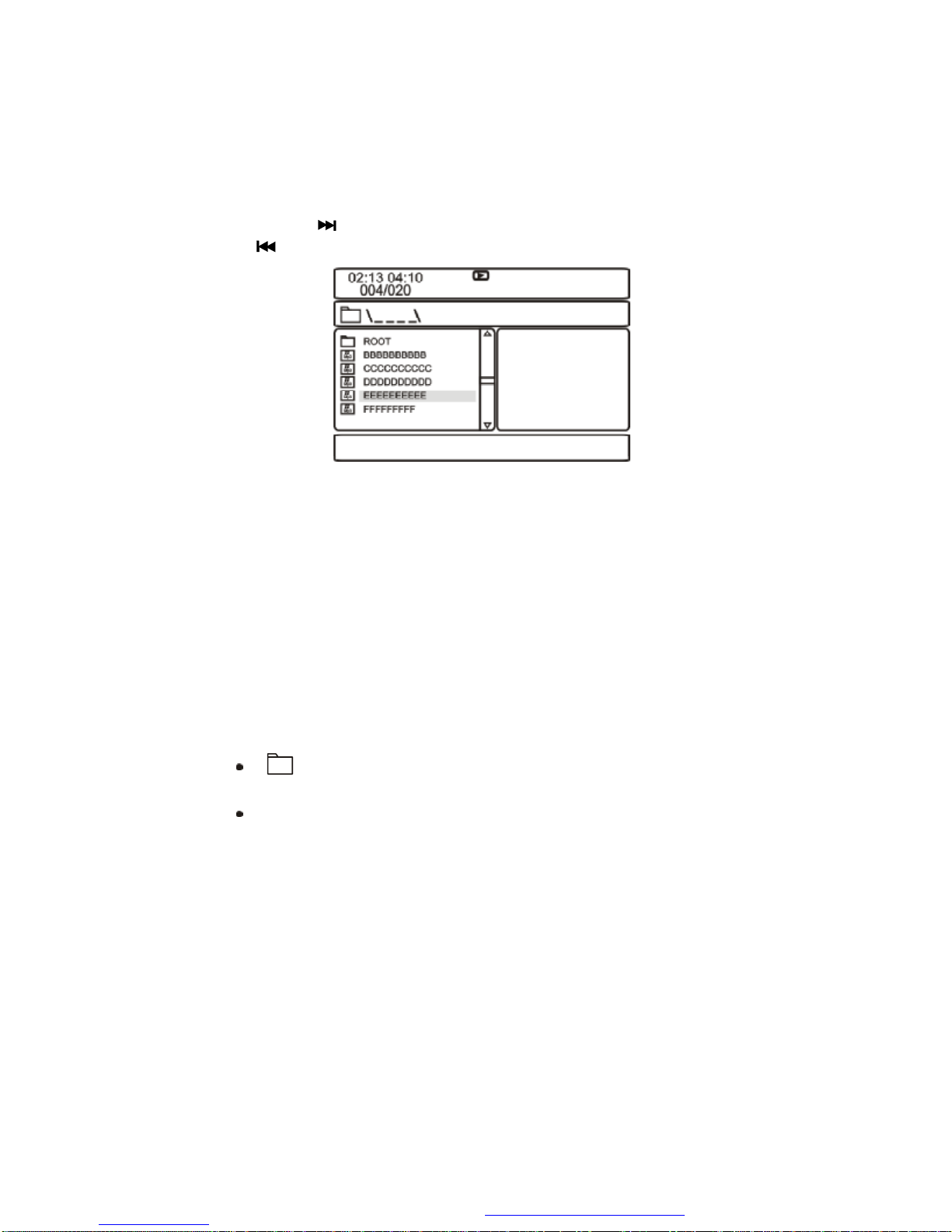

Whenan MP3discis insertedintothe unit, themenuscreenappears
automatically.Youcanuse themenuscreentoselect your desired
foldersandsongs orthesystem plays thesongs in theorder they
were burned onto the disc.
1.Press the or buttontochoosea folderfrom thefolder liston
the leftsideof the screen.
2. Press ENTERto select thehighlighted folder. The songs avail-
able under the folder willbe listed.
3.Use or buttontochooseasongfromthe list. PressENTER
to select and begin playback ofthehighlightedsong.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
4. Use the ( NEXT ) button to move to the nextsong. Press the
(PREVIOUS) button to moveto the beginningofthe previous
song.
USINGTHEREPEATFEATURE
Thedefault modefor the Repeat feature isOFF. Pressing REPEAT
consecutively changes the repeat options:
•Repeat One (repeat playback ofa song)
•Repeat Folder (repeatplaybackofa specific folder)
•RepeatOff (normal playback)
As you toggle throughthe options, the repeat mode changes. The
selected repeat mode loops repeatedly until you turn it off.
NOTICE
“”iconinfrontofafilenameindicatesthat thisisafolder,notan
MP3file.
“MP3”iconin frontofafilenameindicates that thisis aMP3 file.
Note:
Duetothe company spolicy of constant improvement andtechnical
refinement, the company reserves theright to changeor alter software.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
L. Playing JPG files
1) Loadthe JPG Discinto tray.
2)Pressingthe “MENU“Key will return to the digest view,andchoose
thepicture yourdesireby “RIGHT”and “LEFT”,andturn tothe
previousandnextpage by “PREVIOUS”or “NEXT”.
3)YoucanpreviewtheJPGfile which youselected bypressing“PLAY”
or “ENTER”.
4) Pressingthe “DOWN“Key will rotate the picture 90 degrees
clockwise.
5) Pressingthe “UP“Keywillreturn to the upper mode.
6)Whenpreviewing thefile,pressing“ANGLE”,“SUBTITLE”, “AUDIO”,
“AB”, “REW/FF”a hand icon will appear on the display meaning
that theseoptions are not available.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
M. Connecting toother Electronical Equipment

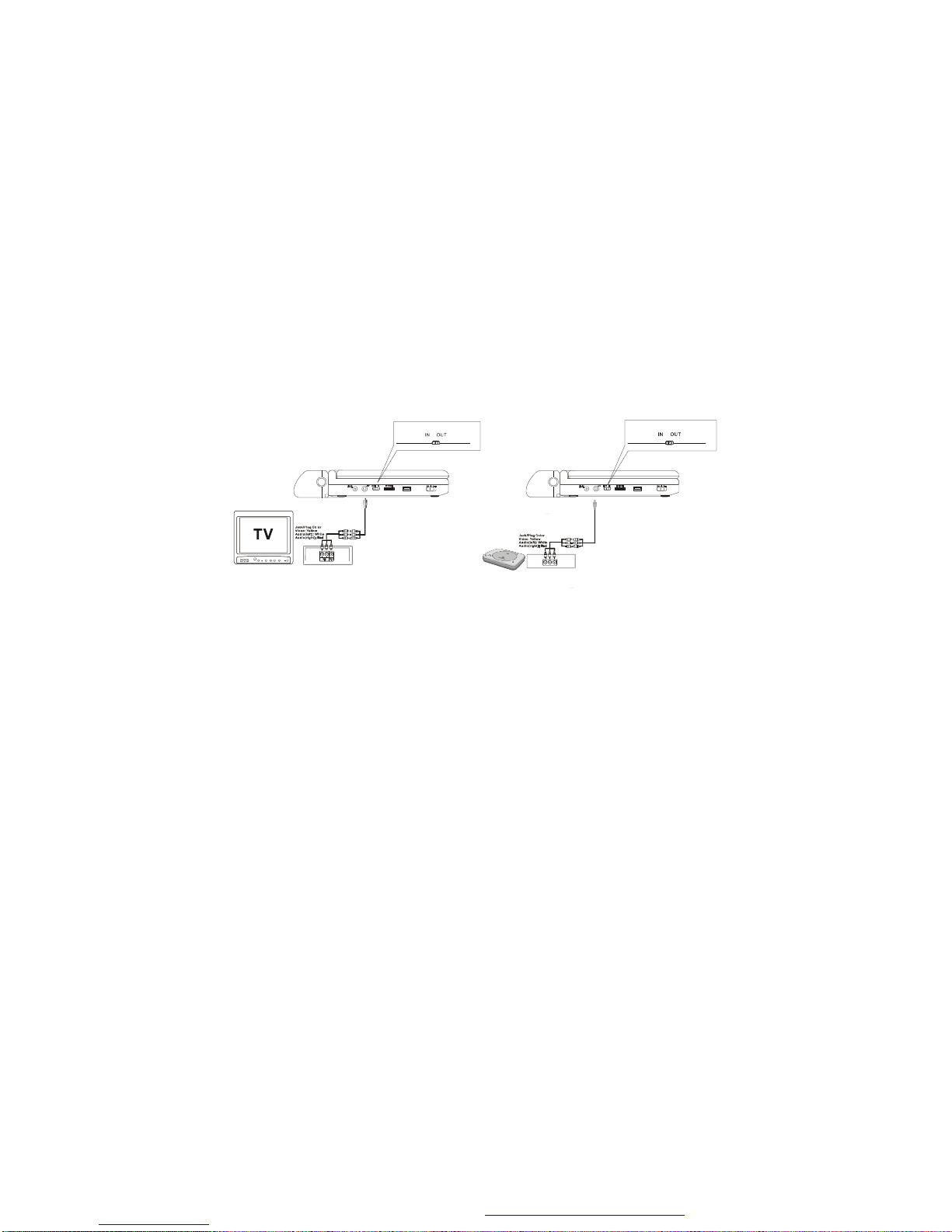

1. Connecting toa TV oranother monitor (Refer to Figure4)
a. PositiontheAVIn/Out Switchto “Out”Position.
b.Connectoneendoftheaudio/videocablesblack (1/8”plug)plug
intothe unitsDVD AVjack, and connectthe otherend totheAUDIO
INPUT jacks onyourTVorMonitorthroughAVadapter cable(white =
leftchannel, red = rightchannel, yellow=video).
Figure4
2. Connecting toa Game or Camcorder (Refer toFigure 4)
a. Position the AV In/Out Switch to“In”Position.
b.Connectoneendoftheaudio/videocablesblack (1/8”plug)plug
intothe unitsDVD AVjack, and connectthe otherend totheAUDIO
Outputjackson yourCamcorderorotherDVDthroughtheAVadapter
cable(white = left channel, red= right channel, yellow=video).
Note: Please don t connectotherAV signal source withtheAVjack
when the unit isin “Out”Mode.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17
3.Headphone
Optionalwiredheadphonemaybeusedwiththe unit. Simply plugin
theheadsettoeither Headphone1jack orHeadphone2jackonthe
rightsideofthe DVD.(RefertoFigure5)
PluggingintoHeadphonejack 1disablestheinternalspeakers.
Figure5
4. SD/MMC/MS Card and U disc
1) Put SD/MMC/MSCardintotheSD/MMC/MS SlotandpressDVD/USB/
SDto ‘SD andenjoypictureand MP3etc.
2)PutUdisc into the USB jack and press DVD/USB/SD to ‘USB and
enjoy picture andMP3etc.
Design and Specificationsaresubjectto change
forproduct improvementwithoutnotice
**
c
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
