Award AFEE30 User manual

OPERATING AND INSTALLATION
INSTRUCTIONS OF ELECTRICAL
FREESTANDING
OVEN
AFEE30-AFEE31-AFEE32-AFEE56-
AFEC50-AFEC51-AFEC52
All manuals and user guides at all-guides.com
all-guides.com

Valued Customer,
It is our goal to offer product which more than meets your
expectationsby carefully producing them in modern facilities
with proven quality, and test standards second to none.
This manual has been prepared in order to help you use your
new appliance which has been manufactured by the most recent
technology, with confidence and maximum efficiency.
efore using your appliance, carefully read this manual which
also includes the basic information for correct and safe installation.
Should any maintenance be required please contact your nearest
authorized service agent for assistance.
All manuals and user guides at all-guides.com

CONTENTS :
1. PRESENTATION AND SIZES OF PRODUCT
2. WARNINGS
3. INSTALLATION AND PREPARATIONS FOR USE
4. USE OF YOUR OVEN
5. CLEANING AND MAINTENANCE
6. SERVICE AND TRANSPORT
1
All manuals and user guides at all-guides.com

2

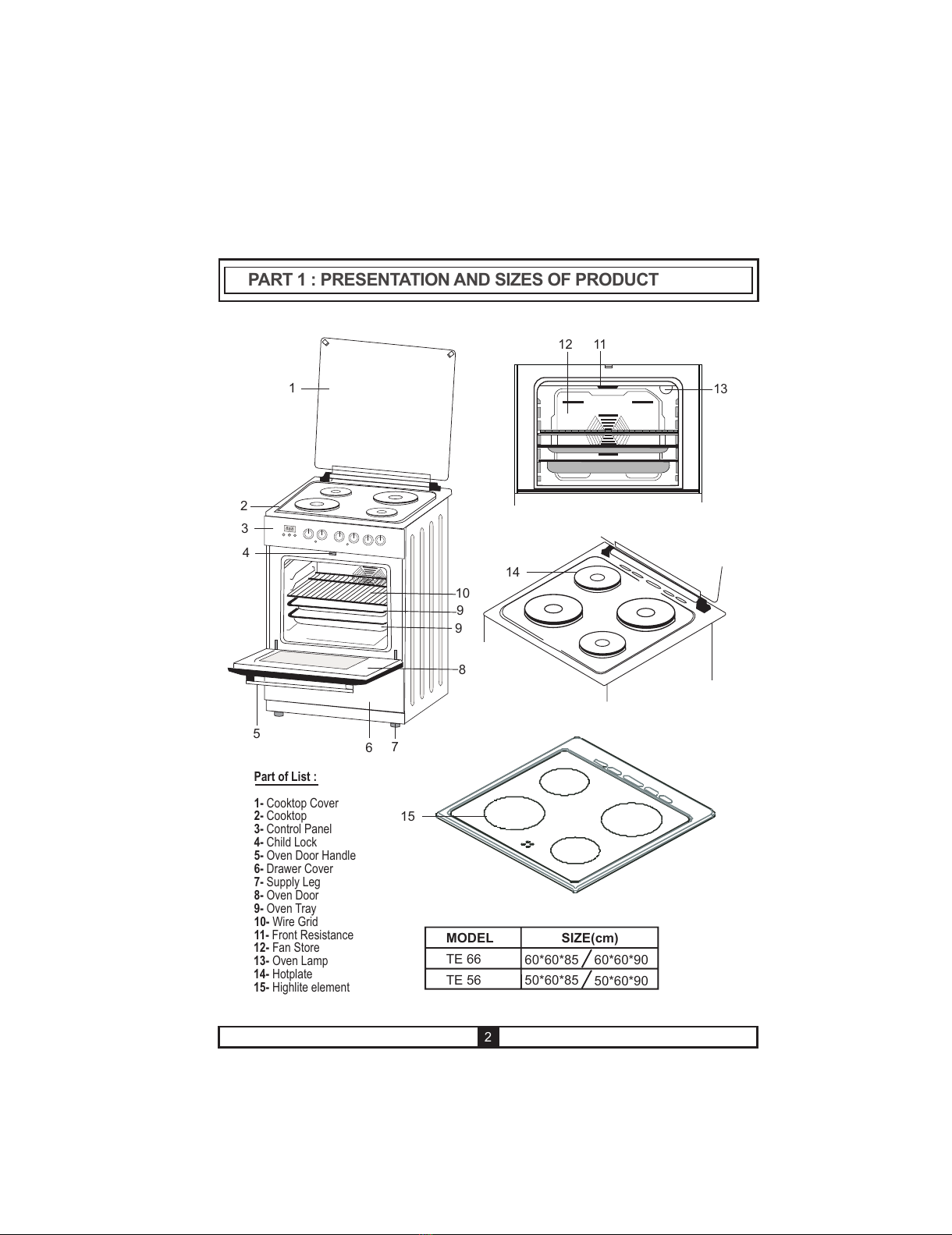

PART 1 : PRESENTATION AND SIZES OF PRODUCT
1112
13
Part of List :
1- Cooktop Cover
2- Cooktop
3- Control Panel
4- Child Lock
5- Oven Door Handle
6- Drawer Cover
7- Supply Leg
8- Oven Door
9- Oven Tray
10- Wire Grid
11- Front esistance
12- Fan Store
13- Oven Lamp
14- Hotplate
15- Highlite element
14
888
1
2
3
4
5
67
8
9
9
10
15
MODEL SIZE( m)
TE 66
TE 56
60*60*85 60*60*90
50*60*85 50*60*90
All manuals and user guides at all-guides.com

TAKE ALL IMPORTANT SECURITY MEASURES AND READ THE MANUAL
COMPLETELY BEFORE USING THE APPLIANCE
This appliance has been designed for non-professionel, domestic use only.
Surely control whether there is any damage after you unpacked the appliance.
If there is any defect; do not use the appliance and immediately contact to the
authorized maintenance service. As the materials used for package ( nylon, stapler,
strafoam. etc. ) may cause harmful effects to children, they should be collected and
removed immediately.
The appliance must be set up by an authorized technician and put into use. The
producer is not responsible for any damage that might be caused by defective
placement.
efore connecting your appliance to the electric , carefully control
whether it is appropriate for the features determined on the package and/or data
plate on the appliance.
Compare the features of the electricity organization with the technical information
on the presentation label before plugging the appliance in.
The feeding cable must never be changed by the customer. When it is damaged
by any reason, please contact to your authorized service.
efore changing the ovens lamp, plug it off.
Turn the appliance off before the operations such as cleaning or maintenance.
You can do it after plugging it off or turning the main switches off
Some parts of appliance may hold its heat for a long time, it is required to wait for
it to cool before touching onto the points that are exposed to the heat directly.
This appliance is not intended for use by persons(including children) with reduced
physical, sensory and mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
3

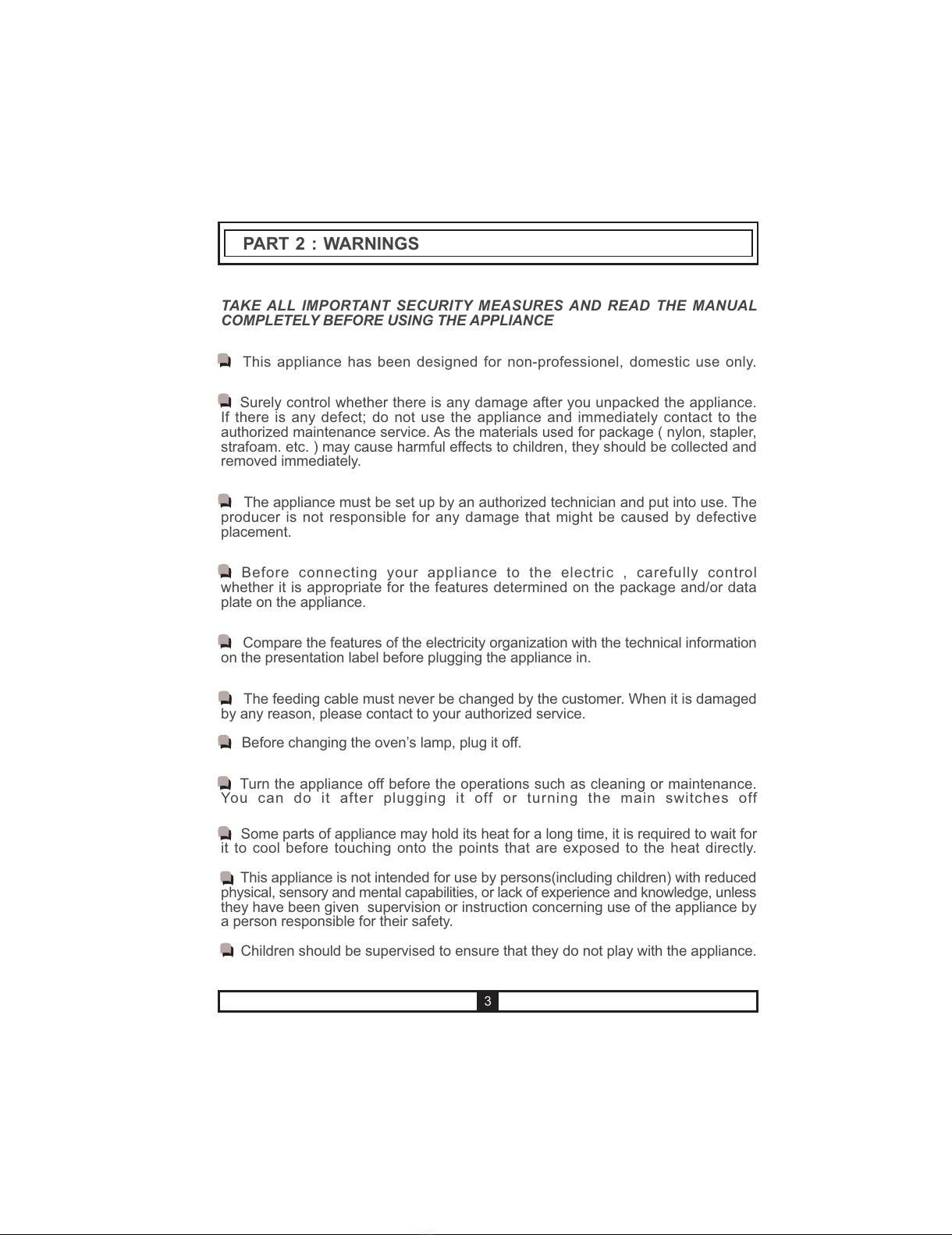

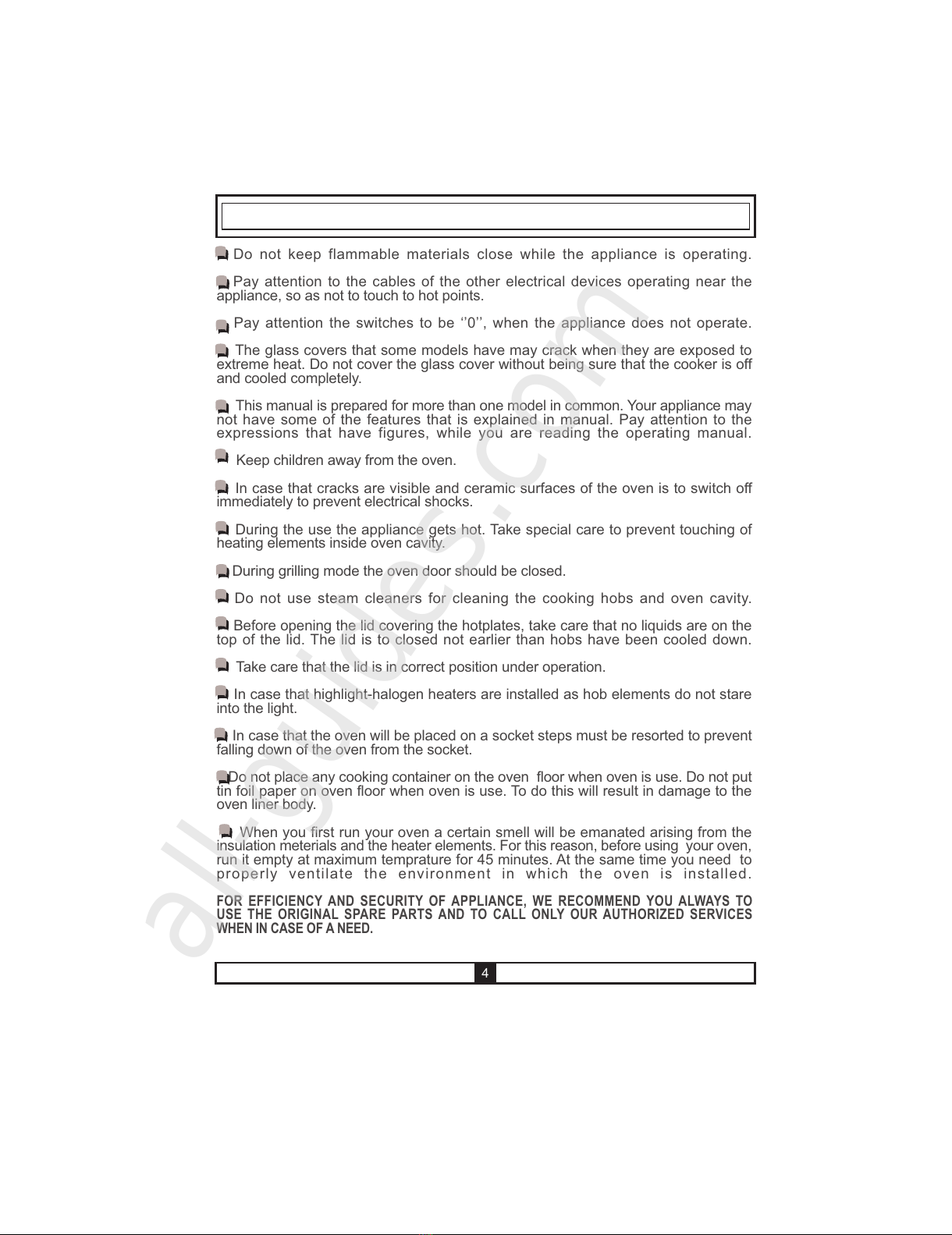

PART 2 : WARNINGS
All manuals and user guides at all-guides.com

Do not keep flammable materials close while the appliance is operating.
Pay attention to the cables of the other electrical devices operating near the
appliance, so as not to touch to hot points.
Pay attention the switches to be 0, when the appliance does not operate.
The glass covers that some models have may crack when they are exposed to
extreme heat. Do not cover the glass cover without being sure that the cooker is off
and cooled completely.
This manual is prepared for more than one model in common. Your appliance may
not have some of the features that is explained in manual. Pay attention to the
expressions that have figures, while you are reading the operating manual.
Keep children away from the oven.
In case that cracks are visible and ceramic surfaces of the oven is to switch off
immediately to prevent electrical shocks.
During the use the appliance gets hot. Take special care to prevent touching of
heating elements inside oven cavity.
During grilling mode the oven door should be closed.
Do not use steam cleaners for cleaning the cooking hobs and oven cavity.
efore opening the lid covering the hotplates, take care that no liquids are on the
top of the lid. The lid is to closed not earlier than hobs have been cooled down.
Take care that the lid is in correct position under operation.
In case that highlight-halogen heaters are installed as hob elements do not stare
into the light.
In case that the oven will be placed on a socket steps must be resorted to prevent
falling down of the oven from the socket.
Do not place any cooking container on the oven floor when oven is use. Do not put
tin foil paper on oven floor when oven is use. To do this will result in damage to the
oven liner body.
When you first run your oven a certain smell will be emanated arising from the
insulation meterials and the heater elements. For this reason, before using your oven,
run it empty at maximum temprature for 45 minutes. At the same time you need to
properly ventilate the environment in which the oven is installed.
FOR EFFICIENCY ND SECURITY OF PPLI NCE, WE RECOMMEND YOU LW YS TO
USE THE ORIGIN L SP RE P RTS ND TO C LL ONLY OUR UTHORIZED SERVICES
WHEN IN C SE OF NEED.
4
All manuals and user guides at all-guides.com
all-guides.com

P RT3 : INST LL TION ND PREP R TION FOR USE
5
This modern, functional and practical oven, that was manufactured with the most
quality parts and materials, will meet your needs in every respect. You must surely
read this manual in order not to have any problem in future and to be able to have
successfull results. The following information are the required rules for right
installation and service processes. It must be read especially by the technician who
will install the appliance.
Contact to Authori ed Service for mounting of your oven.
3. 1 INST LL TION OF OVEN
There are some factors that must be paid attention to while installing your oven.
Surely pay attention to our below suggestions in order to be able to prevent any
problems and/or dangerous situations that may occur later.
It can be placed close to other furniture on condition that in the area where the oven
is set up, the furnitures height must not exceed the height of the cooker panel.
Pay attention not to place it near the refrigerator, there must be no flammable or
in flammable materials such as curtain, waterproof cloth etc. that will begin to burn
quickly, while selecting place for oven.
It is required there must be at least 2 cm blank space between the back cover of
oven and wall for air circulation.
The furniture close to oven must be manufactured resistant to heat more than
50 C° of the room temperature.
If the kitchen furniture are higher than the pan which the ovens cookers are on,
it must be at least 11 cm away from the ovens side.
The minimum heights from the ovens pan and wall cupboards and paddle boxes
with fan over the oven, are shown as below. Thus, the paddle box must be at
minimum 650 mm height from the cooker pan.
If there is no paddle box, this height must not be less than 700 mm.
All manuals and user guides at all-guides.com

The appliance is provided for fixed connection to the power supply. The connection
of the appliance to an electrical source must be done by authorized technician.
3.3 ELECTRIC CONNECTION ND SECURITY
During the electric connection, surely follow the instructions below.
The earthing cable must be connected to the terminal. You have to ensure the
cable with insulation to be connected to the power source during the connection of
cable. If there is not any appropriate earthed electric outlet in accordance with
regulations in the place where the appliance will be installed, immediately contact to
our authorized service.
The earthed electric outlet must be close to the appliance. Surely do not use the
extension cord.
The feeding cable must not touch to the hot surface of the product.
In case the feeding cable is damaged, surely contact to Qualified Service. The
cable must be changed by the authorized service.
The wrong electric connection may damage your appliance. Such damage is not
in guarantee extent.
The appliance is adjusted as appropriate for 220-240 Volts and 400V 3N Volts
of electricity. If the network electricity is different than this informed value, immediately
contact to our authorized service.
The electric cable must not touch to the hot parts of appliance. The electric cable
must not touch the back part of the appliance. Otherwise the electric cable of
appliance may be damaged. And this situation may cause short circuit.
The producer firm declares that it has no responsibility against any kind of damages
and losses that emanate from the following security norms.
There is to install an all pole disconnector inside the supply circuit with a contact
opening of at least 3.0mm rated 32A and delay functioning type.
6
All manuals and user guides at all-guides.com

Its outside surfaces heat while your appliance operates. The interior surfaces of
oven, components that ensures the heat and steam that goes out are quite hot. Even
if the appliance is turned off, these parts hold its heat for a specific time. Do not touch
onto the hot surfaces. Keep children away.
Do not leave the cooker while cooking with solid or liquid oils. There may be flaming
up on condition of extreme heating. Never pour water to the flames occuring from oil.
Cover the saucepan or frypan with its cover in order to choke the flame that was
occured in this case and turn the cooker off.
The oven and heat adjustment switches must be adjusted and ovens clock must
be programmed for cooking in your oven. Otherwise the oven does not operate.
Do not leave anything on it when the door or drawer of oven is open. You may
unbalance your appliance or break the cover.
Do not put heavy things or flammable, burnable goods (nylon, plastic bag, paper,
cloth etc.) into the lower drawer.
Plug it off when you do not use the appliance and keep the gas valve off.
Protect your appliance against atmospheric effects. Do not leave it to effects
such as sun, rain, snow, powder etc.
7
3
2
1L
N4
5
PE
L2
L3
5x1.5 mm 380 V ,3N
5x1.5 mm 400 V ,3N
5x1.5 mm 415 V ,3N
3
2
1L
N4
5
PE
3 x 2.5 mm 220 V
3 x 2.5 mm 230 V
3 x 2.5 mm 240 V
Your appliance is produced in accordance with the related security instructions
connected with electrical appliance. The maintenance and repair works must be
made just by the authorized service technician who is trained by the producer firm.
The installation and repair works whitout following rules may endanger you.
3. 4 GENER L W RNINGS ND ME SURES
* This appliance must be earthed.
* For this connetion a power lead of wire type
H05VV -F should be used.
20614851
3x4 mm
3x4 mm
3x4 mm
² 220V~
² 230V~
² 240V~
5x1.5 mm
5x1.5 mm
5x1.5 mm
² 380V 3N
² 400V 3N~
² 415V 3N~
~
All manuals and user guides at all-guides.com

P RT 4 : USE OF YOUR OVEN
8
4. 1 GENER L PPE RENCE ND TECHNIC L FE TURES OF YOUR OVEN
4. 2 PRESENT TION ND FE TURES OF THE CONTROL P NELS
TE 56/66
150
250
8888
Timer Oven Function
Switch
Oven Thermostat
Switch
50
100
200
Max
Mode 2
1
34
5
6
Left ack Heater
Left Front Heater
Right Front Heater
Right ack Heater
2
1
34
5
6
2
1
34
5
6
2
1
34
5
6
4. 3 USE OF HOTPL TES ND VITROCER N COOKERS
The electrical cooker is commanded by 7 graded switches. 0 of the grades is off location. The
use fields in response to other 6 grades are below.
1
2
34
5
6
Hotplates
6
5
43
2
1
Vitroceramic Cooker
1..........Keeping hot location
2-3......Heating locations at low heat
4-5-6..Cooking - roasting and boiling
locations
TE 56
LOWER HEATER
UPPER HEATER
GRILL
TUR O HEATER
1000 WATT
1000 WATT
1600 WATT
2000 WATT
TE 66
LOWER HEATER
UPPER HEATER
GRILL
TUR O HEATER
1100 WATT
1200 WATT
2000 WATT
2000 WATT
All manuals and user guides at all-guides.com

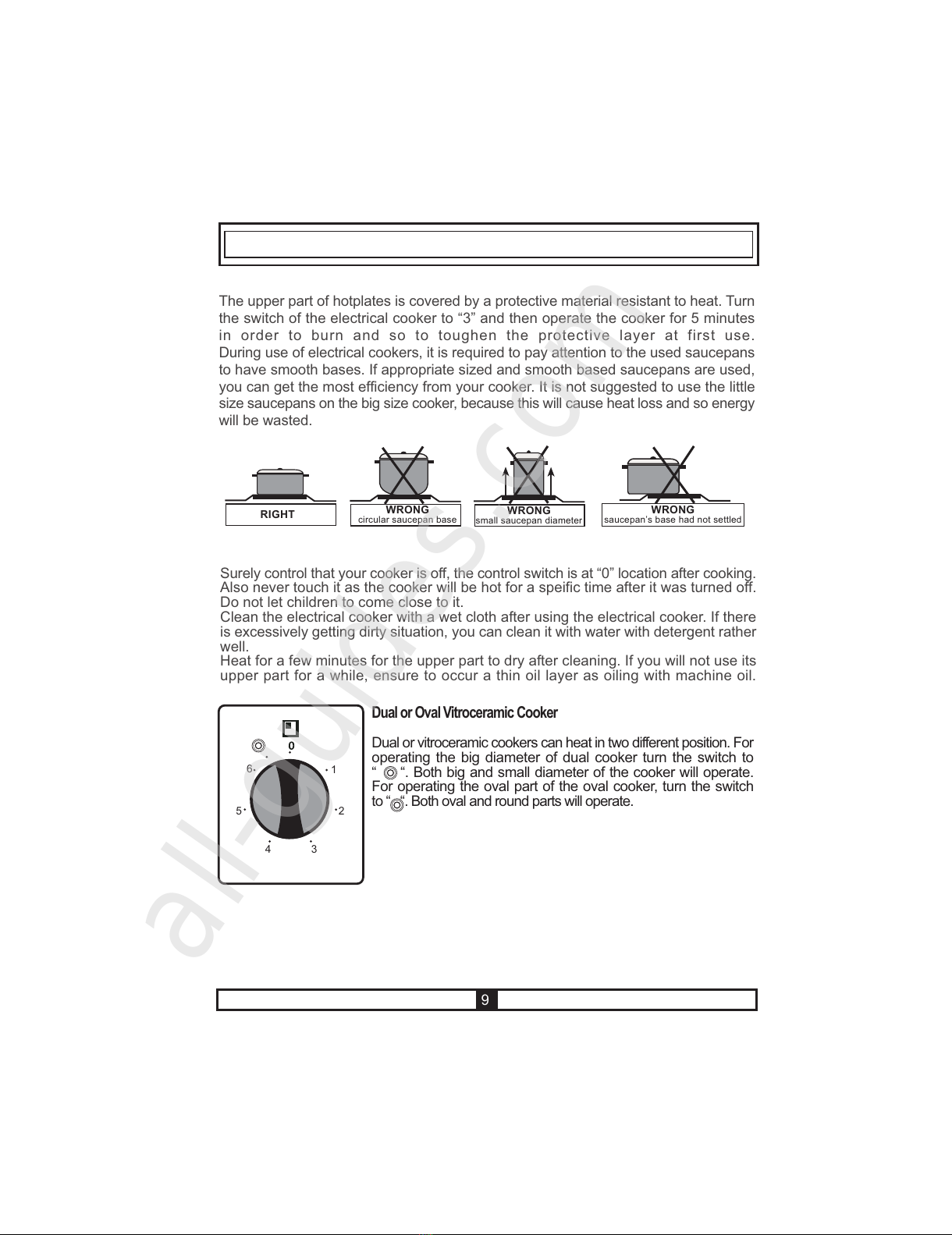

The upper part of hotplates is covered by a protective material resistant to heat. Turn
the switch of the electrical cooker to 3 and then operate the cooker for 5 minutes
in order to burn and so to toughen the protective layer at first use.
During use of electrical cookers, it is required to pay attention to the used saucepans
to have smooth bases. If appropriate sized and smooth based saucepans are used,
you can get the most efficiency from your cooker. It is not suggested to use the little
size saucepans on the big size cooker, because this will cause heat loss and so energy
will be wasted.
RIGHT WRONG
circular saucepan base
WRONG
small saucepan diameter
WRONG
saucepans base had not settled
Surely control that your cooker is off, the control switch is at 0 location after cooking.
Also never touch it as the cooker will be hot for a speific time after it was turned off.
Do not let children to come close to it.
Clean the electrical cooker with a wet cloth after using the electrical cooker. If there
is excessively getting dirty situation, you can clean it with water with detergent rather
well.
Heat for a few minutes for the upper part to dry after cleaning. If you will not use its
upper part for a while, ensure to occur a thin oil layer as oiling with machine oil.
6
5
43
2
1
Dual or Oval Vitroceramic Cooker
Dual or vitroceramic cookers can heat in two different position. For
operating the big diameter of dual cooker turn the switch to
 . oth big and small diameter of the cooker will operate.
For operating the oval part of the oval cooker, turn the switch
to  . oth oval and round parts will operate.
9
All manuals and user guides at all-guides.com
all-guides.com

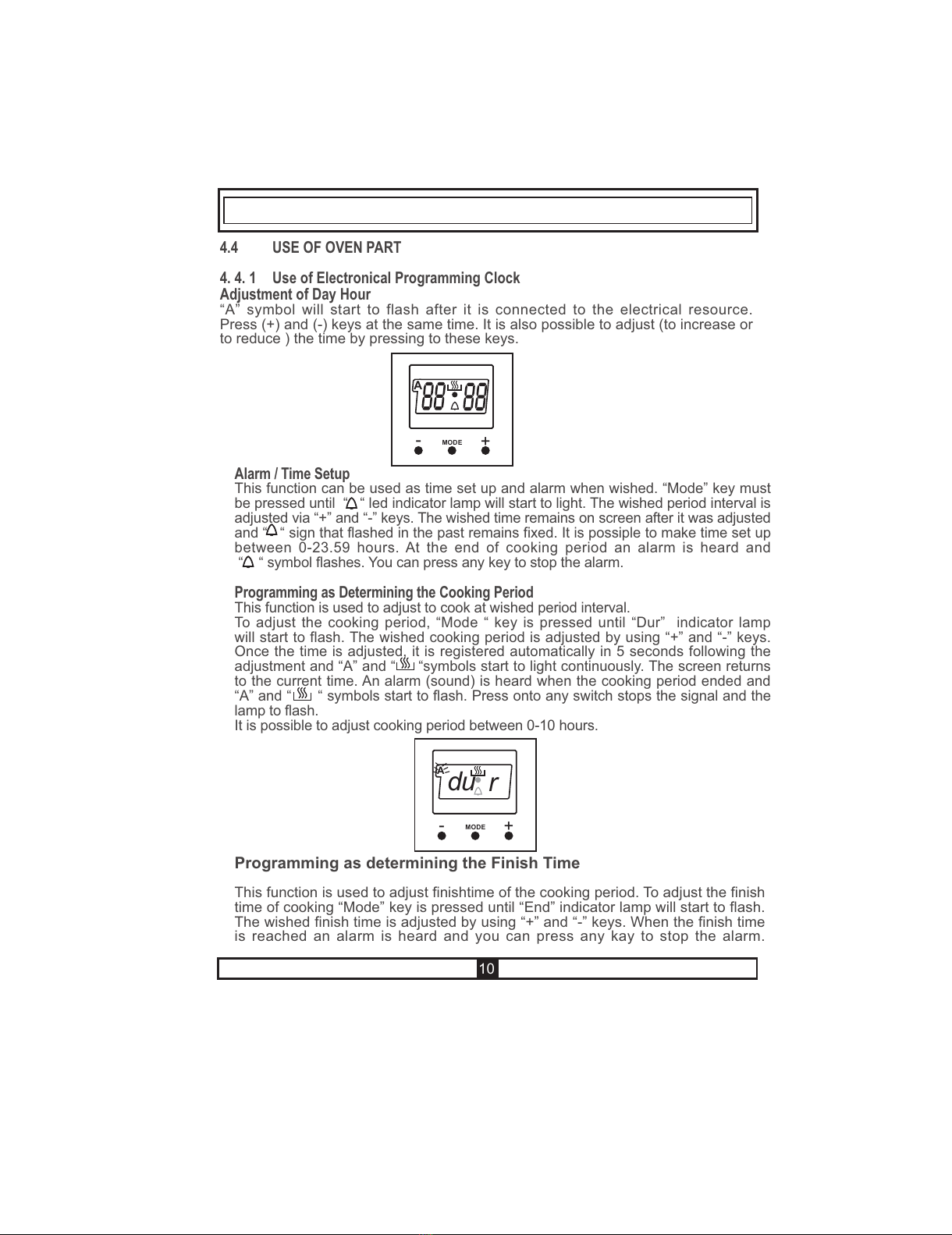

4.4 USE OF OVEN P RT
4. 4. 1 Use of Electronical Programming Clock
djustment of Day Hour
A symbol will start to flash after it is connected to the electrical resource.
Press (+) and (-) keys at the same time. It is also possible to adjust (to increase or
to reduce ) the time by pressing to these keys.
-+
MODE
A
larm / Time Setup
This function can be used as time set up and alarm when wished. Mode key must
be pressed until   led indicator lamp will start to light. The wished period interval is
adjusted via + and - keys. The wished time remains on screen after it was adjusted
and   sign that flashed in the past remains fixed. It is possiple to make time set up
between 0-23.59 hours. At the end of cooking period an alarm is heard and
  symbol flashes. You can press any key to stop the alarm.
Programming as Determining the Cooking Period
This function is used to adjust to cook at wished period interval.
To adjust the cooking period, Mode  key is pressed until Dur indicator lamp
will start to flash. The wished cooking period is adjusted by using + and - keys.
Once the time is adjusted, it is registered automatically in 5 seconds following the
adjustment and A and  symbols start to light continuously. The screen returns
to the current time. An alarm (sound) is heard when the cooking period ended and
A and   symbols start to flash. Press onto any switch stops the signal and the
lamp to flash.
It is possible to adjust cooking period between 0-10 hours.
-+
MODE
A
du r
10
Programming as determining the Finish Time
This function is used to adjust finishtime of the cooking period. To adjust the finish
time of cooking Mode key is pressed until End indicator lamp will start to flash.
The wished finish time is adjusted by using + and - keys. When the finish time
is reached an alarm is heard and you can press any kay to stop the alarm.
All manuals and user guides at all-guides.com

-+
MODE
A
En d

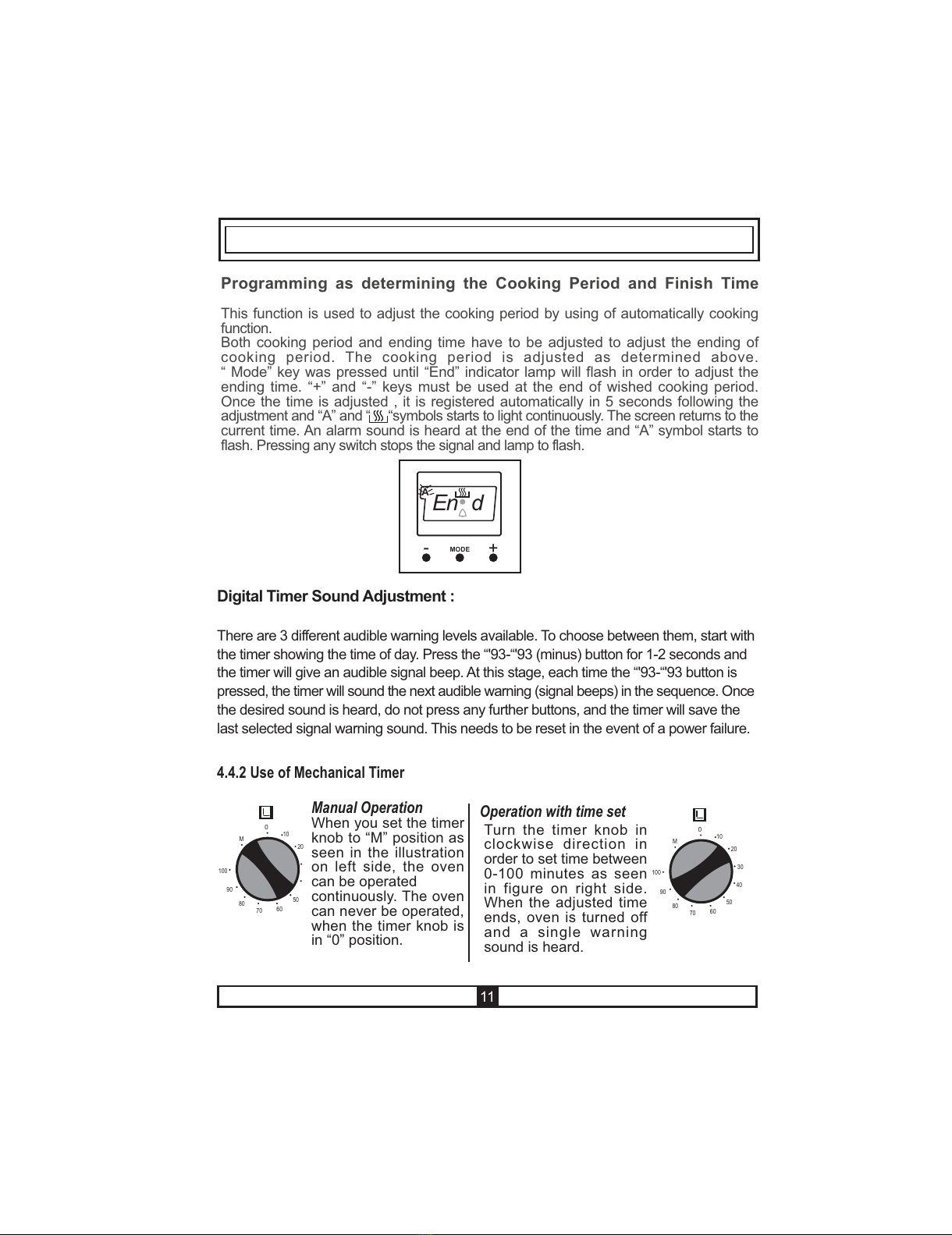

Programming as determining the Cooking Period and Finish Time
This function is used to adjust the cooking period by using of automatically cooking
function.
oth cooking period and ending time have to be adjusted to adjust the ending of
cooking period. The cooking period is adjusted as determined above.
 Mode key was pressed until End indicator lamp will flash in order to adjust the
ending time. + and - keys must be used at the end of wished cooking period.
Once the time is adjusted , it is registered automatically in 5 seconds following the
adjustment and A and  symbols starts to light continuously. The screen returns to the
current time. An alarm sound is heard at the end of the time and A symbol starts to
flash. Pressing any switch stops the signal and lamp to flash.
10
20
30
40
50
70
80
90
60
100
M
0
30
40
10
20
50
70
80
90
60
100
M
0
Manual Operation
When you set the timer
knob to M position as
seen in the illustration
on left side, the oven
can be operated
continuously. The oven
can never be operated,
when the timer knob is
in 0 position.
4.4.2 Use of Mechanical Timer
Operation with time set
Turn the timer knob in
clockwise direction in
order to set time between
0-100 minutes as seen
in figure on right side.
When the adjusted time
ends, oven is turned off
and a single warning
sound is heard.
11
Digital Timer Sound Adjustment :
There are 3 different audible warning levels available. To choose between them, start with
the timer showing the time of day. Press the '93-'93 (minus) button for 1-2 seconds and
the timer will give an audible signal beep. At this stage, each time the '93-'93 button is
pressed, the timer will sound the next audible warning (signal beeps) in the sequence. Once
the desired sound is heard, do not press any further buttons, and the timer will save the
last selected signal warning sound. This needs to be reset in the event of a power failure.
All manuals and user guides at all-guides.com

4. 4. 3 Use of Oven Function Switches
This switch allows you to select the oven functions. The functions and their grades
are shown at the following table. Also, the detailed instructions and their uses will
also be explained in details in the next pages.
Your ovens lamp starts to operating.
Your ovens lamp, red warning lamp and fan start to operating.
It performs the function of defrosting your frozen food.
Your ovens thermostat and warning lamps and lower and upper heaters
start operating.
Your ovens thermostat and warning lamps and turbo heater, fan are put into
use.
Your ovens thermostat and warning lamps and fan, upper and lower
heaters start operating.
Your ovens thermostat and warning lamps and grill heater and chicken turning
function start operating.
Your ovens thermostat and warning lamps and upper heater, grill heater and
chicken turning functions start operating.
Your ovens thermostat and warning lamps and upper heater, grill heater and
chicken turning and fan functions start operating.
Your ovens thermostat and lamps, lower heater operate
Your ovens thermostat and warning lamps, turbo heater, lower heater and
fan start operating.
Your ovensthermostat and warning lamps,lower heater and start operating.
12
All manuals and user guides at all-guides.com

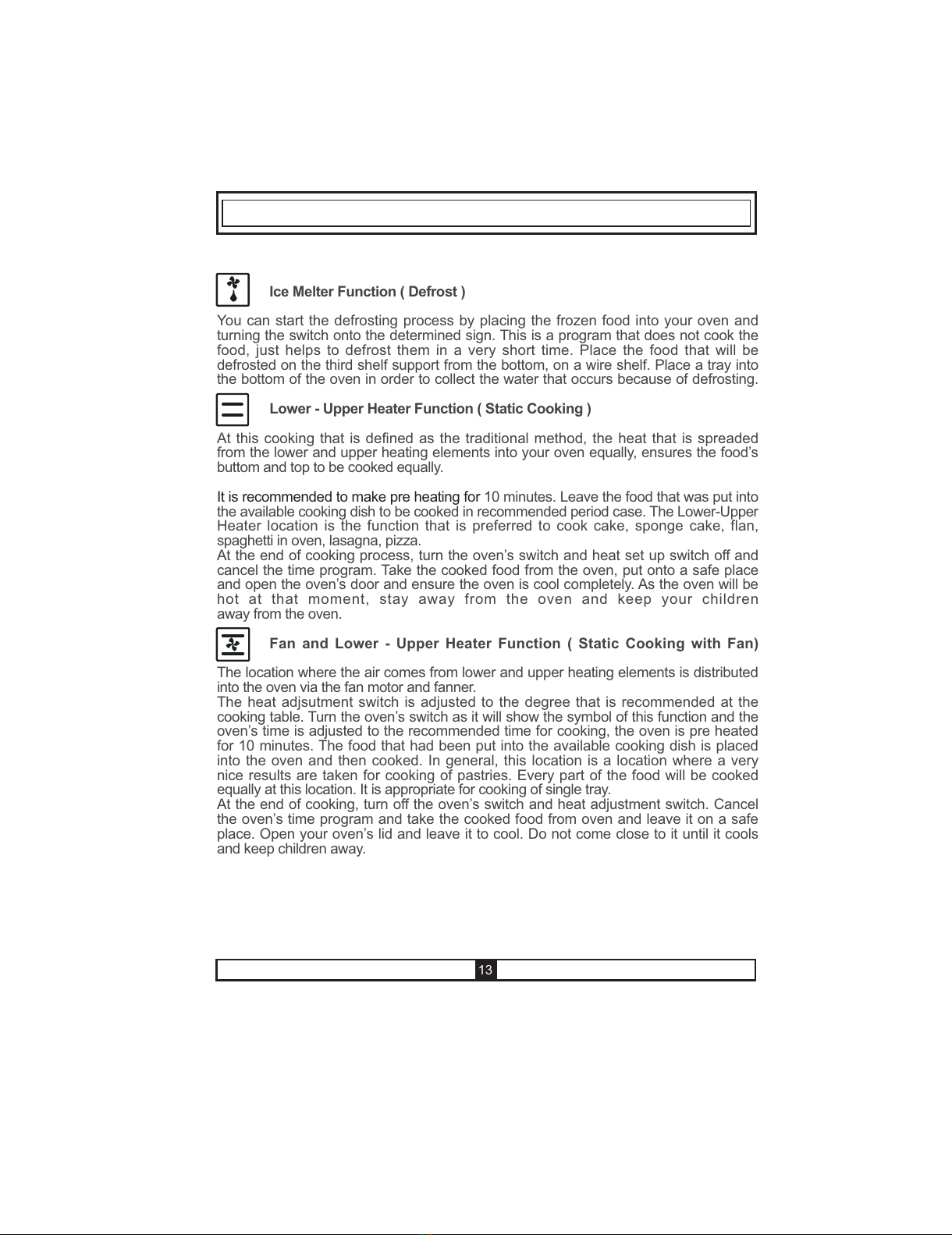

I e Melter Fun tion ( Defrost )
You can start the defrosting process by placing the frozen food into your oven and
turning the switch onto the determined sign. This is a program that does not cook the
food, just helps to defrost them in a very short time. Place the food that will be
defrosted on the third shelf support from the bottom, on a wire shelf. Place a tray into
the bottom of the oven in order to collect the water that occurs because of defrosting.
Lower - Upper Heater Fun tion ( Stati Cooking )
At this cooking that is defined as the traditional method, the heat that is spreaded
from the lower and upper heating elements into your oven equally, ensures the foods
buttom and top to be cooked equally.
It is recommended to make pre heating for 10 minutes. Leave the food that was put into
the available cooking dish to be cooked in recommended period case. The Lower-Upper
Heater location is the function that is preferred to cook cake, sponge cake, flan,
spaghetti in oven, lasagna, pizza.
At the end of cooking process, turn the ovens switch and heat set up switch off and
cancel the time program. Take the cooked food from the oven, put onto a safe place
and open the ovens door and ensure the oven is cool completely. As the oven will be
hot at that moment, stay away from the oven and keep your children
away from the oven.
Fan and Lower - Upper Heater Fun tion ( Stati Cooking with Fan)
The location where the air comes from lower and upper heating elements is distributed
into the oven via the fan motor and fanner.
The heat adjsutment switch is adjusted to the degree that is recommended at the
cooking table. Turn the ovens switch as it will show the symbol of this function and the
ovens time is adjusted to the recommended time for cooking, the oven is pre heated
for 10 minutes. The food that had been put into the available cooking dish is placed
into the oven and then cooked. In general, this location is a location where a very
nice results are taken for cooking of pastries. Every part of the food will be cooked
equally at this location. It is appropriate for cooking of single tray.
At the end of cooking, turn off the ovens switch and heat adjustment switch. Cancel
the ovens time program and take the cooked food from oven and leave it on a safe
place. Open your ovens lid and leave it to cool. Do not come close to it until it cools
and keep children away.
13
All manuals and user guides at all-guides.com

Turbo Fan and Lower heater Fun tion
Turbo fan and lower heater function is an ideal function to cook pizza. The lower
heater ensures the pizza paste to be cooked while Turbo fan spreads the heat of
oven equally. Adjust the heat adjustment switch of your oven to the wished degree,
also turn the function switch as it will show this functions sign and adjust the ovens
time to the offered time for cooking and pre heat the oven for 10 minutes. This function
is appropriate for cooking of one dish.
At the end of cooking process, turn off the ovens switch and heat set up switch.
Cancel the ovens time program and take the cooked food from oven and leave onto
a safe place. Open your ovens door and leave it to cool. Do not come close to the
oven until it cools and keep children away.
Warning: Max. set of thermostat 1900C
Grill and hi ken Turning Fun tion
This function is used to grill and to turn chicken, cooked food on a skewer.
To make turning, use the turning skewer. To grill, place the food onto the grill, also
the grill onto the shelf at toppest level. You can start to grill after placing the oven tray
onto the 3rd Shelf. The tray that is placed onto the 3rd Shelf will ensure the collection
of oils that drop from food.
14

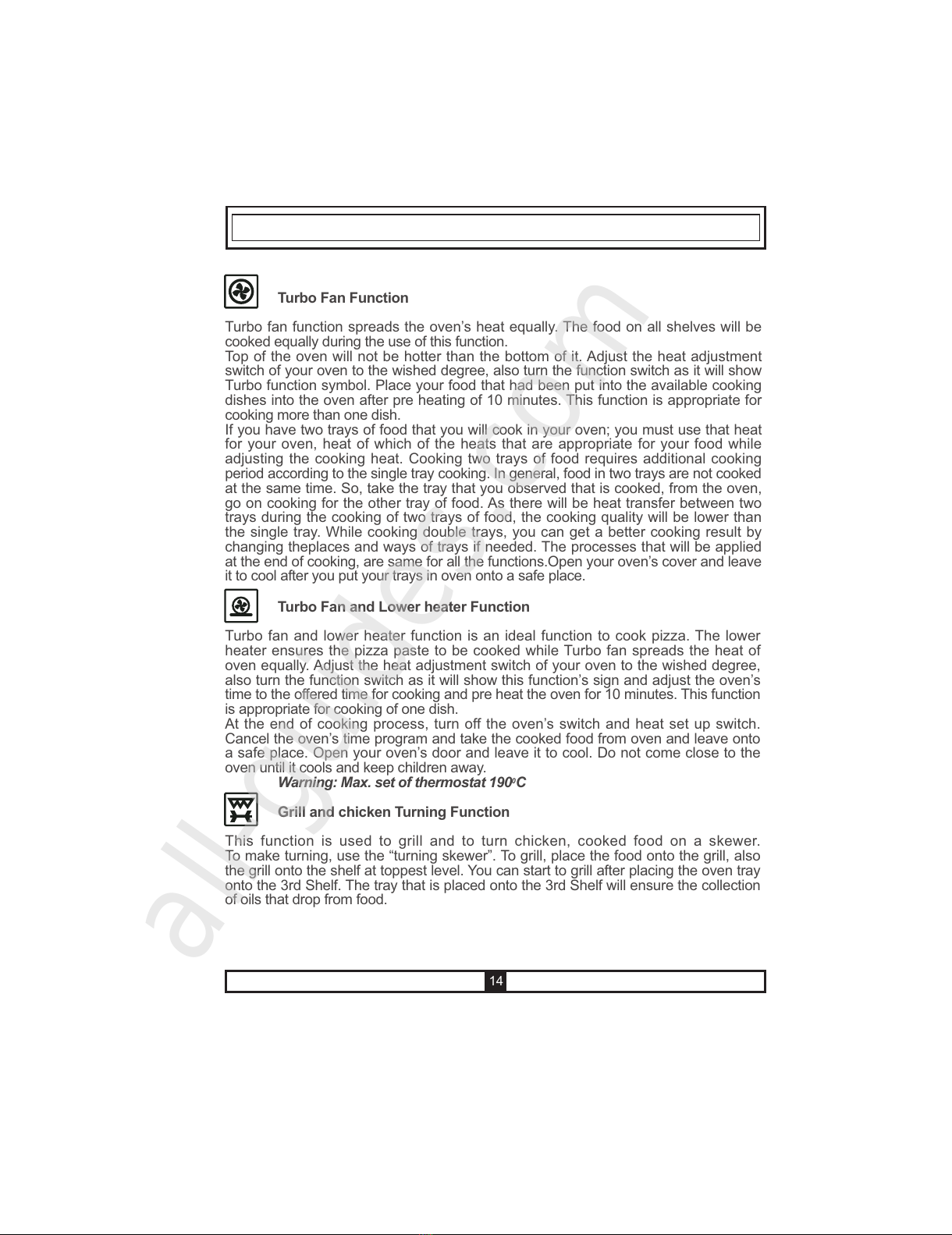

Turbo Fan Fun tion
Turbo fan function spreads the ovens heat equally. The food on all shelves will be
cooked equally during the use of this function.
Top of the oven will not be hotter than the bottom of it. Adjust the heat adjustment
switch of your oven to the wished degree, also turn the function switch as it will show
Turbo function symbol. Place your food that had been put into the available cooking
dishes into the oven after pre heating of 10 minutes. This function is appropriate for
cooking more than one dish.
If you have two trays of food that you will cook in your oven; you must use that heat
for your oven, heat of which of the heats that are appropriate for your food while
adjusting the cooking heat. Cooking two trays of food requires additional cooking
period according to the single tray cooking. In general, food in two trays are not cooked
at the same time. So, take the tray that you observed that is cooked, from the oven,
go on cooking for the other tray of food. As there will be heat transfer between two
trays during the cooking of two trays of food, the cooking quality will be lower than
the single tray. While cooking double trays, you can get a better cooking result by
changing theplaces and ways of trays if needed. The processes that will be applied
at the end of cooking, are same for all the functions.Open your ovens cover and leave
it to cool after you put your trays in oven onto a safe place.
All manuals and user guides at all-guides.com
all-guides.com

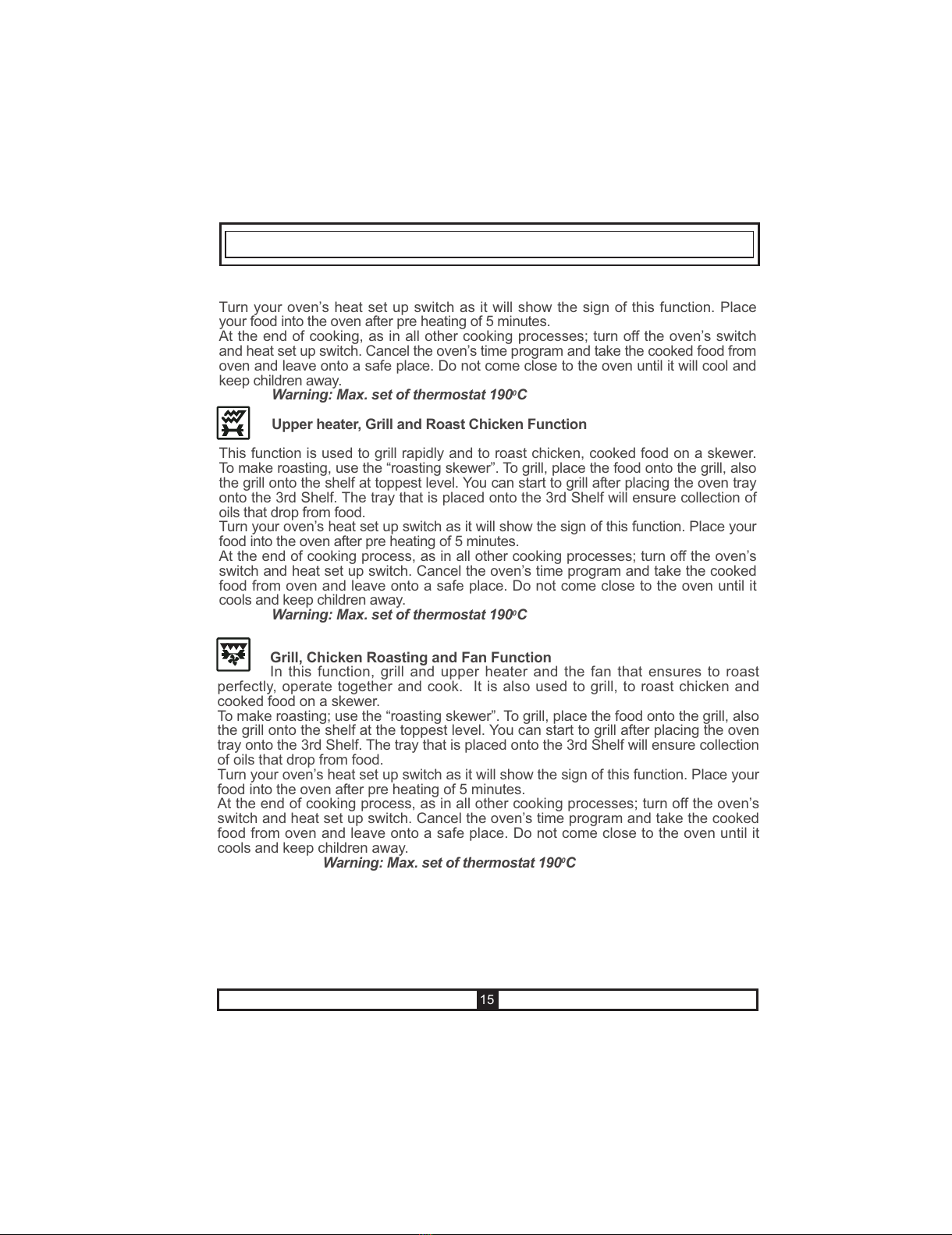

Turn your ovens heat set up switch as it will show the sign of this function. Place
your food into the oven after pre heating of 5 minutes.
At the end of cooking, as in all other cooking processes; turn off the ovens switch
and heat set up switch. Cancel the ovens time program and take the cooked food from
oven and leave onto a safe place. Do not come close to the oven until it will cool and
keep children away.
Warning: Max. set of thermostat 1900C
Upper heater, Grill and Roast Chi ken Fun tion
This function is used to grill rapidly and to roast chicken, cooked food on a skewer.
To make roasting, use the roasting skewer. To grill, place the food onto the grill, also
the grill onto the shelf at toppest level. You can start to grill after placing the oven tray
onto the 3rd Shelf. The tray that is placed onto the 3rd Shelf will ensure collection of
oils that drop from food.
Turn your ovens heat set up switch as it will show the sign of this function. Place your
food into the oven after pre heating of 5 minutes.
At the end of cooking process, as in all other cooking processes; turn off the ovens
switch and heat set up switch. Cancel the ovens time program and take the cooked
food from oven and leave onto a safe place. Do not come close to the oven until it
cools and keep children away.
Warning: Max. set of thermostat 1900C
15
Grill, Chi ken Roasting and Fan Fun tion
In this function, grill and upper heater and the fan that ensures to roast
perfectly, operate together and cook. It is also used to grill, to roast chicken and
cooked food on a skewer.
To make roasting; use the roasting skewer. To grill, place the food onto the grill, also
the grill onto the shelf at the toppest level. You can start to grill after placing the oven
tray onto the 3rd Shelf. The tray that is placed onto the 3rd Shelf will ensure collection
of oils that drop from food.
Turn your ovens heat set up switch as it will show the sign of this function. Place your
food into the oven after pre heating of 5 minutes.
At the end of cooking process, as in all other cooking processes; turn off the ovens
switch and heat set up switch. Cancel the ovens time program and take the cooked
food from oven and leave onto a safe place. Do not come close to the oven until it
cools and keep children away.
Warning: Max. set of thermostat 1900C
All manuals and user guides at all-guides.com

16
Lower Heater Fun tion
At this cooking the best is spreaded from the lower heating element. Lower
heating function is appropriate for heating the food instead of cooking.
Lower Heater and Fan Fun tion
At this cooking, the heat is spreaded from the lower heating element and fan
motor. This function can be used to heat the food equally in a short time.
4. 4. 4 ccessories Used in Oven
You can use glass dishes, cake molds, special oven trays that are appropriate for use
in oven, that you are able to assure in market, apart from the oven trays and grill wire
chicken roasting skewer that are given together with your oven. Pay attention to the
information related to the subject that were given by the manufacturer firm.
In case small size dishes are used, place the dish onto the grill wire, as it will
completely be on the middle part of the wire. The following information must also be
followed for the enameled dishes.
If the food that will be cooked does not cover the oven tray completely, if the food is
taken from the deep freezer or the tray is being used for collection of foods juices that
flow during grilling, the form changes can be observed in tray because of the high
heat that occur during cooking or roasting.
The tray will return to its old form only when the tray cooled after cooking. This is a
normal physical event that occurs during heat transfer.
Do not leave this tray or dish in cold environment right away after cooking in glass tray
or dish. Do not put onto the cold and wet grounds. Place on a dry kitchen cloth or dish
cross, ensure it to cools slowly. Otherwise the glass tray or dish may be broken.
If you will grill in your oven; we recommend you to use the grill that was given in tray
together with product. ( If your product includes this material ) So, the oils that spatter
and flow, will not dirty the inside of oven. If you will use the big wire grill; put a tray onto
one of the lower shelves for oils not to be collected. Also put some water into it for
cleaning easiness.
Use 4th and 5th shelves while grilling and oil the grill for the ingredients that you will
grill not to stick to the grill.
Energy Saving
- During use of electrical cookers , it is required to use saucepans having flat bases.
- Choose a cookware of proper size .
- Using a lid will reduce cooking times.
- Minimise the amount of liquid or fat to reduce cooking times.
- When liquid starts boling ,reduce the temperature setting.
- Oven door should not be opened often during cooking period.
All manuals and user guides at all-guides.com

17
6. Rack
5. Rack
4. Rack
3. Rack
2. Rack
1. Rack
Pan anti-tilting wire
To locate grid correctly in the cavity,
put it to any rack and push the grid up to the end.
The pan anti-tilting wire must be placed inside of the cavitiy.
5. Rack
4. Rack
3. Rack
2. Rack
1. Rack
All manuals and user guides at all-guides.com

Cleaning of Your Ovens Cover
In order to be able to clean the cover of your oven from inside and outside, use a glass
cleaner. Then rinse, dry it with a dry cloth. The cover can be pulled out for cleaning as shown
in the following figure.
* Open the cover completely.
* Pass the metal pin through the holes as shown on picture
* Do this process for both hinges.
* Lift up the cover slightly, pull towards the outside smoothly. The cover will completely
come out.
* Again place it into hinge holes while pinning the cover to its place.
Do not clean the ovens cover while the glass panels are hot. In case this measurement
is not taken, the glass panel may brake down. Contact to Authorized Service when
any problem occured.
18
5. 1 CLEANING
e sure that all control switches are off and your appliance cooled before cleaning
your oven. Plug off the appliance.
Control whether they are appropriate and recommended by the manufacturer before
using the cleaning materials on your oven. As they may damage the surfaces, do not
use caustic creams, abrasive cleaning powders, thick wire wool or hard tools. In case
the liquids that overflows around your oven burn, the enameled place may be
damaged. Immediately clean the overflew liquids.
Cleaning of Inside of Your Oven
Surely plug off the oven before starting leaning.
The inside of enameled oven is cleaned in the best way when the oven is warm.
Wipe the oven with a soft cloth that had been hemmed in soapy water after each use.
Later wipe it with a wet cloth once more and then dry it. It may be required to use a
liquid cleaning material from time to time and make a complete cleaning. Do not clean
with dry and powder cleansers.
P RT 5 : CLE NING ND M INTEN NCE OF YOUR OVEN
All manuals and user guides at all-guides.com
