Award AGE60S User manual

INSTRUCTION MANUAL
Do not use the oven until you have read this instruction manual
Cod:0040306760
AGE60S
AGE60BL

DEAR CUSTOMER
This appliance has been designed to be efficient and easy to use.The following
hassle-free use.
be referenced at any time.
For your peace of mind,this appliance has been thoroughly tested with regard to safety
Caution!
Do not use this appliance until you have read this instruction manual.
This appliance is intended for household use only.
2
instructions will show you how to best operate your appliance to enjoy years of
it is important to keep this instruction manual and store it in a safe place so that it can
and functionality before leaving the factory.

TABLE OF CONTENTS
Safety instructions.................................................................................................... 4
7..... .......................................................................................................ygreneevasotwoH
..........................................................................................................................gnikcapnU 7
Disposal of the appliance....................................................................... 7.............................
Description of the appliance..................................................................................8
Installation.....................................................................................................................9
Operation.......................................................................................................................14
41............................................................
..........................................................esutsrifroirP
How to use gas burners
.......................................................................................... 15
Baking in the oven
Cleaning and maintenance....................................................................................26
Technical information .........................................................................31
3
..........
..........
Oven ..............................................................................................................................16
...................................................................................................25

SAFETY INSTRUCTIONS
●To avoid any possible hazard, the appliance must be installed by qualified/authorised
●The appliance becomes hot during operation. Take care not to touch the hot parts
inside the oven.
●Please pay attention to children in the vicinity of the appliance. ln particular,hot
surface burners, the oven chamber,
grates, the door pane, and pans containing hot
●Mind that electrical connection leads from other home appliances (e.g. of a food mixer )
do not touch hot parts of the cooker.
●Do not place flammable material into the utility drawer
●Do not leave the cooker unattended when frying. Oils and fats may catch fire due to
overheating.
●.renrubehtnosllipsdiovaotdnim,gniliobfotniopehttA
●If the cooker is damaged, it may be used again only after the fault has been fixed by
an authorised person.
●Do not open the tap on the gas connection or cylinder valve before checking that all
burner knobs are closed.
●Do not allow the burners to be soiled or liquids to spill on the burners. If soiled, clean
.nwoddeloocevahyehtretfayletaidemmisrenrubyrddna
●Do not put pans directly onto burners.
●Never use the burners or the oven for heating of the room. Never place empty dishes
upon the cooking zones.
●Do not place pans with a weight greater than 10kg onto the grate over one burner, or
.etargelohwehtnogk04revofothgiewlatotahtiwsnap
●Do not open the cooker knobs before already having a lighted match or a gas lighter in
your hand.
●Do not put out a burner flame by blowing .
4
liquids standing on the hob may cause burns to children.
personnel only. Installation should be carried out in accordance with the legal
regulations and technical requirements of the local gas supplier. Important
instructions in this regard may be found in the section “Installation”.

SAFETY INSTRUCTIONS
●Do not make your own alterations to the cooker in order to adapt it to a different
type of gas, move the cooker to another place or make changes to the power
gas fitter.
●Do not use harsh cleaning agents or sharp metal objects to clean the door as they
can scratch the surface, which could then result in the glass cracking.
●IN CASE OF ANY SUSPICION OF GAS LEAKAGE YOU MUST NOT:
Light matches, smoke cigarettes, swith electrical switches(eg.door bell or light
or percussive sparks. In such a case, immediately close the cylinder valve or tap
cutting off gas supply, air the room, and then call a person authorized to repair the
●In the event of any incident caused by a technical fault, disconnect the power
(applying the above rule) and report the fault to the service centre to be repaired.
Do not attach any antenna cords (e.g. radio) to the gas supply.
●
immediately using a cutting-off valve.
●In a case of gas escaping from a leaky cylinder and catching fire: throw a wet
Do not use the damaged cylinder.
●
●
When the cooker is not to be used for several days, close the main valve on the gas
.gnipip
●
The cooker should not be cleaned using steam equipment.
●
Alterations and repairs carried out by an unqualified person are not allowed.
●Do not put pans weighing over 15kg on the opened door of the oven.
5
supply. These operations may only be carried out by an authorised electrician or
switch) on and off, or use other electric or mechanical devices that create electrical
source of the leakage.
In a case of gas escaping form leaky piping and catching frie, close gas supply
blanket over the cylinder to cool it down and turn off the cylinder valve.
Do not subject the knobs and burners to sharp forces.
●

SAFETY INSTRUCTIONS
●During the operation of gas burners the room may be filled with extra heat and
humidity, so it is necessary to assure adequate ventilation. Occasional opening of the
window or door should provide enough exchange of air. During the prolonged use of
the appliance, or during a very intense use, more ventilation will be required, and it will
probably be necessary to engage the extractor hood.
●Do not use the cooker in the event of a technical fault. Any faults must be fixed by an
appropriately qualified and authorized person.
●The rules and provisions contained in this instruction manual should be strictly
observed. Do not allow anybody who is not familiar with the contents of this instruction
manual to operate the cooker.
●Never put aluminum foil on the bottom of the oven, and do not place any crockery upon
the bottom of the oven.
6
Must not be installed in a marine craft, caravan or mobile home, unless each
burner is fitted with a flame safeguard.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE APPLIANCE
STORAGE DRAWER OR NEAR THIS APPLIANCE
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHILE IT IS IN OPERATION.
WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN
CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER
DO NOT MODIFY THIS APPLIANCE
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
Not suitable for use with aftermarket lids or covers.

HOW TO SAVE ENERGY
Using energy in a
responsible way not only
saves money but also
helps the environment. So
let’s save energy!
●Use proper pans for cooking.
A saucepan should never be smaller than
a burner crown.
●Ensure that the burners, the grate ,and
the hob are clean.
Soiling can prevent heat transfer and, when
left alone, can often only be removed by
cleaning products which are harmful to the
environment.
In particular, pay careful attention to the
flame opening in the rings under burner
.selzzonrenrubehtdna,spac
●Do not uncover pans or open the oven
door more than necessary during cooking.
Only use the oven when cooking larger
7
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker burner.
Make use of residual heat from the oven.
if the cooking time is greater than 40
minutes, it is recommended to switch off
the oven 10 minutes before the end time.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the
door seals. Clean up any spillages
immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise household energy consumption
increases unnecessarily.
●
●
●
●
UNPACKING
During transportation,
protective packaging was
used to protect the
appliance against any
damage.
After unpacking, please dispose of all
elements of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the
appliance are environmentally friendly;
they are 100% recyclable and are marked
with the appropriate symbol.
During unpacking, the packaging materials
(polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
Caution!
DISPOSAL OF THE APPLIANCE
Old appliances should not
simply be disposed of with
normal household waste,
but should be delivered to
a collection and recycling
centre for electric and
electronic equipment.
A symbol shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labeled with information
concerning this. By recycling materials or
other parts from used devices you are
making a significant contribution to the
protection of our environment.
Information on appropriate disposal
centers for used devices can be provided
by your local authority.

DESCRIPTION OF THE APPLIANCE
8
Burner safety valve Spark ignitor
(optional)
Because we contiunally strive to improve our products.
We may change our specifications and designes without prior notice.
Rapid burner
Semi-Rapid burner Control panel
Auxiliary burner
Wok burner
Grate
Oven door handle
Drawer

INSTALLATION
This appliance must be installed by an authorised person in accordance with
this instruction manual, AS/NZS 5601.1-Gas installations (installation and
pipe sizing), local gas fitting regulations, local electrical regulations,
Building Code of NewZealand and any other government authority.
9
Overhead clearances-(Measurement A) Range
hoods and exhaust fans shall be installed in accordance
with the manufacturer’s
relevant instructions. However, in no case shall the
clearance between the highest part of the hob of the gas
cooking appliance and a range hood be less than
750mm .
Side clearances-(Measurements B,&C) Where B
any vertical combustible surface, or vertical combustible
surface. covered with toughened glass or sheet metal, is
measured from the periphery of the nearest burner to
less than 200mm, the surface shall be protected to a
height C of not less than 150 mm above the hob for the
full dimension (width or depth) of the cooking surface
area. Where the gas cooking appliance is fitted with a
splashback, protection of the rear wall is not required.
Additional requirements for freestanding and
elevated gas cooking appliances-(Measurements D
&E) .Where D, the distance from the periphery of the
nearest burner to a horizontal combustible surface is
than 200mm, then E shall be 10 mm or more, orless
horizontal surface shall be above the trivet.the
The cooker should stand on a hard,
even floor (do not put it on a base).
Before you start using the cooker, it
should be leveled, which is particularly
pan. To this purpose, adjustable feet
can be found upon removing the utility
important for fat distribution in a frying
drawer. The adjustment range is +/-5mm.
If the appliance is used for extended
periods, it may be necessary to open
a window in order to boost ventilation.
The kitchen where the appliance is to
be installed must be dry and well
ventilated.
The room should be equipped with a
ventilation system that pipes away
exhaust fumes created during
consist of a ventilation grid or hood.
combustion. This system should
Hoods should be installed according
to the manufacturer’s instructions.
The cooker should be placed so as
to ensure free access to all control
elements.
●
●
●
●
●
Horizontal combustible
surface below hob
THE TWO INSETS RELATE TO
REQUIRENT 3 BELOW
OR
Horizontal combustible
surface above trivet
NOTE: In this case, any
vertical combustible
protected to conform with
surface needs to be
requirement 2 below

INSTALLATION
Gas connection
Caution!
The cooker should only be connected to a
gas supply of the particular type that the
appliance is manufactured to function with.
Information about the type of gas that the
cooker has been adapted to by the factory
is shown on the rear panel.
This appliance is suitable for connection with rigid
pipe or flexible hose. The isolating manual shut-off
valve connection point must be accessible when
the appliance is installed.
Natural Gas: the supplied regulator must be fitted
to the appliance inlet connection. Gas pressure must
be adjusted to 1.0 kPa when approximately 50%
of the burnersare on high flame, the appliance test
point is located on the regulator.
LPG: the supplied test point adaptor must be fitted
to the appliance inlet connection. Gas pressure must
be adjusted to 2.75 kPa, the appliance test point
is located on the test point adaptor.
Suitable for connection with a flexible hose assembly.
The flexible hose assembly must be certified to
AS/NZS 1869 class B or D, be of appropriate internal
diameter for the total gasconsumption, be kept as
short as possible (not exceeding 1200mm), must
not be in contact with the floor or any hot or sharp
surfaces. The hose assembly must not be subject
.noitamrofedrogniknik,noisarba,niartsot
Gas leakage and operation of the appliance must
be tested by the installer before leaving. Check all
For minor adjustment and fault finding refer to
page 25 If this appliance cannot be adjusted to
perform correctly. Refer to the warranty card for
service & parts contact information. Where the
●Install the cooktop
Remove the crown caps and burner
crowns from the oven, and arrange
them on the cooktop as per the earlier
diagram entitled. Description of the
Caution!
The crown cap and burner cap must be tightly
installed to ensure that the gas flame burns
as intended. if the flame fails to ignite, it may
be because these components have been

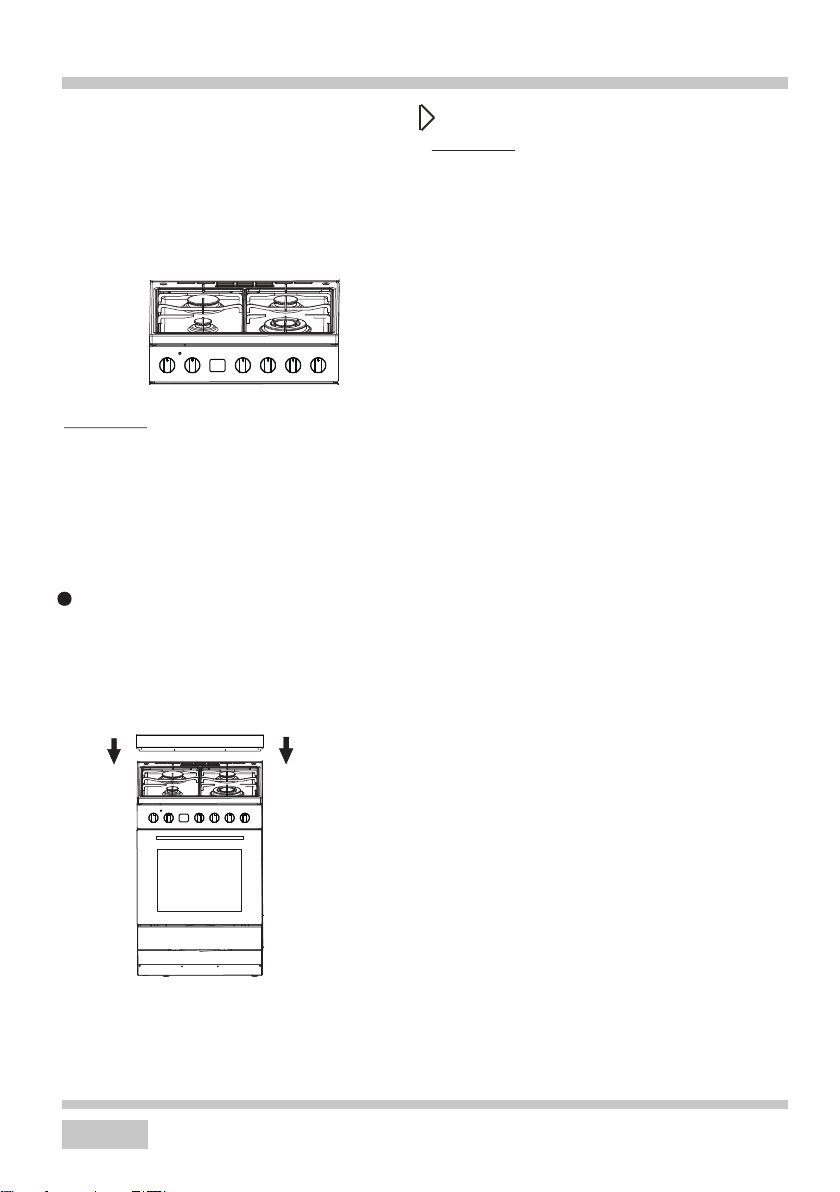

To fit the rear panel/splashback,slide the
10
appliance! These components will fit
together neatly when correctly installed.
lugs on the bottom of the panel into the
with screws provided.
matching slots on rear of stove and fix
burner flames are blue in colour, stable and
with no appreciable yellow tipping, carbon
deposition, lifting, floating, lighting back or
completely ignite at both high low flame settings
objectionable odour. Test burners individually and
in combination.
data plate is obscured by cabinetry when the cooker
is in the installed position, place the supplied
duplicate data plate to a suitable adjacent surface
or within the instruction manual for future reference.
incorrectly installed.

INSTALLATION
On completion of the cooker installation,
the tightness of all connections should be
.paoshtiwretawgniylppa.g.e,dekcehc
Do not use fire to check tightness.
Anti tilt chains are located at the rear of the
llawehtotderucesebtsumdnaecnailppa
behind the appliance to prevent accidental
tipping/tilting. The chain length must be as
short as practicable to avoid appliance tilting
Flexible hose connection
A
B
C
D
Beginning of operation
In case the appliance is connected by
means of a flexible hose, the position A of
the hose is not permissible.
In case the connection hose is made of
metal, position A is permissible.
Start using the appliance in accordance
with the instructions for use.
Ignite all burners and check the stability of
the flame with high and low setting. Adjust
air intake if necessary. After that, take time
and explain the operation and control of
the appliance to the user, referring to this
.yrassecensalaunamnoitcurtsni
11
Caution!
forward and also diagonal to avoid appliance
moving sideways.
Fix the cooker to the back wall with
2 chains

INSTALLATION
Adapting the cooker
another type of gas
This operation may only be carried out by
.nosrepdesirohtuayletairporppana
To adapt the cooker to be
selzzonrenrubeht,sagfoepytrehtona
must be exchanged and the flame adjusted.
Caution!
When leaving the factory, burners are
adapted to use the gas specified on their
data plates and guarantee cards.
In order to adapt the cooker to burn a
different type of gas, you should:
●Exchange nozzles (see tables below),
●Adjust the flame intensity.
Burner turndown flame must also be adjusted to 25% of the
A correct flame has distinct internal cones of blue colour. A short, humming
flame or long, yellow and smoking one, without clearly outlined cones, shows improper
quality of gas in the household piping or a damaged or soiled burner. In order to cheak a
flame, heat a burner for around 10 minutes with a full flame, and next turn the valve knob
to the turndown flame position. The flame should not go out or jump onto the nozzles.
Hotplate burners do not require adjustment of primary air.
12
adjustment screw location.
high flame, refer to page 13 for
In order to perform the turndown adjustment, remove the gas burner control knobs.
When converting to a different gas type refer to page 10; gas connection.
Upright Burner Gas type Injector
Size(mm)
TPP
(kPa) NGC
(MJ/h)
Auxiliary
Semi-rapid
Rapid
Wok
Auxiliary
Semi-rapid
Rapid
Wok
Natural gas
Universal
LPG
0.88
1.17
1.57
1.30*2
0.52
0.68
0.88
0.73*2
1.0
2.75
3.6
6.3
10.8
14.4
3.6
6.3
10.8
14.4
Total Gas Consumption
Natural gas: 35.1MJ/h
Universal LPG :35.1MJ/h
600mm
●
●
●
Electrical connections
Electric connection may be carried
out by qualified service personnel
only!
Wrong connection may permanently
damage parts of the appliance and
render your warranty void!
Mains voltage of the user(240V)must
be verified with the measuring device!
Three separrating switches should be
placed in accordance with the mains
connection.
Mains lead behind the cooker must be
placed in such manner to avoid
touching the back panel of the cooker
because of the heat it develops during
operation.
The mains lead extension may be
made by qualified personnel only.
Repairs of electrical parts may be
carried out only by qualified
electrician.In case of malfunction call
the service center.

INSTALLATION
13
Position of valve damping hole
Damping hole adjustment method
Tool:1.slotted screwdriver
2.cross screwdriver
Method steps：
Step1: Unplug the machine knob and remove screw,remove the control panel.
Step 2: Insert the slotted screwdriver into the left screw hole, adjust the valve
to the minimum fire state, and adjust the flame state clockwise or
Damping
adjustment hole
counterclockwise.
Step 3: install the fixing screw and knob back to the machine after adjusting
the flame state.
Replacement of a burner
nozzle: Unscrew the
nozzle with special socket
spanner No 7 and replace
with a new one according
to the type of gas
(see tables)
Caution!
●Adapting the appliance to a different
type of gas than that indicated by the
manufacturer of the cooker on the data
plate, or purchasing a cooker for adifferent
type of gas than supplied to thehouse, is
exclusively the responsibility of the user
and the fitter.
●After adjustment is completed, affix a
label to the cooker indicating the type
of gas to which the cooker is now adapted.

OPERATION
14
Before first use
Remove packaging elements,
Gently (slowly) remove labels from the
over door, trying not to break the glue
tape. If any visible trace is left on the
glass, warm up the oven chamber(see
below), spray the warmed-up glass with
a glass cleaner, and wipe off with a soft
cloth.
Empty the utility drawer, and clean off
factory preservatives from the oven
chamber with warm soapy water
Take out and wash the oven fittings with
warm water and a little washing-up liquid.
Switch on the ventilation in the room or
open a window,
Heat the oven(to a temperature of
250 , for approximately 30 min.),
remove any stains and wash carefully.
When heating the oven for the first time,
it is normal for it to give off smoke and
about 30 minutes later.
a peculiar smell. This will disappear
The oven chamber should only be
washed with water and a small amount
of washing-up liquid.
When handing the cooker, follow the
safety instructions carefully.
Oven function Control knobs
Oven temperture Control knobs
Top burner control knobs

OPERATION
Ignition without an ignitor
Light a match.
Press in the knob to the end and turn
it left to the MAX,
Ignite gas with a match.，
Set MIN)required flame size(e.g.
Switch off the burner after finishing
cooking, turning the knob right (to the
off position ).
Knob ignition
Press in the knob to the end and turn
it left to the MAX,
Hold until gas is lit，
After the flame is lighted release the
pressure on the knob and set a
required flame size.
Caution !
In cooker models equipped with a surface
burner safety valve, hold the knob pressed
down to the end when igniting for 10
seconds at the “large flame” position to
activate the safety device.
If the ignition device is out of order, either
due to power failure or humid ignition
device, use a match or a lighter to ignite
the gas.
●Keep the button pressed for
approximately 10 second after ignition
to stabilize the flame.
●If you failed to ignite the burner after
15 seconds. Shut the burner off and
wait for at least one minute before the
next attempt.
15
How to use gas burners
Choice of cookware
Mind that the diameter of a pan base is
always larger than the burner flame crown,
and that the pan itself is covered. The
recommended pan diameter is around 2.5
to 3 times larger than the burner diameter,
that is, for:
●An auxiliary burner- a pan with a
diameter of 90 to 150 mm,
●An medium burner- a pan with a
diameter of 160 to 220 mm,
●A large burner - a pan with a diameter
of 200 to 240 mm, and the pan height
should not be greater than its
diameter.
WRONG RIGHT
Gas burner control knobs
Do not place anything, e.g. flame tamer or
griddle plate between pan and pan support.
the burner with a work stand, only use the
Do not remove the pan support and enclose
wok support supplied. Do not use large pots
or heavy weights which can bend the pan
Locate pan centrally over the burner so that
support or deflect flame onto the hotplate.
it is stable and does not overhang the
appliance.

OPERATION
16
Oven
Oven is controlled by the function knob
When selecting any oven function, the
oven will only be switched on after the
temperature has been set by the
temperature selection knob.
Caution!
Selection of the approprite flame
A correctly adjusted burner has a light blue
flame with a clearly visible internal cone.
Flame size depends on the position of the
Depending on requirements, flame size
can be set in a continuous manner.
MAX
MIN
Caution !
Button positions between and MAX are
not recommended. In these positions,
the flame is not stabilized and may be
extinguished.
If the flame goes out repeat the
procedure.
If the burner flame extinguishes,
shut the burner off and wait for at least
one minute before next attempt.
Before igniting the burners cover them
with appropriate cookware.
Operation of the burner protection
valve
Some models are equipped with an
automatic system that cuts off gas supply
to a burner when the flame has
disappeared.
This system protects the cooker against
gas leakage when the flame on a burner
goes out e.g. in case of spillage.
The user’s intervention is needed to
re-ignite the burner.
and the temperature control knob.
Temperature control knob
The Function knob
Caution !
When selecting any heating function
(switching a heater on etc.) the oven will
only be switched on after the temperature
has been set by the temperature regulator
knob.
burner knob which has been set.
50
100
150
200
250

OPERATION
17
Button1 Button3
M
Button2
D
E
F
G
To decrease the numbers
on the digital display
To increase the numbers
on the digital display
Display field
Seconds Icon
Function
Timer
Cooking time
Current time
End of cooking time
D
E
F
G
M

OPERATION
18
At power on, “12.00",
and flashes.
displayed
.Enter the
timer setting.
or
directly press the button 2,
The current time can be set with
button 1 and 3, 5 seconds after the
time has been set ,the new data
will be saved .
23 and 59 minutes.
your setting is saved.
and alarm signal will go off. Or
signal will be turned off automatically
after 2 minutes.
the alarm
1 2 3
1 2 3
1 2 3
4
M
M
1 2 3
M
M
1 2 3
M

OPERATION
19
End of cooking time = current time + cooking
time
Press any button,the alarm signal and
rOlliw ,ffoognocieht
the alarm
after 2 minutes.
turnedsignal will be off automatically
2
Press the function button ,
to adjust the
cooking time,
End of cooking time
end of cooking time
end of
end of cooking time
After the auto function be off,the cooking
time to 0,end of cooking time and current
time remains the same.
want to oven work
of 3 hours,end of cooking time
5:00 3:00 5:00
Or press button “ ” twice.
end of cooking time
set either the
cooking time.
by
end
M
1 2 3
M

OPERATION
20
cooking
End of cooking time automatically
change to 5:00.
end of cooking time
Cooking time automatically change
2nottub ,sserP
to adjust the cook
time,
the
and always on.
cooking
And press button 2.
Press any button,the alarm signal and
rOlliw ,ffoognocieht
end of cooking time:
the alarm
after 2 minutes.
turnedsignal will be off automatically
1 2 3
1 2 3
and the will go off.
to 3:00.
M
M
