Award WO400S User manual

OPERATING AND INSTALLATION
INSTRUCTIONS OF
BUILT-IN OVEN
WO400S

Dear Customer,
We take offering quality products more than your
expectation as our goal, supplying you products produced in
modern facilities carefully and particularly tested for quality.
Your manual is prepared in order to help you to use your
appliance that is manufactured by the most recent
technology, with confidence and maximum efficiency.
Before use of your appliance, carefully read this guide that
includes the basic information for right and safe installation,
maintenance and use. Contact an Authorized
Service for installation of your product.

1
Contents
1- Presentation and size of product
2- Warnings
3- Preparation for installation and use
4- Using the oven
5- Cleaning and maintenance of your product
6- Service and Transport

2
PART 1: PRESENTATION AND SIZE OF PRODUCT
LIST OF COMPONENTS :
1- Control Panel
2- Handle
3- Oven Door
4- Child Lock
5- Tray
6- Lower Heating Element (behind the plate)
7- Upper Heating Element (behind the plate)
8- Wire Grill
9- Racks
10- Oven Light
11- Turbo Heating Element(behind the plate)
12- Fan (behind the plate)
13- Air Outlet Shutters

3
PART 2 SAFETY WARNINGS
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR
APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE
MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY
ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE
OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
should not play with the appliance. Cleaning and
user maintenance should not be done by
children without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age should be kept
away unless continuously supervised.
- WARNING: Danger of fire: do not store items
on the cooking surfaces.
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.

4
- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
- During use, handles held for short periods in
normal use can get hot.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the surface,
which may result in shattering of the glass or
damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
- CAUTION: Accessible parts may be hot when
the oven is in use. Young children should be kept
away.
- Your appliance is produced in accordance with all applicable local and international
standards and regulations.
- Maintenance and repair work must be made only by authorized service technicians.
Installation and repair work that is carried out by unauthorized technicians may endanger you.
It is dangerous to alter or modify the specifications of the appliance in any way.
- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas
pressure or electricity voltage and frequency) and the requirements of the appliance are
compatible. The requirements for this appliance are stated on the label.
- CAUTION: This appliance is designed only for cooking food and is intended for indoor
domestic household use only and should not be used for any other purpose or in any other
application, such as for non-domestic use or in a commercial environment or room heating.
- Do not try to lift or move the appliance by pulling the door handle.
- All possible security measures have been taken to ensure your safety. Since the glass may
break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on
the glass with accessories.

- Ensure that the supply cord is not wedged during the installation. If the supply cord is
damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to prevent a hazard.
- While the oven door is open, do not let children climb on the door or sit on it.
Installation Warnings
- Do not operate the appliance before it is fully installed.
- The appliance must be installed by an authorized technician and put into use. The producer
is not responsible for any damage that might be caused by inappropriate placement and
installation by unauthorized people.
- When you unpack the appliance, make sure that it is not damaged during transportation. In
case of any defect; do not use the appliance and contact a qualified service agent
immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause
harmful effects to children, they should be collected and removed immediately.
- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun,
rain, snow etc.
- The surrounding materials of the appliance (cabinet) must be able to withstand a
temperature of min 100°C.
During usage
- When you first run your oven a certain smell will emanate from the insulation materials and
the heater elements. For this reason, before using your oven, run it empty at maximum
temperature for 45 minutes. At the same time you need to properly ventilate the environment
in which the product is installed.
- During usage, the outer and inner surfaces of the oven get hot. While opening the oven
door, step back to avoid the hot steam coming out of the oven.
- Do not put flammable or combustible materials, in or near the appliance when it is operating.
- Always use oven gloves to remove and replace food in the oven.
- Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on
condition of extreme heating. Never pour water on to flames that are caused by oil. Cover the
saucepan or frypan with its cover in order to choke the flame that has occured in this case
and turn the cooker off.
- If you will not use the appliance for a long time, unplug it. Keep the main control switch off.
Also when you do not use the appliance, keep the gas valve off.
- Make sure the appliance control knobs are always in the "0" (stop) position when it is not
used.
- The trays incline when pulled out. Be careful not to let hot liquid spill over.
- When the door or drawer of the oven is open, do not leave anything on it. You may
unbalance your appliance or break the cover.
- Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper,
cloth...etc) into the drawer. This includes cookware with plastic accessories (e.g. handles).
- Do not hang towels, dishcloths or clothes from the appliance or its handles.
During cleaning and maintenance
- Always turn the appliance off before operations such as cleaning or maintenance. You can
do it after unplugging the appliance off or turning the main switches off.
- Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE
RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR
AUTHORIZED SERVICE AGENTS IN CASE OF NEED.
5

6
PART 3: PREPARATION FOR INSTALLATION AND USE
Figure 1
When choosing a place for the oven, attention should be paid that there are no flammable
or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which quickly
catch fire.
Furnitures surrounding the oven must be made of materials resistant to heat more than 50
C° of the room temperature.

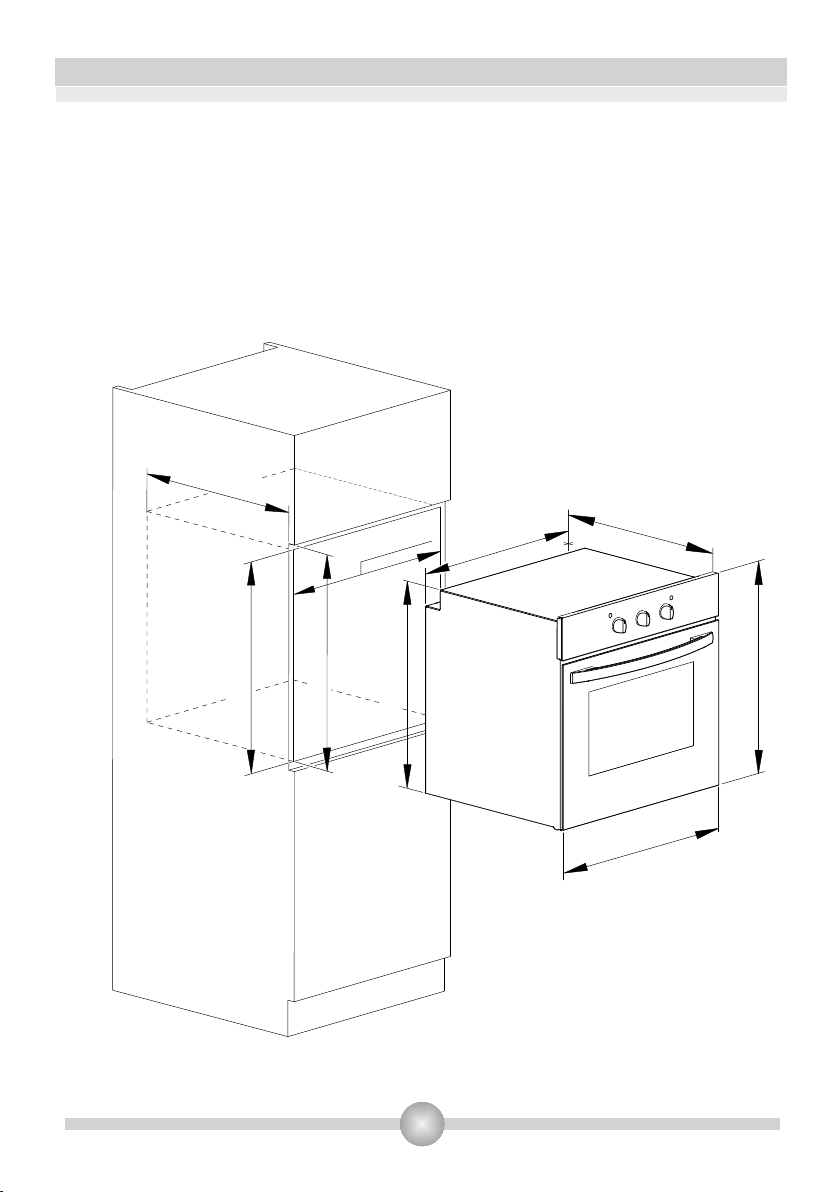

Required changes to wall cabinets and exhaust fans above the built-in combined product
as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the
exhaust fan should be at a minimum height of 65 cm from the hob board. If there is no
exhaust fan the height should not be less than 70 cm.
Manufactured with best quality parts and materials, this modern, functional and practical
oven will meet your needs in all respects. Make sure to read the manual to obtain successful
results and not to experience any problems in the future. The information given below contain
rules that are necessary for correct positioning and service operations. They should be read
without fail especially by the technician who will install the appliance.
CONTACT AN AUTHORIZED SERVICE FOR INSTALLATION OF YOUR OVEN!
3.1. CHOOSING A PLACE FOR THE OVEN
There are several points to pay attention to when choosing a place for your oven.
Make sure to take into account our recommendations below in order to prevent any
problems and dangerous situations, which might occur later!

7
C DETAIL
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in
the holes located on the oven frame. While the product frame touches the wooden surface of
cabinet, tighten the screws.

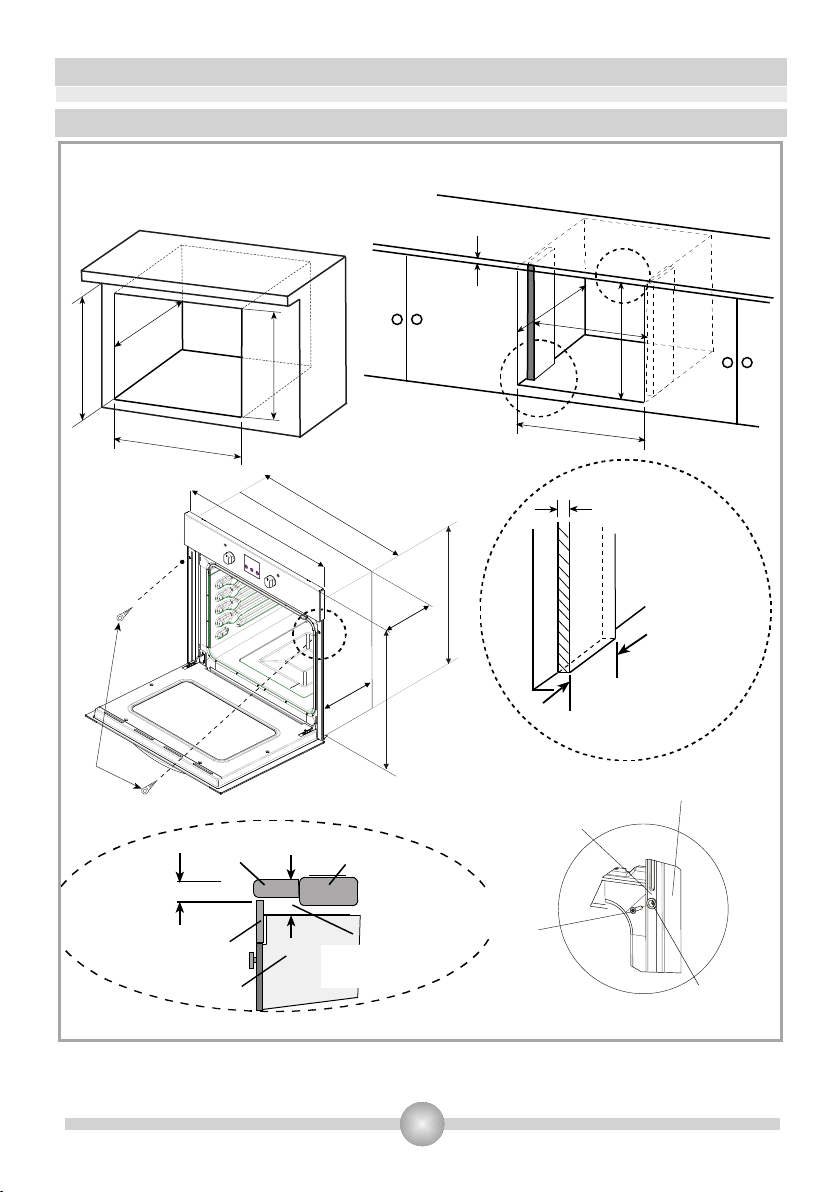

Cabinet cut-out sizes
You can use either cabinet 1
or cabinet 2 cut-out sizes
2
A
B
600mm
Min 25mm
580mm
560mm
600mm
1
555mm
600mm
min 580mm
min 560mm
max 580mm
A DETAIL
20mm
Minimum 40mm(The wooden
part can be extended up
to cut-out depth)
Product sizes
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop snd
top panel of built-in
oven
3.2. INSTALLATION OF BUILT_IN OVEN
Front
frame
Spacer
Mounting
screw
Wooden
part
C
557mm
595mm
575mm
550mm
Mounting
screws
576mm
595mm

8
The dimensions and material of the cabinet in which the oven will be installed must be
correct and resistant to increases in temperature. In a correct installation, contact with
electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to
ensure that they cannot be removed by using any kind of tool. Installing the appliance in the
close vicinity of a refrigerator or a deep-freezer is not recommended. Otherwise, the
performance of the above-mentioned appliances will be negatively affected due to
emanating heat. After removing your oven from its packaging, be sure that the oven is not
harmed. In case you suspect of any damage to the appliance, do not use it; immediately
contact Authorized Service.
595
595
550
min.580
576
min.555
557
min.600
min.560

8
3.3. WIRING AND SAFETY OF BUILT_IN OVEN
The instructions given below must be followed without fail during wiring :
The earthing cable must be connected via the screw with the earthing mark. Supply cable
connection must be as shown in Figure 6. If there is no earthed outlet conforming to
regulations in the installation environment, call the Authorized Service immediately.
The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.
The supply cable should not contact the product’s hot surface.
In case of any damage to the supply cable, make sure to an the Authorized Service. The
cable must be replaced by an Authorized Service.
Wiring of the appliance must be performed by the Authorized Service. H05VV-F type
supply cable must be used.
Faulty wiring may damage the appliance. Such a damage will not be covered under the
warranty.
The appliance is designed to connect to 220-240V~ electricty is different than the value
given above, call an Authorized Service immediately.
The Manucaturer Firm declares that it bears no responsibility whatsover for any
kind of damage and loss arising from not complying with safety norms!

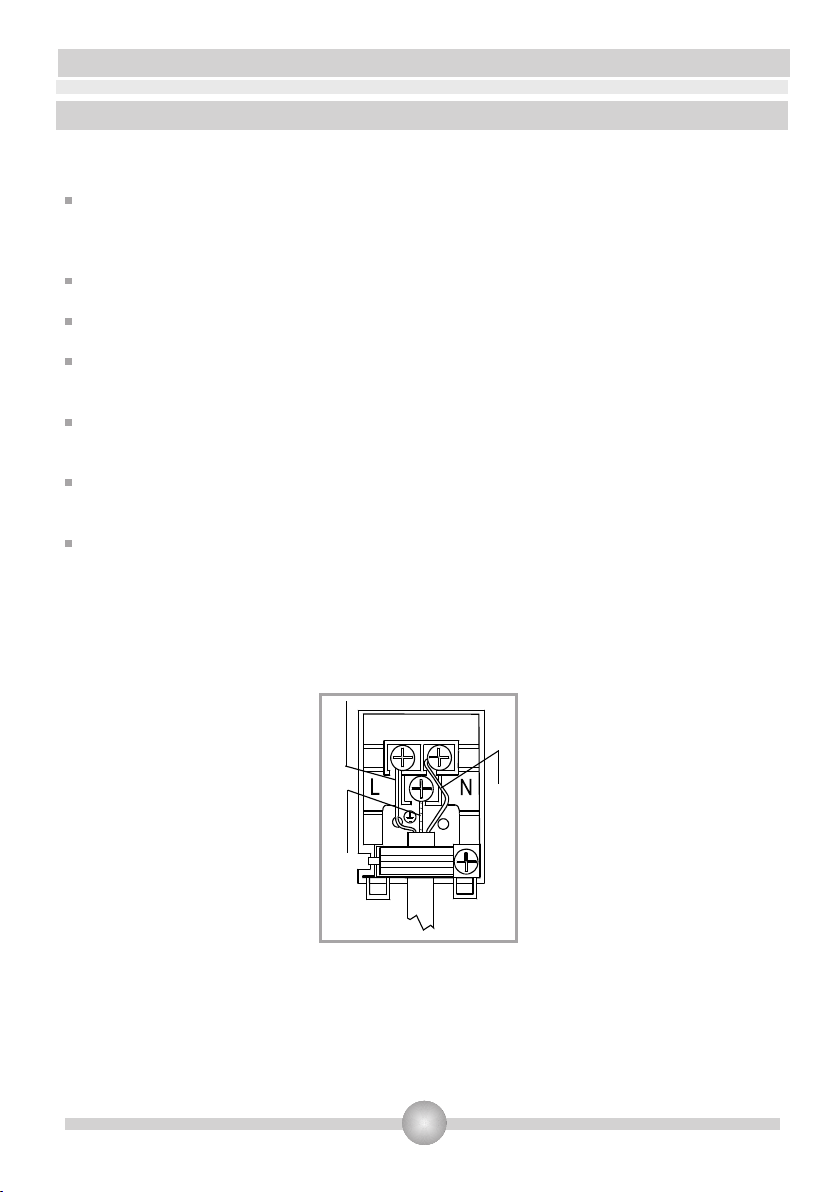

Figure 6
BLUE
BROWN
YELLOW+GREEN
9

10
PART 4: USING THE OVEN
4.1 CONTROL PANELS
Oven Function
Control Knob
Digital Timer Oven Thermostat Knob
Oven Thermostat Light
Oven Operation Light
Built_in Oven
Figure 11
Figure 12
Oven Function Control Knob:
To select the desired cooking function, turn the knob
to the related symbol(Figure 11). The details of the
oven functions have been explained in Table 1
Oven Thermostat Knob:
After cooking function set, desired temperature can
be adjusted by oven thermostat knob (figure 12) and
oven start to operate (timer must be adjusted, if
available).
Thermostat signal light will be on or off according to
thermostat operation.
50
200
Max
250
100
150
50
200
Max
250
100
150

11
4. USE OF YOUR PRODUCT
Oven Lamp
Static Cooking Function
Lower Heating Function
Defrost Function
* The functions of your oven may be different due to the model of your product.
Only the oven light will be turned on and it remains on in all the cooking functions.
The oven's thermostat and warning lights will be turned on, the lower and upper heating
elements will start operating.
The static cooking function emits heat, ensuring even cooking of the lower and upper food. This is
ideal for making pastries, cakes, baked pasta, lasagne and pizza. Prehating the oven for 10 minutes
is recommended and it is best to cook on only one shelf at a time in this function.
The oven's thermostat and warning lights will be turned on, the lower heating element will start
operating.
The lower heating function is ideal for baking pizza, as the heat rises from the bottom of the oven
and warms the food up. This function is appropriate for heating the food instead of cooking.
The oven's warning lights will be turned on, the fan starts operating.
To use the defrost function, take your frozen food and place it in the oven on a shelf placed in the
third slot from the bottom. It is recommended that you can place an oven tray under the
defrosting food, to catch the water accumulated due to melting ice. This function will not cook or
bake your food, it will only help to defrost it.
4.2. USING THE OVEN FUNCTION CONTROL BUTTON
Grilling Function
The oven's thermostat and warning lights will be turned on, the grill heating element will start
operating.
The function is used for grilling and toasting foods, use the upper shelves of oven. Lightly brush
the wire grid with oil to stop foods sticking and place foods in the center of the grid. Always place
a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10
minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
0
adjusted to 190 C.

Fan Function
12
4. USE OF YOUR PRODUCT
The oven's thermostat and warning lights will be turned on, the upper and lower heating
elements and fan will start operating.
This function is very good for obtaining results in baking pastry. Cooking is carried out by the lower
and upper heating element within the oven and by the fan providing air circulation, which will
give a slight grill effect to the food. It is recommended to pre-heat the oven about 10 minutes.
Double Grill and Fan Function
The oven's thermostat and warning lights will be turned on, the grill and upper heating
elements and fan will start operating.
The function is used for faster grilling of thicker foods and for covering a larger surface area. Both
the upper heating elements and grill will be utilized along with the fan to ensure even cooking.
Use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place
foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is
recommended to pre-heat the oven about 10 minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
0
adjusted to 190 C.
During use of electrical cookers , use saucepans that have flat bases.
Choose cookware of proper size.
Using a lid will reduce cooking times.
Minimize the amount of liquid or fat to reduce cooking times.
When liquid starts boiling ,reduce the temperature setting.
Oven door should not be opened often during cooking period.
ENERGY SAVING

13
4. USE OF YOUR PRODUCT
Use of digital minute minder
Simultaneously press (+) and (-) buttons of digital minute
minder. The display will start flashing, and then you can set
the time setting by using (+) and (-) buttons. When you press
(+) or (-) buttons after setting the time ( ) symbol is displayed,
and the desiring timer set. At the end of this time period, it
will make a beep sound but the oven continues working. In
order to turn the oven off, you must move the switch and
thermostat of the oven to closed position.
Sound Adjustment
While the timer shows the time of day; if the (-) button on is
kept pressed for 1-2 sec., it will give an audible signal beep.
After that each time the (-) button is pressed, it will give three
different types of signal beep. Do not press any further
buttons and it will save the last selected signal type.
-+

14

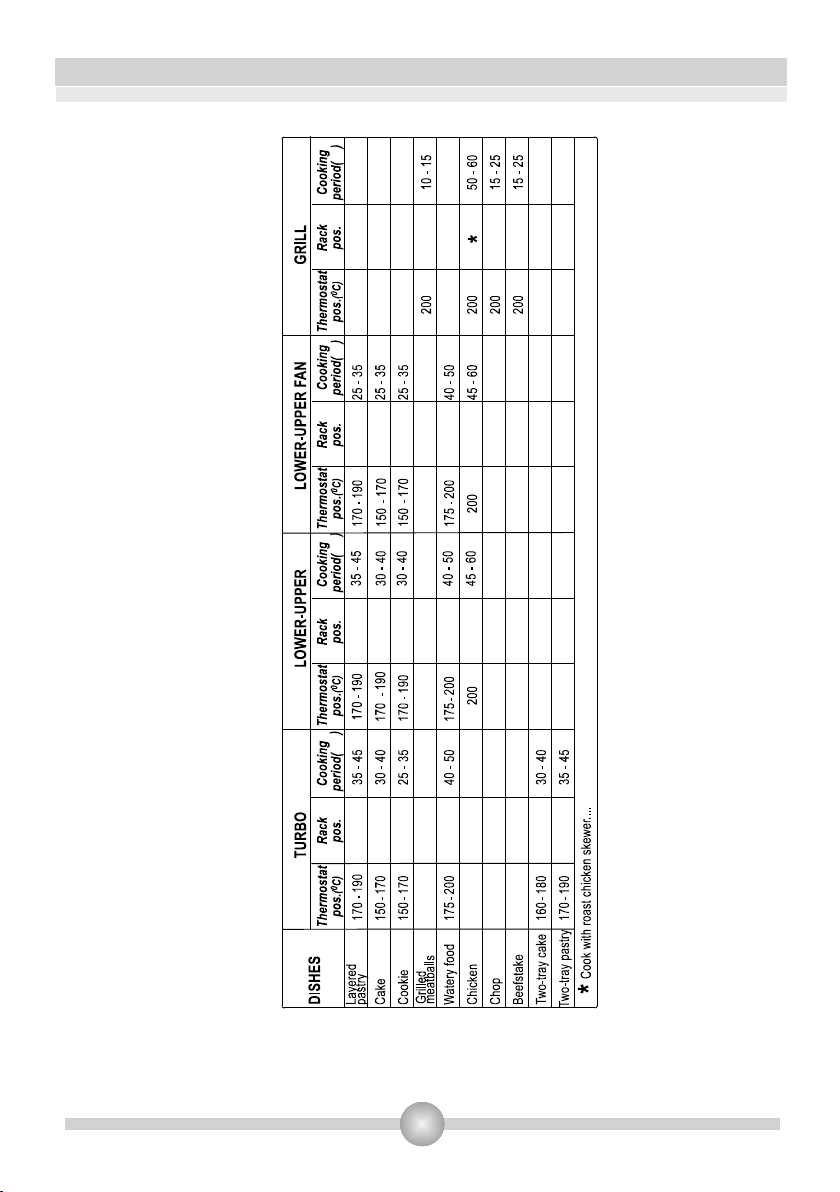

min min min min
4
3-4
4
1-2
1-2
1-2-3
1-2-3
1-2-3
2
1-4
1-4
1-2
1-2
2
1-2
1-2-3
1-2-3
2
1-2

15
4.8. ACCESSORIES USED IN THE OVEN
It is recommended that you use the containers indicated on the table depending on the
food you will cook in your oven; you can also use glass containers, cake cutters, special
oven trays suitable for use in your oven, available in the market. Pay attention to the
information given by the manufacturer firm concerning this issue. If small sized
containers are used, place the container on the inner grill wire so it will be precisely on
the middle of the wire. The information given below should be implemented for
enamelled containers.
If the food to be cooked does not completely cover the oven tray, if the food is taken out of the
deep-freezer or if the tray is used to collect the dripping juices of the foods during the grill
operation; deformation might be observed on the tray due to high temperatures forming
during the cooking/frying operation. This is a normal, physical state that results during the
heat transfer. Do not leave a glass tray or container in a cold environment immediately after
cooking in them. Do not place them on cold and wet surfaces. Ensure that they slowly cool off
placing them on a dry piece of cloth. Otherwise, the glass tray or container might break. If you
are going to perform a grill operation in your oven, we recommend that use use the grill on
tray, supplied together with your product (if your product includes this equipment). This way,
splattering and dripping oils will not make the oven interior dirty. If you are going to use the
large wire grill, insert a tray into one of the lower racks to avoid accumulation of the oils. To
make cleaning easier, add some water into it as well. In a grilling operation, use the 3. Or the
4.rack and oil the grill to prevent the food to be grilled from sticking to the grill.
5. rack
4. rack
3. rack
2. rack
1. rack
Wire grid: Used for grills or placing
different containers other than the cooking
tray on it.
Shallow tray: Used for baking pastry such
as flans etc.
Deep tray: Used for baking stews.
Figure 22

16
Removal of wire shelf
12
Removal of catalitic panel
Telescopic rails
Pull the wire shelf as
shown in the picture.
After releasing it from
clips, lift it up.
Remove G screws on
the each catalytic
enamel coated panel.
Installation of the Shelves
5. Rack
4. Rack
3. Rack
2. Rack
1. Rack
WARNING- Fit the
grid correctly into
any rack in the oven
cavity and push it to
the end.

17
PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN
5.1. CLEANING
Before starting to clean your oven, be sure that all control buttons are off and your appliance
is cooled off. Unplug the appliance.
Do not use cleaning materials containing particles that might scratch the enamelled and
painted parts of your oven. Use cream cleaners or liquid cleaners, which do not contain
particles. As they might harm the surfaces, do not use caustic creams, abrasive cleaning
powders, rough wire wool or hard tools. In the event of excess liquids spilling over your oven
and burning, it may cause a damage to the enamel. Immediately clean up the spilt liquids. Do
not use steam cleaners for cleaning the oven.
Cleaning the interior of the oven
Make sure to unplug the oven before starting to clean it. You will obtain best results if you
clean the oven interior while the oven is slightly warm. Wipe your oven with a soft piece of
cloth dampened with soap water after each use. Then wipe it again, this time with a wetted
cloth, and wipe it dry. A complete cleaning using dry and powder type cleaners. For product
with catalytic enamel frames, the rear and side walls of the inner frame do not require
cleaning. However; depending on usage, it is recommended that you replace them after a
certain period of time.
5.2. MAINTENANCE
Replacing the Oven Light
The change of oven lamp must be done by authorized technician. The rating of the bulb
should be 230V, 25Watt, Type E14,T300 before changing the lamp,the oven should be
unplugged and it should be cool.
The lamp design is specific for the use in household cooking appliances and it is not suitable
for household room illumination.

18
PART 6: SERVICE AND TRANSPORT
6.1. REQUIREMENTS BEFORE CONTACTING SERVICE
If the oven does not operate :
The oven may be plugged off, or there has been a black out. On models fitted with a timer,
time may not be regulated.
If the oven does not heat :
The heat may be not adjusted with oven’s heater control switch.
If the interior lighting lamp does not light :
The electricitiy must be controlled. It must be controlled whether the lamps are defective. If
they are defective, you can change them as following the guide.
Cooking (if lower-upper part does not cook equally) :
Control the shelf locations, cooking period and heat values according to the manual.
Except these, if you still have any problem with your product, please call to the
“Authorized Service”.
6.2. INFORMATION RELATED TO TRANSPORT
If you need any transport :
Keep the original case of product and carry it with its original case when need to be carried.
Follow the transport signs on case. Tape the cooker on upper parts, hats and heads and
saucepan carriers to the cooking panels.
Place a paper between the upper cover and cooking panel, cover the upper cover, than tape
to the side surfaces of oven.
Tape cardboard or paper onto the front cover on interior glass of oven as it will be suitable to
the trays, for the wire grill and trays in your oven not damage to the oven’s cover during
transport. Also tape the oven’s covers to the side walls.
If does not have the original case :
Take measure for external surfaces (glass and paintes surfaces) of oven against possible
blows.
