Axesstel AXW-P450 User manual

FIXED WIRELESS PHONE
AXW-P450 / P800 / P1900
AXW-P450B / P800B / P1900B
AXW-P450R / P800R / P1900R
USER MANUAL

NTRODUCTION
FEATURES
1. Speaker Phone (Hands-free dialing for AXW-P450B/P800B/P1900B models)
2. Signal Strength Indicator
3. Redial
4. Volume Control
5. Backlit Keypad (Optional)
6. Battery Power Backup (Optional)
7. Easy to read, backlit LCD Screen
8. One-touch, Two-touch Dialing
9. Automatic Sending
10. Phone Book
11. Short Message Service
12. Data Service with up to 153.6Kbps (AXW-P450B/P800B/P1900B models do not
support data service.)
And more advanced features...
The Fixed Wireless phone operates through a wireless connection instead of a landline
phone cable, enabling the subscriber to set up the phone at any where wireless service
is available.
Axesstel CDMA 2000 Fixed Wireless Phone provides high quality and
superior performance with many features such as superior voice quality, optional data
service, caller ID, three-way calling, call waiting, short message service, etc.
A large 3-line dot matrix liquid crystal display provides user-friendly interface for
quick and easy information display.
I
1
AXW-P450 / P450R / P450B
Fixed Wireless Phone AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Connecting the World Now

ABLES OF CONTENTS
Safety Precautions ...........................
Checking Parts .................................
Setting up Your Phone .....................
Starting R-UIM Card.........................
Getting to Know Your Phone.............
Display Icons.....................................
Function Keys...................................
Basic Operation
Boot with R-UIM Card ......................
Making Calls .....................................
Redial.................................................
Receiving Calls..................................
Adjusting Volumes ...........................
Choosing the Ring Tone....................
Internal Phone Book
Internal Phone Book..........................17
Storing Phone Numbers in Memory...
Searching for Phone Numbers in
Memory...........................................18
Erasing a Phone Number in
Memory...........................................20
One-Touch Dialing ............................
Two-Touch Dialing.............................
Useful Features
Call History........................................
Displaying Your Phone Number .......
Mute .................................................
Silent Scratchpad .............................
3
4
5
8
9
10
11
14
13
13
14
15
15
17
21
21
23
24
25
Sending Your Phone Number.............
Selecting Time Mode..........................
Setting the Alarm.................................
Checking and Clearing Call Times .....
Setting Warning Beeps ......................
Advanced Features
Changing Greeting Message .............
System Reset......................................
Restricting Use of the Phone..............
Locking the Phone .............................
Pin setup ............................................
Changing the Lock Code....................
Tone Length and Back Light...............
Language............................................
Optional Features
Call Forwarding ..................................
Call Waiting ........................................
Three-Way Calling..............................
Message Service................................
Data Service.......................................
Miscellaneous
Menu Table .........................................
Conversation and Message Menu .....
Specification .......................................
25
25
26
27
28
30
30
31
32
32
33
34
34
40
36
36
36
37
38
41
41
T
2
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B Fixed Wireless Phone
Connecting the World Now
24

AFETY PRECAUTIONS
S
1. Avoid placing the phone in a dusty location, or near a source of gas or fire.
2. Don't shake, hit or drop the phone.
3. To clean the exterior surface of the phone, use only a soft, dry cloth. The chemicals
in alcohol, benzine or acetone can damage the surface of the phone.
4. Do not twist or pull the cord out of the phone.
5. Do not disassemble the phone.
6. DO NOT use the power adaptor if:
- The power cord is damaged.
- The phone has been dropped or damaged in any way.
7. Use only the AXESSTEL provided adaptor. Do not use the AXESSTEL adaptor for
any other purpose.
8. Use only the AXESSTEL provided antenna. Do not use the antenna for any other
purpose.
9. Frequency and length of use can affect the life of the self-charging battery.
Contact your customer service if the battery is not operating properly.
10. Use only the designated self-charging battery. Dispose of exhausted batteries
properly. Never discard a battery in or near fire or flame.
11. Do not use the telephone near water, for example, near a bathtub, sink, wet
basement, or swimming pool.
NOTE1: The AC input voltage and the shape of the plug on this phone may vary
from country to country.
NOTE2: Do not insert or eject R-UIM Card while the phone is powered on.
3
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now

After unpacking your phone, make sure that you have all the parts shown below.
If any piece is missing or broken, please call your customer service center.
HECKING THE PARTS
C
1
2
5
46
89
0#
3
7
MENU
CLEAR
STORE
RECALL
POWER
MESSAGE
ABCDEF
GHIJKLMNO
PQRSTUVWXYZ
OPER
4
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B Fixed Wireless Phone
1. Main Unit 4. User Manual
2. Handset 5. Antenna
3. Power Adaptor 6. Battery
7. Stand / Wall mount bracket
8. Handset Cord
Connecting the World Now

5
1. Remove screws with a screw driver and remove the battery cover on the bottom
of the phone.
2. Plug the battery connector into the socket.
3. Insert R-UIM Card. (P450R/P800R/P1900R models only)
4. Put the battery cover back and fasten the screws.
5. Turn on the Power Switch "ON".
ETTING UP YOUR PHONE
Installing the battery and R-UIM card
(R-UIM on AXW-P450R/P800R/P1900R models only)
S
ON OFF
RUIM
RUIM
[ R-UIM card ]
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now

This phone operates by receiving DC power from the AXESSTEL power adaptor,
which connects to an electrical outlet. The phone is equipped with a rechargeable
battery as a back up in case of an AC power failure.

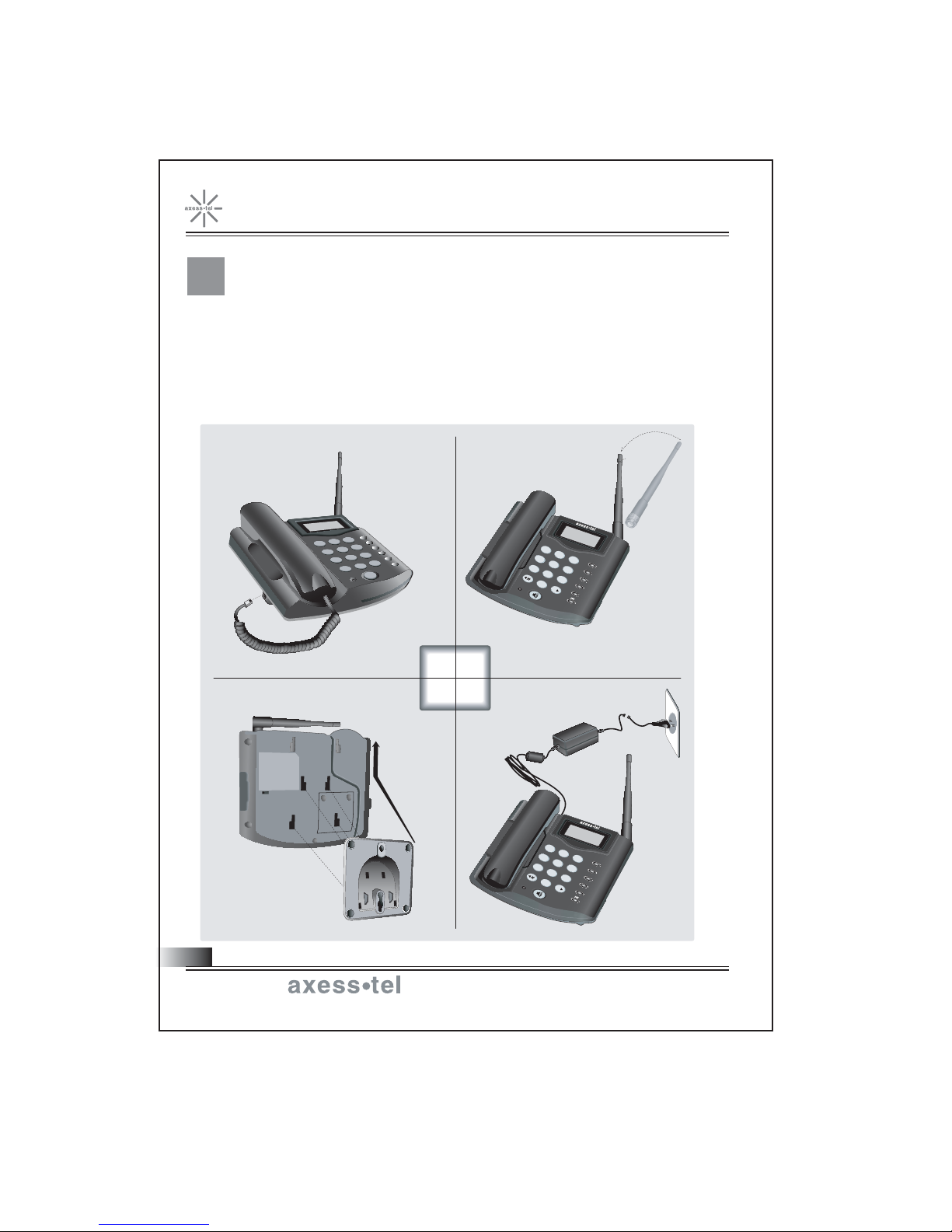

Desktop installation
E
TTIN
G
UP Y
O
UR PH
O
NE
Installing the phone
S
1
2
5
46
89
0#
3
7
MENU
CLEAR
STORE
RECALL
POWER
MESSAGE
ABCDEF
GHIJKL MNO
PQRSTUVWXYZ
OPER
Plug the Power Adaptor into an
appropriate wall outlet
Connect the antennaAttach the handset
Attach the stand/wall mount bracket
12
34
1
2
5
46
89
0#
3
7
MENU
CLEAR
STORE
RECALL
POWER
MESSAGE
ABCDEF
GHIJKL MNO
PQRSTUVWXYZ
OPER
6
ONOFF
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B Fixed Wireless Phone
Connecting the World Now

1. Mark two mounting hole locations on the wall.
2. Drill two holes at the marked location.
3. Attach the wall mountable bracket, if needed.
4. Tighten the screws firmly.
5. Plug in power connector and route the cords in the groove on the back of the phone.
6. Insert the wall mount bracket hook into the holes on the back of the phone.
Push the phone against the wall and pull it down firmly until locked.
7. Screw the antenna into antenna connector.
8. Pull out the handset hanger and reinsert it in the reverse direction, so that the receiver
can be hanged.
NOTE : The input voltage and the shape of the plug may vary from country to
country. The input and output voltages are indicated on the adaptor.
(Input: AC 100~240V, 50~60Hz, Output: DC 9V, 1A).
E
TTIN
G
UP Y
O
UR PH
O
NE
Wall mount installation
S
7
ON OFF
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now

Display in the Service Area
When the power cord is connected properly, all segments
in the LCD window will turn on briefly and Power LED will
light. The number of bars of signal strength indicator
(antenna icon) indicates the strength of service signal of
the area. The display will show the greeting (AXESSTEL
as default), With date and time.
You can change the greeting. (See page 30.)
Display in area with no service
When there is no service signal detected in your area,
no antenna bar appears. Contact your service provider
for the coverage area information.
First, check if the antenna is connected firmly.
Service Status Check
S
TARTING R-UIM (P450R/800R/1900R only)
S
THU 10/09 5:24P
AXESSTEL
AXESSTEL
8
WRONG PIN
2 TIMES LEFT
INPUT PIN
* * * *
1. Entering PIN code.
2. If an incorrect PIN code is entered, an error message
displays.
3. The phone is ready to use after entering the correct
PIN code.
THU 10/09 2:32P
AXESSTEL
NOTE1: The function of pin feature can be set on/off in
PIN setup menu.
NOTE2: PIN code can be changed in PIN setup menu.
NOTE: NOTE: There are 3 chances to enter the correct
PIN code. If incorrect PIN codes are entered
3 times, the R-UIM card will be locked.
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B Fixed Wireless Phone
Connecting the World Now
* Default PIN code is provided by your service provider.

1. Antenna: Adjusting the position of antenna
improves the sound quality of the call.
2. Menu: Press to access the phone's
menus.
3. Clear: Lets you clear your last entry.
4. Store: Stores phone numbers, and any
settings you select in the menu within the
phone's memory
5. Message: Press to retrieve messages.
6. Recall: Allows you to redial the last
number called.
7. Vol/Scroll: Lets you adjust sound
levels and scroll through the menu
options and displays.
8. Shift Keys: Press to move the cursor
when entering letters and to scroll
through menu options and displays.
9. Power LED: The Power LED lights
when the power is connected. Under battery
power, this LED is always off.
ETTING TO KNOW YOUR PHONE
G
MENU
ABC
GHI
PQRS WXYZTUV
OPER
POWER
JKL MNO
DEF
CLEAR
STORE
MESSAGE
RECALL
1. Antenna
2. Menu
3. Clear
4. Store
5. Message
6. Recall
7. Vol/Scroll
8. Shift Keys
9. Power LED
9
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now

Icons display on the screen to indicate what features you are using, signal strength
and battery status etc...
Indicate the strength of the signal. More bars indicate stronger
signal.
Indicates the level of battery power. The more bars, the more
power. When the battery is low, the icon blinks, and an alert
tone sounds.
Indicates that the alarm has been set.
Indicates that you have a text message or a voice mail
message.
ISPLAY ICONS
D
Indicates that you are in the Phonebook menu.
Indicates that a voice or data call is in progress.
Indicates that you are using the phone's menu.
MENU
THU 10/09 2:32P
AXESSTEL
10
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B Fixed Wireless Phone
Connecting the World Now

Press this key to display the phone's main menu.
Clears information from the display screen.
- To erase one character from the display screen, press it once.
- To erase all characters on the screen, press and hold.
- To go back one step in the menu mode, press it once.
Press this key to retrieve messages.
Press this key to store a phone number in the phone book and
to save menu settings.
Press this key to redial the last number called or to connect a
call right after dialing the number without waiting until the call
is connected automatically.
Press this key to control the volume of keypad, earpiece
and speaker. In the menu mode, use this key to scroll through
the menu items.
The Speaker button is used to place or receive a call without
using the handset. The intergated microphone and speaker on the
main unit allows hands free conversation.
(In AXW-P450B/P800B/P1900B models, this key is used for
Hands-free dialing.)
UNCTION KEYS
F
MENU
STORE
MESSAGE
CLEAR
RECALL
11
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now

Basic Operation
Boot With R-UIM Card (P450R/P800R/P1900R models)
Making Calls
Redial
Receiving Calls
Adjuting Volumes
Choosing the Ring Tones

1. Make sure your phone is turned on.
2. Pick up the handset to hear a dial tone.
When the phone fails to acquire service signal, you will
hear "No Service" tone (intermittent tone).
3. Dial the number to call. The LCD window displays
the number.
4. Wait for a moment for auto calling or press .
5. When the other person answers, begin conversation.
6. To end the call, replace the handset on the main unit.
NOTE1: Modifying a phone number while dialing..
- To erase the last digit entered: Press .
- To erase the entire number: Press and hold.
NOTE2: Automatic calling
The phone is set to places a call automatically 4~10 seconds after last digit
entry from the factory. To disable automatic calling or change the delay time,
1. Press , , .
2. Press , to select 'OFF', then press to save.
Once automatic calling is disabled, you have to dial the number and press
to place a call.
AKING CALLS
M
OOT WITH R-UIM CARD (P450R/P800R/P1900R only)
B
RECALL
CLEAR
CLEAR
MENU
RECALL
STORE
DIAL
PLEASE
123-456-7890
CALLING....
13
WRONG PIN
X TIMES LEFT
INPUT PIN
* * * *
1. Enter PIN code.
2. If an incorrect PIN code is entered, an error message
displays.
3. The phone is ready to use after entering the correct
PIN code.
THU 10/09 2:32P
AXESSTEL
NOTE1: The function of pin feature can be set on/off in
PIN setup menu.
NOTE2: PIN code can be changed in pin setup menu.
NOTE: After entering wrong PIN code 3 times, the R-UIM
card becomes locked.
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
Fixed Wireless Phone
Connecting the World Now
* Default PIN code is provided by your service provider.
AXW-P1900 / P1900R / P1900B

Redial the last number you dialed.
EDIAL
R
RECALL
1. Simply pick up the handset or pres to answer the
call.
2. To disconnect, replace the handset or press .
NOTE: When the ringer volume is set to 'Silent', the
phone does not ring. Only the "Incoming Call"
message blinks.
Caller ID Display
The Caller ID feature displays the caller's number when the
phone receives a call. If the caller's name and number are
stored together in the phone book, the caller's name is
displayed. Contact your service provider to activate this
feature.
NOTE: If the call is not answered, the phone displays the
"Missed Call" message with the call arrival date and
time.
When there is an incoming call, the phone rings and blinks
"Incoming Call" message on the display.
When the Caller ID service is activated.
ECEIVING CALLS
R
123-456-7890
INCOMING CALL
JOHN MILLER
INCOMING CALL
THU 10/09 2:56P
MISSED 1 CALL
14
1. Pick up the handset or press .
2. Press .
NOTE : You may not redial when there is no last number dialed stored
in the memory. "NO LAST CALL!" message is displayed on the LCD.
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B Fixed Wireless Phone
Connecting the World Now
AXW-P1900 / P1900R / P1900B

1. Press , , .
2. Press (or , ) to select ring type.
3. Press to save.
DJUSTING VOLUMES
HOOSING THE RING TONES
You can choose from twelve different ring tones.
A
You can control the sound volumes including the key tone, earpiece,
speaker and the ringer
4
4 2
3
C
KEY VOLUME
SPEAKER VOLUME
EARPIECE VOLUME
TONE #1
RING SELECT
15
Adjusting key tone volume
Press repeatedly until it reaches proper volume.
Adjusting external speaker volume
Press repeatedly during hand free call to adjust
external speaker volume.
Adjusting earpiece volume
Pick up the handset and press repeatedly during
a phone call to adjust earpiece volume.
Adjusting ring volume
1. Press , , .
2. Press , to adjust ringer volume.
3. Press to save.
NOTE: If 'Silent' is selected, the phone does not ring
when an incoming call comes in. Only the
"INCOMING CALL" message blinks on the
display.
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
Fixed Wireless Phone
Connecting the World Now
RING VOLUME
AXW-P1900 / P1900R / P1900B

Phone book
Internal Phone Book
Storing Numbers in Memory
Searching for Numbers in Memory
Erasing a Number in Memory
Erasing All Number in Memory
One-Touch Calling
Two-Touch Calling

1. Press , , .
2. Enter the name by pressing the alphanumeric keypad
and pressing after completed.
NOTE1: If you do not want to enter a name, just press
here. The number will be saved as
"No Name".
NOTE2: Name entry is limited to maximum of 16 letters.
How to Enter & Edit TEXTS
You can enter letters using the alphanumeric keypad.
Each button has 3 to 4 letters assigned. Each stroke on
the button scrolls the assigned alphabet letters and the
numeric value. Stop pressing when the letter you want
appears. You can switch between capital and lower-case
letters by pressing . Press again to get
back to capital letters.
To enter special characters, press repeatedly.
For space, press . To go back, press .
A single stoke on will erase the last letter in line.
3. Enter the telephone number and press .
Up to 32 digits can be saved.
4. An empty location displays automatically. Press
to save the number in the location.
5. To assign a different location, enter 2 digit location number
and press .
NTERNAL PHONE BOOK
TORING NUMBERS IN THE MEMORY
Your phone has an internal "Phone Book" in which you can store
up to 99 frequently used names and numbers.
I
S
22
1
STORE
STORE
MESSAGE
CLEAR
STORE
STORE
MESSAGE
NAME ?
PHONE NUMBER
SPEED DIAL : [01]
MEMORY LOCATION
_
17
STORE
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
Fixed Wireless Phone
Connecting the World Now
AXW-P1900 / P1900R / P1900B

NOTE: If you select the location in which a number
has already been stored, "OVERWRITE?" will
display. Press to overwrite or press
to go back to automatic location.
6. "CONFIDENTIAL ?" displays. Press if no
secret feature is necessary. To store the number in
secret, select 'YES' by pressing (or , ) and
press .
NOTE: Secretly saved number will not be displayed unless
the lock code is entered. One or two touch-dialing
secretly saved number will prompt lock code entry.
Searching by Name
1. Press , (Phone book), (Search), (Name).
2. Enter all or part of the name and press .
Example) Enter A and press to find all names
that start with A.
3. The phone displays the memory location numbers along
with the name of the first match.
NOTE: "NO NAME MATCHES" appears when there is no
name matching with your entry.
4. Press (or , ) to search for the name you're
looking for and press to display the number.
NOTE: "ENTER LOCK CODE" appears when you try to
access secretly saved number. Enter lock code
and press .
5. Press to dial the number displayed to make a call.
01 : JOHN MILLER
OVERWRITE ?
EARCHING FOR NUMBERS IN MEMORY
You can search information stored in the phone book in several ways
and make a call directly from the phonebook.
21 1
STORE
STORE
RECALL
STORE
STORE
MENU
STORE
STORE
STORE
.
S
NO
CONFIDENTIAL ?
NAME ?
01 : SUNNY
05 : ALEX
ENTER LOCK CODE
123-456-7890
ALEX
123-456-7890
CALLING....
18
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B Fixed Wireless Phone
CLEAR
Connecting the World Now
AXW-P1900 / P1900R / P1900B

Searching by Phone Number
1. Press , (Phone book), (Search), (Number).
2. Enter all or part of the number you remember and
press .
3. The phone displays the memory location and names which
contain your entry.
NOTE: "NO NUMBER MATCHES" appears when there is no
number matching your entry.
4. Press (or , ) to search for the name you're
looking for and press to display the number.
NOTE: "ENTER LOCK CODE" appears when you try to access
secretly saved number. Enter the lock code and press
.
5. Press to dial the number displayed.
Searching by Memory Location
1. Press , (Phonebook), (Search), (Memory)
2. Enter the two-digit memory location. The phone displays the
information of the memory location.
NOTE: "EMPTY LOCATION!" displays when you enter
location number that is empty.
3. Press to display the number.
NOTE: "ENTER LOCK CODE" appears when you try to
access secretly saved number.
Enter the lock code and press .
4. Press to dial the number displayed.
21 3
2 1 2
RECALL
RECALL
MENU
MENU
STORE
STORE
STORE
STORE
PHONE NUMBER?
LOOK UP
LOCATION ??
19
STORE
AXW-P450 / P450R / P450B
AXW-P800 / P800R / P800B
AXW-P1900 / P1900R / P1900B
Fixed Wireless Phone
Connecting the World Now
