Axial SCX10 II 2017 Jeep Wrangler Unlimted CRC User manual

1

AXIAL BUMPER TO BUMPER ONE (1) YEAR LIMITED WARRANTY
Axial’s warranty center, Hobby Services, guarantees this kit to be free from defects in materials
and workmanship for one (1) year from the date of purchase. Axial will repair or replace, at the
discretion of Hobby Services, Axial will repair or replace any incorrectly made part. Your receipt or
invoice at the time of purchase is your proof of purchase and is required for Axial to honor any
warranty. Axial reserves the right to change or modify this warranty without notice. This warranty
does not cover damages due to normal wear and tear, users' failure to perform routine
maintenance, user error of assembly or installation, modifications, misuse, crash damage or the
addition of aftermarket parts or optional parts.
Repair or replacement of the product by Hobby Services is the sole and exclusive remedy for any
loss or damages.
Neither Axial nor Hobby Services are liable under this limited warranty for any incidental,
consequential, indirect or special damages, including without limitation, loss of profits or other
economic damages.
Note: Purchasing products from unauthorized retailers may void the warranty and prevent support
and service.
INTERNATIONAL CUSTOMER WARRANTY
Please contact the dealer where the purchase was made. If your Axial product purchase was made
through an on-line retailer, any warranty issues must be taken care of by that retailer. Axial
assumes no responsibility for Axial products sold internationally by on-line retailers outside of your
home country/region.
SPECIFICATIONS & DESCRIPTION CHANGES
All information found in this manual is subject to change without notice. Visit Axialracing.com for
the latest updates and information regarding your model. Axial maintains no responsibility for
inadvertent errors in this manual or on the box art.
WARRANTY REPAIRS CONTACT
Hobby Services
3002 N. Apollo Drive Suite 1
Champaign, IL 61822
ATTN: Service Department
Phone: 877-64-AXIAL (877-642-9425)
8:00 am – 5:00 pm Central Time M-F
E-mail: [email protected]
2

AXIAL BUMPER TO BUMPER ONE (1) YEAR LIMITED WARRANTY
Axial’s warranty center, Hobby Services, guarantees this kit to be free from defects in materials
and workmanship for one (1) year from the date of purchase. Axial will repair or replace, at the
discretion of Hobby Services, Axial will repair or replace any incorrectly made part. Your receipt or
invoice at the time of purchase is your proof of purchase and is required for Axial to honor any
warranty. Axial reserves the right to change or modify this warranty without notice. This warranty
does not cover damages due to normal wear and tear, users' failure to perform routine
maintenance, user error of assembly or installation, modifications, misuse, crash damage or the
addition of aftermarket parts or optional parts.
Repair or replacement of the product by Hobby Services is the sole and exclusive remedy for any
loss or damages.
Neither Axial nor Hobby Services are liable under this limited warranty for any incidental,
consequential, indirect or special damages, including without limitation, loss of profits or other
economic damages.
Note: Purchasing products from unauthorized retailers may void the warranty and prevent support
and service.
INTERNATIONAL CUSTOMER WARRANTY
Please contact the dealer where the purchase was made. If your Axial product purchase was made
through an on-line retailer, any warranty issues must be taken care of by that retailer. Axial
assumes no responsibility for Axial products sold internationally by on-line retailers outside of your
home country/region.
SPECIFICATIONS & DESCRIPTION CHANGES
All information found in this manual is subject to change without notice. Visit Axialracing.com for
the latest updates and information regarding your model. Axial maintains no responsibility for
inadvertent errors in this manual or on the box art.
WARRANTY REPAIRS CONTACT
Hobby Services
3002 N. Apollo Drive Suite 1
Champaign, IL 61822
ATTN: Service Department
Phone: 877-64-AXIAL (877-642-9425)
8:00 am – 5:00 pm Central Time M-F
E-mail: [email protected]
3

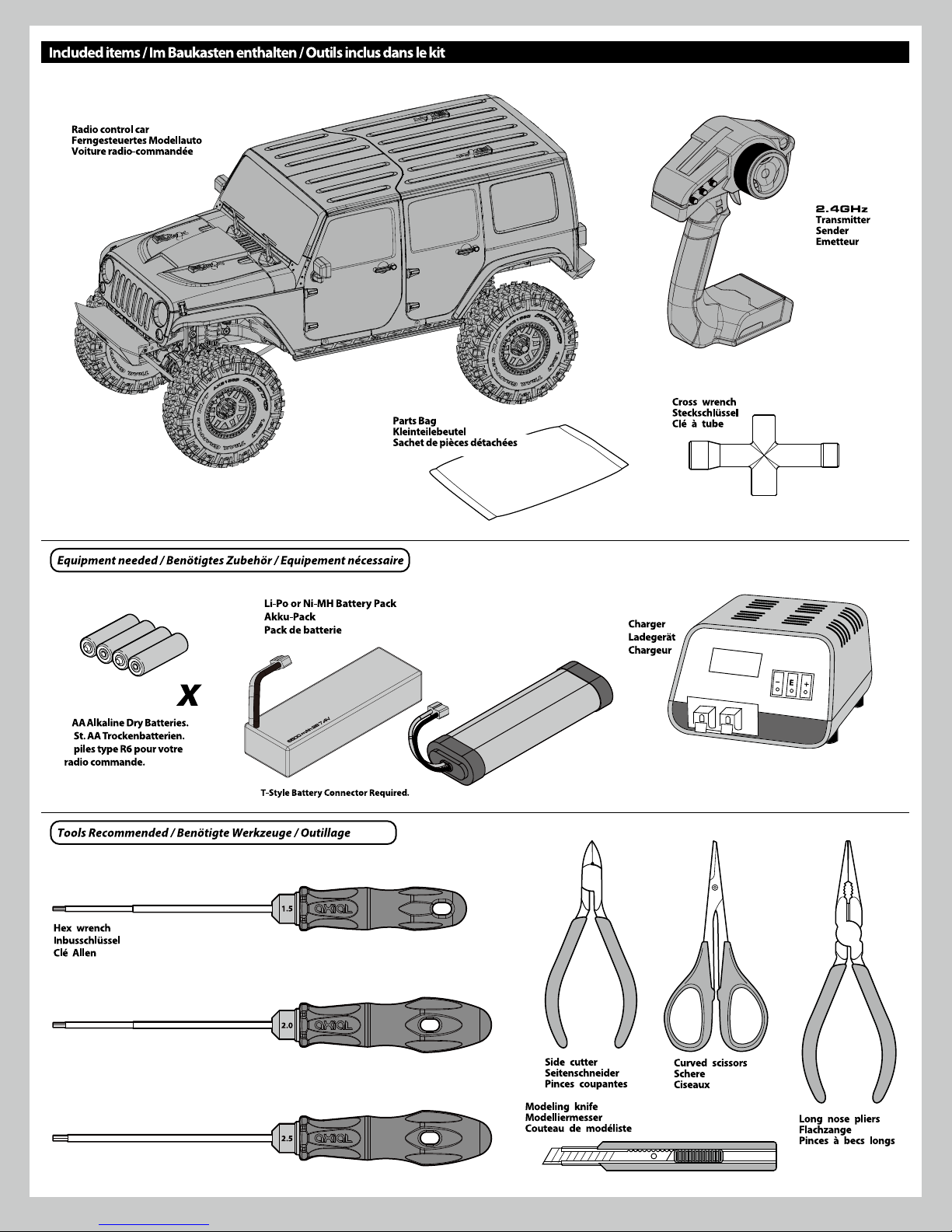

4

4
4
4
4
5

Note:
Power to the vehicle is controlled by
connecting / disconnecting the battery.
Always make sure to disconnect battery
when not in use.
2. Remove the body clips and body.
Install the battery and secure with Hook and Loop Strap.
r.
1. Turn on the transmitte
3. Connect the battery to ESC.
Re-attach the body with body clips.
Make sure charger is correct for battery type selected for use.
Examples: Do NOT charge Lipo batteries with Nickel Metal Hydride
charger. Do NOT charge Nickel Cadmium batteries Lipo charger.
Stellen Sie sicher, Ladegerät ist korrekt für Batterietyp zur Verwendung ausgewählt.
Beispiele: Laden Sie keine Lipo-Akkus mit Nickel-Metall-Hydrid-Ladegerät. Laden Sie
keine Nickel-Cadmium-Akkus Lipo Ladegerät.
Assurez-vous que le chargeur est correcte pour le type de batterie sélectionné
à l'emploi. Exemples: Ne pas charger les batteries Lipo avec chargeur hydrure
métallique de nickel. Ne chargez pas les batteries au nickel-cadmium Lipo chargeur.
6

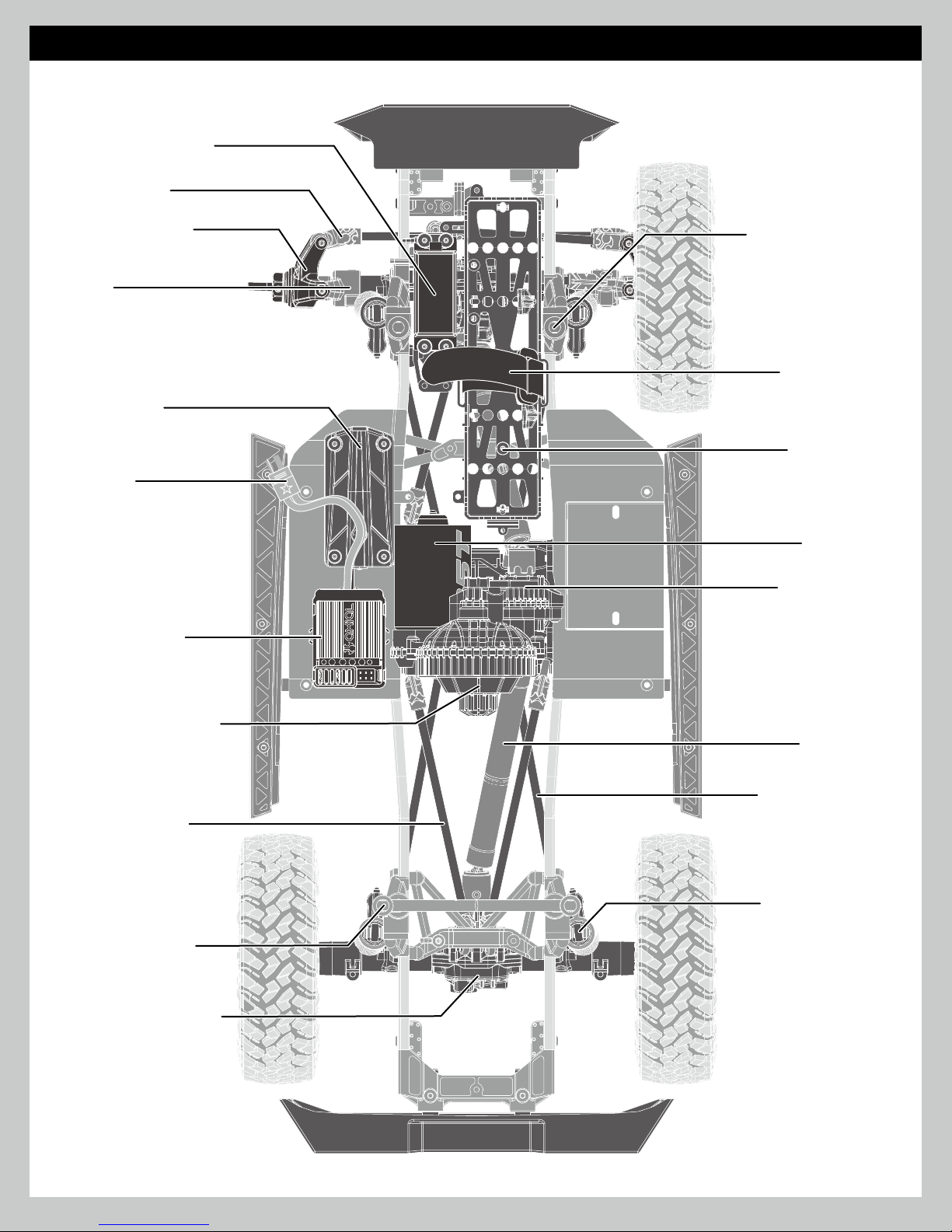

C-Hub
Receiver Box
Steering Rack
Steering Knuckle
Transmission
Lower 4-link Bar
ESC Plug
Shock Absorber
Tactic TSX45 Servo
Rear Body Mount
Battery Tray
Spur/Pinion/Slipper
(Under Cover)
Motor 35T
AE-5 Electronic
Speed Control(ESC)
Differential
(inside axle housing)
Driveshaft
Upper 4-link Bar
Front Body Mount
Battery Strap
7
Top View Parts

Getting-Started Checklist
The following checklist is a guide for getting you vehicle running for the first time.

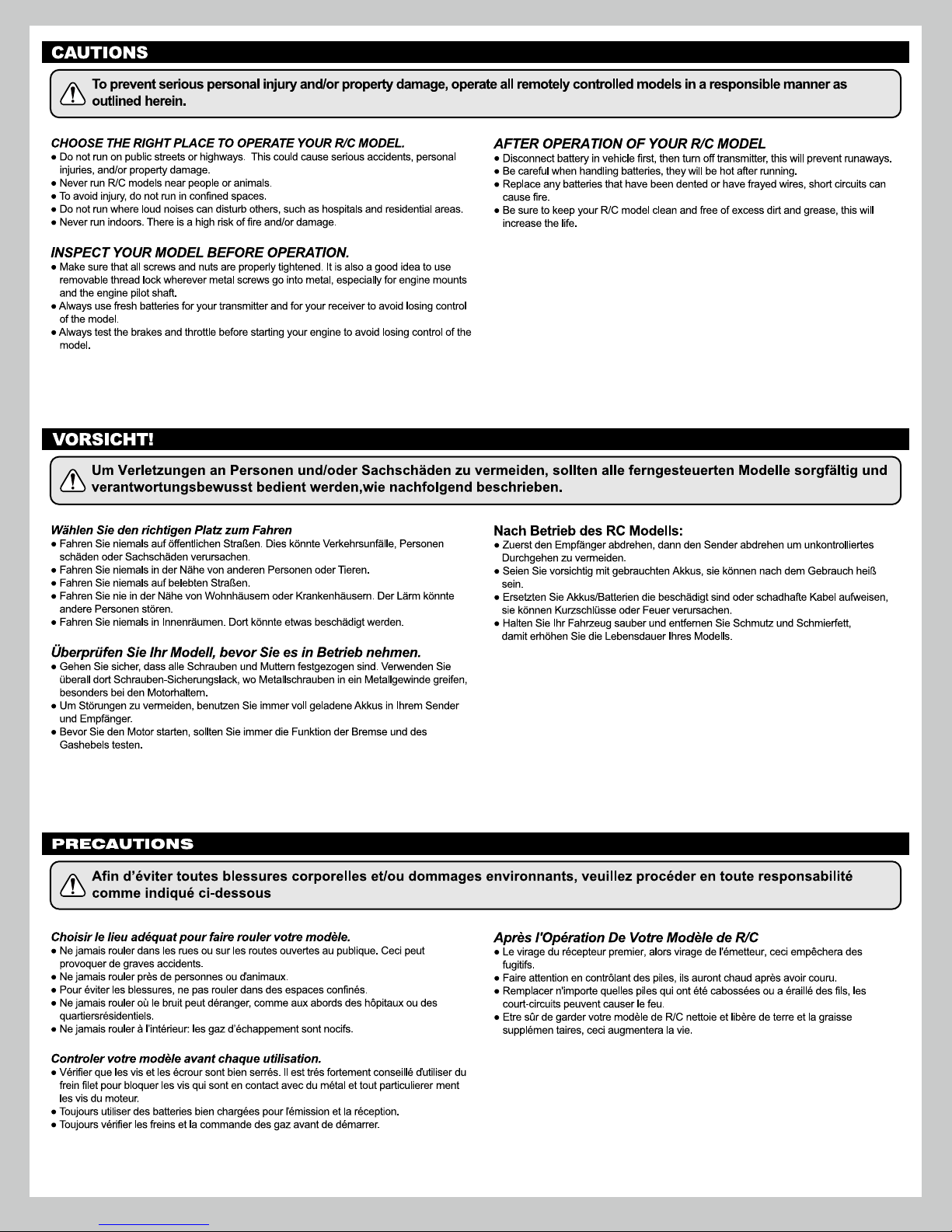

Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and
its components. Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Charge battery pack. (Page 4) Install 4X AA batteries into Transmitter.
(Page 7) Install battery pack in vehicle. (Page 4)
Check to make sure steering and throttle
operation work correctly. (Page 7) Range check radio system. (Page 7)
Drive vehicle, challenge yourself and
have fun! Maintain vehicle. (Page 7)
Turn on transmitter first, then plug in
battery. (power ESC) (Page 4)
8

6
KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
LINKS
(REPLACE IF NECESSARY)
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION (SEE PAGE 25 STEP
23 FOR SETUP INSTRUCTIONS)
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
CHECK STEERING
OPERATION FOR ANY BINDS
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS
MaintainingYourVehicle
Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance.Preventative
maintenance will also help avoid needless breakages which could result in costly repairs.Below are some suggestions to properly maintain
your vehicle.
Range-Checking Your Radio System
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter and then connect the battery in the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle,call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
SCREWS AND RE-THREAD
LOCK IF NECESSARY
CHECK DRIVESHAFT SET
9

Battery Tray
Adjust to the appropriate range.
Suitable battery size.
5.75” x 1.2” (147mm x 32mm)
5.44” x .94” (138mm x 24mm)
������
������
SCX10 II Spur/Pinion Gear Ratio Chart - LCX Transmission
Spur 12
45.50
48.75
42.00
45.00
39.00
41.79
36.40
39.00
34.13
36.56
32.12 30.33
56
60
13 14 15 16 17 18
10
AX31373
AX31373
AX31373
AX31388 3
AX31388 3AX31388 3
AX31373
M2.6x8mm x3

AE-5L Forward/Reverse EAS w/ Drag Brake
4 LED White & Red Light String
Mount the ESC in an area that is well ventilated and isolated from vibration and shock.
Connect the ESC motor wires to the motor red-red & black-black.
Plug the receiver with into the throttle channel on the receiver. The black negative wire should be
towards the outside of the receiver.
Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set at
zero.
Connect the battery to the ESC, this will turn on the ESC.
Test forward and reverse control using the transmitter.
To calibrate the ESC, make sure the transmitter is on and the throttle control is at neutral.
Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic
throttle calibration.When the ESC is ready to run a long beep sound will be emitted from the motor.
Always disconnect the battery when the vehicle is not in use.
Connecting the 2 LED wires to the ESC. The wires should color match.
Rear
Included with vehicle.
AX31480
AE-5L ESC w/ LED Light Ports Receiver Servo
White LED's Red LED's
Red/Black Only
Rear
Front
White/Black Only
2 LED White Light String
(included with optional AX31481 LED Light Set)
11

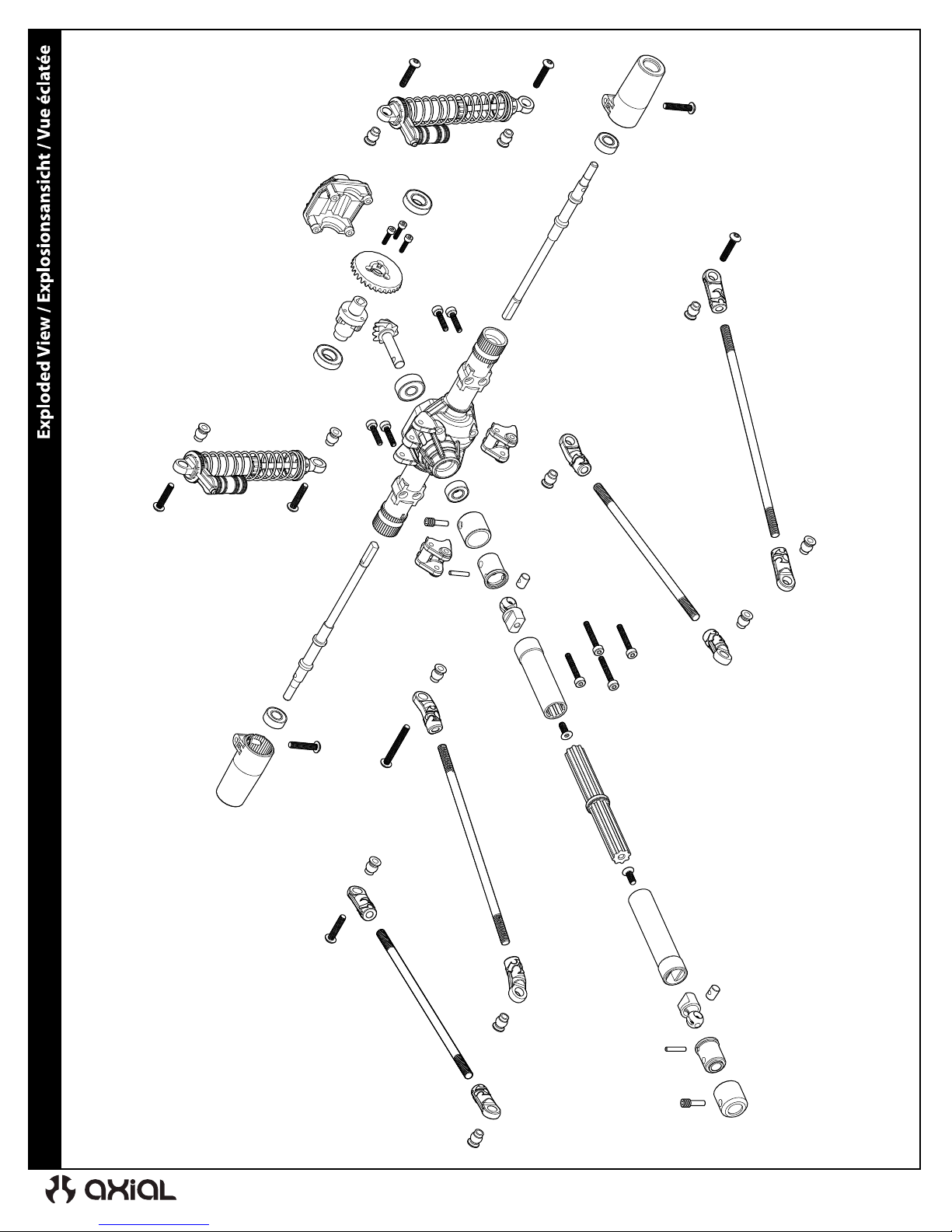

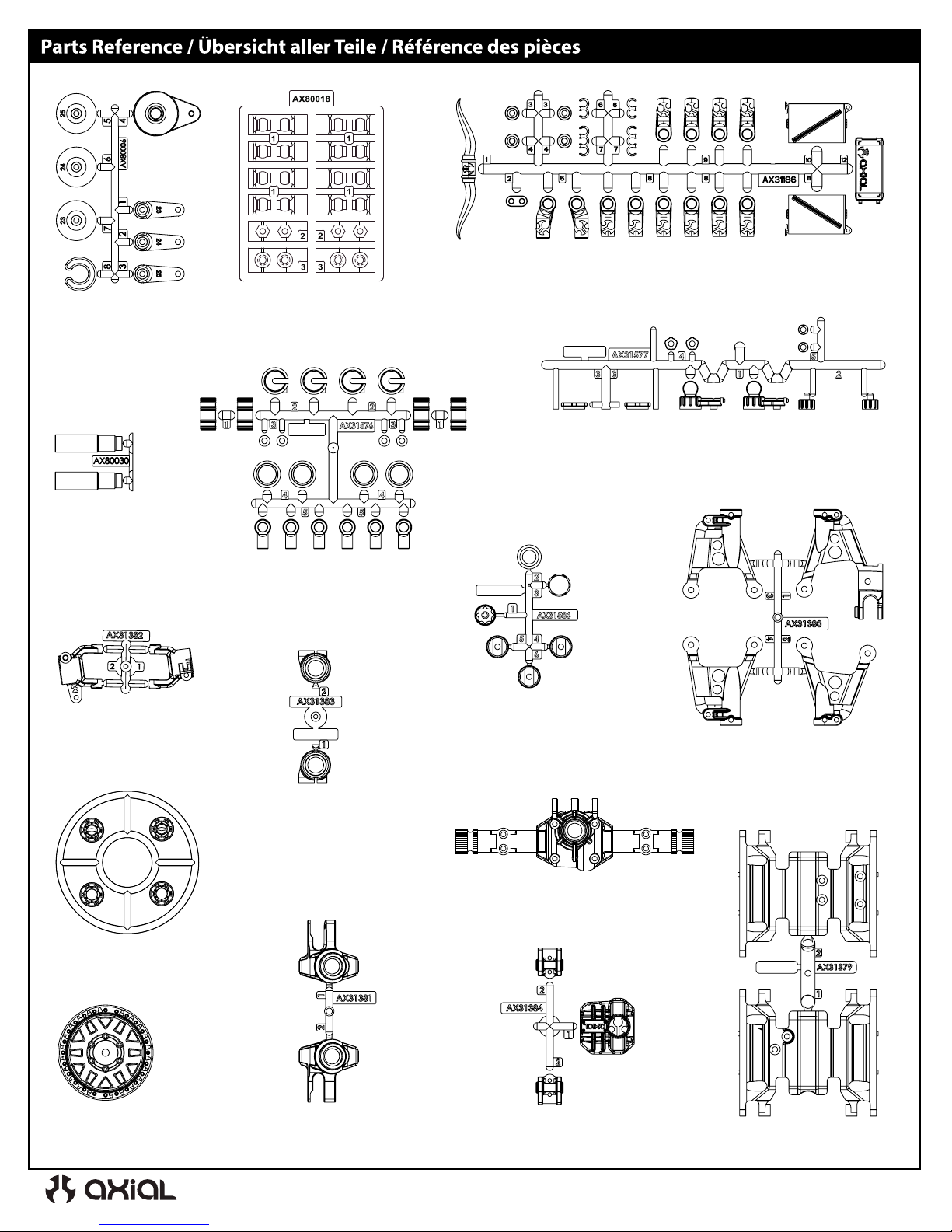

12
AX80018
Hardware Parts Tree x2
AX80006
Servo Set x1
AX80030
61-90mm
Shock Body x2
AX31186
M4 Rod End Set x3
AX8079
Wheel Cap x1
AX31379
SCX10 II Skid Plates x1
AX31587
1.9 KMC Machete Wheel
- 26mm wide x4
AX31380
SCX10 II Shock Hoops x1
AX31381
AR44
Steering Knuckles x1
AX31383
AR44
Straight Axle adapters x1
AX31382
AR44 Knuckle Carrier x1
AX31401
AR44 Axle Housing x2
AX31384
AR44 Differential
Cover and Link Mounts (Red) x2
AX31576
Shock Parts Tree x1
AX31586
WB8-HD Standard Driveshaft x2
AX31577
Shock Cap Parts Tree x2

13
AX31388
SCX10 II Battery Tray x1
AX31572
CRC Front JK Fender Flares x1 AX31575
CRC JK Rear Fender Flares x1
AX31569
Tail Light Lens (Red) x1 AX31573
CRC JK Rock Sliders x1
AX31386
SCX10 II Frame Braces x1
AX31387
SCX10 II Servo Mounts x1
AX31391
SCX10 II Body Posts x1

14
AX31570
CRC JK Rear Bumper x1
AX31574
CRC JK Body Details x1
AX31571
CRC JK Front Bumper x1
AX31418
SCX10 II Chassis Rails x1
AX31027
Spur Gear 32P 56T x1
AX31385
SCX10 II Side Plates x1
AX31531
LCX Transmission Case (Silver) x1

15
AX30146
Shock Shaft 3x50mm x4
AX30413
Slipper spring 8.5x12 x1
x1
AX30427
Narrow 12mm Aluminum Hub x4
AX31083
Radio Box Seals x1
A
Pad
X31068
Slipper x2
AX31148 x4
WB8-HD Driveshaft Coupler Set
AX31026
Slipper Plate x2
AX31145
Spring 12.5x60mm 2.63 lbs/in - (Yellow) x2
AX31441
Spring 12.5x60mm1.13lbs/in - (White) x2
AX31404
AR44 Differential Locker x2
AX31405
Heavy Duty Bevel Gear Set
30T/8T x2
AX30724
Pinion Gear 32P 13T x1
AX30435
Steel Outdrive Shaft x1
AX31585
Gear Set
(48P 28T, 48P 52T)
x1
AX31468
M4x80mm Steel Links x2
AX31473
M4x92mm Steel Links x1
AX31469
M4x103mm Steel Links x2
AX31474
M4x114mm Steel Links x2
AX31470
M4x124.5mm Steel Link x2
AX31467
M4x128mm Steel Links x1
AX31408
AR44 Straight Axle Shaft 5x106mm x2
AX31402
AR44 Universal Axle Set x2
AX31539
Slipper Drive Gear Shaft x1

16

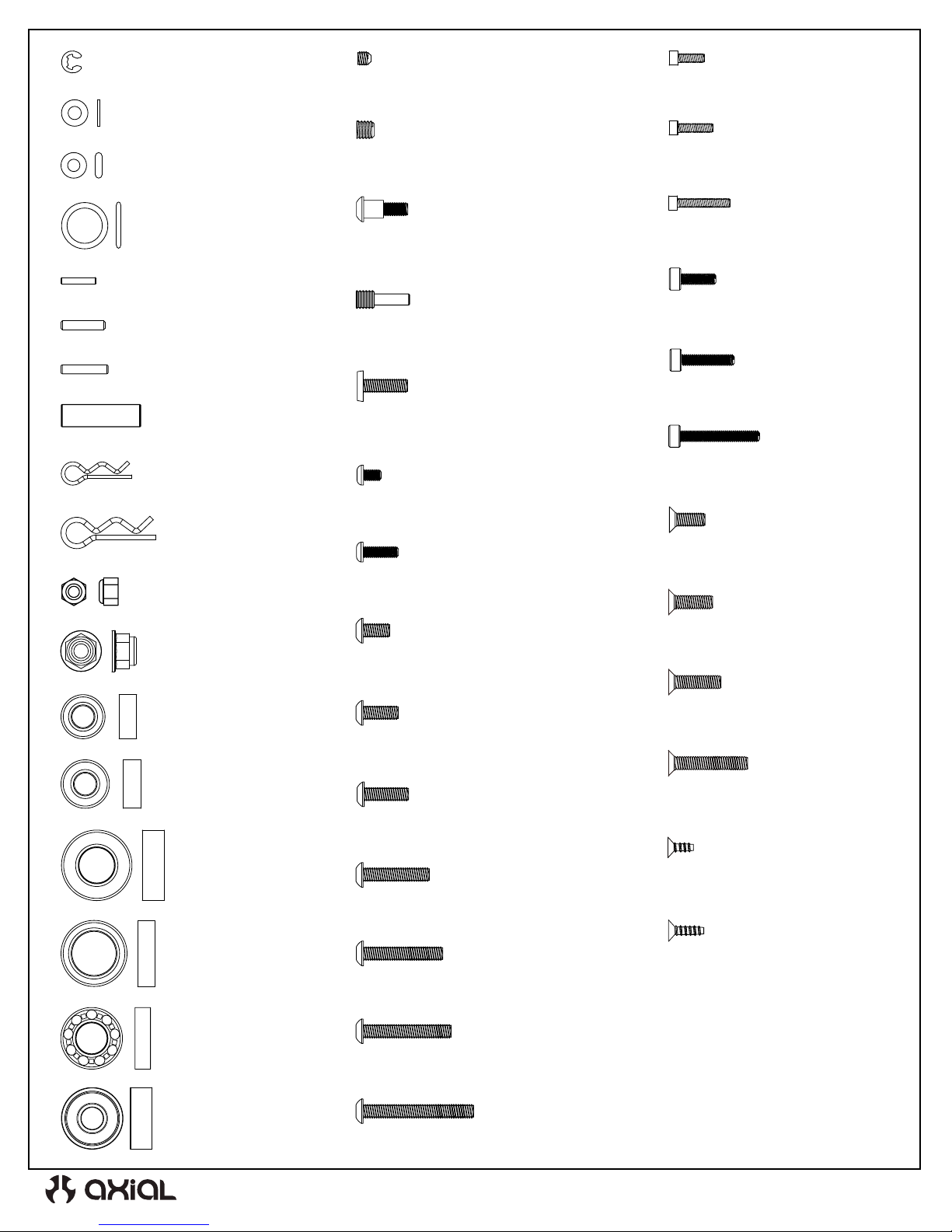

AXA1221
Bearing 5x11x4mm x8
AXA1218
Bearing 5x10x4mm x4
AXA1230
Bearing 10x15x4mm x2
AXA1045
M4 Nylon Lock Nut x5
AXA1059
6mm Body Clip x4
AX31374
4mm Body Clip x7
AXA1392
E2 e-clip x8
AXA1179
O-Ring 2.5x1.5mm x15
AXA1163
O-Ring 7x1mm x4
x4
AXA180
M3x3mm Set Screw
AXA117
M3x15mm Hex Socket Button Head x24
AXA0113
M3x6mm Hex Socket Button Head x5
AXA119
M3x20mm Hex Socket Button Head x1
AXA120
M3x25mm Hex Socket Button Head x2
AXA114
M3x8mm Hex Socket Button Head x4
AXA115
M3x10mm Hex Socket Button Head x6
AXA144
M3x8mm Hex Socket Flat Head x5
AX31120
M3x10mm Hex Socket Flat Head x4
AX31398
M2.6x12mm Hex Socket Cap Head x8
AX31399
M2.6x18mm Hex Socket Cap Head x8
AXA0109
M3x10mm Oversized Flat Hex Socket
x10
AX30162
Pin 1.5x8mm x1
AX30163
Pin 2x10mm x4
AXA118
M3x18mm Hex Socket Button Head x3
AXA291
M4x4mm Set Screw x1
AXA148
M3x18mm Hex Socket Flat Head x4
AXA146
M3x12mm Hex Socket Flat Head x12
AX31028
PIN 2.0 x11 x4
AX31373
M2.6x8mm Hex Socket Button Head x27
AX31403
M3x4x10mm Hex Socket Button Head
Shoulder Screw x4
AX30190
Shaft 5x18 x1
AXA1225
Bearing 8x16x5mm x2
AX31406
Bearing 7x14x3.5mm x4
AX31407
Bearing 5x14x5mm x2
AXA013
M2x6mm Hex Socket Cap Head x13
AXA016
M2x12mmHex Socket Cap Head x4
AX31066
M2x8mm Hex Socket Cap Head x6
AXA0413
M2.6x8mm Hex Socket Tapping Flat Head x4
AXA0023
M2.6x8mm Cap Head x2
AX31194
M2.6x4mm Hex Socket Button Head x2
AXA0412
M2.6x6mm Hex Socket Tapping Flat Head (Black)
x6
AXA1053
M3 Nylon Lock Nut x2
A XA0286
Screw Shaft M4x12mm x12
AXA1070
Washer 3x6x0.5mm x1

17
AXA117
AXA0286
AX31028
AXA117
AXA117
AXA117
AXA117
AXA117
AXA119
AX80018
AX31186
AX31186
AX31186
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018 AX80018
AX31186 AX31186
AX31186
AX31186
AX31186
AX31186
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX31468
AX31467 AXA117
AXA117
AXA117
AXA117
AXA120
AXA117
AXA117
AXA0113 AXA1070
AX31384
AX31406
AX31405
AX31405
AX31066
AX31404
AX31407
AX31398
AX31398
AX31381
AX31381
AXA1230
AXA1230
AXA1221
AX31401
AX31384
AX31384
AX31382
AX31402
AX31402
AX31382
AXA1221
AXA1221
AXA1221
AX31403
AX31403
AX31403
AX31403
AXA1221
AX31586
AX31399
AX31399
AX31586
AX31586
AX31586
AX31586
AXA144
AXA144
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AXA0286
AX31028
AX31473
AX31469
AX31469
AX31406
AX80006
AXA1053
AX31468
AX31186
AX31186
AX31186
Front Axle

18
AXA120
AX31384
AX31406
AX31066
AX31405
AX31404
AX31407
AX31401
AX31398
AX31398
AX31405
AX31408
AXA1221
AX31586
AX31586
AX31586
AX31586
AX31586
AXA144
AXA144
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AXA1221
AXA1221
AX31383
AX31383
AX31408
AX80018
AX80018
AX80018
AX80018
AX31470
AX31470
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31384
AX31384
AX31474
AX31474
AX80018
AX80018
AX31028
AXA0286
AXA0286
AX31028
AX31406
AX31399
AX31399
Rear Axle

19
Transmission
AX31068
AX31027
AX31027
AXA1045
AX31068
AX31026
AX30435
AX30435
AX31585
AX31585
AXA0109
AXA0109
AXA1225
AXA1218
AXA013
AXA013
AXA013
AXA0023
AXA146
AXA146
AXA146
AXA146
AX30724
AXA291
AX31312
AX31531
AX31531
AX31539
AX31531
AXA0023
AX30190
AX30162
AXA1218
AXA1218
AXA1218
AXA1225
AX30394
AX31026
AX30413

20
AX31391
Chassis
AXA0113
AXA114
AXA114
AXA114
AXA114
AXA144
AXA0113
AXA0113
AXA0113
AX31120
AX31120
AX31120
AX31120
AXA118
AXA118
AXA146
AXA146
AXA1053 AXA118
AXA117
AXA117
AX31570
AX31386
AXA117
AXA117
AXA0286
AXA0286
AXA0286
AXA0286
AXA115
AXA115
AXA0109
AXA0109
AX30041 AXA146
AXA146
AXA146
AXA146
AX31391
AX31391
AX31391
AX31391
AX31379
AX31380
AX31380
AX31373
AX31571
AX31373
AX31387
AX31387
AX31386
AX31386
AX31388
AX31388
AX31388
AX31380
AX31380
AX31418
AX31418
