Brief Introduction
Thank you for choosing our vehicles. Each car is designed according to a
unique mold, such as the realistically imitated vehicle and cute series, which
will bring different fun and feelings to your children. We wish our vehicles
will accompany your children through a happy childhood and make your
family full of joy and happiness.
Important Safety Instructions
Read carefully and follow all the instructions
AWARNING CAUTION
Assembly/Use
Product requires adult assembly. Children can be harmed by small
parts,sharp edges and sharp points in the vehicle's unassembled state.
Care should be taken in unpacking and assembly of the vehicle. Children
should not handle parts, or help in assembly of the vehicle.
Always properly handle the protective material and poly bags before
assembly. Children are prohibited from playing them to avoid the danger of
suffocation.
Suitable for age 37-84months; Maximum user weight is 25 KG.
Choking hazard----small parts. This product is forbidden to children
under 3 years.
Suitable Age 37-84Months Load Capacity < 25 KG
Speed 3 KM/H Size of Car 82*36*52.5CM
Power Way Charging Type Charging time 8~12 Hours
Fuse 10 A Average
Battery Life
Charge
approximately
300 times
Charger
Input: 100V-240V
50/60Hz
Output: DC6 V
500mA
Battery 6V4.5Ah
03

Direct Adult Supervision Required. Never leave child unattended by
himself.
Always keep child in view when he is in vehicle. Teach appropriate safety
rules to your child before allowing operation of this vehicle. These rules
should also be understood by other playmates who want to drive this vehicle.
Make sure children know and follow these rules for safe driving and riding:
● Always wear shoes;
● Always sit on the seat;
● Always wear a helmet when riding;
● Only one rider at a time.
Keep children within safe riding areas, these areas must be:
A Away from steps/cars/driveways/roads and alleys;
B Away from sloped/inclined surfaces/swimming pools or other bodies of
water;
C Away from other dangerous places;
D Only outdoors. Generally flat ground/playground /Garden asphalt and other
hard surfaces;
Never use in the dark. A child could encounter unexpected obstacles and
have an accident. Operate the vehicle only in the daytime or a well-light area.
Before use, check whether the main components are in good condition
Insert the battery plug and turn on the power. Check whether the battery,
charger, wire, plug, car body and other parts are damaged, whether the screws
are loose. If there is any damage, do not use the damaged car until the repair
is done.
To avoid damaging the motors and gears, stop the vehicle before shifting
from forward to backward switch.
When not driving, please turn the forward/stop/backward switch to "O"
position.
Turn off power switch.(notice:this switch only controls the drive parts.)
Do not let any child touch the wheels or near them when the car is moving.
This vehicle has adjustable seat belts. Please instruct children how to tie
the safety belt before using to guarantee the safety.
Do not tow anything behind the vehicle or overload it. Do not exceed the
maximum weight capacity of 25 KG.
04

AWARNING: Never leave child unattended.
AWARNING: void serious injury from falling or sliding out.
Always use seat belt.
AWARNING: Parcels or accessory items, or both, placed on the unit may
cause the unit to become unstable.
Important Safety Instructions
Battery /Charger Alkaline Battery
The battery Icharger /alkaline batteries are not toy, forbidden for children
playing.
Non-rechargeable batteries are not to be recharged. Do not charge
non-rechargeable batteries.
Do not mix old and new batteries or batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium).
Battery charging must be done by adults only.
Remove rechargeable batteries from the vehicle before charging.
Insert the batteries into the battery compartment according to the correct
polarity. (As shown in the picture)
Remove exhausted batteries from the product.
Remove batteries during long periods of non-use.
Never short-circuit the battery terminals.
Only use with rechargeable batteries and chargers prescribed by the
manufacturer.
Do not use the battery or charger for any other product, which could cause
overheating, fire or explosion.
Do not open the battery and the charger
Do not charge battery upside down.
Always maintain battery dry. Do not let the vehicle contact fresh water or
salt water.
Charge
Charge 4-6 hours before the first time using, but not charge over 10 hours.
Only adult can handle or charge the battery. Never allow children to do that.
Turn off power switch before charging the battery.
D.C1.5V(SIZE:AA)
D.C1.5V(SIZE:AA)
05

When the normal speed of the vehicle slows down significantly or after
each use, recharge the battery for 8-12 hours, never charge the battery longer
than 18 hours.
Examine the battery, charger and their connectors for excessive wear or
damage each time you charge the battery. If damage or excessive wear is
detected, do not use the charger or the battery until you have replaced the
worn or damaged parts.
Charge the battery in a dry area ONLY.
It is normal that charger and battery are tepid while charging.
Charge the battery at least once per month, even if the vehicle has not
been used.
When the room temperature is lower than 5℃, the actual charging time is
extended by 3-5 hours. Do not use this product below -5℃.
Packing List
Please identify all parts before assembly and save all packaging materials
until assembly is complete to ensure that no parts are discarded.

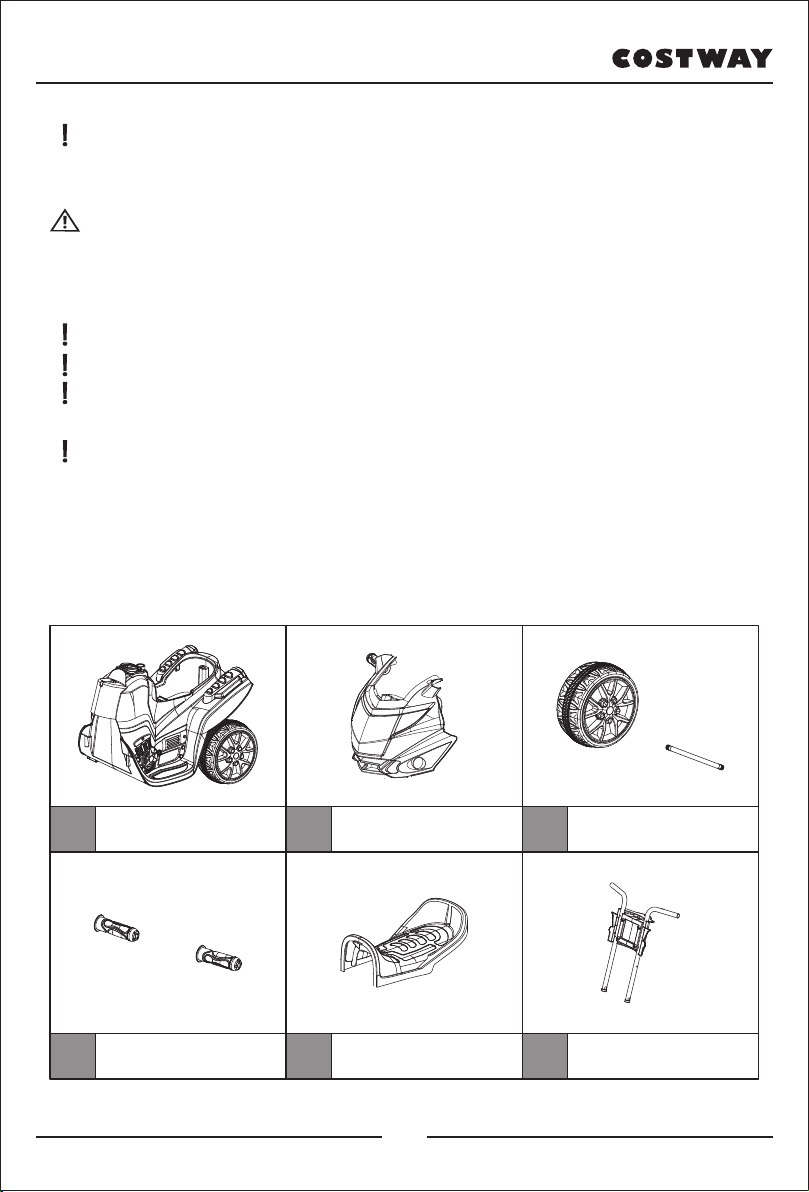

1 2 3
4 5 6
Main Body Front Wheel+Front Axle Haedstock Accessory
Grip Front Fork Accessory Seat
06

7 8 9
10 11 12
Wind Frame MotorGuide Book
Toolbox Rearview MirrorAccessory Package
13 14 15
Charger
Rear Bracket+Platform
Front Wheel Fender
07

Parts Diagram
Tools Required
Screwdriver
(Not included)
Pliers
(Not included)
08

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Car Body
Toolbox
Rear Bracket
Seat
Φ4*12 Self-tapping Screw
M8*140 Machine Screw
Headstock
Front Wheel Fender
Front Wheel
Front Fork
Platform
Screw
Washer
Front Axle
Rearview Mirror
Wind Frame
Grip
09

Assembly Steps
Grip Assembly
● Pressing the grip into the front fork
with full strength according to the
picture.
Wind Frame Assembly
● Remove the screw from the wind
frame
● Inserting the wind frame into the
right place of the headstock
● Using the screw to tighten the wind
frame and headstock
Rearview Mirror Assembly
● Remove the screw from the
headstock
● Inserting the rearview mirror into
the right place
● Using the screw to tighten rearview
mirror and headstock
1
2
3
10

Front Wheel Front Axle
Washer
Screw
Front Fork Assembly
● Remove the screw from the
headstock
● Pass the line on the headstock
through the middle of the fork
connection part
● Using the screw to tighten rearview
mirror and headstock
● To fix the front fork and front
assembly, first align the upper hole
positions and tighten the screws, then
push the lower part by hand to align the
holes, and then tighten the screws.
Platform, Front Wheel Fender
and Front Fork Assembly
● Pressing the platform into the right
place of the headstock
● Pressing the front fork into the front
wheel fender (Please identify the front
and rear direction of the front wheel
fender.)
● Using two 4*12 self-tapping screw
to tighten the front wheel fender and
the front fork
Front Wheel Assembly
● Putting one screw and one washer on
the one side of front axle
● Passing the front axle through the
front fork, then putting another washer
● Adding the wheel onto the front axle,
then putting another washer
● Passing the front axle through the
front fork, putting another washer and
tightening it with the screw.
4
5
6
11

Car Body and Headstock Assembly
● Inserting the plug on the headstock
into the plug on the car body
● Inserting the headstock into the
right place on the car body
● Using M8*140 machine screws to
tighten the headstock and the car
body
● Adding a washer to the screw, then
using the nut to tighten the headstock
Toolbox and Rear Bracket Assembly
● Remove the screw from the rear
bracket for using,
● Inserting the rear bracket into the
car
● Use the screw to fix the rear
bracket to the car.
● Use three Φ4*12 self-tapping
screws to fix the toolbox to the rear
bracket.
● Put the upper cover and lower
cover of the toolbox together, and
align the edge clips to make them
stuck.
Seat Assembly
● Remove the screw from the car for
using, pressing the seat into the right
place, then using the screw to tighten
the seat and the car.
7
8
9
Inserting
12

Connecting Power Line
● Inserting red wire into red column
(Avoid inserting into the black
column)
10
Red column
Red wire
Black column
Battery Black
wire
How to Operate the car
Notice: When you changing the tap position, please make sure the vehicle has
completely stopped, otherwise it will damage the gear box and the motor.
power switch and forward/backward switch are on the front part of the car
forward/
backward button
music button
pedal switch
music button
power switch
13

Power switch
Press the power switch to turn it on, and press it again to turn it off.
Pedal switch Forward
1. Press the forward button
2. Tread the pedal, the car will move forward
Backward
1. Press the backward button
2. Tread the pedal, the car will move backward
Music
Press the music button to play music. If you don’t press it again, the music
will stop automatically.
Do not be close to the ear, improper use can cause hearing damage.
Charge
Caring For Your Vehicle
● The vehicle body is modeled by polypropylene. Do not use it in the direct
sunlight or at -15℃. Keep the vehicle away from hot objects, such as ovens,
as heated plastic parts may melt.
● Avoid operating the vehicle in wet or snowy conditions, and do not spray
the car with a hose. Do not wash the vehicle with soap and water. Water or
moisture in the motors or electrical switches may cause them to corrode and
may cause the switch or motor to malfunction.
21
1. Plug the charge
port into the input
socket;
2. Plug the
charger into a
wall outlet. The
battery will
begin charging.
14

● Avoid operating the vehicle on the sand, loose dirt or gravel. Sand, loose
dirt or gravel in the motors or electrical switches may cause them to jam, and
may cause the switch or motor to malfunction.
● You can use a soft dry cloth to wipe the vehicle to get a shiny finish, or use
a wax-free furniture polish on the soft cloth to wipe the plastic parts. Do not
use automotive wax. Do not use soap or water or spray the vehicle with a
hose.
● Do not modify the electrical system. In the event of a malfunction, it must
be maintained by professionals. Otherwise, it may cause a fire, resulting in
serious personal injury, and may damage the electrical system.
● After using for about half a month, check whether the wheels rotate flexibly
and whether the motor works normally. Use infused lubricant to lubricate
moving parts.
Problems and Solutions Guide
Problem: The vehicle does not run
● Cause: The battery may be low on power.
After each use and at least once a month, charge the battery for 8-12 hours.
Do not charge for more than 18 hours.
Problems and solutions guide
● Cause: Thermal fuse has tripped. The vehicle is equipped with a fuse.
When the vehicle is overloaded or operated incorrectly, the fuse will be cut
off for 2 minutes before becoming operational again. The fuse is under the
seat (refer to the picture)
● Cause: battery connector or wires are loose
Make sure the battery connectors are firmly plugged in to each other.
10 A
fuse
15

● Cause: battery is dead
Please contact us.
● Cause: electric system is damaged
Please contact us.
● Cause: motor is damaged
The motor needs professional repair. Please contact us.
● Problem: The battery can not be recharged
Cause: battery connector or adapter connector is loose.
Make sure the battery connector and adaptor are firmly plugged together.
● Cause: charger is not plugged in.
Make sure the charger is plugged into the wall outlet and the power flow to
the outlet is on.
● Cause: charger is not working
Is the charger warm while charging? If not, the charger may be broken and
please contact us.
● Problem: The vehicle does not run very long
Cause: battery may be undercharged. You may not be charging the battery
long enough. After each use or at least once a month, charge the battery for
8-12 hours. Do not charge over 18 hours.
Disposal of Battery
● Do not throw into a fire. The battery may explore or leak.
● Your sealed lead-acid battery must be recycled or disposed of in an
environmentally sound manner.
● Return an exhausted battery to your local approved lead-acid battery
recycling facility.
16

Warnings
1. This product is not a means of transportation. Do not drive on the street.
Use this product under adult supervision.
2. Children under 36 months are not allowed to use this product.
3. Overage and overload are prohibited. The maximum load is 25KG.
4. The car should be assembled and checked by an adult to ensure safety
before use.
5. Do not wash the product with water, wiping the car using a soft wet cloth
only
6. Battery charging can only be operated by adults. Charger is not a toy. Do
not let children play with the charger.
7. It is strictly prohibited to drive in dangerous areas such as public avenues,
streets, slopes, poolsides, and stairs.
8. Do not use this product in high-voltage lines, substations, gas stations, or
hospitals.
9. You must wear shoes and a seat belt when using this product.
10.Please read carefully and keep this manual book for your children's safety.
11. In order to prevent a child from suffocation, keep plastic bags away from
children.
17

18

Elektrisches Kindermotorrad
TY327423
Bitte geben Sie uns eine Chance,
es zu korrigieren und besser zu machen!
Wenden Sie sich zunächst an unseren freundlichen Kundendienst.
Ersatz für fehlende oder beschädigte Teile wird so schnell wie möglich versendet!
DAS HANDBUCH ENTHÄLT WICHTIGE SICHERHEITSHINWEISE. BITTE LESEN UND BEWAHREN SIE FÜR DIE ZUKÜNFTIGE VERWENDUNG AUF.
Folgen Costway
EN DE FR ES IT PL
HANDBUCH
Das Handbuch dient nur als Referenz.
Die Produktmerkmale können von den
Bildern im Buch abweichen, und die
spezifische Konfiguration hängt von
Ihrer Bestellung ab.
19

20
