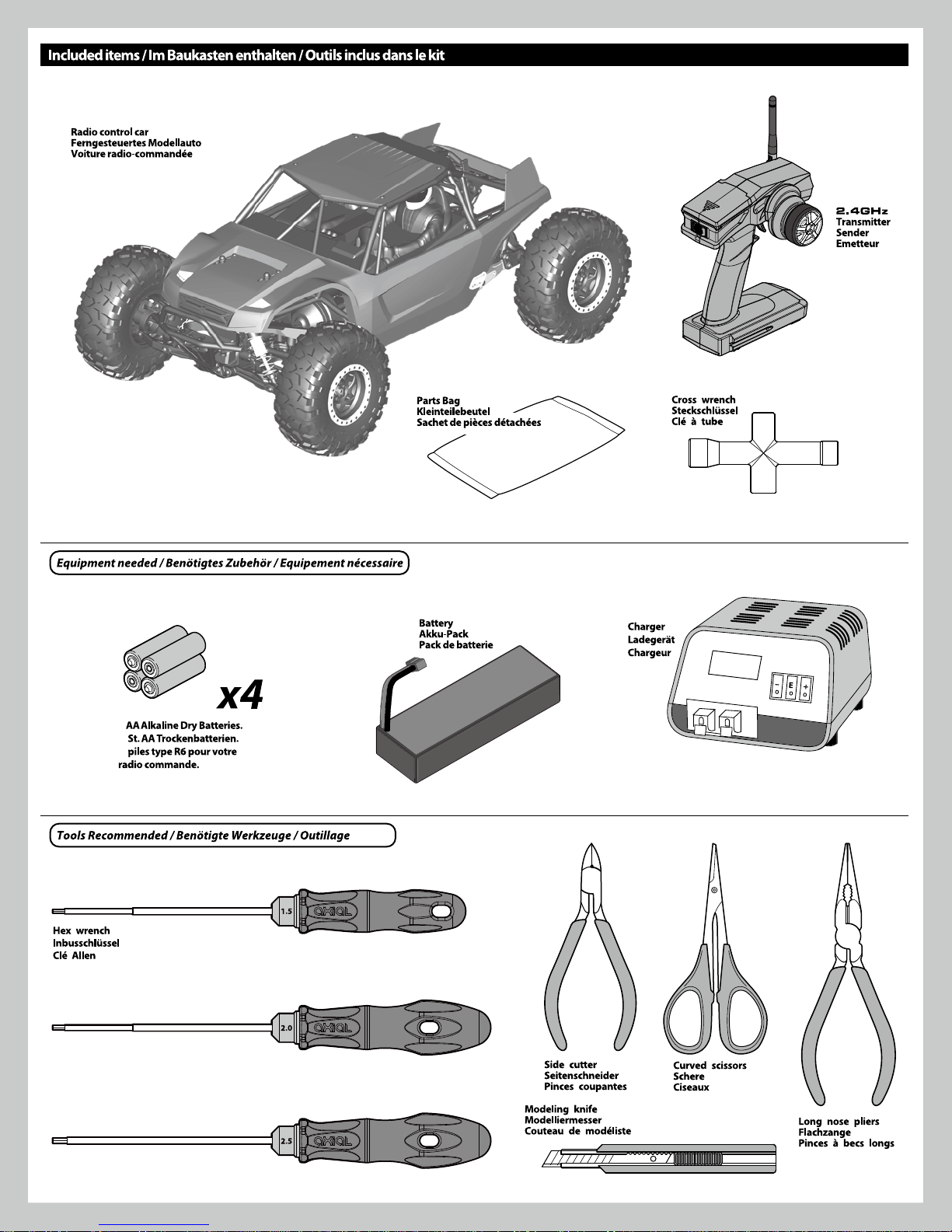

Do not use a Nickel Cadmium or Nickel Metal Hydride battery charger to
charge LiPo batteries. Damage to the batteries and charger will likely
occur resulting in a fire.
Verwenden Sie keine Nickel-Cadmium-oder Nickel-Metall-Hydrid-Akku
Ladegerät LiPo-Akkus aufladen. Schäden an den Batterien und
Ladegerät wird wahrscheinlich auftreten, was zu einem Brand.
Ne pas utiliser un chargeur de batterie au nickel-cadmium ou
nickel-métal-hydrure pour recharger les batteries LiPo. Les dommages
aux batteries et le chargeur se produira probablement de provoquer un
incendie.
1. Removing the Body
Put the battery in the car.
3. Turn on the transmitter.
4. Turn on the electronic speed controller.
2. Install the battery
Put back the Body.
4

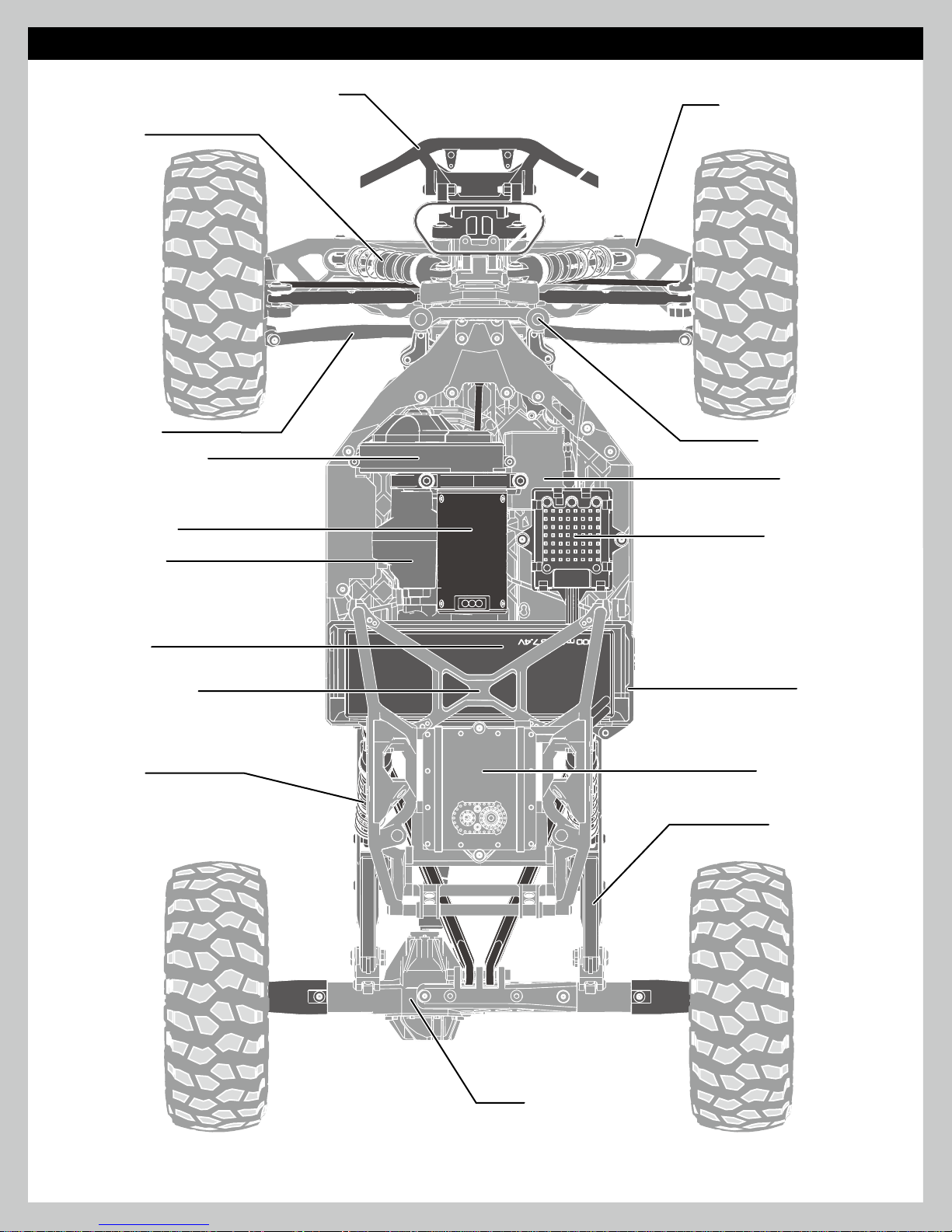

Front Bumper
Front Body Mount
Steering Rack
Spur/Pinion/Slipper
(Under Cover)
Battery Tray
Rear Axle
Front Control Arm
Front Shock
Absorber
Rear Shock
Absorber
Brushless Motor
Transmission
Adjustable Battery
Clamp
Rear Swing Arm
Realistic Fuel Cell
Battery Door
Steering Servo
Electronic Speed
Control (ESC)
Do not use a Nickel Cadmium or Nickel Metal Hydride battery charger to
charge LiPo batteries. Damage to the batteries and charger will likely
occur resulting in a fire.
Verwenden Sie keine Nickel-Cadmium-oder Nickel-Metall-Hydrid-Akku
Ladegerät LiPo-Akkus aufladen. Schäden an den Batterien und
Ladegerät wird wahrscheinlich auftreten, was zu einem Brand.
Ne pas utiliser un chargeur de batterie au nickel-cadmium ou
nickel-métal-hydrure pour recharger les batteries LiPo. Les dommages
aux batteries et le chargeur se produira probablement de provoquer un
incendie.
1. Removing the Body
Put the battery in the car.
3. Turn on the transmitter.
4. Turn on the electronic speed controller.
2. Install the battery
Put back the Body.
5
Top View Parts

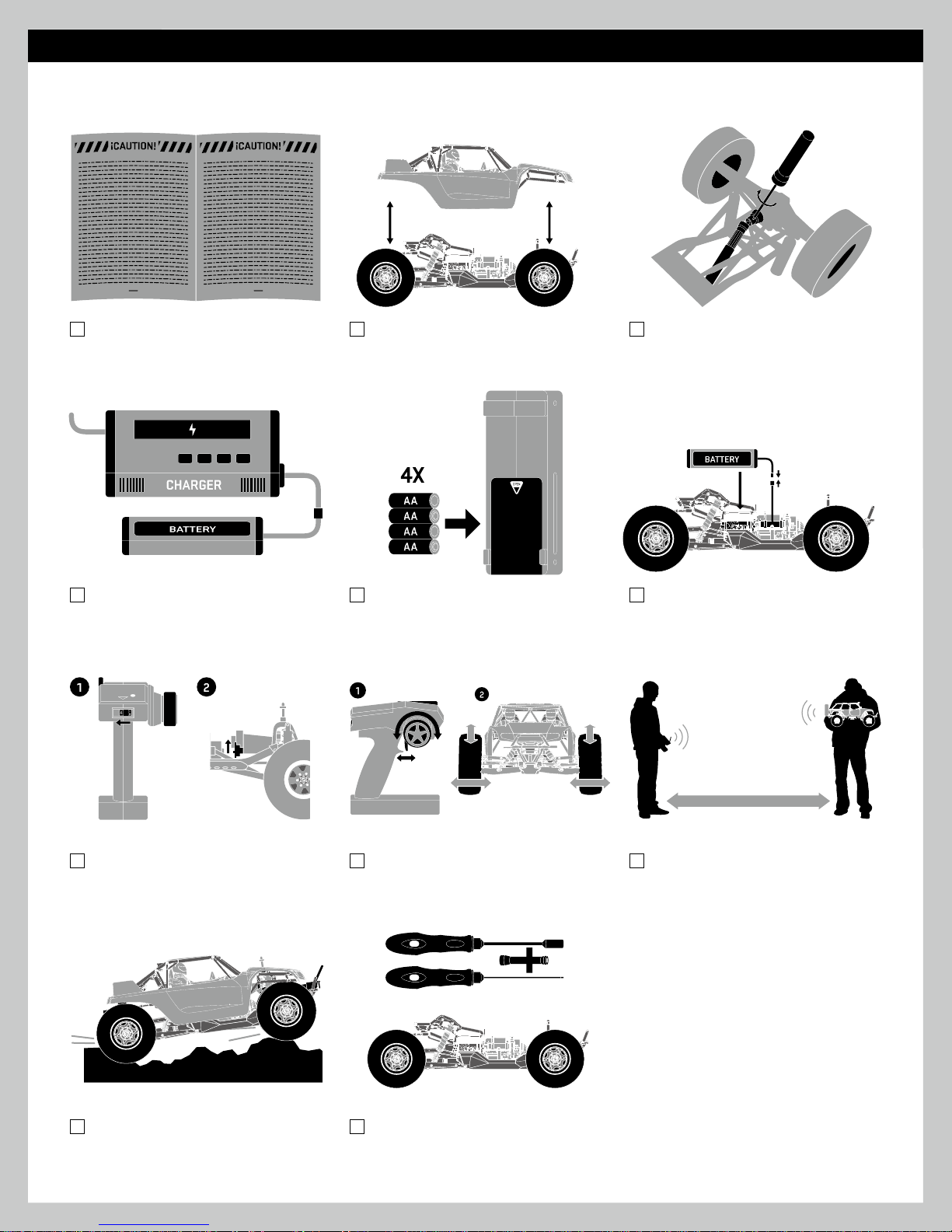

Getting-Started Checklist
The following checklist is a guide for getting you vehicle running for the first time.

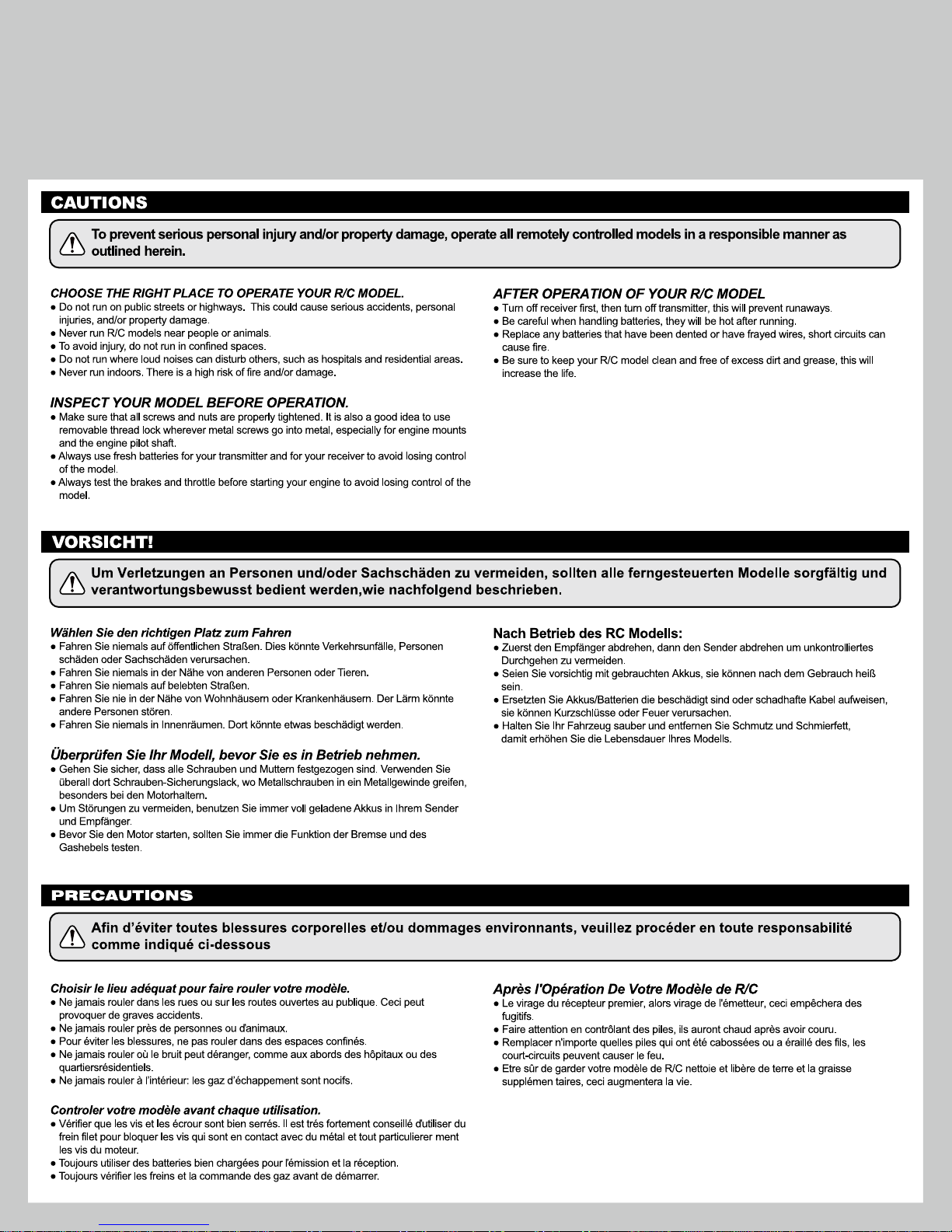

Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and
its components.
Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Charge battery pack. (Page 4) Install 4X AA batteries into Transmitter.
(Page 7)
Install battery pack in vehicle. (Page 4)
Turn on transmitter FIRST then ESC.
(Page 4)
Check to make sure steering and throttle
operation work correctly. (Page 7)
Range check radio system. (Next Page)
Drive vehicle, challenge yourself and
have fun!
Maintain vehicle. (Next Page)
6

KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
LINKS
(REPLACE IF NECESSARY)
CHECK DRIVESHAFT SET
SCREWS AND RE-THREAD
LOCK IF NECESSARY
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
CHECK STEERING
OPERATION FOR ANY BINDS
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS

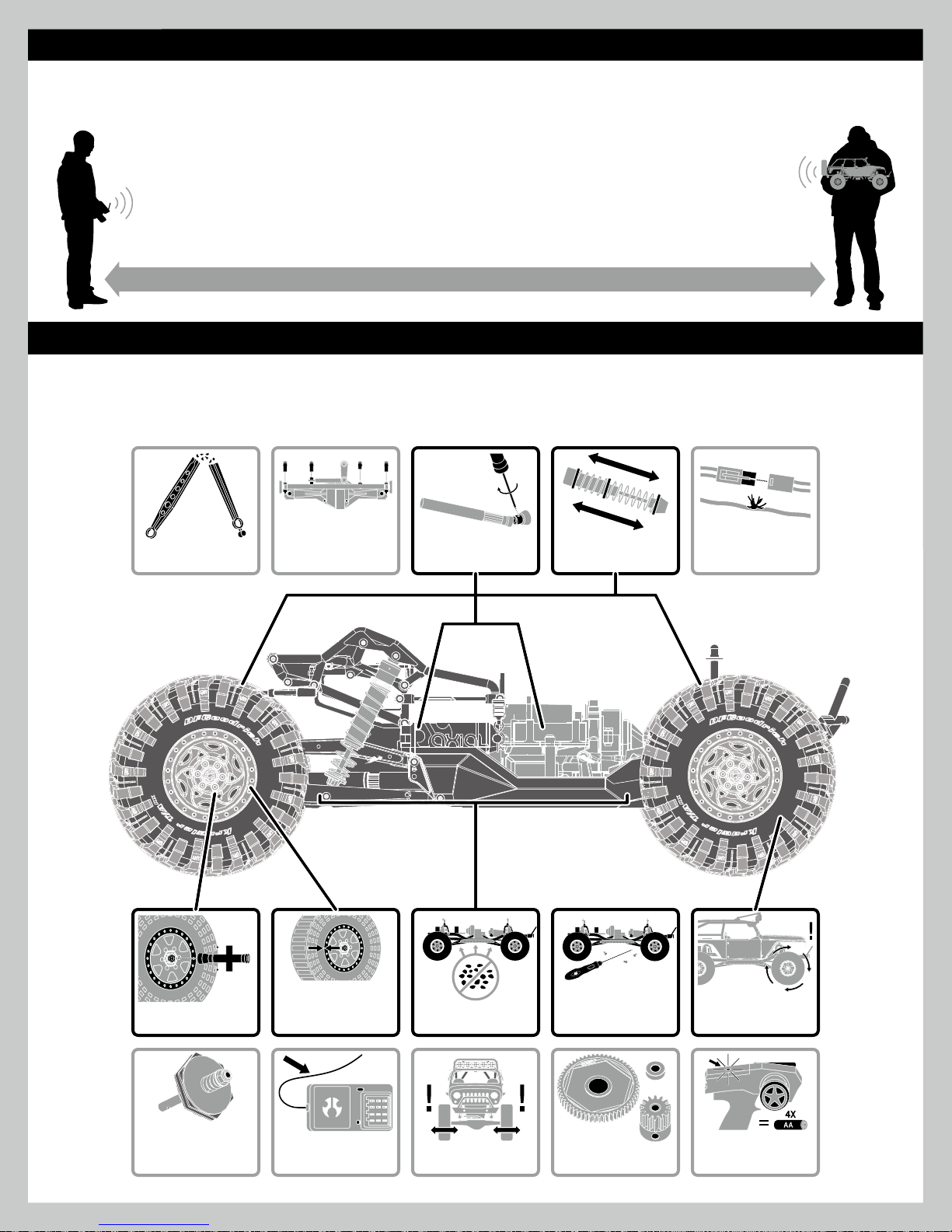

Maintaining Your Vehicle
Just likeafull size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative
maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain
your vehicle.
Range-Checking Your Radio System
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter first and then the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle, call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
7

Battery Tray Access and Setup
Recommended motor: AX31047
1.Remove clip to open battery access door
2.Slide battery in to check height
3.Remove X4 M3x8mm AXA114 Screw
4.Drop battery clamp down to required battery height.
Snug fit required
5.Reinstall X4 M3x8mm AXA114 Screws AXA114
AXA114
AXA114
AXA114
AXA114
AXA114
AXA114
AXA114
1
23
8

NOTES
9

Pinion 56 60 64 68
11
28.85 30.91 32.97 35.03
12 26.44 28.33 30.22 32.11
13 24.41 26.15 27.90 29.64
14 22.67 24.88 25.90 27.52
21.15 22.67 24.18 25.69
19.83 21.25 22.67 24.08
18.67 20.00 21.33 22.67
15
16
17
Spur Gear
32 Pitch 38T/13T (Stock Gearing AX30392 or HD AX30395)
Pinion 56 60 64 68
11
32.64 34.97 37.31 39.64
12 29.92 32.06 34.20 36.33
13 27.62 29.59 31.57 33.54
14 25.65 27.48 29.31 31.14
23.94 25.65 27.36 29.07
22.44 24.04 25.65 27.25
21.12 22.63 24.14 25.65
15
16
17
Spur Gear
32 Pitch 43T/13T (Underdrive HD Gearing AX30402)
Pinion 56 60 64 68
11
25.38 27.19 29.00 30.81
12 23.26 24.92 26.58 28.25
13 21.47 23.01 24.54 26.07
14 19.94 21.36 21.94 22.60
19.61 19.94 21.27 22.60
17.45 18.69 19.94 21.18
16.42 17.59 18.77 19.94
15
16
17
Spur Gear
32 Pitch 36T/14T (Overdrive HD Gearing AX30401)
Final Drive Gear Ratio = (Spur/Pinion)x5.67
Gesamtubersetzung = (Spur/Pinion)x5.67
39.64:1
16.42:1
Warranty Info
AXIAL LIMITED WARRANTY
Your Axial product is warranted to be free of defects in materials and workmanship when new in the factory sealed box. This warranty does not cover damages
due to normal wear and tear, users' failure to perform routine maintenance, error of assembly or installation, modications or addition of aftermarket parts or
option parts. This warranty lasts as long as the original purchaser owns the product and is not transferable (verified by dated itemized sales receipt
accompanied with product). In the event of a defect under this warranty, Axial will, at our discretion, repair or replace the product, provided our inspection
indicates that an original defect exists. Axial provides a 10-day warranty from the date of purchase on electronics (i.e. servo, esc, radio). Axial reserves the
right to replace any product which is no longer available with a product of comparable value and function. If Axial determines the repair is not covered under
warranty guidelines, there could be a charge applied for the repair and return shipping charges. Note: Purchasing products from unauthorized distributors may
void warranty and prevent support and service.
INTERNATIONAL CUSTOMER WARRANTY
Please return product to the dealer where the purchase was made. If your Axial product purchase was made through an on-line retailer, any warranty issues
must be taken care of by that retailer. Axial assumes no responsibility for Axial products sold internationally by on-line retailers.
REPAIR
For warranty repair, please contact Axial Customer Service at (877) 64-AXIAL (877-642-9425).
HOURS AVAILABLE:
8:00 am - 5:00 pm Monday through Friday, Central Time.
10

NOTES

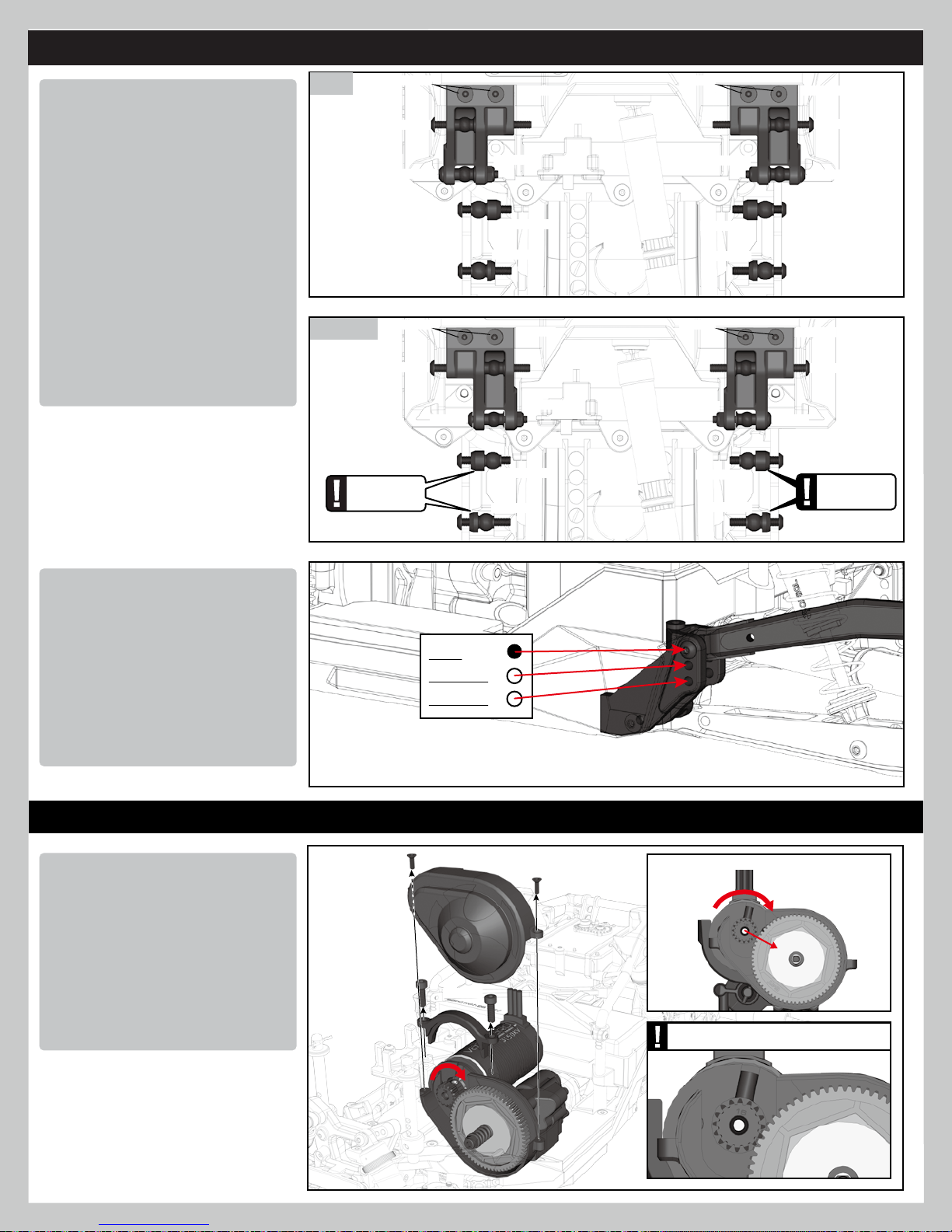

Gear Mesh Adjustment
Rear Suspension Tuning Upper Link Adjustments
•AX31104 Mounts can be installed on
either side of the AX31103 Chassis Tub
•Swapping the AX31104 mounts will
provide a suspension more suited to low
speed technical terrain. This also
requires flipping the upper shock
bushings. The RTR stock setup is more
suited for high speed stability.
•Upper Shock bushings rotated to
relocate shocks and line up with
AX31109 Lower Links.
•Moving the upper links at the chassis
will change the anti-squat characteris-
tics of the Yeti under power.
•RTR Stock: Upper hole, more
Anti-Squat for more rear traction under
power.
•Optional lower holes, less Anti-Squat
for less rear traction under power.
•Remove X2 M2.6x8mm AXA0413
Flatheads from AX31107 Spur Cover to
gain access to spur and pinion
•Loosen X2 M4x12mm AX31121
Capheads from AX31106 Motor Mount
Clamp
•Rotate the motor and motor mount
assembly to fine tune gear mesh
AXA0413
AXA0413
AX31121
AX31121
AX31104
AX31119 AX31119
AX31102-1
AX31102-2
AX31102-1
AX31102-2
AXA1052 AXA1052
AXA119
AXA118
AXA118
AXA118
AXA118
AXA119
AXA119
AX31104
AXA119
AX31104
AX31119 AX31119
AX31102-1
AX31102-2
AX31102-1
AX31102-2
AXA1052 AXA1052
AXA119
AXA118
AXA118
AXA118
AXA118
AXA119
AXA119 AX31104 AXA119
RTR
Option
Rotate to adjust mesh
RTR
Option
Option
Note Direction Note Direction
11

12

13

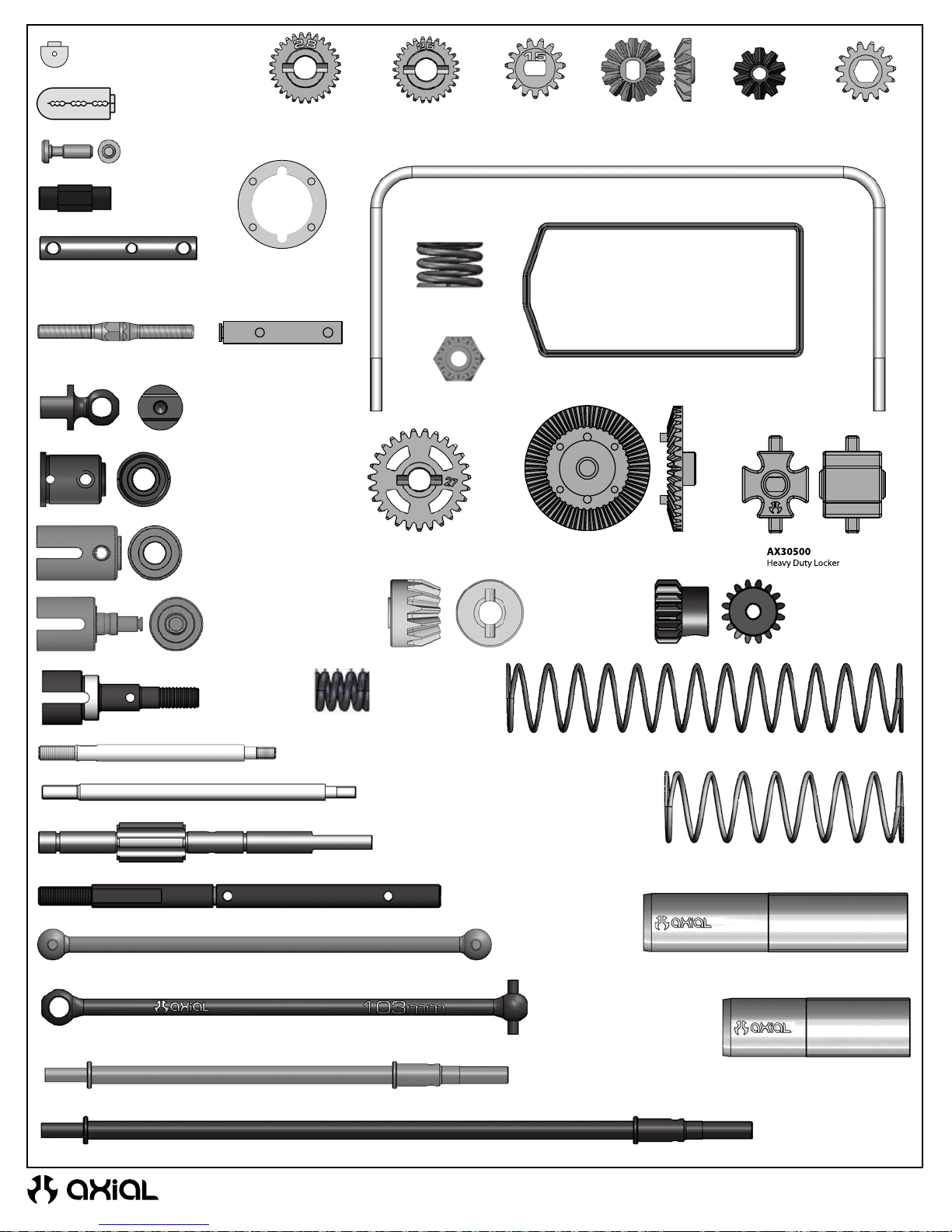

AX80018
11
11
22
33
AX80018

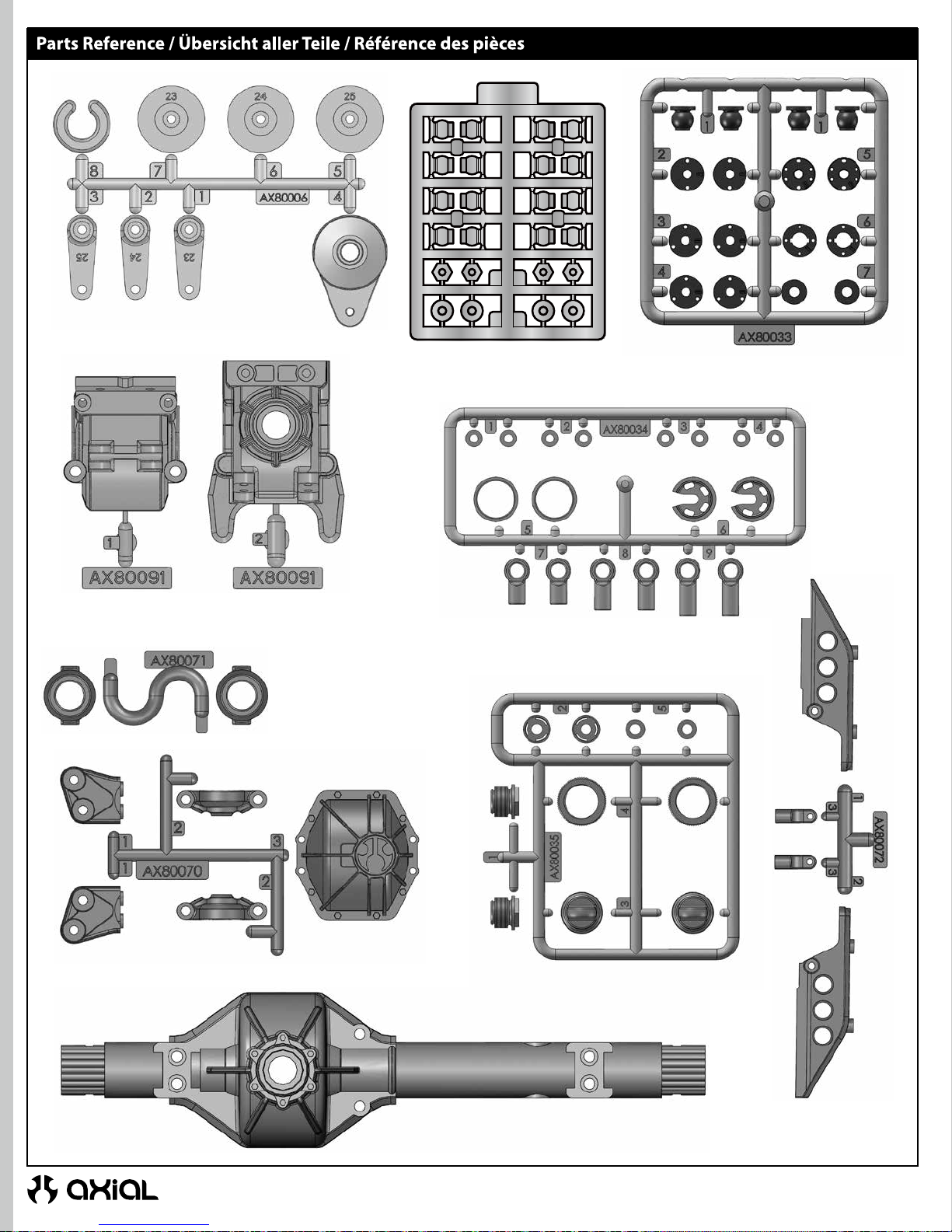

Hardware Parts Tree x2
AX80091
EXO Bulkhead x1 AX80034
10mm Shock Parts Tree 2 x2
AX80071
AR60 OCP Straight Axle Adapter x1
AX80035
10mm Shock Caps Parts Tree x2
AX80006
Servo Set x1
AX80070
AR60 OCP Differential Cover x1
AX80069
AR60 OCP Axle Housing x1 AX80072
AR60 OCP 4-Link Mount x1
AX80033
10m Shock Parts Tree 1 x2

14
AX31110
Yeti™ Steering Knuckle Set x1
AX80103
EXO Rear Light Bezel and Radiator Set x1
AX80106
EXO Steering Knuckle Carrier Set x1
AX31113
Yeti™ Rear Sway Bar Mount Set x1
AX80119
EXO RTR Links Parts Tree x1
AX80111
EXO Lower Front Control Arms Set x1
AX31104
Yeti™ Chassis Components x1
AX31111
Yeti™ Shock Tower and Body Post Set x1
AX31266
IFD Hex Hub Adapter
AX31266
IFD Hex Hub Adapter

15
AX31122
Yeti™ Front Bumper Set x1
AX31107
2-Speed Hi/Lo Transmission
Spur Gear Cover
x1
AX31118
2.2 Walker Evans Wheels
IFD™ Wheels - Black x4
AX31106
2-Speed Hi/Lo Transmission Motor Mount x1
AX80002
Diff Case -Small x2
AX31067
Slipper Plate x1
AX31059
Slipper Plate x2
AX31065
Spur Gear 32P 64T x1
AX31068
Slipper Pad
32.8x15.2x1mm (2pcs)
x2
AX31109
Yeti™ Rear 4 Link Set x1
AX31114
WB8-HD Driveshaft x1
AX31105
Yeti™ Chassis Electronic
Components
x1
AX31125
Yeti™ Fuel Cell x1
AX31108
2-Speed Hi/Lo Transmission Case x1

16
AX31117
Y-380 Cage Top, Rear and Tire Carrier x1 AX31116 Y-380 Cage Front and inserts x1
AX31115
Y-380 Cage Sides (Left and Right) x1 AX31103
Yeti™ Molded Chassis Tub x1 AX31112
Yeti™ Front Bumper Set x1
AX31102
Yeti™ Rear Cage Components x1

17
AX30408
Input Shaft 5x29mm x2
AX30385
Diff Gasket 16x25x0.5mm x2
AX31131
T-Case Gear Set x1
AX30382
EXO Steering King Pin x4
AX31134
2-Speed Hi/Lo Transmission Output Shaft x1
AXA1635
M3x35mm Turnbuckle x1
AX31148
WB8-HD Driveshaft Coupler Set x2
AX31148
WB8-HD Driveshaft Coupler Set x1
AX30383
EXO Heavy Duty Differential
Input Shaft
x1
AX30381
EXO Heavy Duty Differential
Output Shaft
x2
AX30366
Axle 5x35mm x2
AX30147
Shock Shaft 3x53.5mm x2
AX31054
Shock Shaft 3x71mm x2
AX31129
2-Speed Hi/Lo Transmission Bottom Shaft (5x75mm) x1
AX31127
2-Speed Hi/Lo Transmission Top Shaft
(5x91mm)
x1
AX30418
Dogbone 7x96mm x2
AX31139
Center Universal Shaft 103mm x1
AX30776
Rear Axle Shaft 6x104.2mm x1
AX30776
Rear Axle Shaft 6x160.2mm x1
AX31130
High Speed Transmission
Gear Set
x1 AX31130
High Speed Transmission
Gear Set
x1 AX31131
T-Case Gear Set x1 AX30390
Differential Gear Set x2 AX30390
Differential Gear Set x2 AX31131
T-Case Gear Set x1
AX30392
Bevel Gear Set x2
AX30842
Pinion Gear 32P 16T
(5mm shaft)
x1
AX30392
Bevel Gear Set x2 x1
AX31131
T-Case Gear Set x1
AX30413
Slipper Spring 8.5x12 x1
AX31083
Radio Box Seals x1
AX31083
Radio Box Seals x1
AX31083
Radio Box Seals x1
AX31058
Yeti™ Rear Sway Bar x1
AX31155
Spring 14x90mm 1.14 lbs/in - Orange x2
AX30229
Spring 14x54mm 4.33 lbs/in - (Yellow) x2
AX31138
Shock Body 12x59mm x2
AX30119
Shock Body 12x41.5mm x2
AX31060
Spring 13x9.25mm x1
AX30249
12mm Aluminum Hub x4

18

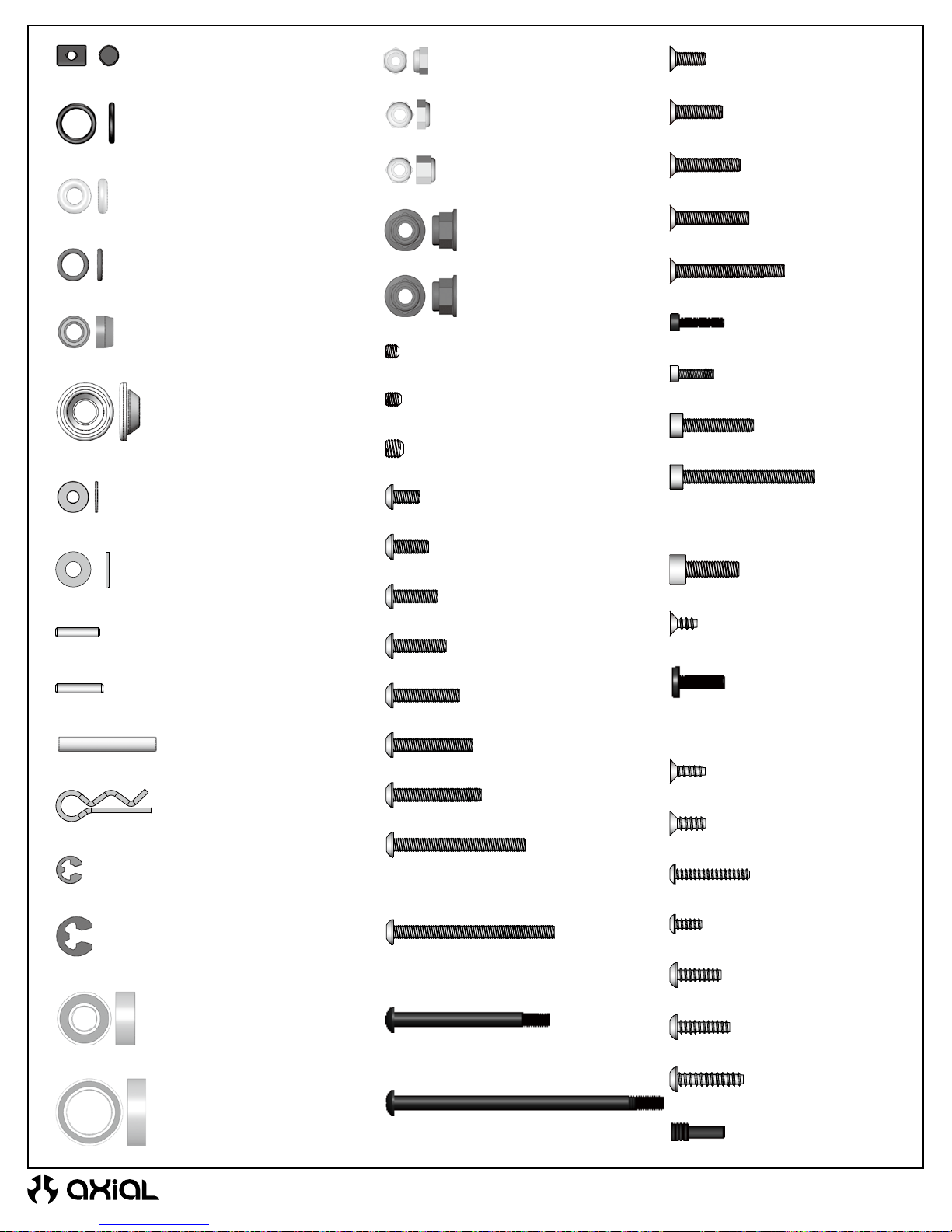

AXA1071
Washer 4x8x0.5mm x2
AXA1059
6mm Body Clip x8
AXA291
M4x4mm Set Screw (Black) x1
AXA180
M3x3mm Set Screw (Black) x3
AXA0181
M3x4mm Set Screw x8
AXA015
M2x10mm x10
AXA0412
M2.6x6mm x3
AXA0413
M2.6x8mm x3
AX30163
Pin 2x10mm x5
AX31028
Pin 2x11mm x9
AXA1046
M4 Serrated Nylon Lock Nut x4
AXA1221
Bearing 5x11x4mm x18
AXA435
M3x10mm x26
AXA436
M3x12mm x7
AXA0422
M2.6x6mm x14
AXA464
M3x8mm x4
AXA116
M3x12mm x8
AXA115
M3x10mm x4
AXA121
M3x30mm x2
AX31119
M3x35mm x3
AXA1393
E2.5 e-clip x4
AXA0437
M3x15mm
x12
AX30170
M3x22mm x1
AXA087
M3x16mm x6
AXA091
M3x30mm x1
AXA1041
M2.5 Nylon Locking Hex Nut x4
AXA1045
M4 Nylon Lock Nut x1
AXA1053
M3 Nylon Locking Hex Nut x7
AXA1069
Washer 2.7x6.7x0.5 mm
x8
AXA1052
M3 Thin Nylon Locking Hex Nut x16
AXA0113
M3x6mm x5
AXA114
M3x8mm x4
AXA1162
O-Ring 5x1mm x4
AXA117
M3x15mm x11
AXA118
M3x18mm
x33
AXA119
M3x20mm
x4
AXA1184
O-Ring 7.5x1.5mm x4
AXA1202
O-Ring 3.5x2mm x8
AXA1230
Bearing 10x15x4mm
x6
AXA0125
M3x35mm Hex Socket Button Head Screw Shaft
x2
AXA0128
M3x61mm Hex Socket Button Head Screw Shaft
x2
AXA1391
E4 e-clip x2
AXA146
M3x12mm x39
AXA144
M3x8mm x4
AXA0147
M3x16mm x9
AXA148
M3x18mm x13
AXA150
M3x25mm
x2
AX31121
M4x12mm x6
AX31061
M2.6x18mm
x2
AX31148
4.5x6.5mm Joint Pin x4
AXA0023
M2.6x8mm x24
AXA0109
M3x10mm Oversized Flat Hex Socket x4
AXA0286
M4x12mm
x6
AX30113
Rubber Bump Stop 3.6x7x4 x6
AX30112
Shock Diaphragm 13x4.5mm x4

19
AX30381
AX30381
AXA015
AX30176
AX30113
AX30113 AX30176
AX30382
AX30366
AX30366
AX30382
AX30382
AX30382
AXA1230
AXA1230
AXA1162
AXA1162
AXA1162
AXA1162
AX30392
AX30390
AX30390
AX30390
AX30392
AX30408
AX30163
AX30163
AX80033
AX80033
AXA1221
AXA1221
AXA0181
AX31114
AX80091
AX80091
AX80119
AX80119
AX80018
AX80018
AX80018
AX80018
AXA1053
AXA1053
AX30418
AX30418
AX31148
AX31148
AXA1059
AX31111
AX31111
AX31111
AX31111
AX31112
AX31112 AX31112
AX31112
AXA1053
AXA1053
AXA0147
AXA0147
AXA0147
AXA0147
AXA118
AXA118
AXA118
AXA118
AXA118
AX80111
AX80111
AXA118
AXA118
AXA146
AXA146
AXA0128
AXA0128
AXA119
AXA121
AXA121
AXA116
AXA116
AXA118
AXA118
AX80033
AX80018
AX80018
AX31110
AX31110
AX80106
AX80106
AX1053
AX1053
AX1053
AX1053
AX31110
AX31110
AXA0181
AXA1221
AXA1230
AXA1230
AXA0181
AXA0181
AXA1221
AXA0181
AX80018
AX80018
AX80033
AXA118
AXA118
AXA1059
AX31139
AXA0286
AXA0286
AXA0286
AX30170
AX30385
AX30390
AXA1393
AXA1393
AX80002
AX31076
AX31076
AXA118
AXA117
AXA117

20
AX30392 AX30385
AX80070
AX80070
AX80070
AXA0286
AXA0286
AX1052
AX1052
AX80070
AX80070
AX80069
AX30776
AX80071
AX80071
AX30776
AX31058
AX30500
AXA1393
AX30392
AX30163
AX30408
AX80072
AX31113
AX80018
AX80018
AX31113
AX31113
AX31113
AX31113
AX31113
AX31113
AX31113
AXA1221
AXA1221
AXA1221
AXA0113
AXA0113
AXA0113
AXA0113
AXA1221
AX80002
AXA1230
AXA1230
AXA115
AXA144
AXA114
AXA114
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118
AXA118 AXA118
AXA118
AXA180
AXA180
AXA118
AXA118
AX31102
AX31102
AX31102
AX31102
AX31102
AX31102
AX31102-2
AX31102-1
AX31102-2
AX31102-1
AX31125
AX31125
AX31125
AXA114
AXA114
AXA144
AXA116
AXA116
AXA116
AXA116
AXA146
AXA119
AXA180
AXA117
AXA118
AXA118
AXA091
AXA117
AXA1052
AXA1052
AXA1052
AXA1053
AXA1052
AXA180
AXA144
AXA087
AXA087
AXA115
AXA015
AXA015
AXA015
AX31114
AX31114
AX31114
AX31114
AX31114
AX31148
AX31148
AX31028
AX31028 AX31148
AX31148
AX31148
AX31148
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
