AXISTQ6905-EWasherKit
Safetyinformation
Hazardlevels
DANGER
Indicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.
WARNING
Indicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.
CAUTION
Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderate
injury.
O O
OTICE TICE TICE
Indicatesasituationwhich,ifnotavoided,couldresultindamagetoproperty.
Othermessagelevels
Important
Indicatessignicantinformationwhichisessentialfortheproducttofunctioncorrectly.
Note
Indicatesusefulinformationwhichhelpsingettingthemostoutoftheproduct.
7
EN

AXISTQ6905-EWasherKit
Safetyinstructions
WARNING
TheAxisproductshallbeinstalledbyatrainedprofessional,andincompliancewithlocal
lawsandregulations.
O O
OTICE TICE TICE
•TheAxisproductshallbeusedincompliancewithlocallawsandregulations.
•StoretheAxisproductinadryandventilatedenvironment.
•AvoidexposingtheAxisproducttoshocsorheavypressure.
•AvoidexposingtheAxisproducttovibration.
•Donotinstalltheproductonunstablepoles,bracets,surfacesorwalls.
•Donotinstalltheproductonvibratingpoles,bracets,surfacesorwalls.
•UseonlyapplicabletoolswheninstallingtheAxisproduct.Usingexcessiveforcewith
powertoolscouldcausedamagetotheproduct.
•Useonlyaccessoriesthatcomplywiththetechnicalspecicationofyourproduct.These
canbeprovidedbyAxisorathirdparty.AxisrecommendsusingAxispowersource
equipmentcompatiblewithyourproduct.
•UseonlysparepartsprovidedbyorrecommendedbyAxis.
•Donotattempttorepairtheproductyourself.ContactAxissupportoryourAxisreseller
forservicematters.
•Useayellow/greencoloredgroundingcableofatleast0.5mm2or20AWG.
Transortation
O O
OTICE TICE TICE
•WhentransportingtheAxisproduct,usetheoriginalpacagingorequivalenttoprevent
damagetotheproduct.
8

AXISTQ6905-EWasherKit
ackagecontents
•Washerunit(metalcage,connectionbox,tanwithcomponents)
•Straps
•Siliconsheath
•Nozzlesupportbracet
•Hose
•Nozzle
•Locwasher
•Screws
•Grommet
•Printedmaterials
-InstallationGuide(thisdocument)
9
EN

AXISTQ6905-EWasherKit
Hardwareoverview
1Hose
2Metalcage
3Tank
4Connectionbox
5ControlterminalJ9
6PowersupplyterminalJ1
7Fusepositions
10

AXISTQ6905-EWasherKit
8Lockwasher
9ut
10Grommet
11ozzle
12Siliconsheath
13Strap
14ozzlesupportbracket
11
EN

AXISTQ6905-EWasherKit
Howtoinstalltheproduct
Mountthemetalcage
1.Removethetanfromthemetalcage.
2.Unscrewthetanplugandremoveitfromthetan.
3.Removethepumpandlevelgaugefromthetan.
4.Mountthemetalcagetoawallusingscrews.
SeeHardwareoverviewonpage10tolocatetheparts.
CAUTION
Beforestartinganyoperation,maesurethepowersupplyisdisconnected.
O O
OTICE TICE TICE
•Theproductmustbefastenedwithsuitableequipment.Thefasteningmeansmust
guaranteetoholdaforceequaltoatleast3timestheweightoftheproduct.
Routethecables
Forinformationabouthowtoroutethecablespleaserefertotheinstallationguideofyour
compatibleAxisproduct.
12

AXISTQ6905-EWasherKit
Connectthecables

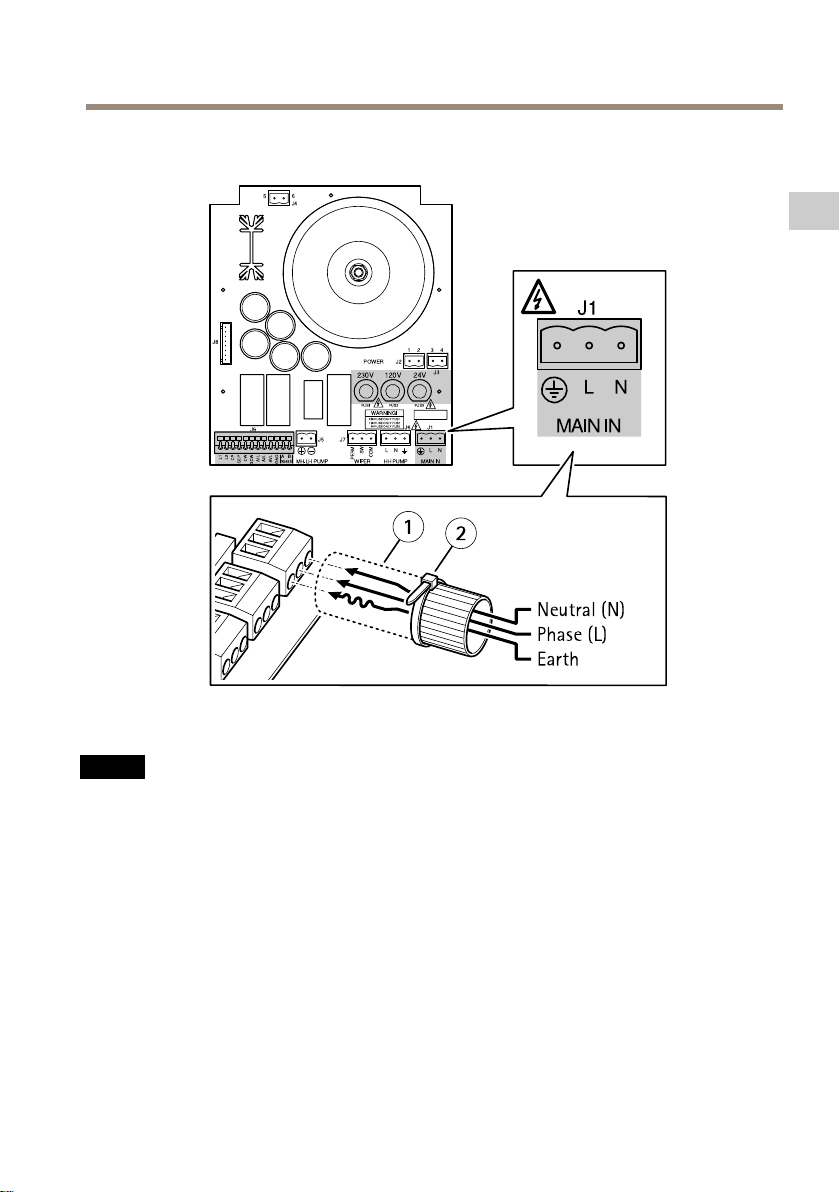

1Siliconesheath
2Strap
O O
OTICE TICE TICE
•Maesurethetheearthcableis10mm(4in)longerthantheothertwocables.Itwill
decreasetherisoftheoftheearthcabletobedisconnectedaccidentallyifitispulled.
•Alltheconductorsofterminalsmustbeseparatedfromtheotherlowvoltagecircuits.The
disconnectionofawiremustnotcompromisetheprotectionagainstelectricshocs.
13
EN

AXISTQ6905-EWasherKit
1CP
2GCP
1.ConnecttheI/O-cabletotheJ9controlterminalaccordingtothetable.
Note
AllconnectionsofterminalJ9musthaveaverylowsafetyvoltage.
2.MaesuretheI/O-cableisconnectedtothepinsontheI/O-connectoraccordingto
thetable.
DescriptionJ9controlterminalI/O-connectorpin
PumpcontrolCPPin3–6(digitaloutput)
GND(pumpcontrol)GCPPin1(DC-ground)
3.ConnecttheI/O-connectortoyourcompatibleAxisproduct.Forinformationreferto
theinstallationguideofthatAxisproduct.
Note
TheI/O-connectorisnotincludedintheit.
14

AXISTQ6905-EWasherKit

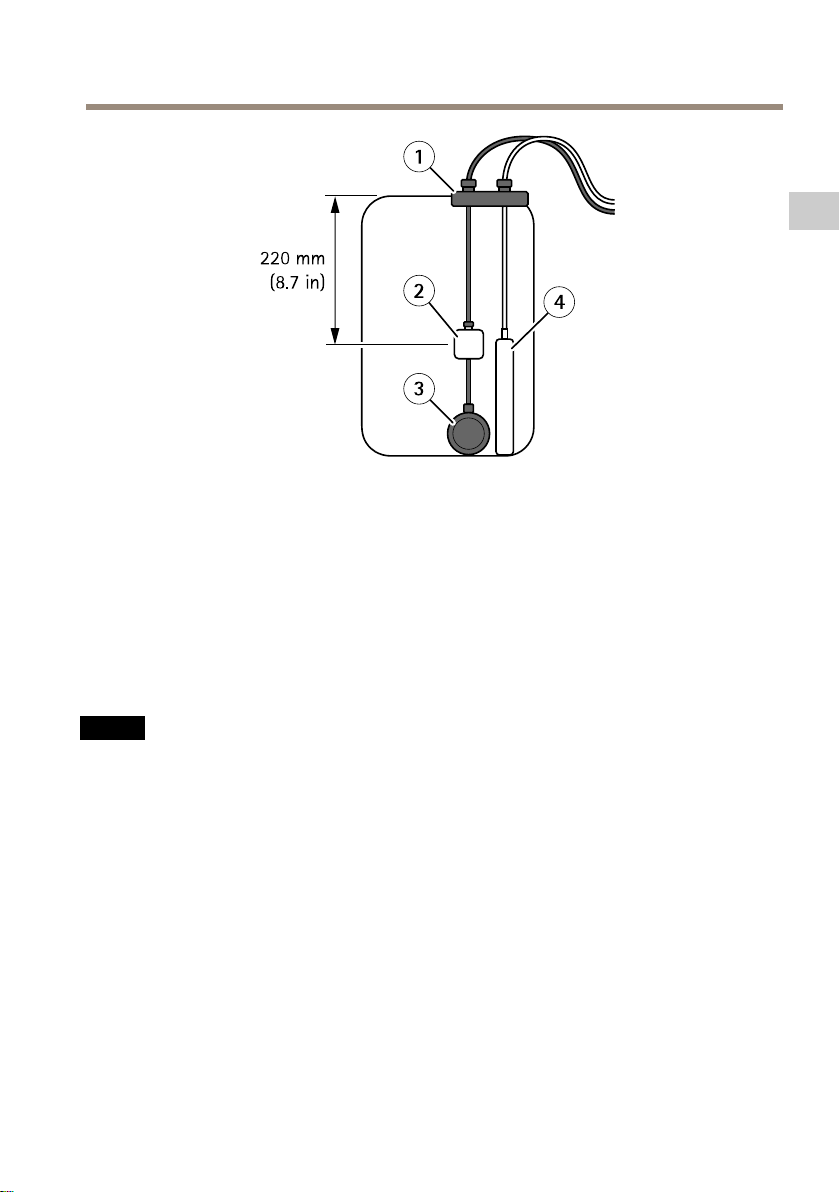

1Tankplug
2Weight
3Float
4Pump
1.Fillthetanwithwater.
2.Placethetaninthemetalcage.
3.Adjustthepositionoftheweight.Positionit220mmfromthetanplug.
4.Putthepumpandoatinsidethetanaccordingtotheillustration.
5.Attachthetanplug.
O O
OTICE TICE TICE
Donottostartthepumpwhenthetanisempty.
Theoatneedstobeabletomovefreelyinordertonotdamagethepump.
15
EN

AXISTQ6905-EWasherKit
Mountthenozzle,thenozzlesuortbracketandthehose
1ozzle
2ozzlesupportbracket
3Lockwasher
4ut
5Grommet
1.Attachthenozzletothenozzlesupportbracetbymeansofthewasherandthenut.
2.Attachthegrommettothenozzlesupportbracet.
16

AXISTQ6905-EWasherKit
6Hose
7Strap
3.Runthehosethroughthegrommet.
4.Attachthehosetothenozzle.
5.Securethehosewithastrap.
17
EN

AXISTQ6905-EWasherKit
6.Attachthenozzlesupportbracettothesupportunitbymeansofthescrews.
Congurethewasher
Congurethewashertonalizetheinstallationofthewasherit.
IfyourAxisnetworcameracanbeconguredfromtheLiveView,pleaserefertotheusermanual
ofyourcamera.Otherwise,referAxissupportformoreinformation.
18

AXISTQ6905-EWasherKit
Furtherinformation
•Forusefultrainings,webinars,tutorialsandguides,seeaxis.com/academy.
Requiredaccessories
AXIST6101AudioandI/OInterface
AXISP8221I/OAudioModule
Otionalaccessories
Foracompletelistofavailableaccessoriesforthisproduct,gototheproduct’spageon
axis.comandselectSoftware&Accessories.
19
EN

AXISTQ6905-EWasherKit
Specifications
OeratingConditions
MaximumtemperatureMinimumtemperature
Antifreezeliquidinsolution
(fullperformance)
Minimumtemperature
Antifreezeliquidinsolution
(reducedperformance)
60°C(140°F)-10°C(14°F)-25°C(-13°F)
PowerConsumtion
ACCurrentConsumptionPowerLineFrequency
230VAC0.3A50/60Hz
120VAC0.6A50/60Hz
24VAC1.8A50/60Hz
Fuses
AXISWasherKitcomeswithapre-mountedfusefor230VinpositionFUS1.Ifthepowersupply
isdifferent,removethefusefrompositionFUS1andinsertitincorrectposition(FUS2orFUS3).
Seetable.
CAUTION
•Electricalconnectionsmustbeperformedwiththepowersupplydisconnectedandthe
circuit-breaeropen.
•Whencommencinginstallationmaesurethatthespecicationsforthepowersupply
correspondwiththoserequiredbythedevice.
VoltageFuseolder
230VACFUS1(pre-mounted)
120VACFUS2
24VACFUS3
SeeHardwareoverviewonpage10forfusepositions.
O O
OTICE TICE TICE
•Maesurethatthepowersourceandconnectingcablesaresuitableforthepower
consumptionofthesystem.
20
