Axminster Trade MJ12-1600 MKII User manual

Code 505150
AT&M: 06/02/2015
REF: 508469
MJ12-1600MKII
Panel Saw

Index of Contents
2
Declaration of Conformity
Copied from CE Certificate
The undersigned, Dip. Ing
Authorised by Laizhou Chunlin Machinery Co., Ltd.
No. 269 Baoshi Road
Wenfeng Street
Laizhou City, Shandong 261400
P.R. China.
Model Number: MJ12-1600II (Circular Saw)
Manufactured by Laizhou Chunlin Machinery Co., Ltd.
Is in compliance with the standards determined in the
following Council Directive.
EC Directive 2006/42/EC
Warning The symbols below advise that you follow
the correct safety procedures when using
this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Motor gets hot
Dust mask
should be worn
Two Man
Assembly
Index of Contents 02
Declaration of Conformity 02
What’s Included 03-014-05-06
General Instructions for 230V Machines 07
Specific Safety Precautions 07-08
Specification 08
Initial Instructions 09-10-11-12-13-14-15-16-17-18-19-20
Machine Footprint 21-22
Illustration and Parts Description 22-23-24-25-26-27-28
Positioning the Machine 29
Setting Up the Machine 29-30-31-32-33
Operating Instructions 34-35-36
Changing the Saw Blade 37-38
Routine Maintenance 39-40-41
Wiring Diagram 42
Exploded Diagram/Parts List 43-44-45-46-47-48-49-50-51-52-53-54
Notes 55
The Axminster Trade MJ12-1600 MKII Panel Saw has been designed for the
trade workshop or keen home furniture maker. Upgraded over the previous
model with a high torque 2.2kW output mtor, a deeper section cast iron table,
all welded chassis and a cast iron rip fence holder. Constructed in cast iron with
welded heavy gauge steel and fitted with a 1,600mm alloy extrusion sliding
table, it is robust and stable for everyday use.The good sized, deep section cast
iron main table is fitted with a cast iron extension table giving a combined
surface of 825 x 800mm, plus a further steel plate extension giving a total
working surface of 1,265 x 800mm. A heavy gauge cast iron rip fence holder
and deep section alloy fence rail is included.The sliding table is smooth
running,fully adjustable and gives a travel of 1,300mm through the blade.
A cross-cut support table, with a telescopic support arm, can be positioned
anywhere on the sliding table and has a telescopic fence 1,200-2,200mm long,
enough for full size boards.This can easliy be removed without tools for stor-
age if required. A powerful 2.2kW output 1ph high torque motor drives both
the main blade and a scoring blade.The size of the main blade can be a choice
of 254, 305 or 315mm, without removing the scoring blade.The scoring blade
is easy to adjust through the table top and can be retracted below the surface
when not required. Smooth acting blade controls, efficient dust extraction and
a micro adjustable rip fence contribute to easy use. Included as standard are a
315mm Axcaliber main blade, scoring blade, a rear feed-off table,small mitre
fence (of a clever design for use on the sliding table with a work clamp), an
edge shoe and table support legs. N.B. 16A supply required.
Introduction

What’s Included
3
Quantity Item Model Number
1 No MJ12-1600MkII Panel Saw (TRADE) MJ12-1600II
BOX 1 Part BOX 2 Part
1 No Main Saw Assembly 0
1 No Sliding Table Extension Support Arm 11 No Sliding Table Assembly 19
1 No Rip Fence Control Assembly 21 No Rip Fence Rail Shaft 20
1 No Mitre Fence Assembly for (Sliding Table) 31 No Rip Fence 21
1 No Workpiece Support Shoe 41 No Workpiece Clamp Shaft 22
1 No Table Joiner Strengthener 51 No Sliding Table Fence Assembly 23
1 No Rear Table Support Bracket 61 No Rip Fence Scale 24
1 No Sliding Table Support Leg 7
1 No Right Hand Table Support Leg 8
1 No Saw Assembly Side Panel 9
1 No Right Hand Cast Iron Table 10
1 No Right Hand Pressed Steel Table 11
1 No Rear Extension Table 12
1 No Sliding Table Extension Assembly 13
1 No Flexible Hosing with Clamps 14
1 No Operating Wheel Handle (for Saw Tilt) 15
1 No Table Mitre Fence 16
1 No Crown Guard and Hose Assembly 17
Fixings Comprising 18
2 No Screw Drivers A 1 No Locking Pin Knob for (Rise & Fall Handle) F
1 No Hose Support Bracket B 1 No Sliding Table Locking Knob G
1 No Blade Locking Bar C 6 No Hex Keys 8-6-5-4-3-2.5mm H
1 No Blade Spanner D 1 No Sliding Table Operating Handle I
4 No Spanners 17-13, 17-19, 12-14, 8-10mm E 3 No Scoring Blade Spacers 0.1, 0.2, 0.3mm J
1 No User Manual
Main Saw Assembly
Panel Saw Box Crates
BOX 1
BOX 2
0

What’s Included
4
1
3
42
5
6
8
7
Box 1

What’s Included
5
910
11
12 13
Box 1
14
15
16
17

What’s Included
6
Box 1
Box 2
A
B
C
D
E
F G
H
I
J
18
19
20
21
22
23
24

General Instructions for 230V Machines
7
The following suggestions will enable you to observe
good working practices, keep yourself and fellow
workers safe and maintain your tools and equipment
in good working order.
This machine is supplied with a moulded 16 Amp. Plug
and 3 core power cable. Before using the tool inspect
the cable and the plug to make sure that neither are
damaged. If any damage is visible, have the tool
inspected/repaired by a suitably qualified person. If it is
necessary to replace the plug, it is preferable to use an
‘unbreakable’ type that will resist damage on site. Only
use a 16 Amp plug, and make sure the cable clamp is
tightened securely. Fuse as required. If extension leads
are to be used, carry out the same safety checks on them,
and ensure that they are correctly rated to safely supply
the current that is required for your machine.
If the machine gets wet; dry it off as soon as possible
with a cloth. Do not use 230V a.c. powered tools in damp
locations and do not trail extension cables across wet
areas. Keep the tools clean, do not use any solvents or
cleaners, as these may cause damage to any plastic parts
or to the electrical components.
Keep the work area as uncluttered as is practical, this
includes personnel as well as material.
Under no circumstances should CHILDREN be allowed
in work areas.
It is good practice to leave the machine unplugged until
work is about to commence, also make sure to unplug
the machine when it is not in use, or unattended. Always
disconnect by pulling on the plug body and not the
cable. Once you are ready to commence work, remove
any tools used in the setting operations (if any) and
place safely out of the way. Re-connect the machine.
Carry out a final check e.g. check the cutting tool, drill bit
etc., are securely tightened in the machine, check you
have the correct speed and function set, check that the
power cable will not‘snag’etc.
Make sure you are comfortable before you start work,
Good Working Practices/ Safety
Mains Powered Tools
Work Place/Environment
Mains Powered Tools Primary Precautions
WARNING! KEEP TOOLS AND EQUIPMENT
OUT OF THE REACH OF YOUNG CHILDREN
balanced, not reaching etc. If the work you are carrying
out is liable to generate flying grit, dust or chips, wear the
appropriate safety clothing, goggles, gloves, masks etc. If
the work operation appears to be excessively noisy, wear
ear-defenders. If you wear your hair in a long style,
wearing a cap, safety helmet, hairnet, even a sweatband,
will minimise the possibility of your hair being caught
up in the rotating parts of the machine, likewise,
consideration should be given to the removal of rings
and wristwatches, if these are liable to be a ‘snag’hazard.
Consideration should also be given to non-slip footwear,
etc. If you are allowing another person to use the
machine, ensure that they are suitably qualified to use it.
Do not use the machine if you are tired, your attention is
wandering or you are being subjected to distraction. A
deep cut, a lost fingertip or worse is not worth it!
Check that cutters, drills etc., are the correct type and
size, are undamaged and are kept clean and sharp, this
will maintain their operating performance and lessen the
loading on the machine. Above all, OBSERVE…. make
sure you know what is happening around you, and USE
YOUR COMMON SENSE.
Make sure the saw blade is the correct type for the job in
hand.
Do not force the saw, if the saw begins to ‘stall’ you are
‘forcing the cut’ or over working the saw. Ensure that
the saw blade is clean and sharp. Resin build up on
the blades will increase the friction of the saw passing
through the timber, and cause over heating of the blade,
blunt teeth will work harder tearing the fibre of the
timber as opposed to shearing it, also with subsequent
overheating. Both faults unnecessarily load the machine
beyond normal usage, and shorten its longevity.
Do not use blades that are damaged in any way.
Do not remove the blade guard.The design of the riving
knife on the machine will not allow for slotting or‘blind’
grooving, so there is no reason to remove the guard.
There is adequate clearance under the guard for the
capacity of the machine.
Do not use any blades that cut a smaller kerf than the
riving knife thickness. Make sure the riving knife is
correctly adjusted to the blade and is securely fastened.
If the table insert becomes damaged or broken, and will
not support the timber ‘up close’ to the blade, replace it.
Specific Safety Precautions
Continues Over....

Specific Safety Precautions
8
Do not start the saw with the workpiece touching the
blade.
FOR YOUR OWN SAFETY NEVER
OPERATE THE TABLE SAW WITHOUT
THE RIVING KNIFE IN PLACE!
Do not commence sawing until the blade has run up to
full speed. After switching off, never try to slow the saw
down more quickly by applying side pressure (with a
piece of wood?) to the blade. Apply the old joiner’s adage
of never getting hands within one handbreadth of the
blade. Leave the machine disconnected from the mains
supply until you are about to commence work.
Always disconnect the machine if you are leaving it
unattended.
Never leave the vicinity of the machine unless the blade
has come to a complete stop.
Do not attempt to carry out any maintenance, corrective
work, setting up etc., unless the machine is disconnected
from the mains supply. If any tools have been used
during setting up procedures, make sure they are
removed from the machine and stowed safely away.
Do not attempt to carry out cross cutting operations
‘freehand’, always use the mitre fence for small material
and the sliding carriage for larger workpieces. Unless you
are an experienced machine operator, do not attempt to
‘rip’ freehand, always use the guiding facility of the rip
fence. It is perfectly acceptable to support, guide, and
feed the timber with your hands whilst ripping stuff of
some length, however, as you approach the blade ensure
that the push stick is to hand, and that you use it.
Remember the emphasis of the ‘push’ should be between
the blade and the fence and close to the fence. Use your
free hand to support and guide the material on the
offside of the saw blade and at least 100mm away from
it. If the timber does not extend to at least 100mm to the
offside of the saw blade, the material possibly does not
need guiding or supporting.
Check (especially on site), that there are no foreign
objects e.g. old nails, screws, small stones etc embedded
in the material you are about to cut. If necessary take a
wire brush to the timber before working.
Code 505150
Model MJ12-1600 MKII
Rating Trade
Power 2.6kW (max input) 2.2kw output 230V 1ph
Blade Dia/Bore 254, 305 or 315mm x 30mm x 3mm
Blade Tilt 0-45°
Scoring Blade Diameter 90mm
Max Depth of Cut @ 45˚ 80mm (315)
Max Depth of Cut @ 90˚ 100mm (315)
Max Width of Cut with Fence 1,220mm
Table Size 385 x 800mm
Table Height 865mm
Sliding Table Size 1,600mm x 270mm
Dust Extraction Outlet 100mm
Min Extraction Airflow Required 1,000m³/hr
Overall L x W x H 1,600mm x 1,540mm(+740mm crosscut table) x 865mm
Weight 255kg
Specification

Initial Assembly
9
PLEASE NOTE: Some of this assembly
procedure is best accomplished by two
persons, some of the items are heavy and
awkward, and a mishandling error could
cause injury. Please think about what you are doing,
your capabilities and your personal safety.
Unpack all the boxes, see fig 01 and check all the
components against the ‘What’s Included’ list. If any
parts or components are missing, please contact our
customer service department using the procedures
and telephone numbers listed in our catalogue, and
you will be dealt with quickly and efficiently.
1. Locate the crown guard and hose assembly (17),
remove the dust extraction moulding from the hose
and the Phillips screws, washers and nuts from the
moulding. Insert the moulding into the round machined
cutout to the rear panel, line up the pre-drilled holes and
secure in place with the fixings you removed eariler, see
figs 02-03.
2. Open up the flexible hosing (14), and loosen the two
hose clamps. Insert one end of the hosing over the
extraction and secure in position with the ring clamp,
see fig 04
Fig 02- 03
Fig 01
PLEASE NOTE: The panel saw comes 80% assembled,
in order to reduce the footprint of the machine for
packaging, several items are dismounted from the
machine and need to be re-affixed. please check all
the boxes, packets etc, to make sure that all the parts have
been accounted for.
Having unpacked the boxes, (please dispose of any
unwanted packaging responsibly), put the parts and
components where by they are readily to hand. Break
down the main box by knocking the sides away (be
careful of exposed nails etc.), but leave the machine
sitting on its pallet. Remove the protective grease film
that is coating all the unpainted parts of the machine.
Use a proprietary de-greasing agent. Unfortunately, this
cleaning process is always a bit ‘mucky’. You are advised
to wear overalls or coveralls etc., during the process.
After cleaning, lightly coat the exposed metal surfaces
with ‘anti rust’ oil spray to prevent any rusting.
Main Saw
Fig 04
Continues Over....
Remove all the components
from inside the saw frame
Extraction moulding
Phillips screwdriver
Spanner
Nut and washer
Phillips screw
14
Hose clamp
Screwdriver

Initial Assembly
10
3. Insert the other end of the hose (14) over the saw
assembly’s dust housing outlet and secure with the re-
maining hose clamp, see figs 05-06-07
Fig 05-06
Fig 07
Flexible hosing assembled
4. Locate the saw assembly side panel (9) and the four
caphead screws and washers.
NOTE: The four cap head screws have been secured
into the four threaded holes inside the saws steel
frame, see fig 8. Remove the cap head screws and
washers and place safely aside.
Fig 08
14
Cap head screw & washer
Threaded hole
5. Position the side panel (9) to the side of main saw
assembly (0) and secure in place with the cap head
screws and washers you removed earlier, see figs 09-10.
Fig 09-10
9
Cap head screw & washer
6. Locate the hand wheel (15). Remove the Phillips screw
and washer from the drive shaft and place aside. Insert
a square key into the machined slot on the drive shaft
and slide the hand wheel (15) onto the shaft. Replace the
Phillips screw and washer and tighten secularly, see figs
11-12-13
NOTE: Line up the key slot in the hand wheel with the
square key and slide the wheel onto the shaft, tighten
securely. Fig 11
Phillips screw & washer
15
Drive shaft
Square key Key slot
5mm Hex key

Initial Assembly
11
Fig 12-13
Phillips screw & washer
Right Hand Extension Tables
WARNING!! THE CAST IRON EXTENSION
TABLE IS VERY HEAVY YOU WILL REQUIRE
A SECOND PERSON TO HELP!
1. Locate the two extension tables (10-11) and the right
hand table support leg assembly (8). Remove the four
M8x25mm bolts and washers from the side of the saws
main table (0) and place safely aside, see fig 14.
Fig 14
2. Offer up the pre-drilled holes in the cast iron table (10)
with the holes in the main saw table (0) and lightly secure
using the four M8 bolts and washers you removed earlier
with the supplied spanner, see fig 15 DO NOT FULLY
TIGHTEN AT THIS POINT.
0
3. Place a straight edge
across both tables and
check they are level with
each other, see fig 16. If there is any deviation between
the tables adjust the four grub screws below each M8
bolt, see fig 17. Fig 16
NOTE: Make small adjustments (clockwise to raise the
table and anticlockwise to lower the table), checking
as you go, moving the straight edge across the tables
until they are perpendicular. Once you are satisfied
tighten the four M8 bolts.
Fig 15
Fig 17
10
4. Locate the pressed steel table (11) and the support leg
(8), remove the two bolts, washers and nuts from the
support leg, line up the two mounting holes in the
support leg with the two centre holes in the pressed
steel table (11) and secure the leg support to the table
with the fixings you removed earlier, see fig 18.
Continues Over....
Grub screw
Hex key
Straight edge
M8 Bolts & washers

Initial Assembly
12
Fig 18
8
11
Bolts, washers & nuts
5. Loosen the cap head screw and adjust the support leg
(8) length to give you extra support when mounting the
table (11), see fig 19. Retighten when satisfied.
Fig 19
6. Remove the four bolts, washers and nuts for the table
(11) and place on the main table (0), offer up the
pre-drilled holes with the ones in the cast iron table (10)
and lightly secure with the fixings you removed earlier,
see fig 20-21.
Fig 20-21
7. Place a straight edge across the tables as before, adjust
the table support leg (8) as described in step 6, until the
pressed steel table (11) is level with the cast iron table
(10), see fig 22-23. Once satisfied tighten all the bolts.
Fig 22-23
8
11
Rip Fence
Put to hand the rip fence rail shaft (20), rip fence (21), rip
fence scale (24) and rip fence control assembly (2).
1. Locate the fence rail shaft (20), remove a nut and one
washer from each of the four threaded studs and place
safely aside, see fig 24.
Fig 24

Initial Assembly
13
2. Line up the threaded studs with the pre-drilled holes
to the side of the tables and insert the studs into the
holes, replace the nuts and washers you removed earlier
and lightly tighten at this point, see fig 24-25-26.
Fig 25-26

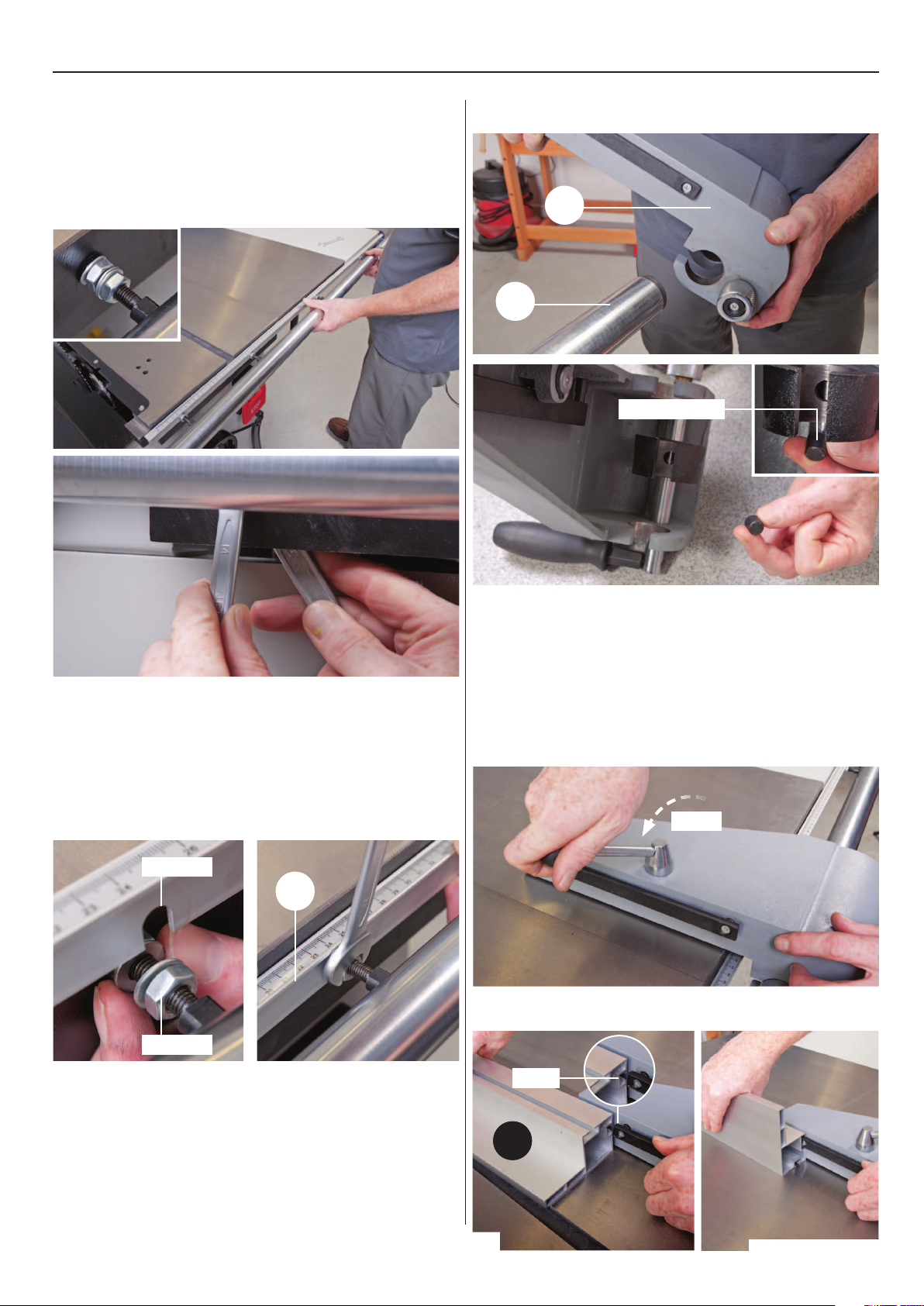

3. Locate the rail rip fence scale (24), Adjust the inner nut
to each of the threaded studs to give adequate clearance,
insert the scale slots down over the studs between the
two washers and tighten the nuts to clamp the rip fence
scale (24) in position, see fig 27.
Fig 27
24
Inner nut
Scale slot
4. Find the rip fence control assembly (2), and slide the
assembly onto the fence rail shaft (20), see fig 28.
NOTE: The control assembly has a locking pin, be
careful that it does not drop out when mounting the
assembly, see fig 29.
Fig 28-29
Locking pin
2
20
5. Release the clamping handle on top of the control
assembly (2), which releases tension on the clamping
bar, see 30. Line up one of the ‘T’ slots in the rip fence
assembly (21) with the clamping bar and slide the fence
on, see fig 31. Position the fence so its flush with the
opposite end of the table and tighten the clamping
hand to lock the fence in place. Fig 30
Fig 31
Unlock
Continues Over....
‘T’ Slot
21

Initial Assembly
14
6. Raise the clamping handle on the control assembly (2)
and position the rip fence so its in line with the edge of
the main tables ‘T’ slot, push the handle down to lock in
place, see fig 32. If the fence is out of alignment loosen
Fig 32
the nuts holding the fence rail shaft (20), adjust the shaft
until the rip fence (21) is in alignment.Re-secure the rail
shaft, see 25-26 on previous page.
7. Locate the table joiner strengthener (5), remove the
nuts and washer from the joiner, line up the three
bolts, introduce them into the pre-drilled holes to the
opposite side of the extension tables (10-11). Replace
the washers and nuts and securely tighten, see fig 33-34.
Main tables ‘T’ slot
Sliding Table
You will require the following, the sliding table extension
support arm (1), sliding table assembly (19), sliding table
fence (23), sliding table Extension (13), mitre fence (3) for
sliding table,Workpiece clamp shaft (22) and Workpiece
support shoe (4).

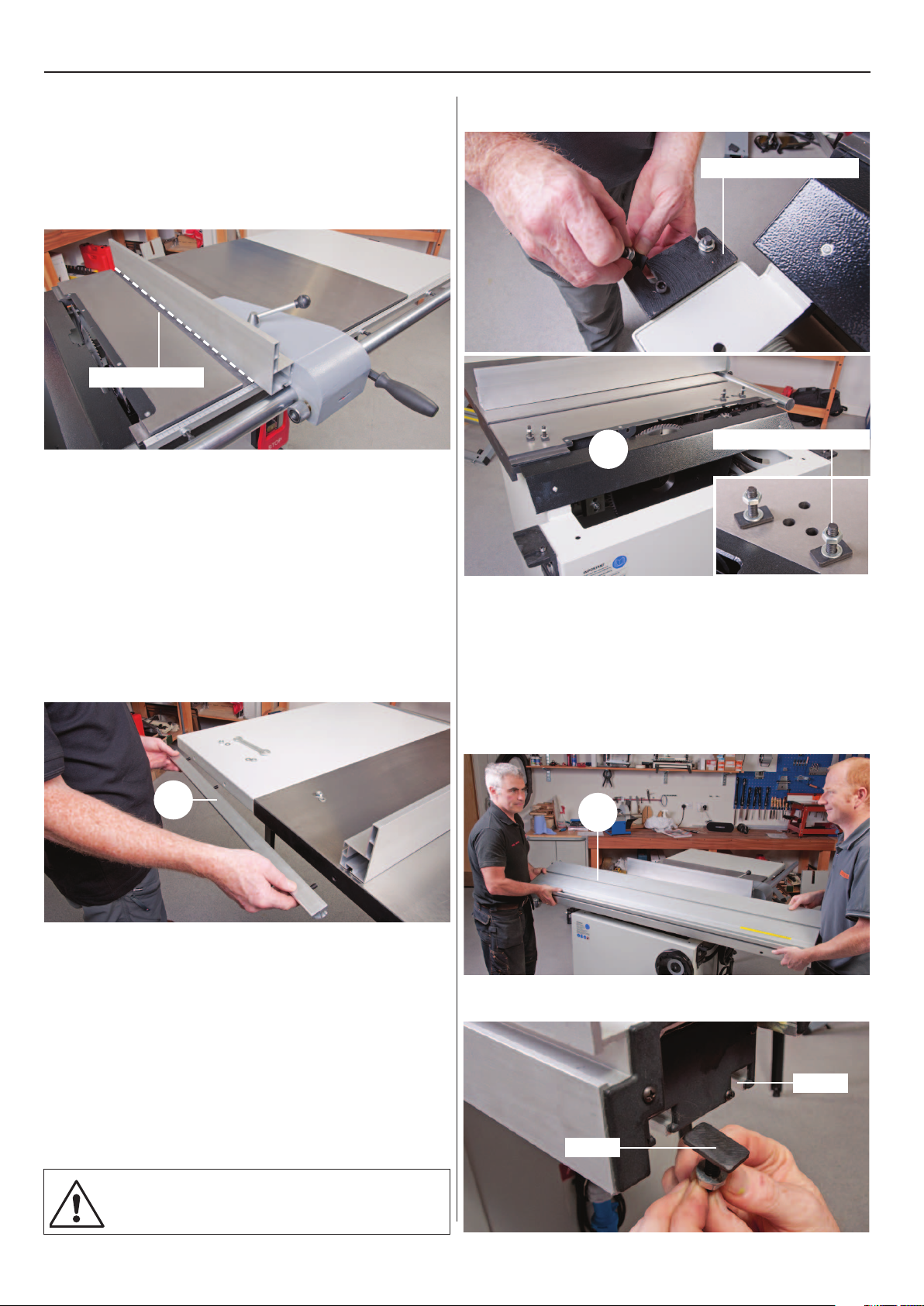

1. Remove the four ‘T’ bolts/nuts and washers from the
angled support brackets on the main saw (0), place safely
aside, see fig 35-36.
Fig 33-34
5
Fig 35-36
NOTE: YOU WILL REQUIRE HELP FOR THIS
NEXT STEP!
2. With assistance lower the sliding table assembly (19)
onto the main saw (0), see fig 37. Retrieve the ‘T’ bolts/
nuts and washers, line up the ‘T’ slots to the ends of
the sliding table (19) with the slots in the angle
brackets, slide on the ‘T’ bolts, replace the washers/nuts
and securely tighten, see figs 38-39.
Fig 37
Fig 38-39
19
‘T’ slot
‘T’ bolt
‘T’ bolts washers and nuts
0
Angled support bracket

Initial Assembly
15
Fig 40
Fig 41
3. Remove the four bolts and washers from the bottom
corner of the main saw tables frame, see fig 40. Locate
the extension support arm (1), line up the holes in the
support bracket with the holes in the saw frame and
secure with the bolts/washers you removed earlier, see
fig 41.
Fig 42
4. Locate sliding table extension (13). Open up the
supporting arm (1), slot the extension support column
(13) onto the supporting arm pin, see fig 42. Line up the
two ‘T’ bolts on the extension table with the ‘T’ slots to
the side of the sliding table and slide on the extension
table, see fig 43. Lock the extension table in place with
the two lift and shift handles, see fig 44.
5. Slide the operating handle (I) into the‘T’ slot from the
right hand side to the front of the sliding table (19), turn
the handle clockwise to tighten, see fig 45.
Fig 43-44
‘T’ slot
‘T’ bolt
13
13
Fig 45
Continues Over....
Turn to lock
Bolts and washers
1
Arm pin
Support
column
I

Initial Assembly
16
6. Locate the sliding table support leg (7), locate the two
‘T’bolts into the slots to the opposite end of the sliding
table (19) and tighten the two nuts with the supplied
spanner, see fig 46-47. Loosen the cap head screw on the
support leg and lower the leg to the floor, retighten the
screw, see fig 48.
Fig 46-47-48
7
Cap head screw
7. Locate the fence assembly (23) for the sliding table
(19), remove both the clamping knob and lift and shift
handle from the fence and place to one side. Lower the
fence on top of the table extension (13), insert the larger
threaded pin into one of the pre-drilled holes to the
corners of the table extension (13). Insert the other
between the centre column of the table then replace
the clamping knob and handle, see fig 49-50-51. Don’t
tighten at this point.
8. Lift-up the 90˚ stop located to the corners of the
extension table, push the fence up against the stop, see
fig 52-53. Using a 90˚ square, place it against the fence
Fig 49-50-51
Fig 52
and the blade (not on the teeth), check that the angle
is correct, if not, adjust the 90˚ stop cam by turning the
Phillips screw until the fence is square to the blade, see
fig 54-55-56.
NOTE: To gain access to the cam first remove the out
feed roller, see fig 55.
23
Large threaded pin
Threaded pin
Clamping
knob &
washer
Lift & shift
handle &
washer
90˚ Stop

Initial Assembly
17
Fig 53
Fig 54-55-56
9. Place a straight edge across both tables and check
they are level with each other, see 57. If there is any
deviation between the tables adjust the nuts on the
supporting arm pin (1), to raised or lower the extension
table (13), see fig 58. Once level tighten the nuts on the
supporting pin.
Fig 57-58
Fig 60-61
10. Locate the Workpiece support shoe (4), insert the ‘T’
bolt into the ‘T’ slot to the left side of the sliding table
(19), slide the shoe on and clamp in place with
the clamping knob, see fig 60-61-62.
Fig 62
Continues Over....
4
90˚ Square
‘T’ Slot
‘T’ Bolt
Out feed roller
Cam

Initial Assembly
18
11. Locate the sliding table mitre fence (3), line up the
‘T’bolt with the ‘T’ slot as before and slide the assembly
onto the opposite side of the sliding table (19) until its
up against it’s stop, see fig 62-63.The mitre fence should
line up with ‘0’ marker on tables scale, see 64, if not adjust
fence until correct and tighten the clamping knob
and handle.
Fig 62-63-64
12. Put to hand the sliding table locking knob (G),
remove the nut from the thread and insert the assembly
into the pre-drilled hole to the front of the sliding table
(19). Replace the nut and tighten using the supplied
spanners, see fig 65-66.
Fig 65-66
13. Pull out and twist the locking knob into the outer
position, move the table and lower the pin until it
engages into the inner hole, thus locking the table in
position, see figs 67-68.
Fig 67-68
Inner locking hole
locking pin
G
Scale
Mitre fence stop
3
Rear Extension Table
1. Locate the rear extension table (12) and supporting
bracket (6). Remove the two bolts, washers and nuts, line
up the holes in the table (12) with the holes to the rear of
main table (0) and replace fixings. Finger tighten at this
point, see fig 69-70.
Fig 69-70
12

Initial Assembly
19
2. Slot the machined cutout to the end of the angled
bracket (6) over the threaded bolt beneath the table to
the side of the machine, see fig 71 and lightly tighten.
Remove the bolt, washer/nut from beneath the table
(12), line up the hole to the opposite end of the bracket
(6) with hole in the table and replace the bolt, washer/
nut and securely tighten, see fig 72.
Fig 71
Fig 72
3. Place a straight edge across the rear and sliding tables
(12-19), see fig 73 adjust the rear table (12) until both
tables are level. Securely tighten the threaded bolt to
the side of the machine to lock the table in position, see
fig 71.
6
Threaded bolt
Fig 73
19
4. Position the straight edge so it’s across the main saw
table (0) and the rear extension table, see fig 74. Beneath
the rear table adjust the two height adjusting grub
screws, see fig 75 until both tables are level with each
other.Tighten the two bolts to securely clamp the table
in position, see fig 76.
Fig75-76
Fig 74
0
Height adjusting grub screw
Locate the hose support bracket (B), remove the two cap
head screws, washers, nuts and place close at hand. Line
up the holes with the ones to the rear of the right hand
extension table (11) and secure using the bolts, washers,
nuts you removed earlier, see fig 77.
Hose Support Bracket
Fig 77
Continues Over....
11 B
Cap head screws

Initial Assembly
20
Crown Guard & Hose
1. Locate the crown guard and hosing assembly (17),
loosen the lift and shift handle, slot the clamping bolt
down into the machined cutout (315mm) in the riving
knife and tighten the handle to secure the crown guard
in position, see fig 78-79-80.
Fig78-79-80
NOTE: Three sizes of saw bades can be fitted to this
panel saw, 254mm, 305mm and 315mm. If you
change your main blade to a different size make sure
to attach the crown guard to the correct position in
the riving knife to allow the crown guard to cover
the blade, see fig 79.
Slot the hose down into the support bracket (B), see
fig 81 and re-attach the hose to the dust extraction
moulding to the rear of machine, see fig 82.
Fig 81-82
Pin Locking Knob for (Rise & Fall Wheel)
Main Saw Mitre Fence
Locate the locking pin knob (F) and screw the knob into
the centre of the rise and full operating wheel, see fig 83.
Fig 83
Locate the mitre fence (16) and slide the assembly into
the ‘T’ slot on the main saw table (0), see fig 84.
Fig 84
F
16
17
Riving knife
Crown guard slots
Lift & shift handle
Clamping bolt
