1. Welcome remarks
Thank you for buying our product. We hope you will be fully satised with the Axtel headset that
you have purchased.
Depending on the needs, you can choose a version that only connects to a landline phone (X1)
or an expanded version with the possibility to make calls on three different communication
channels (X3).
PRIME X is a wireless solution for making telephone calls on different communication channels.
This greatly expands the exibility of the caller.
Key characteriscs of the headset:
High-quality sound
Excellent audibility and advanced noise reduction
Innovative electronic equipment compatible with IT telephones
Flexible design
Acoustic Protection technology
One-ear and both-ears versions
Compatibility with most telephones available on the market
CONTROL-CHARGING BASE
1) Connection to a landline phone (version X1 and X3), softphone software (PC - version X3), and
a mobile phone with Bluetooth (version X3).
2) Visual signaling of calls and the battery charging level of the headset.
3) Microphone sensitivity setting (for each communication channel separately).
EARPIECE
1) Call range 200 m.
2) Call time 10 h.
3) Wideband sound quality.
4) Multi-functional button for easy and intuitive handling of calls.
5) Visual signaling of calls.
6) Volume adjustment buttons.
7) Advanced hearing protection settings - 3 levels: 85 dB, 87 dB, and 105 dB.
8) Multi-level adjustment of headband and microphone settings to t the user’s head.
9) Possibility to change the position of the earpiece on the head - right or left side.

AXT/2019/IN www.axtelheadsets.com4
BLUETOOTH®
Standard Bluetooth®
Bluetooth® 4.2 – Bluetooth® Low Energy (BTLE) compatible with Bluetooth® 5.0.
Wireless telecommunication range - up to 200 m for communication of the headset with the
base (DECT). Up to 15 for communication with mobile devices.
Bluetooth pairing list - max. 8 devices
Simultaneous Bluetooth connections - 1 device
Important informaon about the use of the wireless headset
Read this instruction carefully and follow it at all times.
WARNINGS
• Avoid listening for a long time with the maximum sound volume.
• The volume of the sound can differ depending on the connected device and its settings.
• If you feel discomfort, switch off the device to which the headset is connected.
• The wireless Axtel headset is provided with Acoustic Protection technology which limits the
volume to 85 dB, 87 dB, or 105 dB.
• When you feel discomfort caused by direct contact of the device with the skin, stop using
the headset and contact Axtel Headsets. Continued use of the headset may result in allergic
reactions, such as redness or rash.
RECOMMENDATIONS
• The skins and the protective foams should be replaced at least once every 6 months.
• The headset should be cleaned with special tissues for electronic devices.
• Keep the headset in a safe place, away from moisture and extreme temperatures.
• Do not use the product if it is defective or incomplete.

AXT/2019/INwww.axtelheadsets.com 5

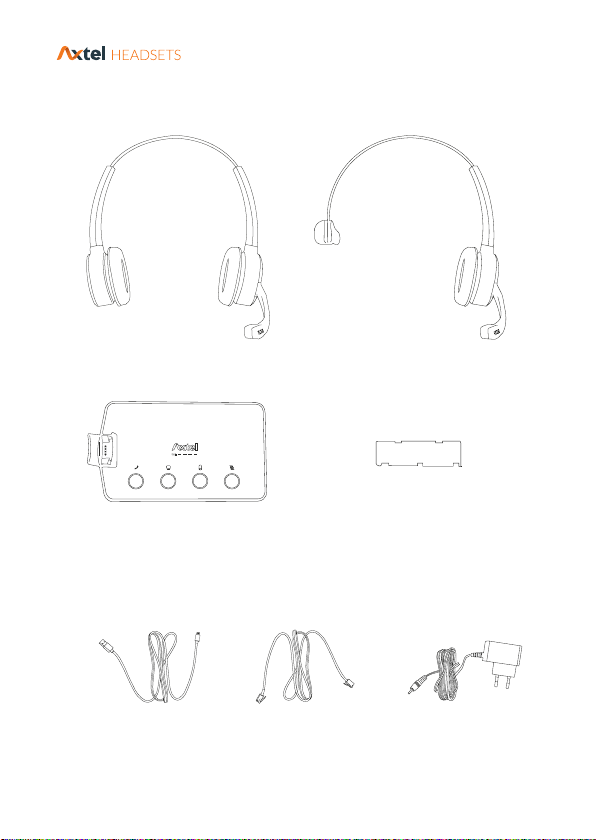

2. Content of the package
Control-charging base
PRIME X1
Earpiece
DUO version
Earpiece
MONO version
RJ/RJ connecng cable 12 V power supply
Protecve cover
or

AXT/2019/IN www.axtelheadsets.com6
Control-charging base
PRIME X3
RJ/RJ connecng cable 12 V power supply
USB connecng cable
Protecve cover
Earpiece
DUO version
Earpiece
MONO version
or

AXT/2019/INwww.axtelheadsets.com 7
3. Possibility to wear the headset
4. Charging
The Axtel headset can be worn with the microphone on the right side or the le side.
4.1 Connecng to a power supply source
In order to start the base station, use the power supply provided.
3.1. Mono version 3.2. Duo version

AXT/2019/IN www.axtelheadsets.com8
4.2 Charging the headset
In order to charge the headset, rst place the earpiece in the docking station connected to a
power supply source.
The headset can be in operation for up to 10 h.
Charging of the headset takes 3 h.
Charging time from 0% to 100% - 3 h
Standby time - from 100% to 0% - 23 h 30 min.
Listening time - from 100% to 0% - 16 h 30 min.
Call time - from 100% to 0% - 10 h 10 m

AXT/2019/INwww.axtelheadsets.com 9
0% to 20%
20% to 40 %
40% to 60 %
60% to 80 %
80% to 99 %
100%
100% to 80%
80% to 60%
60% to 40%
40% to 20%
20% to 0%
4.4 Status of the baery

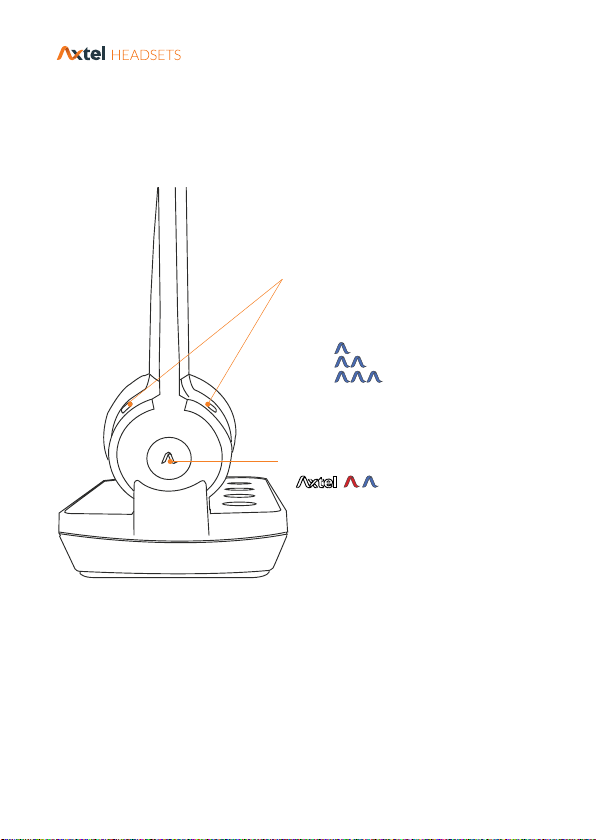

Earpiece outside of the base - Discharging:
4.3 Status of the baery
Earpiece on the base - Charging:

AXT/2019/IN www.axtelheadsets.com10
5. Pairing
5.1 Pairing the earpiece with the base
Place a switched-on earpiece on a switched-off base and then connect the base to a power
supply source. When the MFB blinking stops, this indicates correct pairing of the earpiece.
By simultaneously pressing
the following buons:
1. microphone MUTE
2. With the earpiece placed on the base, a change
of the Acoustic Protection level
85 dB
87 dB
105 dB
Pairing the earpiece with the base
5.2 Bluetooth pairing
In order to start Bluetooth pairing, press and hold the Mobile Phone button on the base station
for 3 seconds. The broadcasting time is 60 seconds and is indicated by a blinking blue LED light
on the Mobile Phone button. Then switch on the Bluetooth function in the mobile phone and
then connect the phone to “Axtel Prime X3.” No access code is required. Completion of pairing is
indicated by the blue Mobile Phone pictogram ashing three times. Correct pairing is indicated
by the Mobile Phone pictogram backlit in white.

AXT/2019/INwww.axtelheadsets.com 11
6. Operaon
6.1 Descripon of the earpiece
Most important components of the earpiece
Docking port
socket
VOLUME DOWN buon
Decreases the volume in the earpiece
Flexible microphone
VOLUME UP buon
Increases the volume
in the earpiece
Adjustable headband
Mulfuncon MFB buon
1 s. switch on the earpiece
5 s. switch off the earpiece
2 s. switching between channels
(when calls in several channels are active)
0.5 s. collect/end a call

AXT/2019/IN www.axtelheadsets.com12
Headset battery
charging status
Docking port
Place to put the headset
for charging
Control-charging base
Most important components of the base:
FRONT
6.2 Descripon of the base staon
Buttons to switch between channels with icons:
pictograms of inacve channels are not illuminated
1. Landline phone
Collecting an upcoming
call, termination of a
current call, return to a
suspended call.
3. Mobile phone
Collecting an upcoming call,
termination of an active
call, return to a call on hold.
Possibility to switch on the
listening function when
there is no connection.
2. PC
Collecting an upcoming call,
termination of an active
call, return to a call on hold.
Possibility to switch on the
listening function when
there is no connection.
4. Mung
the microphone
Possibility to switch on
and switch off the MUTE
function (possible even
without an active call).
1 2 3 4

AXT/2019/INwww.axtelheadsets.com 13

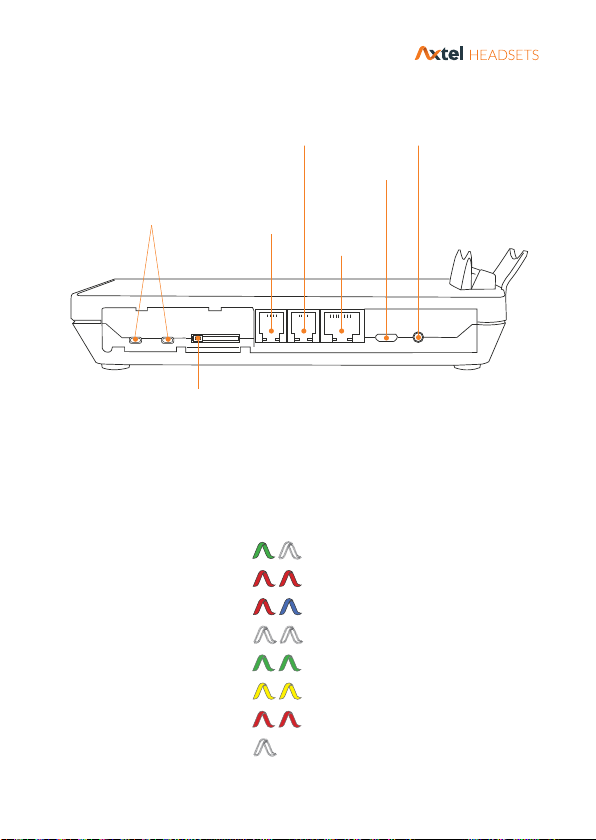

BACK
Polarizaon switch
Changes the polarization
of the RJ9 outlet for a landline phone
Micro USB
Power supply socket
connecting the power
supply
RJ9
Connecting
a landline
phone
Adjustment buons
microphone sensitivity
RJ9
connecting the receiver
of a landline phone
RJ45
socket for
remote
receipt
6.3 LED light and sound signals of the headset and the base staon
Earpiece
Switching on the earpiece
Switching off the earpiece
Pairing the earpiece with the base
Active connection with the base
Active call
Listening
Out of range information
Earpiece outside of the base
Two short signals
Two short signals
-
-
-
-
Three quick sounds every 2 seconds
-
3s.

AXT/2019/IN www.axtelheadsets.com14
Base
Switching on
Switch on/standby
Information about lack of connection outside of the base
Earpiece outside of the base - active call
Active connection with the earpiece
Incoming call
Active call
Call on hold
Listening
Pairing the earpiece
Bluetooth pairing
USB connection
Collecting a Deskphone call
Collecting a Softphone call
Collecting a Mobilephone call
MUTE function active
MUTE function not active

AXT/2019/INwww.axtelheadsets.com 15
7. Operaon of mulple devices
7.1 Switching between channels
By pressing the MFB button and holding it for about 2 seconds, you can switch between
channels. During an active call, when a call from another channel is collected, the active call is
put on hold and the newly collective call becomes active. When an active call is terminated, the
headset switches to the next active call (clockwise).
7.2 Switching between channels or collecng an incoming call
Pressing the button corresponding to the respective channel. During an active call, when a call
from another channel is collected, the active call is put on hold and the newly collective call
becomes active. When an active call is terminated, the headset switches to the next active call
(clockwise).
Landline
phone
Mobile phonePC Mung the
microphone
