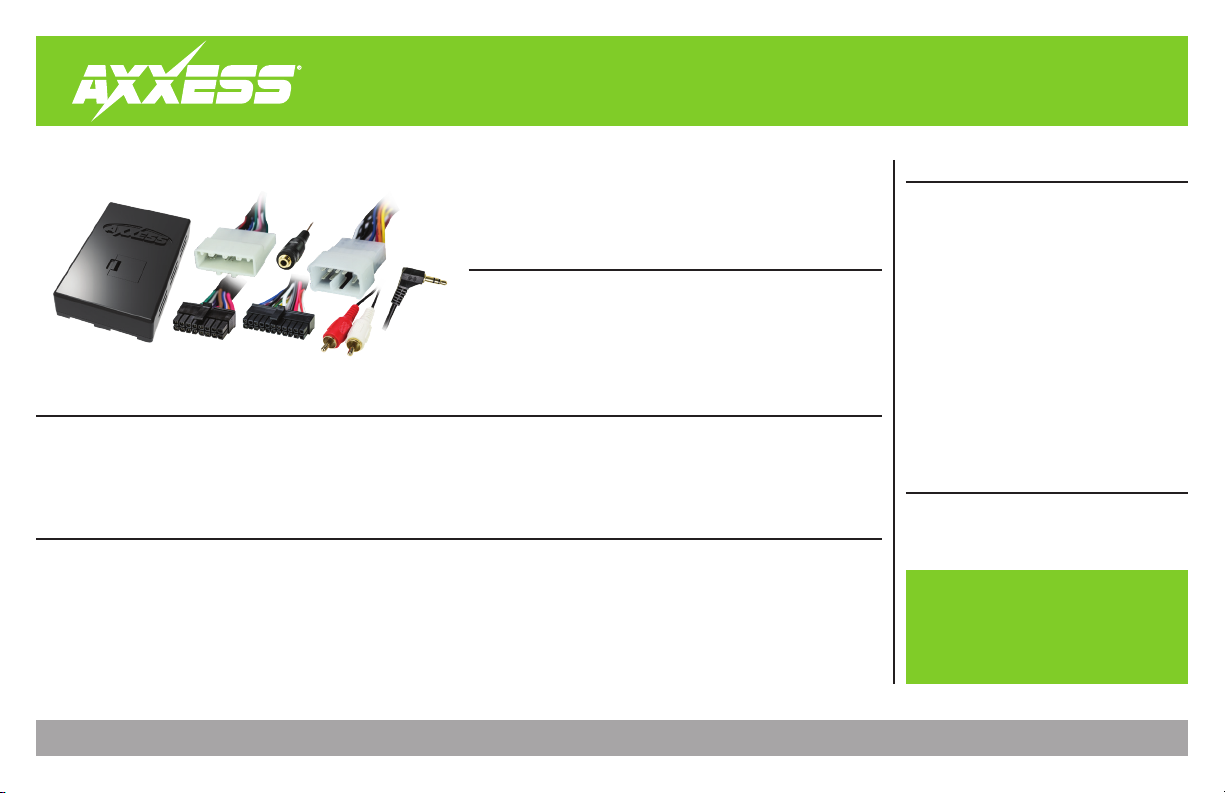

Axxess AXDIS-TY2 User manual

CAUTION! All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
A XDIS-T Y2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/23/20 INSTAXDIS-TY2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections to be made ....................................2-3
- 3.5mm jack steering wheel control retention ...3
Installing the AXDIS-TY2 ........................................3
Programming the AXDIS-TY2 ................................4
Adjusting the AXDIS-TY2 .......................................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping the steering wheel control buttons ...6
- Dual assignment instructions (long button press) ...7
Troubleshooting .....................................................8
Toyota Amp Interface with SWC 2012-Up*
APPLICATIONS
• Retains audio controls on the
steering wheel
• Provides NAV outputs (reverse)
• Retains the factory AUX-IN jack
• Designed for amplified models
• Retains balance
• Micro-B USB updatable
TOYOTA
Avalon * 2013-Up
4-Runner 2014-Up
Camry 2014-2017
Camry (w/ nav) 2012-2013
Highlander 2014-Up
Prius 3rd Gen (w/ nav) 2012-2015
Plug-In (PHV) (w/ nav) 2012-2015
Prius V 2012-2017
Rav-4 2014.5-Up
Sequoia 2014-Up
Sequoia (w/ nav) 2013
Sienna 2015-Up
Tacoma 2014-Up
Tundra * 2014-Up
Venza 2015
Venza (w/ HDD based nav) 2013-2014
• AXDIS-TY2 interface
• AXDIS-TY2 harness
• Female 3.5mm connector with stripped lead
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
* Only for models with a JBL amplifier

2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear
sound from the factory amplifier.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
• Tape off and disregard the following (6) wires, they will not be used in this application:
Blue/Pink, Brown, Green/Purple, Light Green, Orange/White, Red.
From the AXDIS-TY2 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Blue wire to the power antenna wire.
• If the aftermarket radio has an illumination wire, connect the Orange wire to it.
The following (1) wire is for an aftermarket multimedia/navigation radio that requires this wire.
If not required, tape it off and disregard it.
• Connect the Green/Purple wire to the reverse wire.
• If retaining the factory AUX-IN jack, connect the Red & White RCA jacks to the AUX input.
Continue to 3.5mm jack steering wheel control retention

3
REV. 1/23/2020 INSTAXDIS-TY2
CONNECTIONS TO BE MADE (CONT) INSTALLING THE AXDIS-TY2
3.5mm jack steering wheel control retention:
• The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below, connect the included
female 3.5mm connector with stripped leads,
to the male 3.5mm SWC jack from the AXDIS-TY2. Any remaining wires tape off and disregard .
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White
wire of the connector. Then connect the remaining steering wheel control wire, normally
Brown/White, to the Brown wire of the connector
.
•
Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire.
•
Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire
to the Brown wire.
Note: If your Kenwood radio auto detects as a JVC, manually set the radio type to
Kenwood. See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the Brown wire.
•
Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AXSWCH-PAR (sold
separately), and then connect the 4-pin connector from the AXSWCH-PAR into the radio .
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown wire of the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White wire of the connector. If the
radio comes with a third wire for ground, disregard this wire
.
Note: After the interface has been programmed to the vehicle, refer to the manual
provided with the radio for assigning the SWC buttons. Contact the radio manufacturer
for more information.
• For all other radios: Connect the 3.5mm jack from the AXDIS-TY2 harness into the jack on the
aftermarket radio designated for an external steering wheel control interface. Please refer to the
aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
With the key in the off position:
• Connect the 16-pin harness with stripped leads, and the AXDIS-TY2 harness, into the
interface.
Attention! Do not connect the AXDIS-TY2 harness to the wiring harness in the vehicle just yet.
Attention! If retaining steering wheel controls, ensure that the jack/wire is connected to the radio
before proceeding. If this step is skipped, the interface will need to be reset for the steering wheel
controls to function.

4
For the steps below, the L.E.D. located inside the interface can only be seen while active. The
interface does not need to be opened to see the L.E.D.
1. Start the vehicle.
2. Connect the AXDIS-TY2 harness to the wiring harness in the vehicle.
3. The L.E.D. will initially turn on solid Green, then turn off for a few seconds while it auto
detects the radio installed.
4. The L.E.D. will then flash Red up to (18) times indicating which radio is connected to the
interface, and then turn off for a couple of seconds. Pay close attention to how many Red
flashes there are. This will help in troubleshooting, if need be. Refer to the L.E.D. feedback
section for more information.
5. After a couple seconds the L.E.D. will turn on solid Red while the interface auto detects the
vehicle. This process should take 5 to 30 seconds.
6. Once the vehicle has been auto detected by the interface, the L.E.D. will turn on solid Green
indicating programming was successful.
7. Test all functions of the installation for proper operation, before reassembling the dash.
8. If the interface fails to function, refer to Resetting the AXDIS-TY2.
Note: The L.E.D. will turn on solid Green for a moment, and then turn off under normal
operation after the key has been cycled.
Note: Fade control will not be retained with this interface.
Audio level adjustment
• With the vehicle and radio turned on, turn the volume up 3/4 of the way.
• With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio
level; counterclockwise to lower the audio level.
• Once at a desired level, audio level adjustment is complete.
PROGRAMMING THE AXDIS-TY2 ADJUSTING THE AXDIS-TY2

5
REV. 1/23/2020 INSTAXDIS-TY2
STEERING WHEEL CONTROL SETTINGS
L.E.D. feedback
The (18) Red L.E.D. flashes represent what brand radio the AXDIS-TY2 believes it is connected
to. Each flash represents a different radio manufacturer. For example, if you are installing
a JVC radio, the AXDIS-TY2 will flash (5) times. Following is a legend that dictates which
manufacturer corresponds to which flash.
L.E.D. feedback legend
* Note: If the AXDIS-TY2 flashes Red (7) times, and you do not have an Alpine radio connected to
it, that means the AXDIS-TY2 does not detect a radio connected it. Verify that the 3.5mm jack is
connected to the correct steering wheel jack/wire in the radio.
** Note: Part number AXSWCH-PAR is required (sold separately). Also, the Parrot radio must be
updated to rev. 2.1.4 or higher through www.parrot.com.
† Note: If you have a Clarion radio and the steering wheel controls do not work, change the radio
type to the other Clarion radio type; same for Eclipse. The following section explains how to do this.
‡ Note: If you have a Kenwood radio and the L.E.D. feedback comes back as showing as a JVC radio,
change the radio type to a Kenwood. The following section explains how to do this.
1 flash - Eclipse (Type 1) †
2 flashes - Kenwood ‡
3 flashes - Clarion (Type 1) †
4 flashes - Sony / Dual
5 flashes - JVC
6 flashes - Pioneer / Jensen
7 flashes - Alpine *
8 flashes - Visteon
9 flashes - Valor
10 flashes - Clarion (Type 2) †
11 flashes - Metra OE
12 flashes - Eclipse (Type 2) †
13 flashes - LG
14 flashes - Parrot **
15 flashes - XITE
16 flashes - Philips
17 flashes - TBD
18 flashes - JBL
Continued on the next page
Changing radio type
If the LED flashes do not match the radio you have connected, you must manually program
the AXDIS-TY2 to tell it what radio it is connected to.
1. After (3) seconds of turning the key on, press and hold the Volume-Down button on the
steering wheel until the L.E.D. in the AXDIS-TY2 goes solid.
2. Release the Volume-Down button; the L.E.D. will go out indicating we are now in Changing
Radio Type mode.
3. Refer to the Radio Legend to know which radio number you would like to have
programmed.
4. Press and hold the Volume-Up button until the L.E.D. goes solid, and then release. Repeat
this step for the desired radio number you have selected.
5. Once the desired radio number has been selected, press and hold the Volume-Down button
on the steering wheel until the L.E.D. goes solid. The L.E.D. will remain on for about (3)
seconds while it stores the new radio information.
6. Once the L.E.D. goes off, the Changing Radio Type mode will then end. You can now test the
steering control wheel controls.
Note: If at any time the user fails to press any button for a period longer than (10) seconds,
this process will abort.
Attention: The Axxess Updater App can also be used to program the following (3) sub-sections as
well, pending that the interface has been initialized and programmed.

6
Continued on the next page
Radio legend
1. Eclipse (Type 1)
2. Kenwood
3. Clarion (Type 1)
4. Sony/Dual
5. JVC
6. Pioneer/Jensen
7. Alpine
8. Visteon
9. Valor
10. Clarion (Type 2)
11. Metra OE
12. Eclipse (Type 2)
13. LG
14. Parrot
15. XITE
16. Philips
17. TBD
18. JBL
Remapping the steering wheel control buttons
Let’s say you have AXDIS-TY2 initialized and you want to change the button assignment for
the steering wheel control buttons. For example, you would like Seek-Up to become Mute.
Follow the steps below to remap the steering wheel control buttons:
1. Ensure the AXDIS-TY2 is visible so you can see the L.E.D. flashes to confirm button
recognition.
Tip:
Turning the radio off is recommended.
2. Within the first twenty seconds of turning the ignition on, press and hold the Volume-Up
button on the steering wheel until the L.E.D. goes solid.
3. Release the Volume-Up button, the L.E.D. will then go out; The Volume-Up button has now
been programmed.
4. Follow the list in the Button Assignment Legend to reference the order in which the steering
wheel control buttons need to be programmed.
Note:
If the next function on the list is not on the steering wheel, press the Volume-Up
button for (1) second until the L.E.D. comes on, and then release the Volume-Up button.
This will tell the AXDIS-TY2 that this function is not available and it will move on to the next
function.
5. To complete the remapping process, press and hold the Volume-Up button on the steering
wheel until the L.E.D. in the AXDIS-TY2 goes out.
1. Volume-Up
2. Volume-Down
3. Seek-Up/Next
4. Seek-Down/Prev
5. Source/Mode
6. Mute
7. Preset-Up
8. Preset-Down
9. Power
10. Band
11. Play/Enter
12. PTT (Push to Talk) *
13. On-Hook *
14. Off-Hook *
15. Fan-Up *
16. Fan-Down *
17. Temp-Up *
18. Temp-Down *
Button assignment legend
Note: Not all radios will have all of these commands. Please refer to the manual provided with the
radio, or contact the radio manufacturer for specific commands recognized by that particular radio.
* Not applicable in this application
STEERING WHEEL CONTROL SETTINGS (CONT)

7
REV. 1/23/2020 INSTAXDIS-TY2
Dual assignment instructions (long button press)
The AXDIS-TY2 has the capability to assign (2) functions to a single button, except Volume-Up
and Volume-Down. Follow the steps below to program the button(s) to your liking .
Note: Seek-Up and Seek-Down come pre-programmed as Preset-Up and Preset-Down
for a long button press.
1. Turn on the ignition but do not start the vehicle.
2. Press and hold down the steering wheel control button that you want to assign a long press
function to for about (10) seconds, or until the L.E.D. flashes rapidly. At this point release the
button; the L.E.D. will then go solid.
3. Press and release the Volume-Up button the number of times corresponding to the new button
number selected. Refer to the Dual Assignment Legend. The L.E.D. will flash rapidly while the
Volume-Up button is being pressed, and then go back to a solid L.E.D. once released. Go to the
next step once the Volume-Up button has been pressed the desired number of times.
Caution: If more than (10) seconds elapses between pressing the Volume-Up button, this
procedure will abort, and the L.E.D. will go out.
4. To store the long press button in memory, press the button that you assigned a long press
button to (the button held down in Step 2). The L.E.D. will now go off indicating the new
information has been stored.
Note: These steps must be repeated for each button you would like to assign a dual
purpose feature to. To reset a button back to its default state, repeat Step 1, and then
press the Volume-Down button. The L.E.D. will go out, and the long press mapping for
that button will be erased.
Dual assignment legend
1. Not allowed
2. Not allowed
3. Seek-Up/Next
4. Seek-Down/Prev
5. Mode/Source
6. ATT/Mute
7. Preset-Up
8. Preset-Down
9. Power
10. Band
11. Play/Enter
12. PTT
13. On-Hook
14. Off-Hook
15. Fan-Up *
16. Fan-Down *
17. Temp-Up *
18. Temp-Down *
* Not applicable in this application
STEERING WHEEL CONTROL SETTINGS (CONT)

KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
IMPORTANT
If you are having difficulties with the installation of this product,
please call our Tech Support line at 1-800-253-TECH. Before doing
so, look over the instructions a second time, and make sure the
installation was performed exactly as the instructions are stated.
Please have the vehicle apart and ready to perform troubleshooting
steps before calling.
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/23/20 INSTAXDIS-TY2
INSTALLATION INSTRUCTIONS
A XDIS -T Y2
Resetting the AXDIS-TY2
1. The Blue reset button is located inside the interface, between the two connectors. The button is accessible outside the
interface, no need to open the interface.
2. Press and hold the reset button for two seconds, and then let go to reset the interface.
3. Refer to “Programming the Interface” from this point.
TROUBLESHOOTING
