Introduction
Thank you for purchasing the Ayra UV LED Brick. This versatile spot armature features powerful UV
modules providing you with a high light output. This ensures a perfect blacklight effect based on LED
technology. This manual provides all the information you need to know about the product before you start
using it.
We advise that you read this user manual in its entirety before unpacking the contents of the box so that you
are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the
parts and accessories listed below under 'Box contents' are included in the package. In the event that the UV
LED Brick does not function properly or if you have any issues while operating it please remove the plug
from the power socket and contact your dealer for assistance.
Box contents:
- Ayra UV LED Brick Armature
- Suspension bracket
- Mounting materials (2x tightening knobs 2x rubber ring)
- Connector cable IEC C13 to Schuko 1 5 mm²
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
actual product.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

Sa ety Instructions
Everyone involved with the installation operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary they must be handled by a qualified technician.
The light source of this device is not replaceable. If the light source no longer functions the entire device
needs to be replaced.
Important in ormation regarding sa ety and health:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up and any hardware or software that may be present should not be
modified.
- To achieve optimal performance inputs on the device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water rain and moisture should always be avoided.
Do not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids gasses
or objects.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -
WARNING!
Keep this device away rom moisture, water and rain to avoid the chance o electric shocks.
WARNING!
Only connect this device to a suitable power socket. This device unctions on a speci ic power
voltage. I it is plugged into a power socket with a di erent voltage, it could result in permanent
damage and even dangerous situations such as ire or electric shocks.
WARNING!
Be care ul when operating this device. Touching the wires that are connected to the mains,
inside or outside the device, could result in electric shocks.

- Disconnect this device from a power source if it will not be used for a longer period of time if maintenance
is necessary or if it needs to be cleaned.
- Do not pull on the cable to remove a connector as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- Only use this device with a stable AC power supply.
- Only use this device with power from a grounded power source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment) it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device which could lead to electric
shocks.
Guidelines and operation o this device:
- This device is intended for use by professionals on stage in theatres in clubs and in similar entertainment
locations.
- This device is not suitable for use by children and should always be operated by an adult.
- This device is designed to create light effects for entertainment purposes. It is not suitable for household
illumination.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual damages or even injuries could
occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of
this product.
Storage and transport:
- This product was designed for mobile use. Please only transport the device in the original packaging or in
a flight case with a suitable foam inlay.
- This device was not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently and always just before use. Avoid operating the device if there are
large dents or cracks or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely attached. Do not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently the cleaning intervals should
increase.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution. CE: The CE
logo indicates that this product meets the European norms and requirements to which it must
legally conform.
CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Only suitable or indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
Contact:
Ayra professional lighting products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

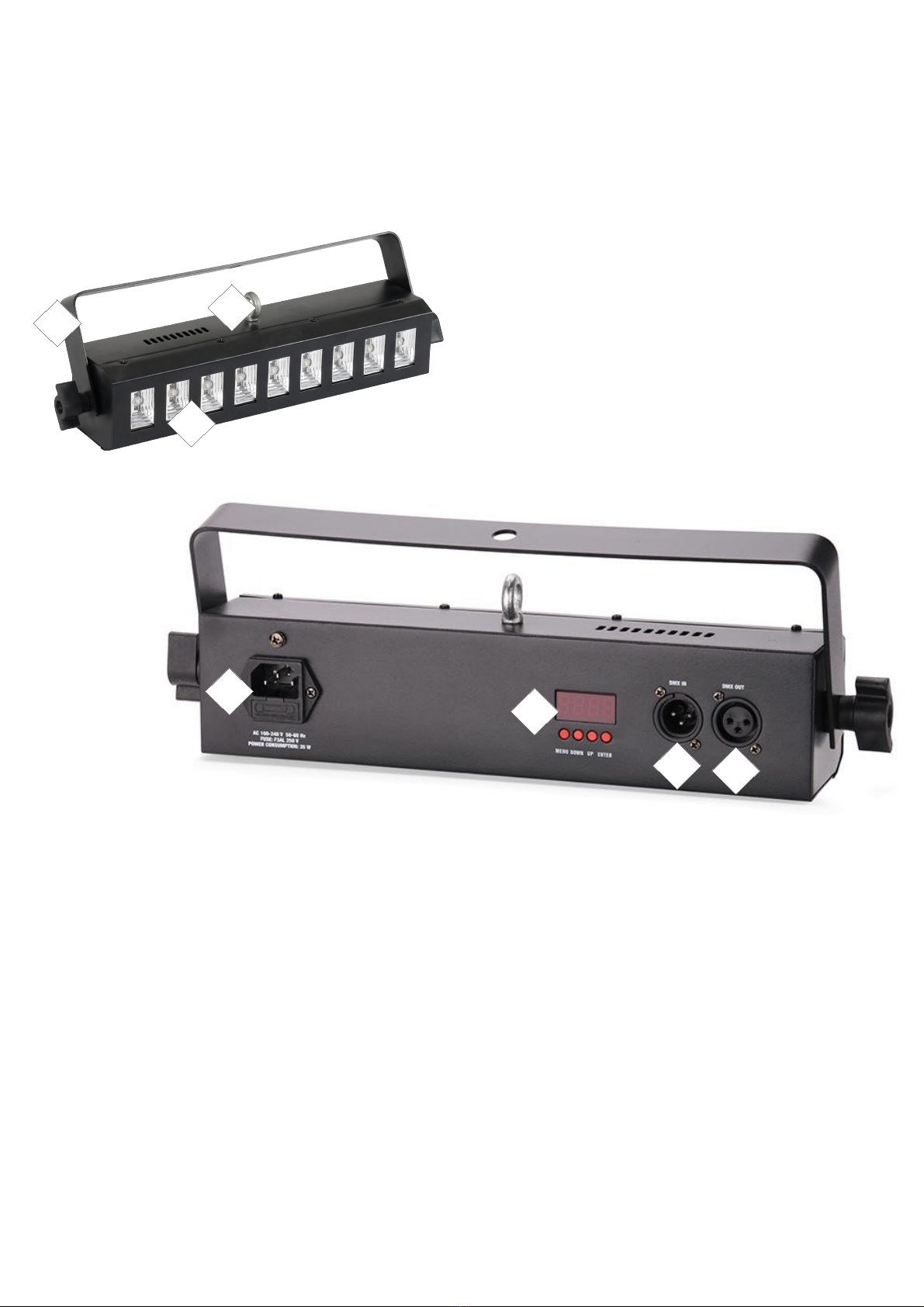

Overview and Operation Guidelines or this Device
1. Light output
2. Suspension bracket
3. Safety eyelet
4. IEC C14 power input with fuse holder
5. LED display with menu buttons
6. DMX input via 3-pins XLR
7. DMX output via 3-pins XLR
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -
2
5
67
1
3
4

Operation and Mounting
To activate the device plug it into a mains socket. Once it's connected to an active power source it will turn
on automatically.
During startup ‘AYRA’ will be shown on the display which means the device is not ready to be operated.
Once the device has fully started up it will jump to the last-used mode. Operation modes and other settings
shown on the display can now be adjusted or changed by means of the menu buttons.
The device has no automatic DMX signal detection. If you want to use the device in DMX mode manually
select DMX mode and optionally change the starting address. For new devices this will normally be DMX
address 001. Of course you can change the DMX address via the display using the menu buttons.
Using the display and the menu buttons you can adjust the functions and settings of the device. Press
'Enter' to confirm an adjustment or select a function use ‘Up’ and ‘Down’ to change amounts and ‘Menu’ to
go back to the menu. By holding the ‘Menu’ button down for 2 seconds after saving a specific setting the
device will return to operation mode and adopt the setting. This will also be done after any changes in the
operation mode or DMX address. This operation is not always necessary considering the device
automatically does this after a new setting is confirmed.
The menu contains the following options and functions.
Display Mode Function
A00X DMX Address Configuration Address A001 … A512
C000 Stand-Alone Selection CD00-CD99 (0-100% Dimmer)
CF00-CF99 (Strobe off-slow-fast)
CN0X Quick Stand-Alone Selection CN01 100% Output level
CN02 66% Output level
CN03 33% Output level
AUTO Automatic Program AU00-AU099 (Slow-Fast)
SLAV Slave Mode ‘Enter’ will automatically set the device as slave.
If not set to slave the device will operate as
Master.
SOUN Sound-Controlled Mode with
adjustable sensitivity
S000-S099 (Not sensitive – Very sensitive)
1CH / 2CH DMX Channel Mode Selection 1CH = 1-Channel DMX-mode
2CH = 2-Channel DMX-mode
You'll find an explanation of the various functions below:
ADDR: With this function you can determine the DMX start address of the device. Set it channel 001 and
the device will read DMX channel 1. Set it to channel 003 then the device will read DMX channel 3 etc.
C000: This device can be used as a stand-alone unit and thanks to the possibility to separately set the
dimmer intensity and stroboscobe speed you can decide how you want the device to behave within your set-
up. Separately adjust the dimmer and flashing intensity.
AUTO: This device features an automatic show mode. This demo mode shows different programs and
effects. The speed setting is adjustable.
SLAV: The Master-Slave mode is designed to sync multiple devices. A copy of the internal program is sent
to the daisy-chained devices so that each one projects the same effect. The master-slave function works by
means of standard 3-pin XLR cables. The only difference is that the first device in the chain does not receive
DMX input. In Slave 1 mode the device will copy the exact signal directly from the Master.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

SOUN: This device can be used in sound-controlled mode to show different effects depending on the beat it
registers. The sensitivity can be adjusted when activating this mode. The higher the sensitivity value the
more sensitive the internal microphone becomes.
Operating Modes
The following overview is designed to show the differences between the various operation modes that are
supported by the above-mentioned menu functions.
Auto:
Automatic mode allows you to choose one of the operating modes that do not depend on external factors
(such as sound-controlled signals or the presence of sound). Choose one of the basic programs and
optionally adjust speed or intensity settings.
Sound:
When in Sound-controlled mode the device's internal microphone detects the music and reacts to the beat.
The device will move in sync with the music and provide an automated light show.
When there is no music for the device to detect or when only high frequencies are audible the device will
continue its program at a slower pace so the light show will not stop abruptly. As soon as the microphone
detects music again it will resume the automated program and follow the beat.
Slave
In Slave mode you can daisy-chain multiple devices of the same type so they all function a specific way.
This way you can coordinate your light show by having multiple separate devices moving the same way
instead of all different directions which can be chaotic. Basically you can connect an unlimited number of
slave devices to a master device but a DMX booster is required in between. Generally speaking you can
connect up to four armatures together without the need for a DMX booster.
Be aware that when you attempt to connect devices of different types and brands they may behave
strangely and you may not get the desired effect because certain functions are linked to the wrong channels.
This is true of DMX lighting of all brands and types.
DMX
The DMX mode is the most comprehensive way to maintain ultimate control over all the functions this device
has to offer. It enables you to determine exactly how many functions you want to control via the DMX
controller or DMX software.
This device can be set to various channel modes so the channel layout which is shown below corresponds
perfectly with your DMX circle layout as well as with the functions you will be using.
1CH mode:
CH Function Value
1 Dimmer 0-100% 000-255
2CH mode:
CH Function Value
1 Dimmer 0-100% 000-255
2 Strobe Speed 000-255 (Slow-Fast)
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

Installation and Connection Requirements
Now that you know how the UV LED Brick works it's important to know how to use it correctly and safely
according to the installation and connection requirements.
Make sure the device and connection cables are out of reach of children and that if children are present
they are under adult supervision at all times. Because this device can be used upright or suspended
children could pull on the cables causing the device to fall on top of them. To avoid injury it is important to
pay close attention to the position and/or installation of this device.
Upright use
If you wish to use the UV LED Brick in upright position ensure the device is placed on a stable surface like a
table DJ booth or bar. The UV LED Brick has not been equipped with rubber feet so make sure it can’t
topple over when someone trips over its cables.
Suspended use (brackets)
If you wish to use the UV LED Brick in a suspended position use the included suspension bracket
tightening knobs and rubber rings to mount it.
The rings are placed in between the bracket and the armature. Tighten the knob on each side to firmly fix the
bracket in place.
If you want to mount a half coupler or a G-hook to the brackets it is advised to do this before mounting the
brackets to the armature. You can find standard hooks and/or brackets for 35 or 50mm tubes (truss or light
stand) at your local dealer.
Hardware for mounting the UV LED Brick to a wall ceiling or beam is not included. Contact a specialist if
you're not surewhich hardware is required for your situation. A wooden beam and stone wall require different
mounting methods.
Should you want to suspend the UV LED Brick you will need to attach a safety cable to the armature. This is
not included but is available at your local dealer. The UV LED Brick is equipped with an eyelet for hooking a
safety cable. Once it's hooked on you can wrap the cable around the truss or light stand and attach it again
by means of the same hook. This ensures the device is secured and prevents it from falling even if one or
both of the brackets should come loose.
Ensure that the safety cable has a load capacity of 10x the weight of the armature and that the device can
not fall farther than 30 cm. You can wrap the safety cable around the truss or light stand several times to
ensure the fall is as short as possible. The shorter the fall the less chance of damage or injury.
Light source
The UV LED Brick features powerful LED modules bundled by a special reflector. Never look directly into
the lens at close range as the human eye can't adjust to the sudden intensity of the beam of light this device
produces. It won't result in permanent damage but it can cause temporary blind spots which may cause
disorientation and discomfort.
Parts and repair
This product does not include spare parts and can not be repaired by the user. All inspections and overall
maintenance should be done by a specialist.
Cleaning and maintenance
Clean the exterior of this device monthly with a dry or slightly damp microfibre cloth. Ensure that the device
is unplugged before cleaning it.
Check if all the screws are intact and secured and tighten or replace them where needed. Check all metal
parts of the device for any signs of corrosion. If corrosion is found the device needs to be checked
thoroughly.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

DMX terminator
In DMX mode it’s standard practice to place a terminator at the end of a DMX circuit. A DMX terminator is an
electrical termination consisting of a 120 Ohm resistor that’s placed between the second and third pin to
eliminate possible data reflections. Data reflections can cause strange behaviour in DMX-controlled devices.
DMX-terminators are sold separately but you may yourself decide to solder a 120 Ohm resistor between the
second and third pin of a standard male XLR connector.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

DMX Lighting Troubleshooting
If you have a problem with your DMX light effect please consult the troubleshooting section for possible
solutions. If after consulting this section the problem remains unresolved please contact your dealer for
more information and/or help.
This troubleshooting section contains information on how to solve the most common DMX light effect
problems but it does not and cannot cover every eventuality. It is possible that you won't find your problem
cause and solution in this section due to differences between various connecting devices.
Problem Possible cause Solution
The device can not be turned on. A fuse is blown Check the fuse to rule out if it is
blown or not. If it is blown replace
it with a new fuse of the same type
and class.
Power cable not plugged in Check if the power cable is
properly connected to the device
andplugged into an active power
socket.
The device is not reacting to DMX
signals
Incorrect DMX start address Check if the device has been set
to the correct DMX start address
DMX controller is set to ‘Blackout’ Make sure the ‘Blackout’ function
on the DMX controller is not
activated
Make sure the polarity switch on
the DMX controller is set correctly
Try to reverse the DMX polarity
switch on the DMX controller.
The device is not reacting there is
no DMX signal indication
Make sure the XLR cables are
connected properly and are not
defective. Replace if necessary.
The device does not react to
sound/music
Incorrect operation mode Make sure the sound-activated
mode has been selected.
The internal microphone sensitivity
is too low
Check the microphone sensitivity
level and increase it if necessary.
The speaker is too far away or is
not producing enough low tones
Place the light effect closer to a
speaker (or vice versa) and/or
increase the low-frequency level.
The built-in microphone is not
triggered by high tones.
The amount of projected light is
minimal
Dirty or dusty optics Clean the lens and/or other optics.
Dimmer is not completely open Check if the dimmers on the
spotlights themselves and/or if the
master dimmer is completely open
as well as colour balance settings.
The DMX signal appears to be
interrupted and some devices are
flashing or behaving strangely
Damaged/defective cables Check and replace the DMX
cables if necessary.
Power interference on the DMX
signal
Avoid connecting signal cables
parallel to power cables.
DMX terminator missing Close the DMX circle with a DMX
terminator
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

Signal loss or interference in the
DMX circle
Close the DMX circle with a
terminator or connect a booster
after maximum 32 fixtures.
The device does not respond well
to DMX-commands.
Wrong DMX-channel mode Check to see if the correct DMX
channel mode is set.
The operating mode can not be
changed
The device is in Slave mode If the device is in Slave mode it
will wait for a master signal unless
there is a DMX signal present. Set
the device to Master to activate the
sound-controlled or automated
operation modes.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -

Technical Speci ications
- UV LED bar with 9 powerful UV LEDs
- 9x 3W UV LED
- Metal housing
- Included U-shaped suspension bracket
- Various operating modes including stand-alone
- Sound-controlled mode with adjustable sensitivity
- Master / Slave functionality
- 1 or 2 channel DMX mode
- Fitted with a safety-eyelet
- Power input via IEC C14 power connector with fuse holder
- Power output via IEC C13
- Fuse: F3AL 250V
- To be used in environmental temperature: 0°C - 40°C
- Maximum housing temperature during normal use: 51°C
- Fitted with ventilation slits
- Power supply: 100-240V AC 50/60 Hz
- power factor: 0.629 @ 110V 0.602 @ 220V
- Nominal power consumption: 27 Watts
- Beam angle: 87 degrees
- Light output: 424 Lux at 1 metre (full output)
- Dimensions: 367 x 75 x 123 mm
- Weight: 1.6 kg
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:07-10-2019 RV Revision date and author's initials: -
