Böning AHD 880 TC User manual

2012-08-27
8.8“ Touchscreen Colour Display
AHD 880 TC
Operation Manual
Read this manual before beginning any work!
Dok-ID: PaB-1144 V5

2 V5
© Böning
Automationstechnologie GmbH & Co. KG
Am Steenöver 4
D-27777 Ganderkesee
Tel.: [phone]
Fax: [phone] /-22
E-Mail: [email protected]
Internet: www.boening.com

8.8“ Touchscreen Colour Display AHD 880 TC
V5 3
1General Information...............................................................6
1.1 About this Manual..........................................................6
1.2 Explanation of Symbols .................................................6
1.3 Limitation of Liability ......................................................7
1.4 Copyright........................................................................8
1.5 Spare Parts....................................................................8
1.6 Warranty Terms.............................................................8
1.7 Customer Care...............................................................8
2Safety ......................................................................................9
2.1 Operator’s Responsibilities ............................................9
2.2 Personnel Requirements...............................................9
2.2.1 Qualifications..................................................9
2.2.2 Unauthorized Persons..................................10
2.3 Intended Use................................................................11
3Design and Function............................................................12
3.1 General Function .........................................................12
3.2 Mechanical Structure...................................................16
4Technical Information..........................................................17
4.1 Technical Data Color Display AHD 880 TC.................17
4.2 Technical Data Remote Control AHD 650R................19
4.3 Name Plate AHD 880 TC.............................................19
4.4 Dimensions..................................................................20
4.4.1 Device Dimensions Color Display
AHD 880 TC.................................................20
4.4.2 Panel Cutout and Drill Holes AHD 880 TC...21
4.4.3 Device Dimensions Remote Control
AHD 650R ....................................................22
4.4.4 Panel Cutout and Drill Holes AHD 650R......23
4.5 Connections.................................................................24
4.5.1 Device Connections .....................................24
4.5.2 Terminal Assignment....................................25
4.5.3 CAN-Connections.........................................26
4.5.4 DIP-Switch Functions...................................26
4.6 Cable Configuration.....................................................29
4.6.1 Transmission of configuration to the device.29
4.6.2 Graphics Configuration.................................30
4.6.3 Upload of Firmware and graphics configu-
ration.............................................................31
5Transport, Packaging, and Storage ...................................33
5.1 Transport Safety Instructions.......................................33

8.8“ Touchscreen Colour Display AHD 880 TC
4 V5
5.2 Transport Inspection ....................................................33
5.3 Packaging ....................................................................33
6Installation and Initial Startup.............................................35
6.1 Safety...........................................................................35
6.2 Installation....................................................................36
6.3 Initial Startup ................................................................38
7Operation ..............................................................................39
7.1 Startup..........................................................................40
7.2 Key Functions ..............................................................40
7.3 Measuring Point Pages................................................42
7.3.1 General Information......................................42
7.3.2 Graphic Measuring Points Page with
Round Instruments and Digital Displays ......42
7.3.3 Measuring Points Page in Tabular Format...43
7.4 Alarms..........................................................................44
7.4.1 Colors and Status LED Display ....................44
7.4.2 Alarm Page...................................................44
7.4.3 Alarm Acknowledgement..............................46
7.5 Configuration Menu......................................................46
7.5.1 Configuration Page Standard Settings.........47
7.5.2 Making Changes...........................................48
7.5.3 Configuration Page Advanced Settings........51
7.6 Measuring Points List / Service Page..........................53
7.7 Information Page..........................................................55
7.8 Brightness Control........................................................56
7.9 Power Off .....................................................................56
8Maintenance..........................................................................57
9Errors.....................................................................................58
9.1 Safety...........................................................................58
9.2 Power / Fault LED........................................................59
9.3 Error Correction............................................................60
10 Disassembly .........................................................................61
10.1 Safety 61
10.2 Disassembly.................................................................61
10.3 Disposal 62
11 Index......................................................................................63

8.8“ Touchscreen Colour Display AHD 880 TC
General Information
V5 5
Change History
for Operation Manual AHD 880 TC
Date
Version
Reason for Change
Page /
Chapter
Author
Mar 7, 2011
AHD 880 TC_Doku_de_V01_20110307
Revision of operation
manual based on an
older version
n.a.
Biebricher, Andre
(BiA)
Feb.7, 2012
AHD_880_TC_DOK_DE_V2_20120207
Corrections and additions
5
27
28
Pasuki, Bahram
(PaB)
Feb 20, 2012
AHD_880_TC_DOK_EN_V2_20120207
Translation of Operation
Manual
Pasuki, Bahram
(PaB)
Feb 27, 2012
AHD_880_TC_DOK_EN_V3_20120227
Correction Table DIP
switches
Amendments, Configura-
tion
Dok-ID changed
4.5.4
4.6
Pasuki, Bahram
(PaB)
Mar 14, 2012
AHD_880_TC_DOK_EN_V4_20120314
Configuration diagram
changed to neutral
Colour depth corrected
P. 14
P. 17
Pasuki, Bahram
(PaB)
23.08.2012
AHD_880_TC_DOK_EN_V5_20120823
Corrections Technical
Data
Reference to
configuration with
AHD-DeviceConfig
18 ff.
33
Pasuki, Bahram
(PaB)

8.8“ Touchscreen Colour Display AHD 880 TC
General Information
6 V5
1 General Information
1.1 About this Manual
Read this manual carefully before beginning any work! It is
part of the product and must be kept in the product’s immedi-
ate vicinity, so that it is always available to the personnel.
Include this manual when handing the product over to third
parties.
This manual includes important product handling instructions. On
the following pages, this manual describes the 8.8” Color Display
AHD 880 TC.
This manual includes specific instructions, in case further and more
detailed documentation is available for individual components.
Adhering to all product safety and handling instructions for the
product and all connected components is a prerequisite for safe
operation.
In addition, the local accident prevention and general safety rules
for the device’s area of operation must be observed.
The illustrations in this manual are intended to demonstrate the
contents more clearly. They are not necessarily drawn to scale and
can vary from the actual product in minor details.
This manual has to be regarded as a complete unit. Using of ex-
cerpts from this manual as stand-alone documentation without
considering the complete manual is not allowed.
1.2 Explanation of Symbols
Warnings
In this manual, warnings are marked by symbols. The warnings are
introduced by signal words indicating the degree of danger.
It is important to heed these warnings and act with caution to avoid
accidents, personal injury and property damage.
DANGER!
… indicates an imminently hazardous situation that
can result in death or severe injury, if not
avoided.
WARNING!
… indicates a potentially hazardous situation which
can result in death or severe injury, if not
avoided.

8.8“ Touchscreen Colour Display AHD 880 TC
General Information
V5 7
CAUTION!
… indicates a potentially hazardous situation that
can result in minor or light injury, if not avoided.
CAUTION!
… indicates a potentially hazardous situation that
can result in property damage, if not avoided.
Tips and Recommendations
TIP!
… indicates useful tips and recommendations and
information for efficient and error-free operation.
1.3 Limitation of Liability
All information and instructions in this manual have been compiled
in consideration of current norms and regulations, the state of
technology, and our knowledge and experience of many years.
The manufacturer is not responsible for damages due to:
Noncompliance with the instructions in this manual
Unintended use
Employment of untrained personnel
Unauthorized modifications
Technical modifications
Use of unauthorized spare parts
The actual scope of delivery can vary from the explanations and il-
lustrations in this manual in case of customized models, special
ordering options or the latest technical improvements.
In addition, the agreed upon obligations in the delivery contract, the
general terms and conditions, the manufacturer’s delivery terms
and the legal regulations current at the contract signing are in
force.
We reserve the right to make changes to improve the device’s ser-
vice properties and to further develop the product.

8.8“ Touchscreen Colour Display AHD 880 TC
General Information
8 V5
1.4 Copyright
This operation manual is a confidential document. It is intended
solely for those persons working with the product. It is not permit-
ted to hand this manual over to third parties without the manufac-
turer’s prior written permission.
TIP!
The information, texts, drawings, illustrations, and
other representations in this manual are protected
by copyright laws and are subject to industrial
property rights. Any misuse is subject to prosecu-
tion.
It is not permitted to duplicate this manual in any type or form –
even in excerpts –or use and/or communicate its contents without
the manufacturer’s written permission. Contraventions are liable to
compensation. We reserve other rights.
1.5 Spare Parts
WARNING!
Risk of injury from incorrect spare parts!
Incorrect or defective spare parts can cause dam-
ages, malfunctions or complete failure and jeopard-
ize the vessel’s safety.
Therefore:
–Only use the manufacturer’s original spare
parts.
Order spare parts from a contracted reseller or directly from the
manufacturer. Refer to page 2 for the address.
1.6 Warranty Terms
The warranty terms can be found in the General Terms and Condi-
tions (GTC) of the manufacturer’s sales documents.
1.7 Customer Care
Our customer care department is available to assist you with tech-
nical information.
Information about the corresponding customer contact is always
accessible via telephone, fax, e-mail, or the Internet. Please refer
to page 2 for the manufacturer’s address.
In addition, our staff is always interested in new information and
experiences resulting from the use of the product which can be
used to further improve our products.

8.8“ Touchscreen Colour Display AHD 880 TC
Safety
V5 9
2 Safety
This chapter provides an overview of all important safety aspects
for optimal protection of the personnel as well as safe and error-
free operation.
Noncompliance with the handling and safety instructions listed in
this manual can cause significant hazards.
2.1 Operator’s Responsibilities
This product is intended for commercial use. Therefore, its opera-
tion is subject legal workplace safety regulations.
In addition to the workplace safety instructions in this manual, the
current safety, accident prevention, and environmental protection
regulations for the product’s place of use must be observed. Espe-
cially:
The operator must stay abreast of the current workplace safety
regulations and determine through a risk assessment any addi-
tional hazards resulting from the special working conditions of
the product’s place of use. He must implement these in the form
of operating instructions for the product’s use.
During the product’s entire period of operation, the operator
must verify that his operating instructions are in compliance with
current regulations and revise them, if necessary.
The operator must clearly regulate and define areas of respon-
sibility for installation, operation, maintenance and cleaning.
The operator must ensure that all employees handling the
product have read and understood this manual.
In addition, he must train the personnel in regular intervals and
inform them about any dangers.
Furthermore, the operator is responsible for always keeping the
product in perfect working condition.
2.2 Personnel Requirements
2.2.1 Qualifications
WARNING!
Risk of injury from insufficient qualification!
Improper handling can lead to significant personal
injury and property damage.
Therefore:
–Only allow qualified personnel to do any work.

8.8“ Touchscreen Colour Display AHD 880 TC
Safety
10 V5
This manual lists the following qualifications for various areas of
activity.
Trained Person
has been trained by the operator through an orientation for the
assigned tasks and has been informed about possible hazards
from improper execution.
Specialist
is able to execute the assigned tasks and recognize and avoid
potential hazards independently due to formal training, knowl-
edge and experience, as well as knowledge of the situational
norms and regulations.
Electrician
is able to work on electrical systems and recognize and avoid
potential hazards independently due to formal training, knowl-
edge and experience, as well as knowledge of the situational
norms and regulations.
The electrician is trained for the specific work site in which he is
active and knows the relevant norms and regulations.
Only those persons who can be expected to do their work reliably
are permitted as personnel. Persons, whose responsiveness is di-
minished by e.g. drugs, alcohol, or medication, are not permitted.
Observe the local age and profession specific regulations when
selecting the personnel.
2.2.2 Unauthorized Persons
WARNING! Danger to unauthorized persons!
Unauthorized persons who do not meet the re-
quirements described in this manual do not know
the occupational hazards.
Therefore:
–Keep unauthorized persons out of the work
area.
–When in doubt, approach persons and remove
them from the work area.
–Interrupt all work as long as unauthorized per-
sons remain in the work area.

8.8“ Touchscreen Colour Display AHD 880 TC
Safety
V5 11
2.3 Intended Use
The 8.8” Color Display AHD 880 TC has been exclusively designed
and constructed for the purpose described in this manual.
The 8.8” Color Display AHD 880 TC is a compact and versatile
display unit used in alarm systems on board ships and in indus-
trial plants in alarm and monitoring systems. The Color Display
AHD 880 TC is connected to other external system devices via
CAN-bus data communication and is exclusively used to monitor
and display senor data and to alert threshold violations.
WARNING!
Danger from unintended use!
Any use of the product beyond and/or other than its
intended use can cause hazardous situations.
Therefore:
–Only use the product as intended.
–Strictly adhere to all instructions in this manual.
–In particular, avoid the following unintended use:
–Using a supply voltage other than the one
indicated in this manual.
Any claims for damages resulting from unintended use are void.
The operator is solely responsible for any damages resulting from
unintended use.
WARNING!
Danger from improper operation of the product!
Product failure or malfunctions can lead to personal
injury or property damage in the overall system.
Therefore:
–Although the product itself is not dangerous, the
effects of failures or malfunctions on the overall
system must be considered.
–Always discontinue using the products when
they develop smoke or abnormal heat.

8.8“ Touchscreen Colour Display AHD 880 TC
Design and Function
12 V5
3 Design and Function
3.1 General Function
In general, the 8.8” Color Display AHD TC is used as part of an
alarm and monitoring system on board of ships, allowing for the
capture and visualization of a multitude of measurands from the
sensors on board ships.

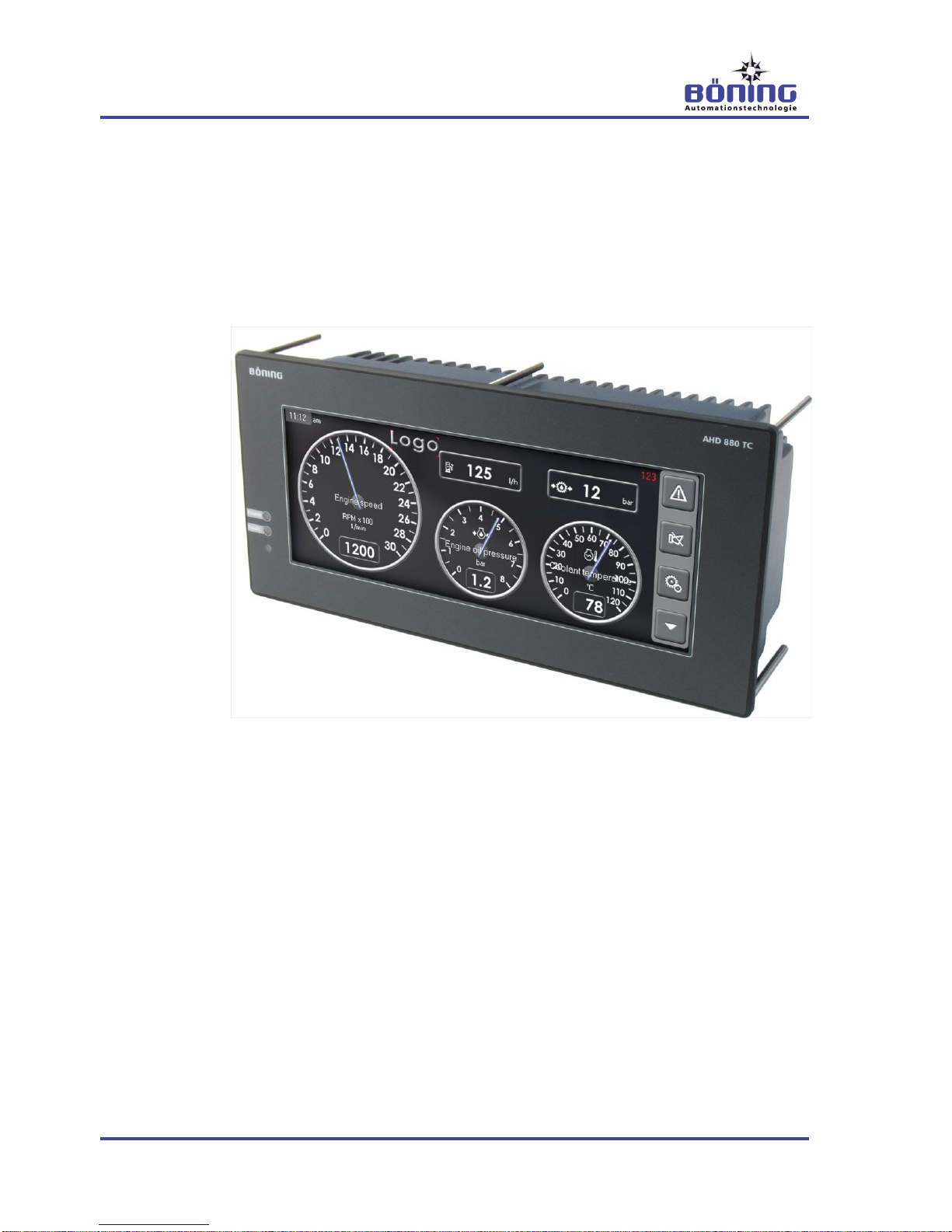

Fig.: 8.8“ Color Display with Touchscreen AHD 880 TC
The Color Display AHD 880 TC is connected to the other compo-
nents of the ship’s alarm and system, such as Data Station AHD-
SAS 15, via a CAN-bus, and graphically displays their sensor data
and alarm information in case of threshold violation on various dis-
play pages. Within the system, several color displays in various in-
stallation locations can be integrated into the CAN-bus network.
The scope of presentation depends on the project specific measur-
ing point list. The project data of this list are entered into the sys-
tem configuration file with special configuration software, which is
uploaded to the connected system components via the CAN-bus.
The device is operated through the integrated touchscreen. Sev-
eral selected functions, like changing pages and alarm acknowl-
edgement, can also be performed through an external Remote
Control AHD650R. It can be installed in a suitable, separate instal-
lation location.

8.8“ Touchscreen Colour Display AHD 880 TC
Design and Function
V5 13
For optimal visualization of the systems on board a ship, the visu-
alization of the monitored ship sensors, their measuring points and
status messages on the Color Display AHD 880 TC’s graphic user
interface is tailored to the project’s specific scope.
To display analogue measurands conveniently and clearly, graphic
representations, such as scaled round instruments, bar graphs,
and digital displays are used or combined with one another, also
allowing for the integration of threshold value ranges, e.g. for pre-
warnings and alarms.
As a rule, binary measurands are displayed in tabular format with
measuring point names and status display.
When a value reaches a critical level, a warning or alarm is trig-
gered and indicated on the display, depending on the predefined
threshold value configuration. In addition, an integrated buzzer
sounds an alarm which can be acknowledged with a key press.
All recorded and pending alarms are listed in chronological order in
a table. Each alarm is displayed with the measuring point name,
current value, alarm type, and time of occurrence.
To indicate alarm conditions, a general alert message with the
number of pending alarms is superimposed onto the measuring
point pages.
A service page, on which the measuring points and alarm condi-
tions of all sensors can be viewed in a clearly displayed manner, is
available for startup and maintenance purposes.
On the configuration page, the user can set the display options for
the Color Display AHD 880 TC according to his own needs. He can
set the system language for the screen texts, select the unit sys-
tem (metric or Imperial), and the internal clock time.
Connecting a GPS receiver allows for display of the cruising
speed. If the ship is equipped with according engines with motor
displays to indicate engine data and alarms, selected data from the
engine display can also be used on the ship alarm system’s Color
Display AHD 880 TC via an additional CAN-bus communication to
calculate and display fuel consumption and remaining range, for
example.

8.8“ Touchscreen Colour Display AHD 880 TC
Design and Function
14 V5

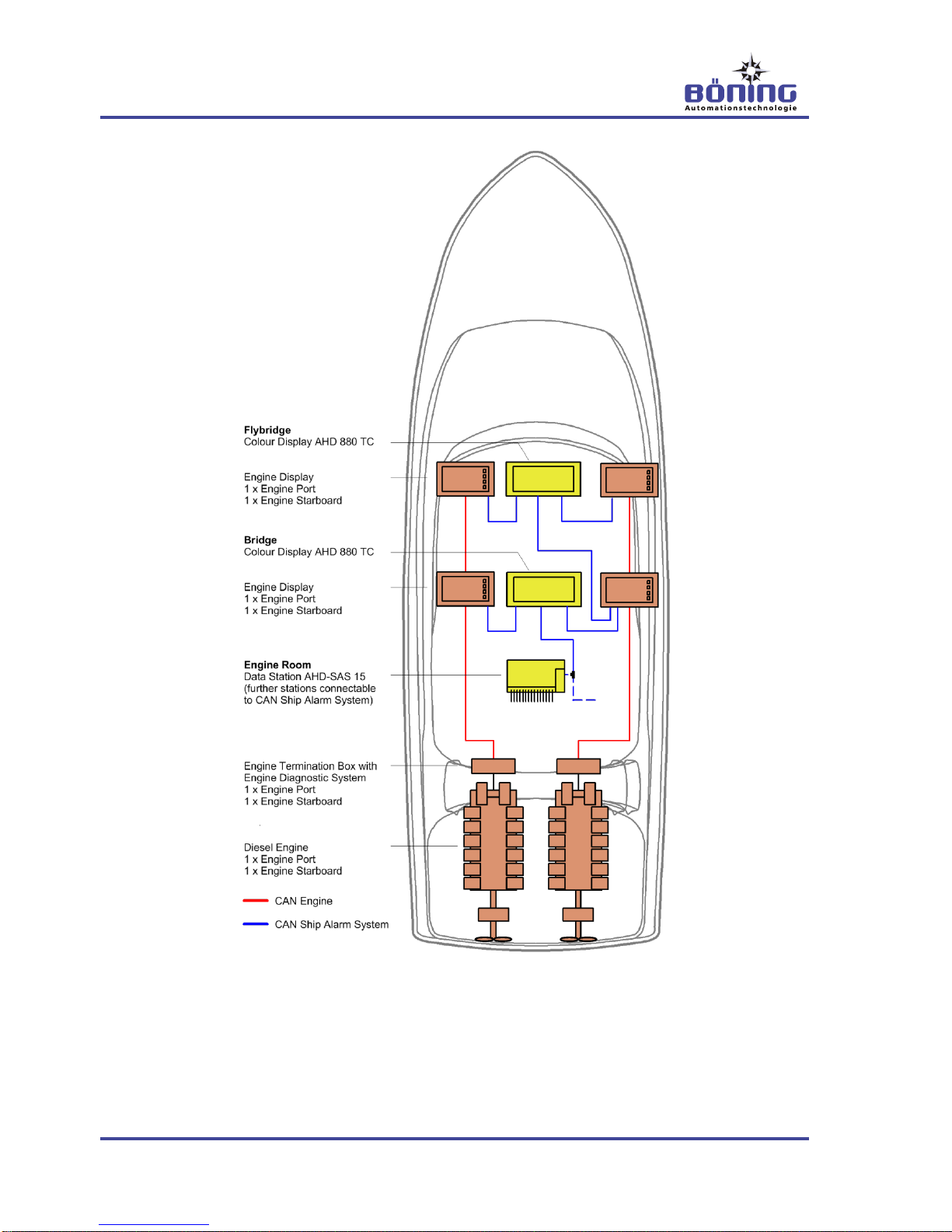

Fig.: Configuration diagram of a ship alarm and monitoring sys-
tem and engine alarm system, dual engine configuration

8.8“ Touchscreen Colour Display AHD 880 TC
Design and Function
V5 15
In addition, the system can be expanded with other components of
the AHD device family communicating via CAN-bus that can han-
dle numerous on board monitoring and control tasks. These sys-
tem data are also visualized on the AHD 880 TC display.
Among other things, the system can display the following ship
data:
Water and fuel tank levels
Trim tab angles and rudder position
Optimal trim tab angle at current cruising speed
Bilge alarms and pump status
Monitoring of doors and hatches, ladders, sea water cooled
exhaust gas systems and power supply systems
Condition of navigation lights
(requires Navigation Lights Monitoring System AHD-DPS 02)
Fuel consumption and range
(depending on the engine)
The connected sensors are monitored by one or several Data Sta-
tions AHD-SAS 15 (also incl. additional connected Data Station
AHD-PS-15, AHD-PS 30 or AHD-PS 47). All data are transmitted
to the display units via CAN-bus. Up to 15 sensors (current, power,
resistor, switch) can be led directly to the terminal strip of the Data
Station AHD-SAS 15.
The additional Data Stations AHD-PS 15, AHD-PS 30 or AHD-
PS 47 are current-controlled and can be connected via optocoupler
interfaces, increasing the possible sensor range by 15, 30, or 47
binary inputs.
The devices are provided with the project specific system configu-
ration at the factory. Generally, the system can be operated without
any further measures. Special configuration software makes it pos-
sible to adjust alarm texts or other parameters at a later point. Next
the alarm groups “Pre-Alarm” and “Main Alarm,” analogue sensors
can also be monitored for plausibility. A damaged sensor therefore
immediately triggers a sensor-error message.
Alarm notifications can be acknowledged directly at the display
from the touch screen or at the remote control via key press. How-
ever, the reason for alarm remains listed on the alarm page until its
cause has been resolved and normal values are pending at the in-
put.

8.8“ Touchscreen Colour Display AHD 880 TC
Design and Function
16 V5

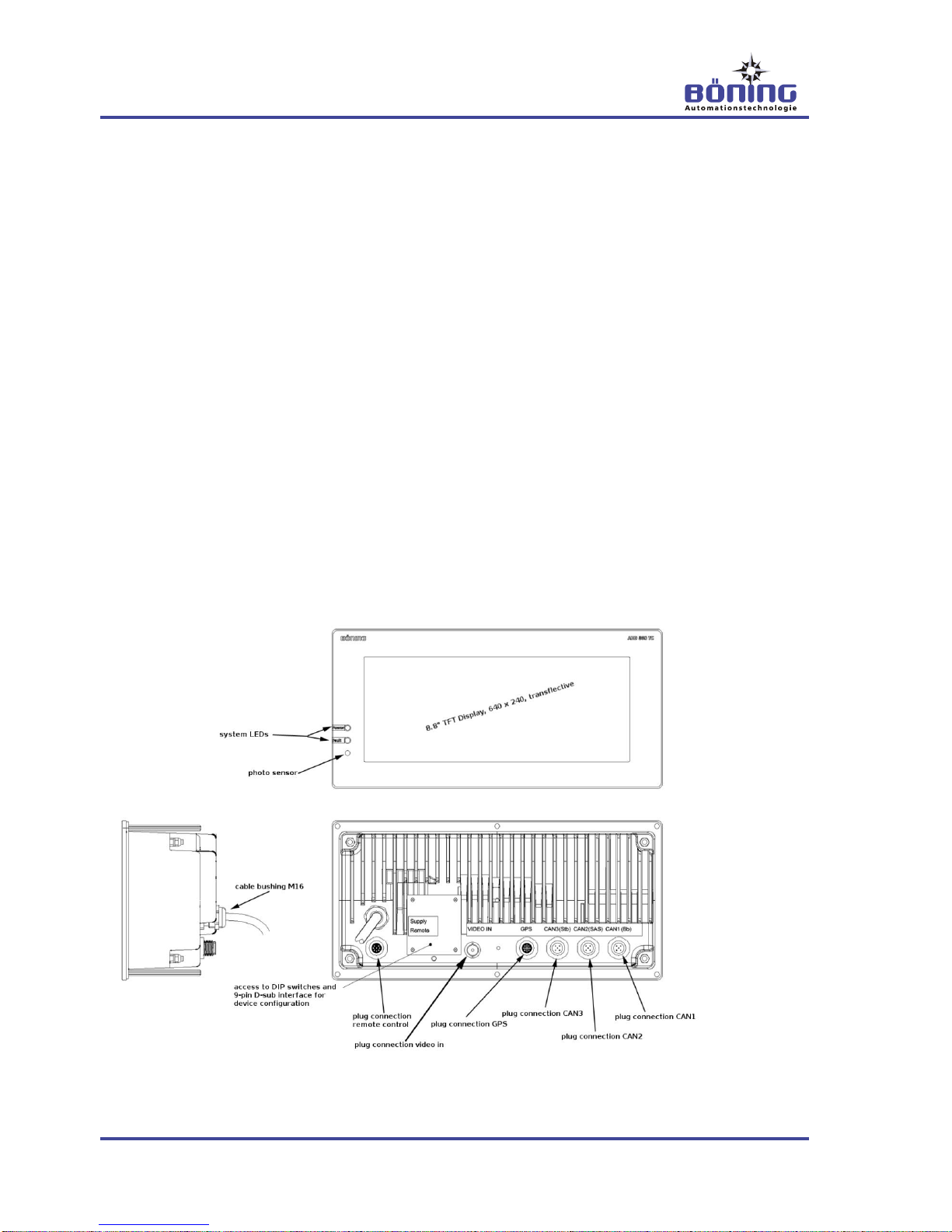

3.2 Mechanical Structure
The 8.8” Color Display’s compact design makes it suitable for con-
sole or switchboard installation. 2 LEDs and 1 photo element are
integrated into the device front next to the transflective TFT-display
and touch surface. The photo element serves for the automatic
dimming. The front plate is made of 5 mm thick, black anodized
aluminum (AlMg1) with an integrated, glare free glass pane. The
front plate’s remaining surface is coated with a 0.25 mm thick wa-
ter tight and UV-light resistant plastic film.
A 2 mm thick flat gasket, made from cellular rubber EP, is located
in the support surface between the device and console. This
achieves a protection class of IP 67. On the rear side, the device
electronics are enclosed by a powder coated housing made from 2
mm thick AlMg1. An opening is located behind the plastic covering,
allowing access to a serial interface (D-SUB 9) and DIP switches
for configuring the device. Three plug connectors (CuZn, nickel-
plated) for communication buses CAN 1, CAN 2, and CAN 3, one
video input, one RS232-connection (e.g. for GPS), as well as one
remote control connection and one cable bushing (M16, brass)
with a led out round cable (power supply and external signaling)
are also located on the rear side. The device’s rearside protection
class is IP 22.

8.8“ Touchscreen Colour Display AHD 880 TC
Technical Information
V5 17
4 Technical Information
4.1 Technical Data Color Display AHD 880 TC
Description
Value/Unit/Type
General Data
Installation type
console installation
Dimensions, W x H x D
270 x 130 x 77.3 mm
Panel cutout, W x H
260 x 114 mm
Required installation depth
min. 150 mm
Weight
ca. 2.0 kg
Environmental Data
Operating temperature
-25°C… +70°C
Storage temperature
-30°C… +85°C
Protection class
IP 66 (frontside)
IP 22 (rear )
Electrical Data
Power supply
12/24VDC (+30%/-25%)
Power/current consumption
max. 700mA (24VDC)
Display Data
Display resolution
640(H) x 240(V) Pixels
Visible screen diagonal
8.8”; 209.28 mm x 78.48 mm
Color depth
15 bit
Luminosity
250 cd/m², transflective (typ.)
Viewing angle:
horizontal: min. 40°/typ. 50°
vertical: min. 35°/typ. 45°

8.8“ Touchscreen Colour Display AHD 880 TC
Technical Information
18 V5
Description
Value/Unit/Type
Interfaces
Interfaces
3 x CAN-Bus
1 x RS232 (e.g. for GPS)
1 x plug, 8-pin, for Remote Con-
trol AHD 650R
1 x Video In (composite video,
PAL 50 Hz)
Outputs
2 x potential free relay contact,
40 V DC / 1A
Inputs
1 x binary (optocouplers)
Approvals
Classification societies
Germanischer Lloyd
Lloyd´s Register of Shipping

8.8“ Touchscreen Colour Display AHD 880 TC
Technical Information
V5 19
4.2 Technical Data Remote Control AHD 650R
4.3 Name Plate AHD 880 TC
The 8.8“ Color Display AHD 880 TC’s name plate
is located on the device rear and contain the fol-
lowing information:
model designation of the unit
serial number (may be on separate label) and
power supply
terminal diagram of the connecting cable
Description
Value/Unit/Type
General Data
Dimensions, W x H x D
40 x 130 x 35 mm (housing)
Panel cutout, W x H
26 x 111 mm
Required installation depth
min. 110 mm
Weight
ca. 0.2kg
Environmental Data
Operating temperature
-25°C… +70°C
Storage temperature
-30°C… +85°C
Protection class
IP 67 (frontside)
IP 55 (rear)
Electrical Data
Power supply
12/24VDC (+30%/-25%)

8.8“ Touchscreen Colour Display AHD 880 TC
Technical Information
20 V5
4.4 Dimensions
4.4.1 Device Dimensions Color Display AHD 880 TC
Fig.: Device dimensions AHD 880 TC
