Notifier FS-BSO User manual

1 I56-5917-000
INSTALLATION AND MAINTENANCE INSTRUCTIONS
Model FS-BSO
Addressable Base Sounder
Notifier by Honeywell
9 Columbia Way Baulkham Hills,NSW 2153
Australia
www.notifier.com.au
SPECIFICATION
Item Parameter Description Note
Operating Voltage 24VDC( 15 to 32VDC)
Avg. Standby Current <400µA 24VDC, No Communication, No sounding
Alarm Current <6mA High Volume, 24VDC
<4mA Low Volume, 24VDC
Operating Temp -10℃to +55℃
Humidity 10 to 95% R.H. Non-condensing
Ingress Protection IP21C
Approved Sound Pressure
Level 83±4dB(A) 1m , High Volume, Tone 21 @24V(2.7mA) *Approved to EN54-3
High Volume .
Most Favorable Sound
Pressure Position
92±3dB(A) 1m , 90°,High Volume, Tone 21 @24V(2.7mA) **
94±4dB(A) 1m , 90°,High Volume, Tone 13 @24V(3.0mA) **
95±3dB(A) 1m , 90°,High Volume, Tone 12 @24V(2.5mA) **
94±7dB(A) 1m , 90°,High Volume, Tone 19 @24V(2.5mA) **
Low Volume .
Most Favorable Sound
Pressure Position
88±3dB(A) 1m , 90°, Low Volume, Tone 21 @24V(2.0mA) **
88±3dB(A) 1m , 90°,Low Volume, Tone 13 @24V(2.0mA) **
85±4dB(A) 1m , 90°,Low Volume, Tone 12 @24V(1.7mA) **
85±5dB(A) 1m , 90°,Low Volume, Tone 19 @24V(1.8mA) **
Tone Type 4 See table 1: ‘Sound setting ’ for detailed tones
Height 52mm
Diameter 122mm
Weight 196±6g
Note: * Detailed description see table A
**These volume & tone settings are not approved to EN54-3.
Meet the following Standards requirements：EN54-3 ，AS ISO 7240.3:2014
Before installing and using the product, please read the system wiring
and installation manual thoroughly. If the products will be installed in an
existing operational system, inform the operator and local authority that
the system will be temporarily out of service, disconnect power to the
control panel before installing the products.
NOTICE: This manual should be left with the owner/user of this
equipment.
GENERAL
FS-BSO is an intelligent addressable AV base designed to alarm sound for
emergency events, and be able to communicate with control panel by
intelligent protocol.
It is designed specifically for analogue addressable fire alarm system
and only can be connected to control panels with a compatible
proprietary analogue addressable communication protocol. It is
powered from the loop and can be controlled via the communication
protocol(s). The Base version is compatible with 200 series of
detectors and B501 mounting base. Up to 159 addresses are available
via two rotary selector switches. The sounders have 2 volume levels
(high/low) and 4 tone sets. The alarm sound can be tested on field.
INSTALLATION
It must be installed and wired with B501 mounting base.
1. Verify the product type matches with product drawing.
2. Set the address via two rotary selector switches. Please refer to
“Address setting”.
3. Volume and tone setting are realized by 4 digit DIP switch. On field
testing can be tested via DIP switch.
4. Plug the Sounder base into B501 mounting base.
5. Turn the Sounder base clockwise until it drops into place.
6. Continue turning the Sounder base clockwise to lock it in place.
7. Please refer to Detector Installation Instruction if 200 series
detector is needed.
SETTING
Address setting
Rotary-decade switches are provided for setting the base’s address
whose range is from 1 to 159. (Default address is 01).
Address is set by turning the switches.
Address is calculated as below formula: Address = TENS *10 +
ONES*1. For instance: Address 05 = 0*10 + 5*1.
Tamper-resistant capability
Addressable Base sounder include a tamper-resistant capability that
prevents its removal from the B501 base and the removal of installed
detector without the use of a tool.
When B501 mounting base enables tamper-resistant function, special
tools must be used to disassemble addressable base. Please refer to
below figure: use straight screwdriver to break specific position, then
insert the screwdriver and maintain in its position. Then you can
disassemble the Sounder base by turning anticlockwise

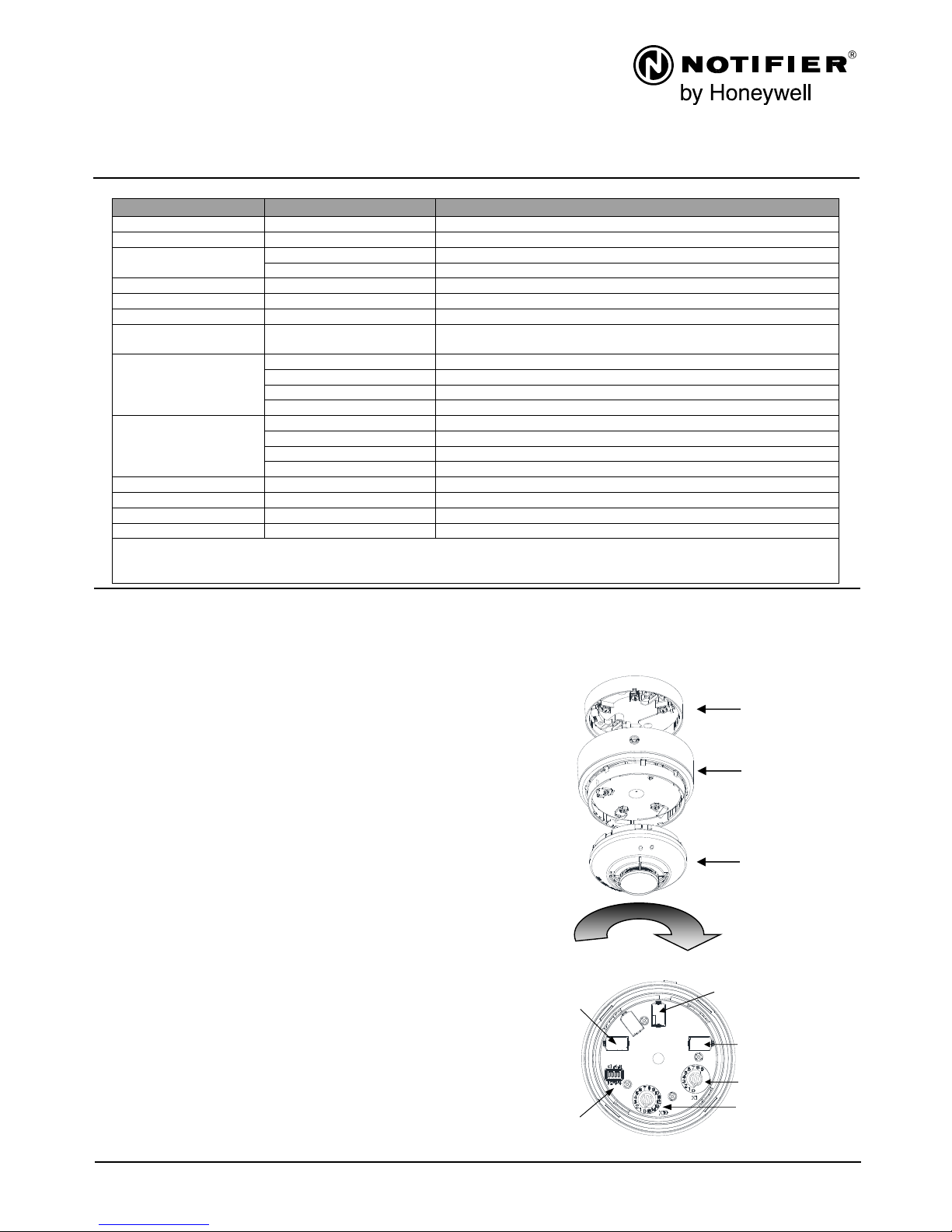

Figure 1
Figure 2
I56-5917-000
A5665‐001
Base
Sounder
B501
Mounting
200 Series
Detector
A5665‐002
ONES
DIP switch for
tone settin
g
COMM+
COMM-
TENS
RA Remote
Annunciator

2 I56-5917-000
Figure 3
Addressable base has an optional tamper-resistance capability. When
it is enabled, installed 200 series detector cannot be removed.
To enable this feature, Diagonal pliers can be used to twist the break
tab at dotted line toward center of base.
Figure 4
Synchronization
When addressable base send out a fire alarm, control panel can send
out a certain signal to synchronize all the addressable AV in same loop
to send out fire alarm signal.
Note: Please dispose electronic waste following national or local regulations
after being scrappedor replaced. Do not discard.
THREE-YEAR LIMITED WARRANTY
Notifier by Honeywell warrants its enclosed product to be free from
defects in materials and workmanship under normal use and service
for a period of three years from date of manufacture. Notifier by
Honeywell makes no other express warranty for the enclosed product.
No agent, representative, dealer, or employee of the Company has the
authority to increase or alter the obligations or limitations of this
Warranty. The Company’s obligation of this Warranty shall be limited
to the replacement of any part of the product which is found to be
defective in materials or workmanship under normal use and service
during the three year period commencing with the date of manufac-
ture. After phoning Notifier by Honeywell for a Return Authorization
Number and faxing a copy of the filled CUSTOMER RETURNS with
authorized RA# to Notifier by Honeywell, send Defective units with a
copy of the form postage prepaid to: Notifier by Honeywell / 9
Columbia Way Baulkham Hills, NSW 2153, Australia. Please include a
note describing the malfunction and suspected cause of failure. The
Company shall not be obligated to replace units which are found to be
defective because of damage, unreasonable use, modifications, or
alterations occurring after the date of manufacture. In no case shall the
Company be liable for any consequential or incidental damages for breach
of this or any other Warranty, expressed or implied whatsoever, even if the
loss or damage is caused by the Company’s negligence or fault. Some
states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you. This Warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Figure 5 System wiring diagram
Table 1: Sound setting
Bit：1, 2, 3, 4
(0 = off/1 =
on/X=random)
Description
Tone
setting
0 0 X X
Tone 21(second stage: tone 12)
400HZ
1200HZ
1 Sec
4 Sec
0 1 X X
Tone 13(second stage: tone 12)
500HZ
1200HZ
0.25 Sec 3.75 Sec
1 0 X X
Tone 12(second stage: tone 13)
Off
420HZ
0.625 Sec 0.625 Sec
1 1 X X
Tone 19(second stage: tone 12)
4 Sec
1 Sec
Off
950HZ
Volume
setting X X 1 X High volume
X X 0 X Low volume
Test setting
please set
to 0 under
normal use
X X X 1 Field testing on
X X X 0 Field testing off
Table A
OperationalPerformance:Tone21
(HighVolume)
SoundPressureLevel
dBA
400HZ
1200HZ
1 Sec
4 Sec
FS‐BSO
1m
Horizontal











15Vdc





15° 79.0
45° 80.3
75° 87.6
105° 86.9
135° 80.4
165° 78.8
32Vdc





15° 79.0
45° 82.6
75° 87.6
105° 87.3
135° 80.5
165° 79.0
Vertical











15Vdc





15° 80.5
45° 81.3
75° 87.5
105° 87.0
135° 80.8
165° 80.1
32Vdc





15° 80.2
45° 81.5
75° 87.8
105° 87.1
135° 80.9
165° 80.3
