Installation Manual
NAVIGATIONAL ECHO SOUNDER
Model FE-800
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
EQUIPMENT LISTS........................................................................................................ iii
1. MOUNTING................................................................................................................. 1
1.1 Display Unit...........................................................................................................................1
1.2 Transceiver Unit....................................................................................................................5
1.3 Transducer............................................................................................................................5
1.4 Matching Box ........................................................................................................................7
1.5 Gate Valve GV-50B-6B, GV-200B-8B (option) .....................................................................8
2. WIRING....................................................................................................................... 9
2.1 Wiring....................................................................................................................................9

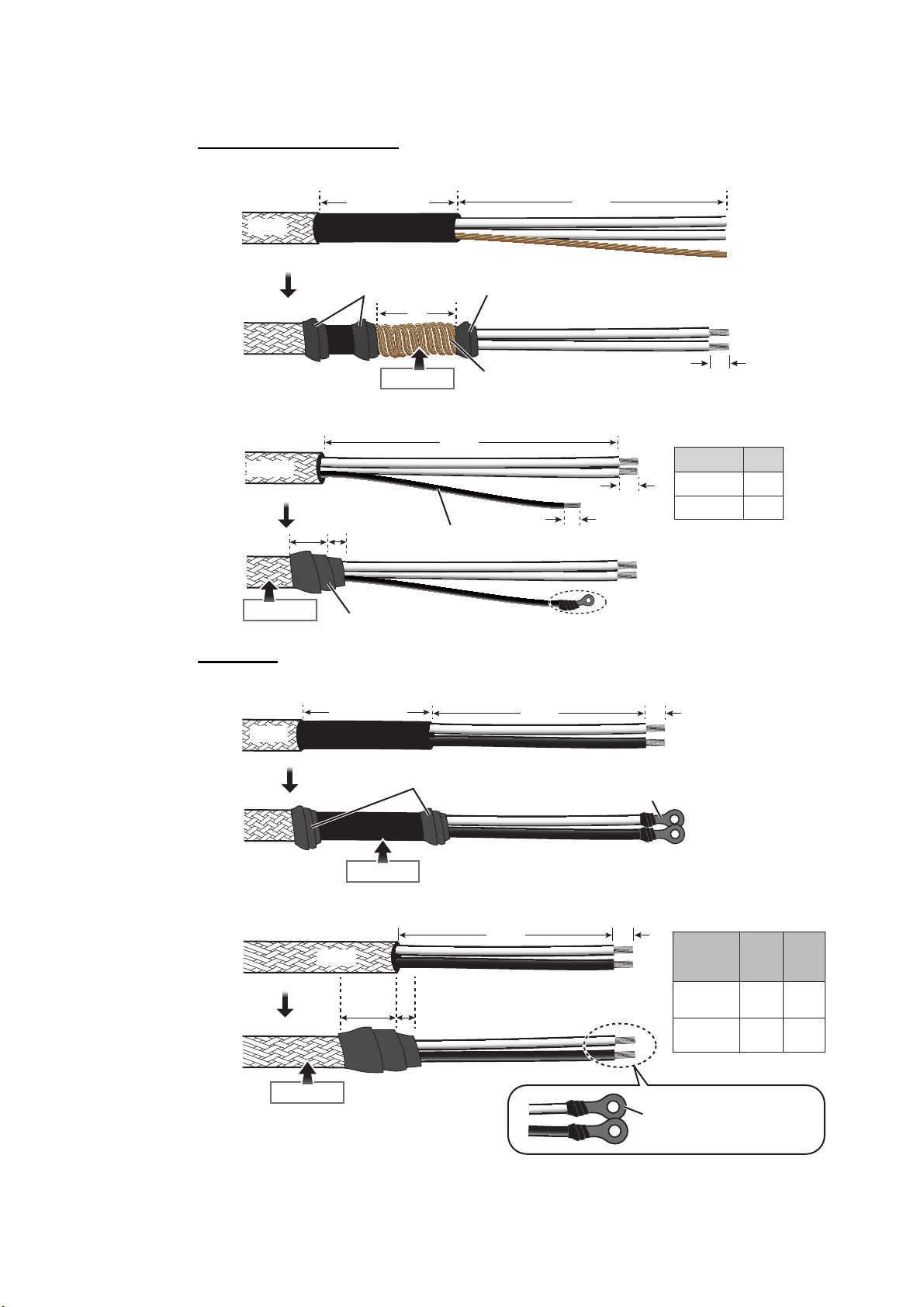

2.2 Cable Fabrication................................................................................................................10
2.3 Display Unit.........................................................................................................................13
2.4 Transceiver Unit..................................................................................................................13
2.5 Matching Box ......................................................................................................................16
2.6 Bridge Alert Management (BAM) Connection.....................................................................18
2.7 Junction Box (Option) .........................................................................................................18
3. ADJUSTMENTS ....................................................................................................... 19
3.1 Service Menu ......................................................................................................................19
3.2 How to Set the Time ...........................................................................................................20
3.3 How to Set the Frequency ..................................................................................................21
3.4 How to Set the Port.............................................................................................................21
3.5 How to Set the Ethernet......................................................................................................22
APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1
APPENDIX 2 DIGITAL INTERFACE ........................................................................AP-2
PACKING LISTS ......................................................................................................... A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAM ................................................................................ S-1

i
SAFETY INSTRUCTIONS
Warning, Caution
The installer must read the applicable safety instructions before attempting to install the
equipment.
WARNING
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, can result in minor or moderate injury.
Prohibitive Action Mandatory Action
WARNING CAUTION
Do not open the equipment unless
totally familiar with electrical circuits
and service manual.
Only qualified personnel should work
inside the equipment.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in
fire,electrical shock or equipment damage.
Be sure no water leaks in at the
transducer mounting location.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Standard
compass
Steering
compass
0.75 m 0.50 m
Display unit
FE-8010
Transceiver unit
FE-8020 1.50 m 0.95 m
Matching box
MB-502 0.80 m 0.50 m
Matching box
MB-504 0.65 m 0.40 m
Securely attach protective earth to the
ship's body.
The protective earth is required to
prevent electrical shock.
When handling the transducer cable,
keep in mind following points:
- Keep the cable away from oil and fuel.
- Keep the cable away from the place
where it may be damaged during the
installation.
- Do not paint the cable.
- The sheath of the transducer cable is
made of chlorophrene rubber (or vinyl
chloride). Therefore, do not paint the
sheath with organic liquid (such as
toluene) since it may harm the sheath.
Use the proper fuse.
A wrong fuse can cause fire or serious
damage to the equipment.
Turn off the POWER switch when the
transducer is not in water.
Operating the transducer when it is not in
water may damage the transducer.

ii

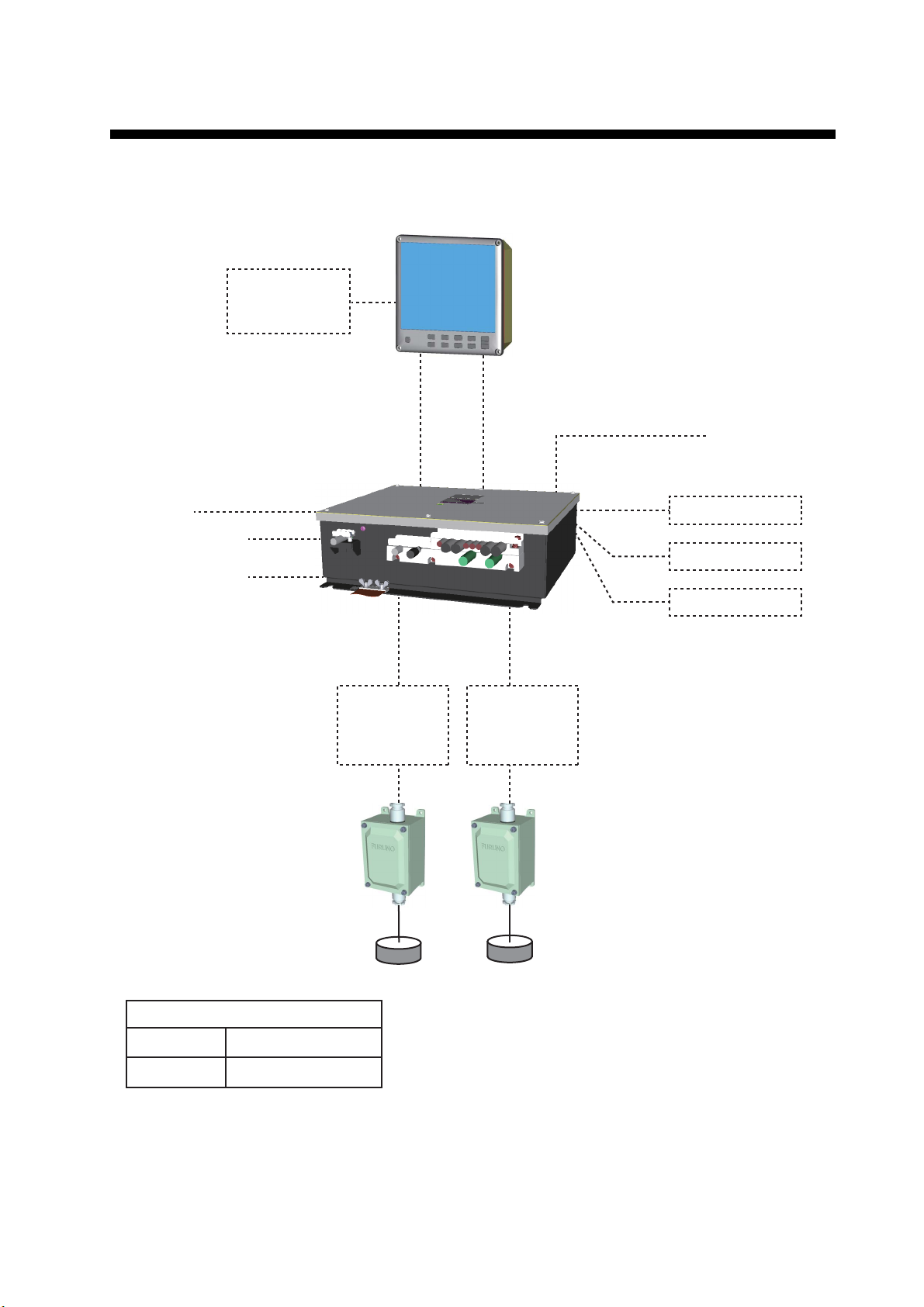

SYSTEM CONFIGURATION
Basic configuration is shown with solid line.
TRANSCEIVER UNIT
FE-8020
Power
Signal
Printer
PP-505-FE
DISPLAY UNIT
FE-8010
RD-20 or RD-50
BAM
LANLAN
Network Equipment
or PC
Power
Contact signal
Ship’s Mains
100-230 VAC
JUNCTION
BOX
JIS F8821-1MO
O-20A3P
JUNCTION
BOX
JIS F8821-1MO
O-20A3P
MATCHING BOX
MB-504
TRANSDUCER
200B-8B
TRANSDUCER
50B-6B
MATCHING BOX
MB-502
Equipment category
Display unit
Transceiver unit
protected from weather
protected from weather
RD-20 or RD-50
Navigator
BAM or IF-2503

iii
EQUIPMENT LISTS
Standard Supply
Optional Supply
Name Type Code No. Qty Remarks
Display Unit FE-8010 — 1
Transceiver
Unit
FE-8020 — 1
Matching
Box
MB-502 — 1 Select
one.
For 50B-6B
MB-504 — 1 For 200B-8B
Transducer 50B-6B — 1 Select
one.
w/ 15/30/50 m cable
200B-8B — 1 w/ 15/30/50 m cable
Transducer
Case
TTF-5600 — 1 For 50B-6B
TTF-2000 — 1 For 200B-8B
Installation
Materials
CP12-01101 001-273-980 1 For display unit.
Self-tapping screw, 4 pcs. (Type: 5×20
SUS304, Code No.: 000-171-997-10)
CP12-01201 001-274-800 1 For transceiver unit
CP12-01201 001-288-000 1 Copper strap, 1 pc. (Type: WEA-
1004-0, Code No.: 500-310-040-10)
CP02-08802 001-106-500 1 For Transducer Case TTF-5600
CP02-08801 001-106-490 1 For Transducer Case TTF-2000
Accessories FP12-00801 001-273-990 1 For display unit
Spare Parts SP12-00801 001-274-790 1 Fuse, 2 pcs. (Type: FGMB 250V 2A
PBF, Code No.: 000-157-497-10), for
transceiver unit
Name Type Code No. Qty Remarks
Junction Box JIS F8821-1MO
O-20A3P
—1
Matching Box MB-502 — 1 For 50B-6B
MB-504 — 1 For 200B-8B
Transducer 50B-6B — 1 w/15/30/50 m cable
200B-8B — 1 w/15/30/50 m cable
Transducer Case TTF-5600 — 1 For 50B-6B
TTF-2000 — 1 For 200B-8B
Transducer Tank TTF-5001 — 1 For 50B-6B
TTF-2001 — 1 For 200B-8B
TTF-5002 — 1 For 50B-6B (w/Flange)
TTF-2002 — 1 For 200B-8B (w/Flange)
Gate Valve GV-50B-6B — 1 w/ Installation Materials
CP02-07601
(code no.: 002-891-620)
GV-200B-8B — 1
Bracket Assembly
w/Knobs
OP26-8 000-016-313 1 For display unit, see
page 3 for details.

EQUIPMENT LISTS
iv
Note: Windows is a registered trademark or trademark of the Microsoft Corporation of the USA
and other countries.
Front Fixing Panel OP26-28 001-247-250 1 For display unit, change
cutout from octagon to
square. (See page 2 for
details.)
Front Fixing Panel OP12-1 001-273-660 1 For display unit, replace
FE-680 or FE-680T. (See
page 3 for details.)
Printer PP-505-FE 000-055-892 1
set
Data Recording
Software for PC
OP12-2 001-273-650 1 For Windows 7/8 (PC: lo-
cal supply)
Installation
Materials
CP12-01101(BOX) 001-273-760 1 For display unit
CP12-01201(BOX) 001-273-790 1 For transceiver unit
CP24-02900(10M) 001-208-050 1 For transceiver unit,
LAN cable
CP24-02910(20M) 001-208-060 1
CP24-02920(30M) 001-208-070 1
Accessories FP12-00801(BOX) 001-273-770 1 For display unit
Spare Parts SP12-00801(BOX) 001-273-780 1 For transceiver unit
Operator’s Manual
(CD-ROM)
FE-800 O/M *CD-ROM* — 1
Interface Unit IF-2503 — 1
Name Type Code No. Qty Remarks

1
1. MOUNTING
1.1 Display Unit
1.1.1 Installation consideration
The display unit can be installed on a desktop or flush mounted in a console or panel.
When selecting a mounting location, keep in mind the following points:
• The nominal viewing distance for the display unit is 0.9 m. Select a suitable mount-
ing location considering that distance.
• Locate the unit away from exhaust pipes and vents.
• Select an installation location that is well ventilated.
• Locate the unit where shock and vibration are minimal.
• Locate the unit away from equipment which generates the electromagnetic fields
like a motor or generator.
• Allow enough maintenance space at the sides and rear of the unit and leave enough
slack in cables to facilitate maintenance and servicing.
• Observe the compass safe distances in the "SAFETY INSTRUCTIONS" (on page i)
to prevent interference to a magnetic compass.
• For flush mounting in a panel, the mounting surface must be flat. Do not install the
unit on an uneven surface.

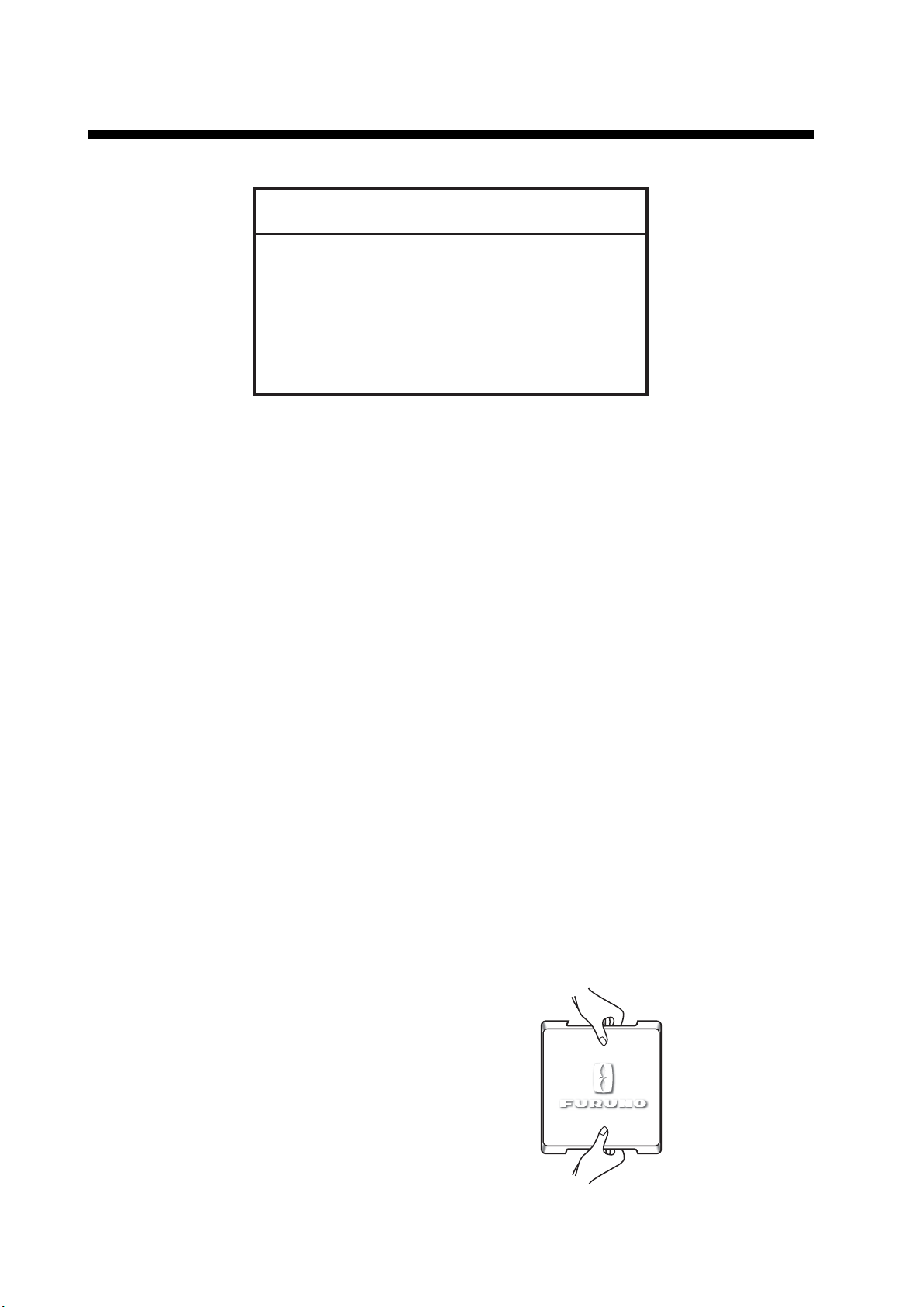

1.1.2 How to remove the cover
While pressing the center of the cover with
your thumbs as shown in the right figure, pull
the cover towards you to remove it.
NOTICE
Do not apply paint, anti-corrosive sealant or
contact spray to coating or plastic parts of the
equipment.
Those items contain organic solvents that can
damage coating and plastic parts, especially plastic
connectors.

1. MOUNTING
2

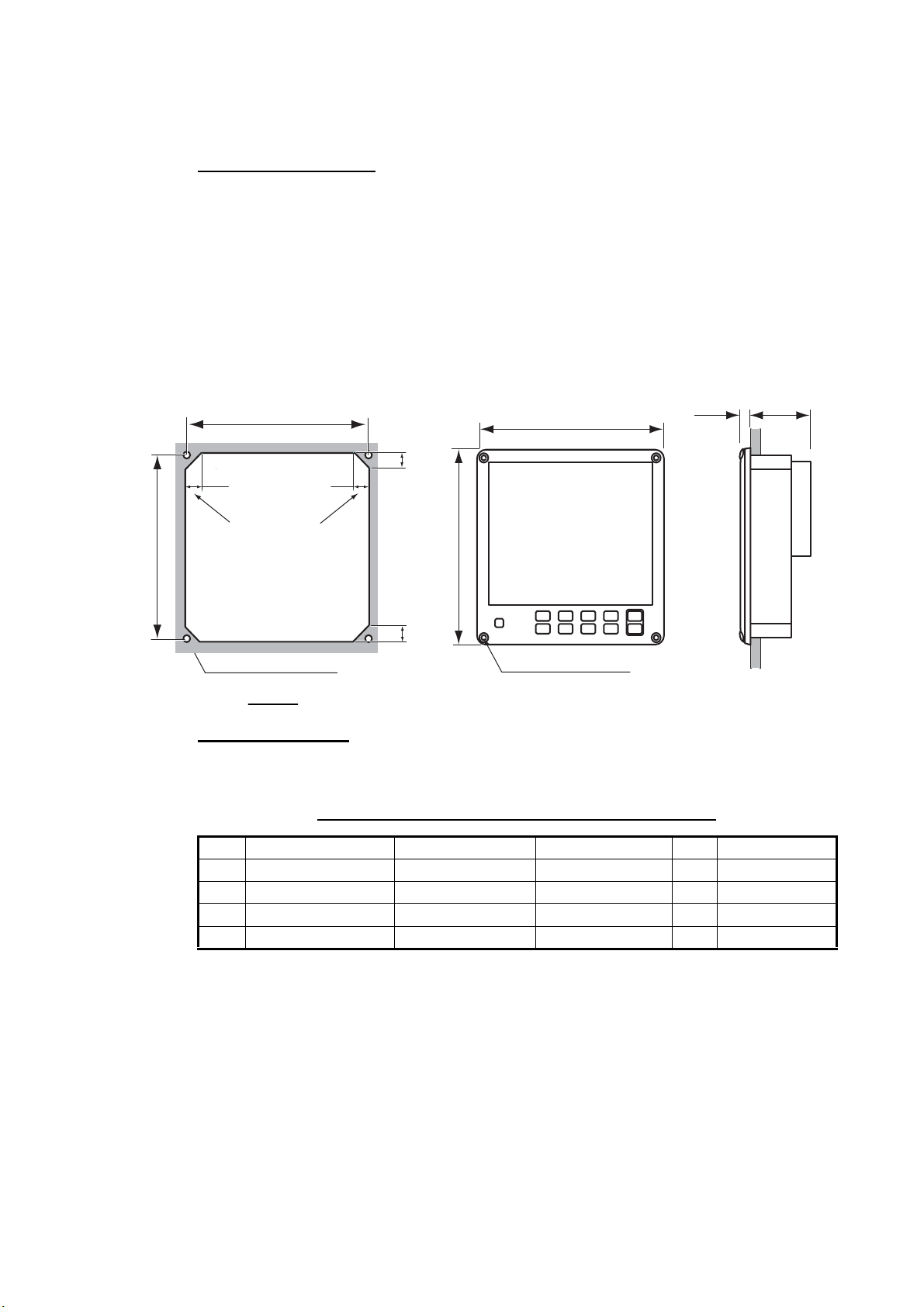

1.1.3 Flush mounting
For details, see the outline diagrams at the back of this manual.
For octagonal cutout
1. Make an octagonal cutout in the mounting location as shown in the illustration be-
low.
2. Make four pilot holes for self-tapping screws in the location indicated in the illus-
tration below.
3. Set the display unit to the cutout and fasten the display unit with four self-tapping
screws (φ5×20).
4. Set a cosmetic cap to each fixing hole on the front panel. (See "How to set the
cosmetic cap" on page 4.)
For square cutout
You can install the display unit in a square cutout using with the optional kit OP26-28.
Front Fixing Panel OP26-28 (code no.: 001-247-250)
1. Make a square cutout (239±1 mm) in the mounting location referring to the outline
drawing at the back of the manual.
2. Make four pilot holes for self-tapping screws in the location.
3. Attach the front fixing panel to the display unit from the front side with binding
screws (M5×16).
4. Set the display unit to the cutout and fasten the display unit with four self-tapping
screws (φ5×20) from the front side.
5. Set a cosmetic cap to each fixing hole on the front panel. (See "How to set the
cosmetic cap" on page 4.)
No. Name Type Code no. Qty Remarks
1 Self-tapping screw 5×20 SUS304 000-163-915-10 4
2 Front fixing panel 26-003-1701 100-382-080-10 1
3 Binding screw M5×16 SUSU304 000-163-898-10 4
4 Manual C72-01302-* —
78 (3.07
"
)
12 (0.47
"
)
240 (9.45")
240 (9.45")
Fixing hole (4-ø6)
223±0.5 (8.78")
223 ± 0.5 (8.78")
18 (0.71")
18 (0.71")
Pilot hole (4 places)
Cutout
18 (0.71")

1. MOUNTING
3
For replacement of FE-680/FE-680T
You can replace FE-680/FE-680T with FE-800, using the optional Front Fixing Panel
kit OP12-1.
Front Fixing Panel OP12-1 (code no.: 001-273-660)
1. Remove FE-680/FE-680T from
mounting location.
2. Attach the front fixing panel to the
display unit from the front side with
binding head screws (M5×12).
3. Set the display unit to the original
cutout then fasten the display unit
as shown in the right figure.
1.1.4 Desktop mounting
The display unit can be mounted on a desktop using the optional hanger. See the out-
line drawing for details.
Bracket Assembly with Knobs (Type: OP26-8, Code no.: 000-016-313-00)
1. Remove the hanger mounting plate from the hanger assembly.
2. Fasten the hanger mounting plate
to the display unit from the left
side and right side with four bind-
ing head screws (M5×12).
No. Name Type Code no. Qty Remarks
1 Binding head screw M5×12 SUS304 000-171-999-10 4
2 Front fixing panel 12-005-1131-0 100-391-660-10 1
3 Hexagonal head bolt M8×35 SUS304 000-164-170-10 4
4 Spring washer M8 SUS304 000-167-410-10 4
5 Flat washer M8 SUS304 000-167-464-10 8
6 Hexagonal nut M8 SUS304 000-167-479-10 8
Name Type Code No. Qty
Self-tapping screw 5×20 000-171-997-10 4
Binding head screw M5×12 000-171-999-10 4
Hanger assy. OP26-8-1 001-081-920-00 1
Mounting plate
FE-8010
w/Front
fixing panel
Hex nutHex nut
Spring washerSpring washer
Flat washerFlat washer
Hex boltHex bolt
Rear side
of FE-8010
Hanger
mounting
plate
(left side) Binding
head screw
(M5×12)

1. MOUNTING
4
3. Make a four pilot holes for self-tapping screws (φ5×20) in the mounting location.
4. Fix the hanger to the mounting location with four self-tapping screws (φ5×20).
5. Insert a washer to each knob (right and left) and fix the washer to the display unit
loosely.
6. Set the display unit to the hanger.
7. Tighten the knobs to fasten the hanger to the display unit.
8. Set a cosmetic cap to each fixing hole on the front panel. (See below "How to set
the cosmetic cap".)
How to set the cosmetic cap
Set a cosmetic cap to each fixing hole on the front panel as shown in the figure below.
260 ± 5 (10.24”)
288 ± 5 (11.34”)
240 (9.45”)
279 ± 5 (10.98”)
51 ± 5 (2.01”)
149 (5.87”)
91 (3.58”)
240 (9.45”)
Fixing hole (4-ø7)
190 ± 0.5 (7.48”)
75 ± 0.5 (2.95”)
40 (1.57”)
Set cosmetic cap to hole so cap is flush with panel.

1. MOUNTING
5
1.2 Transceiver Unit
1.2.1 Installation considerations
Keep in mind the following points when selecting a location.
• Locate the transceiver unit away from heat sources because of heat that can build
up inside the cabinet.
• Locate the unit where shock and vibration are minimal.
• Locate the transceiver unit away from places subject to water splash and rain.
• Leave sufficient space at the sides and rear of the unit to facilitate maintenance.
• Be sure to connect the copper strap (between the earth terminal on the chassis and
the ship’s earth).
• A magnetic compass will be affected if the transceiver unit is placed too close to the
magnetic compass. Observe the compass safe distances in the "SAFETY IN-
STRUCTIONS" (on page i) to prevent interference to a magnetic compass.
• Install the transceiver unit on the floor, or on a bulkhead.
1.2.2 How to install the transceiver unit
The transceiver unit can be mounted on a desktop or a bulkhead. See the outline
drawing for details.
Note 1: For desktop mounting, install the unit where it won’t get wet from rain or water
splash.
Note 2: For bulkhead mounting, fix the unit so that the notches on it are facing the
deck.
1. Make four pilot holes for hexagonal nuts (M8×25) in the mounting location.
2. Fasten the transceiver unit as shown below.
1.3 Transducer
The installation of the transducer and the tank should be accomplished by a dockyard
referring to the installation drawings at the back of this manual. An example of trans-
ducer installation method is also shown in paragraph 1.3.2.
Note: Discussions should be taken place and agreement reached with the dockyard
for sufficient reinforcement and watertightness of the hull to comply with the regula-
tions concerned.
Notches
(Face the deck for bulkhead mounting.) Bolt Flat washer
Spring washer
Nut
Pilot hole (M8×25)
Mounting
location

1. MOUNTING
6
1.3.1 Installation considerations
To decide the location of the transducer, the following points should be taken into ac-
count.
• The most important matter is where the transducer is installed. The position should
be free from aeration possibly occurring beneath the hull and also not affected by
engine and propeller noise.
• It is known that air bubble streams start approximately from a quarter length of the
ship’s length from the bow, and spreads over the hull bottom approximately to three
quarters. Air bubble streams vary in form and intensity according to ship's speed,
draught, trim, shape of bow and hull, as well as sea state.
• In a laden ship, a position somewhere near a quarter of the ship's length from the
bow often gives satisfactory results. As for vessels such as oil tankers whose fore
draught is especially shallow, an after position about three quarters of ship's length
from the bow is often suitable.
• It is recommended to install the transducer on the keel line or between 600 mm and
900 mm from the keel to minimize the effect of aerated water.
• Sitting near obstructions such as the forward propeller, bow thruster, water intake
pipes and speed log signal should be avoided
• Select a place giving minimum mechanical vibration.
• Do not lay the transducer cable near or in parallel with other electric cables.
1.3.2 How to install the transducer (Example for TTF-5600)
Note: Be sure to remove the transducer and rubber gasket prior to welding the trans-
ducer tank to the hull.
1. Install the transducer tank on the hull. The tank bottom should be flush with the
hull bottom.
2. Feed the transducer cable through the cable gland.
3. Apply sealing tape to the threads of the gland nut for watertightness.
4. Pass the cable thru the gasket,
washer and gland nut.
5. Fix the transducer to the tank with the transducer fixing flange.
6. Coat the thread of gland nut with silicone grease.
7. Tighten the gland nut.
8. It is recommended to enclose the transducer cable in a conduit pipe for water-
proofing and electrical shielding as well as for protecting the cable from mechan-
Washer
(Flat face: Upside)
Gasket
Fixing flange
Gland nut

1. MOUNTING
7
ical damage. The conduit pipe should be fixed to the flange on the transducer
tank. The pipe should be of such a length to clear the water level when the ship is
fully loaded. The pipe end should be finished with filling compound. It is recom-
mended to fill the pipe with sand between the transducer and the junction box (or
matching box). This will protect the transducer from vibration and damage.
1.4 Matching Box
The matching box should be selected depending on the transducer type;
• 50B-6B transducer: MB-502
• 200B-8B transducer: MB-504
1.4.1 Installation considerations
The matching box can withstand minor water splash, however, locate the unit away
from places subject to direct water and rain.
1.4.2 How to install the matching Box
Fasten the matching box with four self-tapping screws (φ6×20, local supply). Observe
the compass safe distances in the "SAFETY INSTRUCTIONS" (on page i) to prevent
interference to a magnetic compass.
1
2
3
4
5
6
7
8

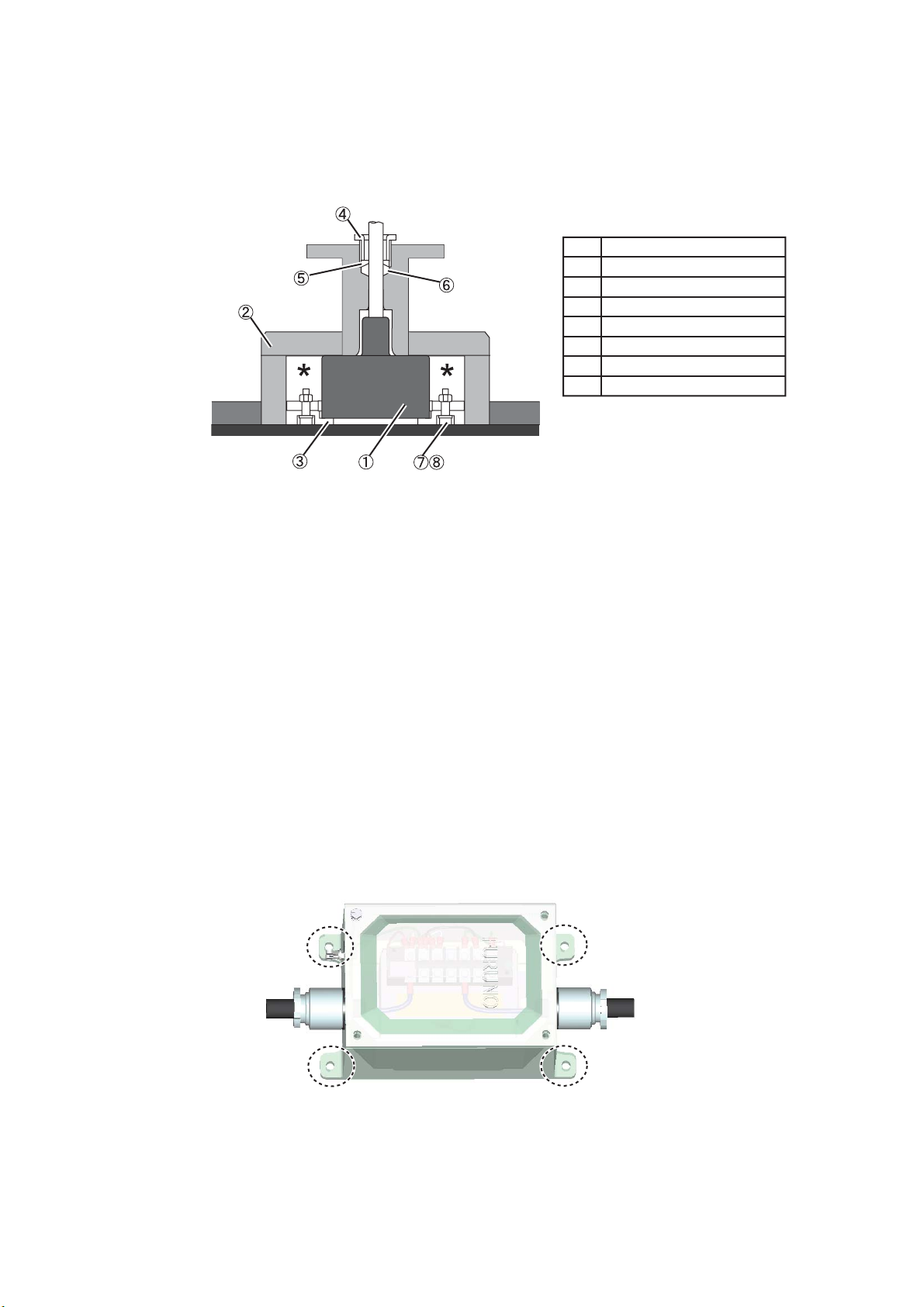

Transducer (50B-6B)
Transducer Tank
Fixing Flange
Gland Nut
Washer
Rubber Gasket
Hex. Bolt (M6×25)
Spring Washer (For M6)
*: Sea water comes into the area
marked with "*" inside the tank.

1. MOUNTING
8
1.5 Gate Valve GV-50B-6B, GV-200B-8B (option)
Assemble the gate valve as shown below. Refer to the drawing at the end of this man-
ual.
1. Disassemble the gate valve as-
sembled tentatively: spacer,
gasket1, gate valve, gasket 2,
seachest cap and shaft assem-
bly.
When assembling the gate
valve, use original washers,
bolts and nuts. Keep the bot-
tom of the seachest cap and
the shaft free of dust and be
careful not to damage them.
2. Weld the spacer to the hull bot-
tom.
The hull side of the spacer
should be flush with the hull
bottom. Be careful not to dam-
age the side fixed to the gate
valve.
3. Clean the side of the spacer to
be fixed to the gate valve.
4. Grease (supplied) both sides of
the gasket 1 and the inner side
of the spacer. Place the gasket 1 onto the spacer.
5. Clean the flange side of the gate valve, and place it on the gasket 1. The scale
side of the gate valve should be up.
6. Fix stud bolts of the spacer with washers and bolts loosely.
7. Keep seachest cap and shaft assembly free of dirt and dust.
8. Grease (supplied) both sides of the gasket 2 and place it onto the gate valve.
9. Place seachest cap and shaft assembly onto the gasket 2.
10. Fix the assembly with bolts, nuts and washers loosely.
11. Unscrew nuts from flange 2, and confirm
that shaft can be moved up and down
smoothly by hand.
You will feel some resistance because of
the O-ring (P135).
12. Fasten the gate valve with bolts, nuts and
washers above and below.
Note: When installing a transducer, do it be-
fore step 7 or after removing the seachest cap
and the shaft assembly.
Spacer
Nut
Washer
Gate
Valve
Nut
Washer
Bolt
Gasket 2
Seachest
cap
Shaft
O-ring (P135)
Scale
Gasket 1
Stud bolt
Bolt
M6×25
Shaft
Flange
O-ring
Spring
washer
Damper
Transducer case
Transducer
Flange 2
Nut
Washer

9
2. WIRING
2.1 Wiring
The illustration below shows the cables to use to connect the units of the system. See
the interconnection diagram at the back of the manual for details.
DPYC-1.5
(Power)
Display unit
FE-8010
TTYCSLA-4
(Signal)
TTYCSLA-4 RD-20 or RD-50
TTYCSLA-1 Navigator
TTYCSLA-1 Navigator
TTYCSLA-1 Navigator
TTYCSLA-4 BAM or IF-2503
TTYCSLA-1 POWER FAIL
DTI-C5E350 VCV
Network Equipment or PC
DPYC-1.5 Ship’s Mains
Junction box
JIS F8821-1MO
O-20A3P
DPYCYSLA-2.5
Printer
PP-505-FE
TPYCSLA-1.5
DPYCYSLA-2.5
Transceiver unit
FE-8020
(No. 1)
Matching box
MB-502 (For 50B-6B)/
MB-504 (For 200B-8B)
Transducer
50B-6B/200B-8B

2. WIRING
10
2.2 Cable Fabrication
TTYCSLA-1/TTYCSLA-4
<Side: Display unit>
<Side: Transceiver unit>
DPYC-1.5
<Side: Display unit>
<Side: Transceiver unit>
Drain wire
Drain wire
60
7
Core
Core
Vinyl tape
Vinyl tape
Clamp here.
Clamp here.
35
Armor
Wrap the drain wire around the sheath.
Sheath
Sheath
more than 50
Vinyl tape
Vinyl tape
200
7
Vinyl tapeVinyl tape
6
TTYCSLA-4
Cable Core
8
2TTYCSLA-1
CoreCore
Armor
Clamp here.Clamp here. Crimp-on lug
Pass heat shrink tubing (local supply) onto the drain wire.
Drain wireDrain wire
150150
15 5
60
Vinyl tapeVinyl tape Crimp-on lug
CoreCore
Armor
Clamp here.Clamp here.
6
SheathSheath
more than 50
L1
L2
Vinyl tapeVinyl tape
15 5
Crimp-on
lug
CoreCore
Armor
Length
of “L1”
(mm)
140
Transceiver
unit (CN1)
Cable side
50
Length
of “L2”
(mm)
6
9
Transceiver
unit (CN4)
Clamp here.Clamp here.
*: For CN1, attach
the crimp-on lug.

2. WIRING
11
TPYCSLA-1.5
<Side: Display unit>
DPYCYSLA-2.5
<Side: Transceiver unit>
<Side: Matching box>
2RNCT-SB 2Cx1.4
<Side: Matching box>
Drain wireDrain wire
60
7
CoreCore
Vinyl tapeVinyl tape
Clamp here.Clamp here.
35
Armor
Wrap the drain wire around the sheath.
SheathSheath
more than 50
Vinyl tapeVinyl tape
180
Drain wireDrain wire
CoreCore
SheathSheath Armor
9
more than 50
150
6
Clamp here.Clamp here.
15 5
Crimp-on lug
Pass heat shrink tubing (local supply) onto the drain wire.
Vinyl tapeVinyl tape
150
Drain wireDrain wire
CoreCore
Outer
sheath
Outer
sheath
6
more than 50
150
6
Clamp here.Clamp here. 15 5
Crimp-on lug
Pass heat shrink tubing (local supply) onto the drain wire.
Vinyl tapeVinyl tape
Armor
(Suitable length)
Armor
(Suitable length)
Inner sheathInner sheath
150
Core
Core
Sheath
Sheath
6
Clamp here.
Clamp here.
Vinyl tape
Vinyl tape
Crimp-on lug
Unwind shield.
Twist shield.

2. WIRING
12
DTI-C5E350 VCV
Note: Do not use an optical fiber cable.
How to fabricate the LAN connector
Armor
Outer vinyl
sheath
Outer vinyl
sheath
Inner vinyl sheathInner vinyl sheath
more than 50
Vinyl tapeVinyl tape Modular plugModular plug
Clamp here.Clamp here.
20
280
Cable jacketCable jacket
Using the special crimping
tool MPT5-8 (PANDUIT CORP.),
crimp the modular plug.
Finally, check the plug visually.
Expose inner vinyl sheath.
1 WHT/GRN
2 GRN
3 WHT/ORG
4 BLU
5 WHT/BLE
6 ORG
7 WHT/BRN
8 BRN
WHT/ORG 1
ORG 2
WHT/GRN 3
BLU 4
WHT/BLE 5
GRN 6
WHT/BRN 7
BRN 8
[Cross-over cable]
1 WHT/ORG
2 ORG
3 WHT/GRN
4 BLU
5 WHT/BLE
6 GRN
7 WHT/BRN
8 BRN
WHT/ORG 1
ORG 2
WHT/GRN 3
BLU 4
WHT/BLE 5
GRN 6
WHT/BRN 7
BRN 8
[Straight cable]
Remove the outer sheath by
approx 25 mm. Be careful
not to damage inner shield
and cores.
Fold back the shield, wrap it
onto the outer sheath and
cut it, leaving 9 mm.
12
3
25 mm
approx. 9 mm
456
approx. 9 mm approx. 11 mm
Drain wire
Fold back drain wire and
cut it, leaving 9 mm.
Straighten and flatten the
core in order and cut them,
leaving 11 mm.
Insert the cable into the
modular
plug so that the folded part of
the shield enters the modular
plug. The drain wire must be
on the tab side of the jack.
7
18
Modular plug

2. WIRING
13

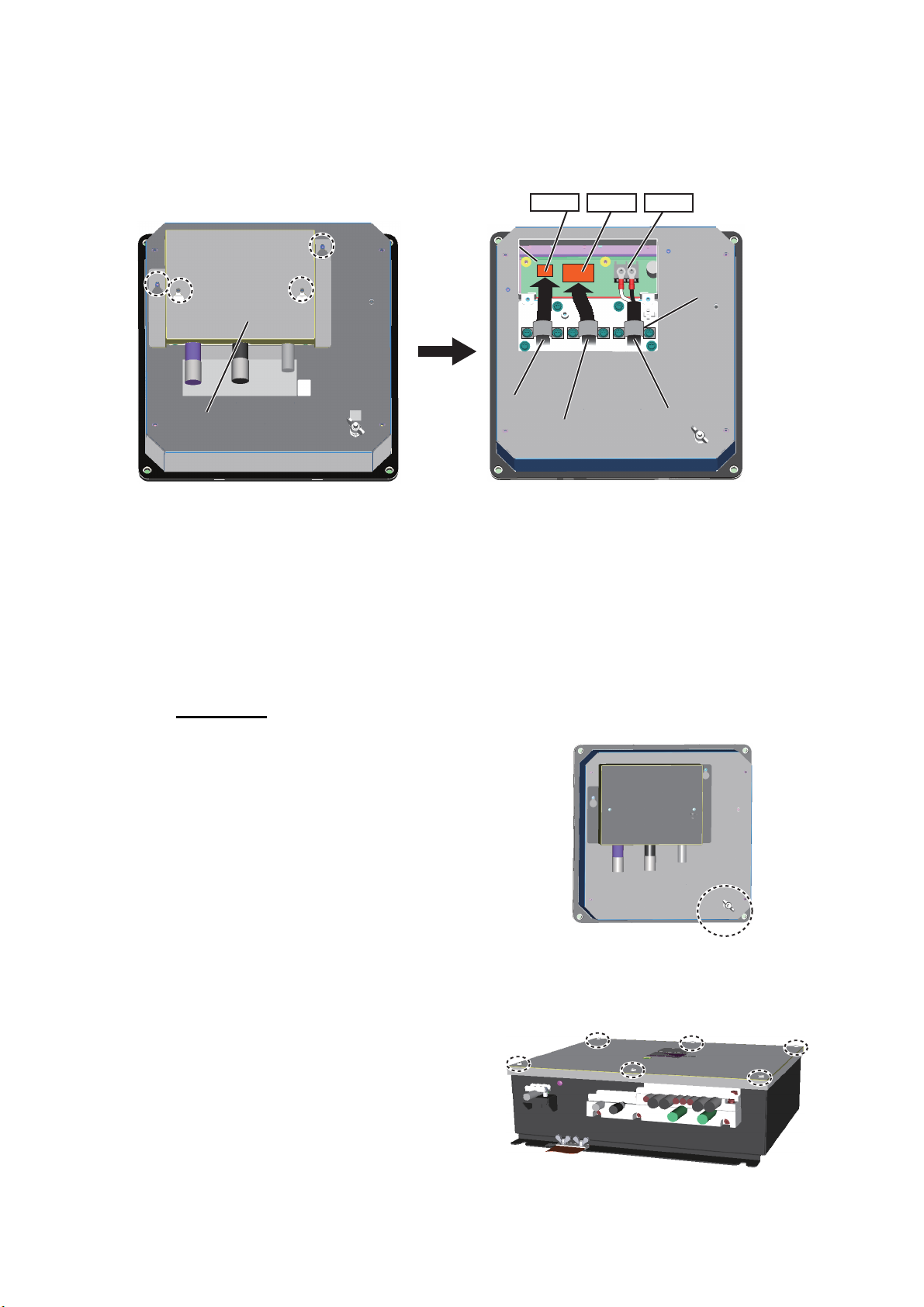

2.3 Display Unit
Remove four screws to remove the rear cable cover. Remove the cable clamps to con-
nect the cables.
Rear view of the display unit
Three cables are connected to the display unit. After connecting cables, close the ca-
ble cover.
• Cable for the transceiver unit (DPYC-1.5): To CN1
• Cable for the transceiver unit (TTYCSLA-4): To CN2
Connect the ground wire with the wing nut as shown the below.
• Cable from the printer (TPYCSLA-1.5): To CN3
Grounding
Shorten the ground wire as much as possible.
Note 1: Ground the equipment to prevent mutu-
al interference.
Note 2: Use “closed-type” lugs to make the
ground connection at the display unit and the
matching box. Do not use “open-type” lugs when
a crimp-on lugs are supplied locally.
2.4 Transceiver Unit
1. Remove six screws to open the cover
of the transceiver unit.
Cable coverCable cover
DISP board
12P1004
DISP board
12P1004
Cable clampCable clamp
From printerFrom printer
From Transceiver unit
(For signal)
From Transceiver unit
(For signal)
From Transceiver unit
(For power)
From Transceiver unit
(For power)
CN3 CN2 CN1
(Rear view)

2. WIRING
14
2. Loosen four screws to open the fil-
ter cover.
3. Loosen or remove the cable entrance assembly as shown below.
To connect CN8, CN10, CN12 and CN13, remove the cap spacers from the cable
clamp.
4. There is a plastic sheet on the inside of the cable entrance. Before passing the
cables, tear the plastic sheet by hand to pass the cables.
5. Connect cables as shown below.
Top and front views of the Transceiver unit
Filter cover
Remove two screws.
Remove four screws.
Loosen two screws.
Cap spacer
Front view
Top view
CN4
CN2 CN3
CN6
CN9
CN12
CN8
CN11
CN14
CN5
CN7
CN10
CN13
CN1
Transceiver unit

2. WIRING
15

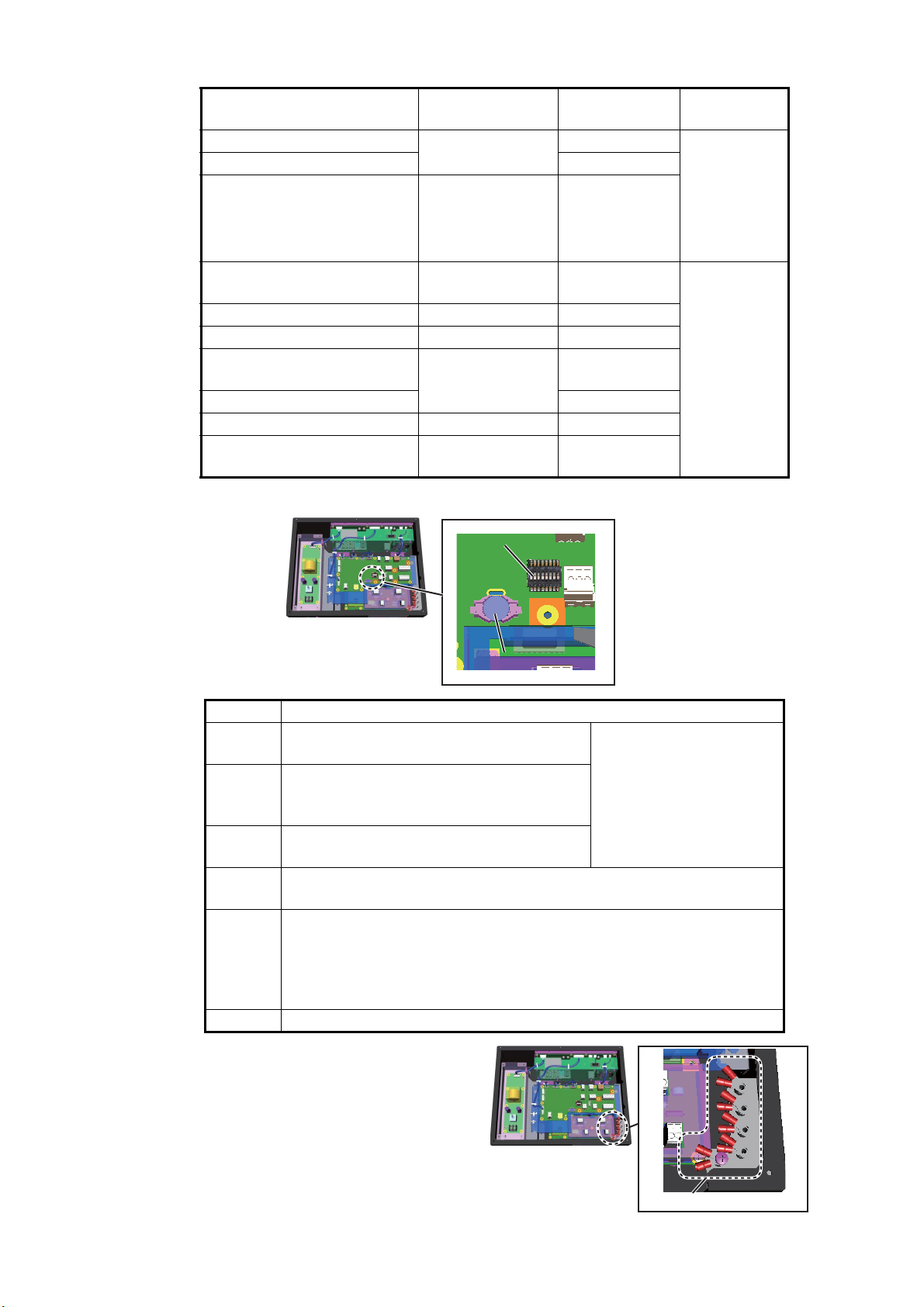

6. Set the DIP switch on MAIN board 12P1000 referring to the descriptions below.
7. Connect ground wires with the pre-
attached crimp-on lugs shown
right. The cables that require
grounding are shown in the column
"Grounding" in the table at the top
of this page.
8. Refasten the cable entrance as-
sembly.
Cable entrance No. Cable Connector
(on 12P1000) Grounding
1: For ship’s mains DPYC-1.5 CN1
—
2: For display unit (power) CN4
3: LAN for INS or PC
(Recording software)
DTI-C5E350
VCV (φ13.5 mm)
Note: Do not use
other cable.
CN5
4: For external equipment TTYCSLA-1 CN6, CN7,
CN9
Needed
5: For display unit (signal) TTYCSLA-4 CN8
6: For matching box DPYCYSLA-2.5 CN2, CN3
7: For display unit
(RD-20 or RD-50)
TTYCSLA-4 CN12, CN13
8: For BAM CN10
9: For BAM TTYCSLA-1 CN14
10: For transceiver unit
(No. 2)
TTYCSLA-4 CN11
DIP SW Function
1 1: ON (Restore default settings.)
0: OFF (Default setting, for normal use)
Note: When FE-800
starts up with “ON”, The
“FA” mark appears at the
top-left corner of the
screen.
2 1: ON (Start the transceiver unit indepen-
dently.)
0: OFF (Default setting, for normal use)
3 1: ON (Don’t back up settings.)
0: OFF (Default setting, for normal use)
4 Turn output to port 2 of IF-2503 [ON] or [OFF]. [ON] outputs a con-
tact signal when the Depth-below-Keel alarm occurs.
5 Turn output to port 3 of IF-2503 [ON] or [OFF]. [ON] outputs a con-
tact signal when any of the following errors occur.
• Bottom lost
• TX Volt Error
• TCVR High Temperature
6 to 8 No use.
DIP switchDIP switch
BatteryBattery
Ground point
