BaByliss SMOOTH & WAVE 2662U User manual

SMOOTH & WAVE
2662U
Granted UK Patent Number(s): 2 242 393, 2455716, 2 620 075, 2 651 260, 2 893 832, 2 515
980, 2 858 529, 2 521 783.
EU Registered Design Number: 003992692-0002
IMPORTANT!
This styler reaches high temperatures and is not suitable for use
on either synthetic or real hair extensions.
The hair should be clean, dry and free of dry shampoo, hairspray,
mousse, spray wax, styling dust and all other styling products.
SAFETY CAUTIONS
• This appliance should only be used as described within
this instruction booklet. Please retain for reference.
IMPORTANT CHILD SAFETY
WARNING! Polythene bags over a product or package
may be dangerous. To avoid danger of suffocation, keep
this wrapper away from babies and children. This bag is
not a toy.
WARNING! THIS APPLIANCE GETS HOT!
• ALWAYS keep out of reach of children (during and after
use and whilst cooling).

• This appliance should not be used, cleaned or
maintained by children.
• Always take extra care if used on children or near
children.
• Do not use on very young children.
IMPORTANT SAFETY
• Do not use the appliance in the bathroom.
• WARNING! Do not use this appliance near
water contained in basins, bathtubs or other
vessels.
• Do not immerse the appliance in water or other liquids.
• Always inspect the appliance before use for noticeable
signs of damage. Do not use if damaged, or if the
appliance has been dropped. In the event of damage,
discontinue use immediately. Contact the Conair
Customer Care Line (refer to ‘UK After Sales Service’
section for further information).
• Do not use the appliance if the lead is damaged. In the
event of lead damage, discontinue use immediately.
If the lead is damaged it must be replaced by the
manufacturer. Return the appliance to the Customer
Care Centre (refer to ‘UK After Sales Service’ section
for further information). No repair must be attempted
by the consumer.
• Do not leave the appliance unattended when switched
on or plugged in.
• During use, do not place the appliance on any heat
sensitive surface even when using the heat mat
provided.
• Take care to avoid the hot surface of the appliance

coming into direct contact with the skin, in particular
the eyes, ears, face and neck.
• In the event the appliance is left switched on, it will
automatically shut off after 60 minutes. If you wish to
continue using the appliance after this time, simply
slide the switch to the ‘‘ ’’ setting, then slide the switch
to the relevant setting to turn the power on.
• This appliance should not be used by adults whose
reduced physical, sensory or mental capabilities, or
whose lack of experience and knowledge, might cause
a hazard, unless they have been correctly instructed to
understand the safe use and hazards involved and are
adequately supervised.
• Allow appliance to cool before storing away.
• After use, do not coil the lead around the appliance as
this may cause damage. Instead, coil loosely by the
side of the appliance.
• This product complies fully with all appropriate EU
and UK Legislation and the Standards relevant to this
type and class of appliance. We are an ISO9001:2015
certied company that continually evaluates our
Quality Management System performance. If you have
any queries regarding product safety and compliance,
please contact our Customer Services Department.
(See “U.K. After Sales Service” section for further
information.)

INSTRUCTIONS FOR USE
Creating Waves
• Ensure the hair is clean, dry and free of dry shampoo, hairspray,
mousse, spray wax, styling dust and all other styling products.
• Comb through to remove any tangles and divide the hair into sections,
no bigger than 3cm wide.
• To turn the appliance on, slide the switch to the heat setting suitable
for your hair type (See Heat Settings).
IMPORTANT! Always allow the appliance to heat up fully before use.
The LED light will ash until the temperature setting has been reached.
• Select the wave setting by sliding the switch to wave mode (See
Wave or Smooth Settings).
• Wave direction can be selected by sliding the switch to desired
direction (See Wave Direction Settings).

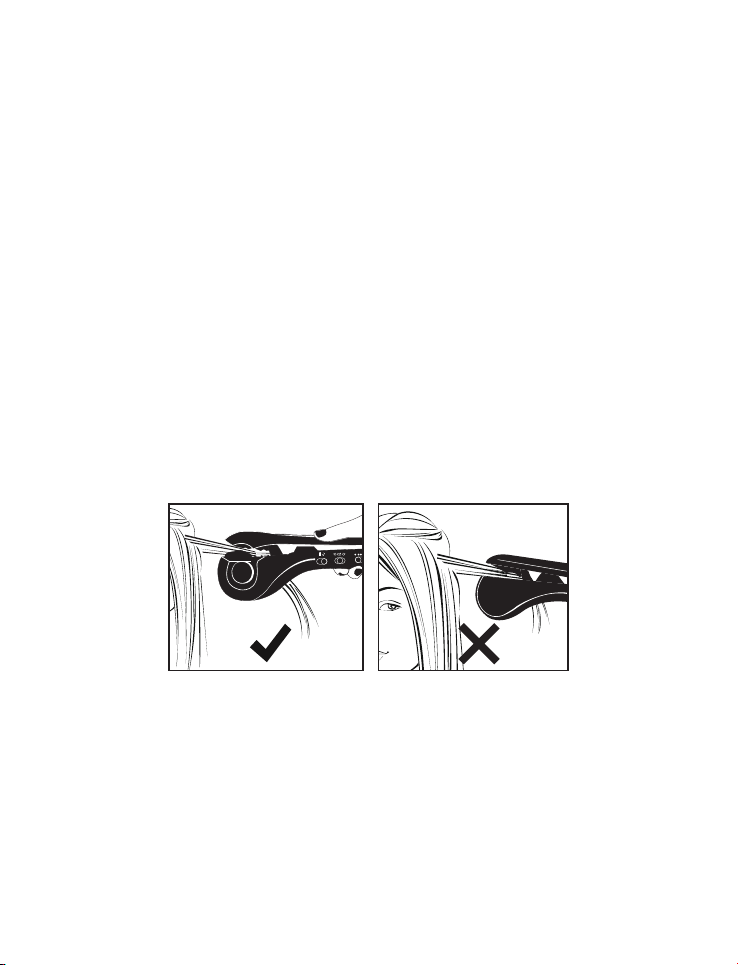

• Always insert the hair into the appliance with the open part of the
ceramic chamber facing towards the head. For longer length hair,
insert the hair into the appliance further down the section to ensure
the hair is drawn into the ceramic chamber efciently.
•Caution! If the appliance is used incorrectly, in certain instances
a slight tangle can occur. Should a tangle occur, rstly turn the
appliance off and refrain from pulling the appliance away from the
hair. Gently tease the hair out from the ceramic chamber until fully
released.

• IMPORTANT! The neat section of hair must be inserted into the
opening, beyond the hair stopper (A) until it reaches the hair guide
(B). If too much hair is placed into the appliance opening and outside
of hair stopper (A) the appliance will beep continuously. To continue
using, remove the appliance from the hair and insert smaller sections
of hair.
•IMPORTANT! Firmly close the handles together to allow the hair to
be drawn into the ceramic chamber.
•Keep the appliance in position and once the hair has been drawn
into the ceramic chamber, the appliance will beep 8 times. Continue
to hold the handles closed until the appliance sounds with the nish
audio indicator, this is to indicate the time is up.
IMPORTANT! If the appliance is not released from the hair after the
nish audio indicator, it will beep continuously. To continue using the
appliance, remove from the hair and use as normal.

•Release the handles fully and smoothly pull the appliance away from
the head to reveal the chosen wave.
• To allow the wave to set, do not comb or brush the hair until it cools.
• Repeat around the head until you have the amount of waves desired.
• After use, switch off and unplug the appliance.
Creating Smooth Styles
•Ensure the hair is clean, dry and free of dry shampoo, hairspray,
mousse, spray wax, styling dust and all other styling products.
•Comb through to remove any tangles and divide the hair into sections,
no bigger than 2cm wide.
•To turn the appliance on, slide the switch to the heat setting suitable
for your hair type (See Heat Settings).
IMPORTANT! Always allow the appliance to heat up fully before use.
The LED light will ash until the temperature setting has been reached.
•Select the smooth setting by sliding the switch to smooth mode (See
Wave or Smooth Settings).

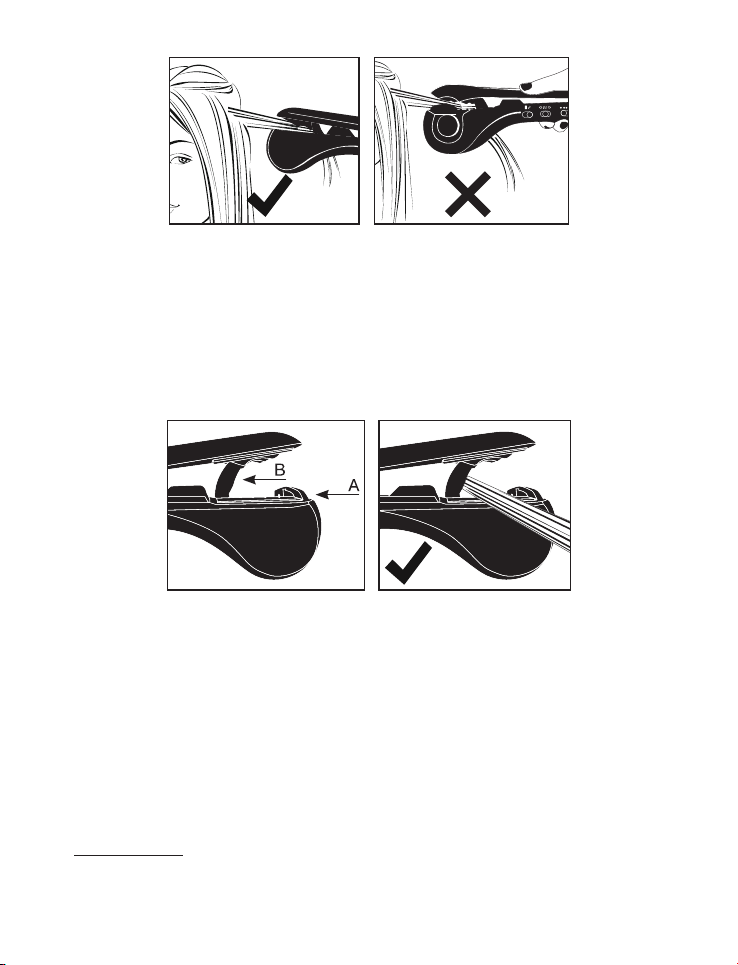

•Always insert the hair into the appliance with the plate part facing
towards the head. Place a section of hair between the straightening
plates, close to the roots.

•IMPORTANT! The neat section of hair must be inserted evenly on to
the straightening plates, beyond the hair stopper (A) until it reaches
guide (B). If too much hair is placed into the appliance opening and
outside of hair stopper (A) the appliance will beep continuously. To
continue using, remove the appliance from the hair and insert smaller
sections of hair.
• Caution! If the appliance is used incorrectly, in certain instances
a slight tangle can occur. Should a tangle occur, rstly turn the
appliance off and refrain from pulling the appliance away from the
hair. Gently tease the hair out from the ceramic chamber until fully
released.
•Firmly close the handles together to allow the hair to be drawn into
the ceramic chamber.

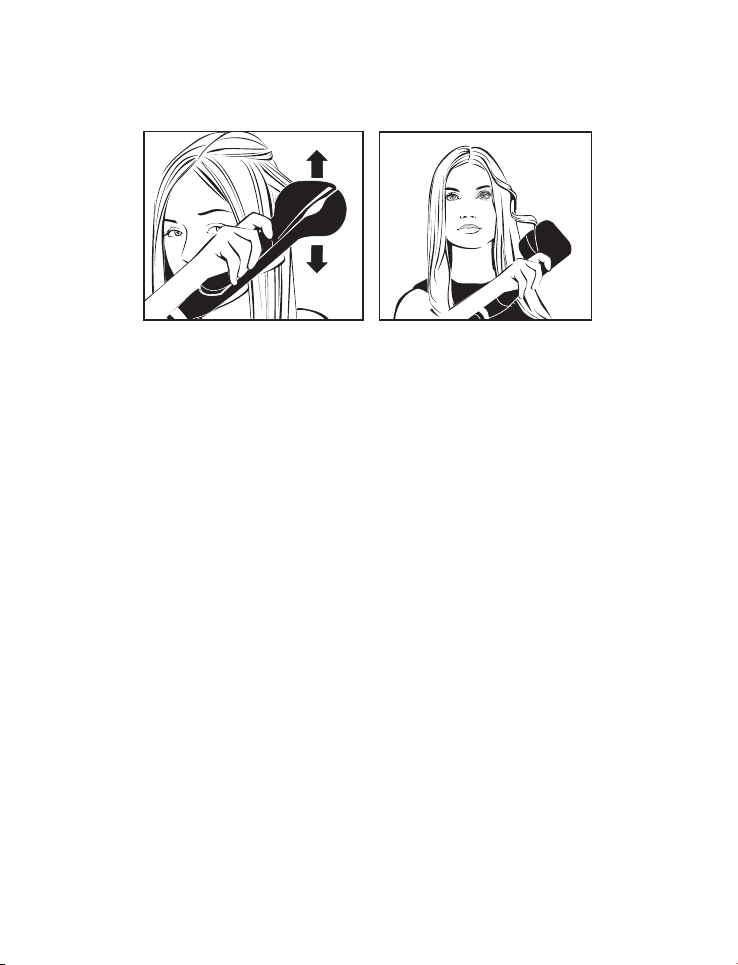

•IMPORTANT! Once the hair has begun to be drawn into the ceramic
chamber hold the hair rmly between the straightening plates and
immediately slide smoothly and slowly down the length of the hair
from root to tip.

•IMPORTANT! If the appliance is not released from the hair it will
beep continuously. To continue using the appliance, remove from the
hair and use as normal.
•To allow the section to set, do not comb or brush the hair until it
cools.
•After use, switch off and unplug the appliance.
Heat Settings
If you have delicate, ne or coloured hair, use the lower heat settings.
For thicker hair, use the higher heat settings.
It is suggested to always complete a test on initial use to ensure the
correct temperature is used on the hair type. Start on the lowest
setting and increase the temperature until desired result is achieved.
Below is a guide of the temperature settings:-
= OFF
• = 180°C (Green)
• • = 200°C (Orange)
• • • = 230°C (Red)

Wave or Smooth Settings
The wave or smooth setting allows you to switch between the Wave
Mode for perfectly formed waves or Smooth Mode for a sleek nish
without attening.
Below is a guide of the wave and smooth settings:-
= Wave Mode (White)
= Smooth Mode (Blue)
Wave Direction Settings
The wave direction settings allow you to chose the direction of your
wave formation.
Below is a guide of the wave direction settings:-
= Clockwise
= Alternate
= Anti-Clockwise
Sleep Mode
This appliance has an automatic sleep mode feature. If the appliance
is not used for more than 20 minutes the temperature will automatically
drop to around 150°C. If you wish to continue using the appliance after
this time, simply close then release the handles and it will return to the
temperature setting you were using it on.
Auto Shut Off
This appliance has an automatic shut off feature for added safety. If the
appliance is switched on for more than 60 minutes continuously, it will
automatically switch off. If you wish to continue using the appliance
after this time, simply slide the switch to the ‘‘ ’’ setting, then slide the
switch to the relevant setting to turn the power on again.

Heat Mat
The appliance comes with a heat mat for use during and after styling.
During use do not place the appliance on any heat sensitive surface,
even when using the heat mat provided. After use, switch off and
unplug the appliance. Immediately wrap the appliance in the heat mat
provided and allow to fully cool down. Continue to keep it out of reach
of children as it will remain hot for several minutes.
CLEANING & MAINTENANCE
To keep your appliance in the best possible condition, please follow
the steps below:
•Ensure the appliance is switched off, unplugged and cool. To clean
the outside of the appliance, wipe with a damp cloth. Make sure that
no water enters the appliance and it is completely dry before use.
•Do not wrap the lead around the appliance, instead coil the lead
loosely by the side of the appliance.
•Do not use the appliance at a stretch from the power point.
•Always unplug after use.
For more information on this appliance visit www.babyliss.co.uk
UK GUARANTEE
The Conair Group Ltd, Unit 3, Waterfront Business Park, Fleet, GU51 3TW
This BaByliss appliance is guaranteed for consumer use for 3 years
and is only valid within the United Kingdom.
This guarantee covers consumer use only i.e. defects occurring under
normal use within the home from date of purchase or date of delivery,
whichever is later.

If the product develops a fault due to defects in materials or manufacture
within 12 months from the date of purchase, to avoid delays and
unnecessary inconvenience, where possible please return the product
to the point of purchase for an exchange.
If the product develops a fault due to defects in materials or manufacture
after 12 months from the date of purchase, and within the guarantee
period, Conair UK After Sales Service will repair or replace the product.
Exclusions
This guarantee will no longer be valid meaning that The Conair Group
Ltd will not be liable to repair or replace your product where:
1.) The appliance has been used on a voltage supply other than that
which is marked on the product, or advised within this instruction
booklet
2.) The appliance has been purchased from an unauthorised stockist*
3.) The appliance is used for professional / non domestic usage
4.) Repairs or alterations have been attempted by unauthorised persons
5.) The failure of the appliance is a direct result of misuse
6.) The failure is a result of not following the instructions for use
This guarantee does not cover any cosmetic damage due to misuse
of the product nor any damage to persons or property that occurs
because of product misuse.
*unauthorised stockists include, but are not limited to online auction
sites, private sellers and those selling second hand goods, refurbished
products etc
Please contact the Conair Customer Care Line on 03705 133 191
(09:00 to 17:00 Monday to Friday) or e-mail [e-mail] for
further information on authorised stockists.
It is important to retain your proof of purchase. We recommend
attaching your receipt to this page.

Even where a refund may be applicable, no refund will be provided
without a valid receipt or proof of purchase, we will only be able
to offer a repair or replacement service. Please note this does
not apply if the product was purchased directly from The Conair
Group Ltd.
Guarantees on replacement products run from the original purchase
date or date of delivery, whichever is later, and not from the date of
replacement.
This guarantee is an additional benefit and does not affect your
statutory rights as a consumer.
If you have any queries regarding this guarantee please contact the
Conair Customer Care Line on 03705 133 191 (09:00 to 17:00 Monday
to Friday) or e-mail [e-mail]
UK AFTER SALES SERVICE
For further advice on using the appliance or should you need to return
your product, please contact the Conair Customer Care Line on
03705 133 191 (09:00 to 17:00 Monday to Friday) or e-mail your enquiry to
[e-mail]
Return address:
Customer Care Centre
Conair Logistics
Unit 4, Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your returns number, name and address details,
together with a copy of proof of purchase and details of the fault.

Please note this Instruction Booklet is not the guarantee.
SAFE DISPOSAL
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be
handed to an appropriate collection point for the recycling of Electrical
and Electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact your
local council ofce or your household waste disposal service.

IB-17/323A
