Backyard Pro Patio Series User manual

1
MODEL NO.:PH08-SB/PH08-SSB
1
FOR OUTDOOR USE ONLY.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
TOWER PATIO HEATER
OPERATION INSTRUCTIONS
05/2020
554HPSQRSS, 554HPSQRSTL, 554HPSQRBZ, 554HPSQRBLK
FOR OUTDOOR USE ONLY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
TABLE OF CONTENTS
Package Contents..................................................
Safety Informaon................................................
Assembly Instrucons...........................................
Operaon Instrucons..........................................
Troubleshoong.....................................................
Equipment Limited Warranty................................
2-3
3-5
6-12
13-16
17
18
MODEL NO.:PH08-SB/PH08-SSB
1
FOR OUTDOOR USE ONLY.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

2
PACKAGE CONTENTS
PACKAGE CONTENTS
2
NOITPIRCSEDTRAP QUANTITY
A Reflector 1
B
Damper
Reflector
Damper
Upper Support
Wireguard
1
C
Upper Support
D Wireguard
E Glass Tube
F Middle plate
4
4
1
1
G3
H 4
I
Front Panel
Base
Side Panel
Lower Support
1
J
Control box
K
1
1
A
B
C
D
Glass Tube
E
Middle plate
F
Side Panel
G
Lower Support
H
Front Panel
I
Base
J
Control box
K

3

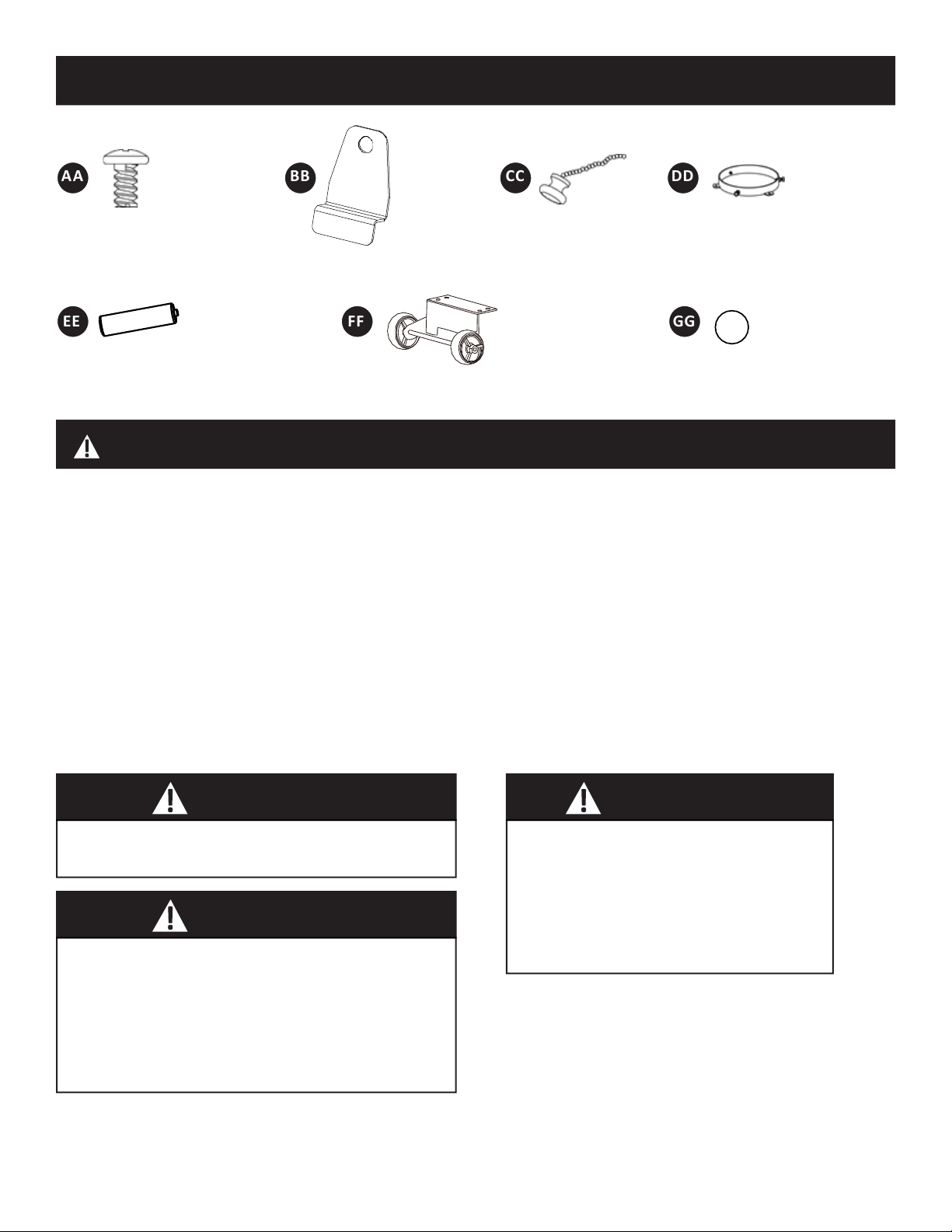

HARDWARE CONTENTS
EE
AA
Screw
M3/16
aach to
the regarding parts
BB
Fixing
Bracket
Qty. 4
CC
Knob
Qty. 1
DD
Stability Ring
(if available)
Qty. 1
EE
AA Baery
Qty. 1
FF
Wheels
Qty. 1 set
GG
Rubber Ring
Qty. 1
This manual contains important informaon about the assembly, operaon, and maintenance
of this pao heater. General safety informaon is presented in these rst few pages and is
also located throughout the manual. Keep this manual for future reference and to educate
new users of this product. This manual should be read in conjuncon with the labeling
on the product. Safety precauons are essenal when any mechanical or propane fueled
equipment is involved. These precauons are necessary when using, storing, and servicing.
Using this equipment with the respect and cauon demanded will reduce the possibilies of
personal injury or property damage. The following symbols shown below are used extensively
throughout this manual. Always heed these precauons, as they are essenal when using any
mechanical or fueled equipment.
DANGER indicates an imminently hazardous situaon
which, if not avoided, will result in death or serious injury.
Failure to comply with the precauons and instrucons
provided with this heater can result in death, serious
bodily injury and property loss or damage from hazards
of re, explosion, burn, asphyxiaon, and/or carbon
monoxide poisoning. Only persons who can understand
and follow the instrucons should use or service this
heater.
DANGER
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut o gas to the appliance.
2. Exnguish any open ame.
3. If odor connues, keep away from the
appliance and immediately call you gas
supplier or re department.
DANGER
SAFETY INFORMATION

4
SAFETY INFORMATION
EXPLOSION - FIRE HAZARD
• Keep solid combusbles, such as building materials, paper
or cardboard, a safe distance away from the heater as
recommended by the instrucons.
• Provide adequate clearances around air openings into the
combuson chamber.
• Never use the heater in spaces which do or may contain
volale or airborne combusbles, or products such
as gasoline, solvents, paint thinner, dust parcles or
unknown chemicals.
• During operaon, this product can be a source of ignion.
Keep heater area clear and free from combusble
materials, gasoline, paint thinner, cleaning solvents and
other ammable vapors and liquids. Do not use heater in
areas with high dust content. Minimum heater clearances
from combusble materials: three (3) feet from the sides
& two (2) feet from the top.
DANGER
EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open ames, pilot
lights, direct sunlight, other ignion sources or where
temperatures exceed 120 degrees F (49°C).
• Propane vapors are heavier than air and can accumulate
in low places. If you smell gas, leave the area immediately.
• Never install or remove propane cylinder while heater is
lighted, near ame, pilot lights, other ignion sources or
while heater is hot to touch.
• This heater is red hot during use and can ignite
ammables too close to the burner. Keep ammables at
least 3 feet from sides & 2 feet from top. Keep gasoline
and other ammable liquids and vapors well away from
heater.
• Store the propane cylinder outdoors in a well venlated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If heater
is to be stored indoors, disconnect the propane cylinder
for outdoor storage.
We cannot foresee every use which may be made of our
heaters. Check with your local re safety authority if you have
quesons about heater use. Other standards govern the use of
fuel gases and heat producing products for specic uses. Your
local authories can advise you about these. If no local codes
exist, follow Naonal Fuel Gas Code, ANSI Z223.1. In Canada,
installaon must conform to local codes. If no local codes
exist, follow the current Naonal standards of CANADA CAN/
CGA-B 149.2.
DANGER
WARNING
CARBON MONOXIDE HAZARD
• This heater is a combuson appliance. All
combuson appliances produce carbon monoxide
(CO) during the combuson process. This product
is designed to produce extremely minute, non-
hazardous amounts of CO if used and maintained in
accordance with all warnings and instrucons. Do
not block air ow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces u-like
symptoms, watery eyes, headaches, dizziness,
fague and possibly death. You can’t see it and
you can’t smell it. It’s an invisible killer. If these
symptoms are present during operaon of this
product get fresh air immediately!
• For outdoor use only.
• Never use inside house, or other unvenlated or
enclosed areas.
• This heater consumes air (oxygen). Do not
use in unvenlated or enclosed areas to avoid
endangering your life.
DANGER
WARNING indicates an imminently hazardous situaon
which, if not avoided, will result in death or serious injury.
WARNING
Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
Improper installaon, adjustment, alteraon, service or
maintenance can cause property damage, injury or
death. Read the installaon, operaon and
maintenance instrucons thoroughly before installing
or servicing this equipment..
WARNING
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which
has no odor. Using it in an
enclosed space can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent or home.
WARNING:For Outdoor use Only
4
SAFETY INFORMATION
DANGER
• CARBON MONOXIDE HAZARD
• This heater is a combustion appliance. All
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air
flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or
enclosed areas.
• This heater consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials,
paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
• Provide adequate clearances around air openings
into the combustion chamber.
• Never use the heater in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
• During operation, this product can be a source of
ignition. Keep heater area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use heater in areas with high dust content.
Minimum heater clearances from combustible
materials: three (3) feet from the sides & two (2) feet
from the top.
We cannot foresee every use which may be made of
our heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
DANGER
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent or home.
WARNING: For Outdoor Use Only
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
• Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane cylinder while heater
is lighted, near flame, pilot lights, other ignition sources
or while heater is hot to touch.
• This heater is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 3 feet from sides & 2 feet from top. Keep
gasoline and other flammable liquids and vapors well
away from heater.
• Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
DANGER

5
SAFETY INFORMATION
California Proposion 65
Combuson by-products produced when using this product
contain chemicals known to the State of California to cause
cancer, birth defects, and other reproducve harm.
WARNING
BURN HAZARD
• Never leave heater unaended when hot or in use.
• Keep out of reach of children.
WARNING
Certain materials or items, when stored under the heater
will be subjected to radiant heat and could be seriously
damaged.
WARNING
SERVICE SAFETY
• Keep all connecons and ngs clean. Make sure
propane cylinder valve outlet is clean.
• During set up, check all connecons and ngs for
leaks using soapy water. Never use a ame.
• Use as a heang appliance only. Never alter in any way
or use with any device.
CAUTION
CAUTION indicates an imminently hazardous situaon
which, if not avoided, may result in minor or moderate
personal injury or property damage.
CAUTION
• This product is fueled by propane gas. Propane gas
is invisible, odorless, and ammable. An odorant
is normally added to help detect leaks and can be
described as a “roen egg” smell. The odorant can
fade over me so leaking gas is not always detectable
by smell alone.
• Propane gas is heavier than air and leaking propane
will sink to the lowest level possible. It can ignite by
ignion sources including matches, lighters, sparks
or open ames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.
• Store or use propane gas in compliance with local
ordinances and codes or with ANSI/NFPA 58. Turn o
propane when not in use.
WARNING
• Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igning clothing.
• Carefully supervise young children when in the vicinity of
the heater.
• Do not hang clothing or any other ammable materials
from the heater, or place on or near the heater.
• Replace any guard or protecve device removed for
servicing the appliance prior to placing back in service.
• Installaon and repair should be done by a qualied
service person. The heater should be inspected before
use and annually by a qualied service person.
• More frequent cleaning may be required as necessary. It
is imperave that the control compartment, burners, and
circulang air passageway of the appliance be kept clean.
WARNING
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
aempt to assemble the product. Contact customer service for replacement parts.
Esmated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
Phillips screwdriver w/ medium blade. Leak Check Soluon.

6
ASSEMBLY INSTRUCTIONS
6
ASSEMBLY INSTRUCTIONS
1
2

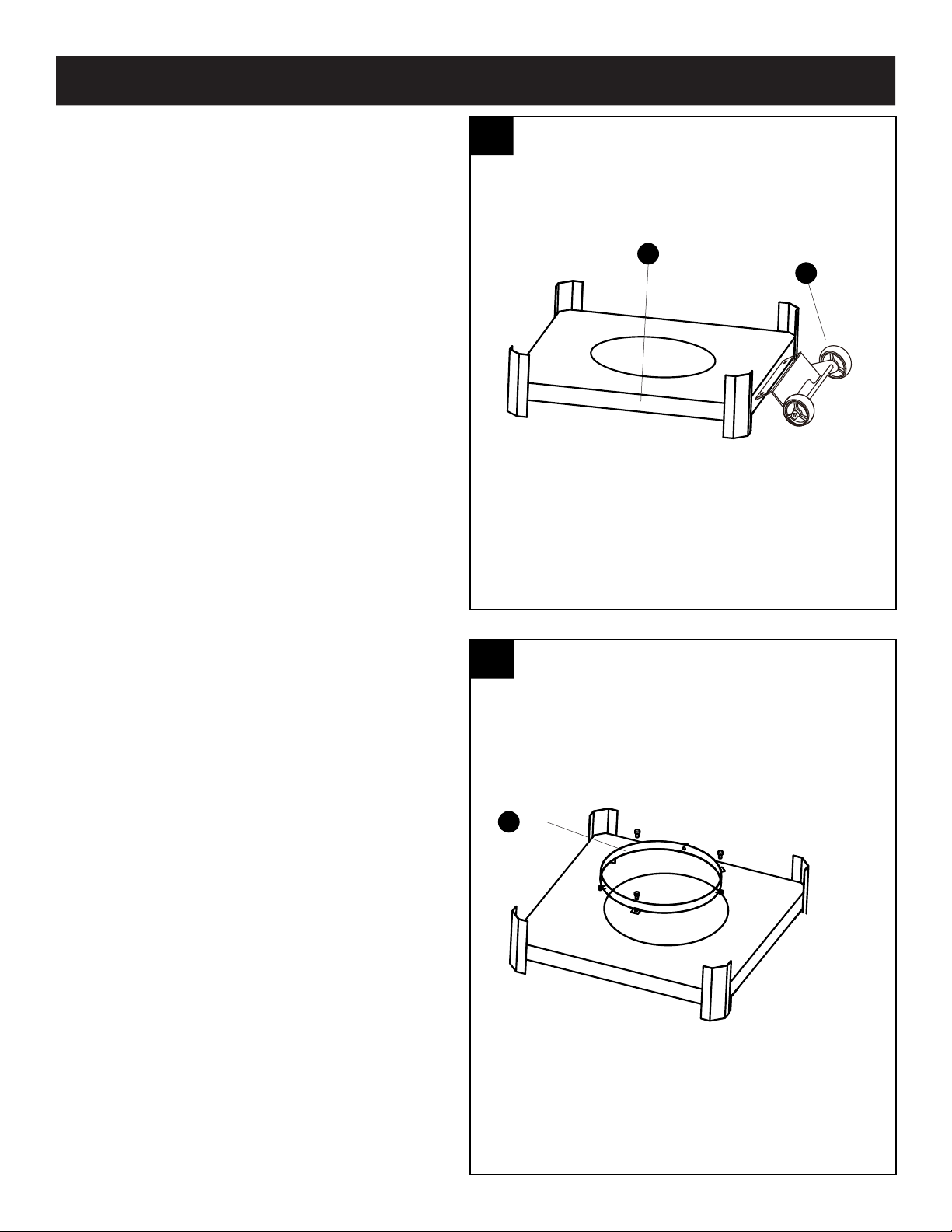

1. Attach 1 set wheels(FF) to the base(J),
if needed.
2. Attach the stability ring(DD) to the base
(J),if avalable.
J
FF
DD
1. Aach 1 set wheels(FF) to the
base(J), if needed.
2. Aach the stability ring(DD) to the
base (J), if available.

7
ASSEMBLY INSTRUCTIONS
7
ASSEMBLY INSTRUCTIONS
3
3. Unsrew any pre installed (M3/16)
screws(AA) first. Assemble the four
lower supports (H) to the base (J) and
middle plate（F）using the (M3/16)
screws (AA).
4.Unsrew any pre installed (M3/16)
screws(AA) first. Assemble the four upper
supports (C) to the lower supports (H)
using the (M3/16) screws (AA).
The damper (B) is then assembled to the
upper supports (C) using the (M3/16)
screws (AA).
H
AA
J
4B
C
3. Unscrew any pre-installed (M3/16)
screws (AA) rst. Assemble the four
lower supports (H) to the base (J) and
middle plate (F) using the (M3/16)
screws (AA).
4. Unscrew any pre installed (M3/16)
screws(AA) rst. Assemble the four
upper supports (C) to the lower
supports (H) using the (M3/16) screws
(AA). The damper (B) is then assembled
to the upper supports (C) using the
(M3/16) screws (AA).

8
8
ASSEMBLY INSTRUCTIONS
5
6
5. Unscrew（M3/16) 4pcs screws from the
bottom of the middle plate(F). Install an
AA battery(EE) into the control box.
Assemble the control box(K) onto the bottom
of middle plate using the (M3/16) screws.
Note : The control knob is to face to the front
of the heater where the magnet is installed in
the middle plate.
6.
A
K
B
Screw the winning screws,washers and
the winning nuts to assemble the reflector(A)
into the damper(B).
5. Unscrew (M3/16) 4pcs screws from the
boom of the middle plate (F). Install
an AA baery (EE) into the control
box. Assemble the control box (K) onto
the boom of middle plate using the
(M3/16) screws. Note: The control
knob is to face to the front of the
heater where the magnet is installed in
the middle plate.
ASSEMBLY INSTRUCTIONS
6. Screw the winning screws, washers
and the winning nuts to assemble the
reector (A) into the damper (B).

9
9
ASSEMBLY INSTRUCTIONS
7
8
7. Carefully install the glass tube (E) by lifting
up and inserting through the center hole in
the upper plate. Ensure the rubber ring(GG)
is attached to the lower edge of the glass tube
as illustrated. Slide the glass tube through the
hole of the lower plate cover and onto the
middle plate. Check and ensure that
the glass tube is positioned properly and is
completely covering the center hole of the
middle plate.
8. Attach the wire guards(D) onto the heater
by inserting the hooks into the holes on the
frame, (ensure that all of the hooks engage).
Unscrew 4pcs screws from damper
Using the (M3/16) screws secure the guards
in place by fastening the fixing brackets (BB)
to the top of the upper plate and over top of
the guards as illustrated. Repeat this
procedure until all guards are installed.
WARNING! The rubber
ring must be in place
prior to operating the heater.
To aid in installation
place rubber
ring(GG) on the
middle plate and
then install glass tube.
Ensure the rim of
the glass tube sits
firmly in the rubber
ring.
GG
D
E
BB
ASSEMBLY INSTRUCTIONS

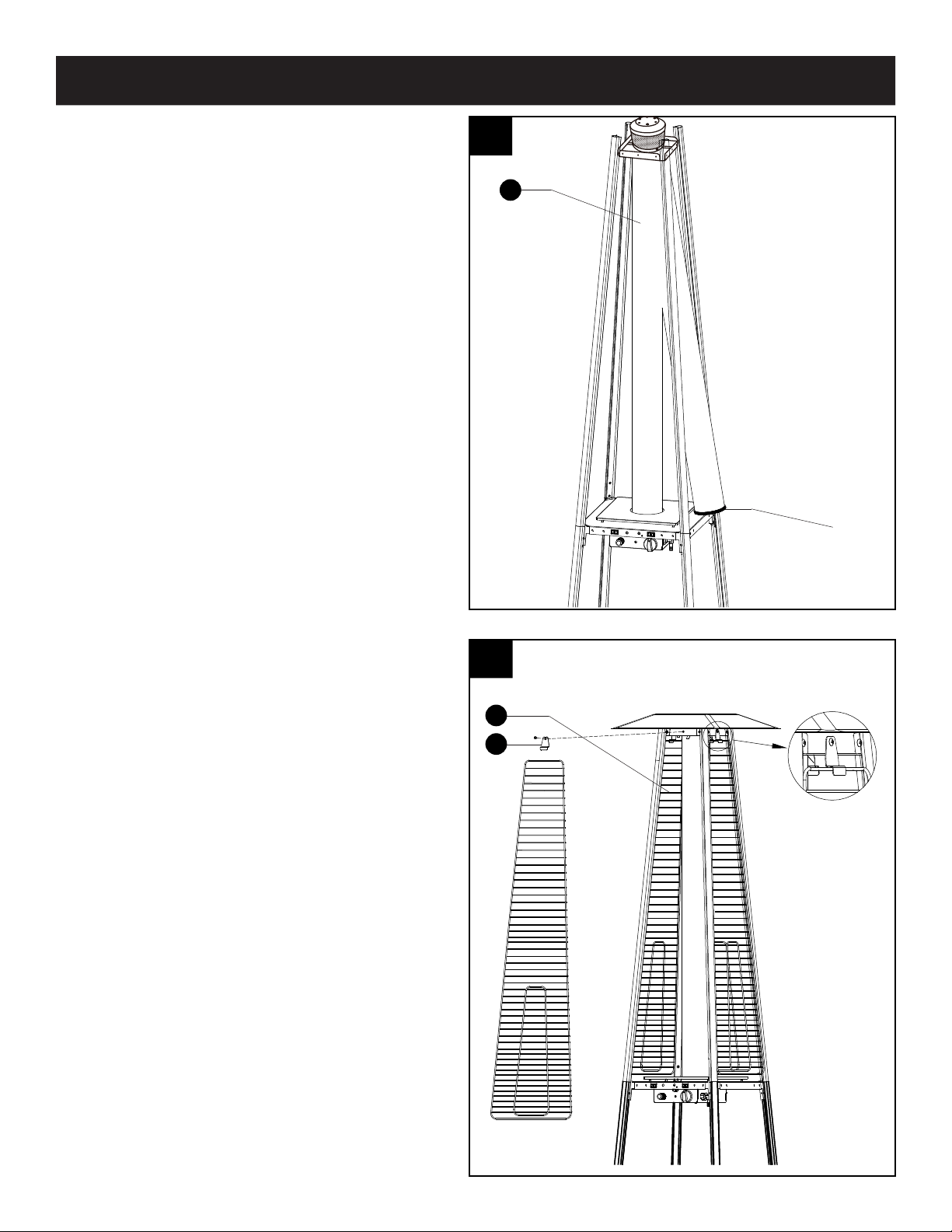

7. Carefully install the glass tube (E) by
liing up and inserng through the
center hole in the upper plate. Ensure
the rubber ring (GG) is aached to
the lower edge of the glass tube as
illustrated. Slide the glass tube through
the hole of the lower plate cover and
onto the middle plate. Check and
ensure that the glass tube is posioned
properly and is completely covering
the center hole of the middle plate.
8. Aach the wire guards (D) onto the
heater by inserng the hooks into
the holes on the frame (ensure that
all of the hooks engage). Unscrew
4pcs screws from damper using the
(M3/16) screws, secure the guards
in place by fastening the xing
brackets (BB) to the top of the upper
plate and over top of the guards as
illustrated. Repeat this procedure
unl all guards are installed.
WARNING! The rubber
ring must be in place prior
to operang the heater.

10
10
ASSEMBLY INSTRUCTIONS
9
10
9. Attach the three side panels (G) tothe
heater using the (M3/16) screws (AA).
Note :
1. M3/16 screws from Step 3 unscrewed
from lower supports.
2.Do not cover the front side where
the control knob is.
10. Screw the knob (CC) onto the front panel
(I). Attach the panel tothe heater by inserting
the two tabs into the slots on the base (J).
Hook the chain (which is preassembled
onto the front panel) into the hole in the front
of the control box. The chain will keep the
panel from falling forward while lighting
/operating your heater.
G
I
CC
ASSEMBLY INSTRUCTIONS

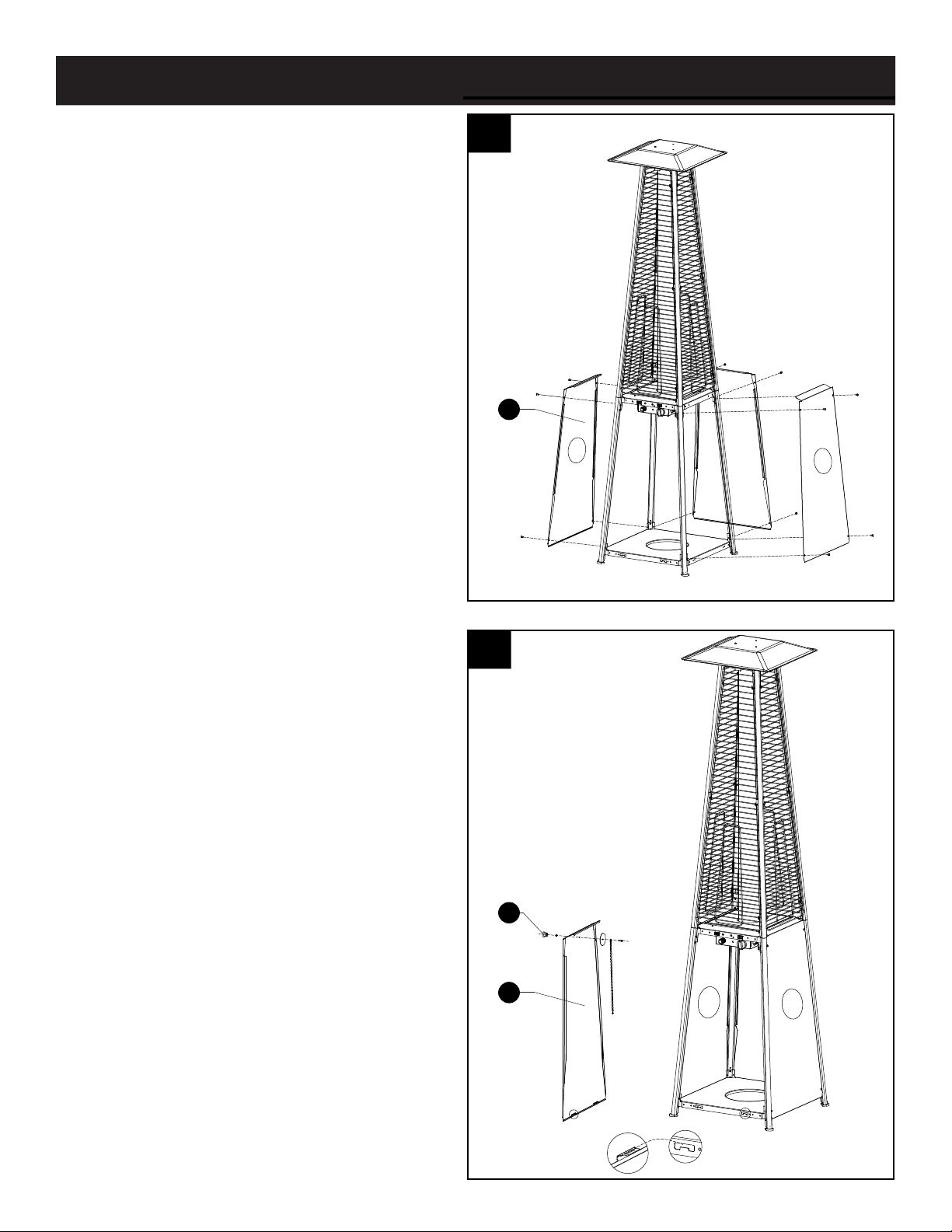

9. Aach the three side panels (G) to the
heater using the (M3/16) screws (AA).
1. M3/16 screws from Step 3
unscrewed from lower supports.
2. Do not cover the front side where
the control knob is.
10. Screw the knob (CC) onto the front
panel (I). Aach the panel to the heater
by inserng the two tabs into the slots
on the base (J). Hook the chain (which
is preassembled onto the front panel)
into the hole in the front of the control
box. The chain will keep the panel
from falling forward while lighng and
operang your heater.

11
11
ASSEMBLY INSTRUCTIONS
11
12
11
Connect the hose to the hose connector in the control box.
. Propane Only-Proper Hose Connection.
WARNING! Ensure the hose does not contact any high
temperature surfaces, or it may melt and leak causing
a
Always test the hose and connections for leak with soapy
water at the end of all connections.
fire.
12. Connect hose and regulator to cylinder.
The propane gas and cylinder are sold separately.
Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal
supply system. See chapter 12 of the standard for
storage and handling of liquefied petroleum gas,
ANSI/NFPA 58. Your local library or fire department
should have this book.
A minimum supply pressure of 0.4 p.s.i. is required for
the purpose of input adjustment for propane gas.
Storage of an appliance indoors is permissible only if
the cylinder is disconnected and removed from the
appliance.Acylinder must be stored outdoors in a
well-ventilated area out of the reach of children. A
disconnected cylinder must have dust caps tightly
installed and must not be stored in a building, garage
or any other enclosed area. The minimum permissible
gas supply pressure of 10 W.C. is required for purpose
of input adjustment. The minimum hourly of 17000Btu
is required input rating for a heater for automatic
operation at ratings less than full input rating. The
pressure regulator and hose assembly supplied with
the appliance must be used. The installation must
conform with local codes, or in the absence of local
codes,with national fuel gas code, ANSI Z223.1
/NFPA54, natural gas and propane Installation Code,
CSA B149.1, or propane storage and handling code,
B149.2.
Standard 20 lb. tank
ASSEMBLY INSTRUCTIONS

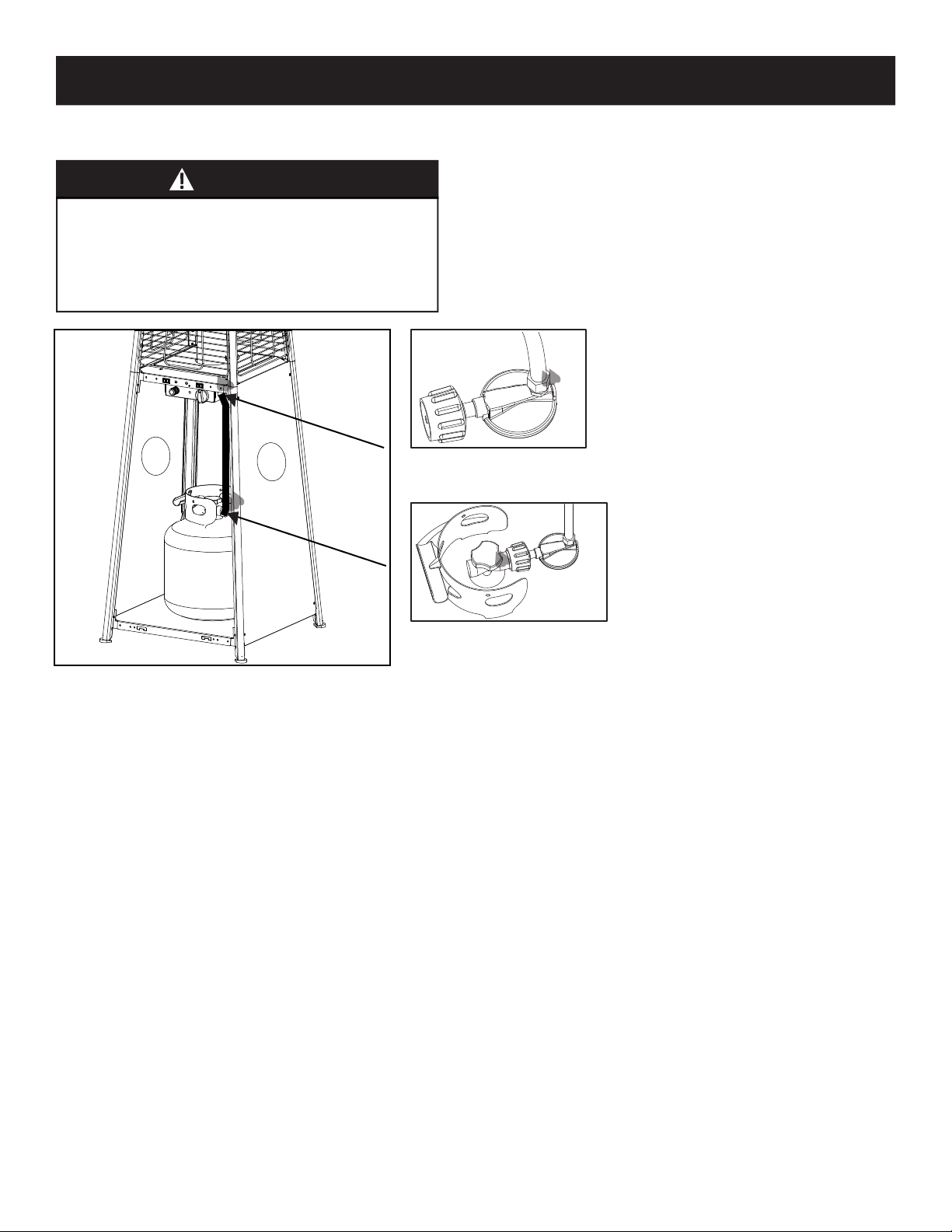

WARNING! Ensure the hose does not contact
any high temperature surfaces, or it may melt
and leak causing a re. Always test the hose
and connecons for leak with soapy water at
the end of all connecons.
11. Propane Only-Proper Hose Connecon. Connect
the hose to the hose connector in the control box.

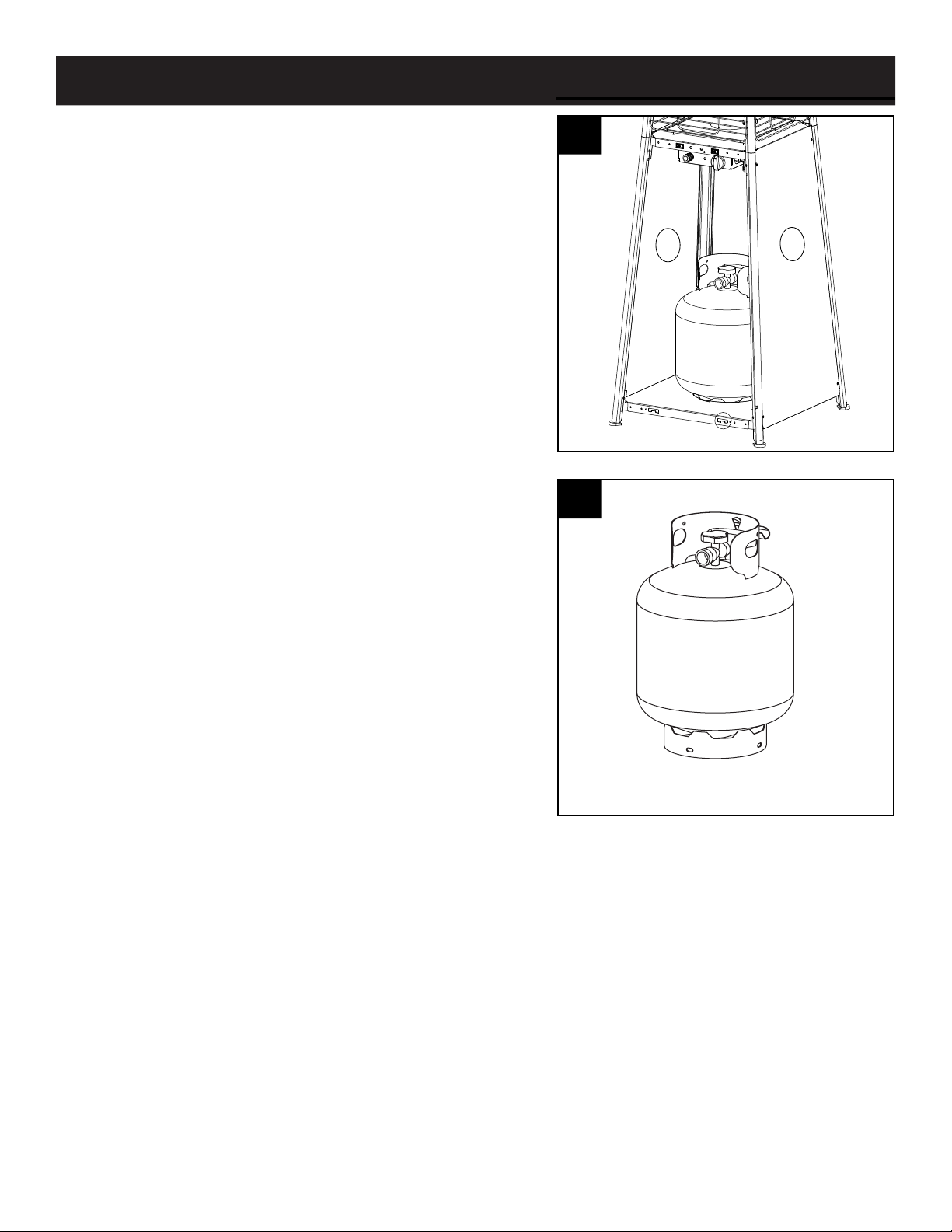

12. Connect hose and regulator to cylinder. The
propane gas and cylinder are sold separately. Use
a standard 20 lb. propane cylinder only. Use this
heater only with a propane vapor withdrawal
supply system. See chapter 12 of the standard
for storage and handling of liqueed petroleum
gas, ANSI/NFPA 58. Your local library or re
department should have this book. A minimum
supply pressure of 0.4 psi is required for the
purpose of input adjustment for propane gas.
Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed
from the appliance. A cylinder must be stored
outdoors in a well-venlated area out of the
reach of children. A disconnected cylinder must
have dust caps ghtly installed and must not be
stored in a building, garage or any other enclosed
area. The minimum permissible gas supply
pressure of 10 W.C. is required for purpose of
input adjustment. The minimum hourly of 17000
BTU is required input rang for a heater for
automac operaon at rangs less than full input
rang. The pressure regulator and hose assembly
supplied with the appliance must be used. The
installaon must conform with local codes, or
in the absence of local codes, with naonal
fuel gas code, ANSI Z223.1/NFPA54, natural gas

12
12
ASSEMBLY INSTRUCTIONS
A dented, rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and marked
in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention
device.
The cylinder must have a connection device compatible
with the connection for the appliance.
The cylinder used must include a collar to protect the
cylinder valve.
Never connect an unregulated propane cylinder tothe
heater.
Attach regulator tocylinder.Complete attachment.
Install cylinder.
Do not store a spare LP-gas cylinder under or near this appliance;
Never fill the cylinder beyond 80 percent full;
“Place the dust cap on the cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage of propane.”
ASSEMBLY INSTRUCTIONS
and propane Installaon Code, CSA B149.1, or
propane storage and handling code, B149.2.
A dented, rusted or damaged propane cylinder
may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder
with a damaged valve connecon.
The propane cylinder must be constructed and
marked in accordance with the specicaons
for LP gas cylinders of the U.S. Department
of Transportaon (DOT) or the standard for
cylinders, spheres and tubes for transportaon
of dangerous goods and commission, CAN/
CSA-B339. The cylinder must have a listed
overlling prevenon device. The cylinder must
have a connecon device compable with the
connecon for the appliance.
The cylinder used must include a collar to protect
the cylinder valve.
Never connect an unregulated propane cylinder
to the heater.
Aach regulator to cylinder. Complete aachment.
Install cylinder.
• Do not store a spare LP-gas cylinder under or near this appliance;
• Never ll the cylinder beyond 80 percent full;
• Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on the cylinder valve that is provided with the
cylinder valve. Other type of caps or plugs may result in leakage of propane.

13
OPERATION INSTRUCTIONS
LEAK CHECK
1. Make 2-3 oz. of leak check soluon (one part liquid dishwashing detergent and three parts
water).
2. Apply several drops of soluon where hose aaches to regulator.
3. Apply several drops of soluon where regulator connects to cylinder.
4. Make sure all pao heater and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connecon, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connecon: ghten connecon and perform another leak test. If
bubbles connue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connecon: disconnect, reconnect, and perform another
leak check. If you connue to see bubbles aer several aempts, cylinder valve is defecve
and should be returned to cylinder’s place of purchase. If NO bubbles appear at any
connecon, the connecons are secure. NOTE: Whenever gas connecons are loosened or
removed, you must perform a complete leak test.
4. Complete installaon.
13
OPERATION INSTRUCTIONS
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all patio heater and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
4. Complete installation.
Regulator / Cylinder
connection
Hose / Regulator
connection
WARNING
• Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the heater until all connections have been
leak tested and do not leak.
• Perform all leak tests outdoors.
• Exnguish all open ames.
• NEVER leak test when smoking.
• Do not use the heater unl all connecons have been
leak tested and do not leak.
WARNING
13
OPERATION INSTRUCTIONS
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all patio heater and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
4. Complete installation.
Regulator / Cylinder
connection
Hose / Regulator
connection
WARNING
• Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the heater until all connections have been
leak tested and do not leak.

14
OPERATION INSTRUCTIONS
Cauon: Do not aempt to operate unl you have read and understand all General Safety
Informaon in this manual and all assembly is complete and leak checks have been performed.
• CARBON MONOXIDE HAZARD
• For outdoor use only. Never use inside house, or
other unvenlated or enclosed areas. This heater
consumes air (oxygen). Do not use in unvenlated or
enclosed areas to avoid endangering your life.
WARNING
Before Turning Gas Supply ON:
1. Your heater was designed and approved for outdoor use only. Do NOT use it inside a
building, garage, or any other enclosed area.
2. Make sure surrounding areas are free of combusble materials, gasoline, and other
ammable vapors or liquids.
3. Ensure that there is no obstrucon to air venlaon. Be sure all gas connecons are ght
and there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during
assembly or servicing is replaced and fastened prior to starng.
Before Lighng:
1. Heater should be thoroughly inspected before each use, and by a qualied service person at
least annually. If relighng a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operaon. Only use the
replacement hose assembly specied by manufacturer.
LIGHTING INSTRUCTIONS
Check and ensure that an AA baery is inside the ignion
chamber and has power.
Ensure the anode(+) faces outside.
1. Ensure that the control knob is OFF. Slowly open the
gas cylinder valve.
2. Press and turn the control knob to LIGHT posion,
push the igniter to generate spark while keeping
control knob in pressed posion
3. Check for pilot ame through glass tube. If pilot does not light, turn control knob to ‘OFF’
posion wait two minutes minimum and try again from the start. Several aempts may be
necessary.

15
OPERATION INSTRUCTIONS
4. If the pilot lights, keep control knob pressed for 15 seconds then
turn the control knob to ‘LOW’.
5. For maximum heat, turn control knob to ‘HIGH’.
6. To turn heater o, turn control knob to ‘OFF’.
7. Close the vlave of the gas cylinder or the regulator aer use.
15
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE:
3.Check for pilot flame through glass tube. If pilot does
not light, turn control knob to ‘OFF’ position wait two
minutes minimum and try again from the start. Some
attempts may be necessary.
4.If the pilot alight, keep control knob pressed for 15
seconds then turn the control knob to ‘LOW’.
5.For maximum heat turn control knob to ‘HIGH’.
6.To turn heater off, turn control knob to ‘OFF’.
7.Close the vlave of the gas cylinder or the regulator after
use.
OFF
LIGHT
LOW
HIGH
OFF
LO
HI
To enjoy outstanding performance of your heater for years make sure to perform the following
maintenance activities on a regular basis:
● Keep exterior surfaces clean.
-Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners.
-While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all
time. If the gas control is exposed to water in any way, do NOT try to use it. It must be replaced.
● After a long break from operation, the unit should be inspected for spiders, spider webs or other
insects.
● Air flow must be unobstructed. Keep controls. Burner and circulating air passageways clean.
Signs of possible blockage include:
-Gas odour with extreme yellow tipping of flame.
-Heater does NOT reach the desired temperature.
-Heater glow is excessively uneven.
-Heater makes popping noises.
● Spider and insects can nest in burner or orifices.
This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by
using a heavy-duty pipe cleaner.
Compressed air may help clear away smaller particles.
● Carbon deposits may create a fire hazard. Clean reflector and glass tube inside with soapy water
if any carbon deposits develop. Always be careful when cleaning the glass tube.
CLEANING AND MAINTENANCE
To enjoy outstanding performance of your heater for years, make sure to perform the following
maintenance acvies on a regular basis:
• Keep exterior surfaces clean.
• Use warm soapy water for cleaning. Never use ammable, corrosive or abrasive cleaners.
• While washing your unit, be sure to keep the area around the burner and pilot assembly
dry at all me. If the gas control is exposed to water in any way, do NOT try to use it. It
must be replaced.
• Aer a long break from operaon, the unit should be inspected for spiders, spider webs or
other insects.
• Air ow must be unobstructed. Keep controls, burner, and circulang air passageways clean.
SIGNS OF POSSIBLE BLOCKAGE INCLUDE:
• Gas odor with extreme yellow pping of ame.
• Heater does NOT reach the desired temperature.
• Heater glow is excessively uneven.
• Heater makes popping noises.
• Spider and insects can nest in burner or orices. This dangerous condion can damage
heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner.
Compressed air may help clear away smaller parcles.
• Carbon deposits may create a re hazard. Clean reector and glass tube inside with soapy
water if any carbon deposits develop. Always be careful when cleaning the glass tube.

16
OPERATION INSTRUCTIONS
STORAGE:
Between uses:
• Turn the control knob to “OFF” posion.
• Turn LPG cylinder to “OFF” posion.
• Store heater upright in an area sheltered away from weather condions (such as rain, sleet,
hail, snow).
• If desired, cover heater to protect exterior surfaces and to help prevent dust and debris
collecng in air passages.
During periods of extended inacvity or when transporng:
• Turn the control knob to “OFF” posion.
• Disconnect LPG Cylinder and move to a secure, well-venlated locaon outdoors. DO NOT
store in a locaon that will exceed 50 degrees C (122°F).
• Store heater upright in an area sheltered away from weather condions (such as rain, sleet,
hail, snow).
• If desired, cover heater to protect exterior surfaces and to help prevent dust and debris
collecng in air passages.
FOR YOUR SAFETY:
• DO NOT touch or move heater for at least 45 minutes
aer use.
• Allow all burner elements to cool before touching.
WARNING
In a salt-air environment (such as near an Ocean)
corrosion occurs more quickly than normal.
• Frequently check for corroded areas and repair them
promptly.
• Wait unl heater is cool before covering.
NOTE

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Pilot won’t light
Note: Heater operates at
reduced eciency below
40ºF (5ºC)
Cylinder valve is closed Open valve
Blockage in orice or pilot
tube
Clean or replace orice or
pilot tube
Air in gas line
Open gas line and bleed it
(pressing control knob in) for
not more than 1 - 2 minutes
or unl you smell gas
Low gas pressure with
cylinder valve fully open
Turn cylinder valve OFF and
replace cylinder
Igniter fails Use match to light pilot;
obtain new igniter and replace
Pilot won’t stay lit
Dirt built up around pilot Clean dirt from around pilot
Connecon between gas valve
and pilot assembly is loose
Tighten connecon and
perform leak check
Thermocouple is not
operang correctly Replace thermocouple
Burner won’t light
Propane cylinder is frosted
over
Wait unl the propane
cylinder warms up and
becomes unfrosted
Blockage in orice Clear blockage
Control knob is not in ON
posion Turn control knob to ON
Burner ame is low
Gas pressure is low Turn cylinder valve OFF and
replace cylinder
Outdoor temperature is less
than 40ºF and tank is less
than 1/4 full
Use a full cylinder
Control knob fully ON Check burner and orices for
blockage
Carbon build-up
Dirt or lm on reector and
burner screen
Clean reector and burner
screen
Thick black smoke Remove blockage and clean
burner inside and outside

18
EQUIPMENT LIMITED WARRANTY
To Make a Warranty Claim:
For Warranty Inquiries contact the location where you purchased the product:
• WebstaurantStore.com: Contact [email protected]. Please have your order number ready.
• The Restaurant Store: If you purchased this unit from your local store, please contact your store directly.
• TheRestaurantStore.com: Online purchases, call 717-392-7261. Please have your order number ready.
Failure to contact the designated location prior to obtaining equipment service may void your warranty.
Backyard Pro makes no other warranties, express or implied, statutory or otherwise, and HEREBY DISCLAIMS ALL
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A
PARTICULAR PURPOSE.
This Limited Warranty does not cover:
• Equipment sold or used outside the Continental United States
• Backyard Pro has the sole discretion on wearable parts not covered under warranty
• Equipment not purchased directly from an authorized dealer
• Equipment that has been altered, modied, or repaired by anyone other than an authorized service agency
• Equipment where the serial number plate has been removed or altered.
• Damage or failure due to improper installation, improper utility connection or supply, and issues resulting from
improper ventilation or airow.
• Defects and damage due to improper maintenance, wear and tear, misuse, abuse, vandalism, or Act of God.
Any action for breach of this warranty must be commenced within 30 days of the date on which the breach occurred.
No modication of this warranty, or waiver of its terms, shall be effective unless approved in a writing signed by the parties.
The laws of the Commonwealth of Pennsylvania shall govern this warranty and the parties’ rights and duties under it.
Backyard Pro shall not under any circumstances be liable for incidental or consequential damages of any kind, including but
not limited to loss of prots.
Backyard Pro warrants its equipment to be free from defects in material and workmanship for a period of 30 days. This is the
sole and exclusive warranty made by Backyard Pro covering your Backyard Pro brand equipment. A claim under this warranty
must be made within 30 days from the date of purchase of the equipment. Only the equipment’s original purchaser may make
a claim under this warranty. Backyard Pro reserves the right to approve or deny the repair or replacement of any part or repair
request. The warranty is not transferable.
